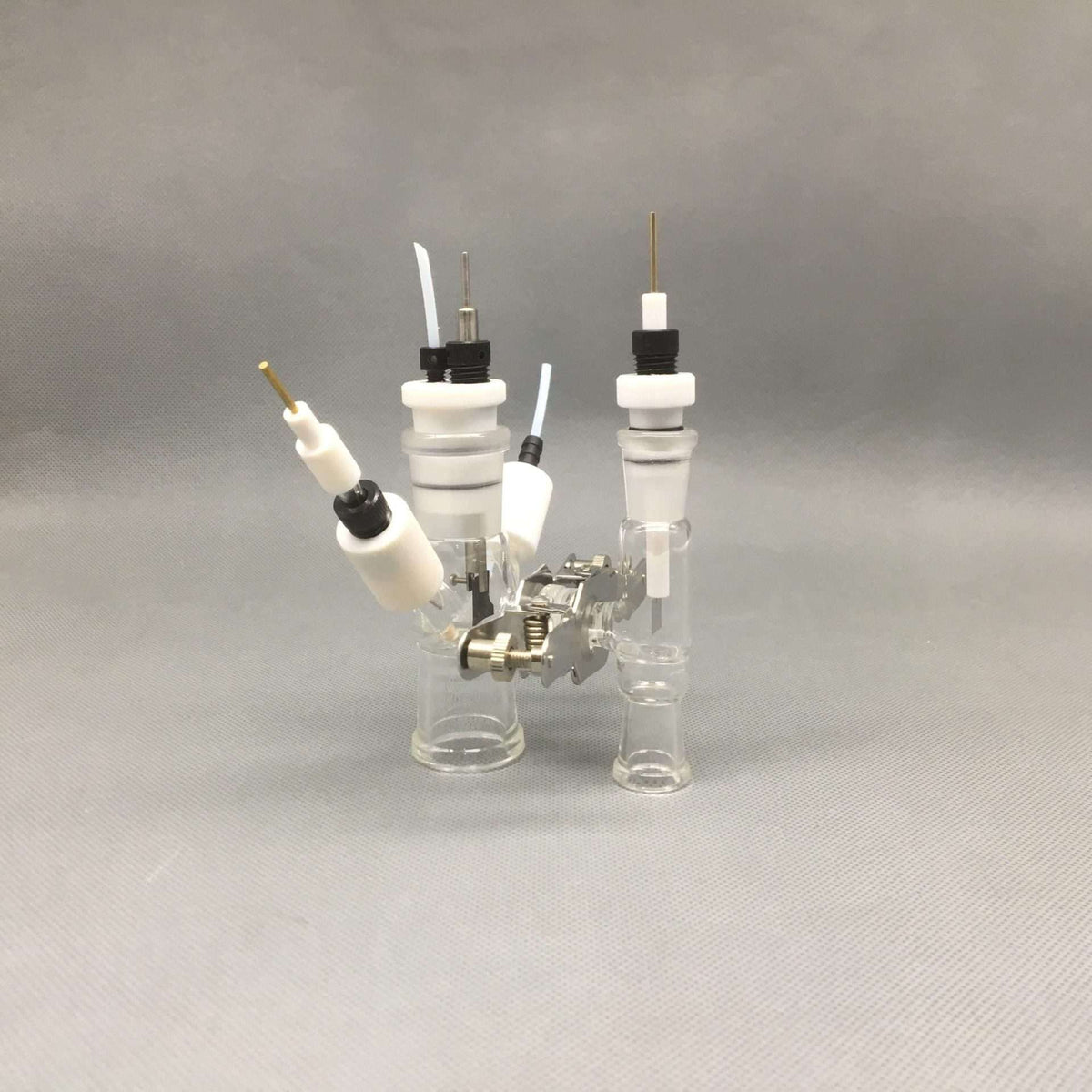

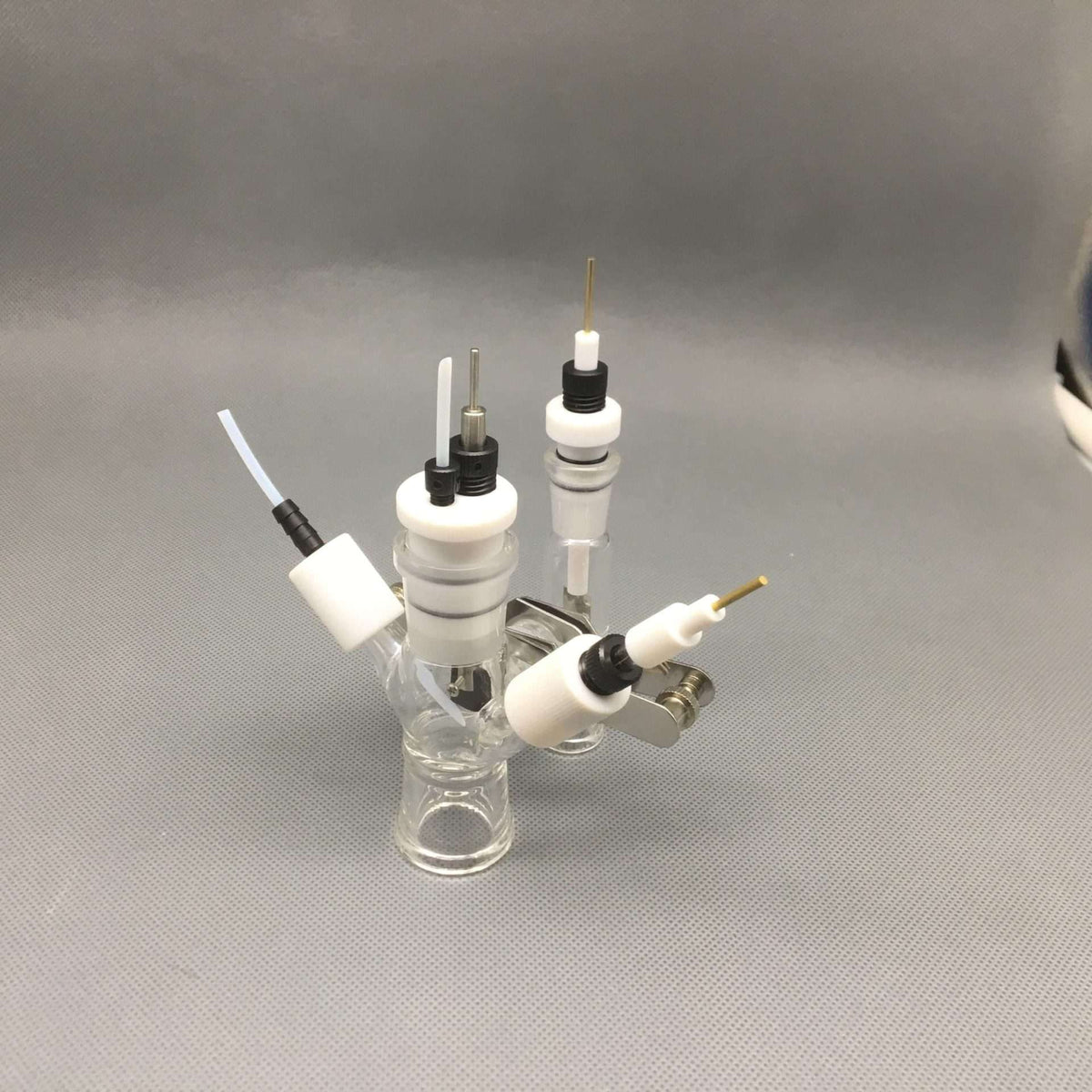

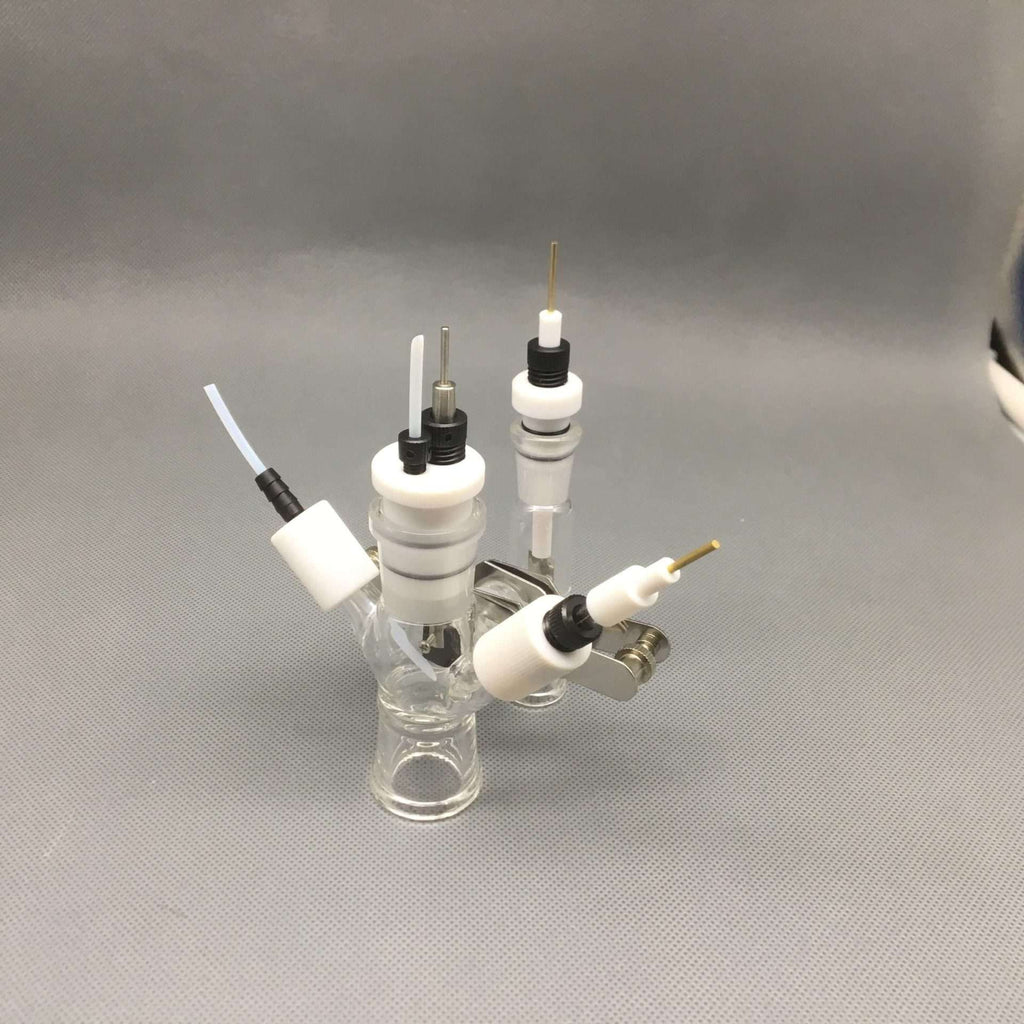

Dual-chamber H-cell electrochemical reactor designed for low-volume experiments. Constructed with high-quality borosilicate glass and PTFE lids for excellent chemical resistance and sealing. Ideal for electrochemical, catalytic, and analytical research applications.

Key Features:

  • Includes 4 PTFE lids and 2 borosilicate glass (3.3) cells

  • Equipped with 2 stainless steel clamps for secure assembly

  • 5 sealing screws: 3 for electrode holes and 2 for gas holes

  • 5 O-ring sealings: 3 for electrode holes and 2 for gas holes

  • Reliable dual-chamber membrane design for controlled reactions

Volumes of a chamber in ml Working Chamber inner Size (Diameter x Height in mm)? Counter Chamber inner Size (Diameter x Height in mm)? ?Electrodes Holes (Quantity x Diameter in mm) Gas Holes (Quantity x Diameter in mm) Diameter of?Membrane channel?in mm
15ml-5?ml ??23?x?35 mm ??13?x?35?mm 3?x???6.2 mm 2?x???3.1 mm 10?mm
15ml-15?ml ??23?x?35 mm ??23?x?35?mm 3?x???6.2 mm 2?x???3.1 mm 10?mm
