7-Hole Dual Chamber H-Cell Membrane Low Volume Electrochemical Reactor
  • 7-Hole Dual Chamber H-Cell Membrane Low Volume Electrochemical Reactor
  • 7-Hole Dual Chamber H-Cell Membrane Low Volume Electrochemical Reactor
  • 7-Hole Dual Chamber H-Cell Membrane Low Volume Electrochemical Reactor
  • 7-Hole Dual Chamber H-Cell Membrane Low Volume Electrochemical Reactor
7-Hole Dual Chamber H-Cell Membrane Low Volume Electrochemical Reactor

7-Hole Dual Chamber H-Cell Membrane Low Volume Electrochemical Reactor

$525.00
$525.00
Capacity5 ml - 5 ml

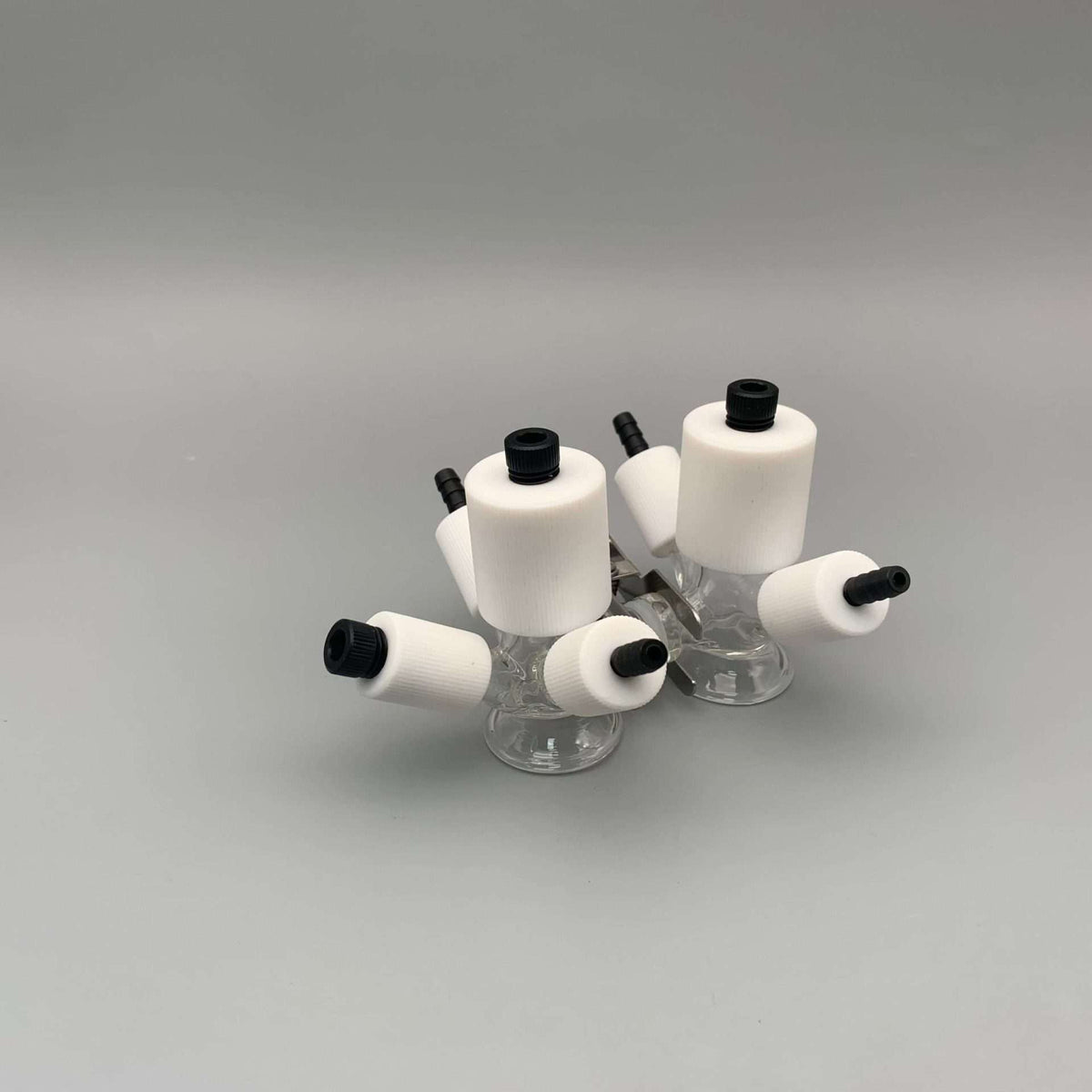

This dual-chamber H-cell membrane electrochemical reactor is designed for precise and low-volume laboratory experiments. Made of durable borosilicate glass (3.3) with chemically resistant PTFE lids, it ensures secure sealing and stable operation for electrochemical, catalytic, and analytical research applications.

Key Features:

  • Includes 7 PTFE lids and 2 borosilicate glass (3.3) cells

  • Equipped with 2 stainless steel clamps for reliable sealing

  • 7 sealing screws: 3 for electrode holes and 4 for gas holes

  • 7 O-ring sealings: 3 for electrode holes and 4 for gas holes

  • Dual-chamber design allows controlled membrane-based experiments

Volumes of a chamber in ml Chamber inner Size (Diameter x Height in mm) Electrodes Holes (Quantity x Diameter in mm) Gas Holes (Quantity x Diameter in mm) Diameter of Membrane channel in mm
5ml -5 ml 16?x40 mm 3×6.2 mm 4×3.1 mm 10mm
