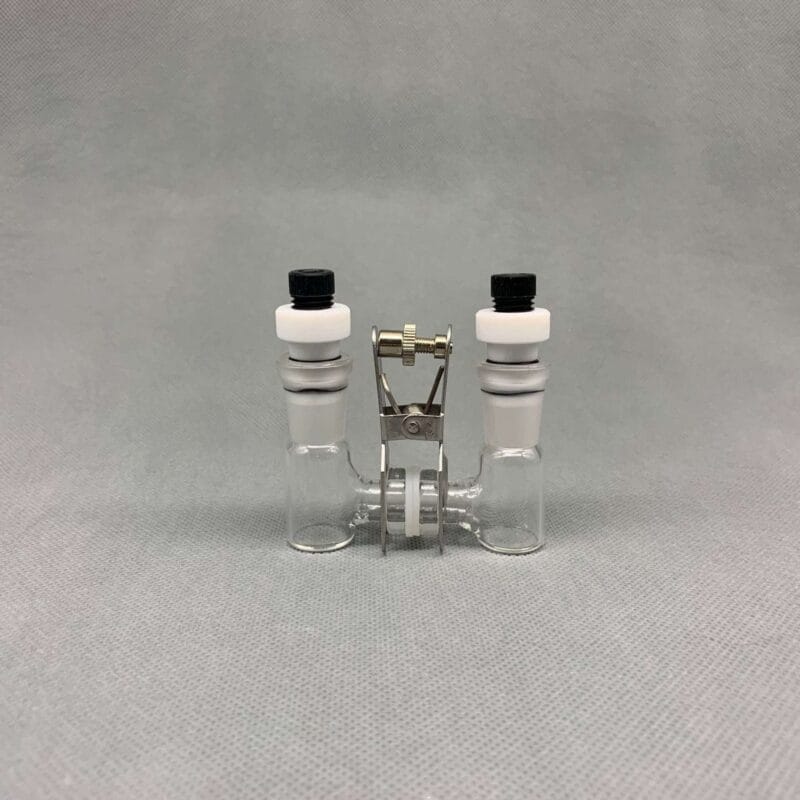

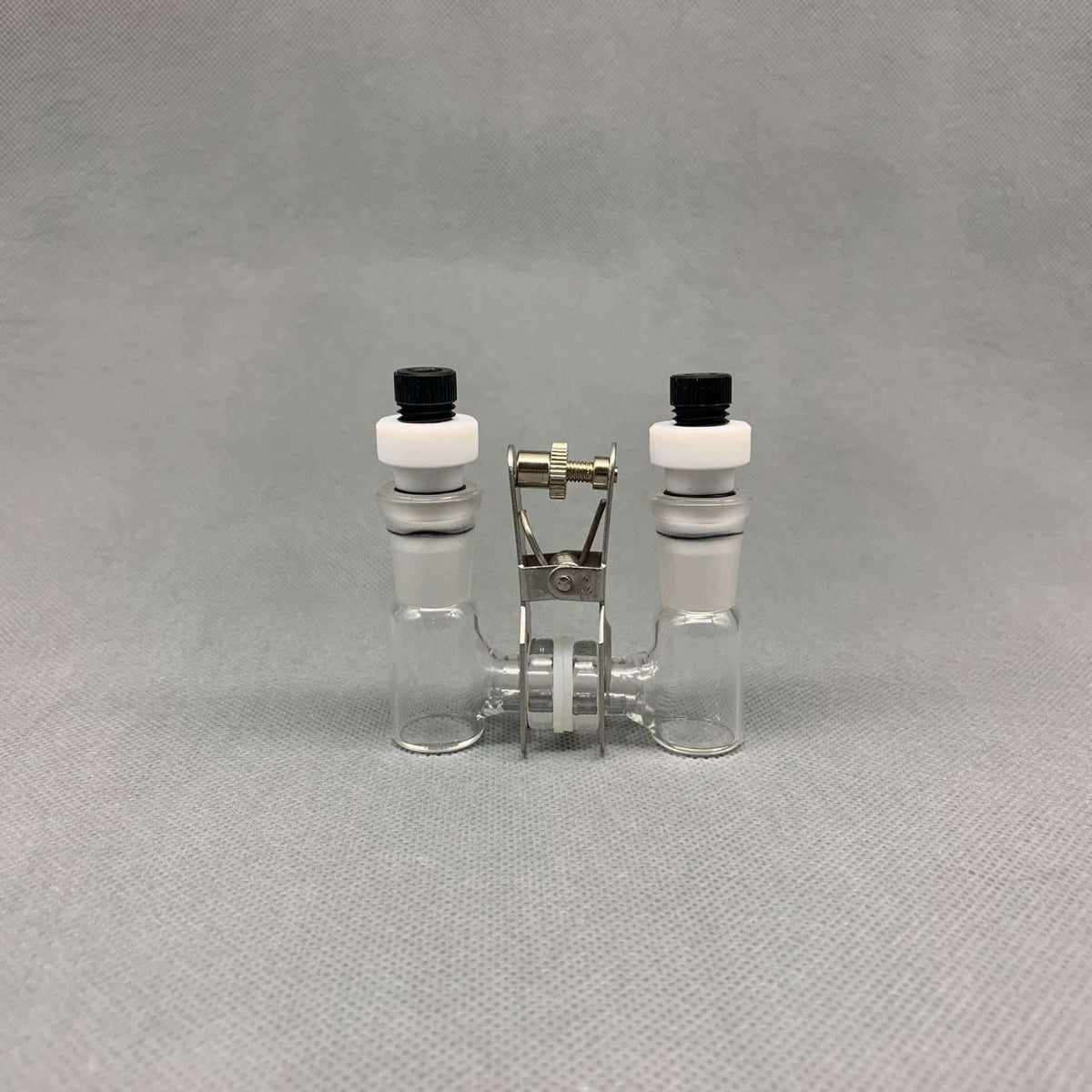

Dual chamber H-cell membrane low volume electrochemical reactor, capacity 5 to 30 ml

Dual chamber H-cell membrane low volume electrochemical reactor, capacity 5 to 30 ml

5 ml - 5 ml
$200.00
$200.00
Skip to product information
Dual chamber H-cell membrane low volume electrochemical reactor, capacity 5 to 30 ml
  • Dual chamber H-cell membrane low volume electrochemical reactor, capacity 5 to 30 ml
  • Dual chamber H-cell membrane low volume electrochemical reactor, capacity 5 to 30 ml
  • Dual chamber H-cell membrane low volume electrochemical reactor, capacity 5 to 30 ml
  • Dual chamber H-cell membrane low volume electrochemical reactor, capacity 5 to 30 ml
Dual chamber H-cell membrane low volume electrochemical reactor, capacity 5 to 30 ml

Dual chamber H-cell membrane low volume electrochemical reactor, capacity 5 to 30 ml

$200.00
$200.00
Capacity

? ? ? Delivery list:

  • 2 PTFE Lid
  • 2 cells made of Boro. 3.3 glass
  • 2 stainless steel clamp
  • 2?O-Ring sealings
Volumes of a chamber in ml

Chamber inner Size (Diameter x Height in mm)?

?Electrodes Holes (Quantity x Diameter in mm)

 Diameter of?Membrane channel?in mm
5?ml – 5?ml ??13?x?28 mm 2?x???6.2 mm 10?mm
10?ml?-?10?ml ??18?x?31 mm 2?x???6.2 mm 10?mm
20?ml?-?20?ml ??18?x?43 mm 2?x???6.2 mm 15 mm
30?ml?-?30?ml ??23?x?58 mm 2?x???6.2 mm 15 mm
