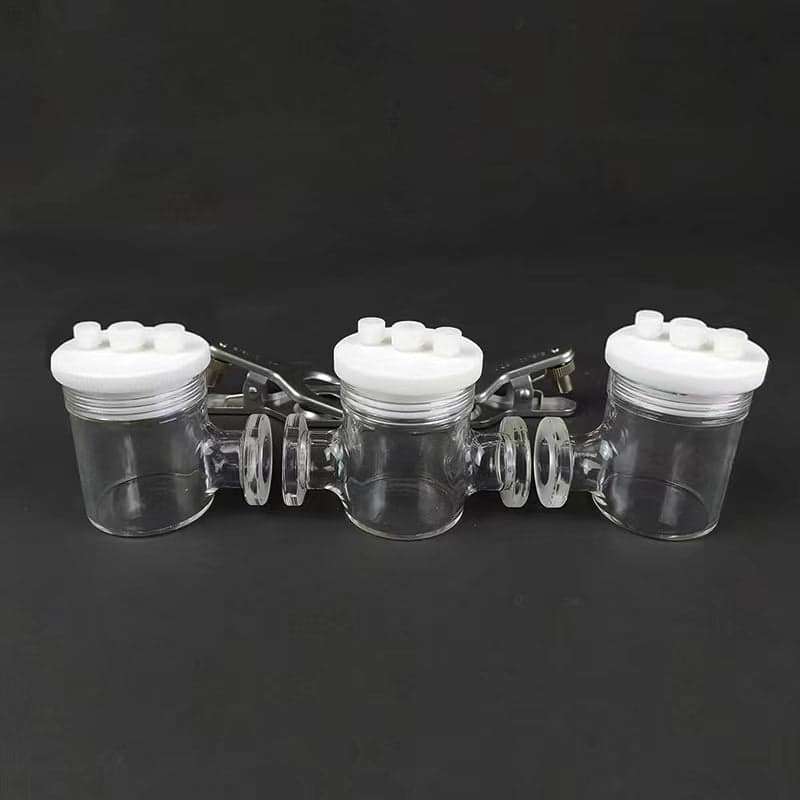

Triple chamber H-cell membrane sealed electrochemical reactor, capacity 30 to 500 ml
Triple chamber H-cell membrane sealed electrochemical reactor, capacity 30 to 500 ml
Triple-chamber H-cell electrochemical reactor with membrane-sealed design, ideal for advanced electrochemical experiments such as ion exchange, redox reactions, or microbial fuel cell studies. Each chamber is constructed from chemical-resistant borosilicate glass 3.3 and sealed using PTFE lids and O-rings for leak-proof performance. Multiple ports allow flexible setup for electrodes and gas flow.
Key Features:
Capacity: 30 to 500 ml per chamber
Material: Borosilicate Glass 3.3
Includes 3 PTFE lids
9 sealing screws: 3 electrode ports, 6 gas ports
12 O-ring sealings: for chamber, electrode, and gas ports
2 stainless steel clamps for secure assembly
6 gas inlet tubes included
Designed for membrane-sealed electrochemical applications
| Volumes of a chamber in ml | Chamber Size (Diameter x Height in mm) | Electrodes Holes (Quantity x Diameter in mm) | Gas Holes (Quantity x Diameter in mm) | Diameter of Membrane channel in mm |
| 30ml – 30ml-30ml | Φ35 x40 mm | 3xΦ6.2 mm | 6xΦ3.1 mm | 15 mm |
| 50ml-50ml-50ml | Φ45 x40 mm | 3xΦ6.2 mm | 6xΦ3.1 mm | 15 mm |
| 100ml-100ml-100ml | Φ50×60 mm | 3xΦ6.2 mm | 6xΦ3.1 mm | 15 mm |
| 150ml-150ml-150ml | Φ60×62 mm | 3xΦ6.2 mm | 6xΦ3.1 mm | 15 mm |
| 200ml-200ml-200ml | Φ60x80mm | 3xΦ6.2 mm | 6xΦ3.1 mm | 15 mm |
| 250ml-250ml-250ml | Φ70×74 mm | 3xΦ6.2 mm | 6xΦ3.1 mm | 15 mm |
| 300ml-300ml-300ml | Φ70x88mm | 3xΦ6.2 mm | 6xΦ3.1 mm | 15 mm |
| 500ml-500ml-500ml | Φ90×90 mm | 3xΦ6.2 mm | 6xΦ3.1 mm | 15 mm |
