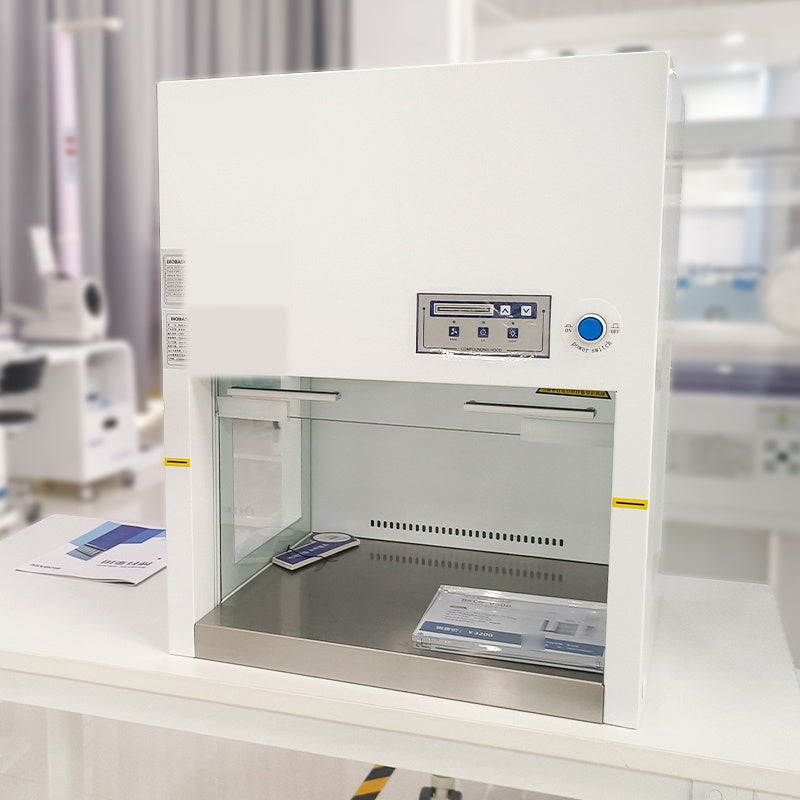

Small Size Vertical Table Top Laminar Flow Cabinet

Table-top vertical laminar flow cabinet, a single-user workstation providing an ISO Class 5 clean environment for laboratory use.

Key Features:

• Vertical laminar flow with adjustable airflow velocity (0.2–0.45 m/s)
• Low noise (≤65 dB(A)) with alarm system
• 304 stainless steel work zone, easy to clean
• Liftable tempered glass front window; fan stops automatically when the window is raised above the safety height (200 mm)
• HEPA high-efficiency filtration

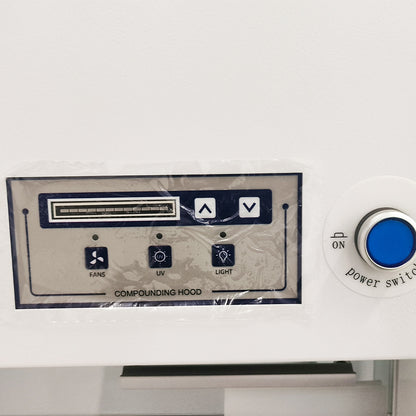

• LCD display with interlocked UV lamp, fluorescent lamp, front window, and fan
• Scheduled on/off timer
• Alarm system: UV lamp failure, airflow out of range, filter replacement reminder, front window above safety height, high temperature

Specifications:

• Cleanliness: ISO Class 5
• Airflow velocity: 0.2–0.45 m/s (adjustable)
• Noise: ≤65 dB(A)
• Lighting: ≥300 lx
• Vibration amplitude: ≤5 μm (rms)
• Bacterial colonies: ≤0.5 CFU/30 min
• Front window safety height: 200 mm; max opening: 260 mm
• External dimensions: 840 × 620 × 1200 mm
• Internal dimensions: 670 × 460 × 570 mm
• Power consumption: 200 W
• Power supply: AC single phase 110/220 V ±10%, 50/60 Hz
• Weight: 118 kg
• Package size: 930 × 750 × 1350 mm
• Warranty: 1 year
