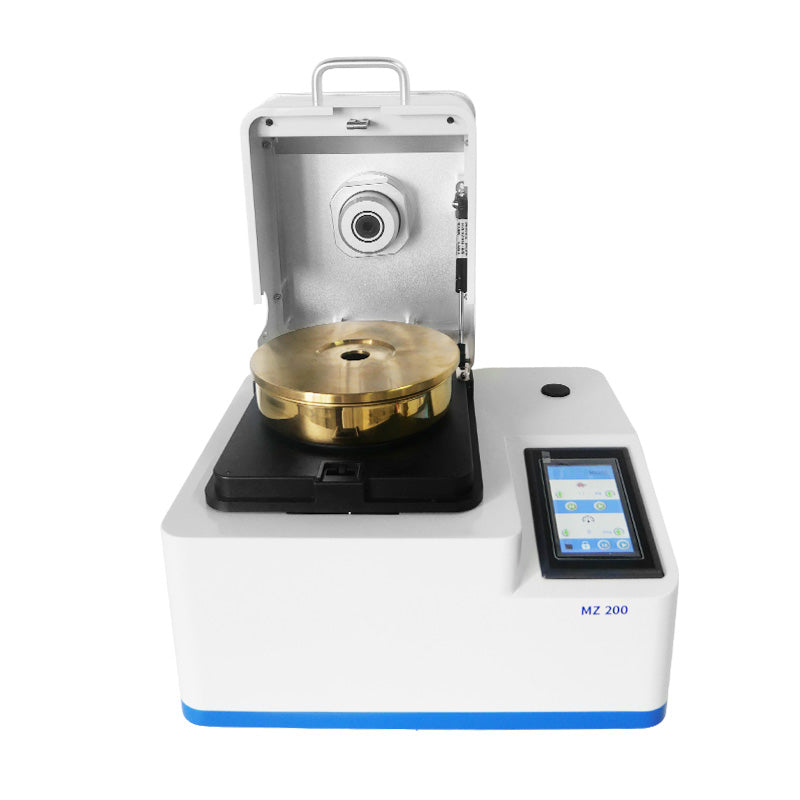

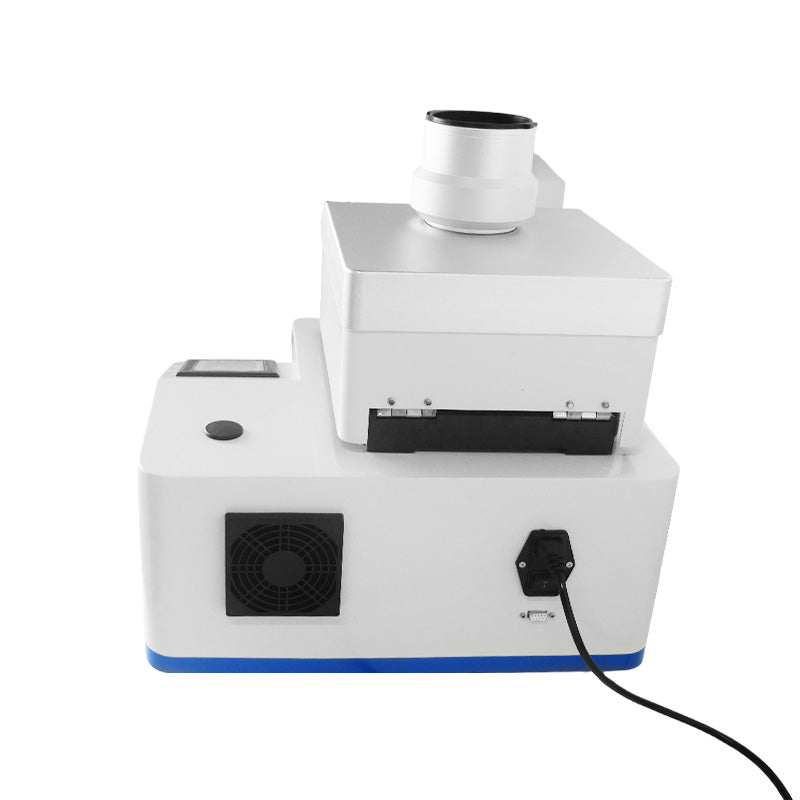

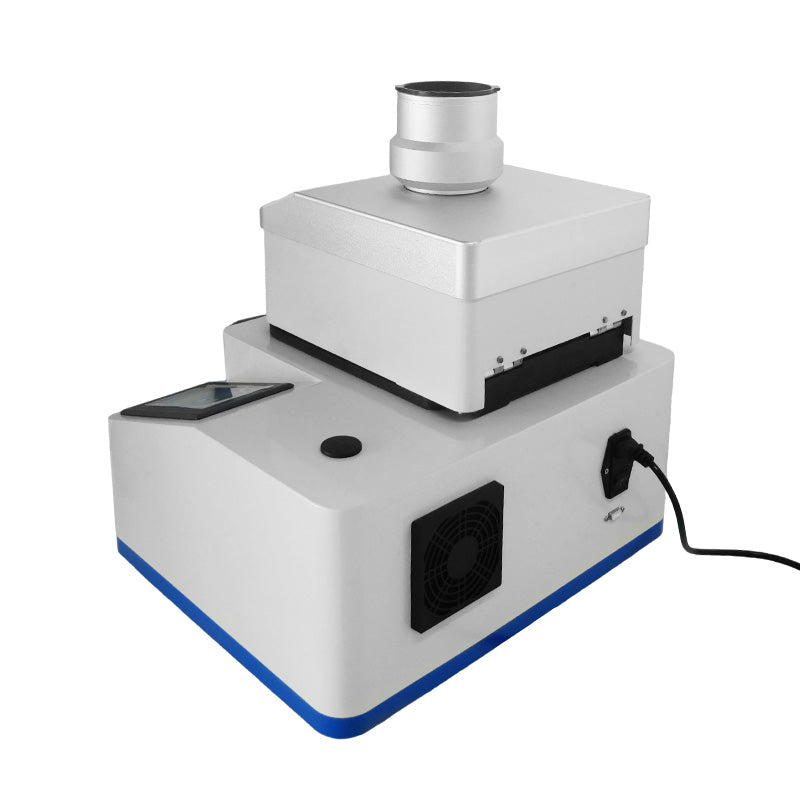

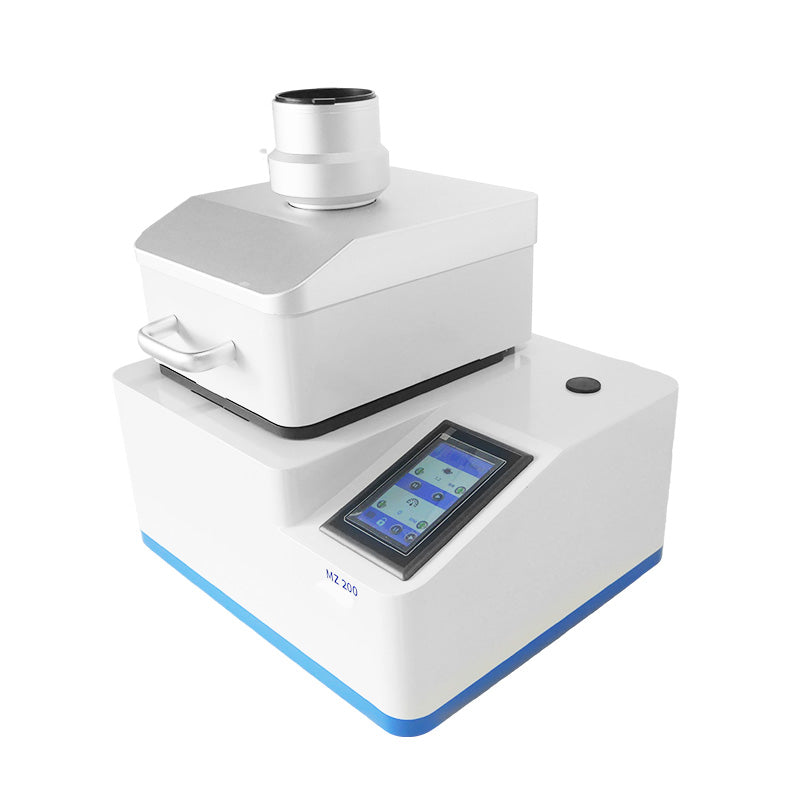

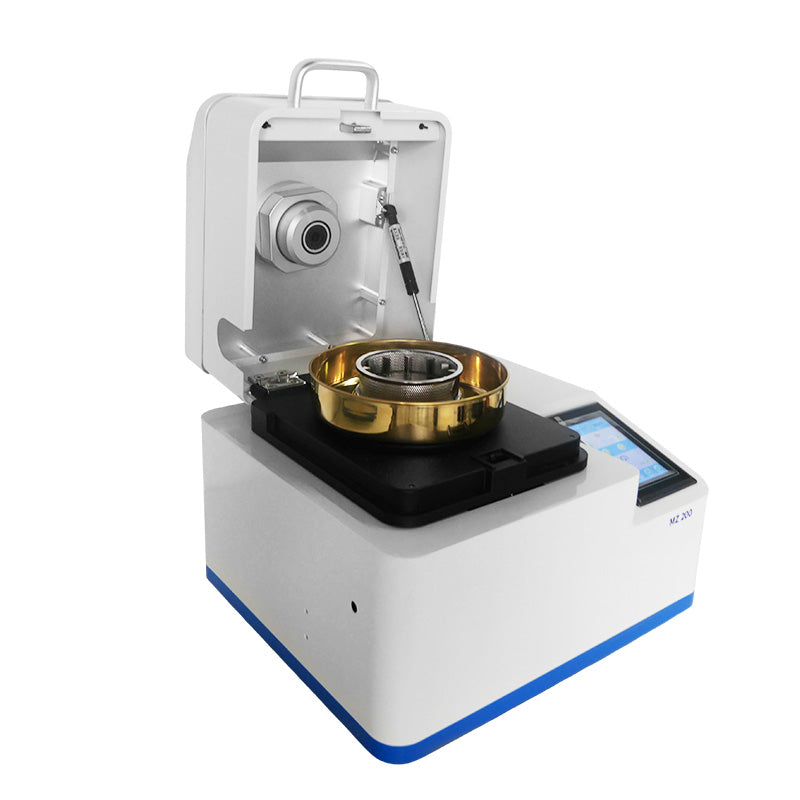

Centrifugal Mill ALAB-MZ-200-AL

The Centrifugal Mill ALAB-MZ-200-AL is a laboratory centrifugal mill.

Specifications

• Type: Pulverizer
• Material: Stainless Steel
• Voltage: 220 V
• Dimensions: 380*480*490mm
• Power (Kw): 3
• Output (Kg/H): 1-10
• Application: Fine grinding
• Range Of Spindle Speed(R.P.M): 6000 - 18000
• Power Source: Electric
• Sample Type: Soft, moderately hard, brittle, fibrous
• Feed Size: <10mm
• Discharge Size: d90 <40 um
• Standard Receiving Container: 900 ml
• Rotary Dust Collector: 50ml-5L
• Speed: 6,000 to 18,000min-1
• Rotary Cutter Diameter: 98mm
• Blade Circumferential Speed: 31 to 93m/s
• Screen Mesh Specification: 0.08 to 2mm

Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
