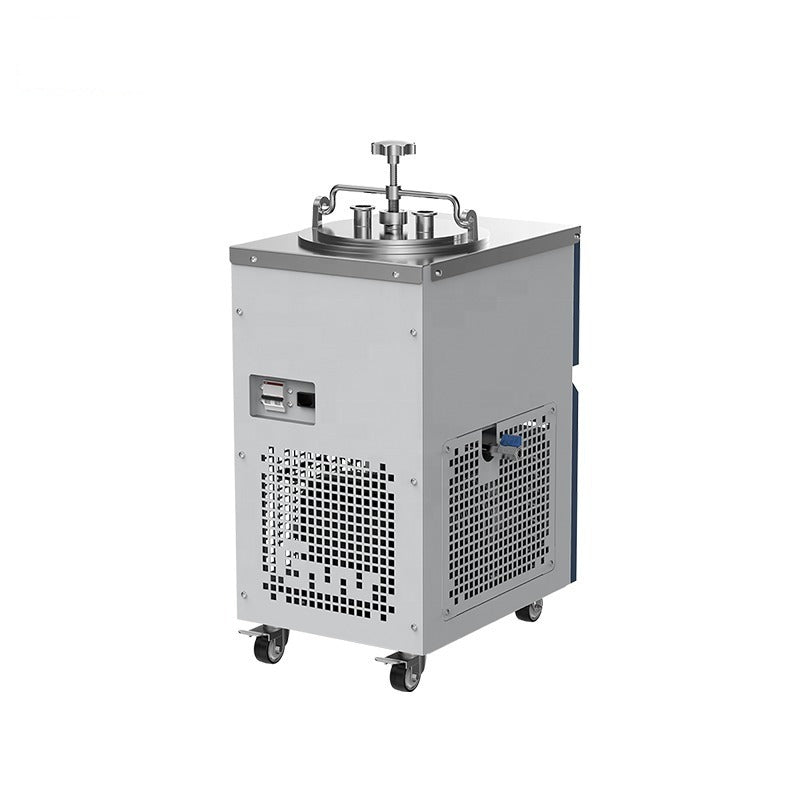

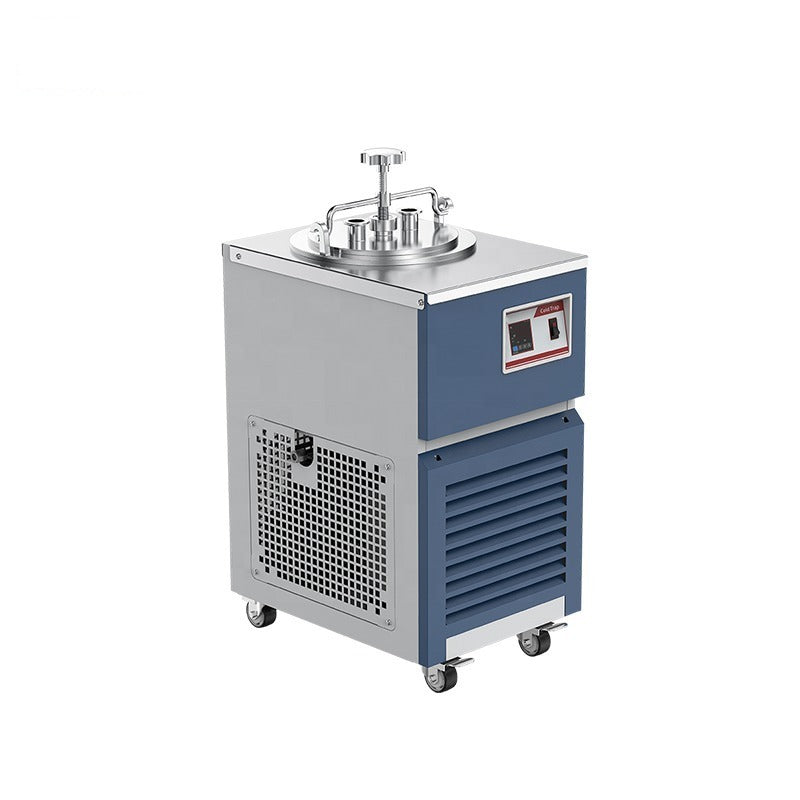

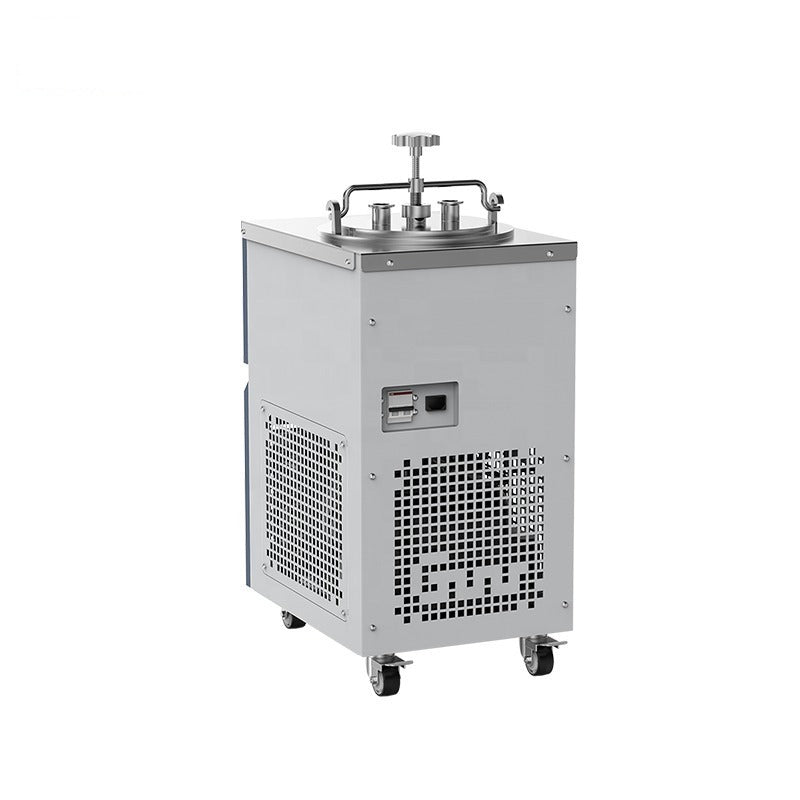

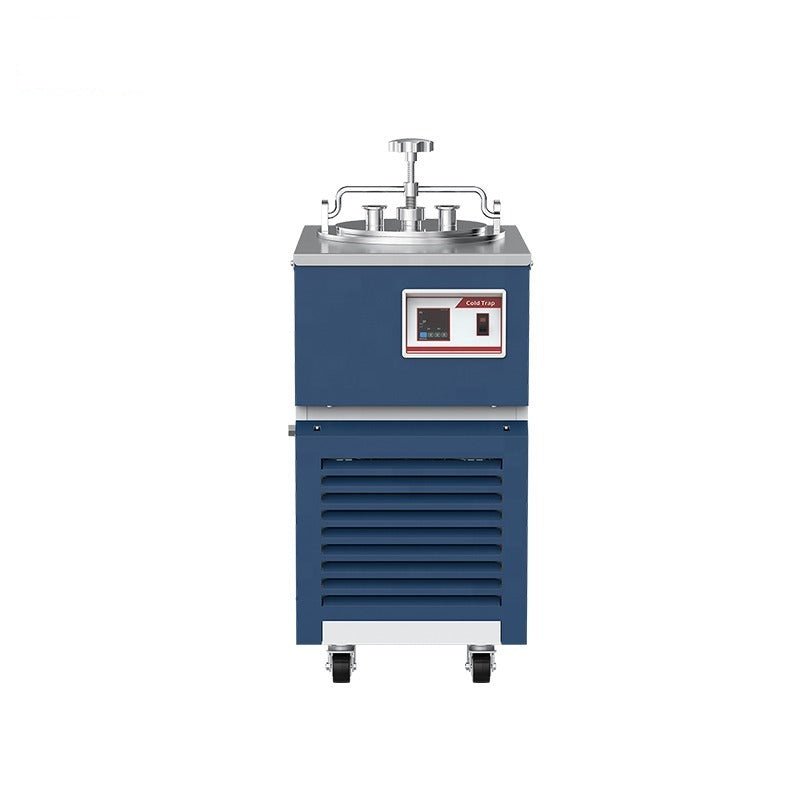

Cold Trap ALAB-VT-40

The VT-40 is a -40 C stainless steel cold trap with three glass traps and indirect cooling, used to condense vapors and protect vacuum pumps.

Specifications

• Model: VT-40
• Cooling Method: Indirect cooling (glass trap)
• No-Load Minimum Temperature: -40 C
• Bath Capacity: 5L
• Number of Traps: 3
• Cooling Capacity: 300W @ -10 C; 250W @ -20 C; 150W @ -30 C; 50W @ -35 C
• Refrigerant: R404A
• Display: Digital display
• Sensor: PT100
• Vacuum Connection: 3/8 inch hose barb
• Interface Diameter (out): 12.5 mm
• Bath Material: 304 stainless steel
• Overall Power: 530W
• Power Supply: 110V/60Hz, 220V-240V/50Hz, 220V/60Hz
• Safety Functions: Delay, over-current, over-heat, over-pressure protection
• Dimensions: 350 x 470 x 811 mm
• Net Weight: 45 kg
• Warranty: 12 months

Voltage note for US customers: This unit supports 110-120V input and can be plugged directly into a standard US outlet.
