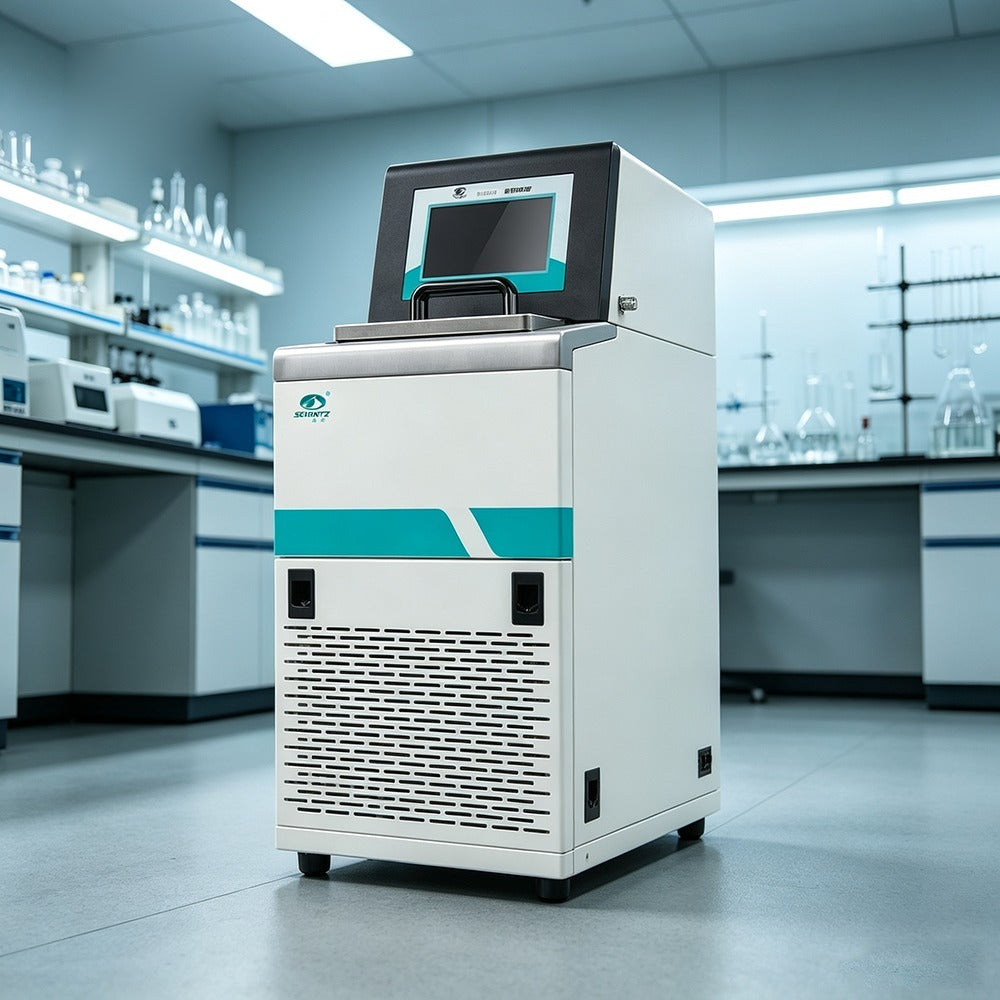

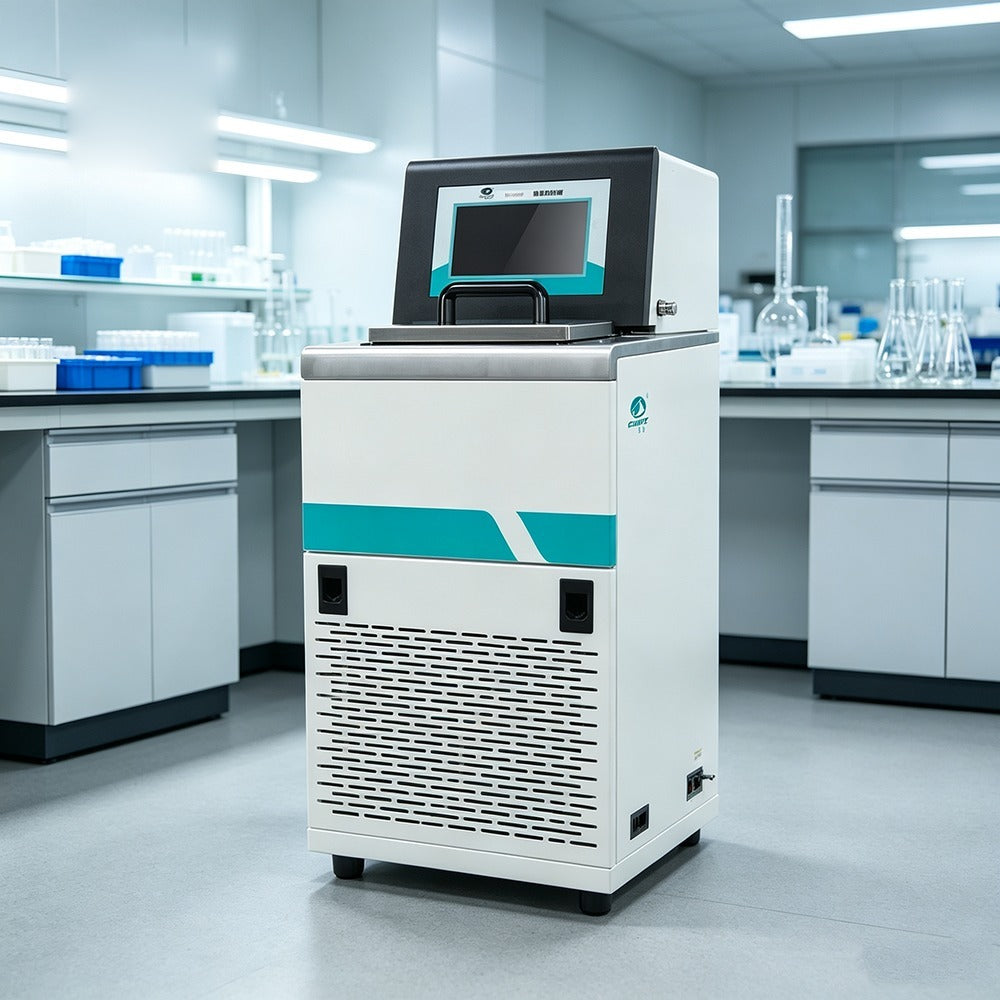

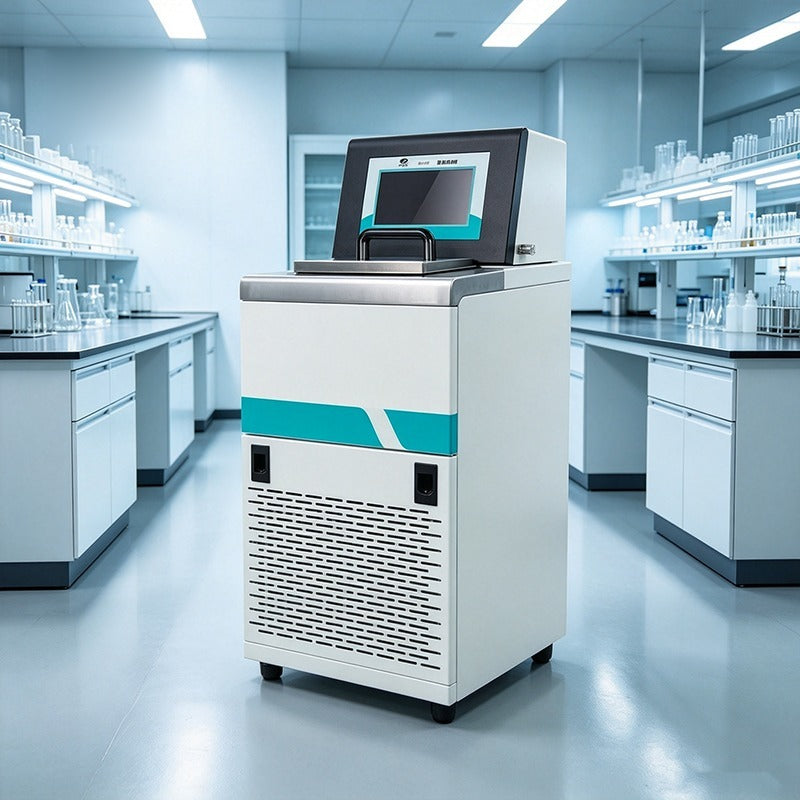

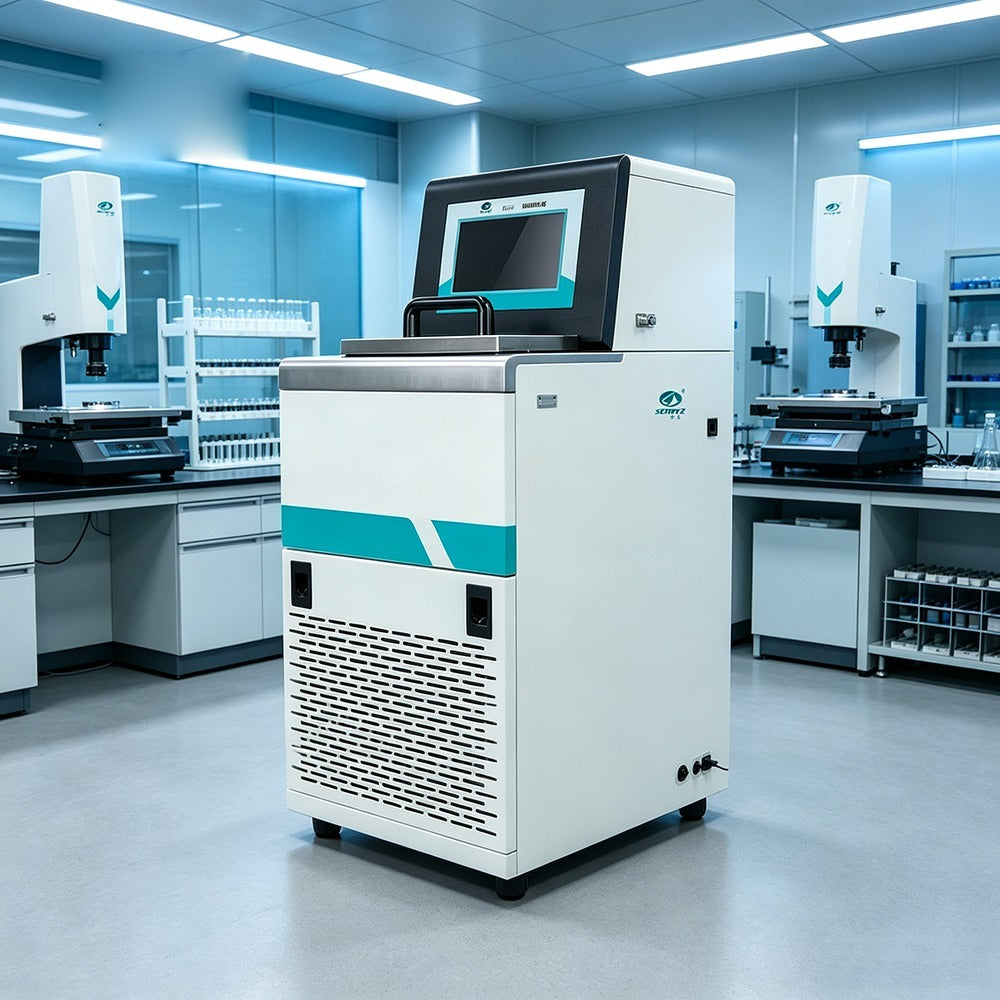

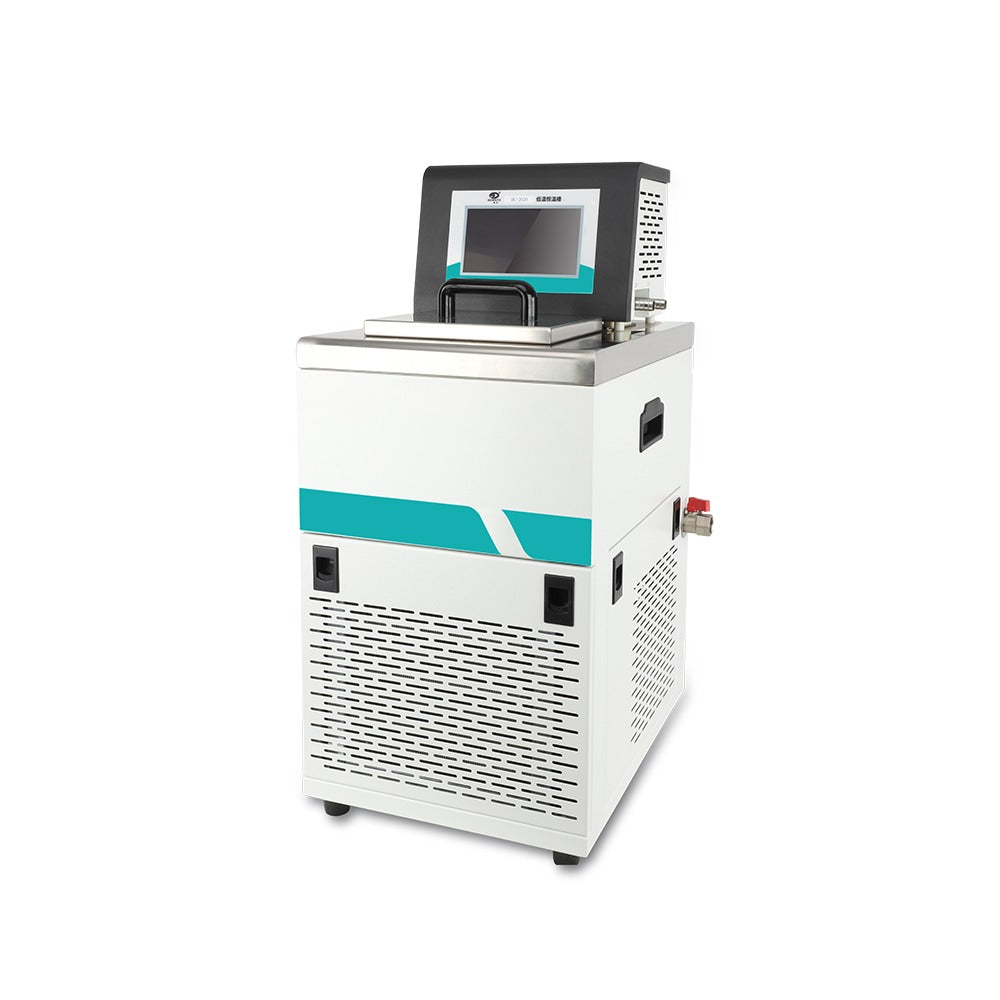

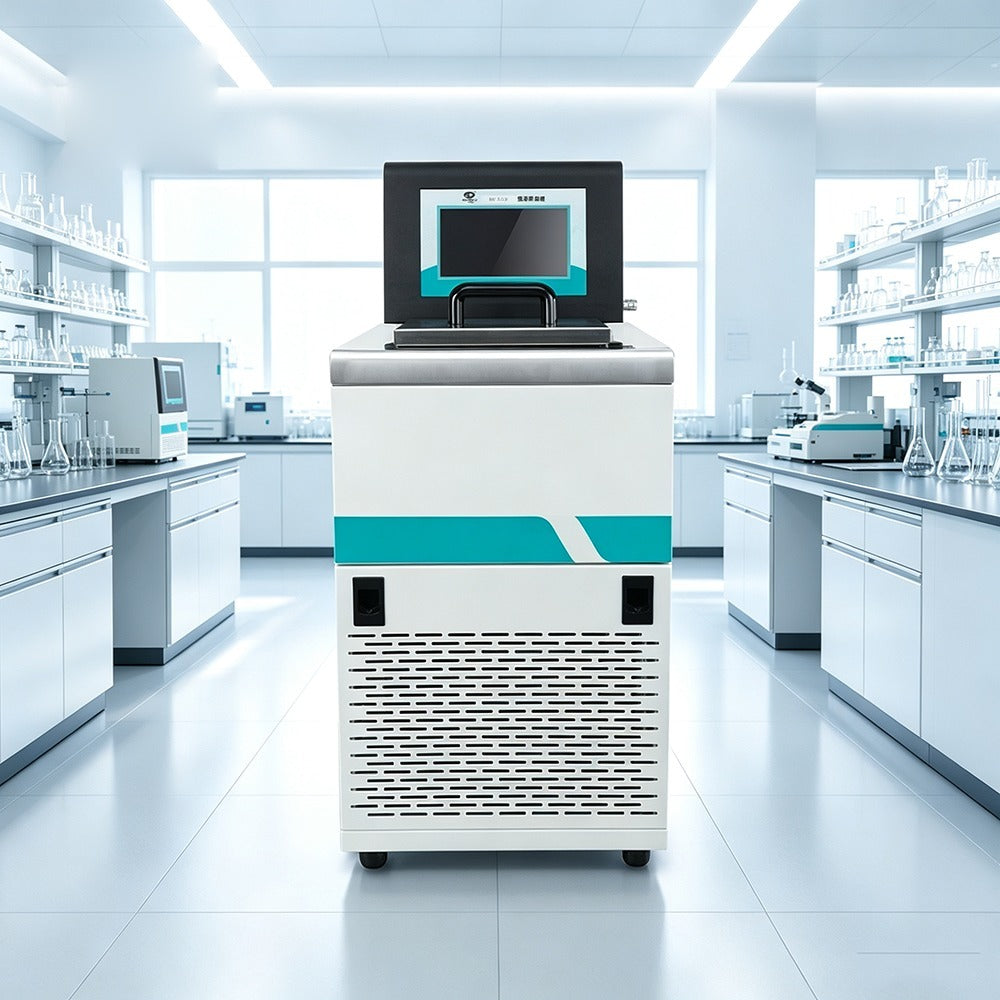

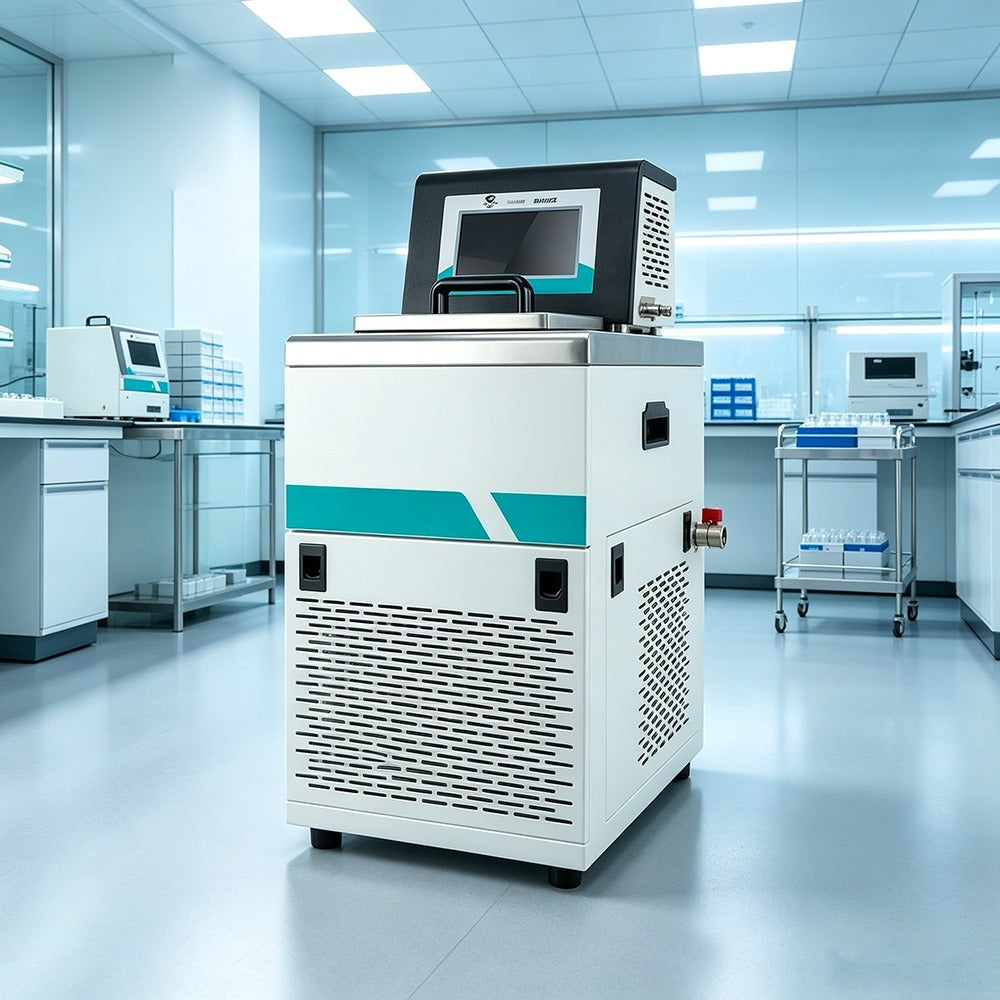

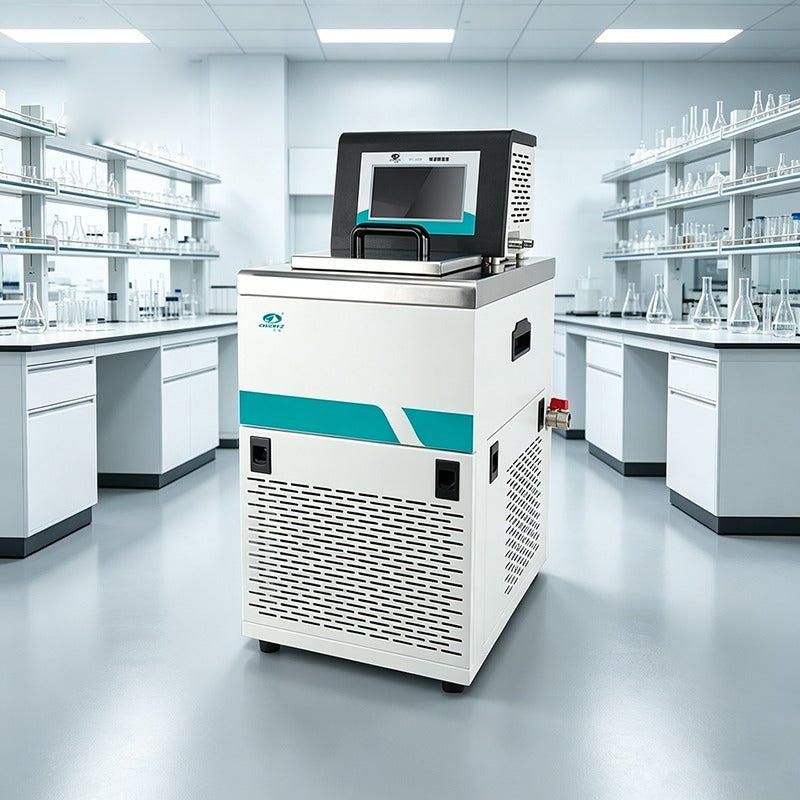

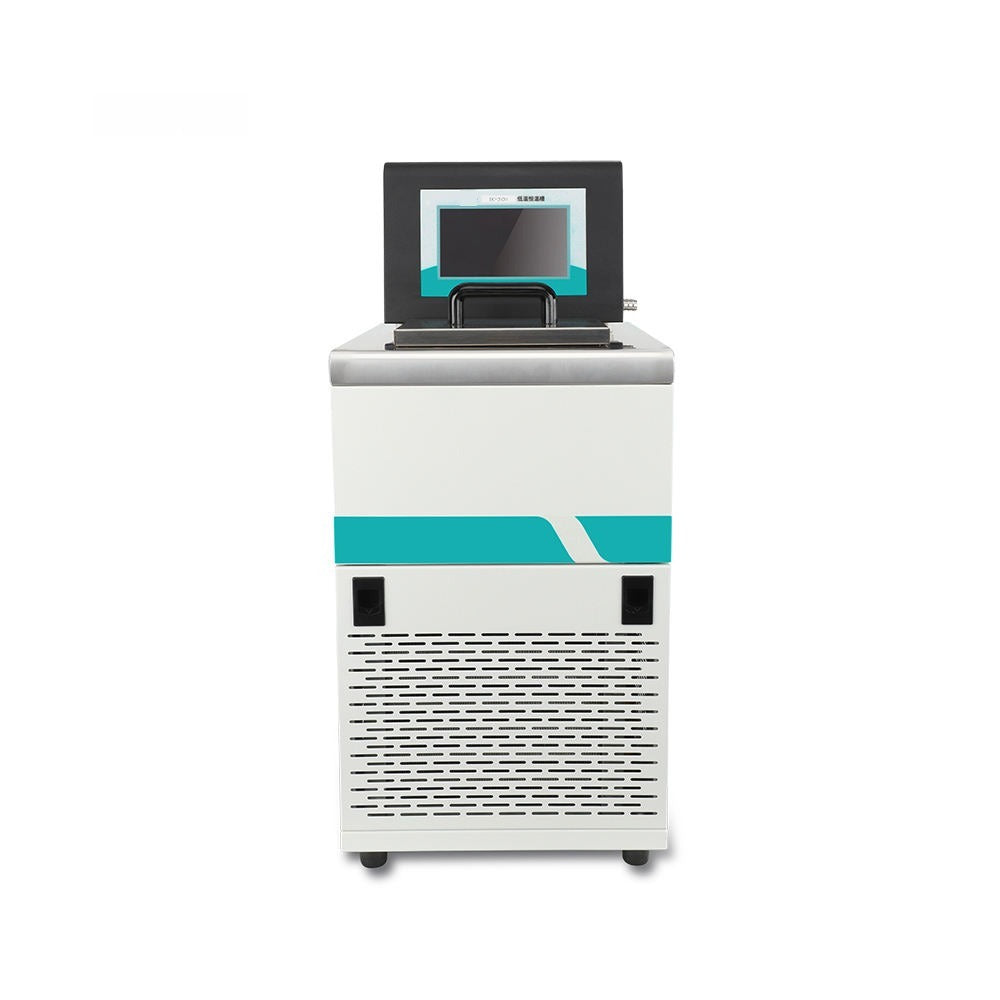

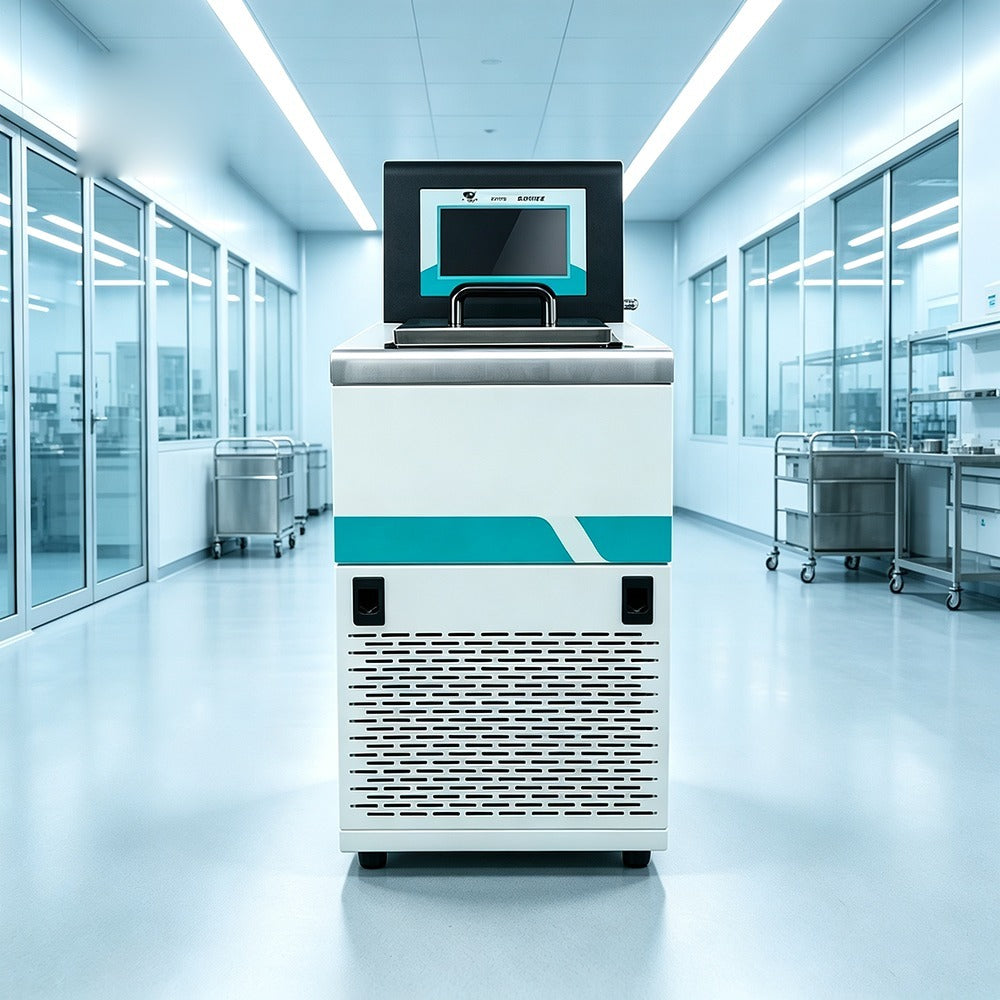

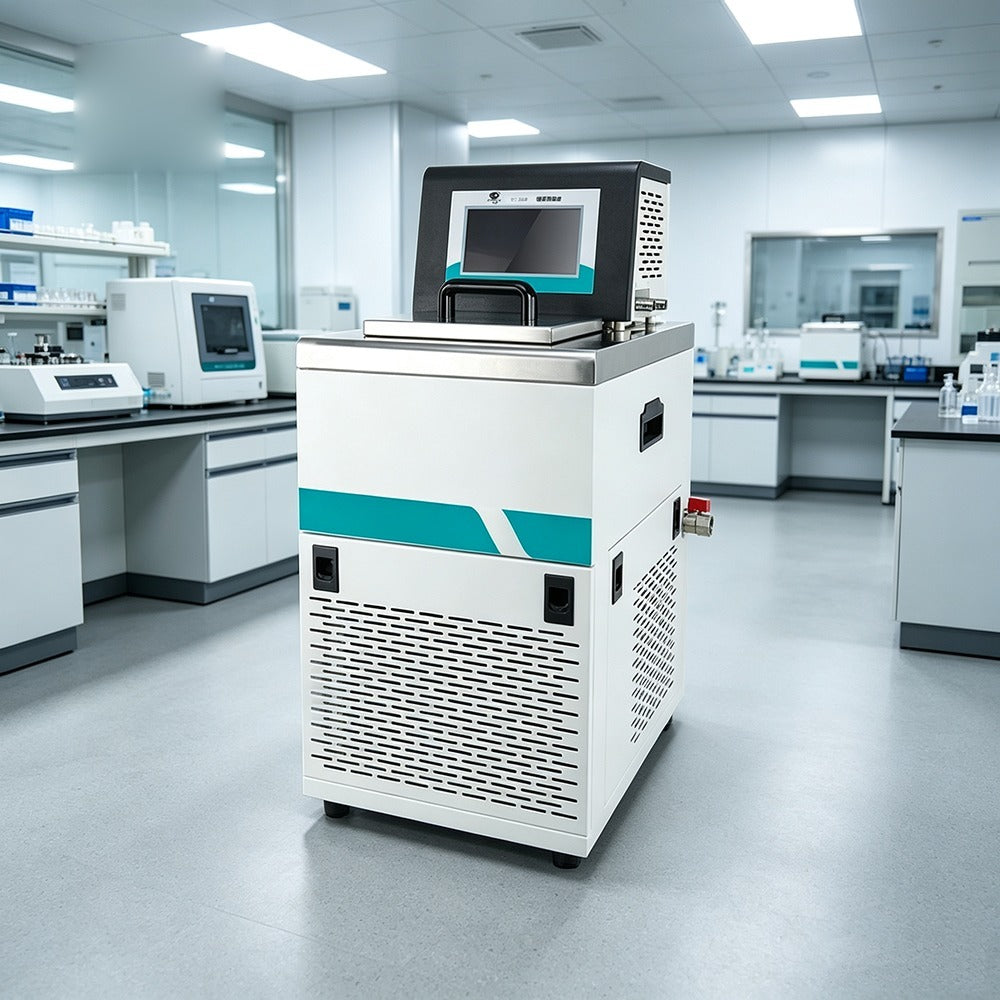

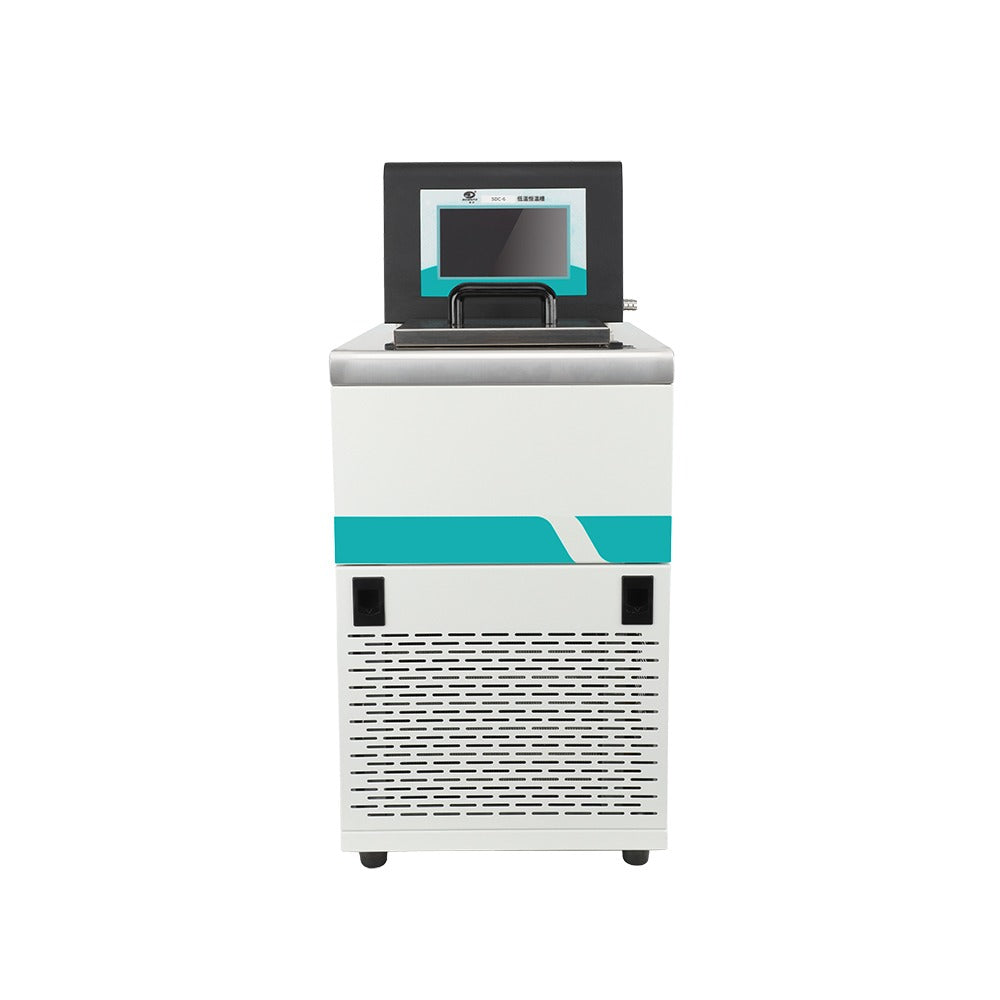

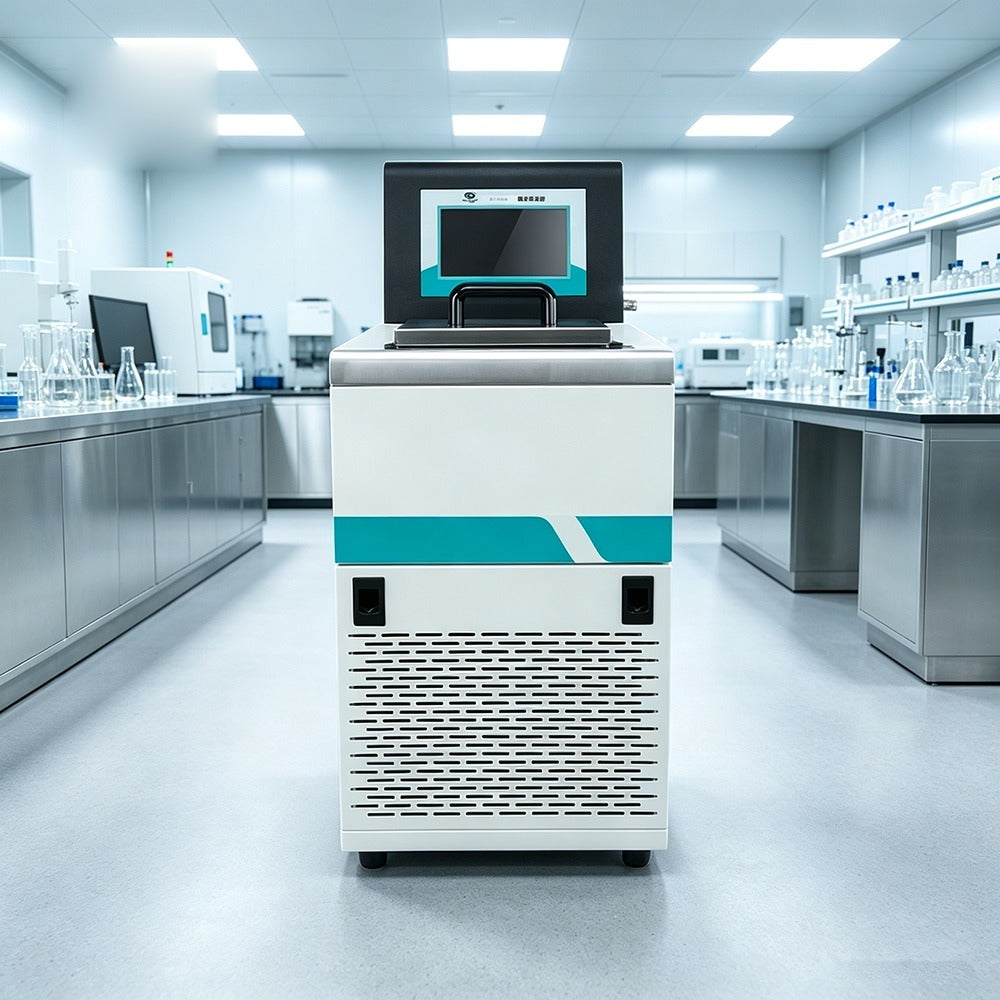

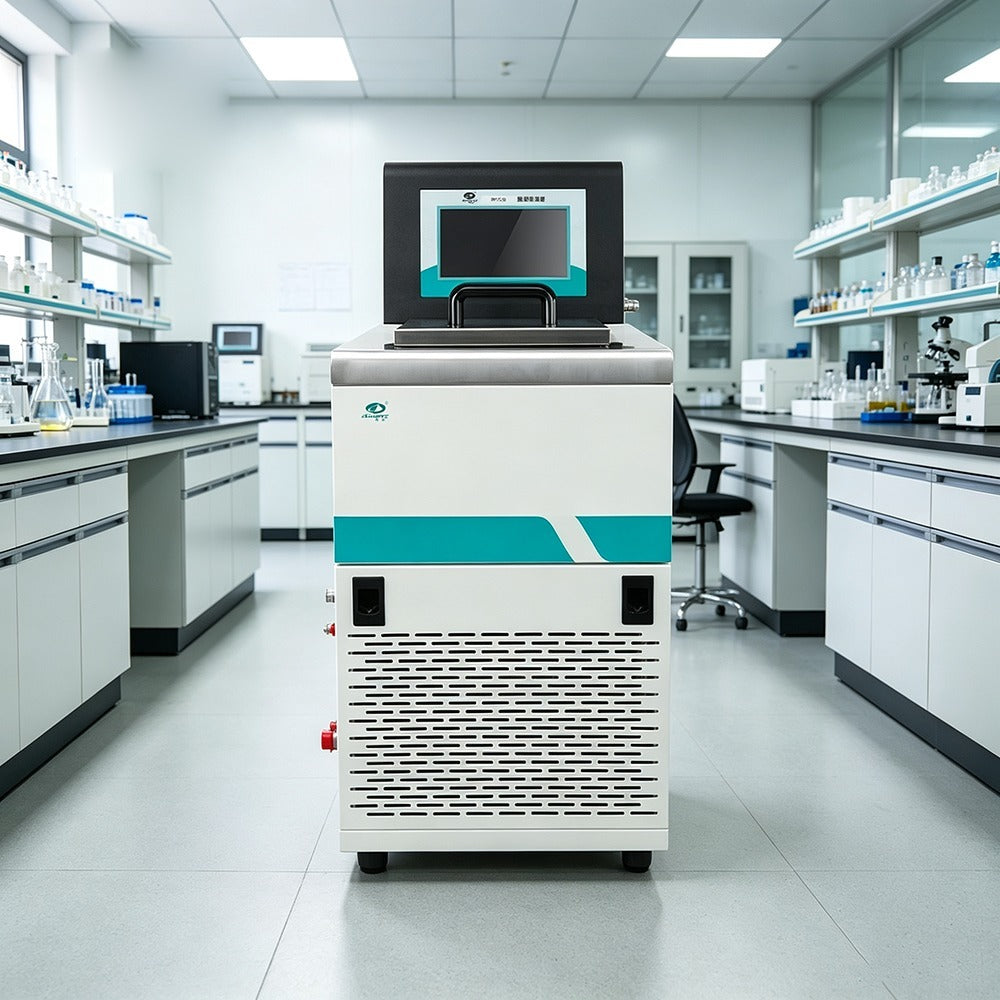

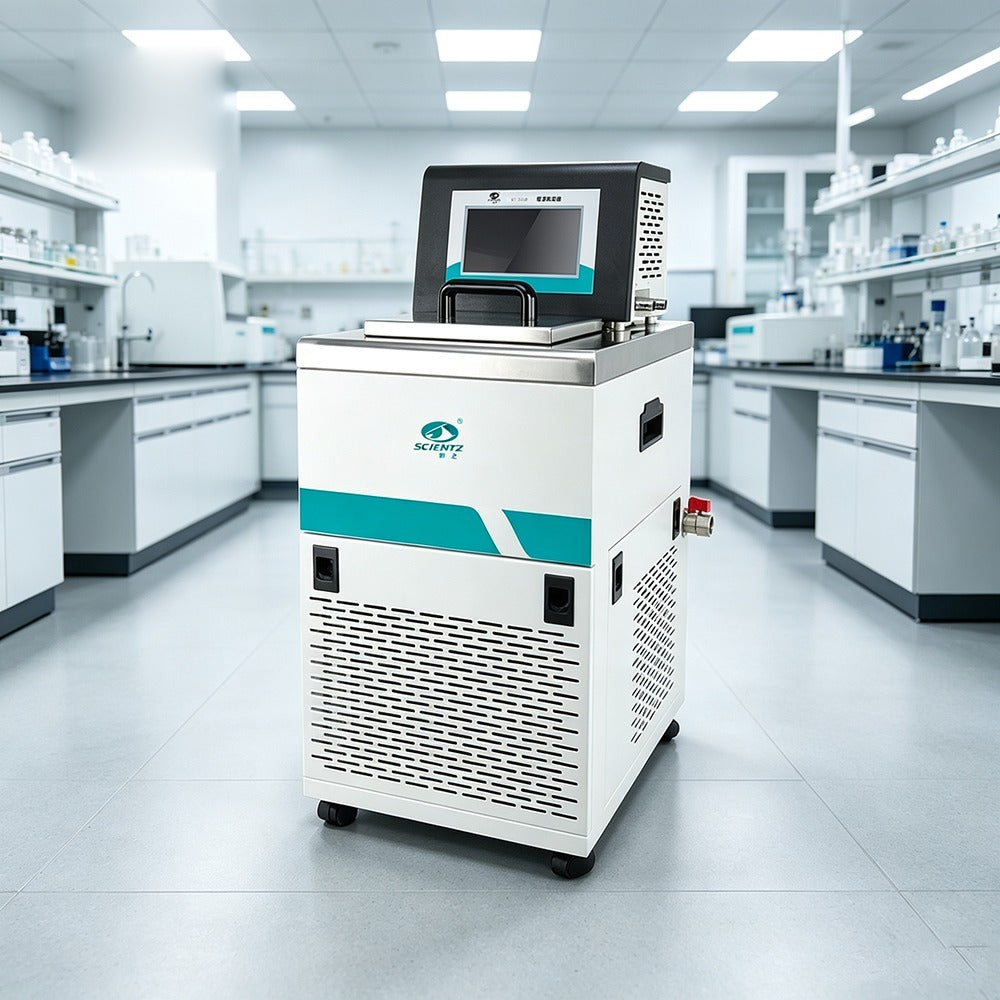

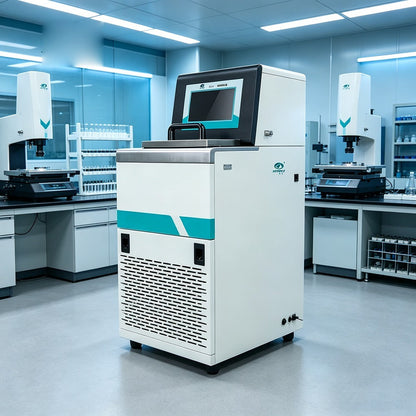

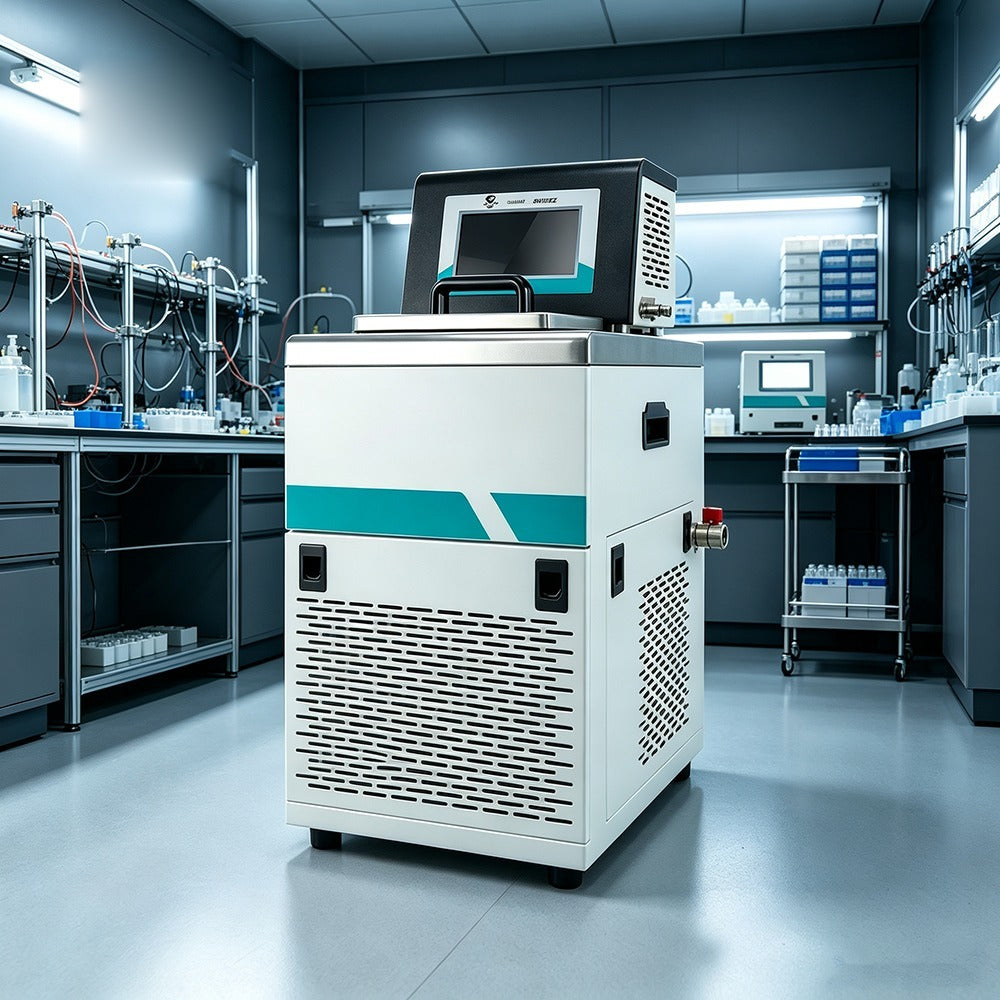

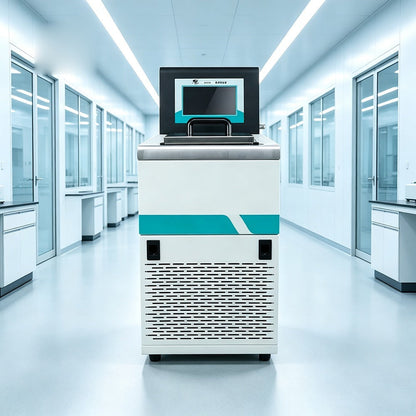

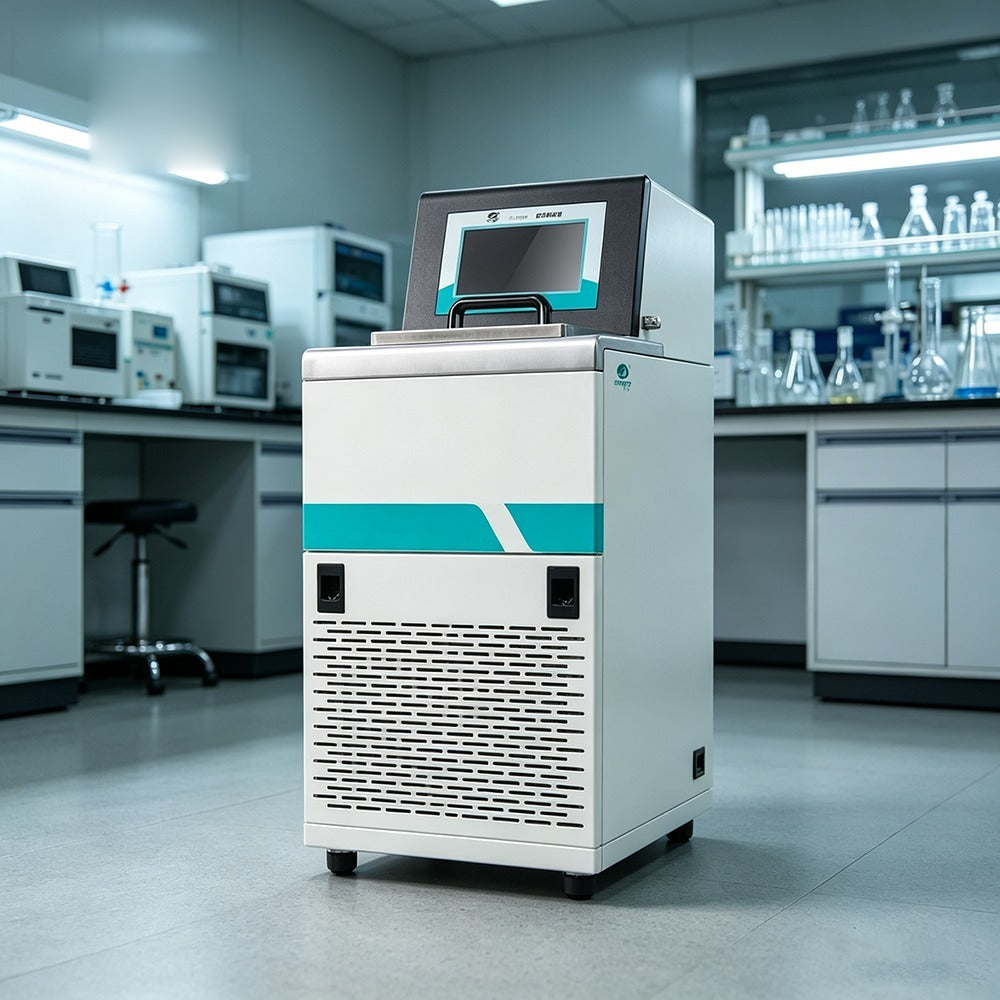

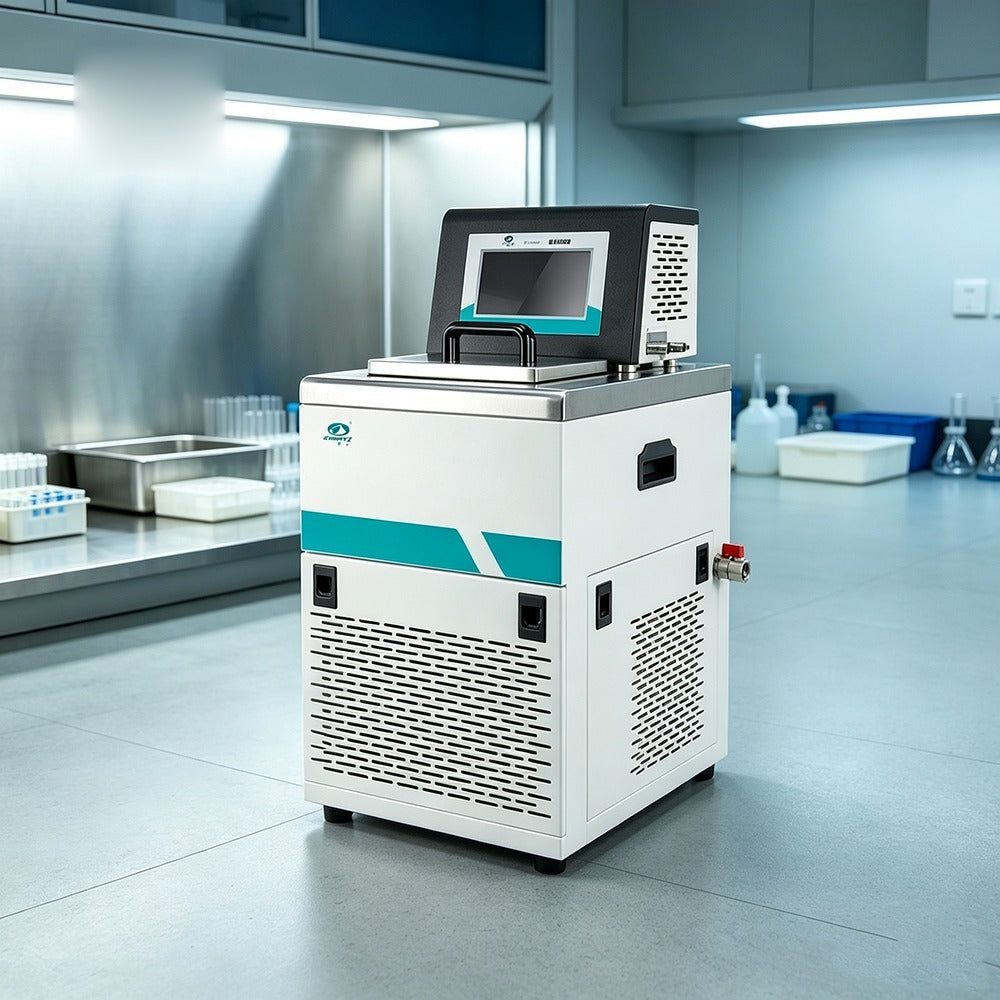

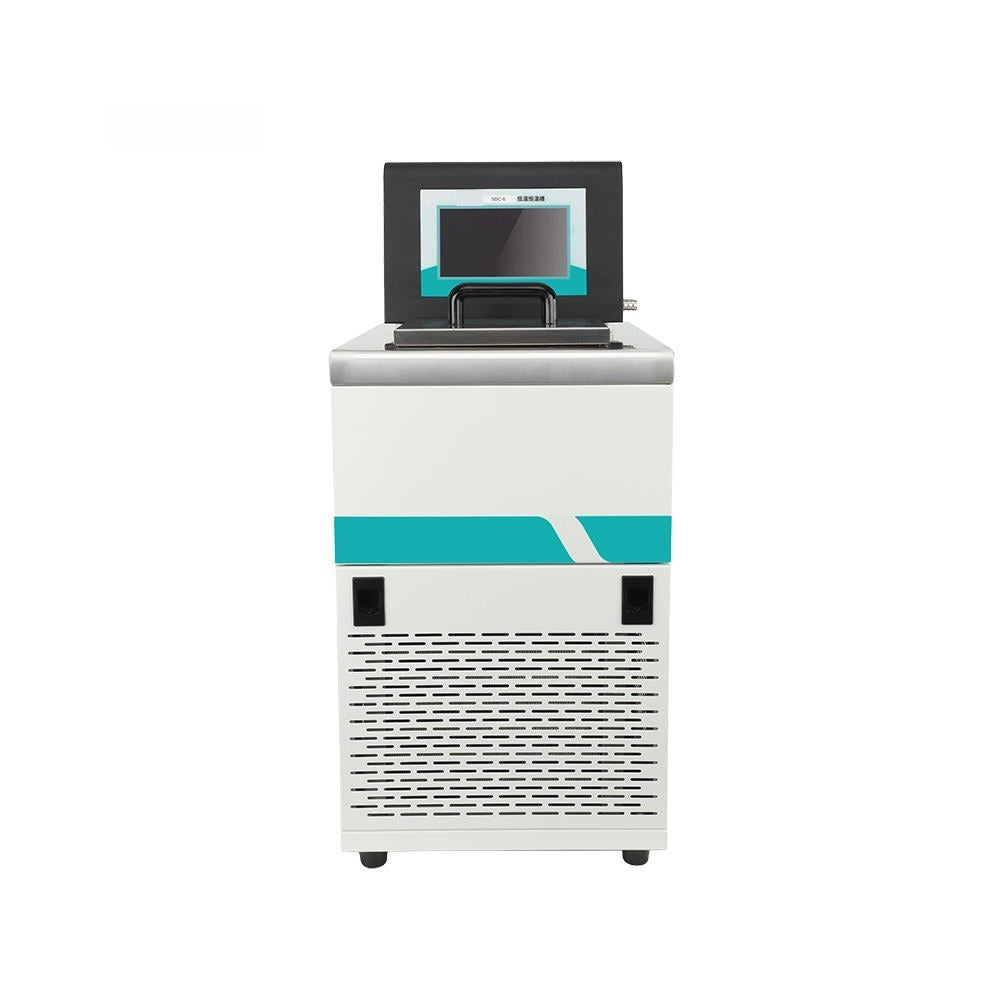

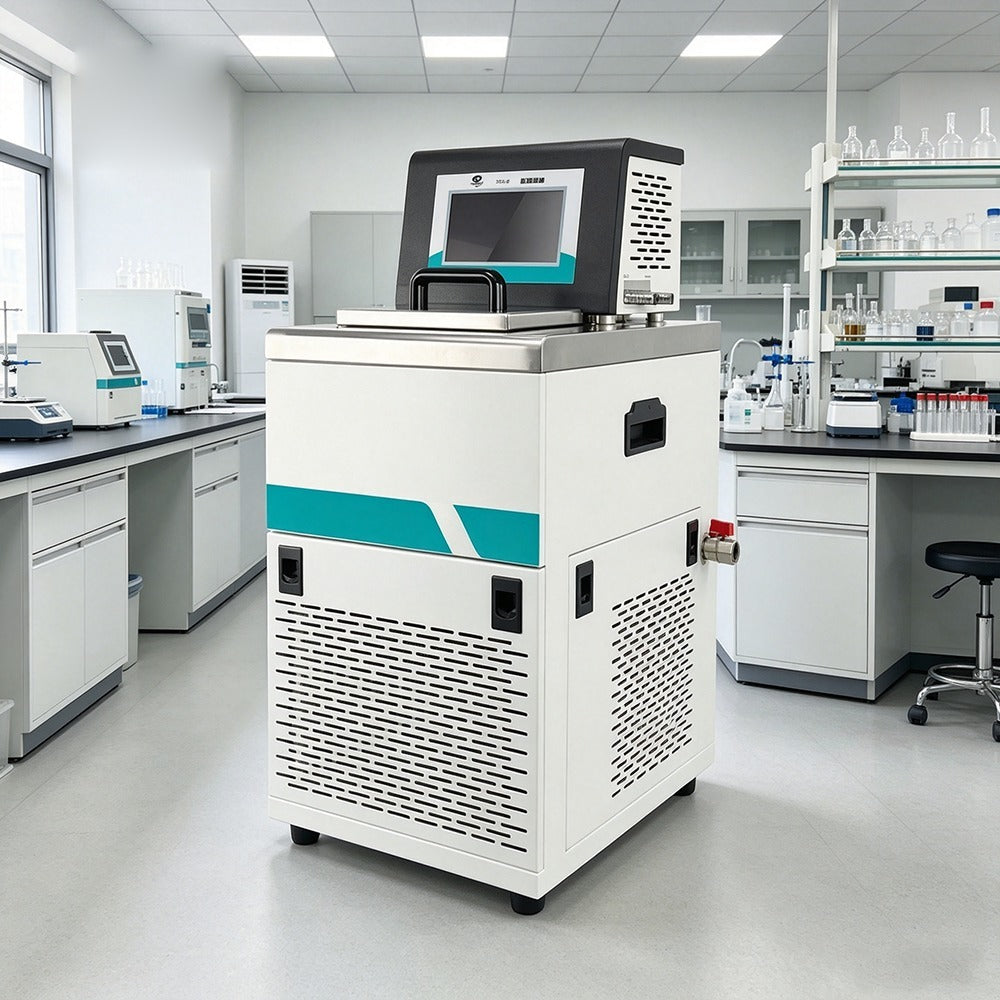

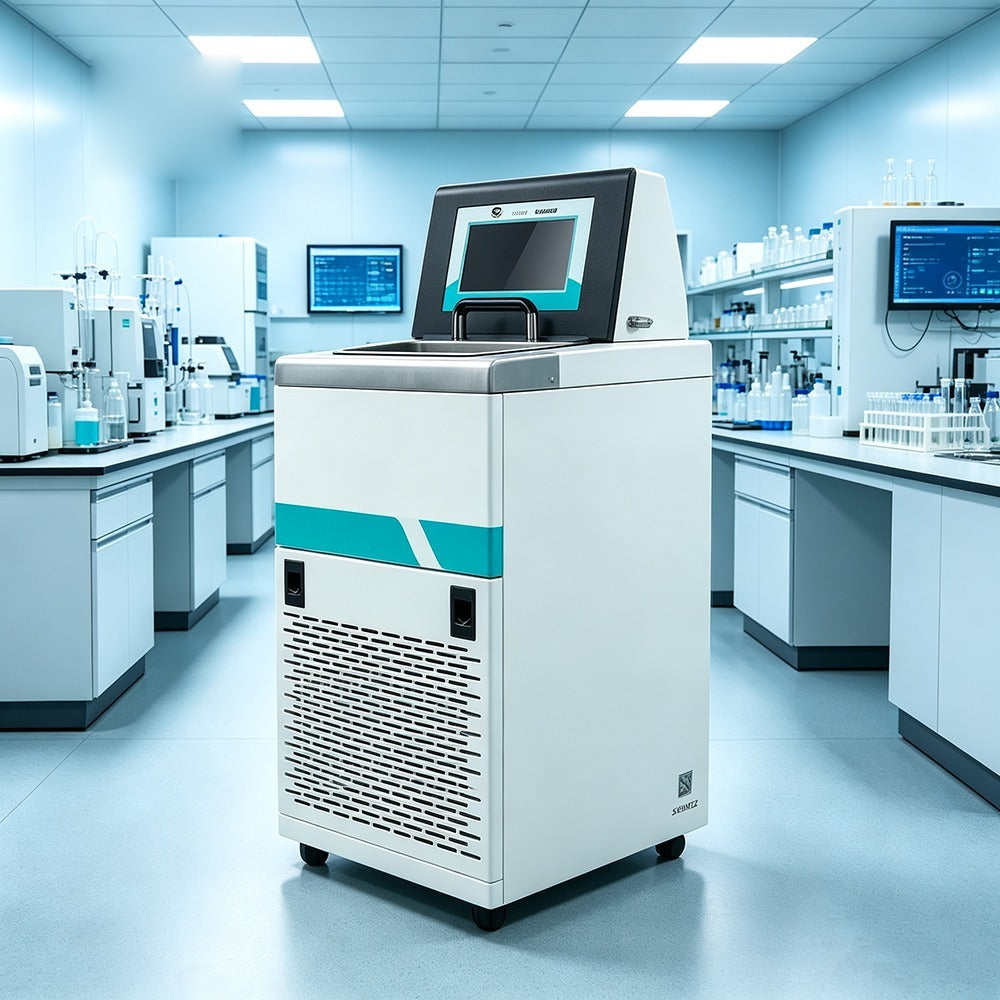

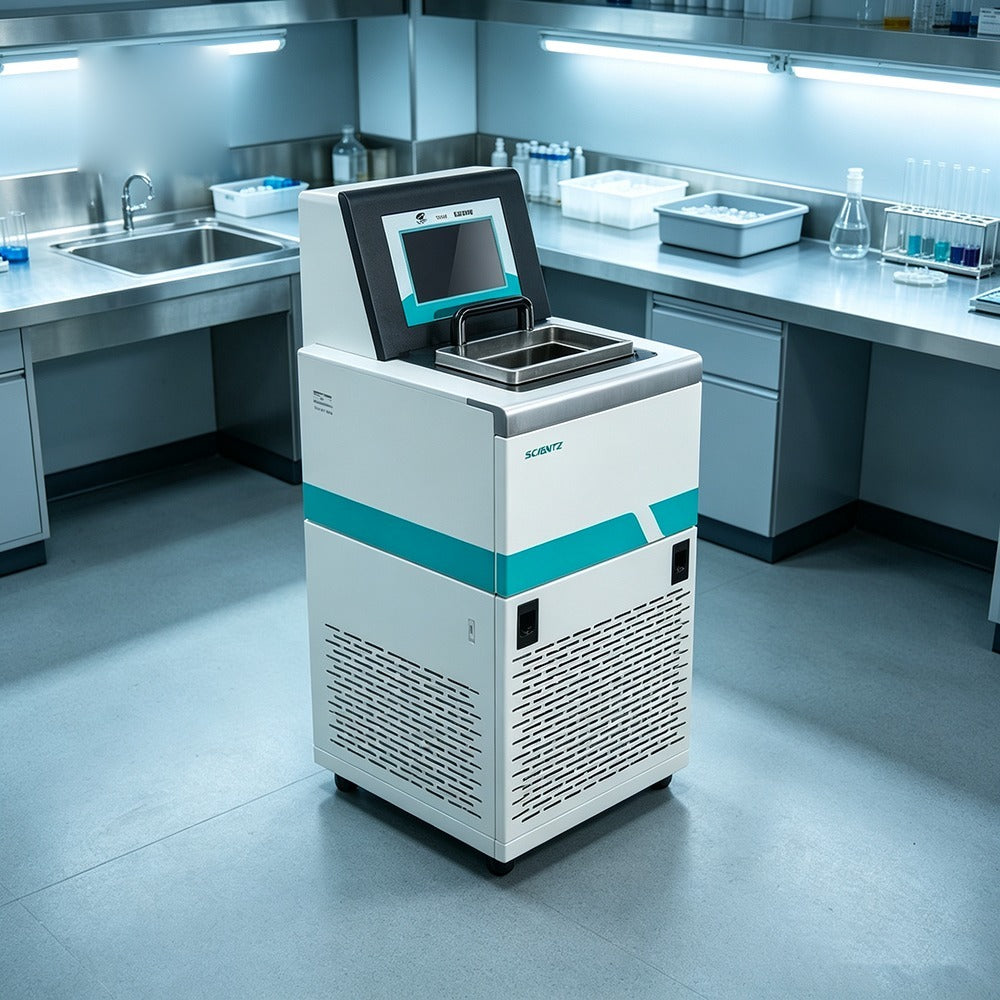

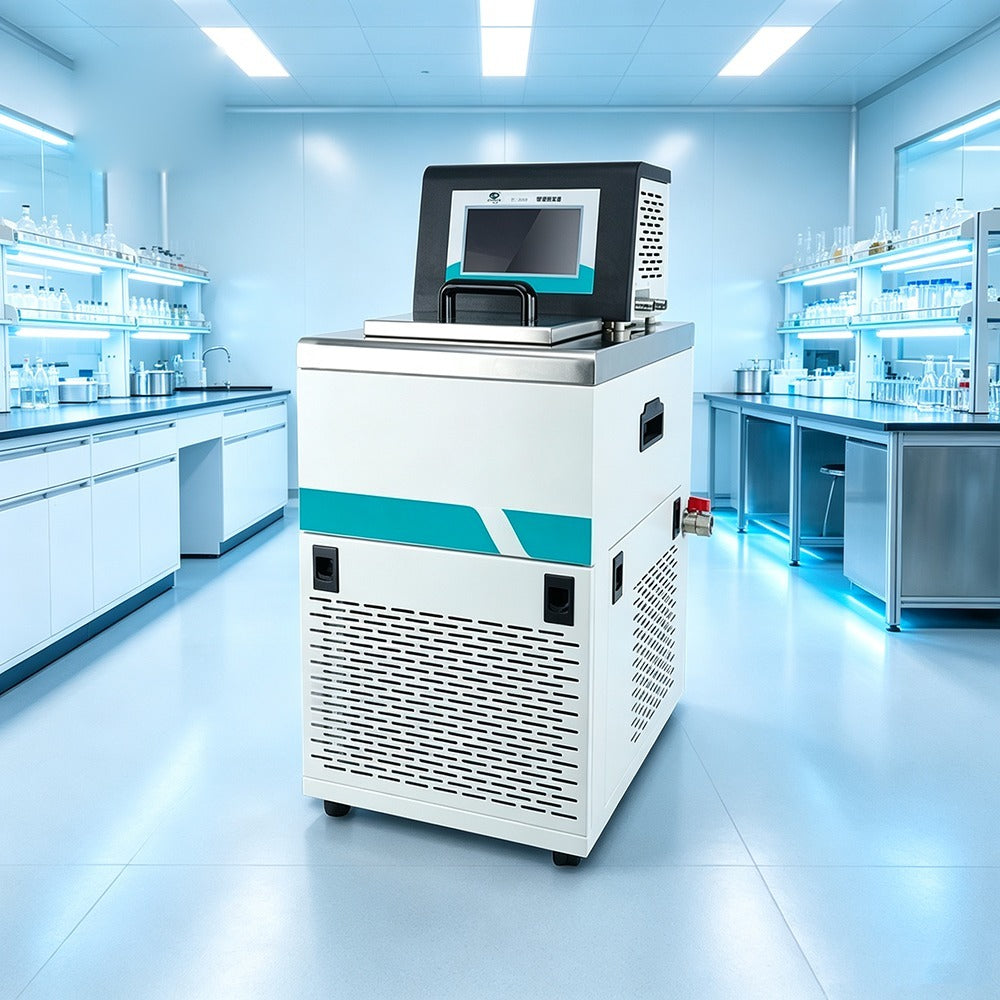

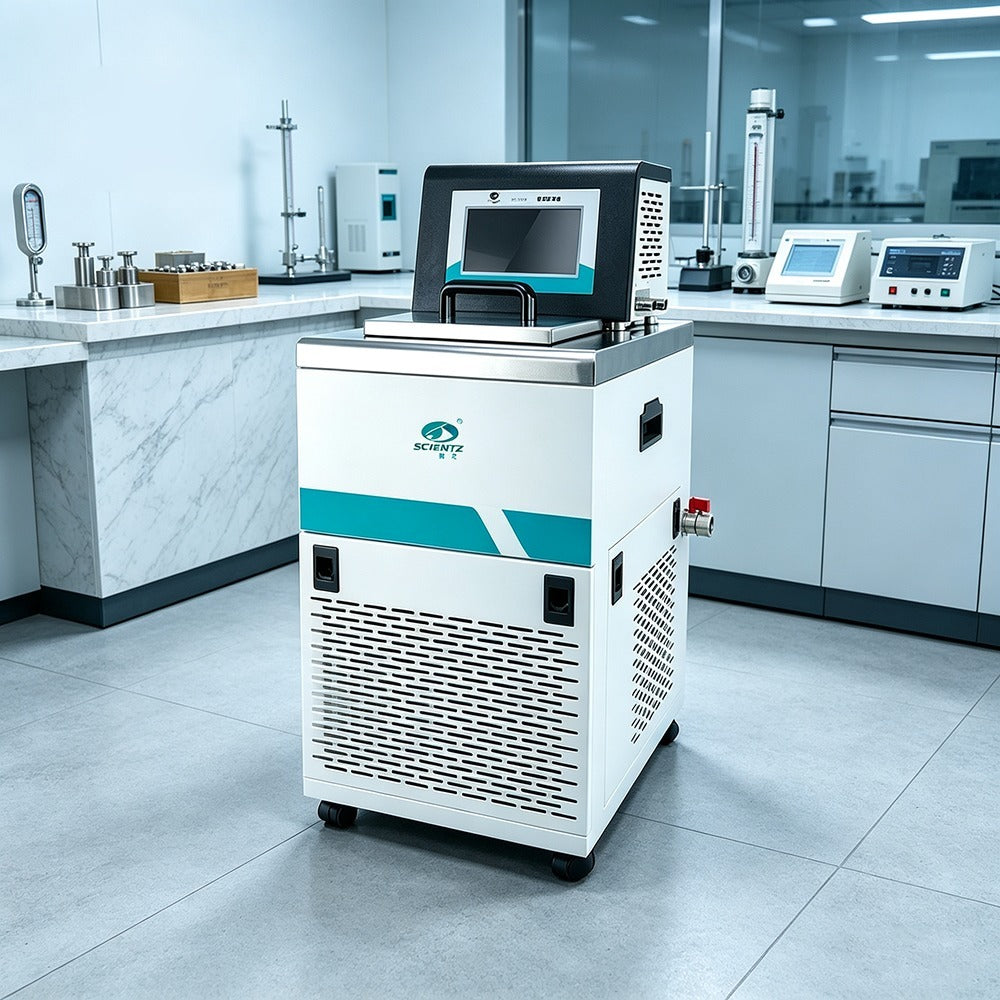

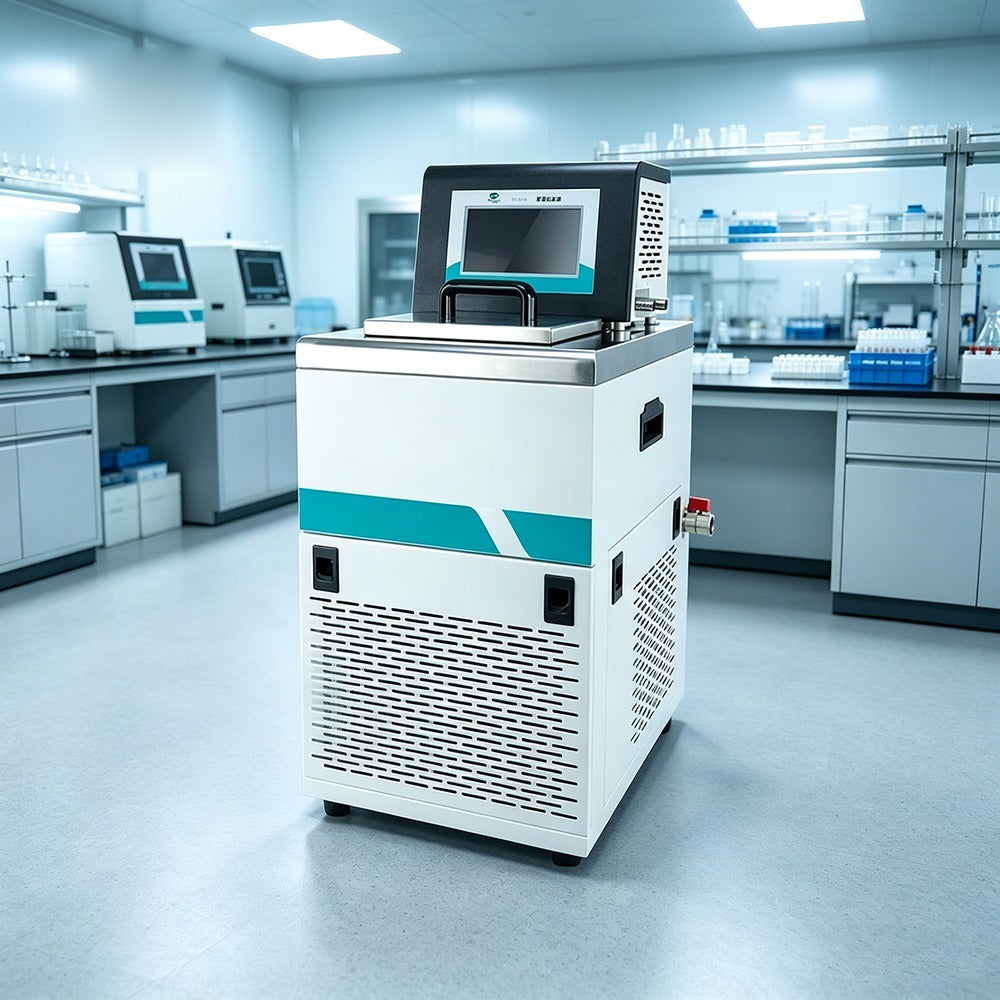

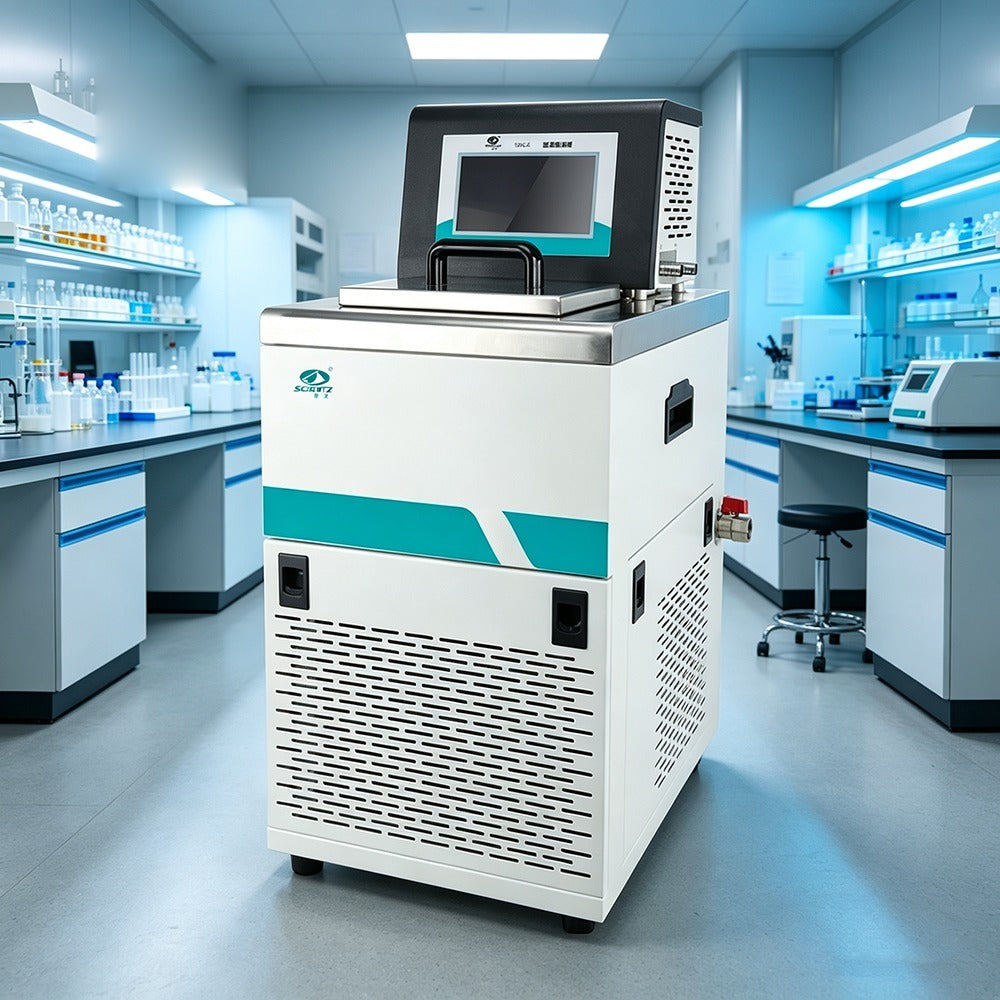

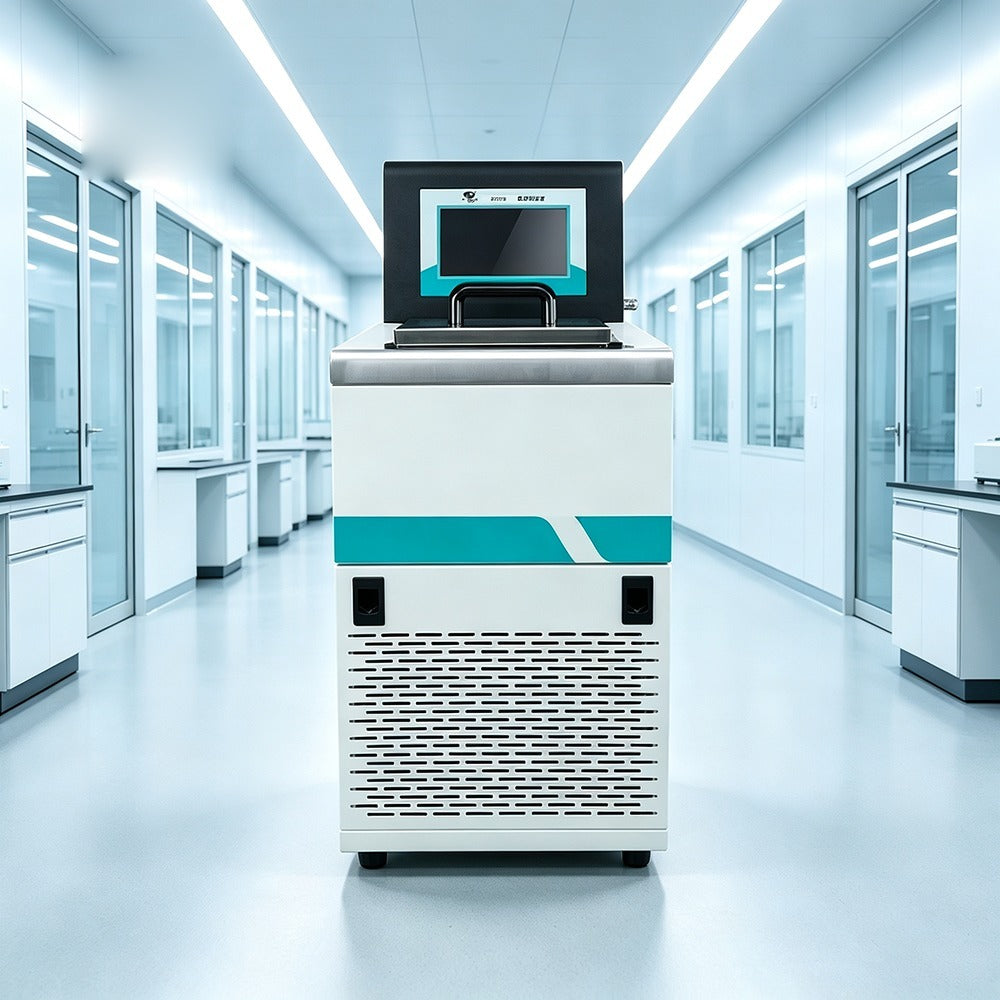

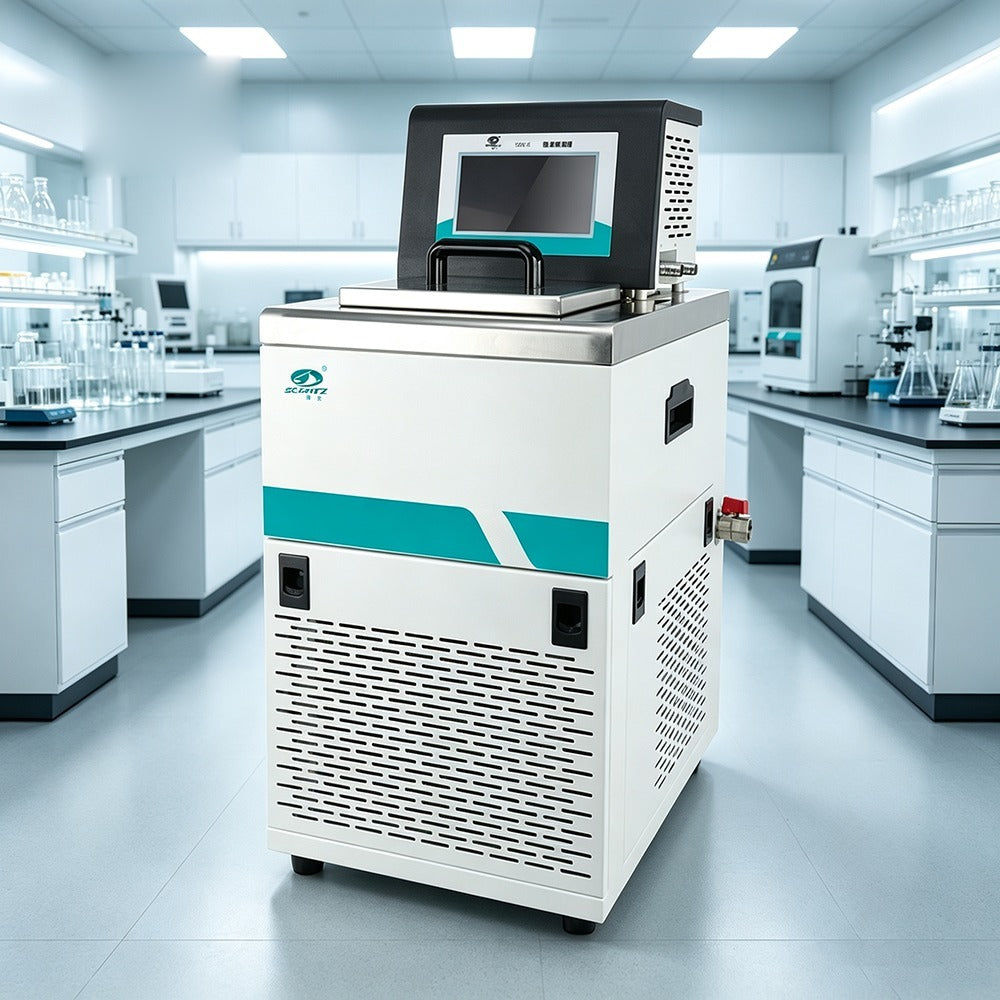

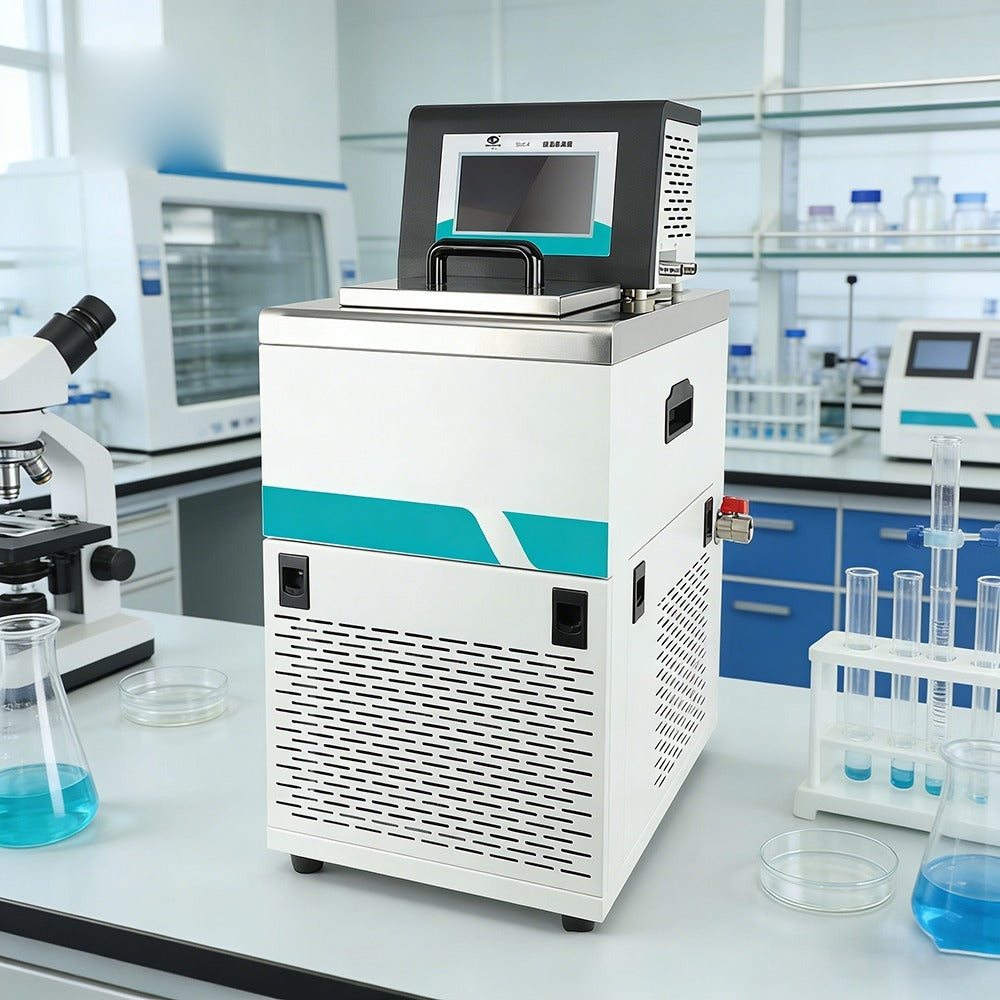

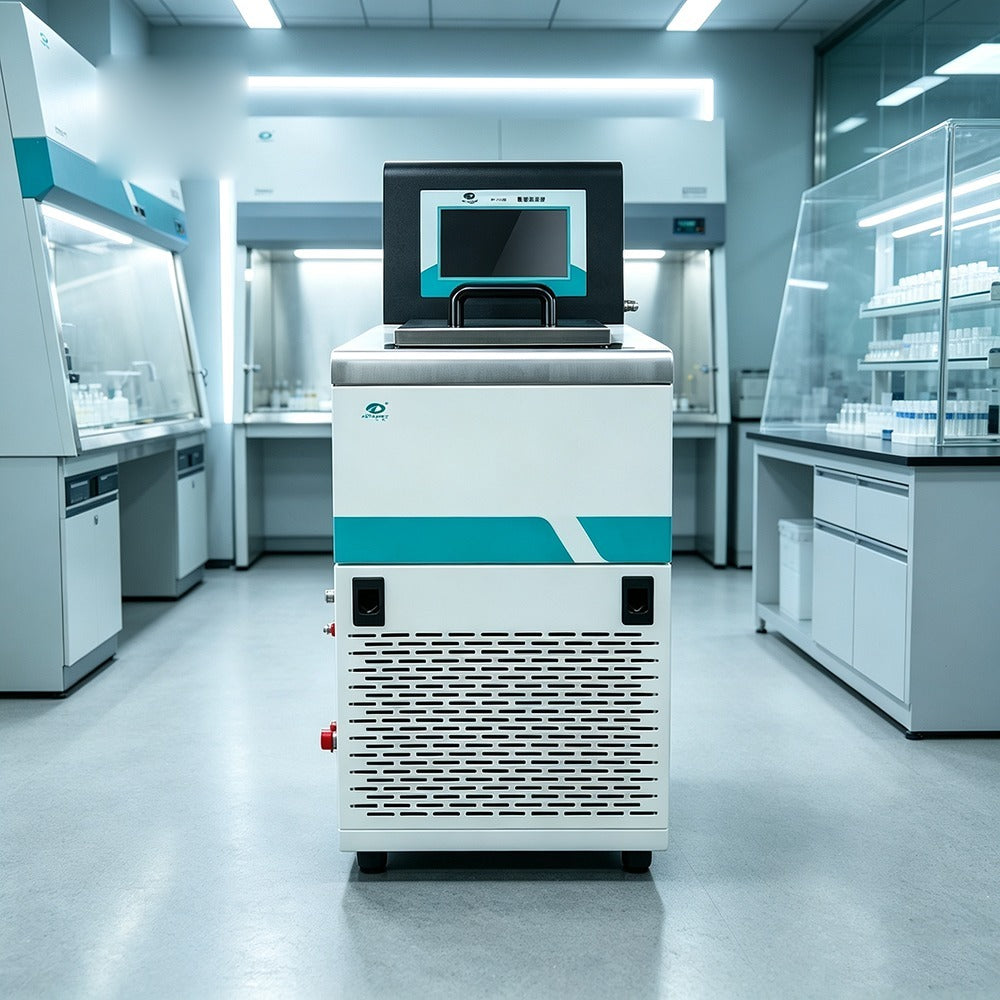

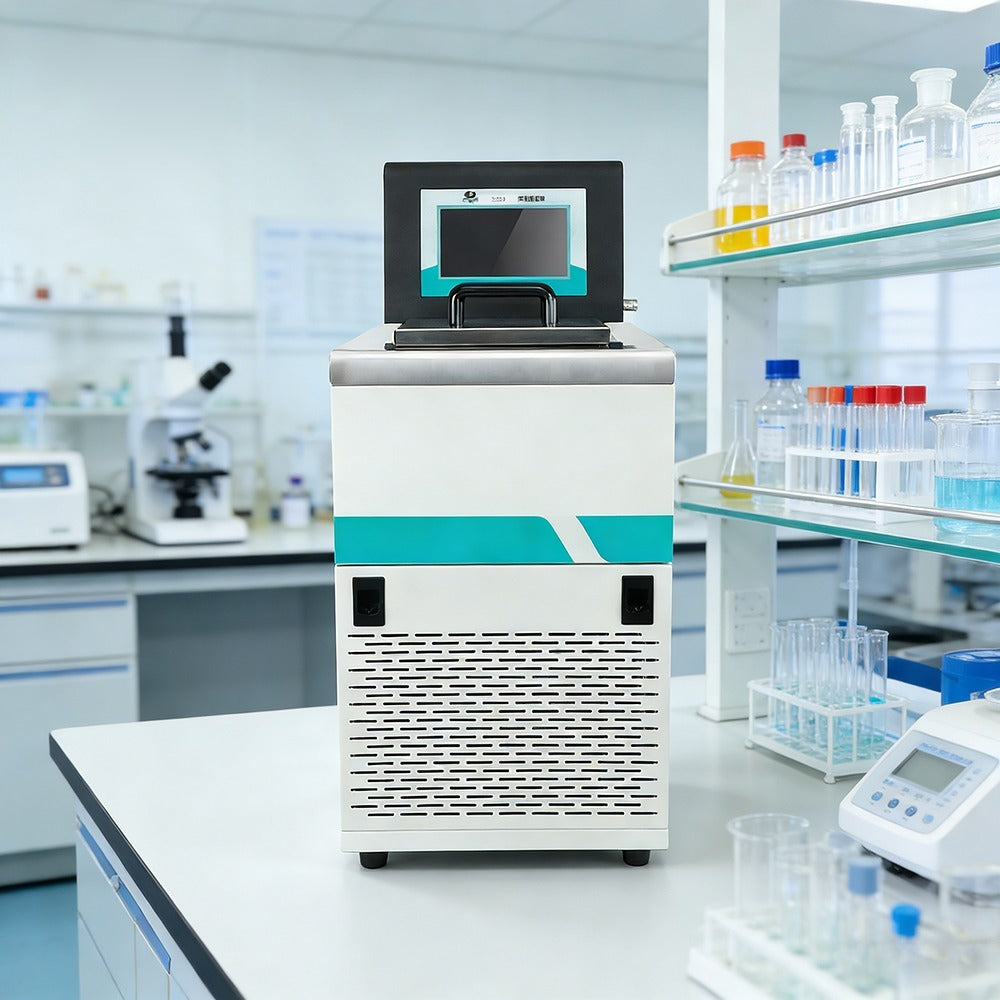

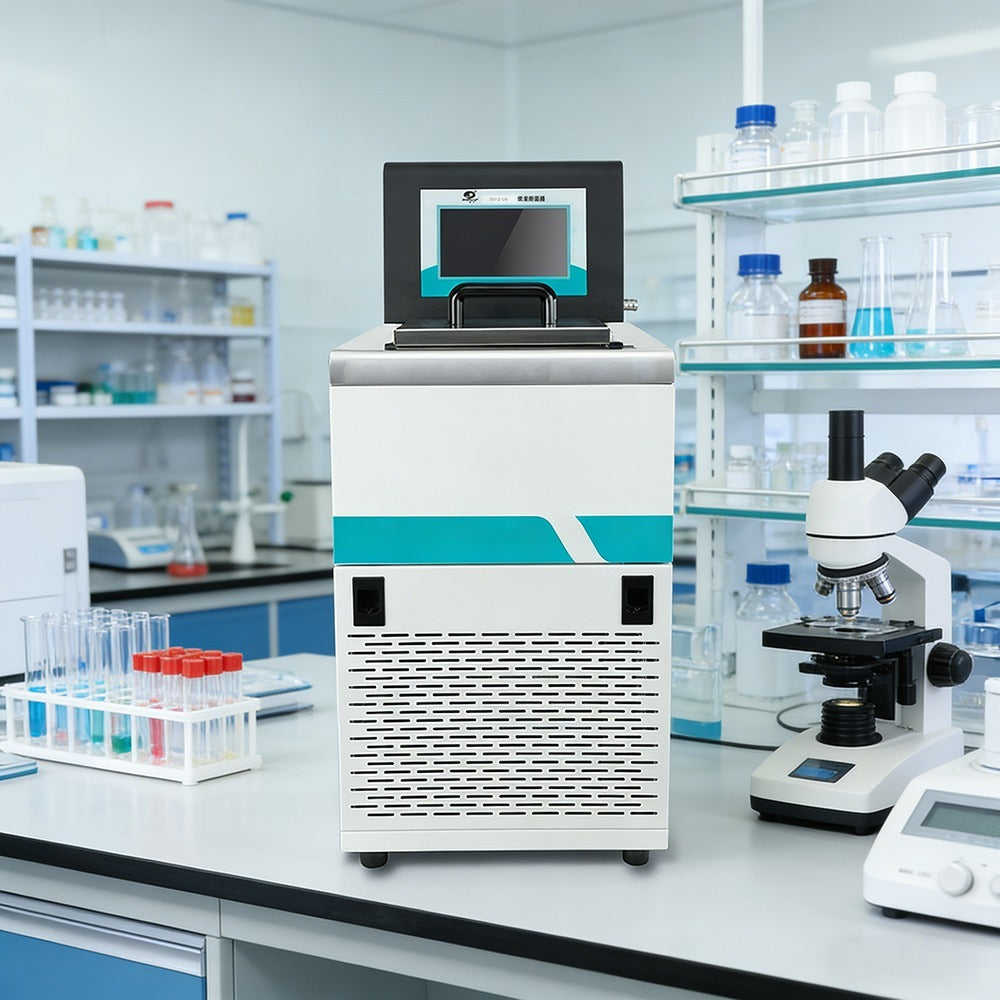

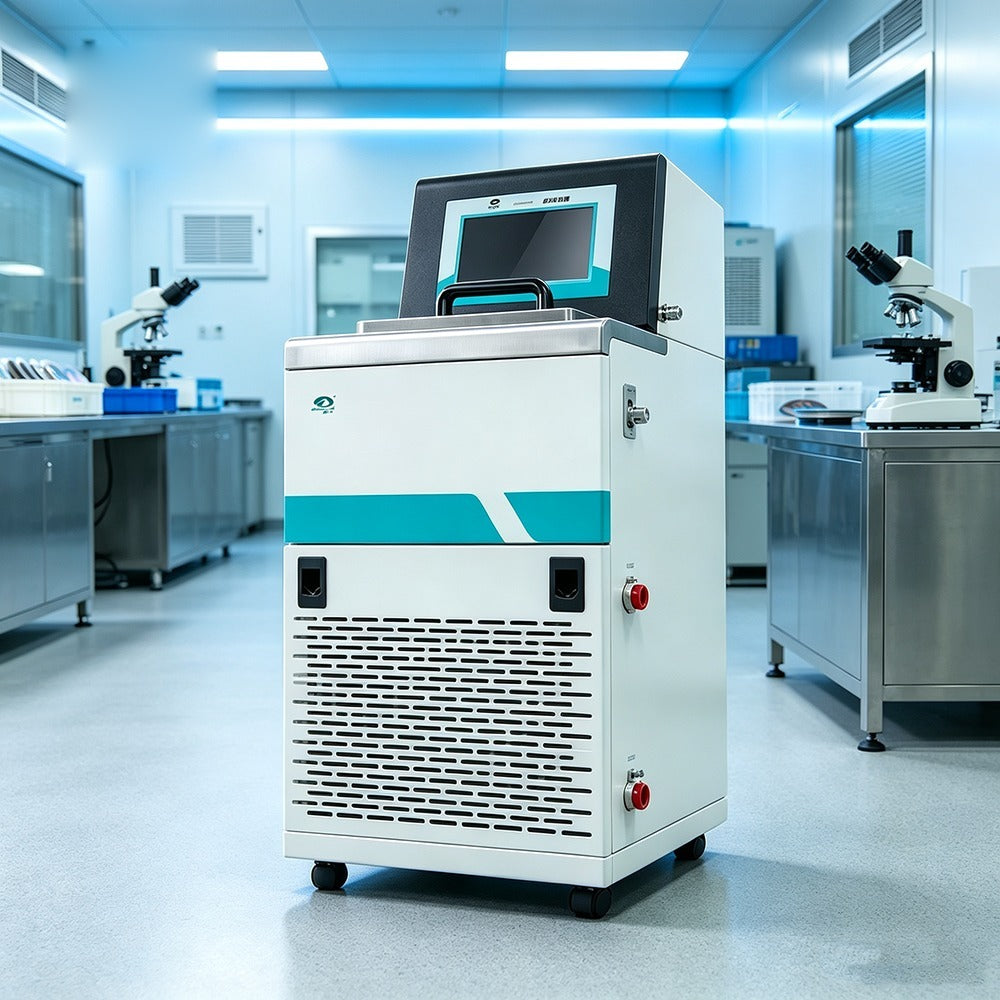

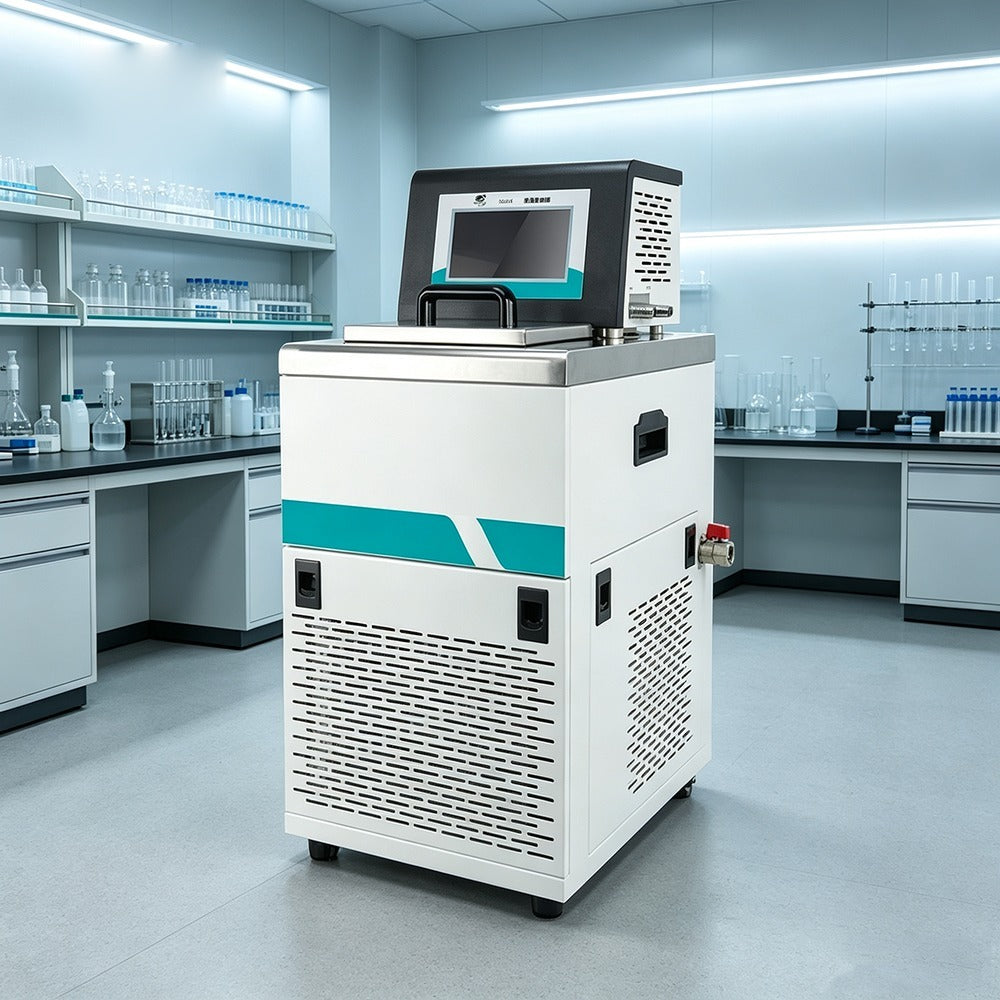

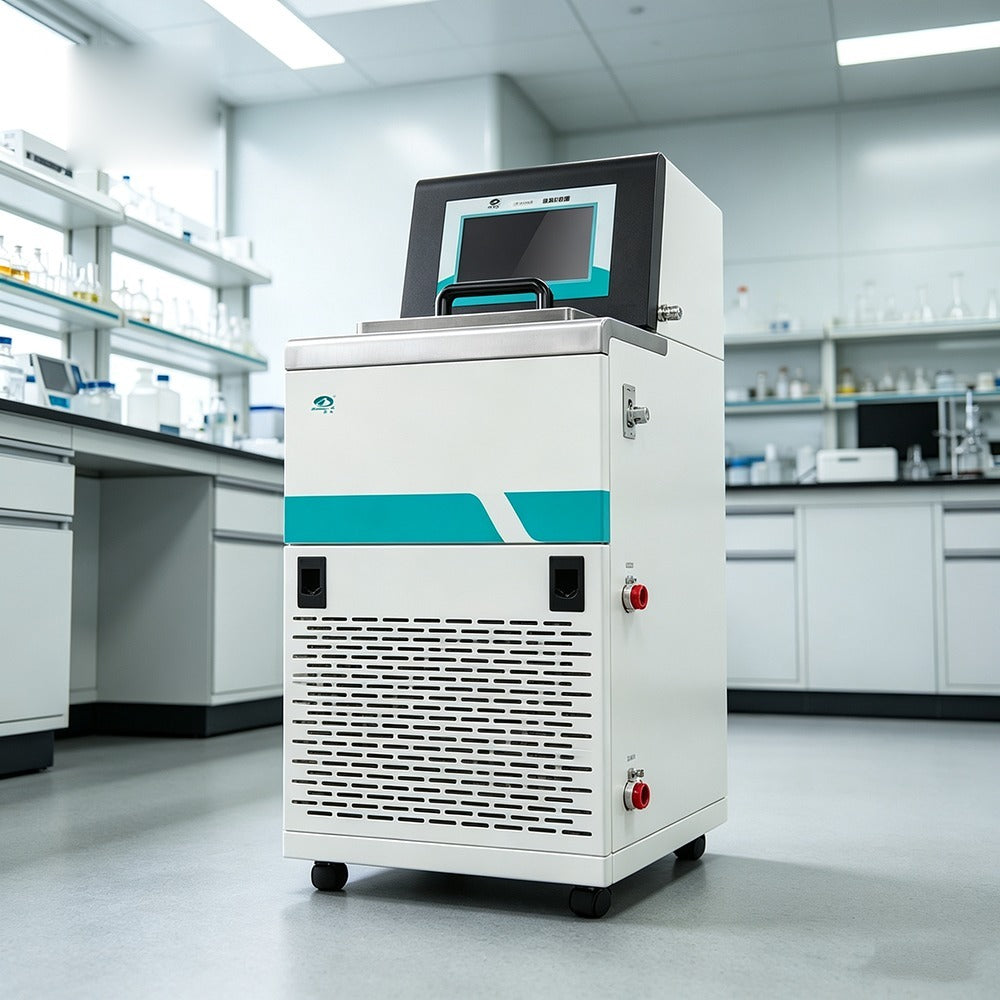

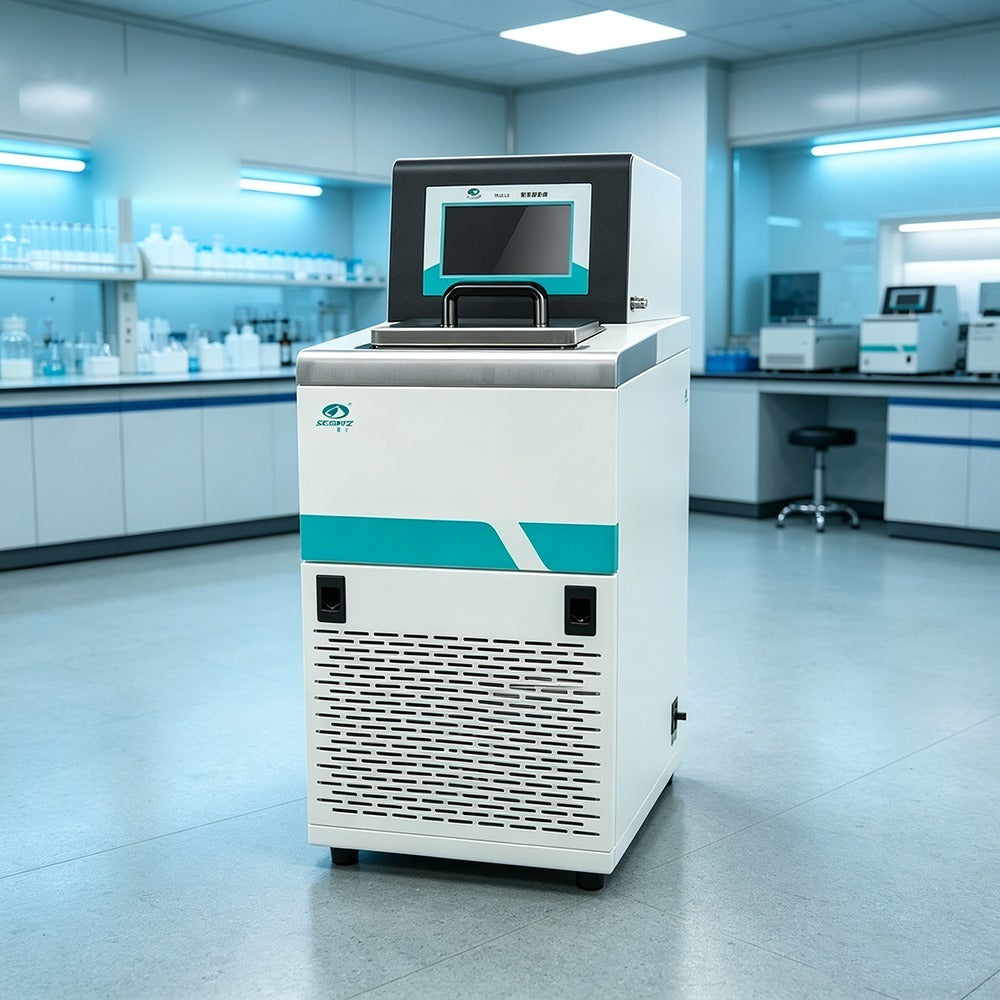

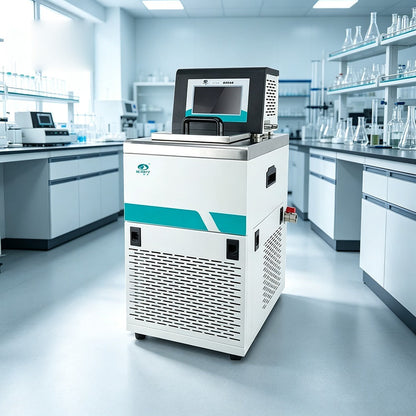

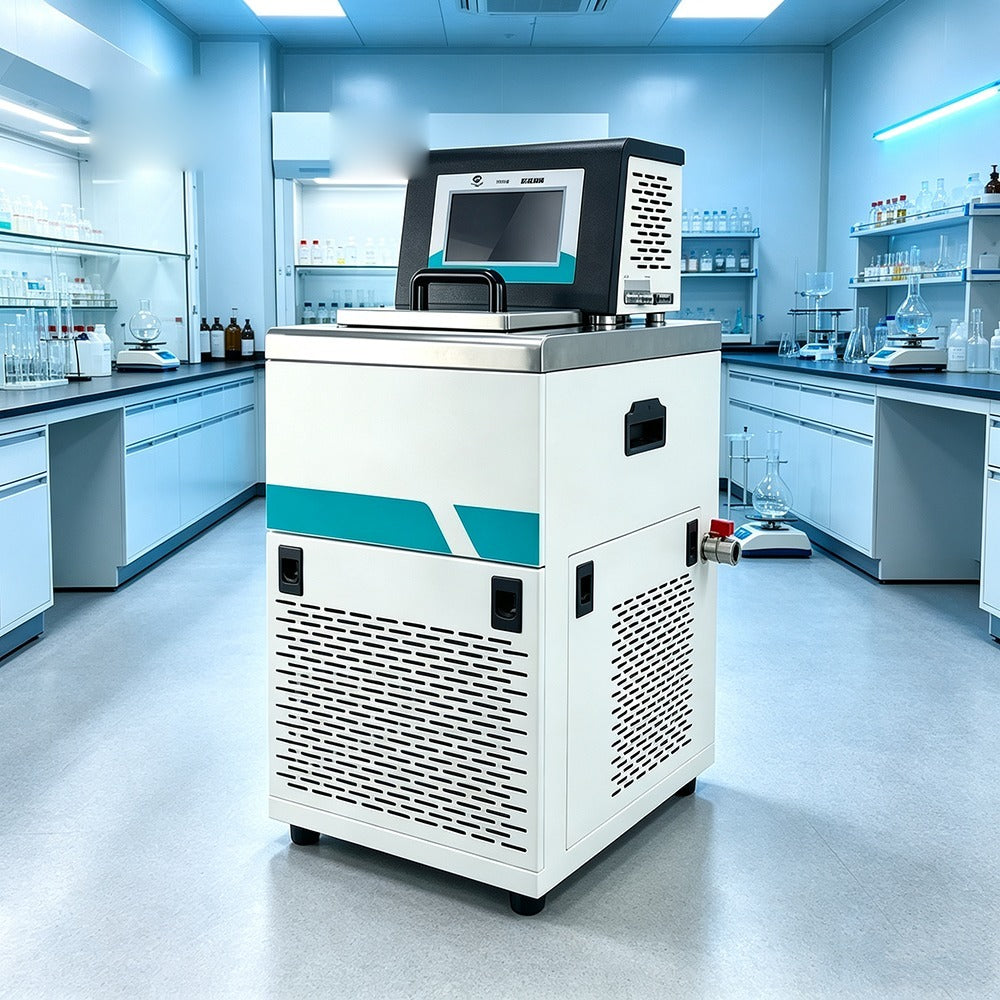

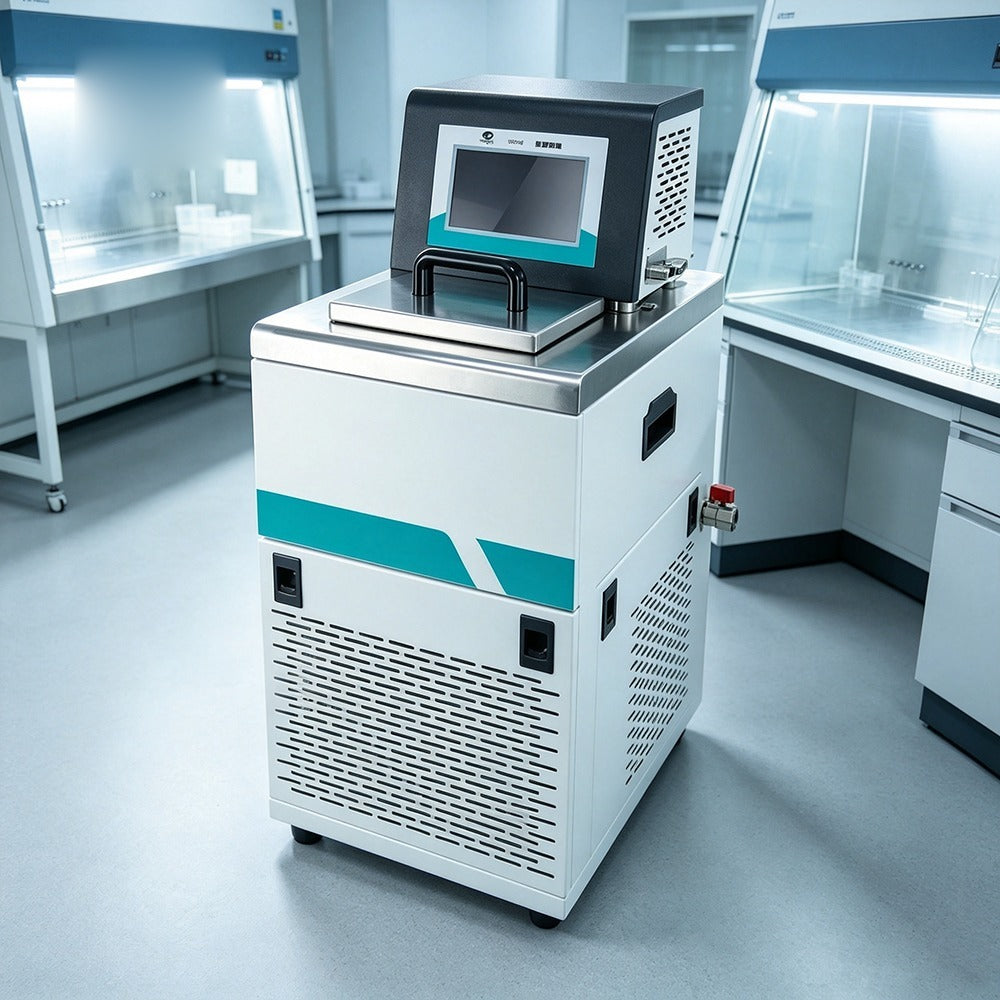

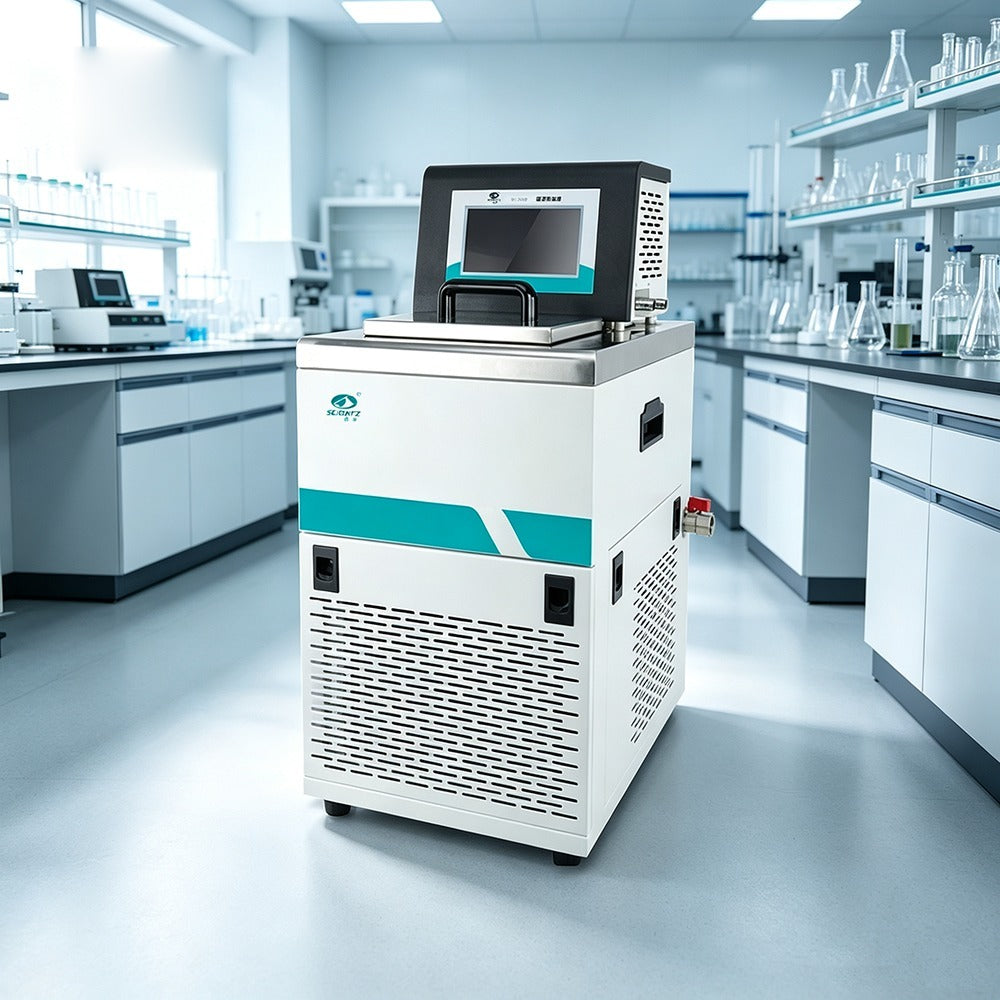

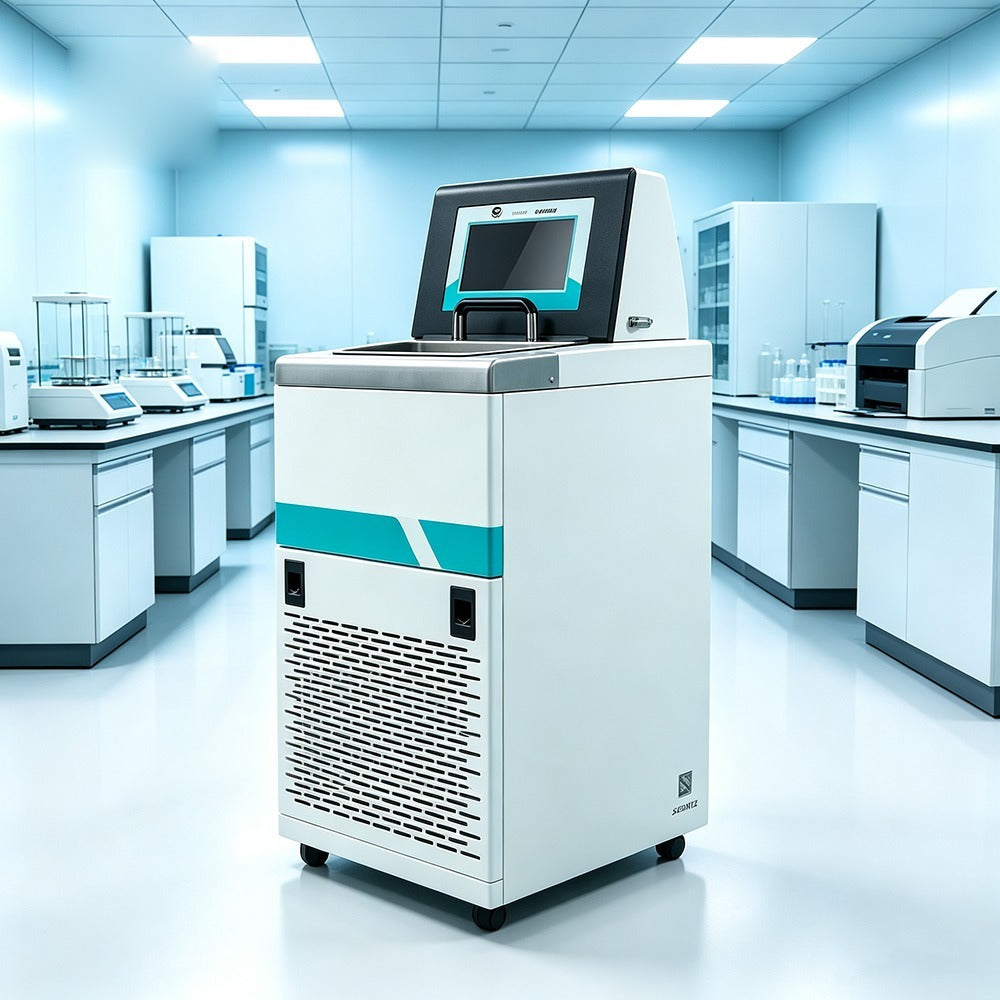

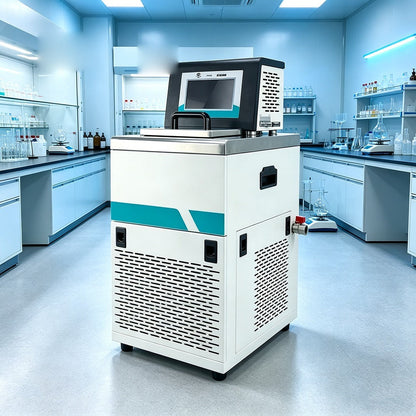

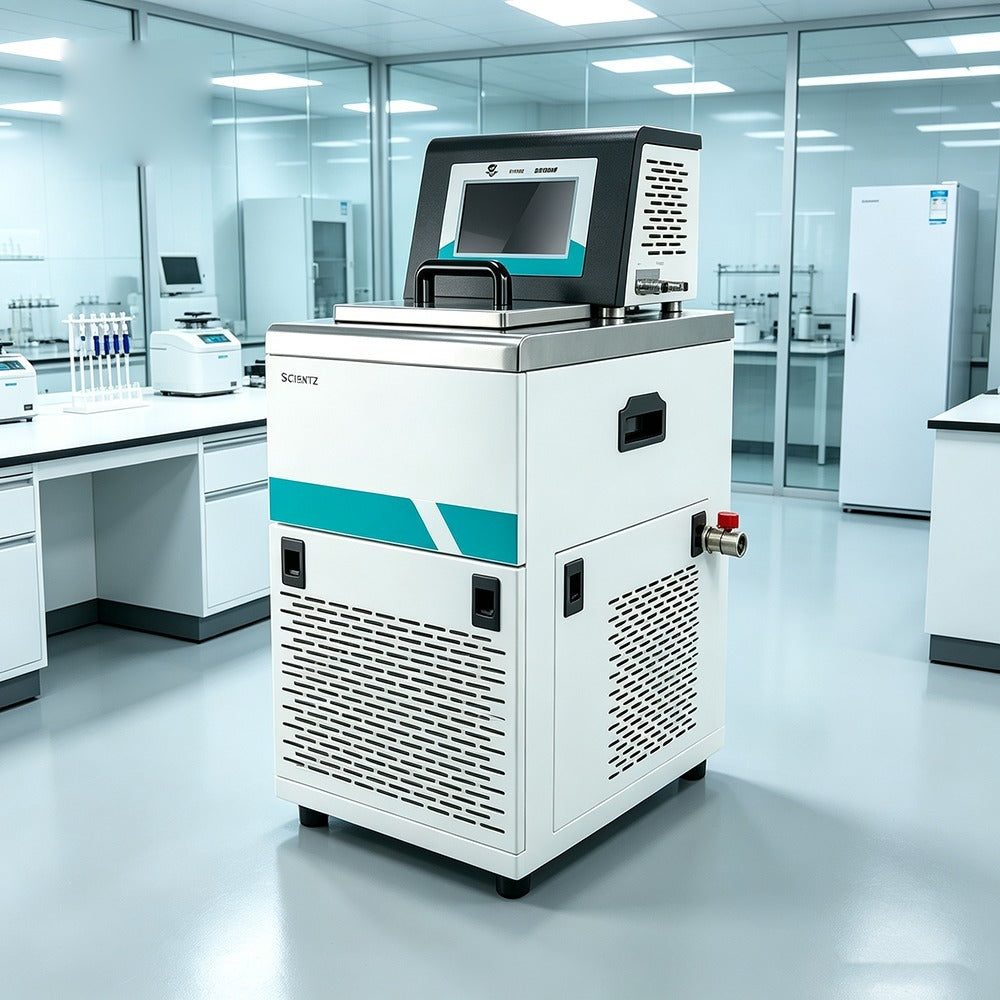

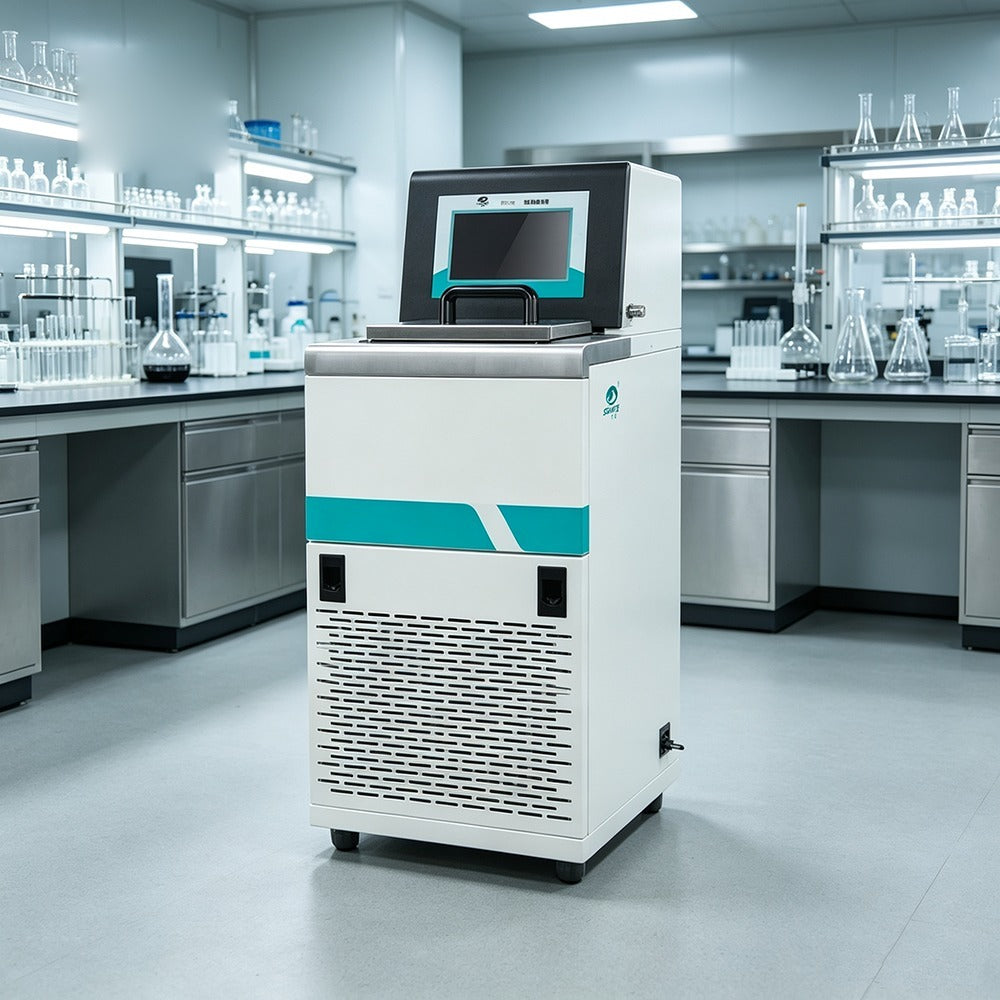

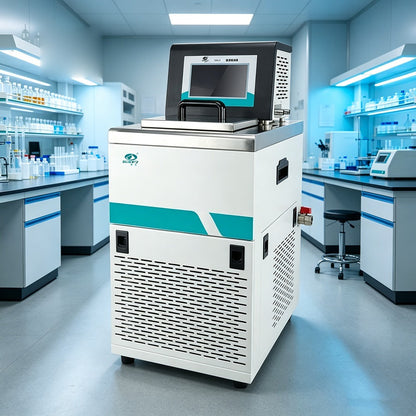

The ALAB-DC series heating and cooling constant temperature baths provide precise laboratory temperature control, with a circulating pump flow of 0-15 L/min and 0.45 bar pump pressure. Six models are available, with temperature ranges of -5~100 °C or -10~100 °C depending on the model - see the comparison table below for the full specifications of each model.
Model Comparison
Specification
ALAB-DC-0510
ALAB-DC-0515
ALAB-DC-0530
ALAB-DC-1006
ALAB-DC-1010
ALAB-DC-1015
Model
ALAB-DC-0510
ALAB-DC-0515
ALAB-DC-0530
ALAB-DC-1006
ALAB-DC-1010
ALAB-DC-1015
Temperature Range
-5~100 °C
-5~100 °C
-5~100 °C
-10~100 °C
-5~100 °C
-10~100 °C
Bath Volume / Working Slot
260*200*200 mm working slot
15L (working slot 300*250*200 mm)
30L (working slot 440*325*200 mm)
260*200*140 mm working slot
260*200*200 mm working slot
Working area 26cm*20cm*20cm
Heating Power
1 kW
1 kW
3.6 kW
1.3 kW
1 kW
2.1 kW
Cooling Power
0.52 kW
0.52 kW
1.8 kW
0.32 kW
0.42 kW
0.76 kW
Pump Flow
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
Pump Pressure
0.45 bar
0.45 bar
0.45 bar
0.45 bar
0.45 bar
0.45 bar
Temperature Fluctuation
±0.1 °C, ±0.5 °C
±0.1% ~ ±0.5% FS
±0.1 °C
±0.1 °C, ±0.5 °C
±0.1 °C, ±0.5 °C
±0.1 °C, ±0.5 °C
Display Resolution
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
Dimensions
395*336*715 mm
455*388*845 mm
625*500*990 mm
390*340*652 mm
395*336*715 mm
395*336*715 mm
Material
Stainless Steel
SUS304
SUS304
Stainless Steel
Stainless Steel
Stainless Steel
Voltage
220-240V AC
220-240V AC
220-240V AC
220-240V AC
220-240V AC
220-240V AC
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
