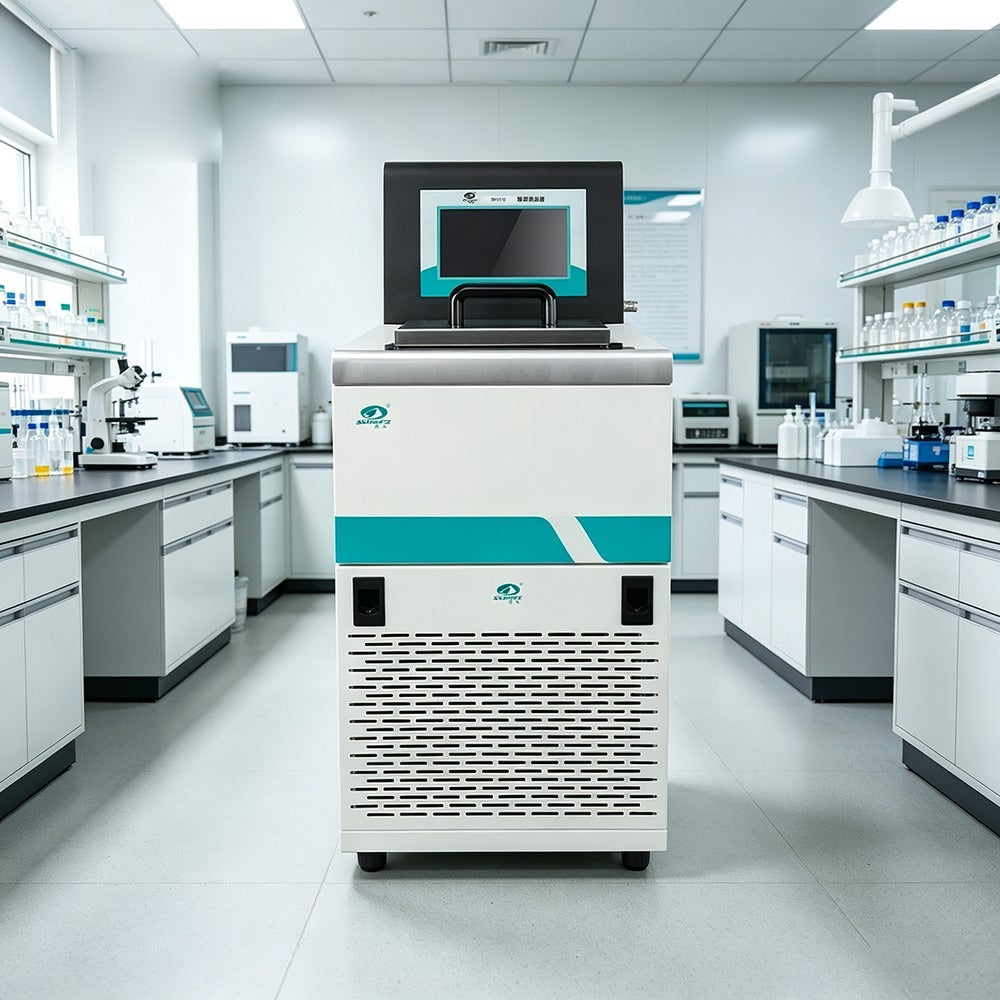

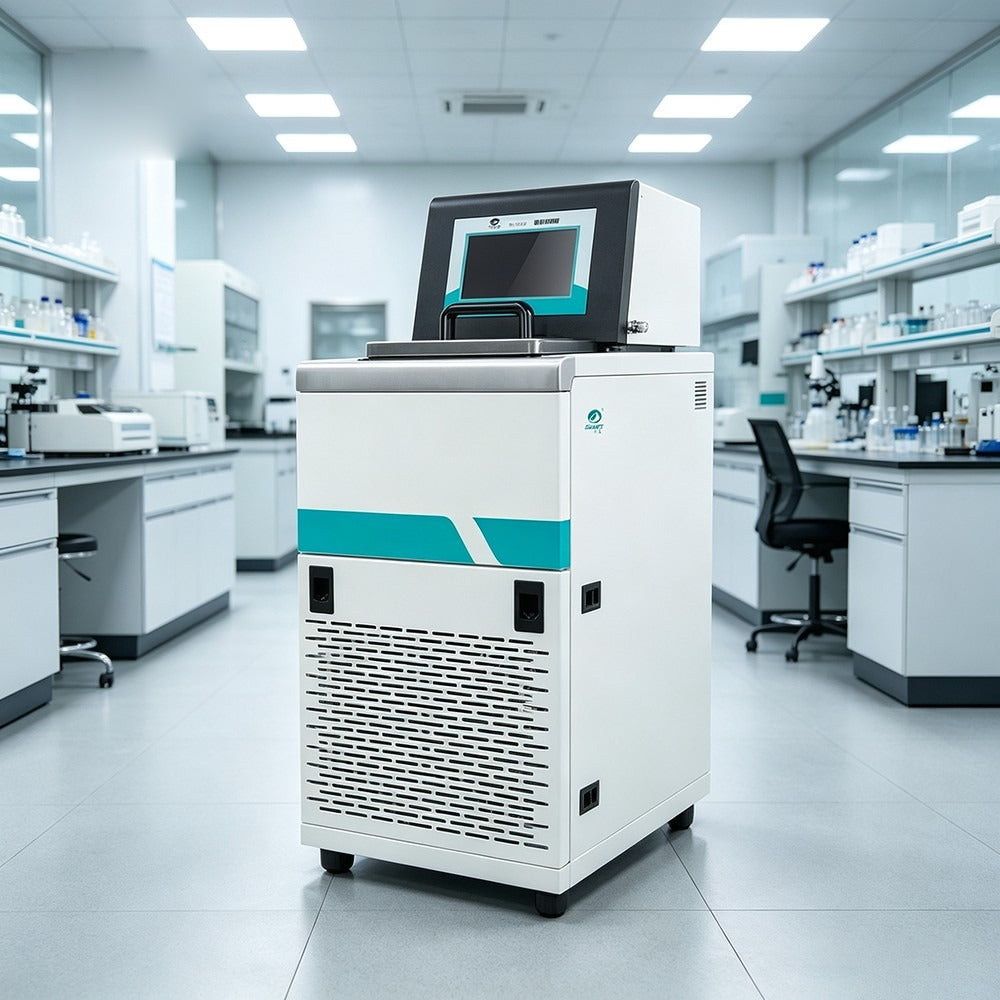

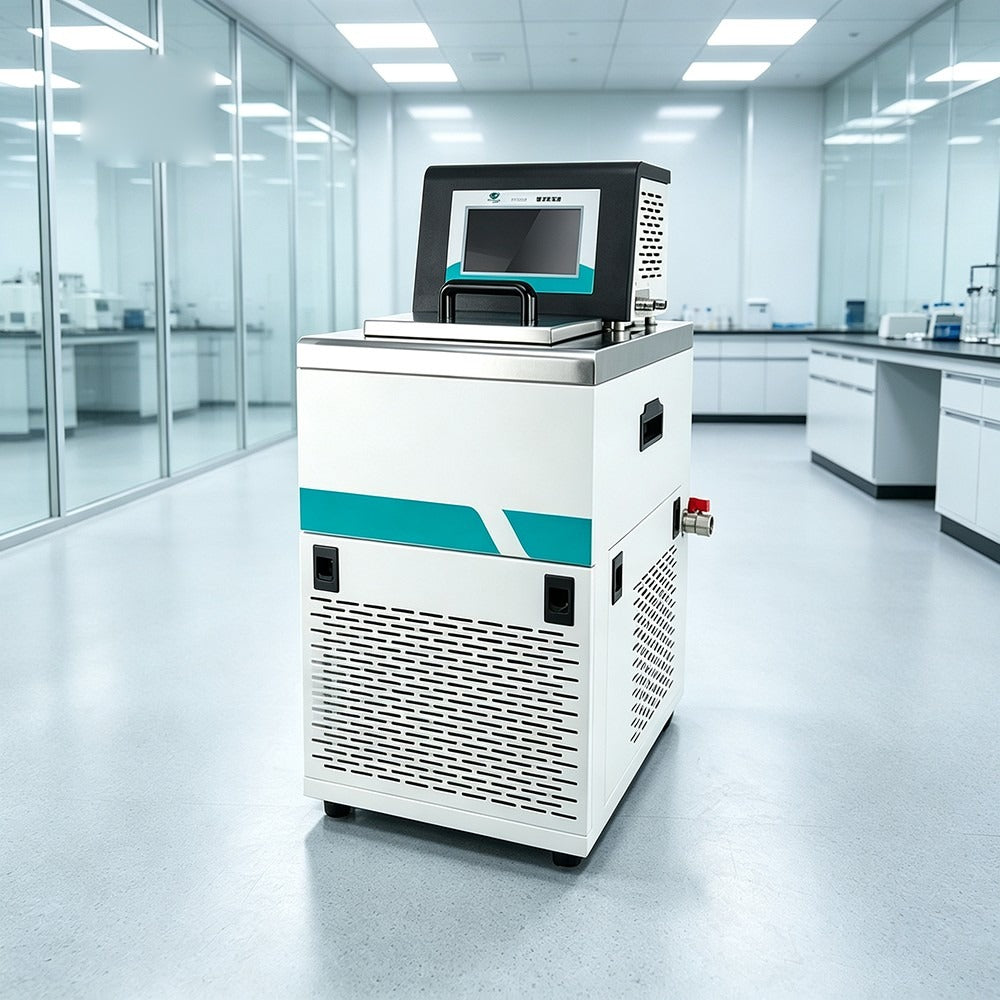

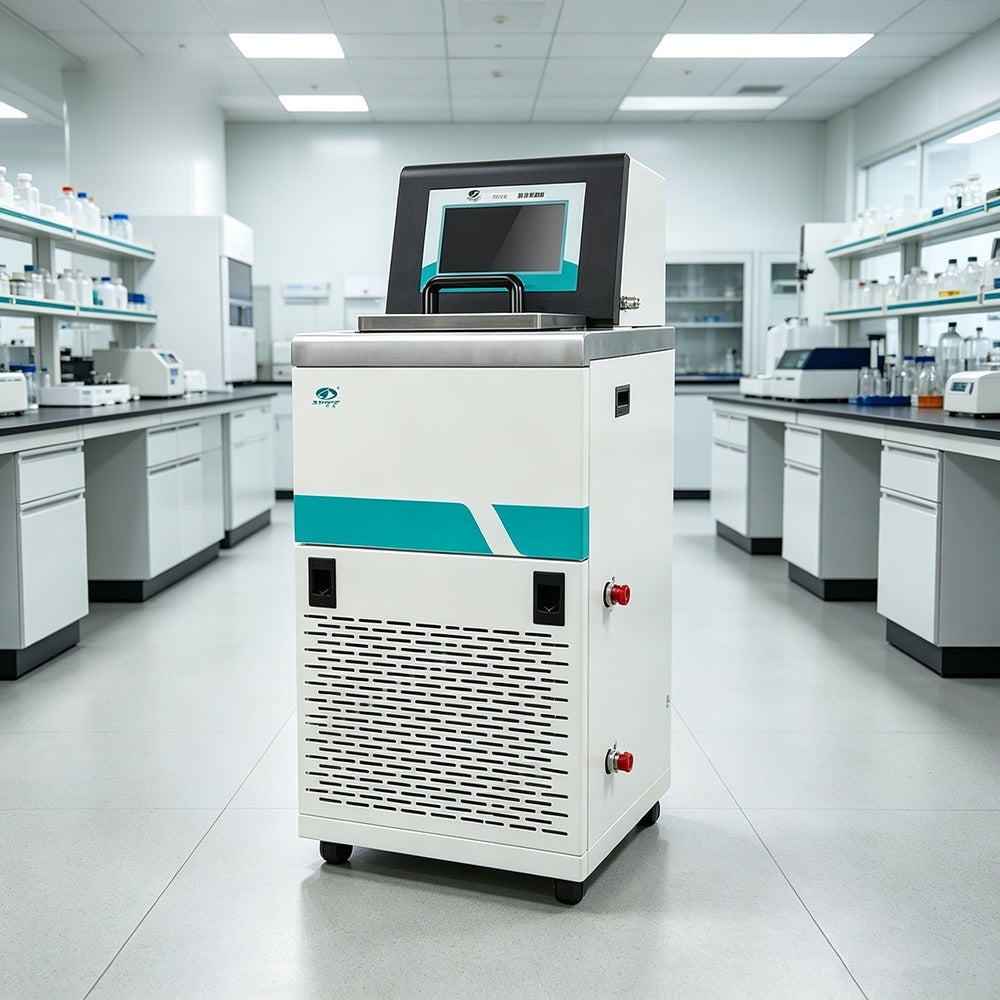

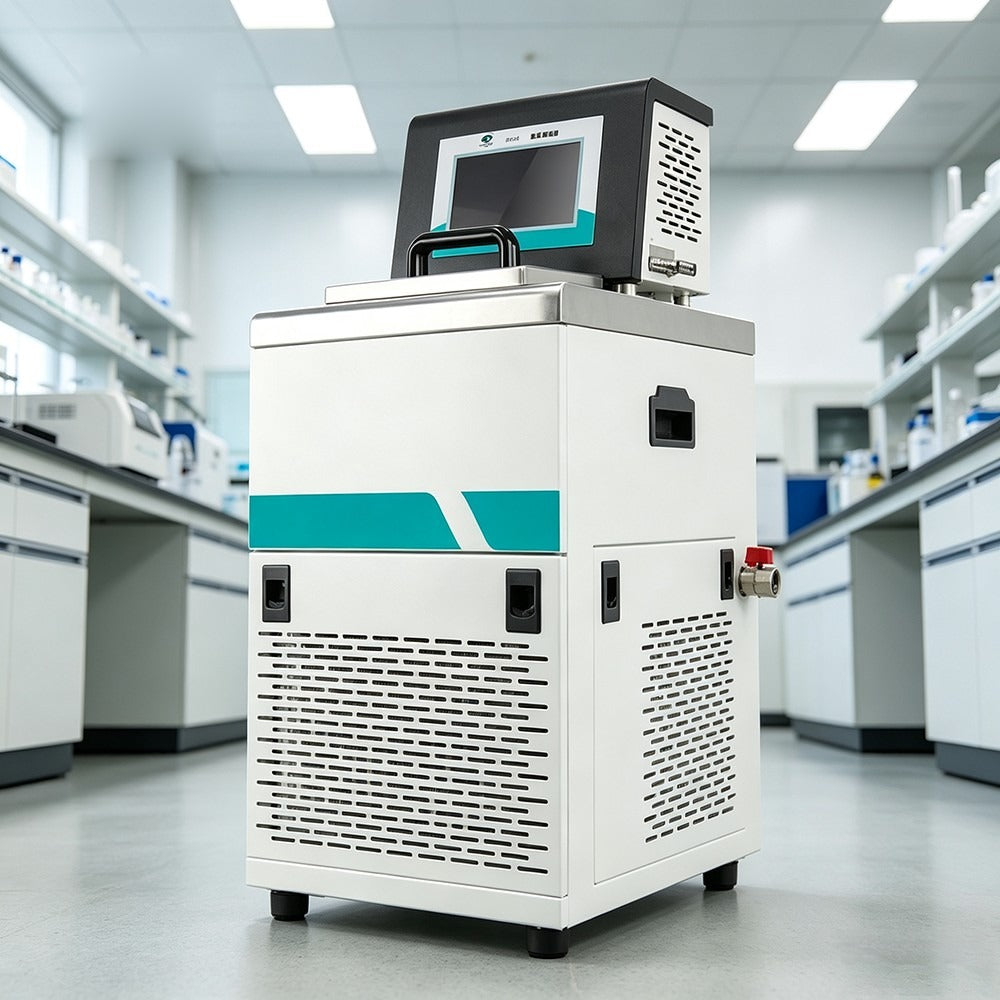

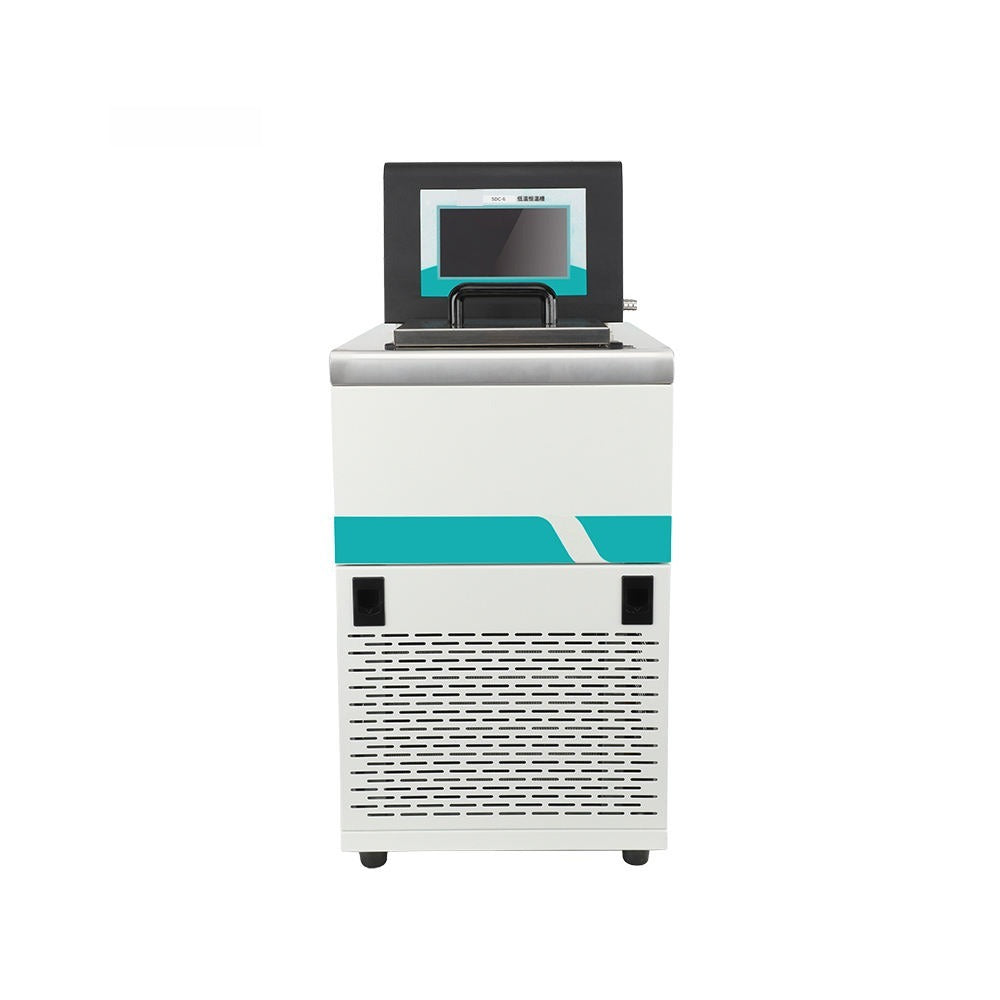

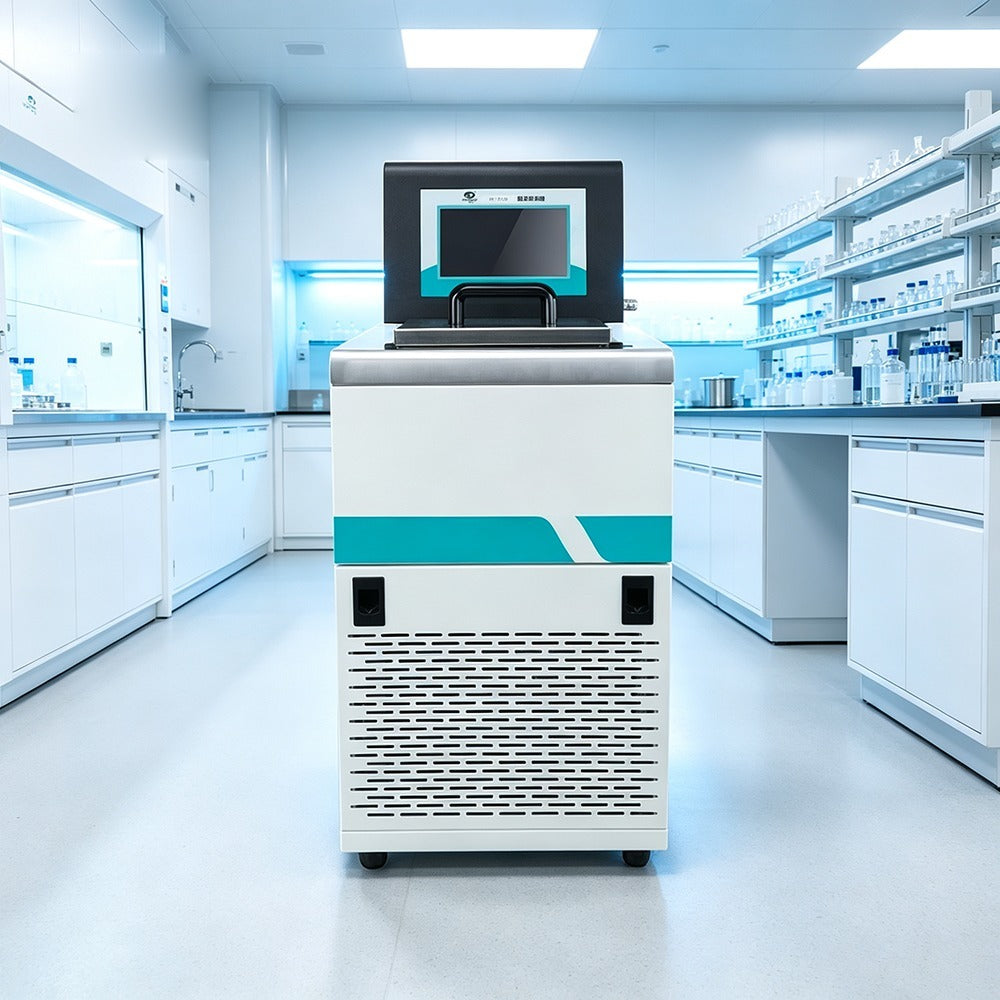

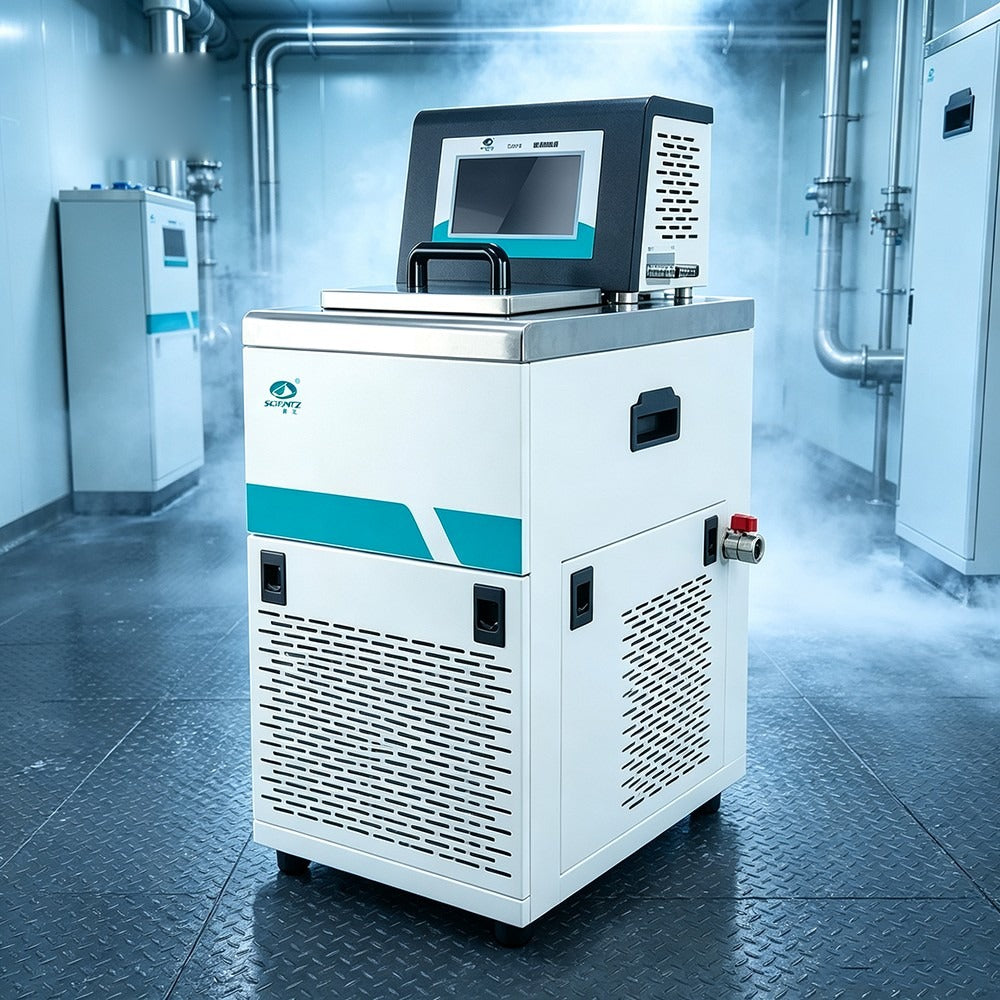

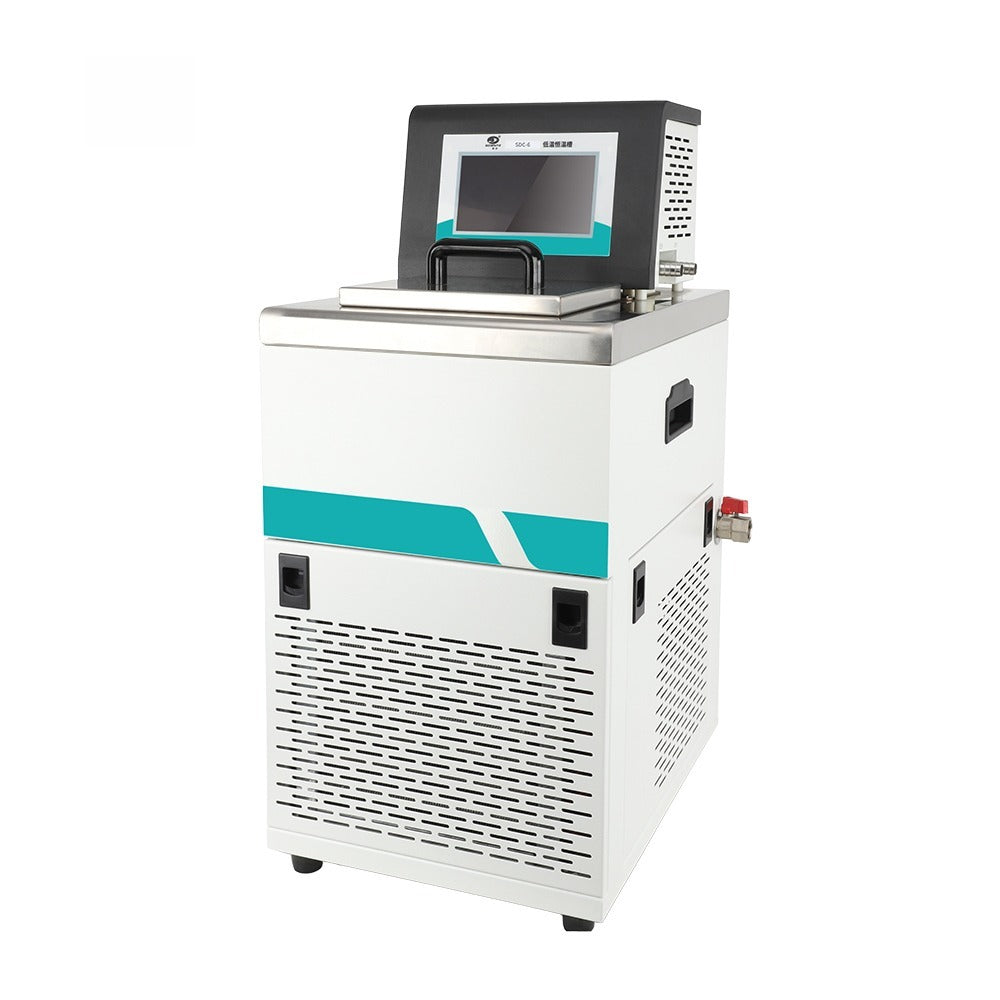

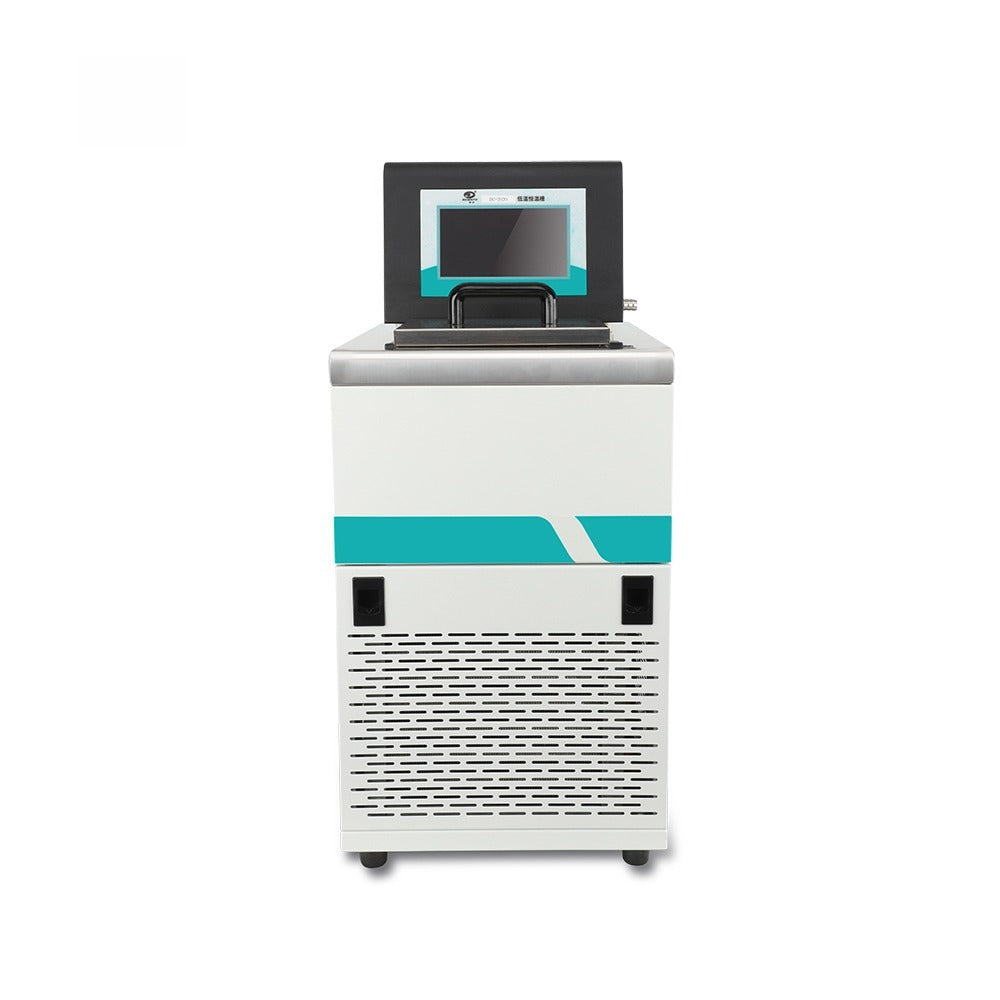

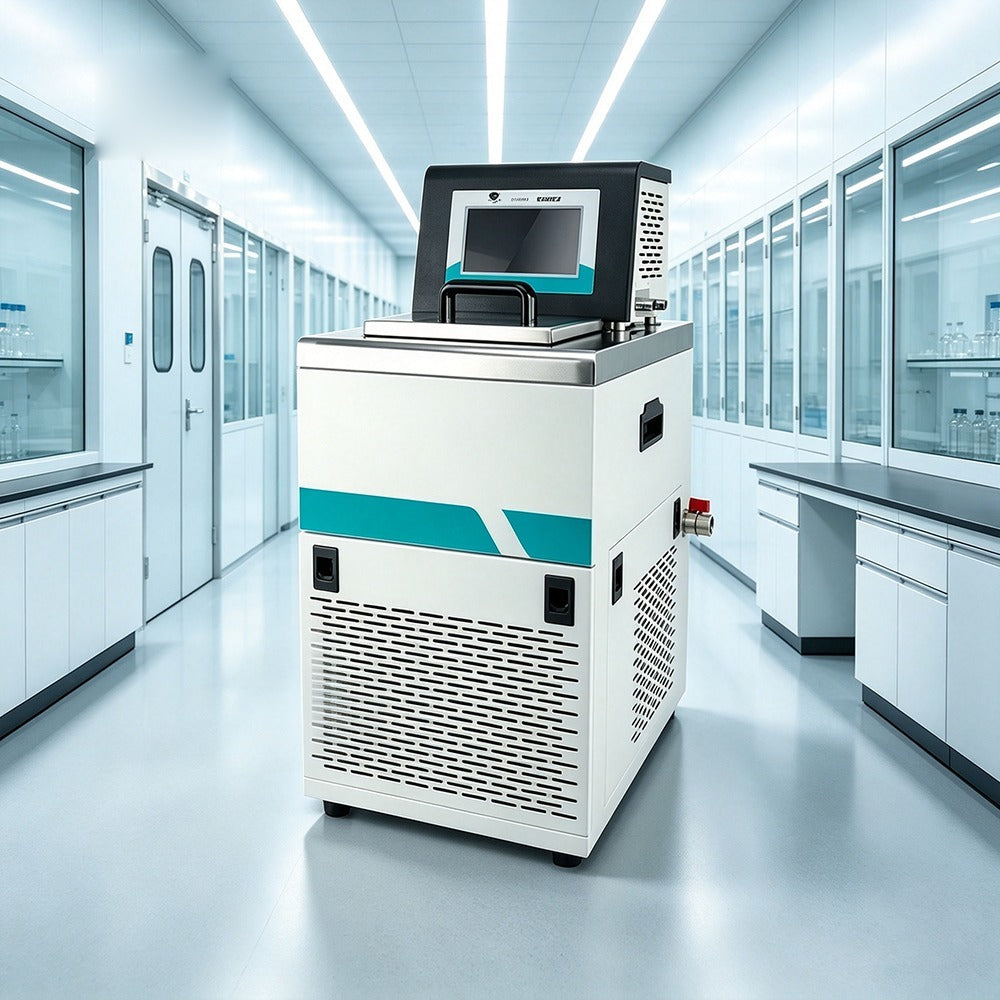

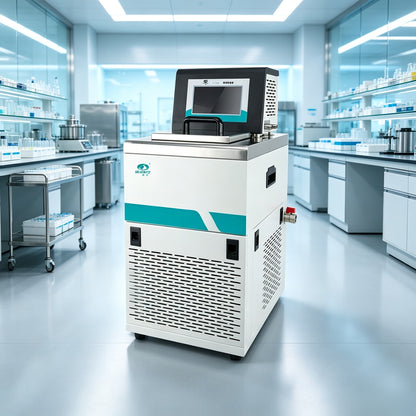

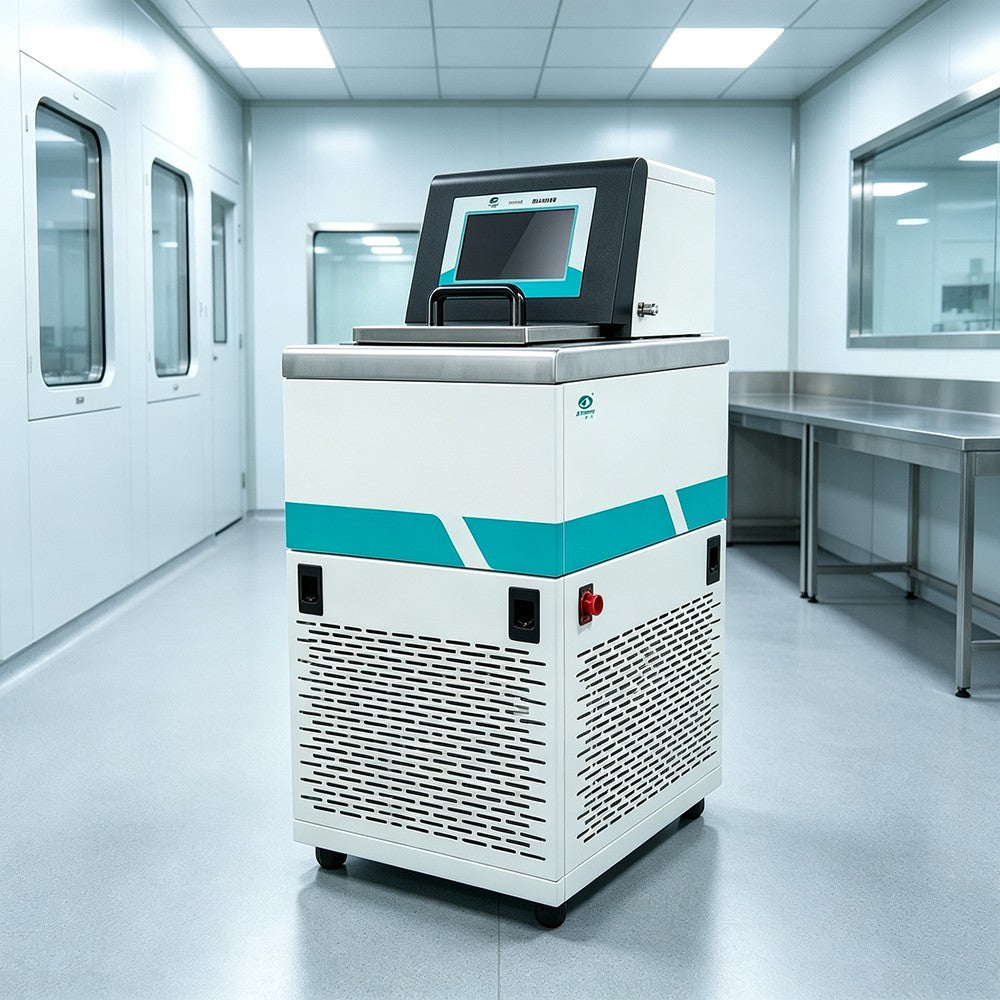

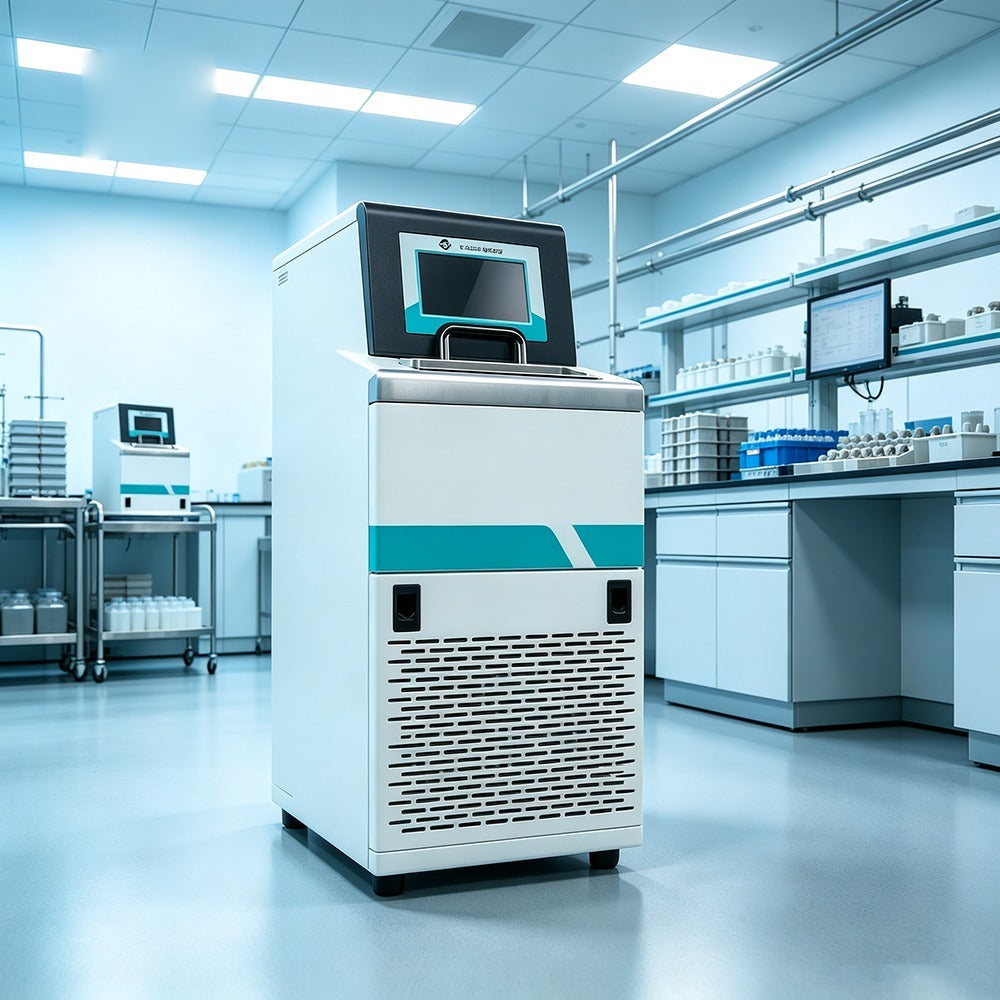

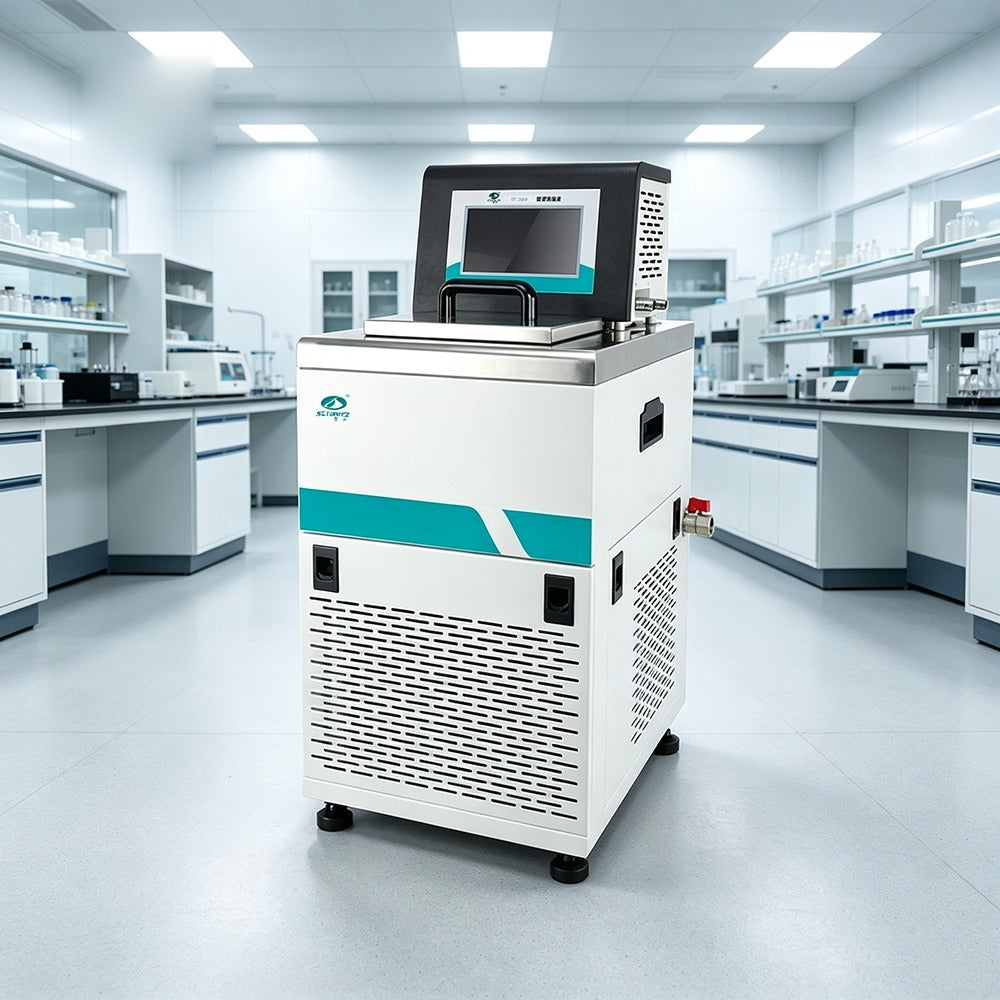

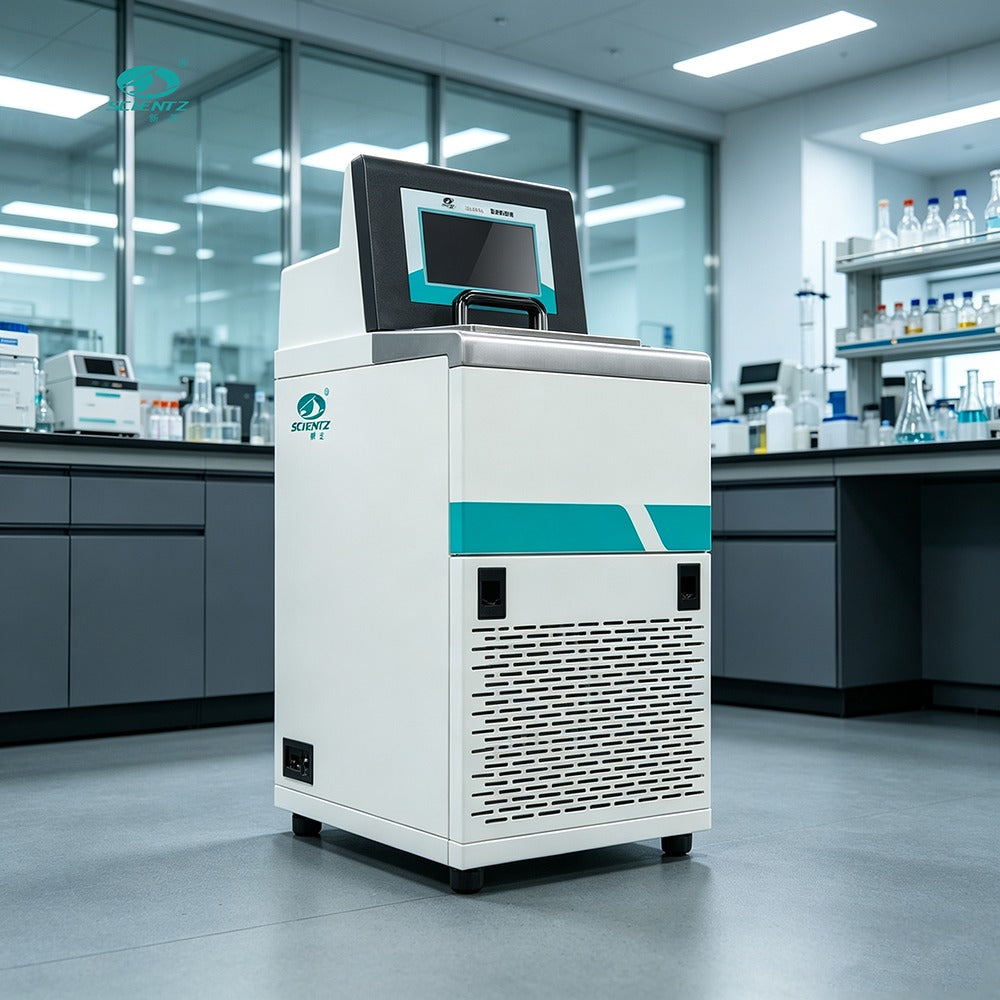

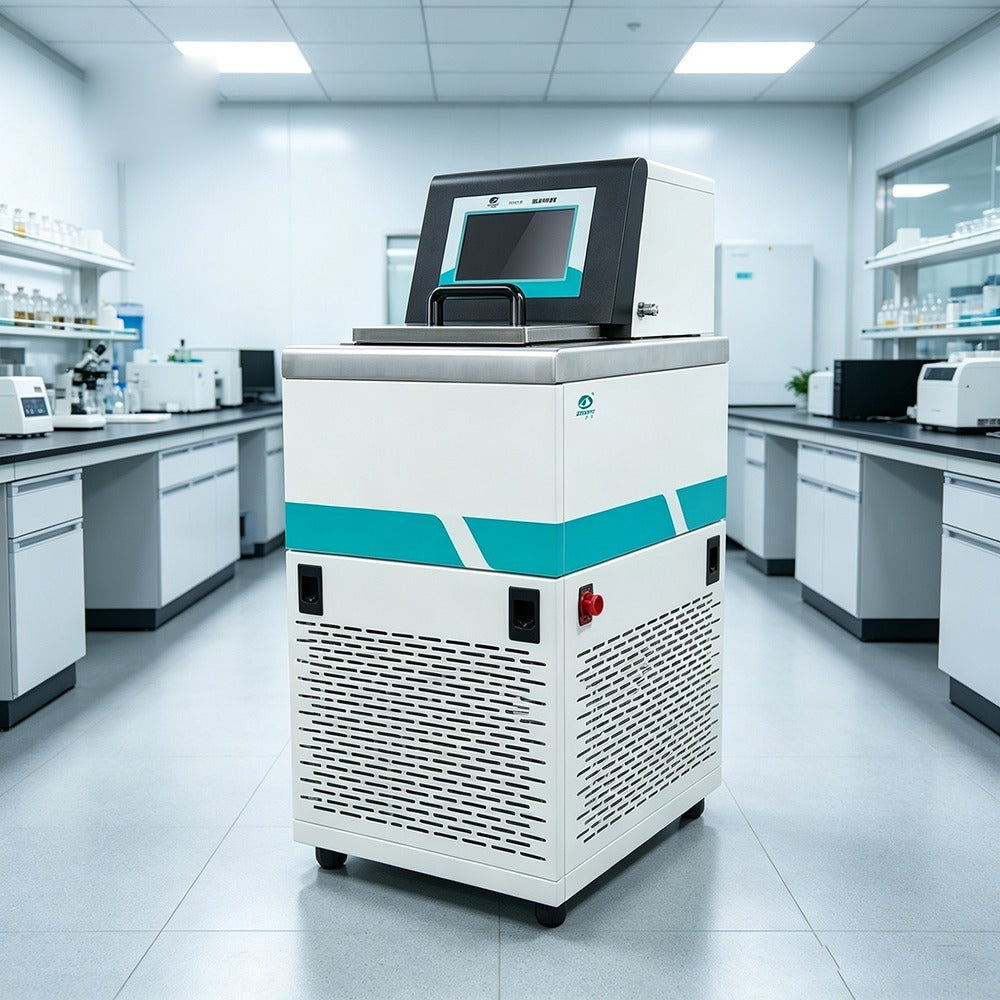

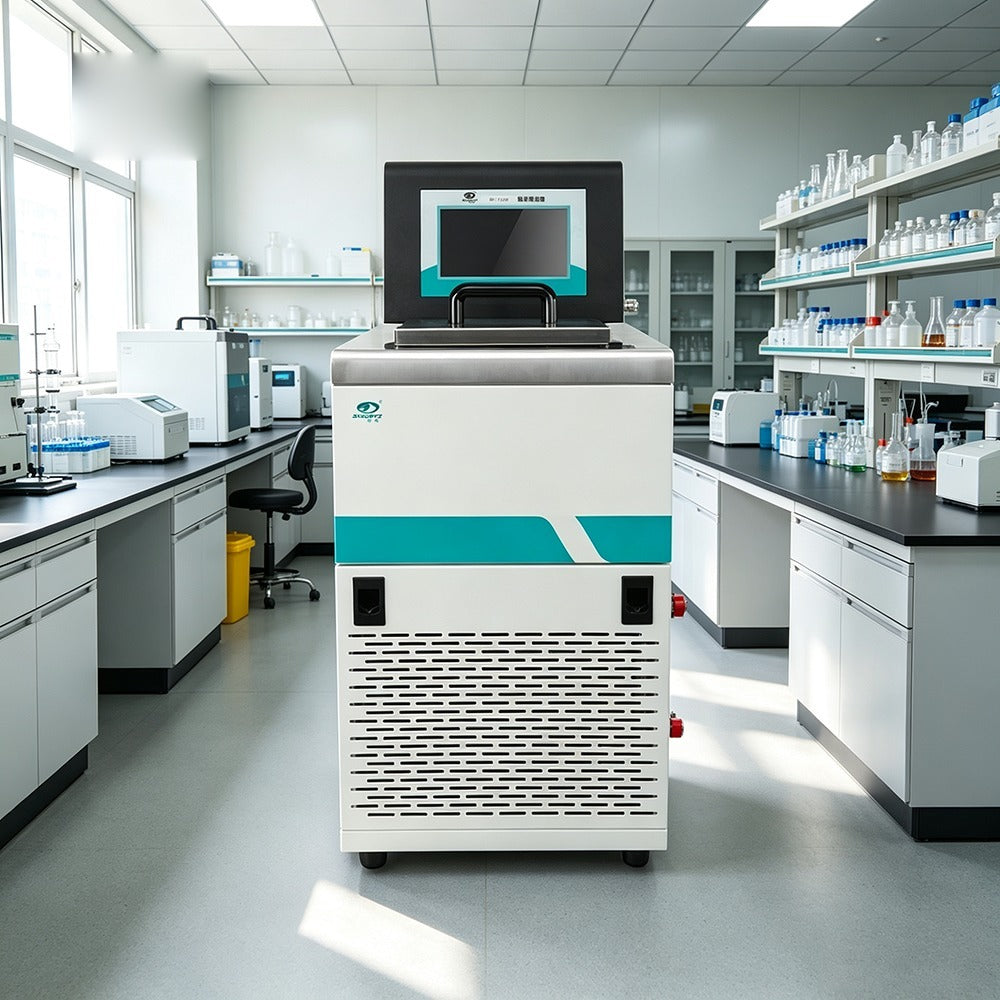

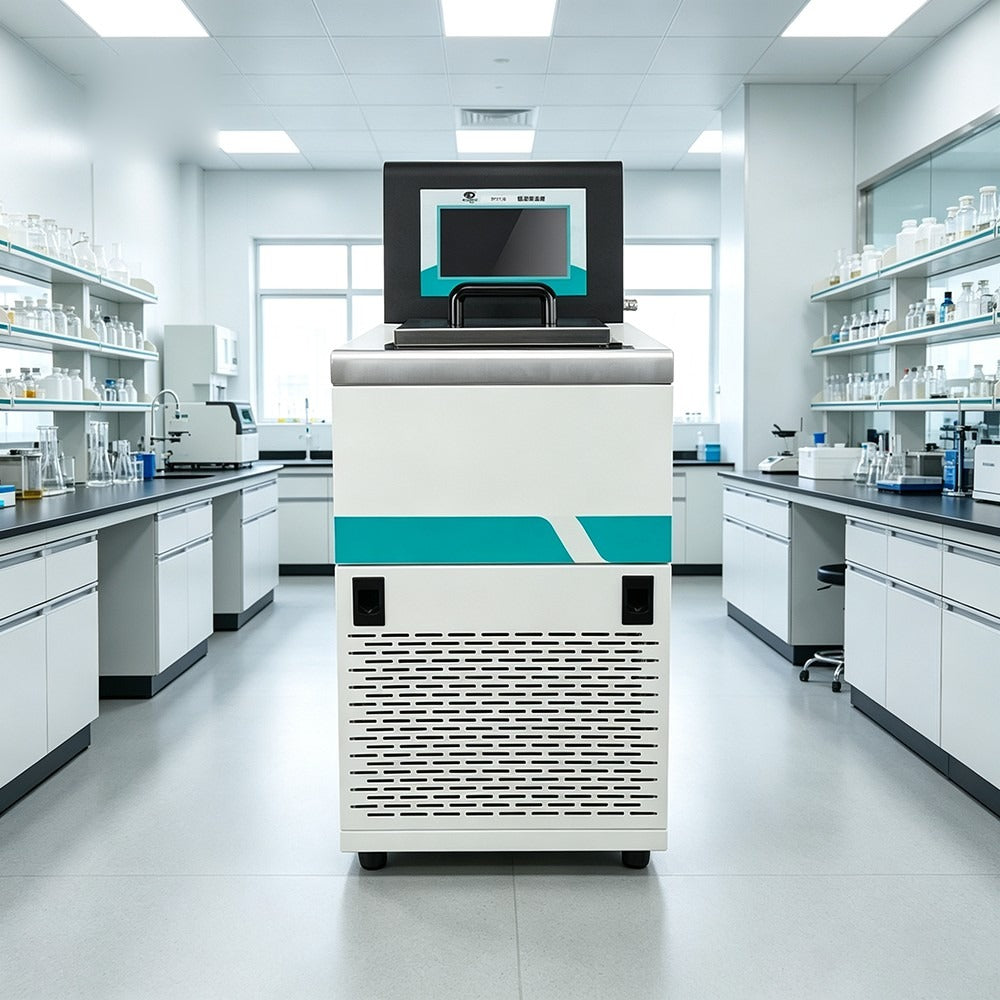

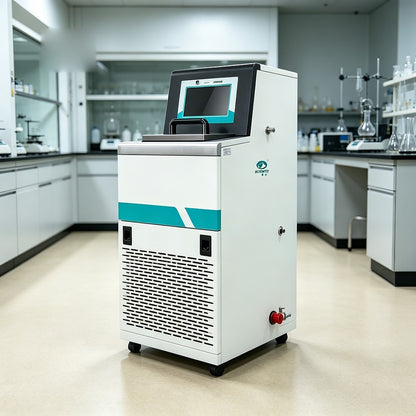

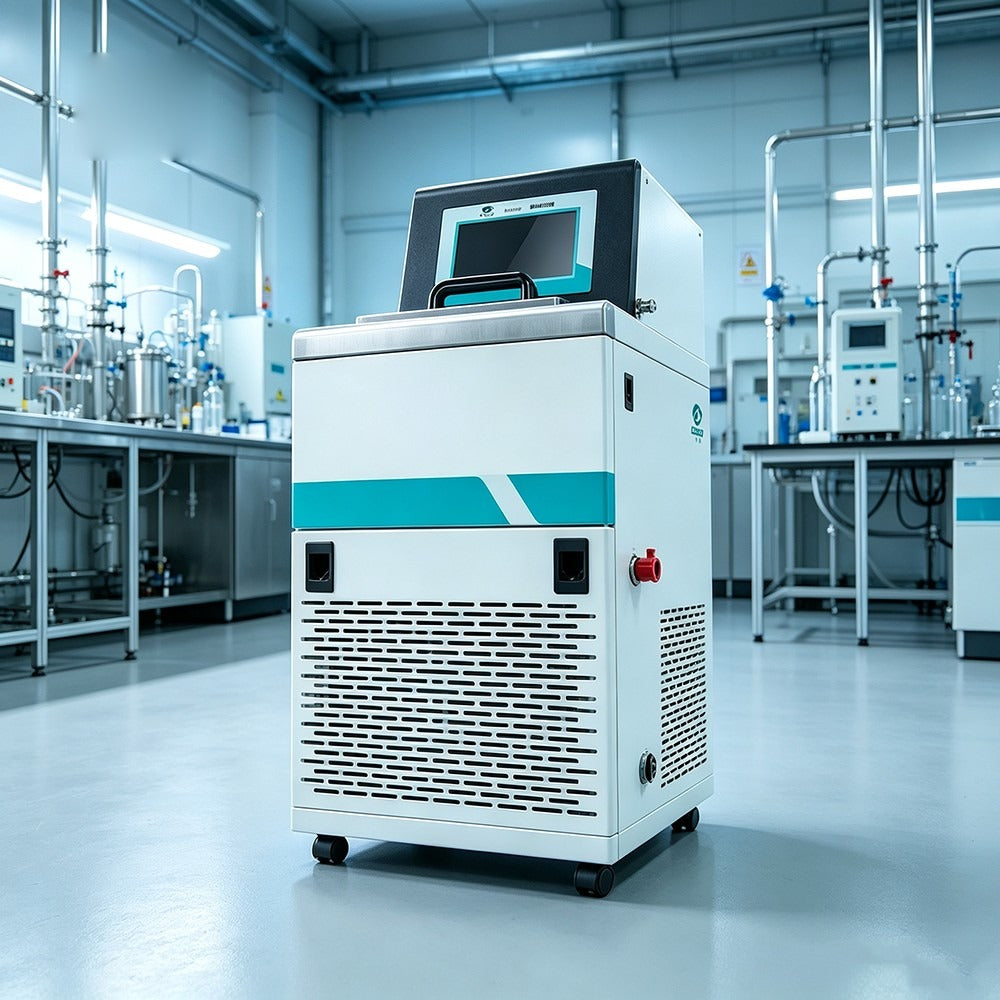

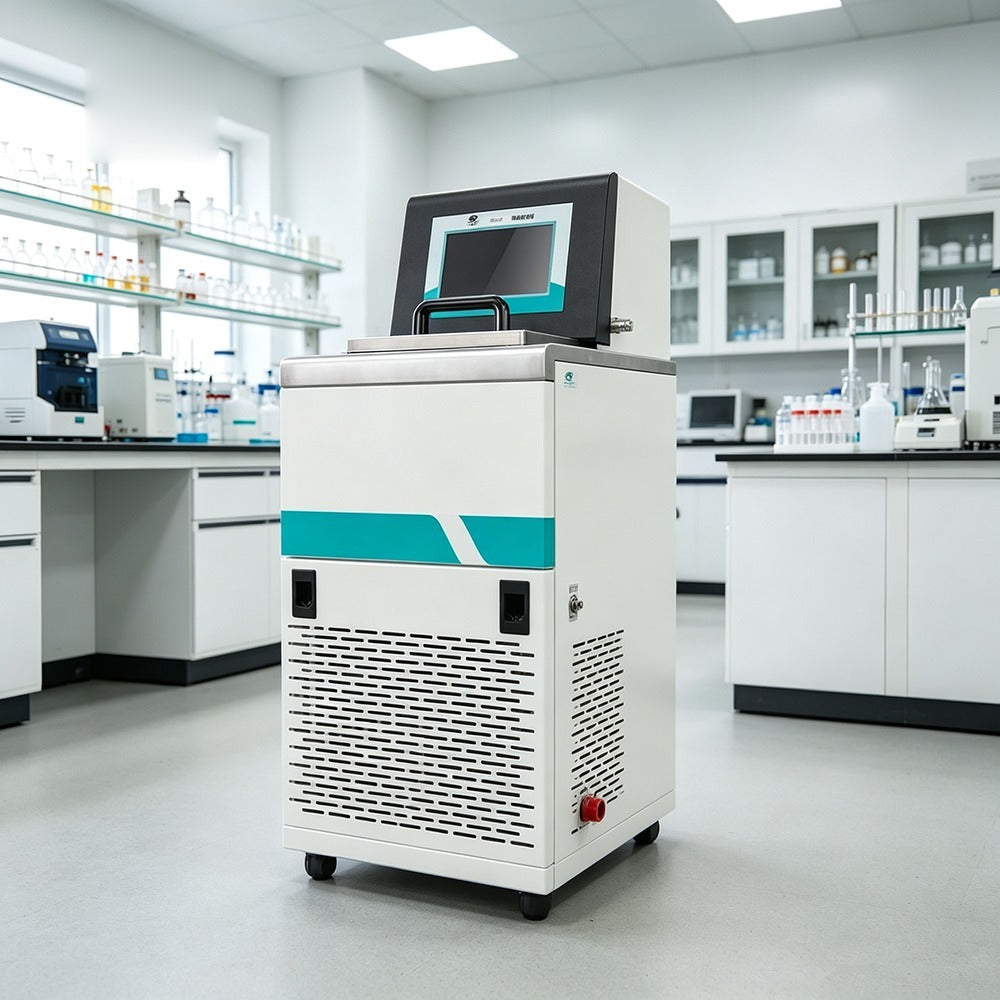

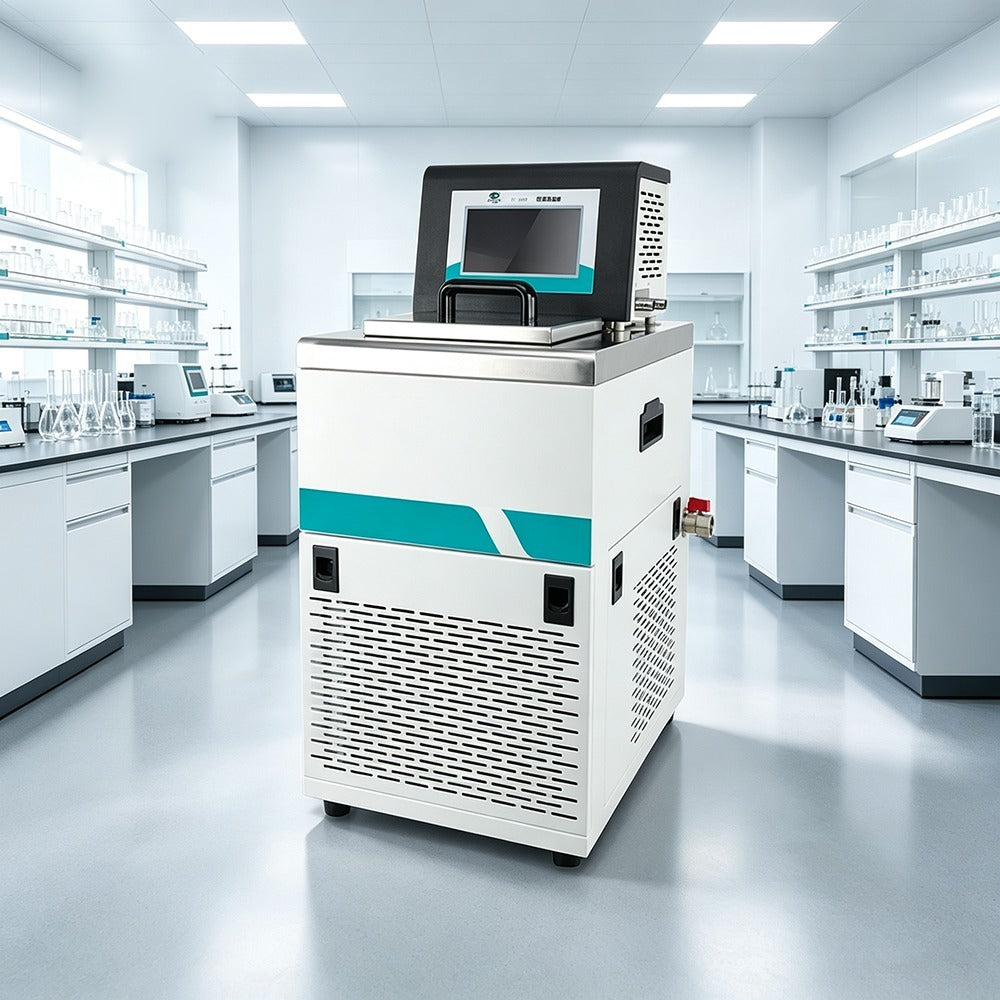

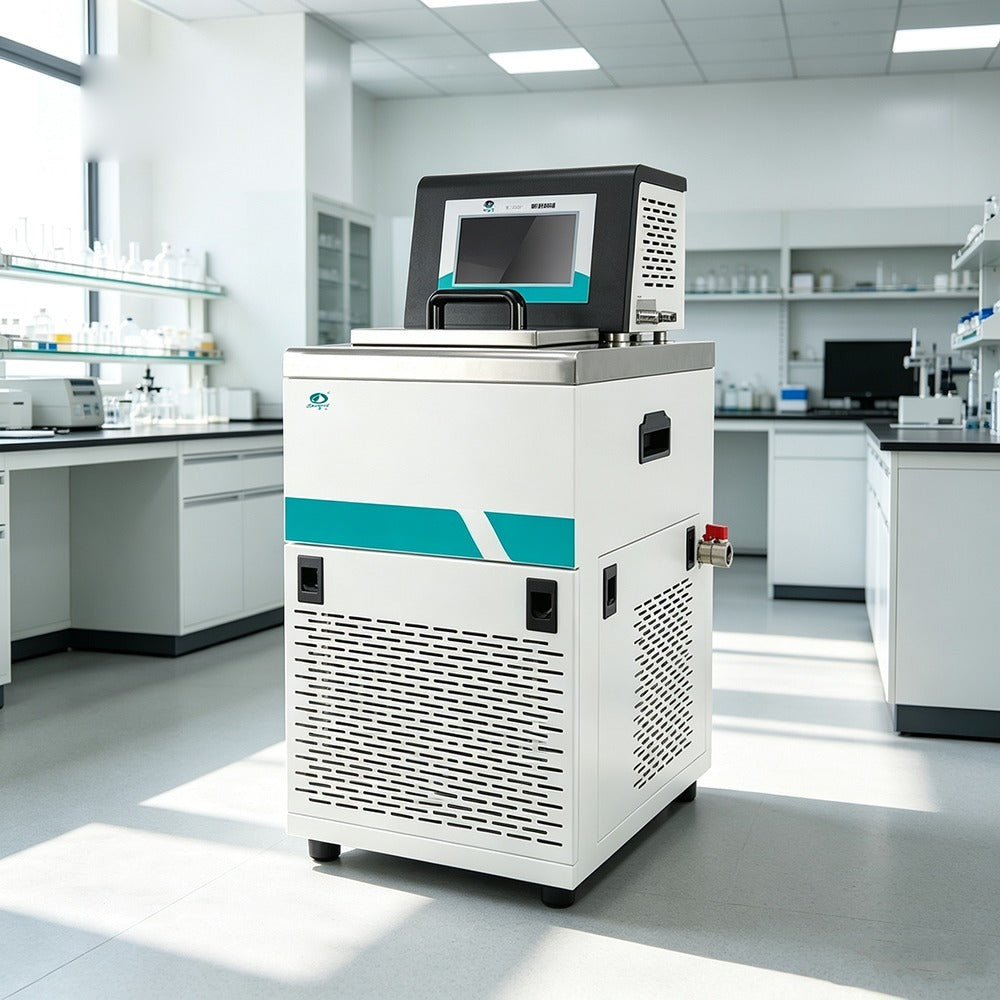

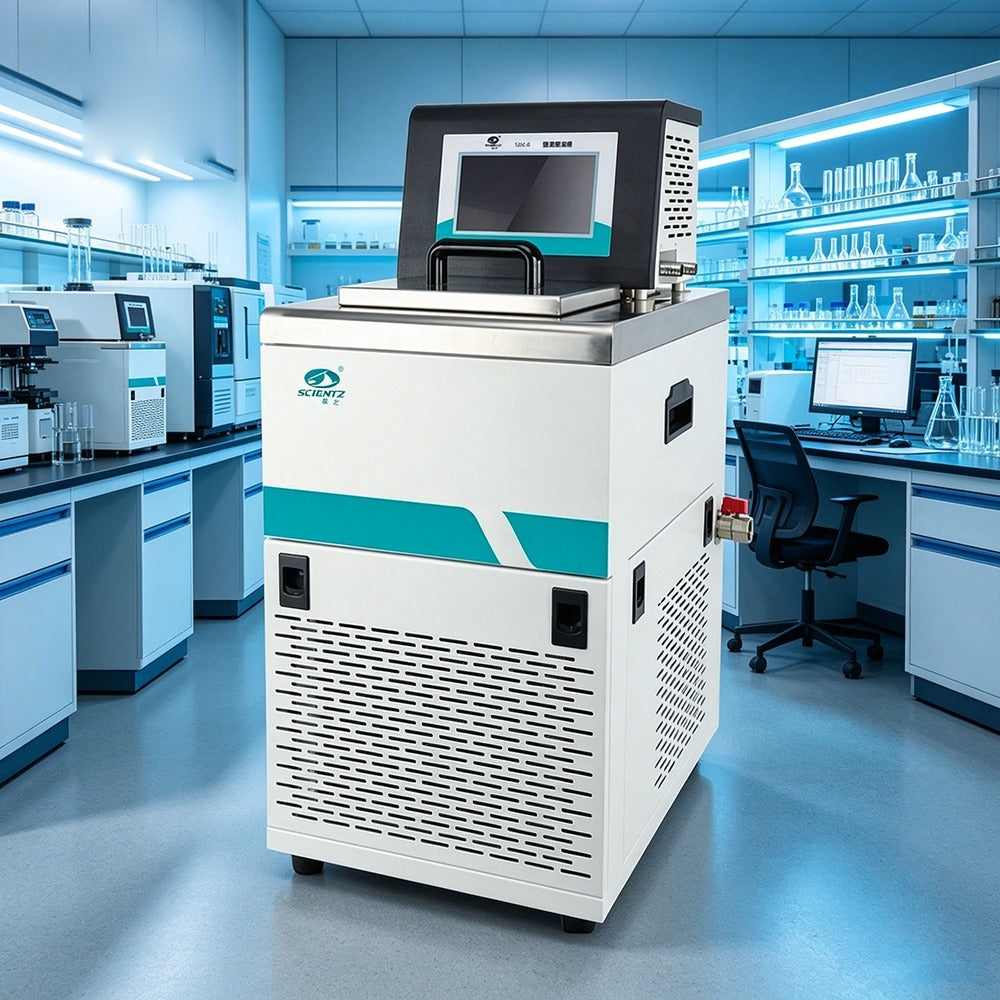

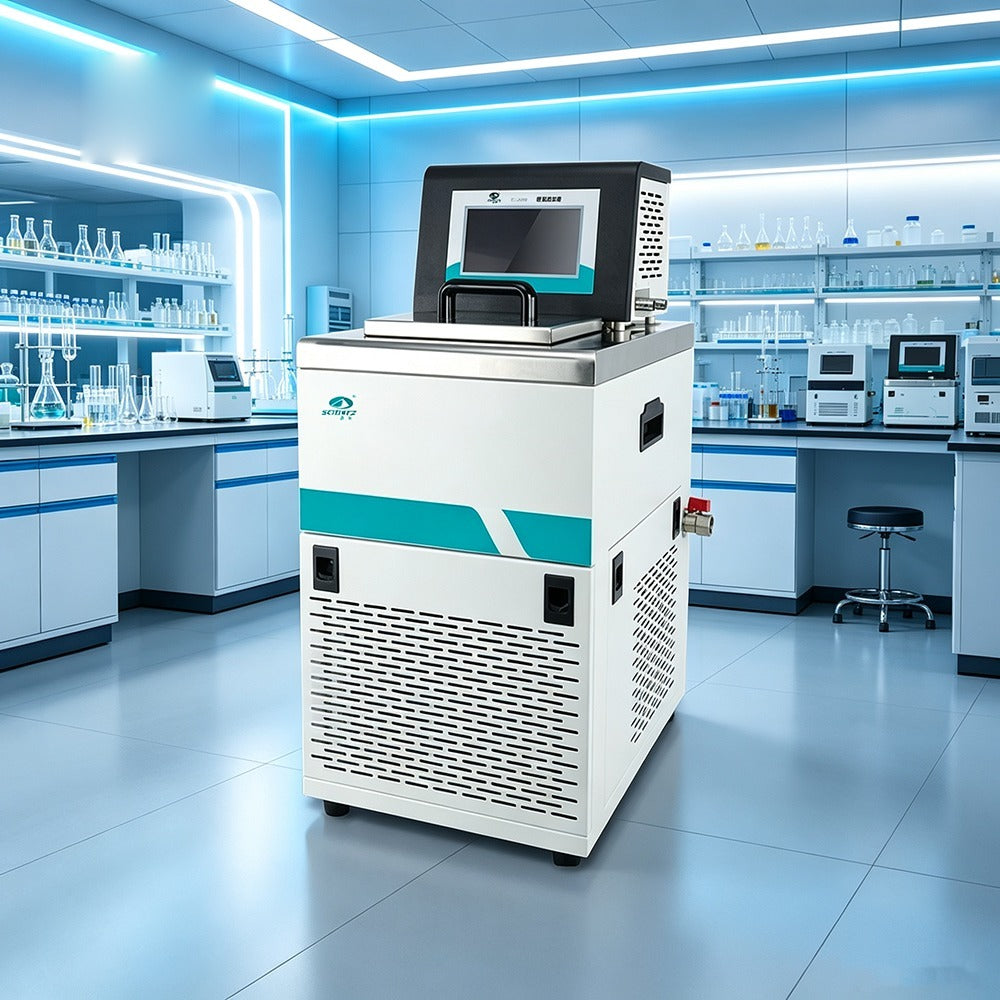

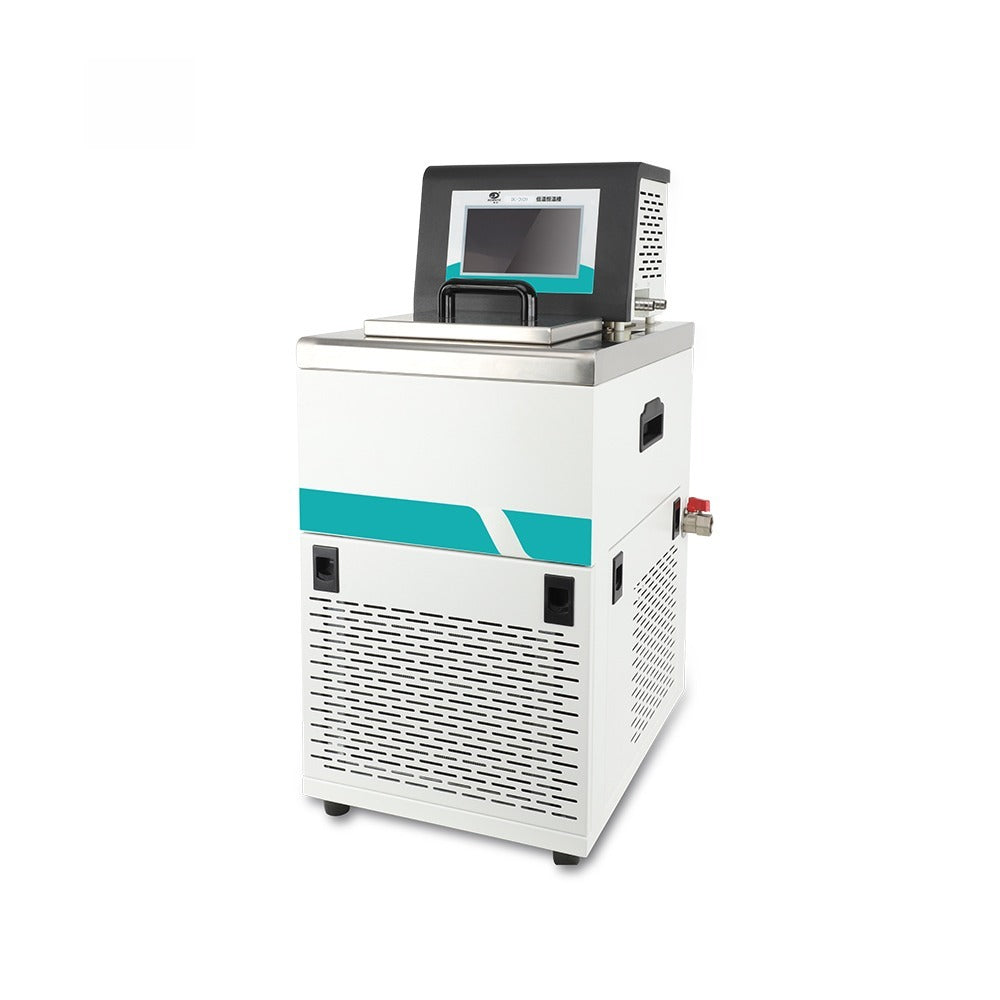

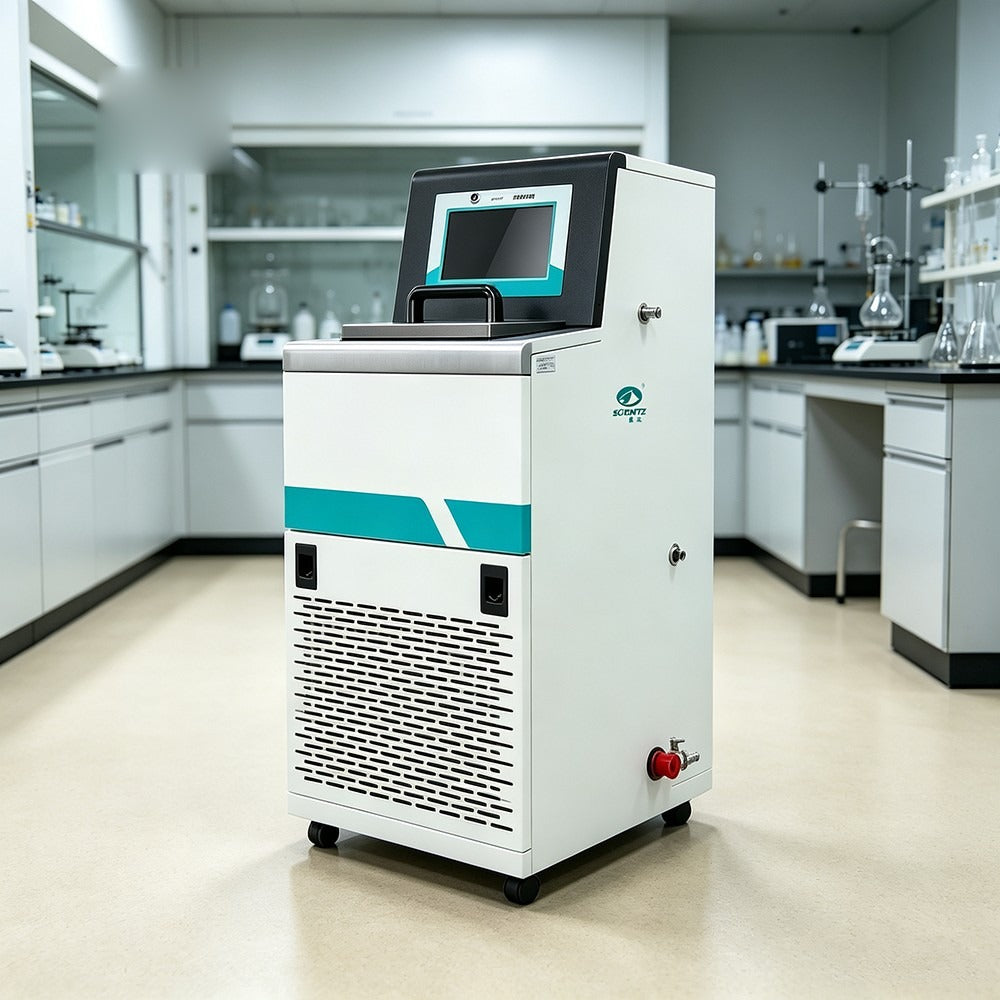

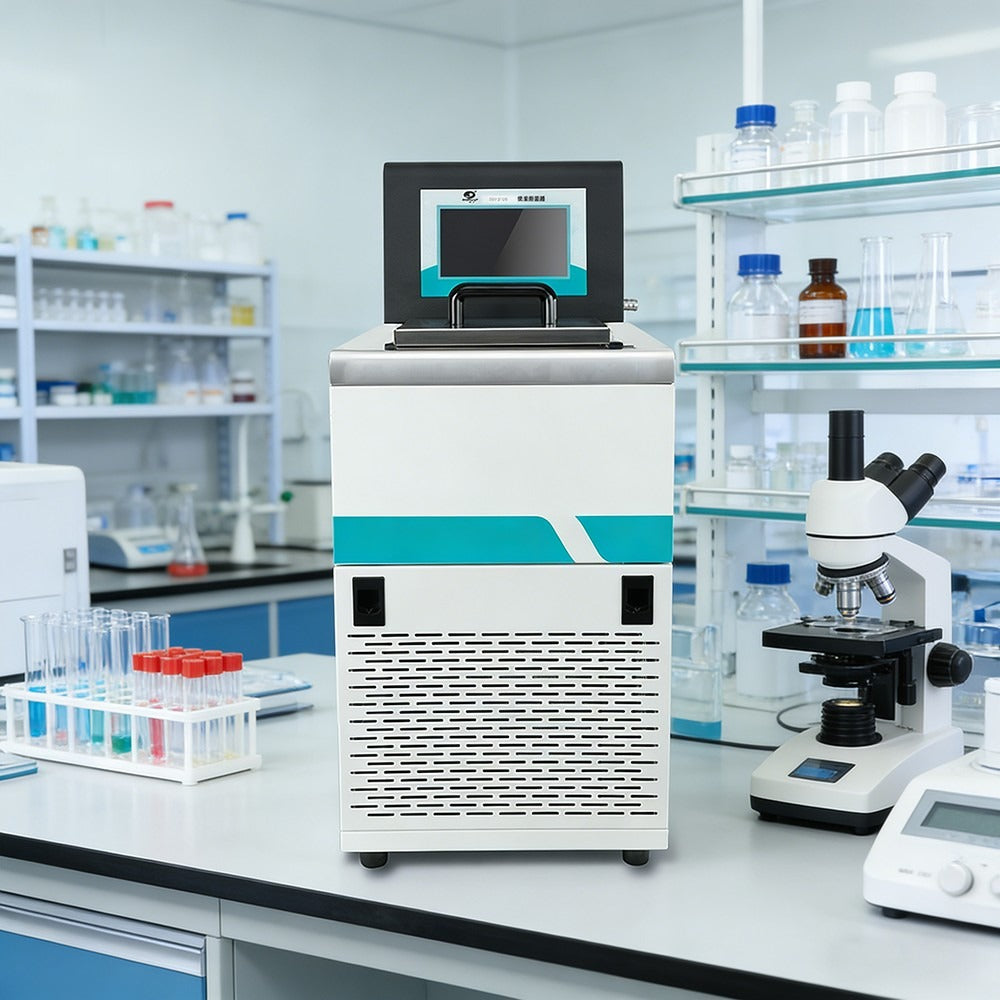

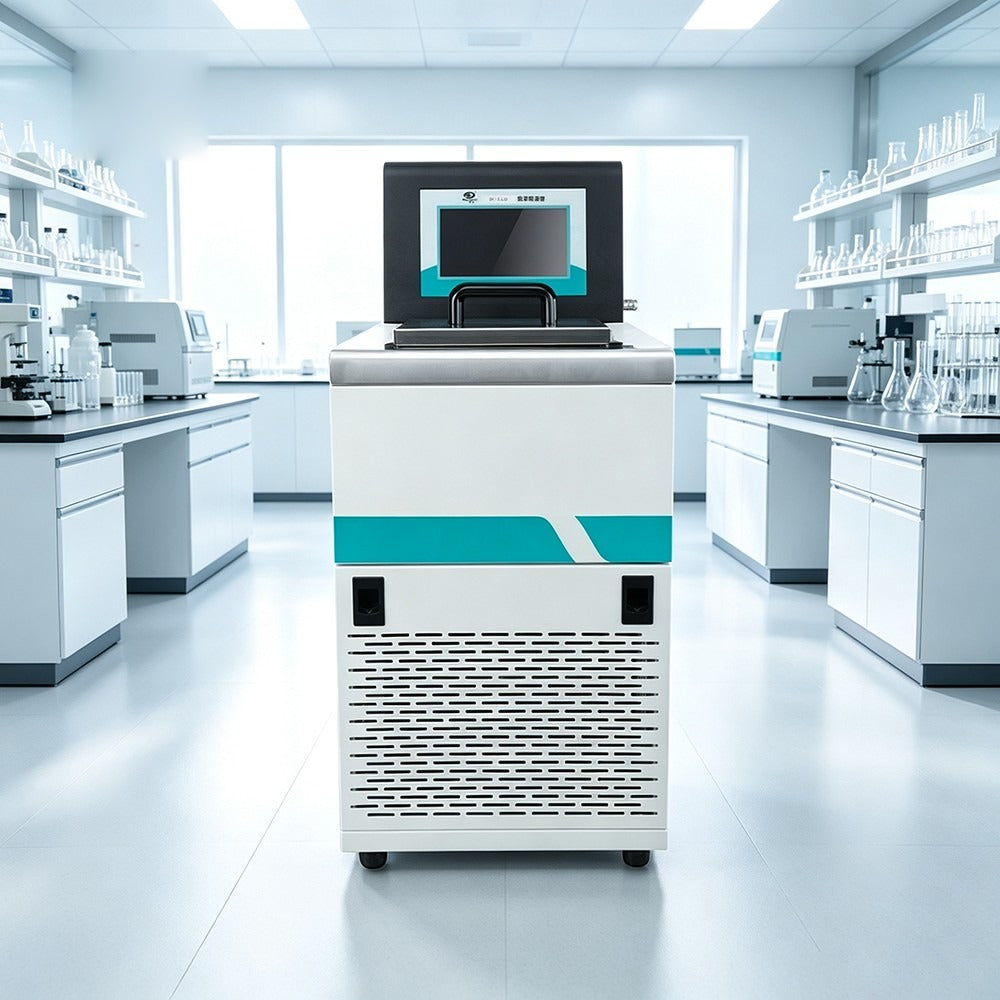

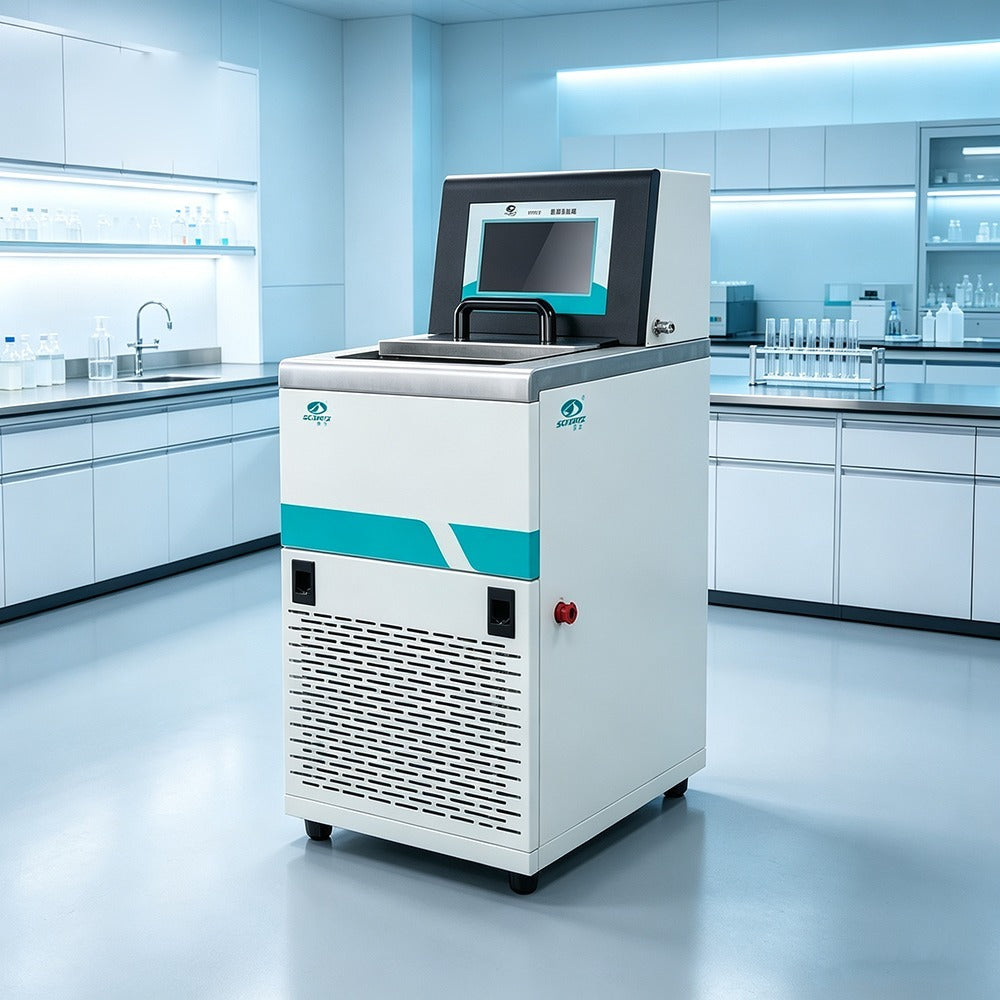

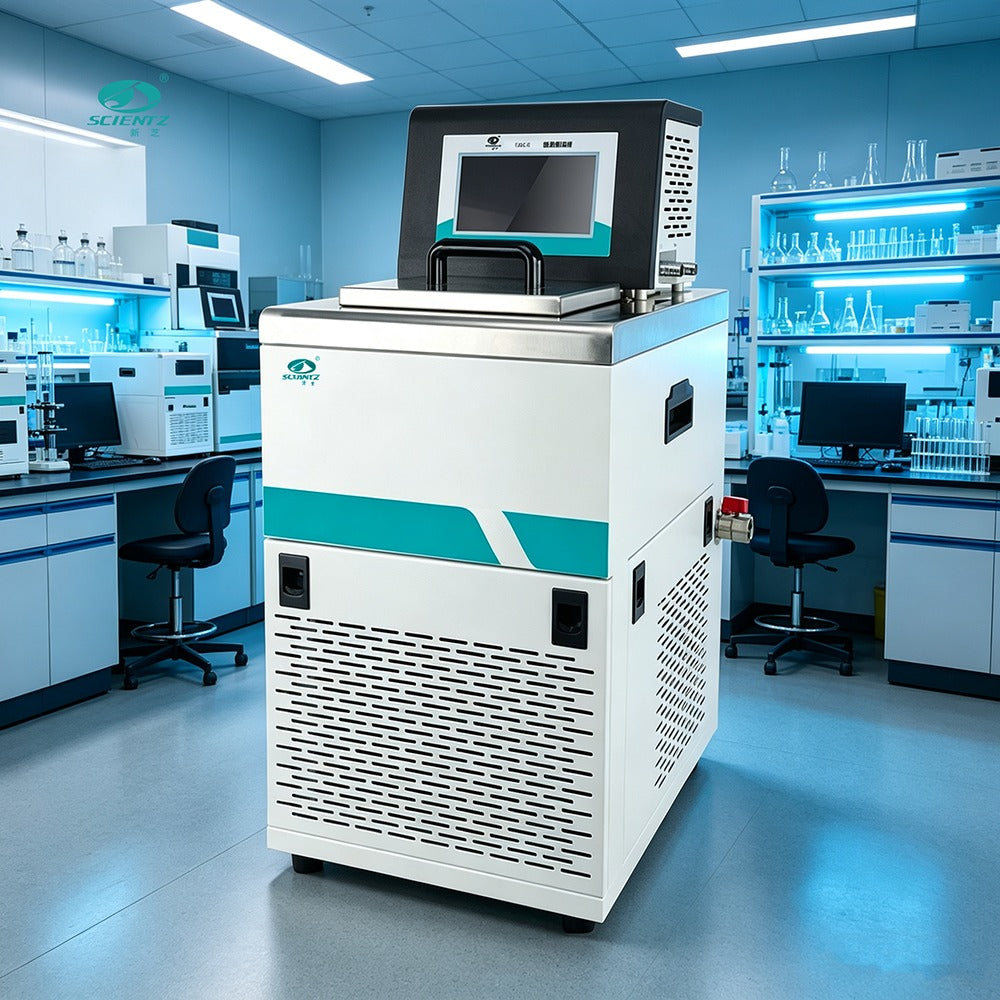

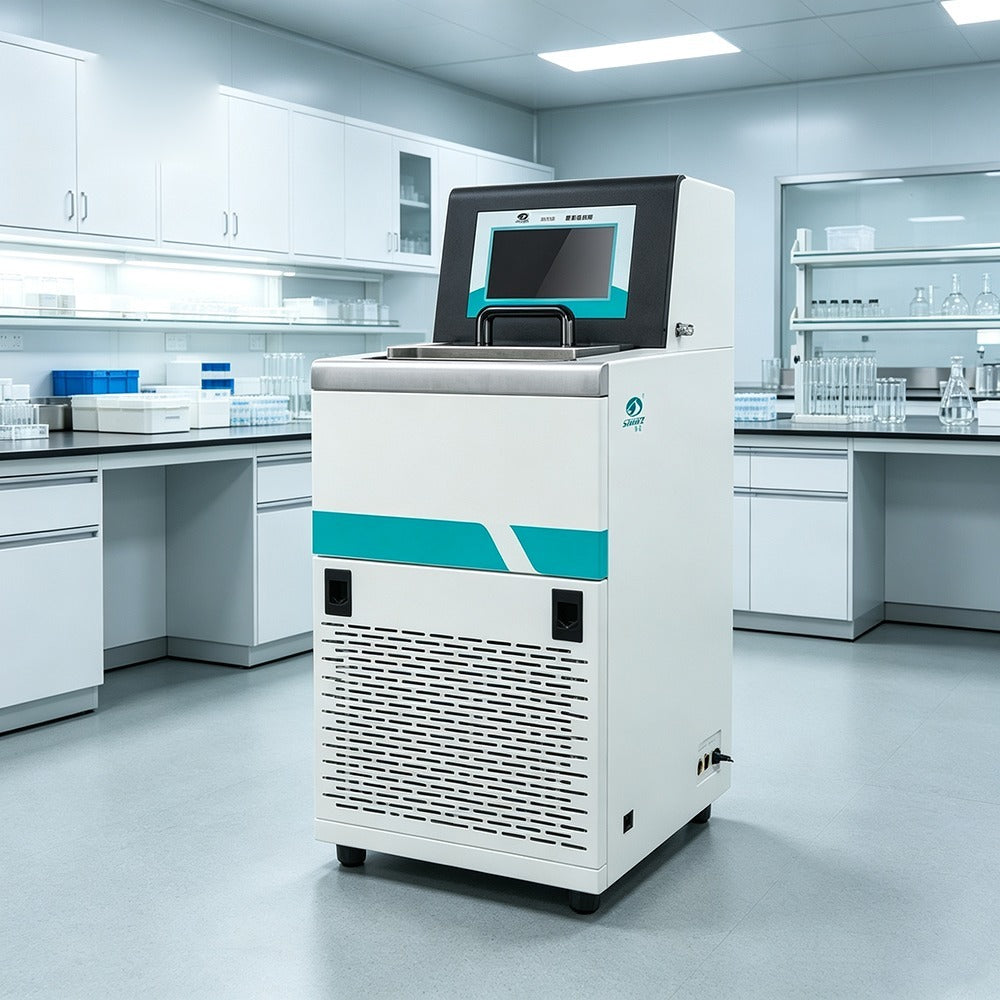

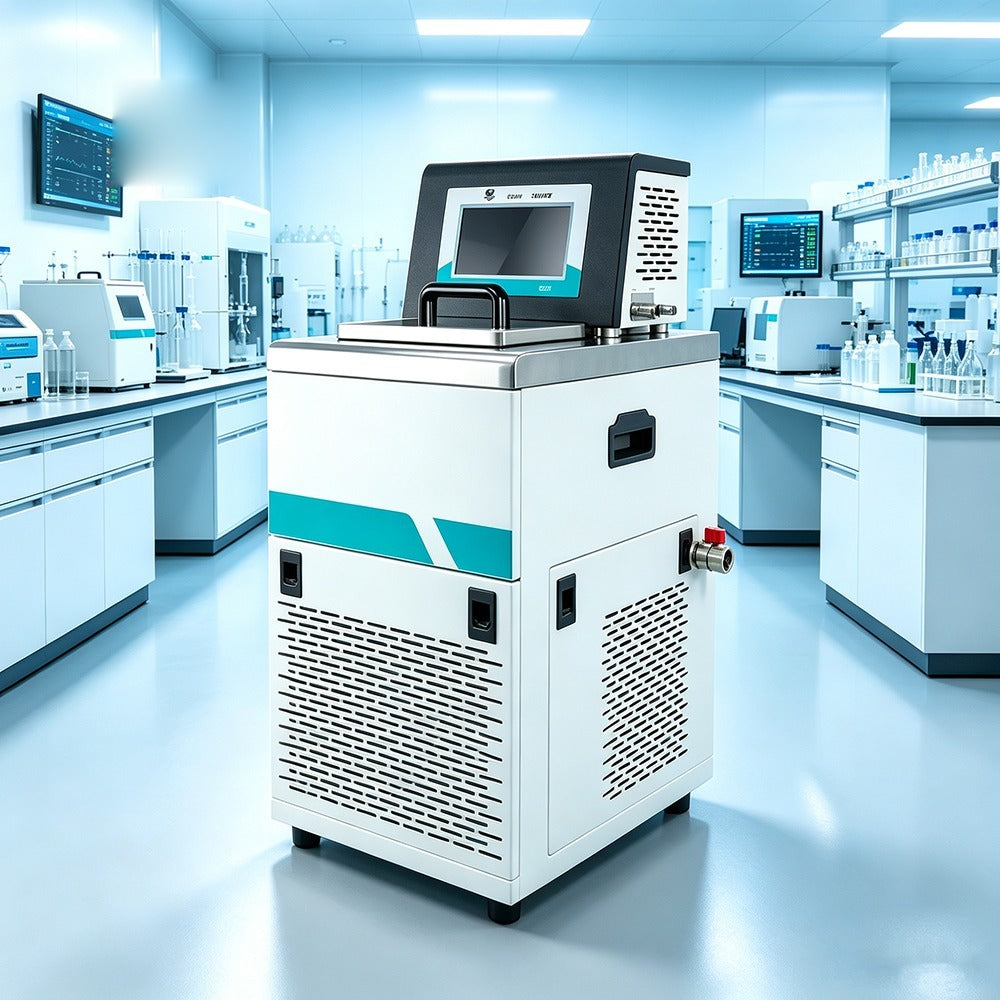

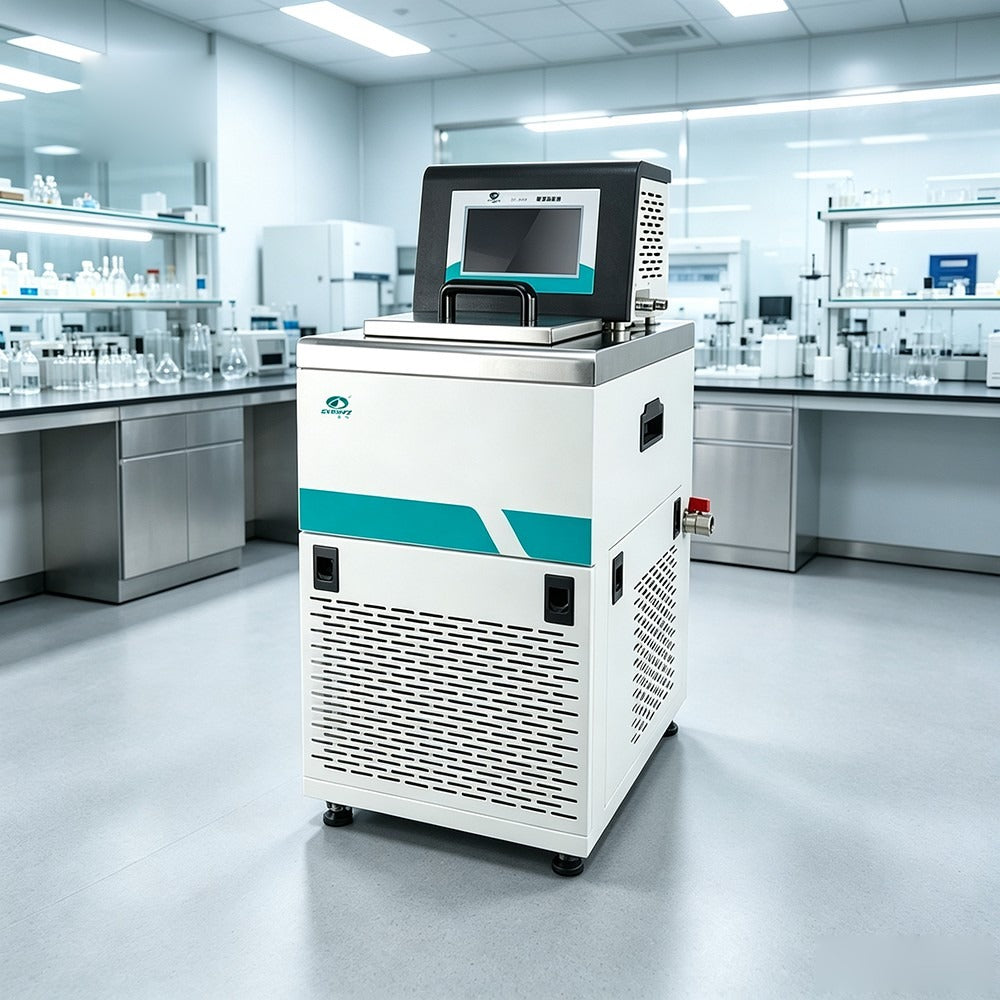

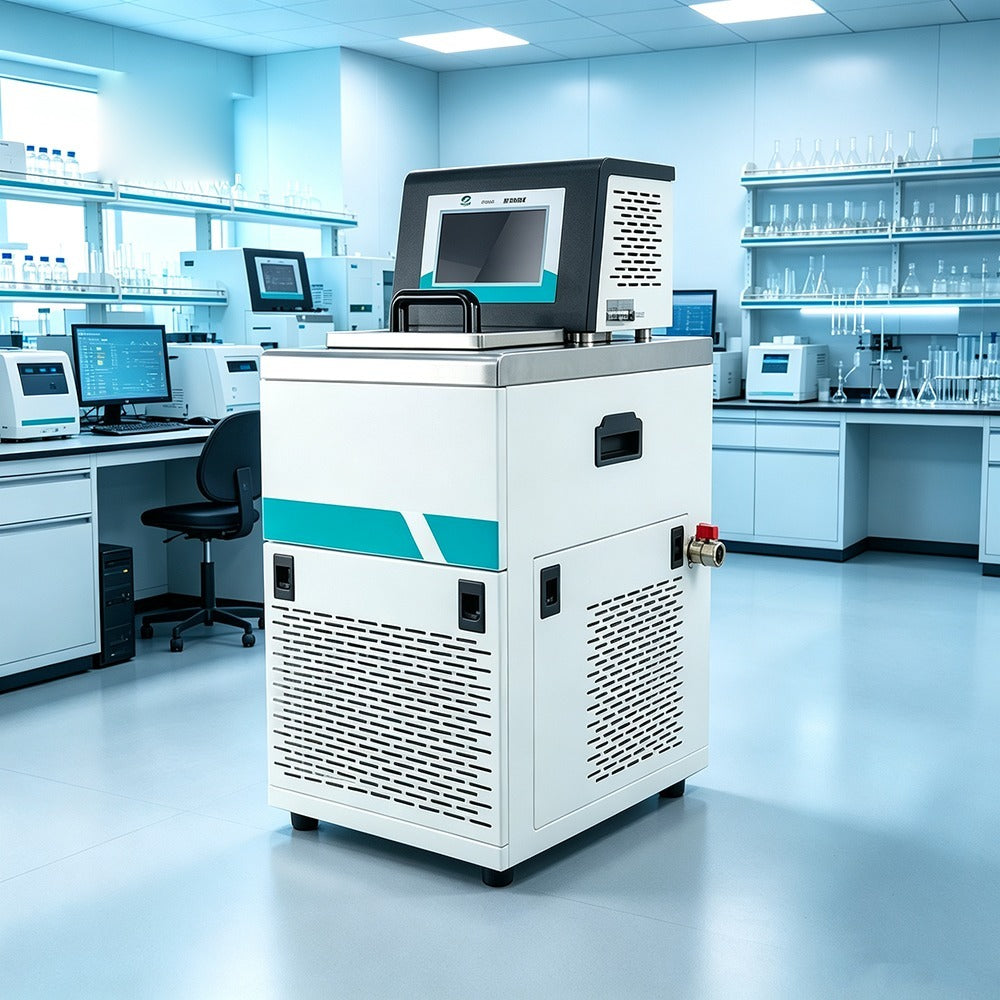

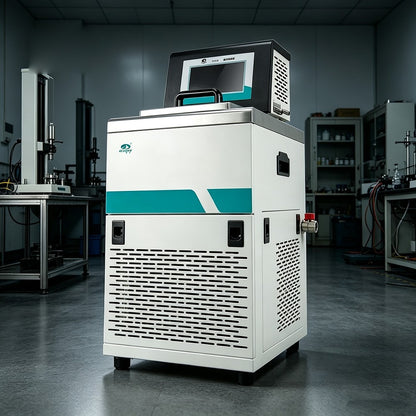

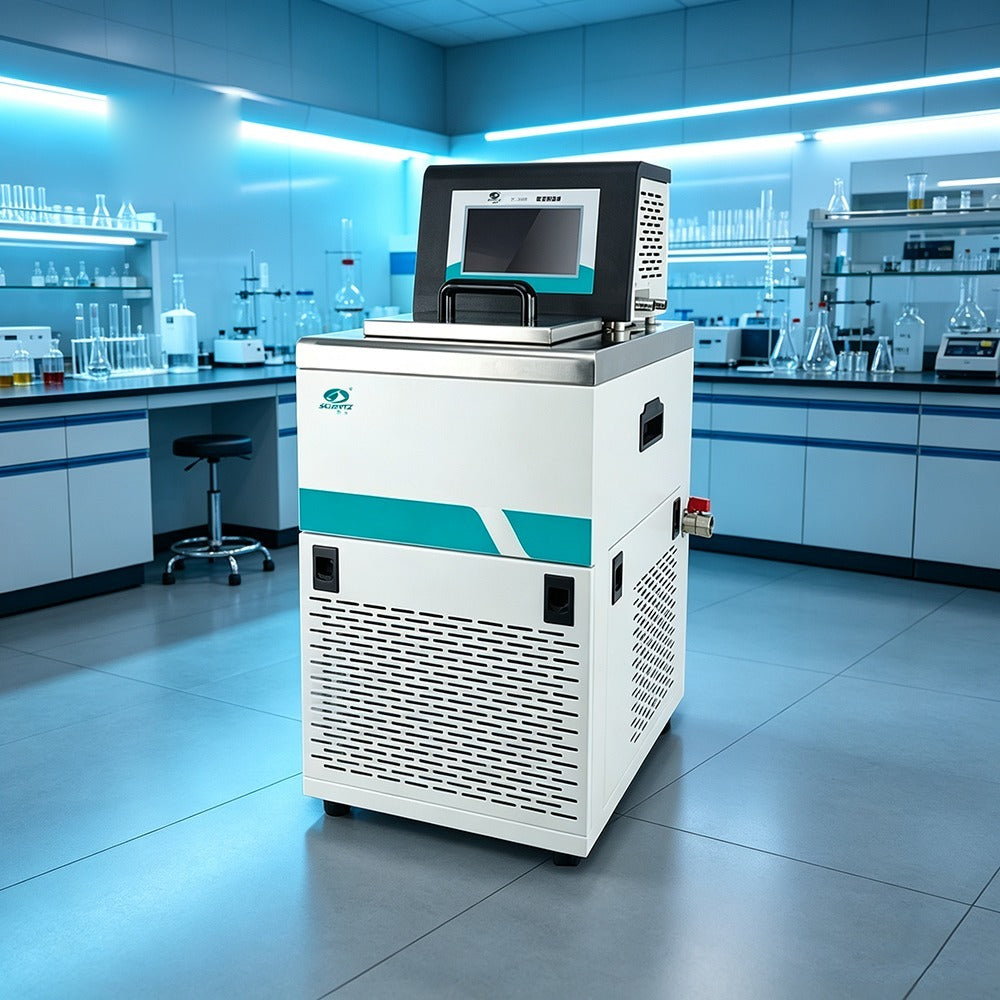

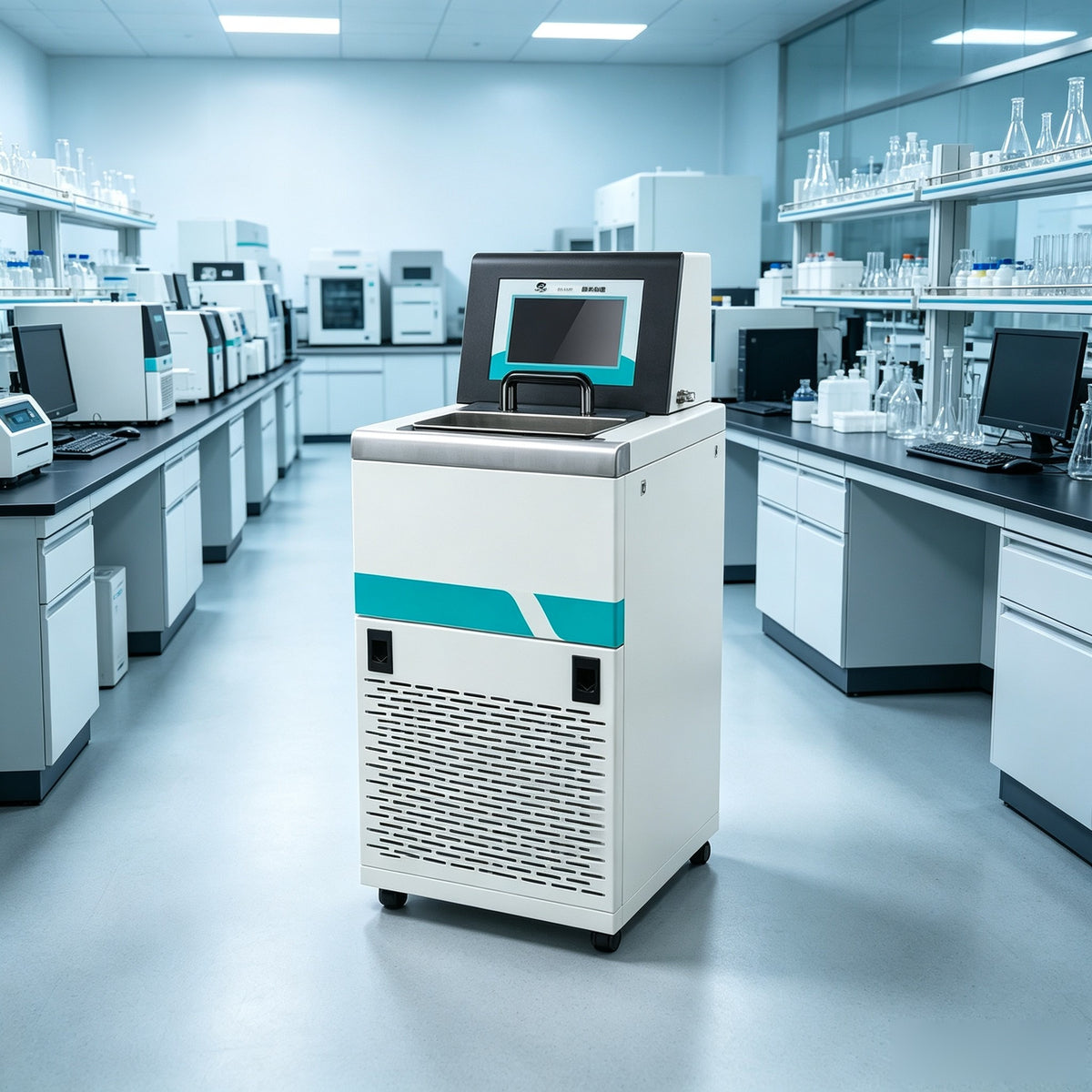

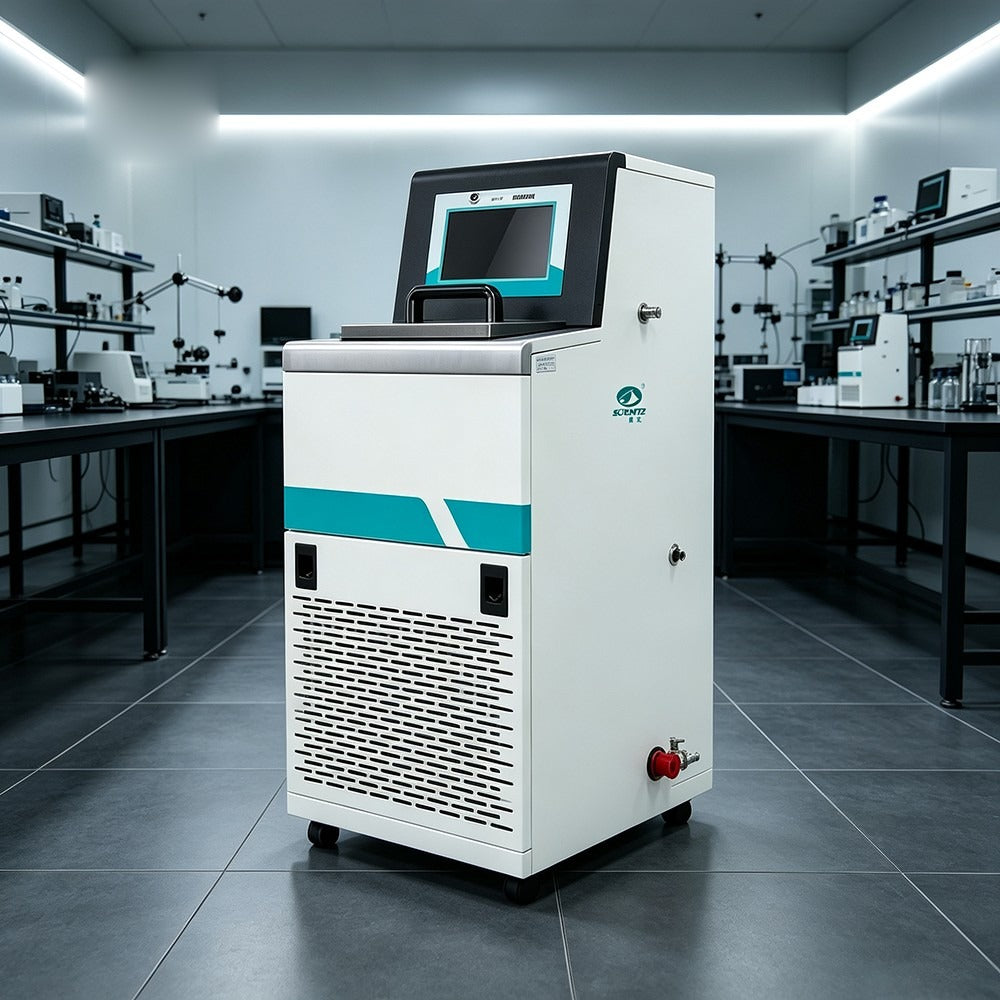

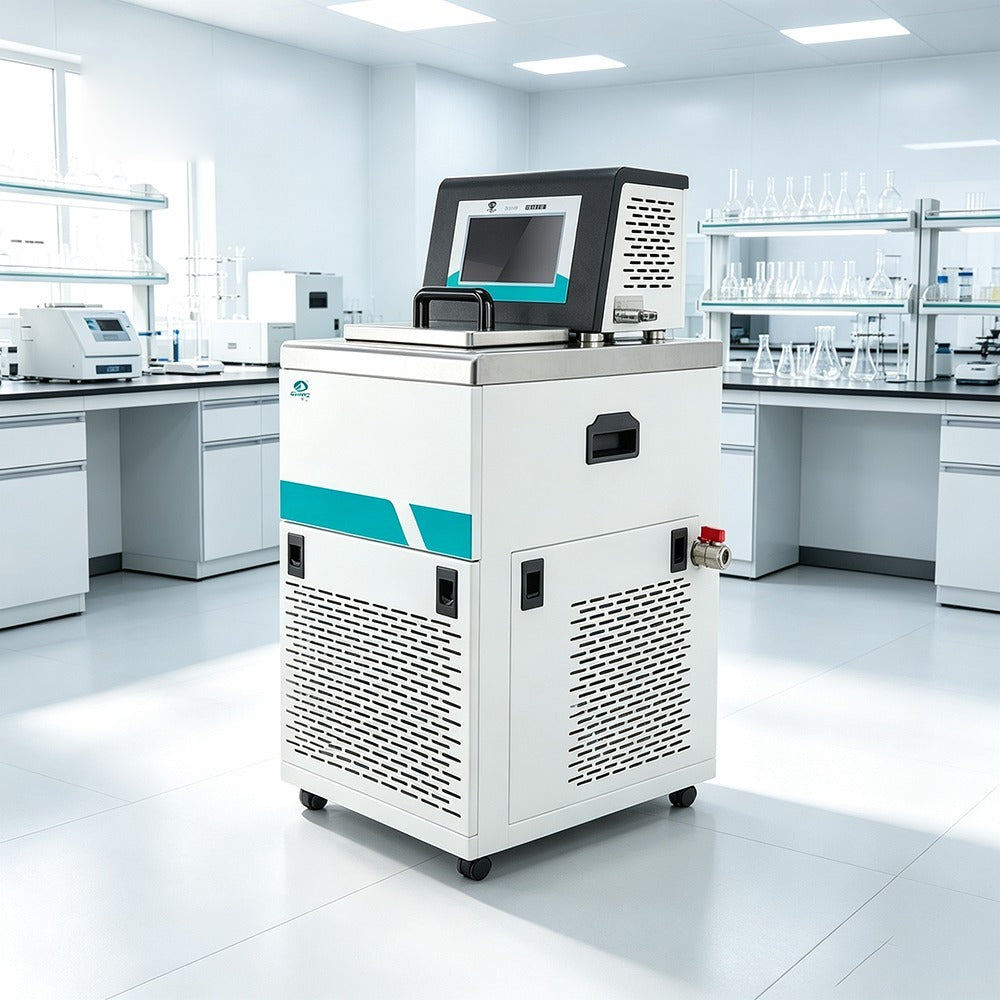

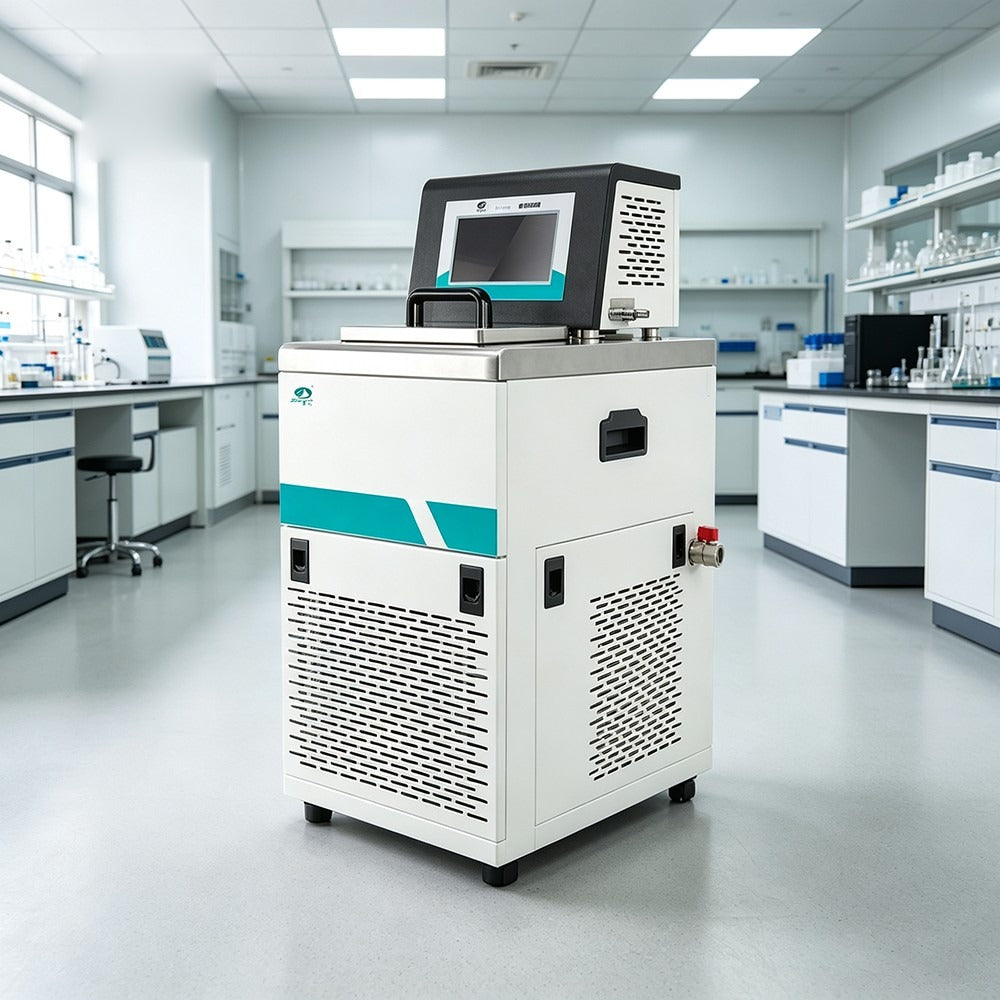

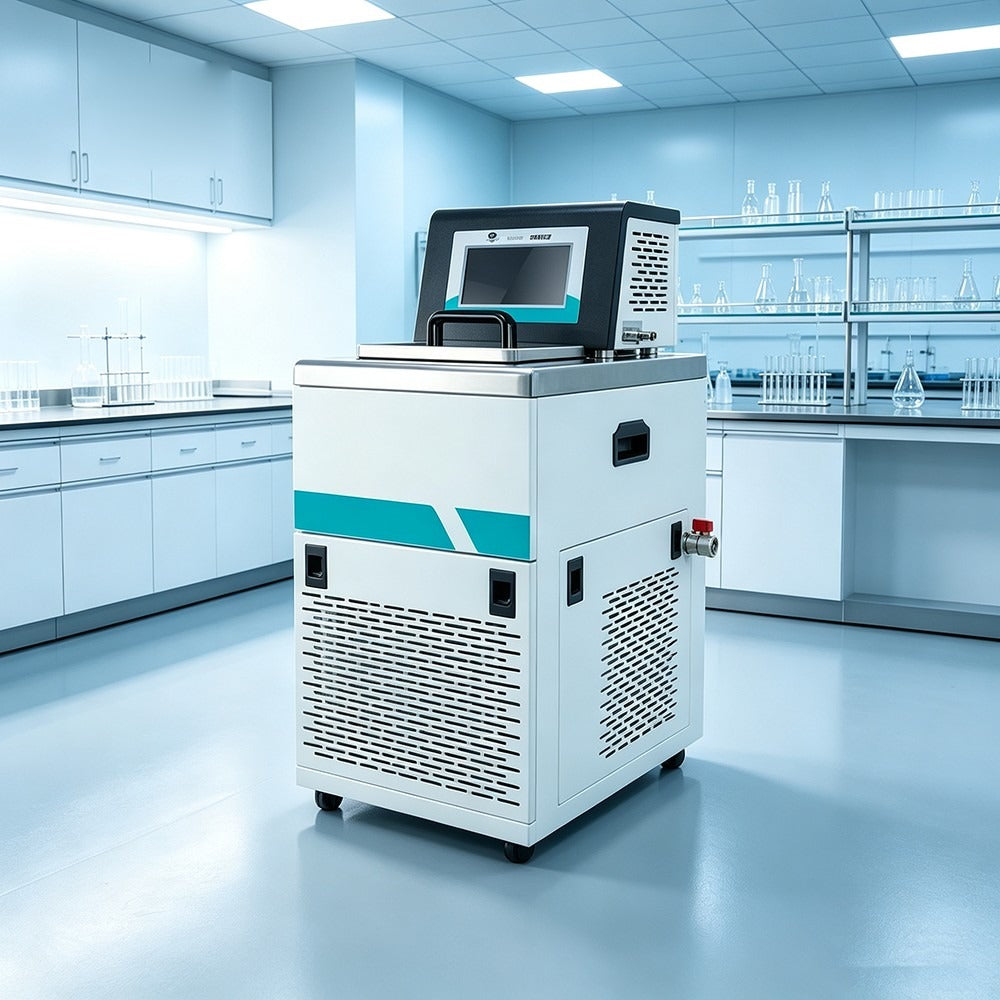

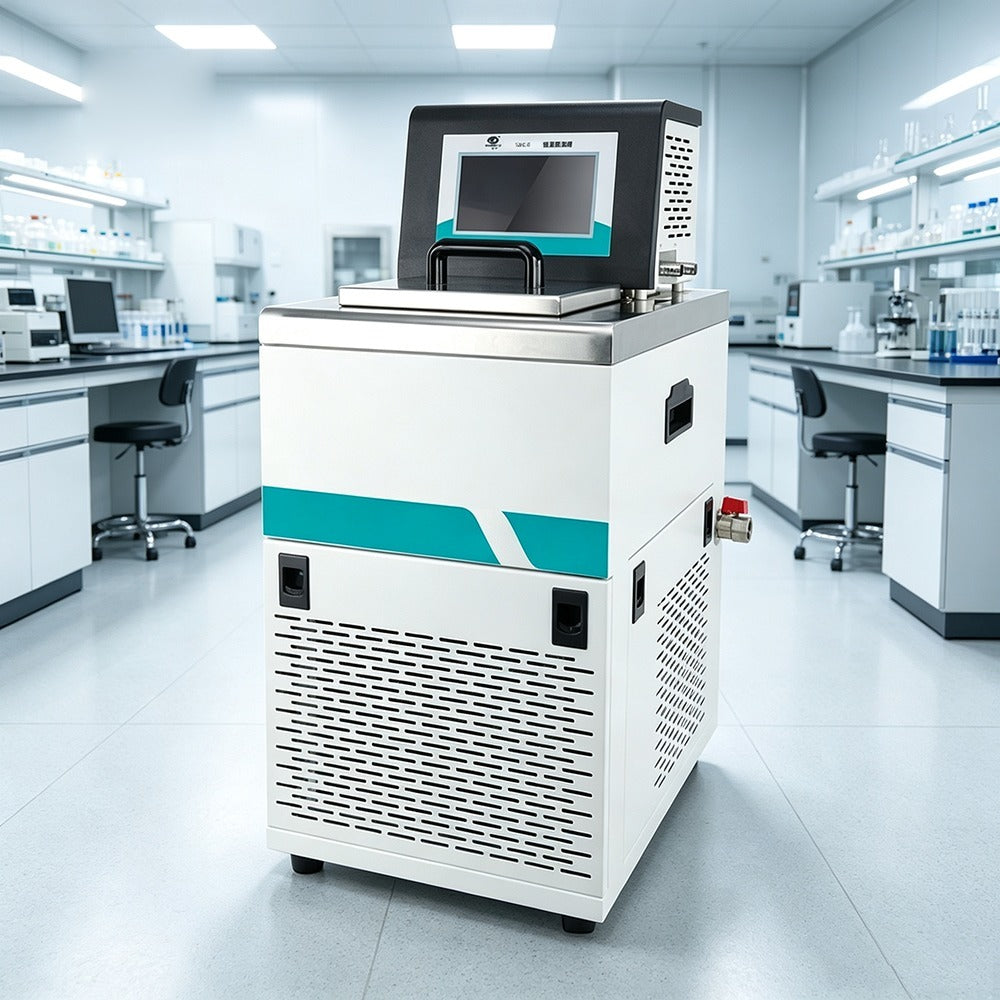

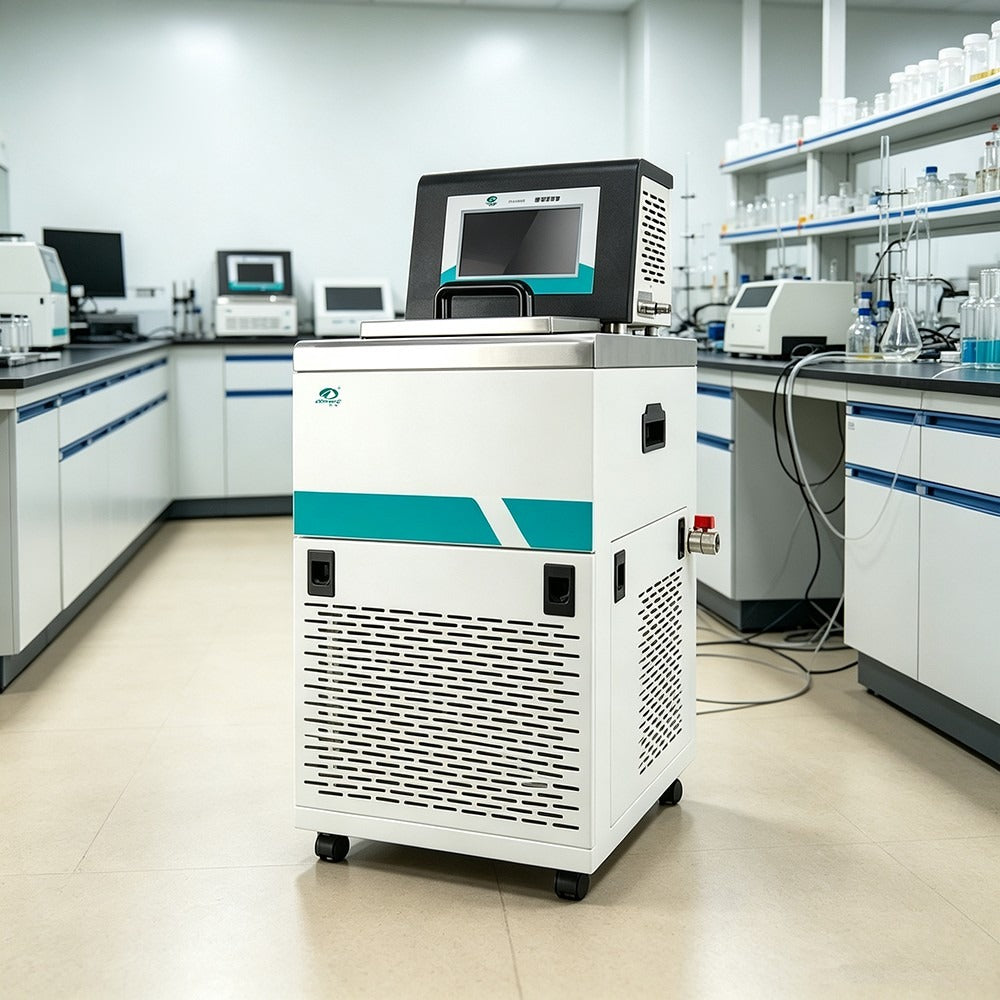

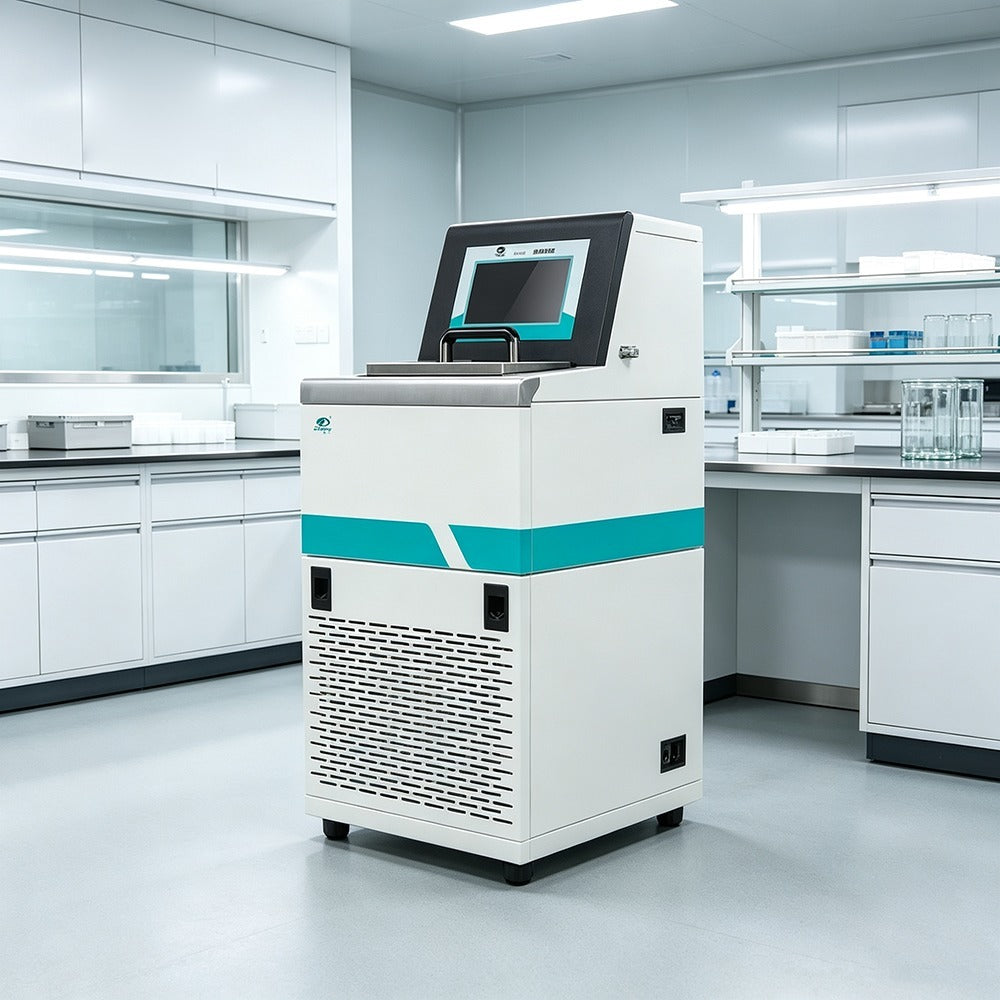

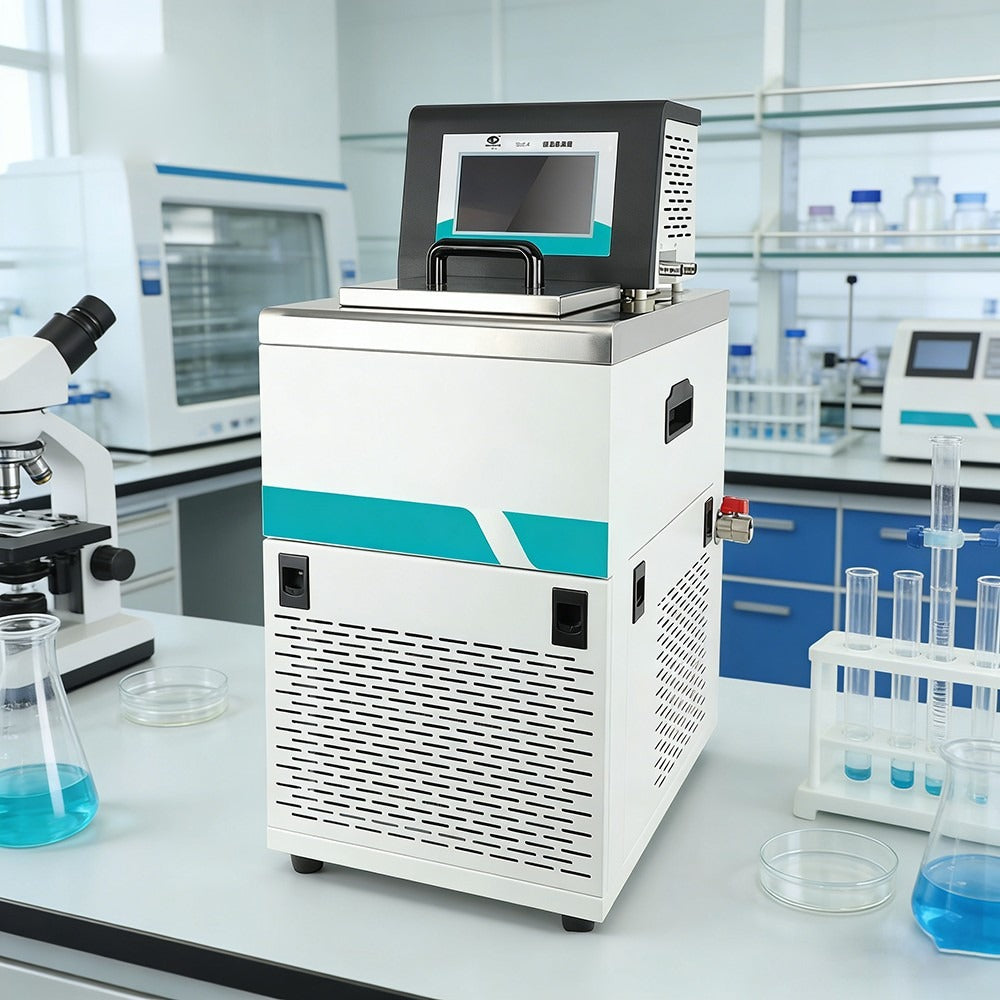

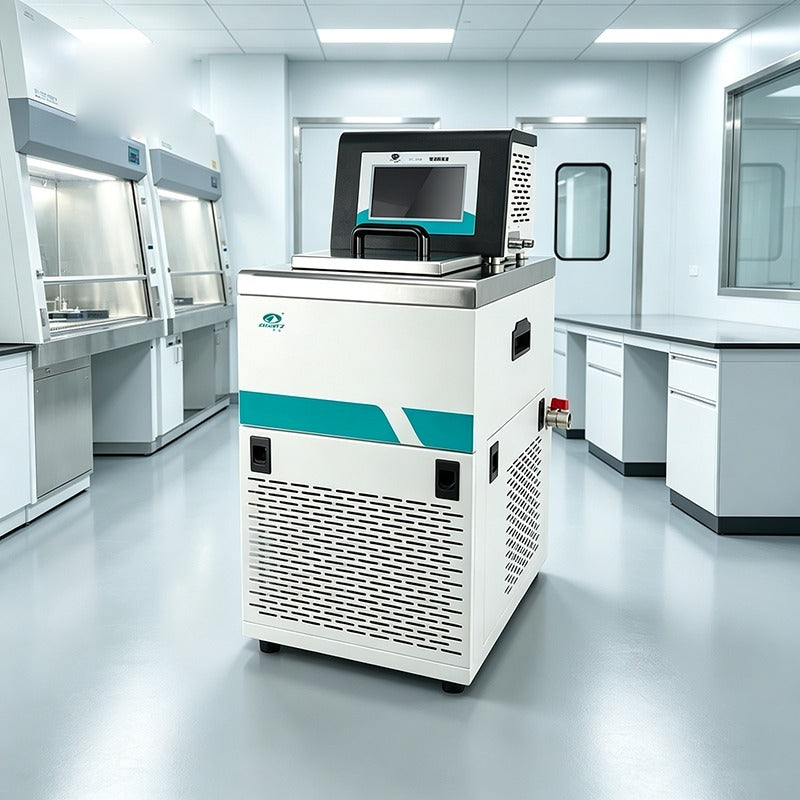

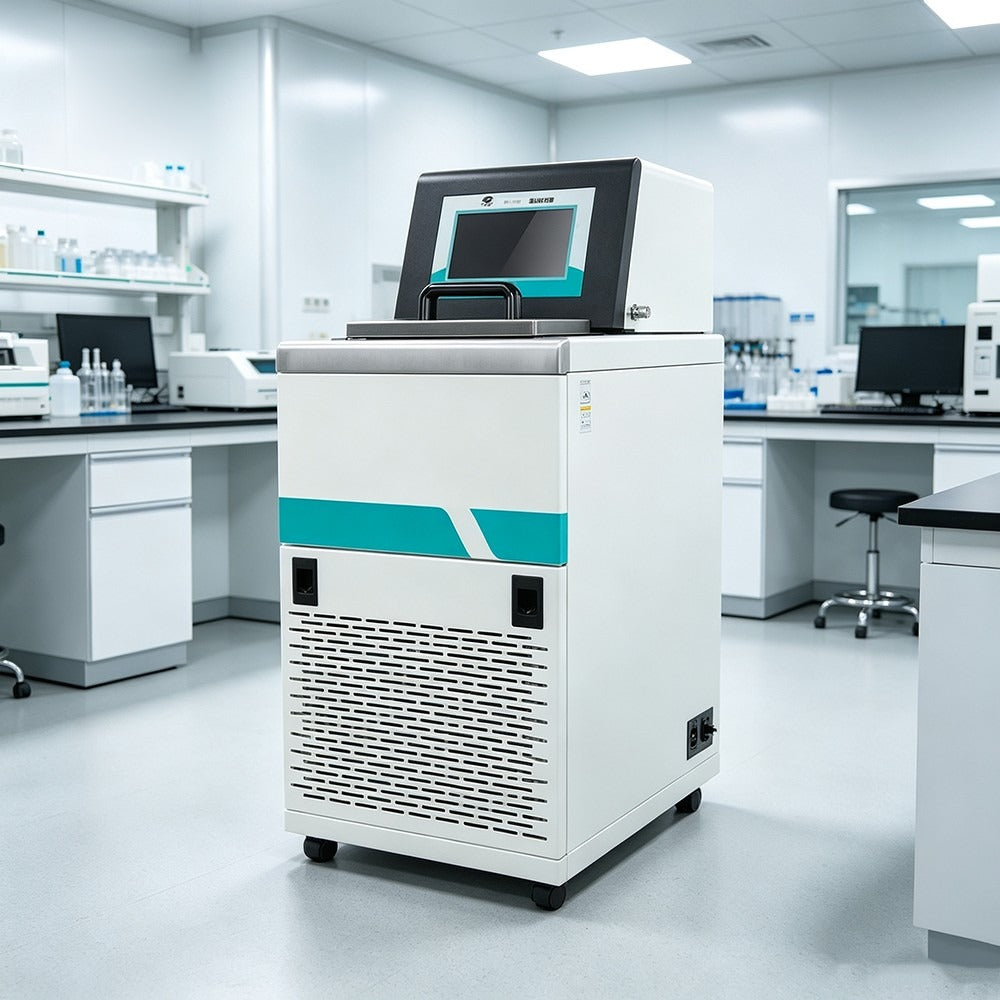

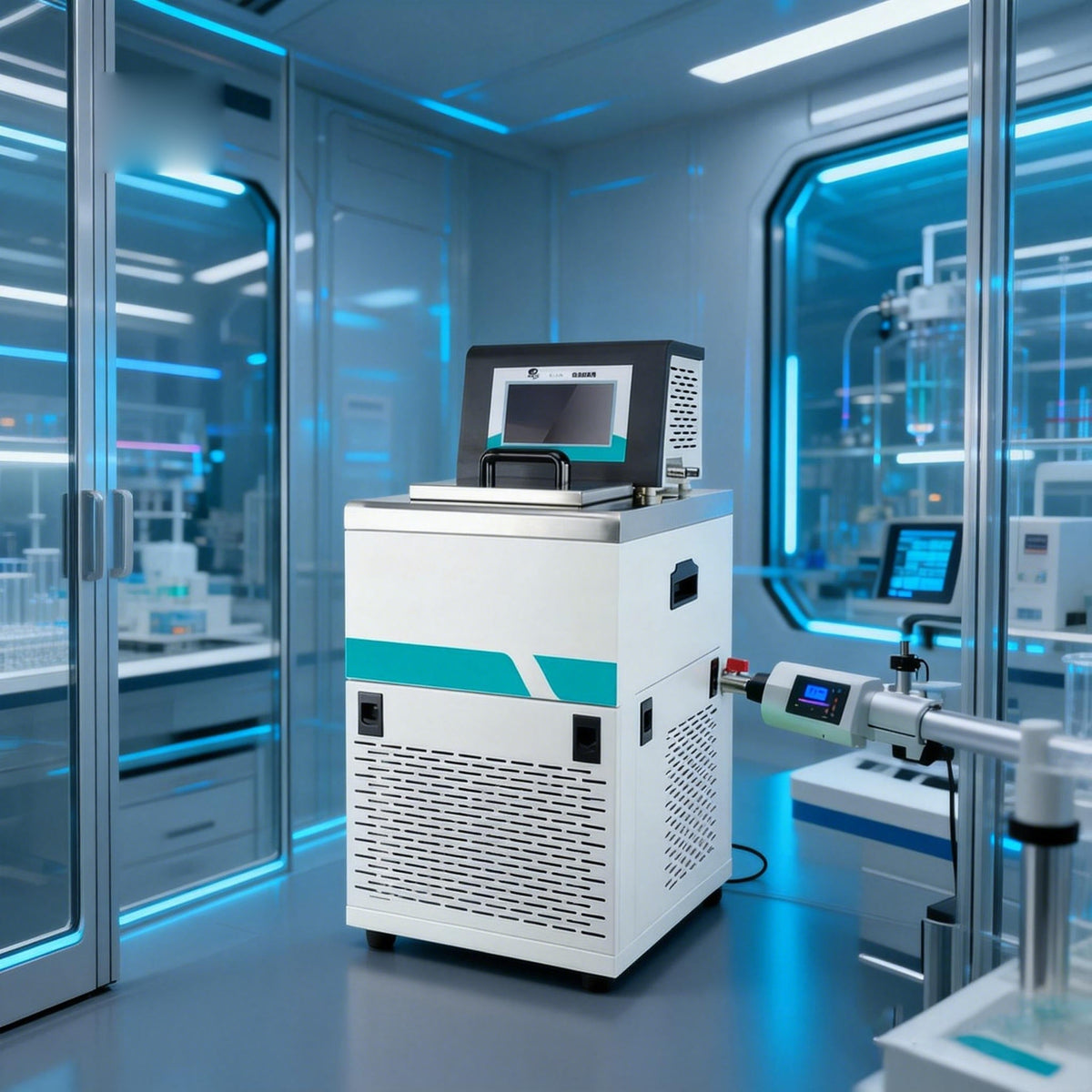

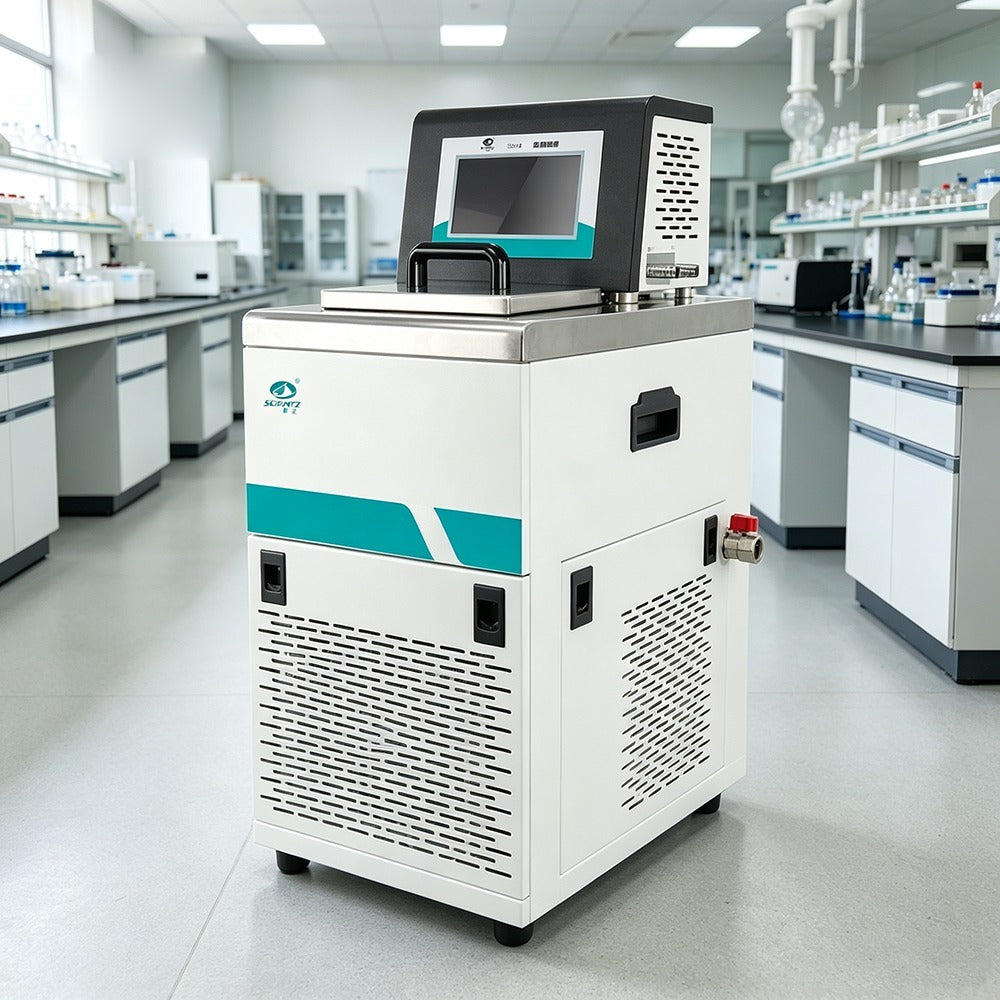

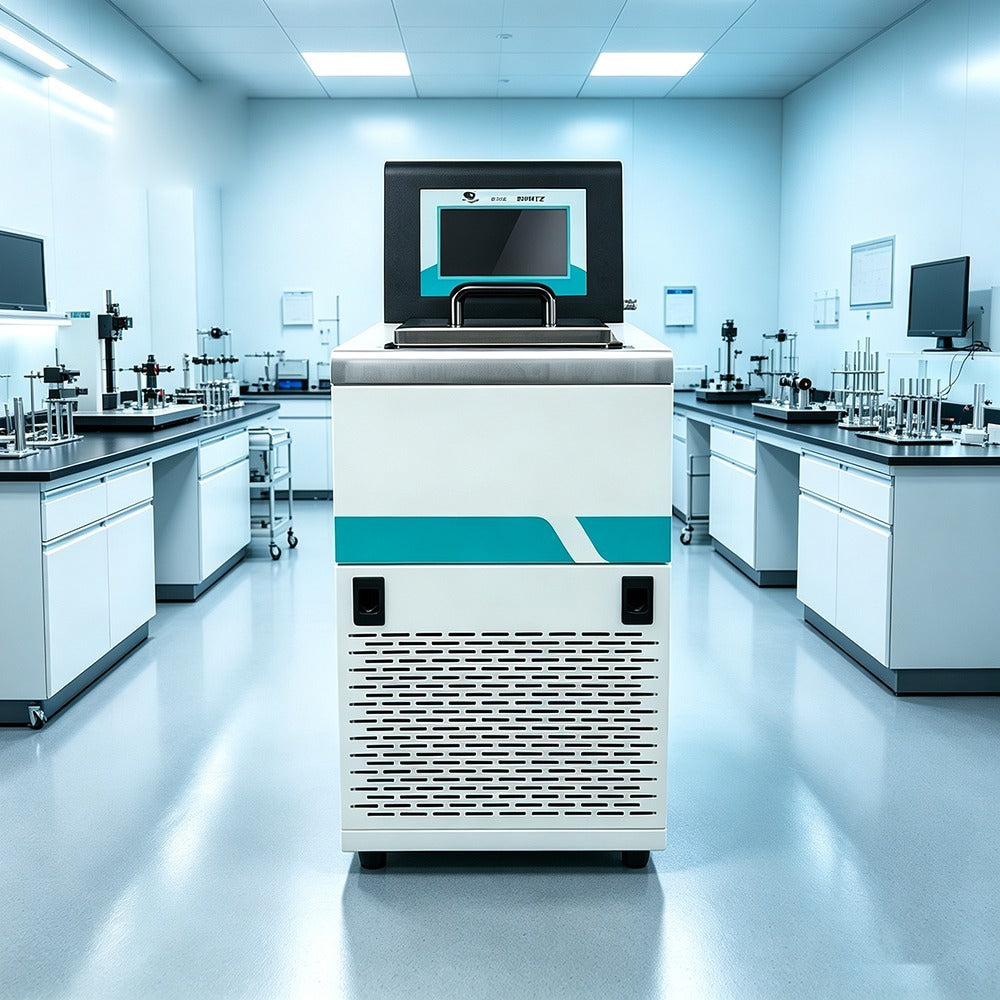

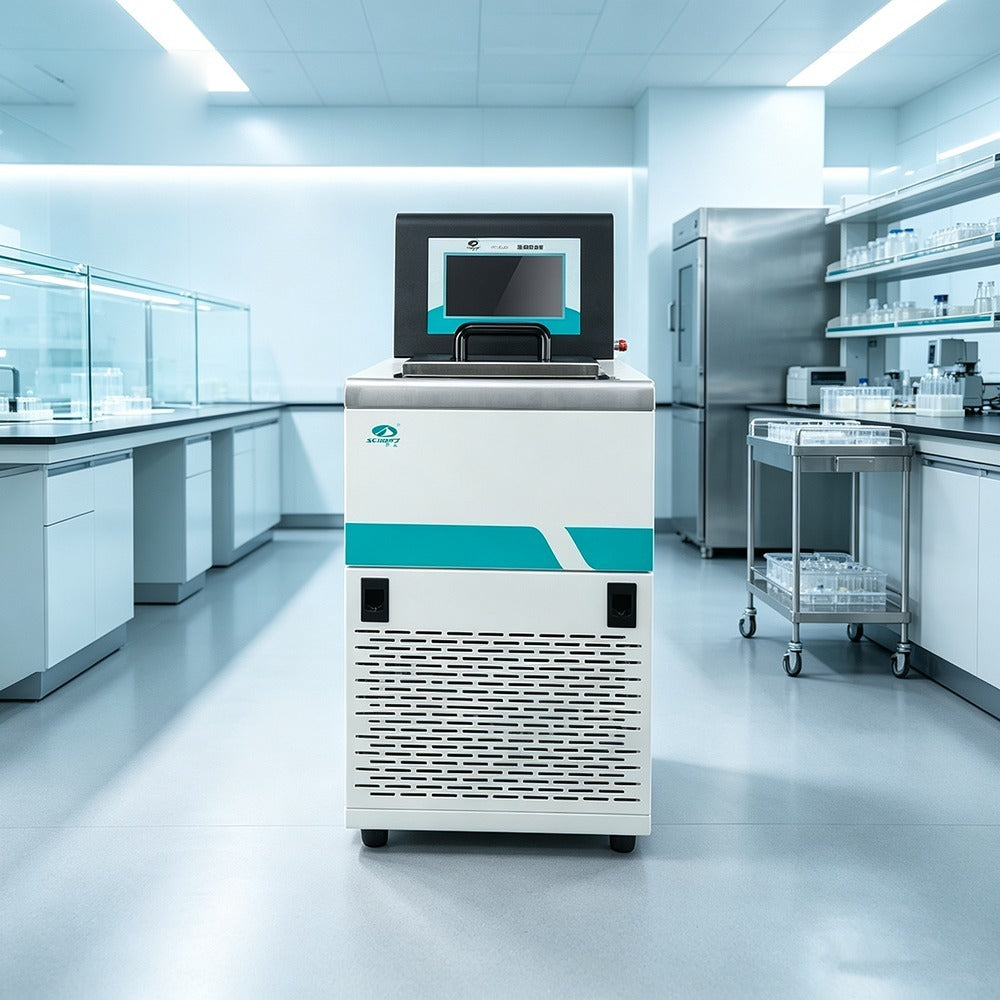

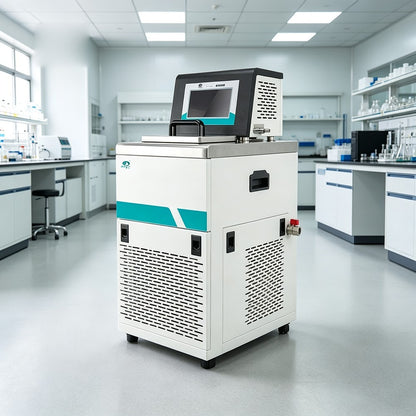

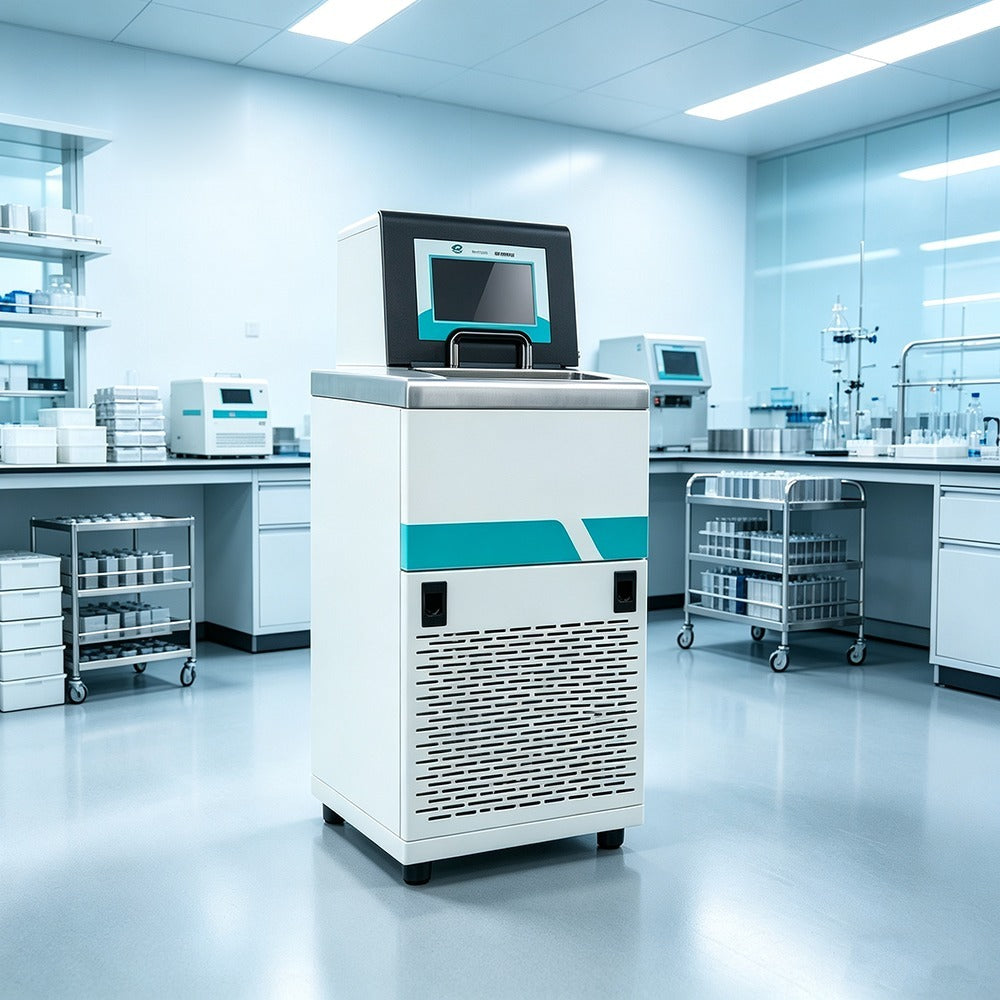

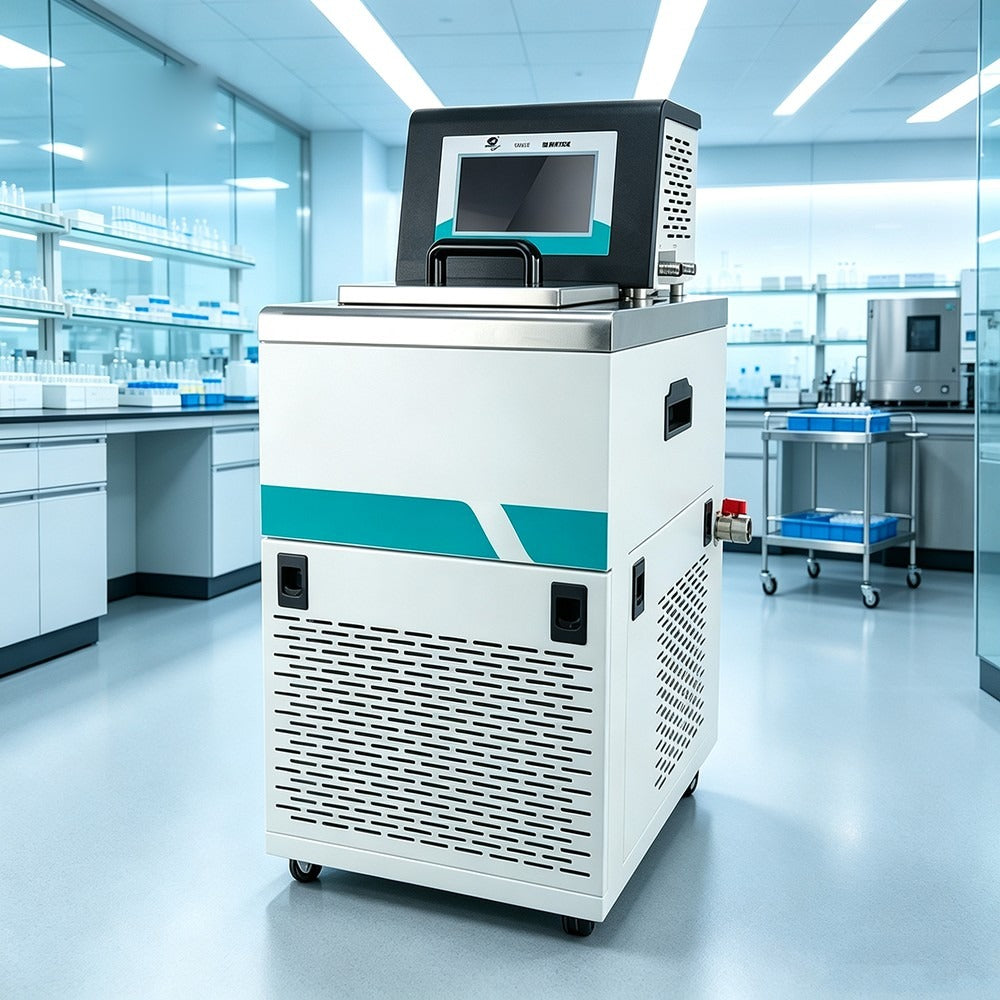

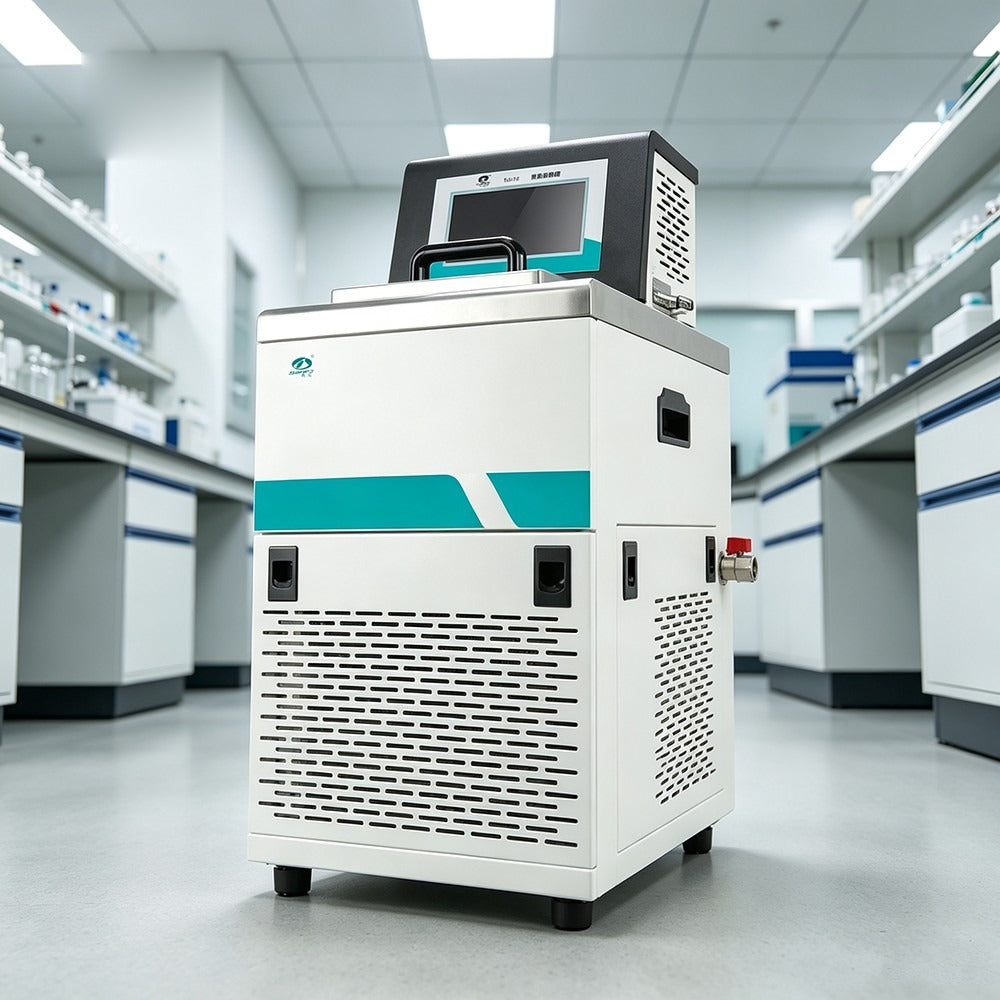

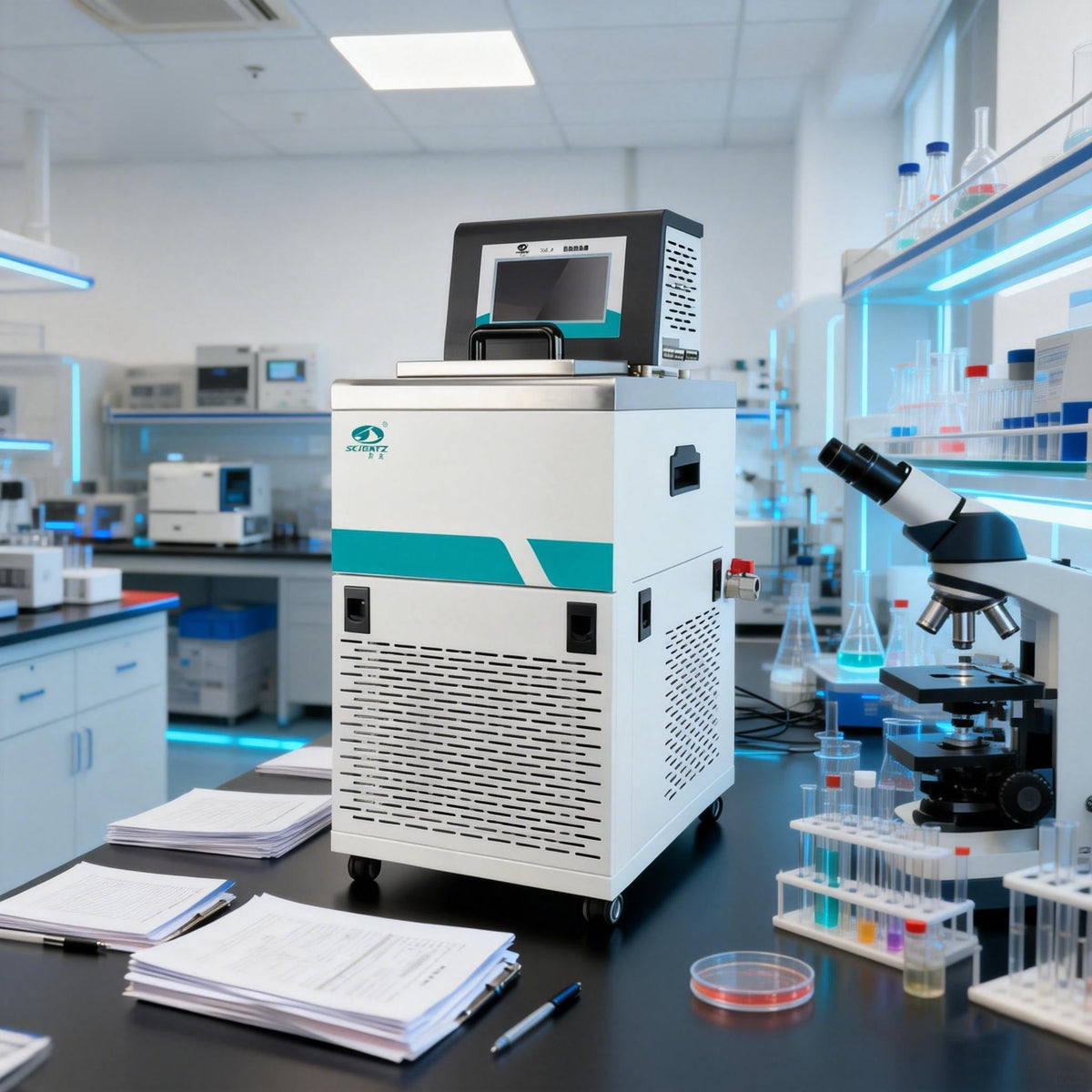

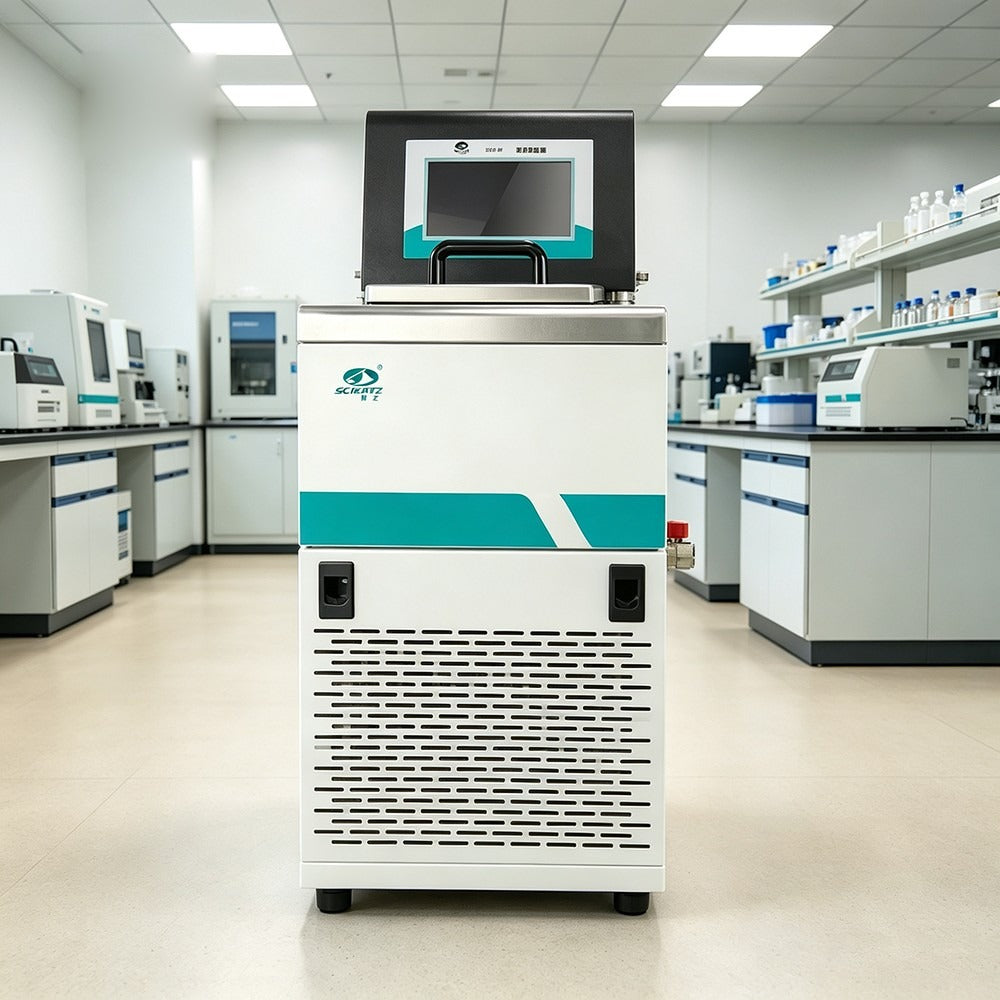

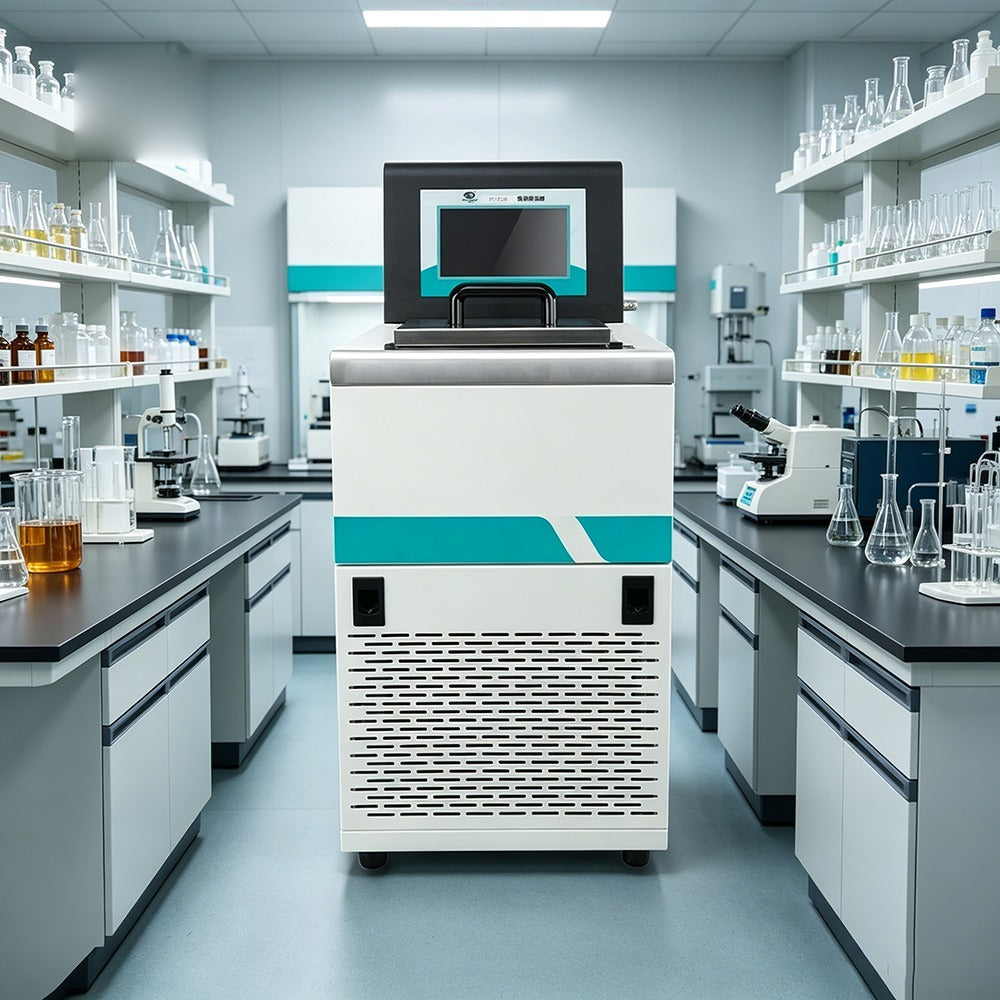

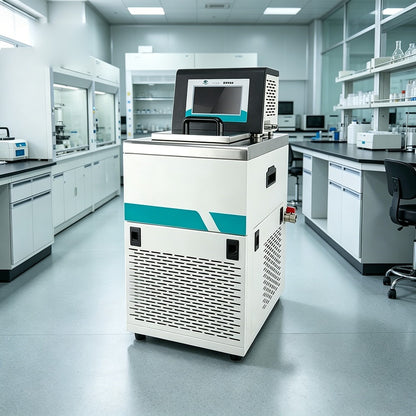

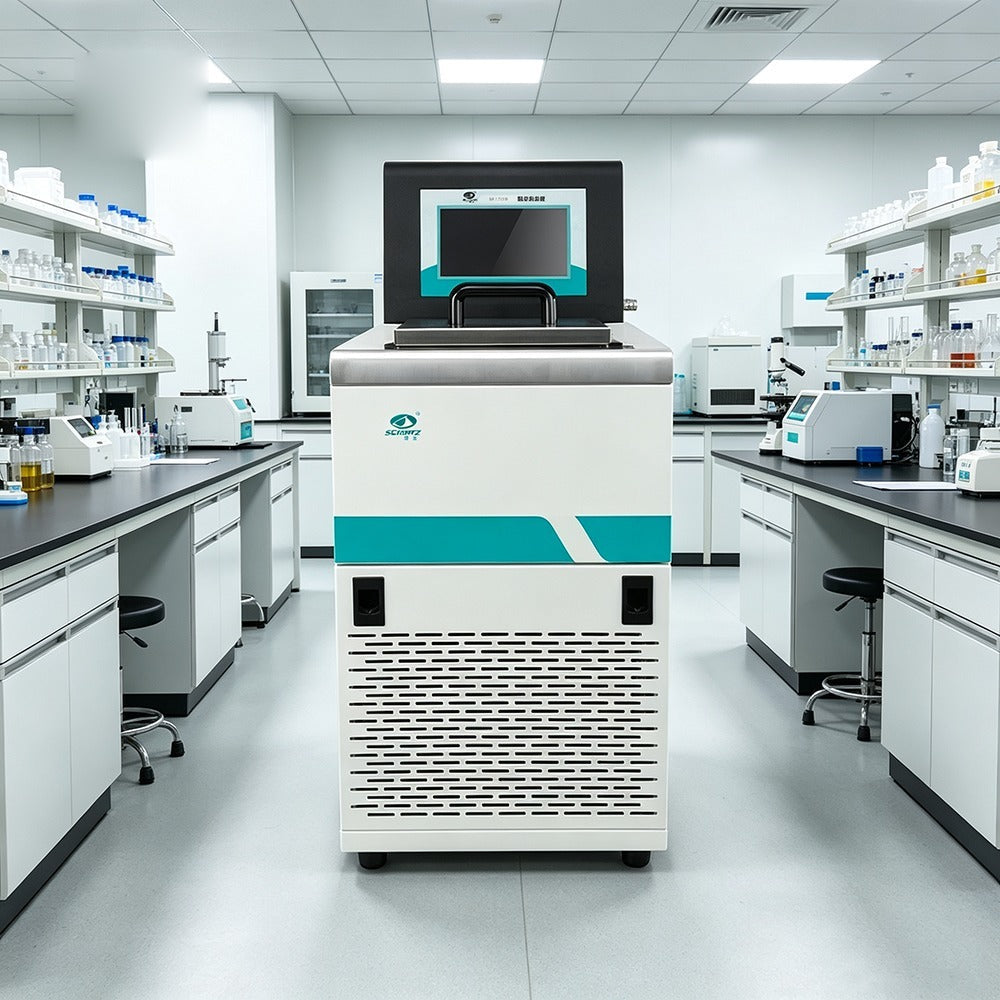

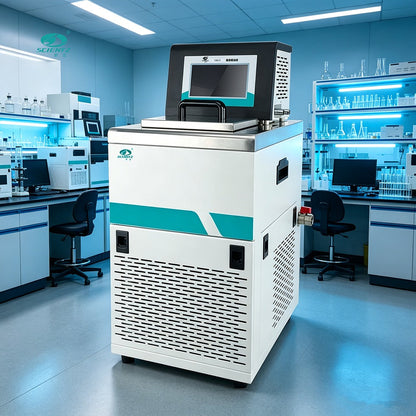

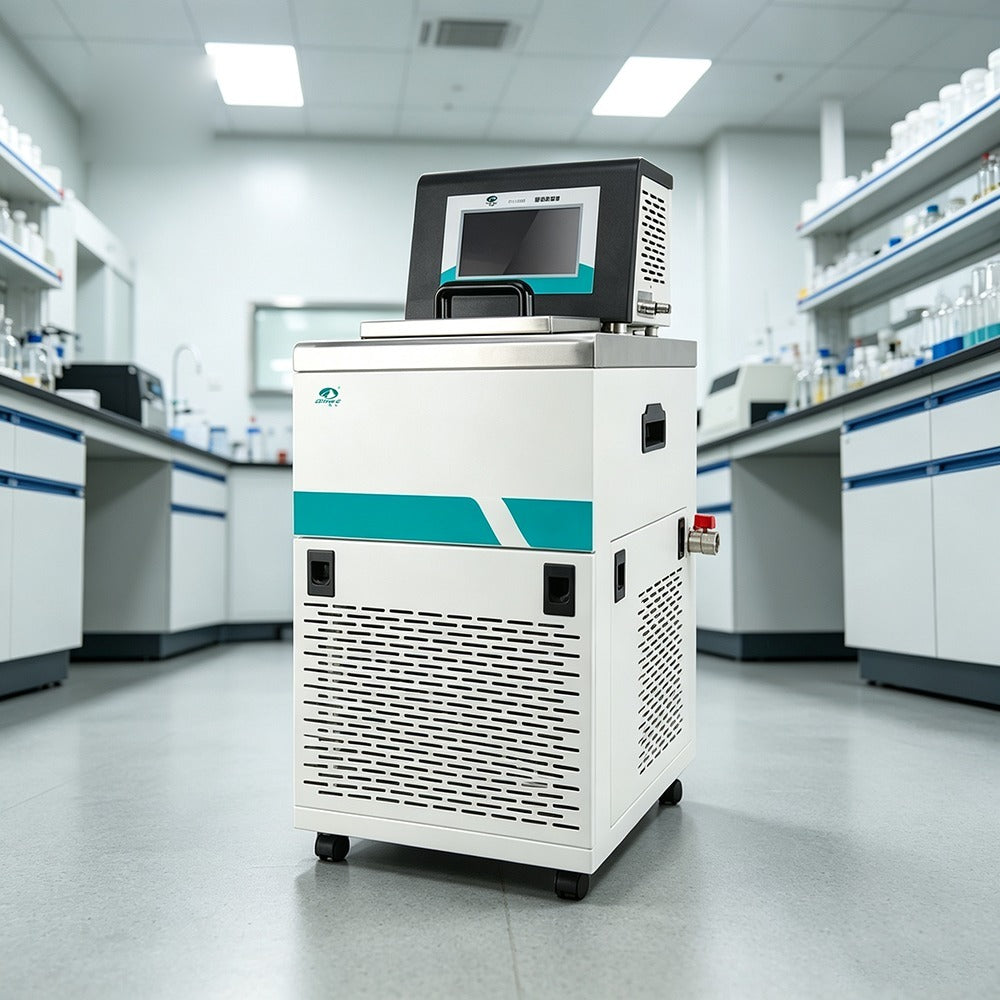

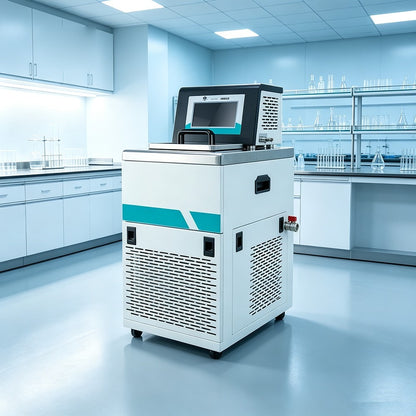

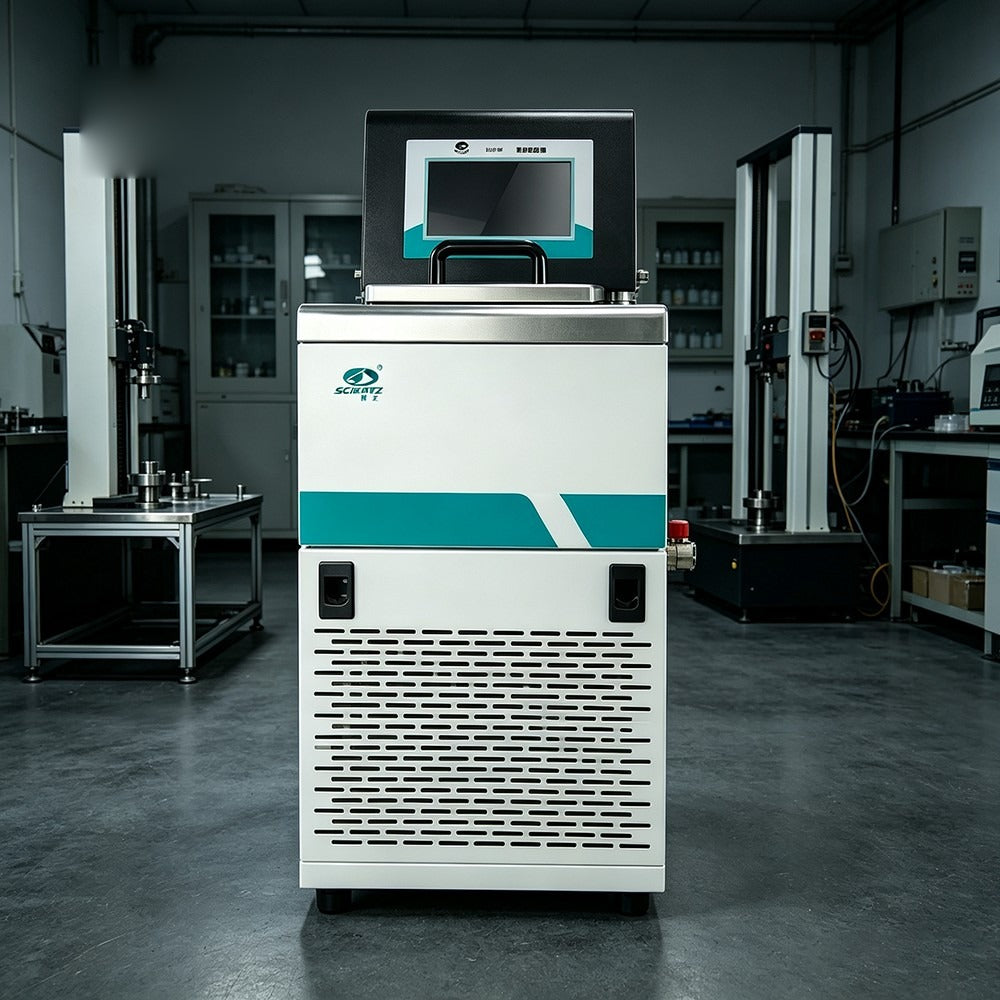

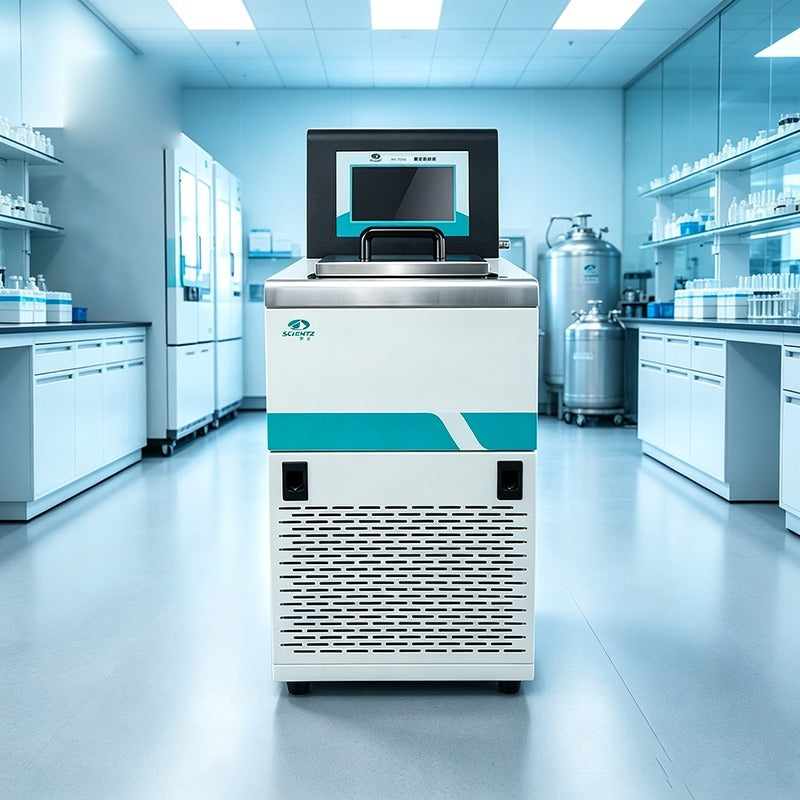

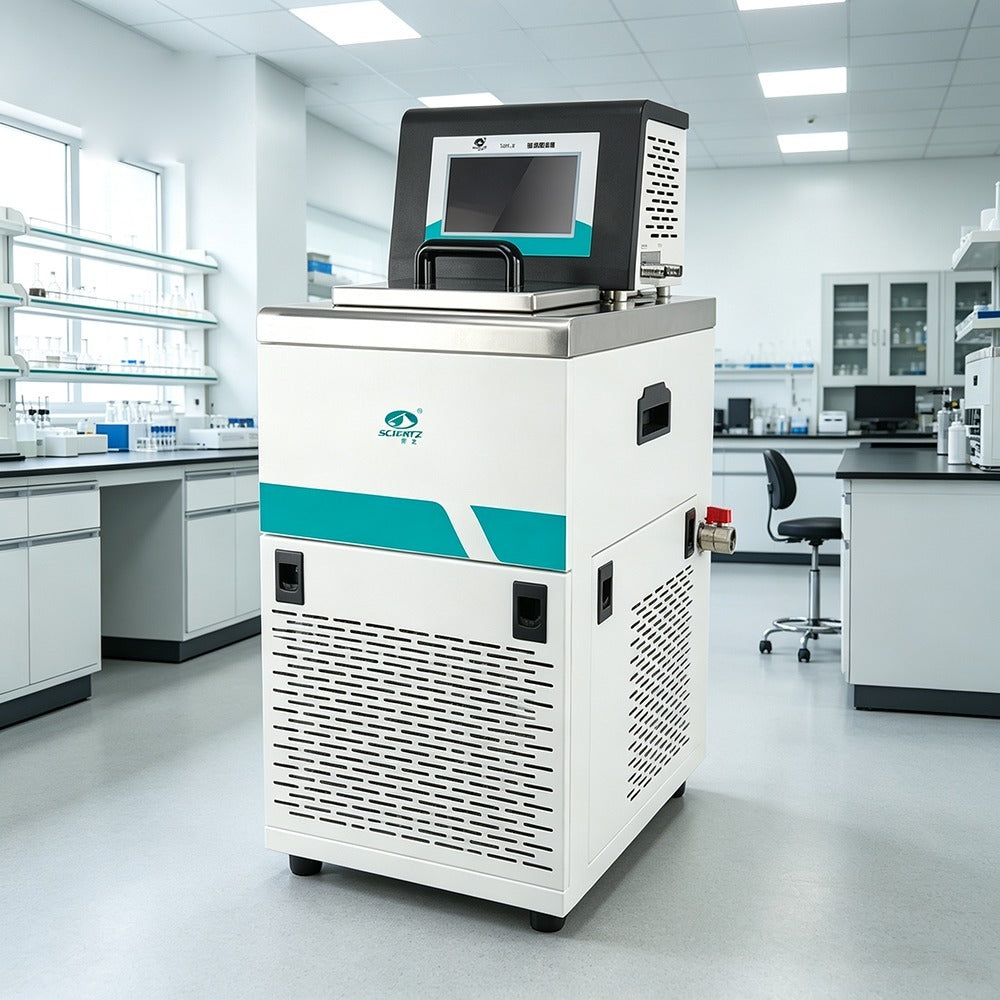

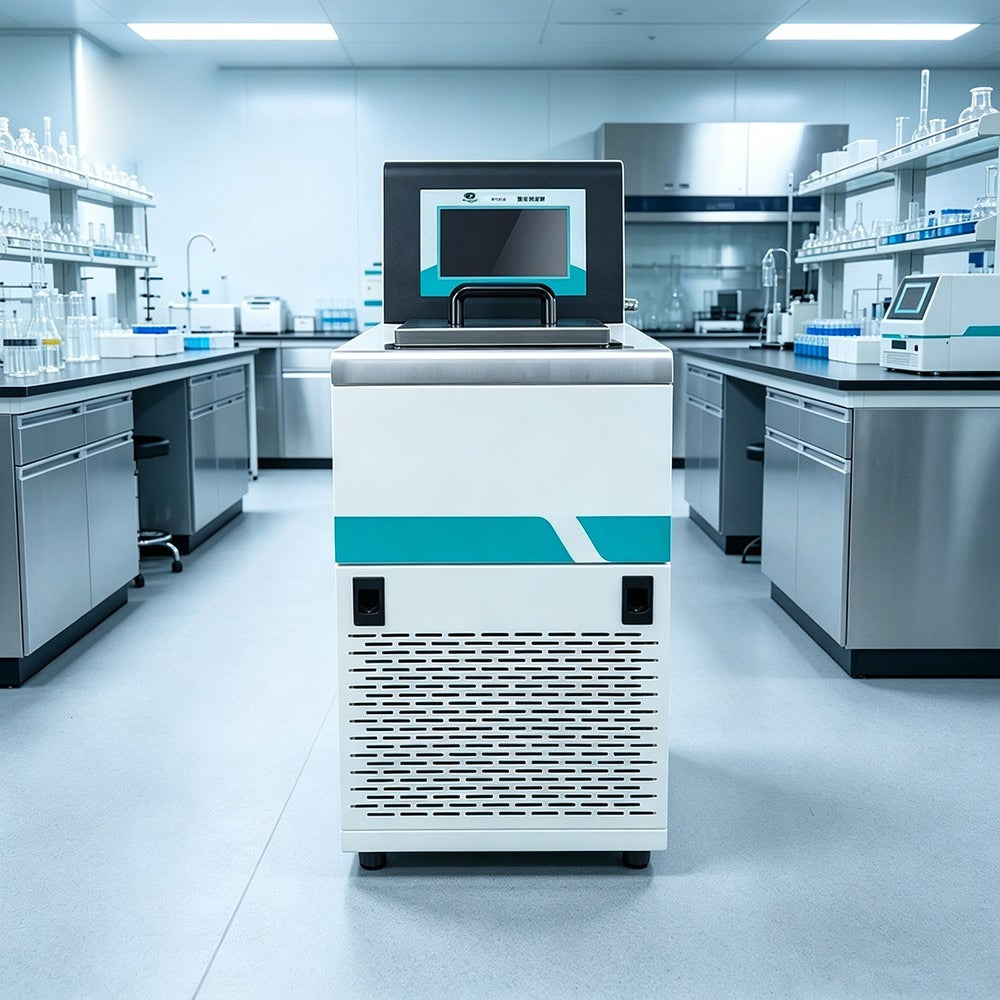

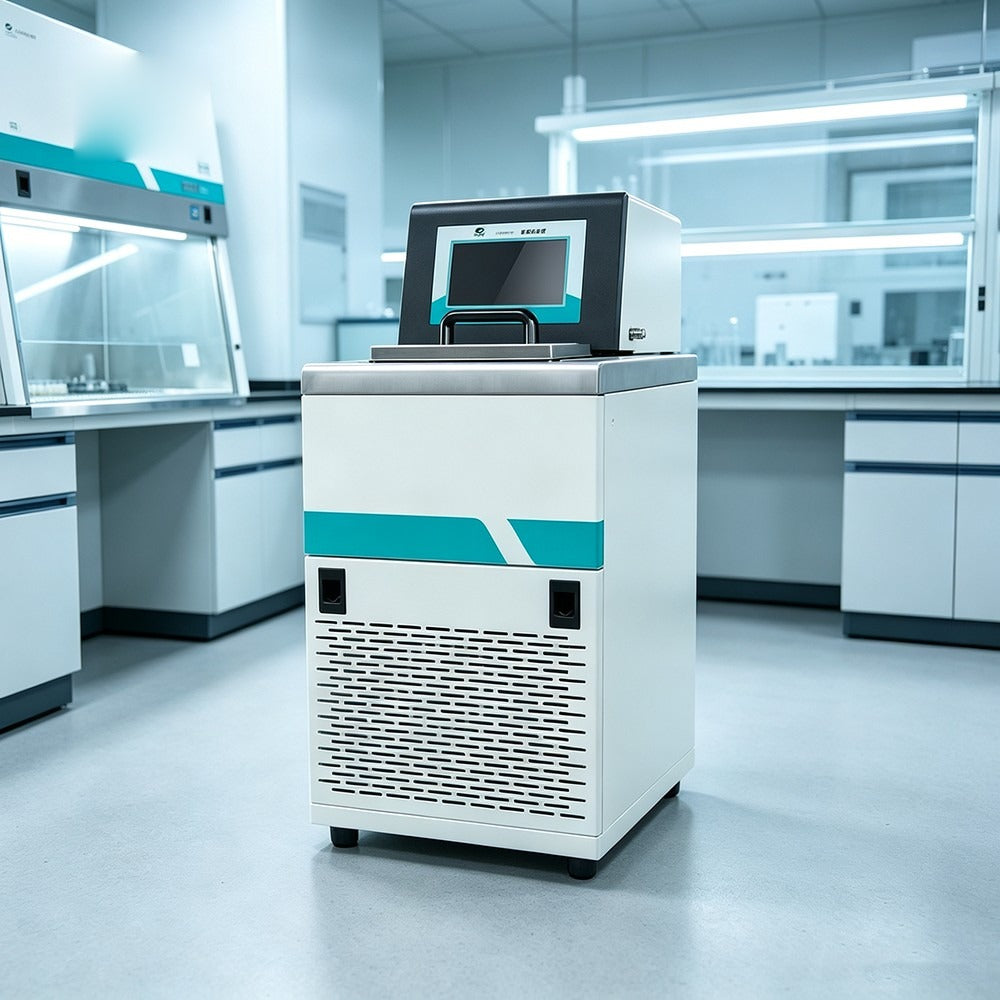

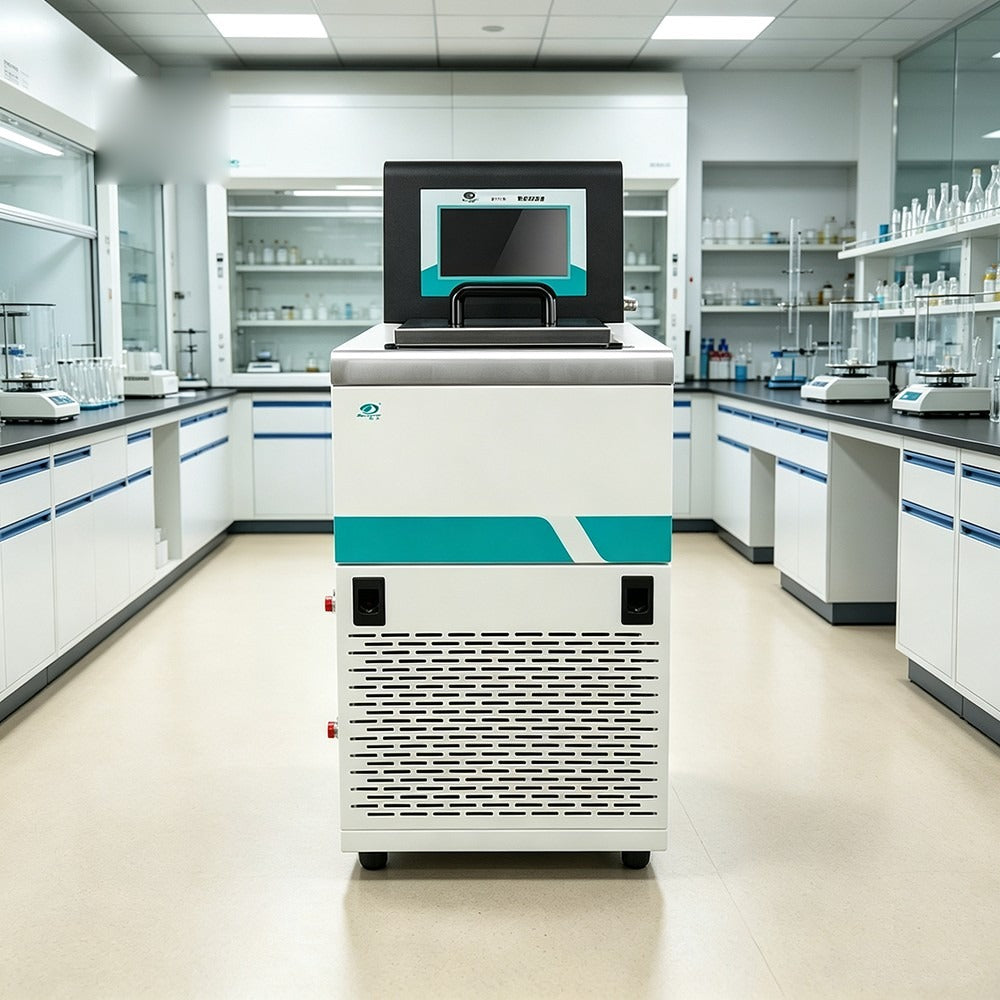

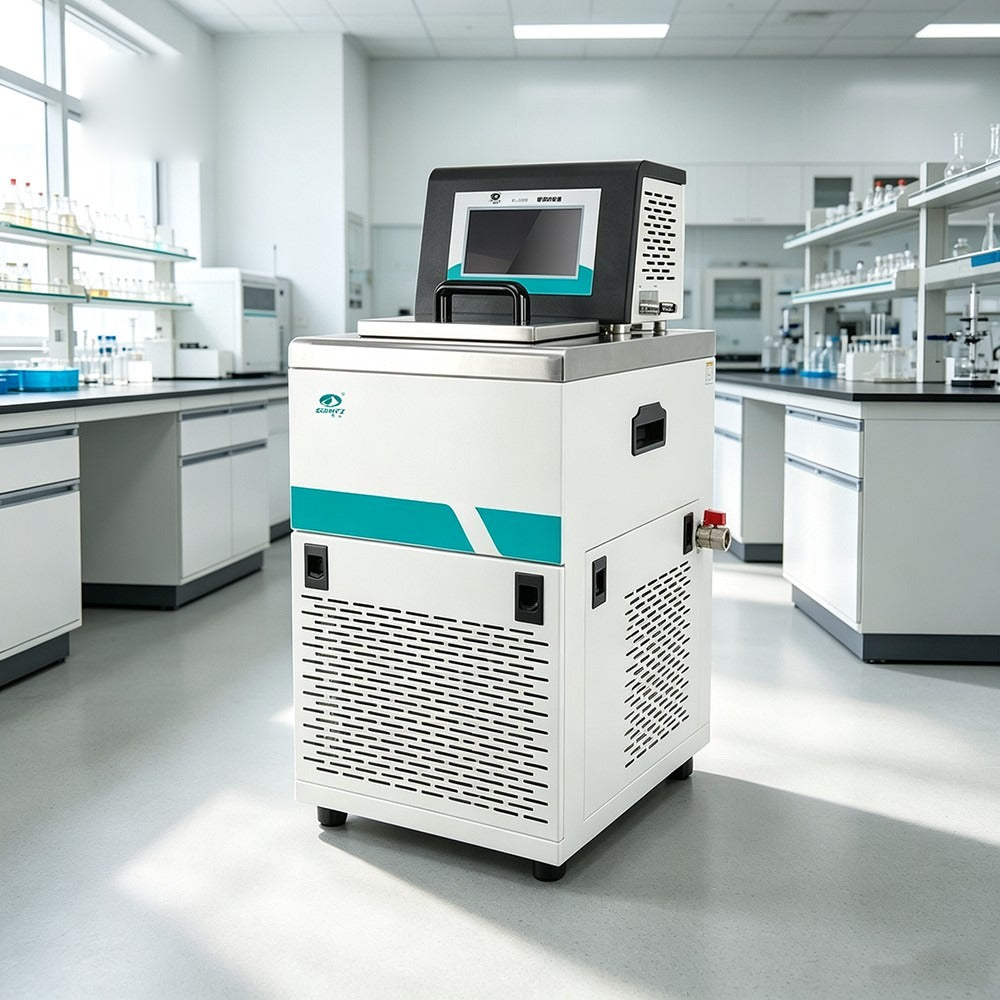

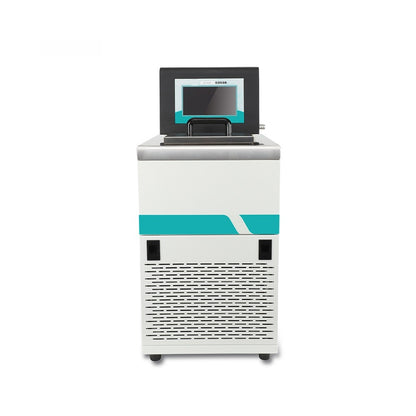

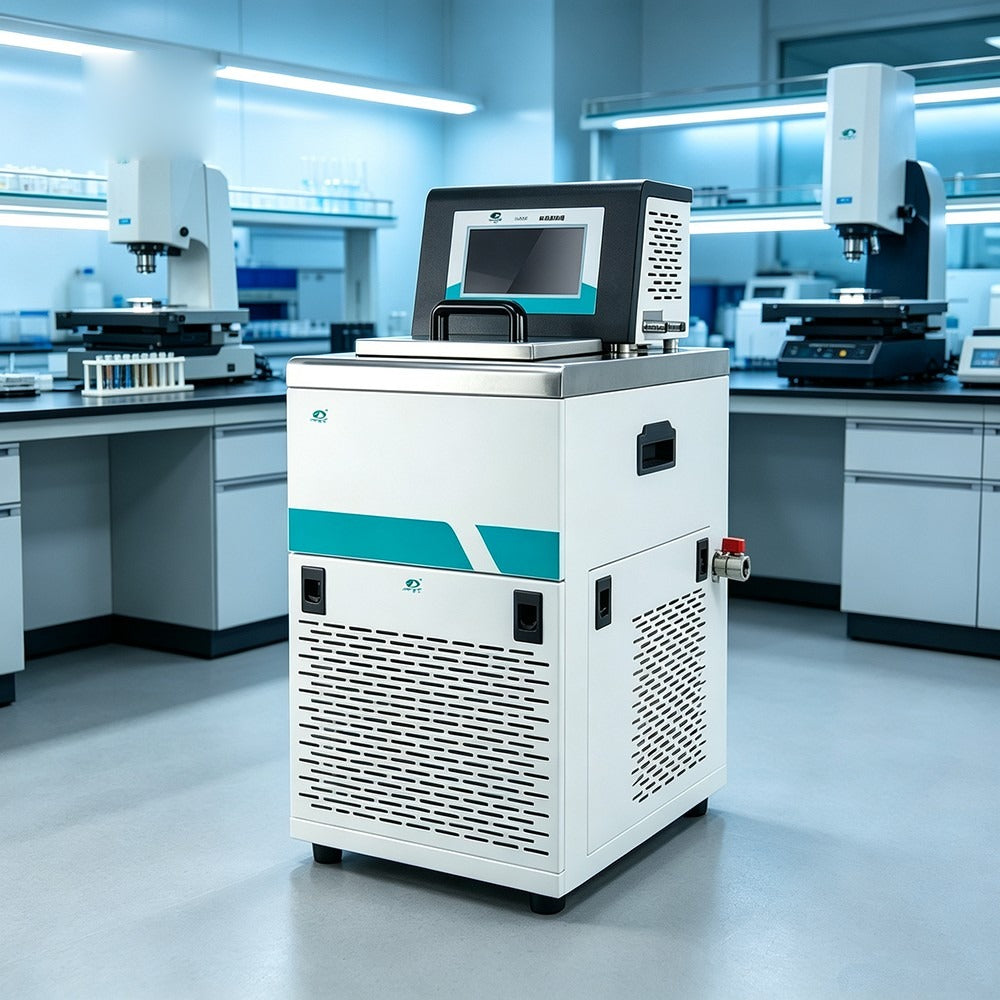

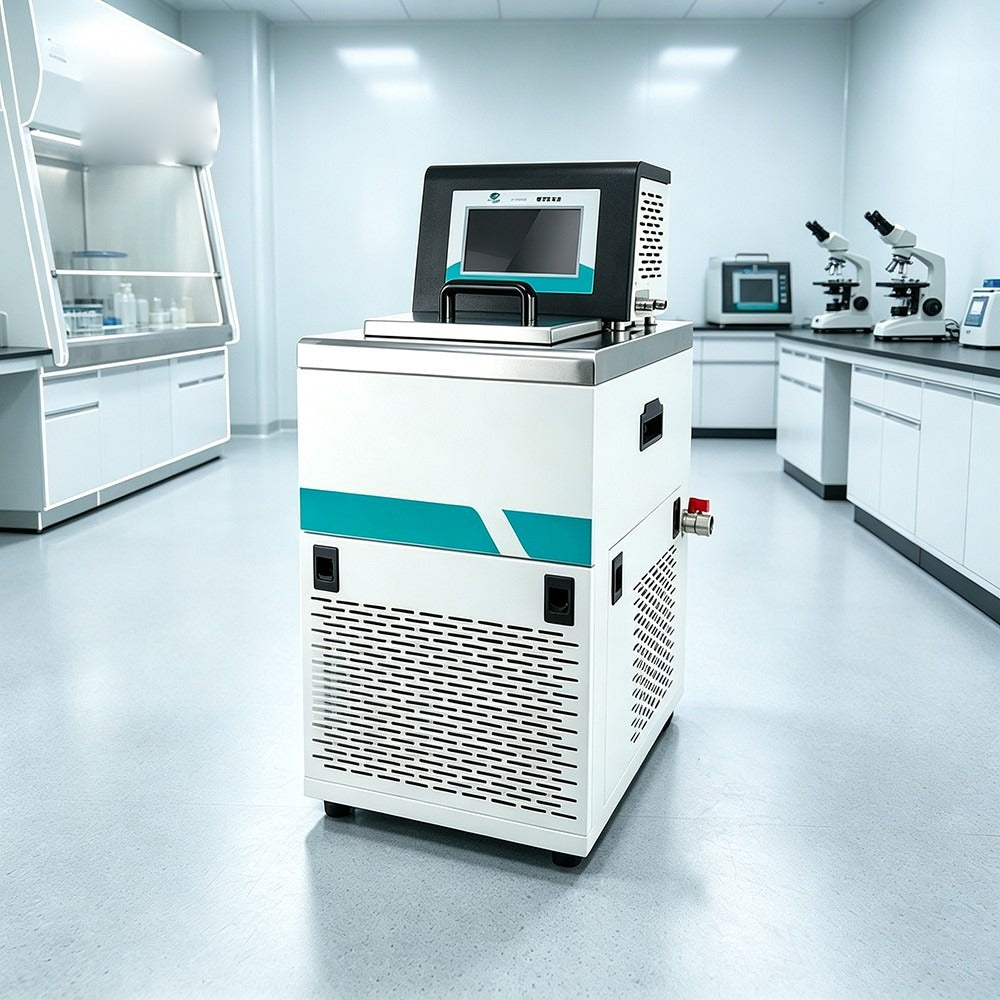

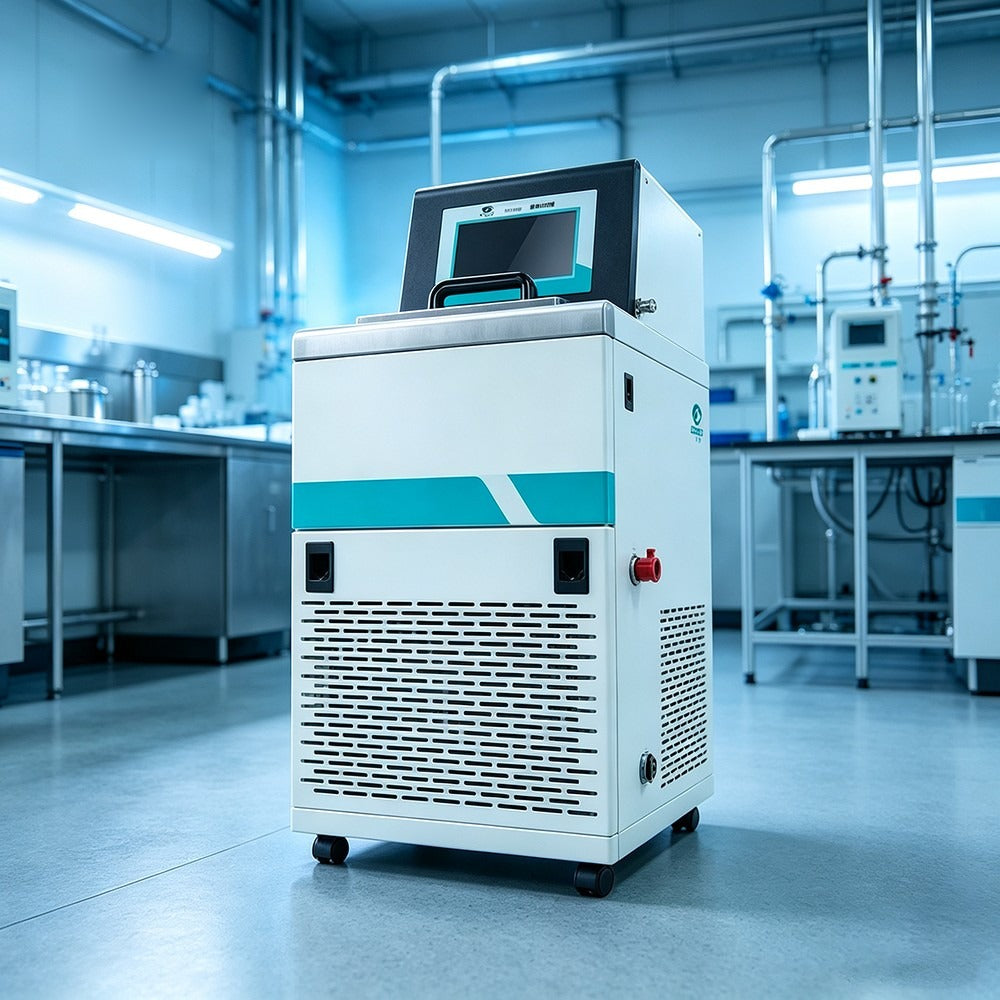

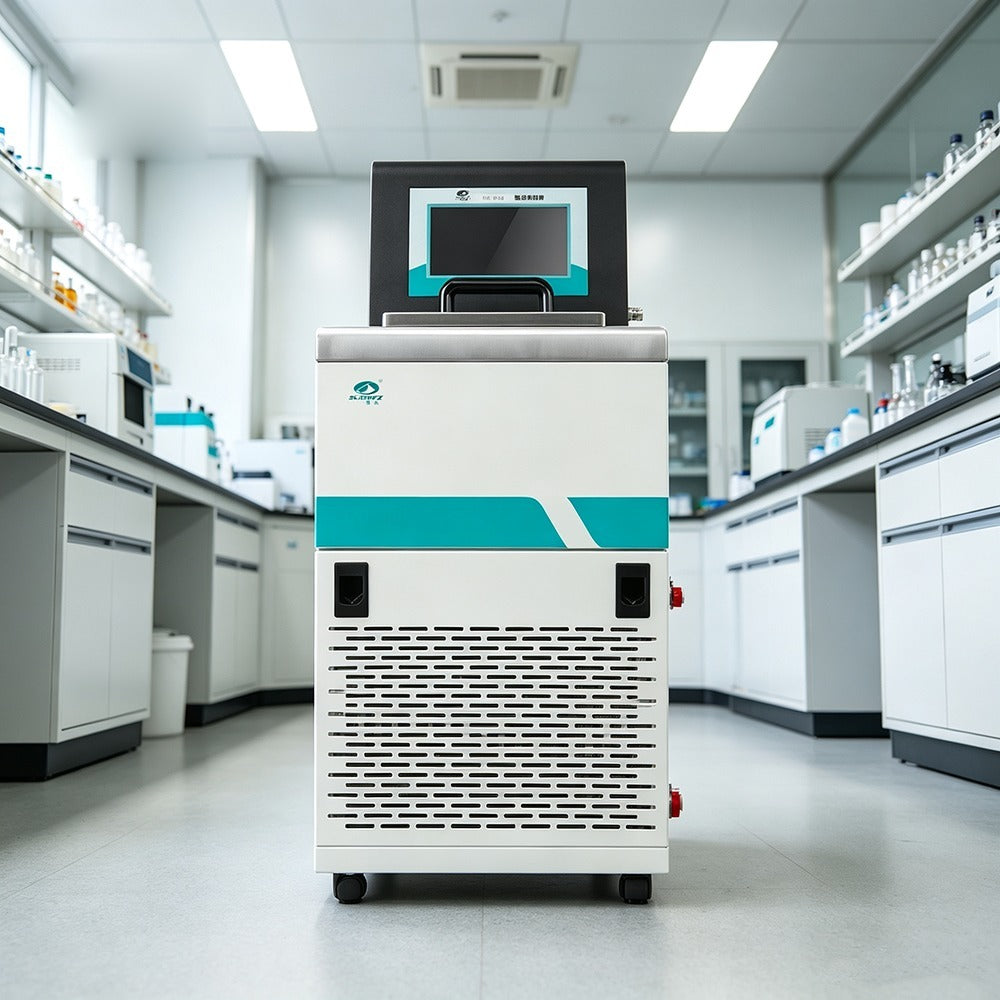

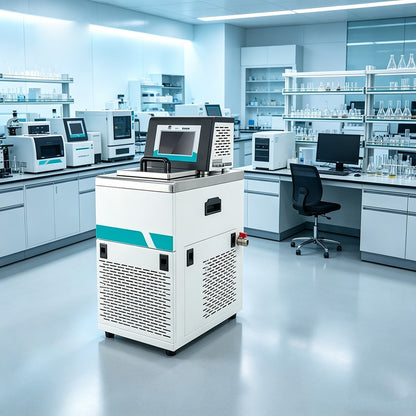

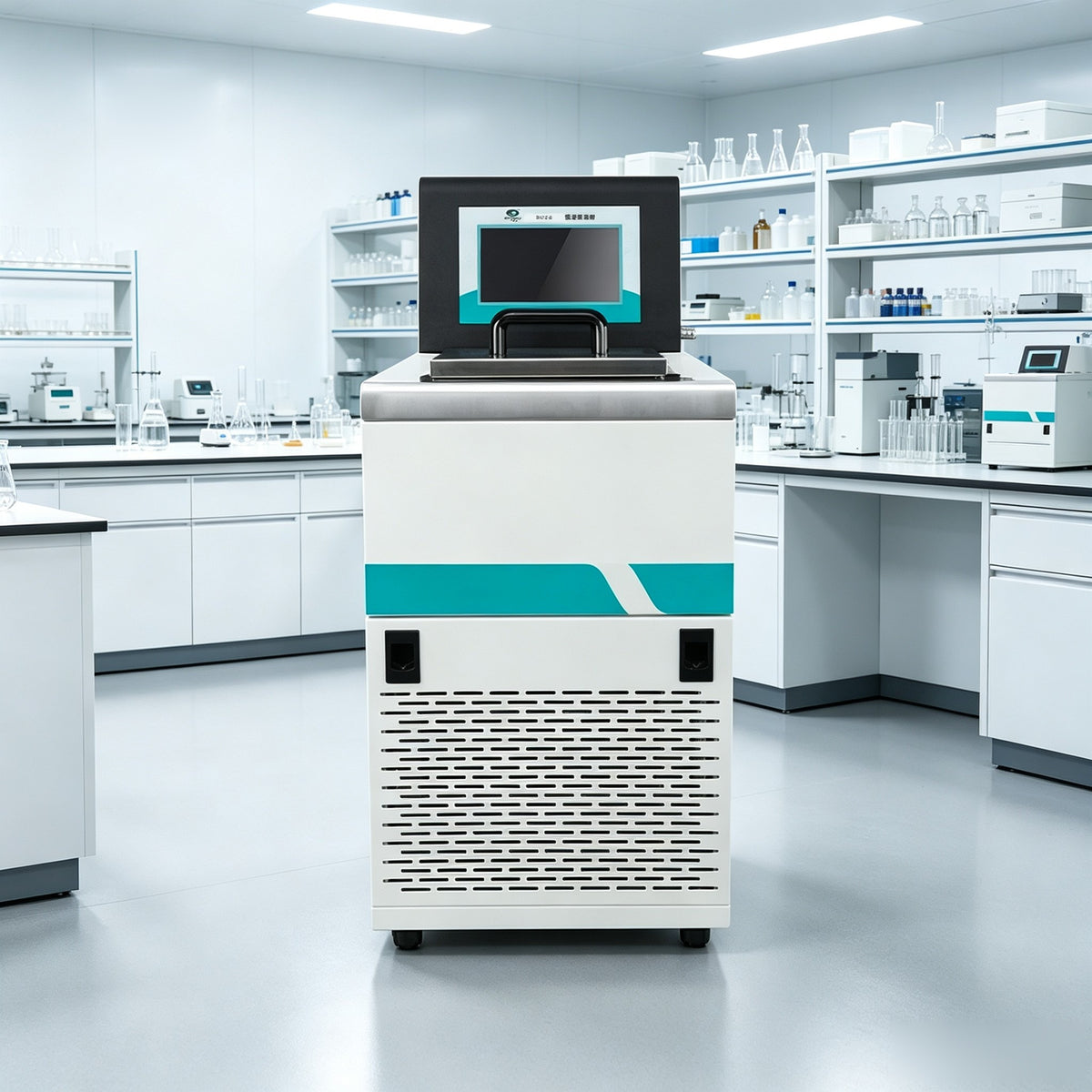

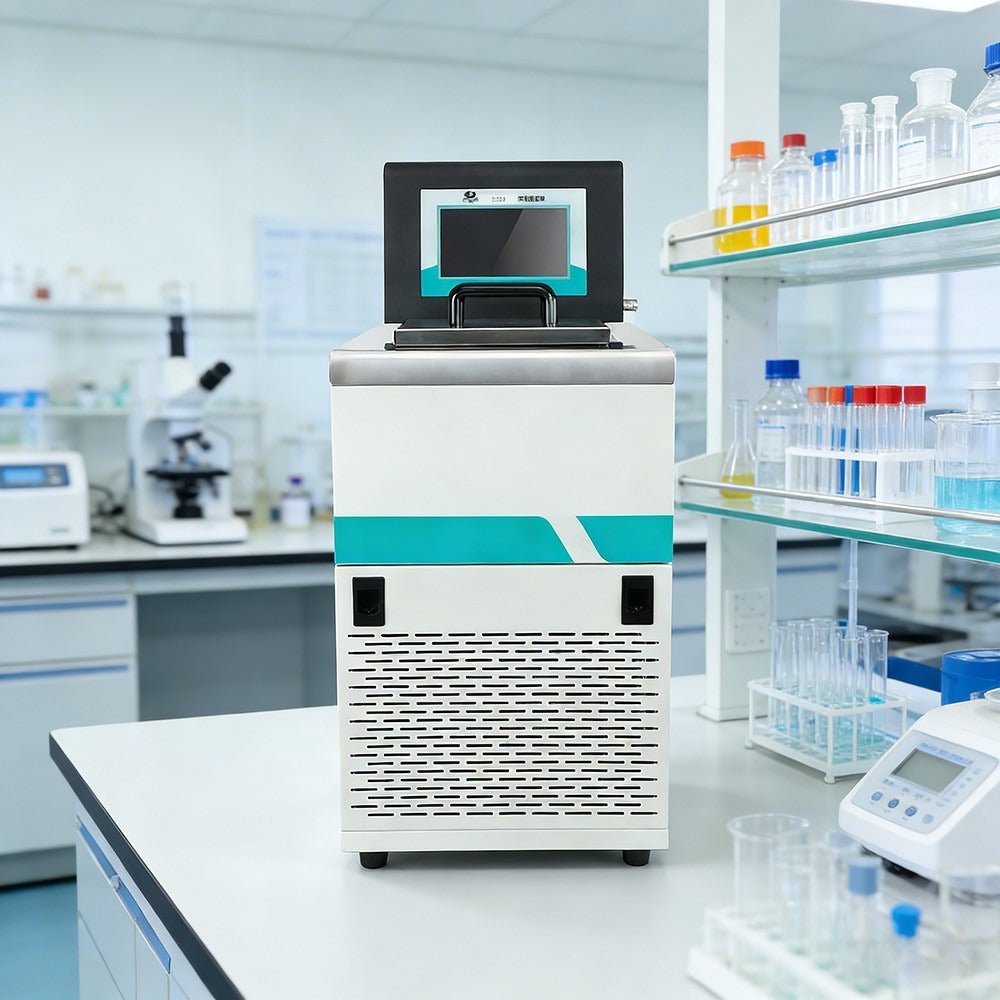

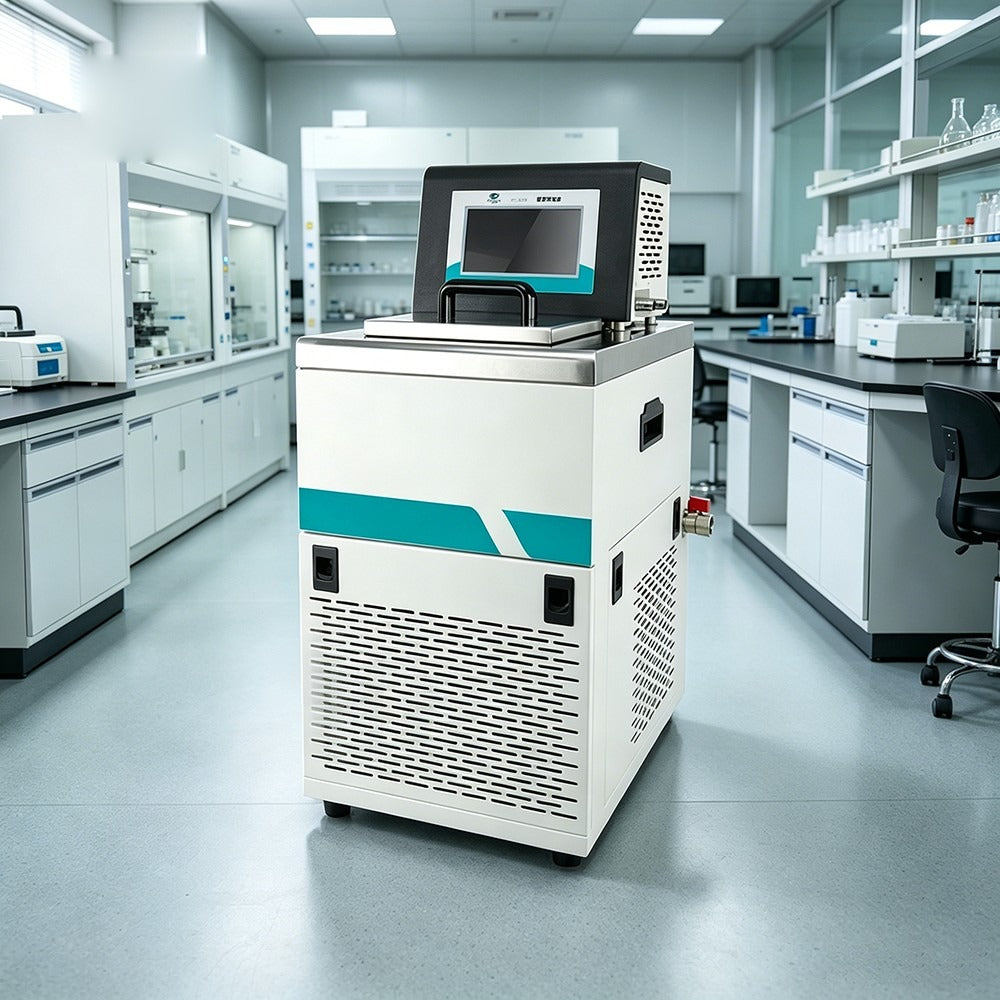

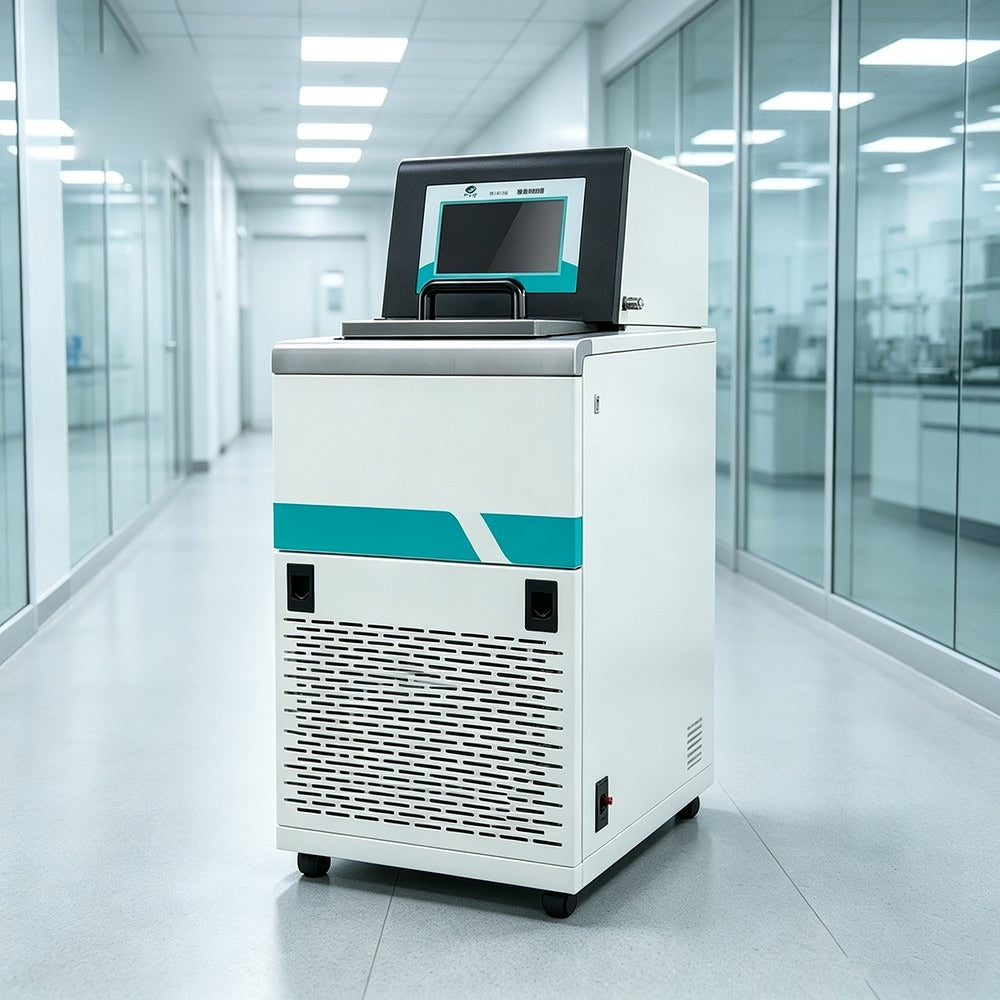

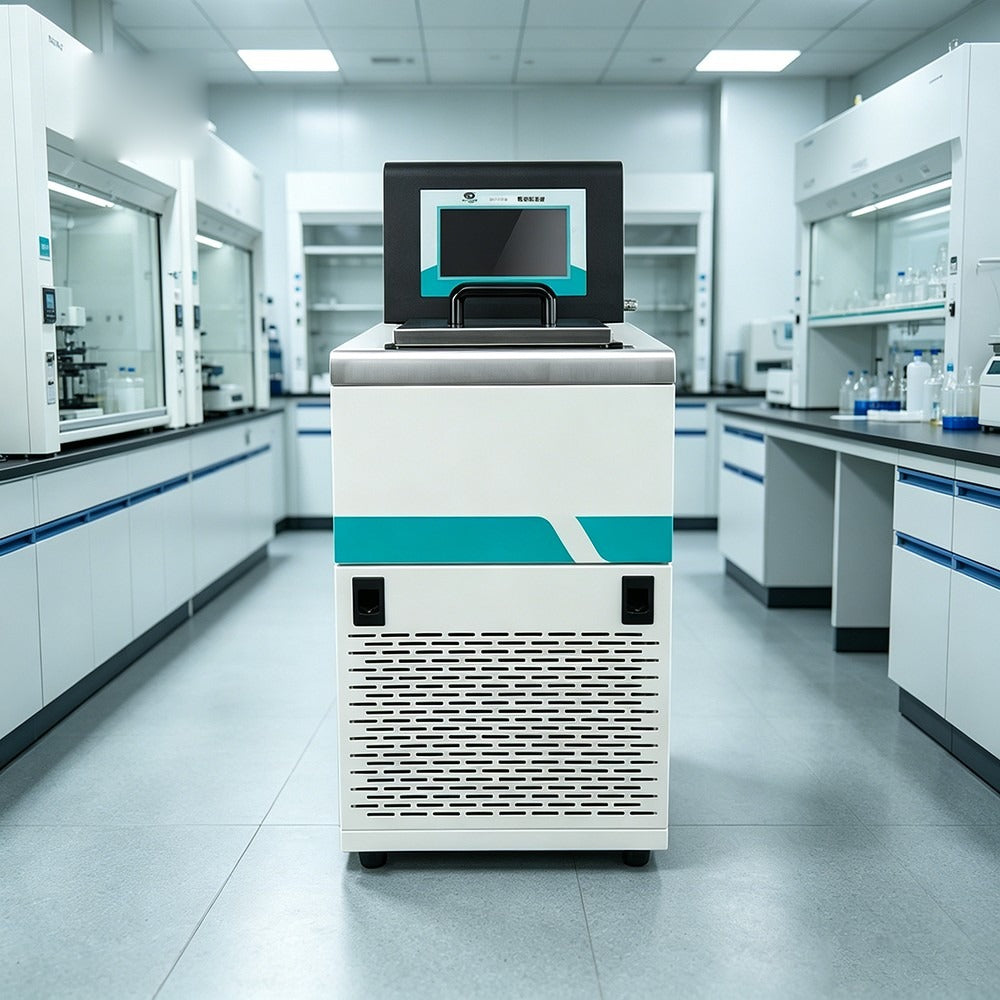

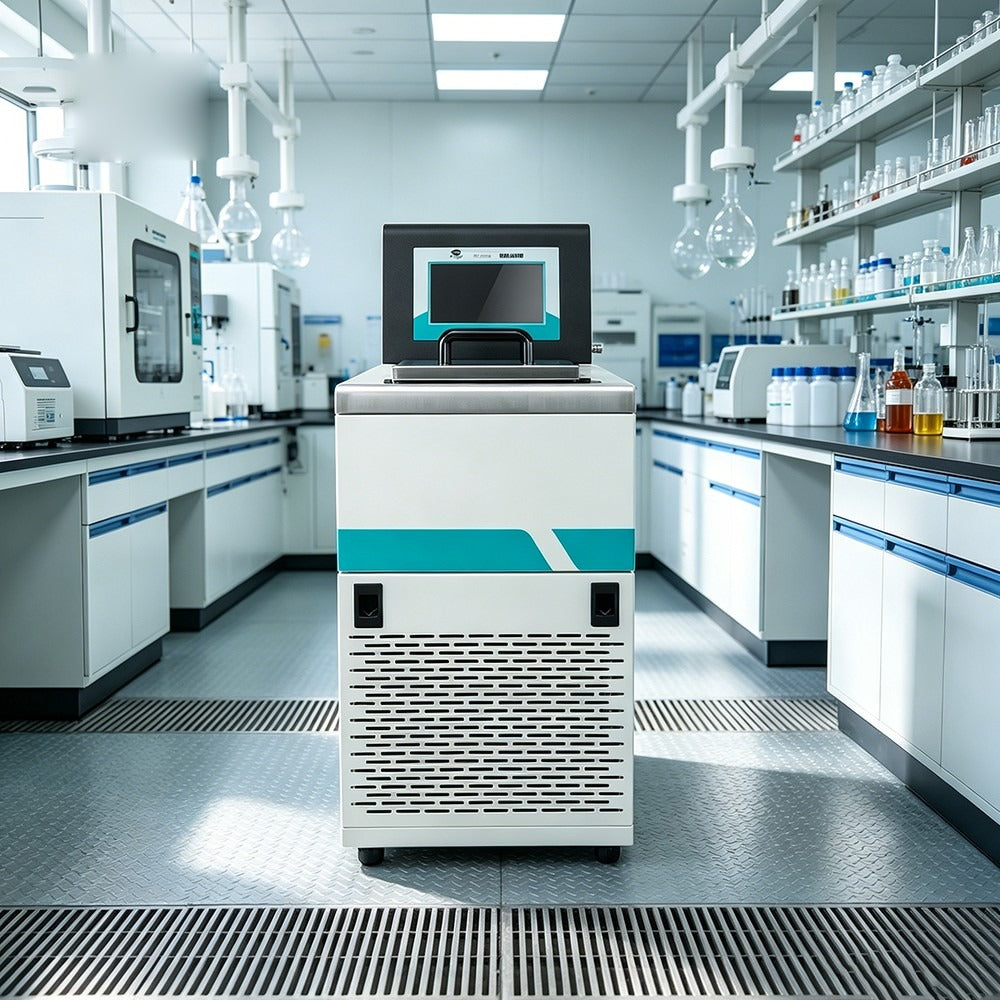

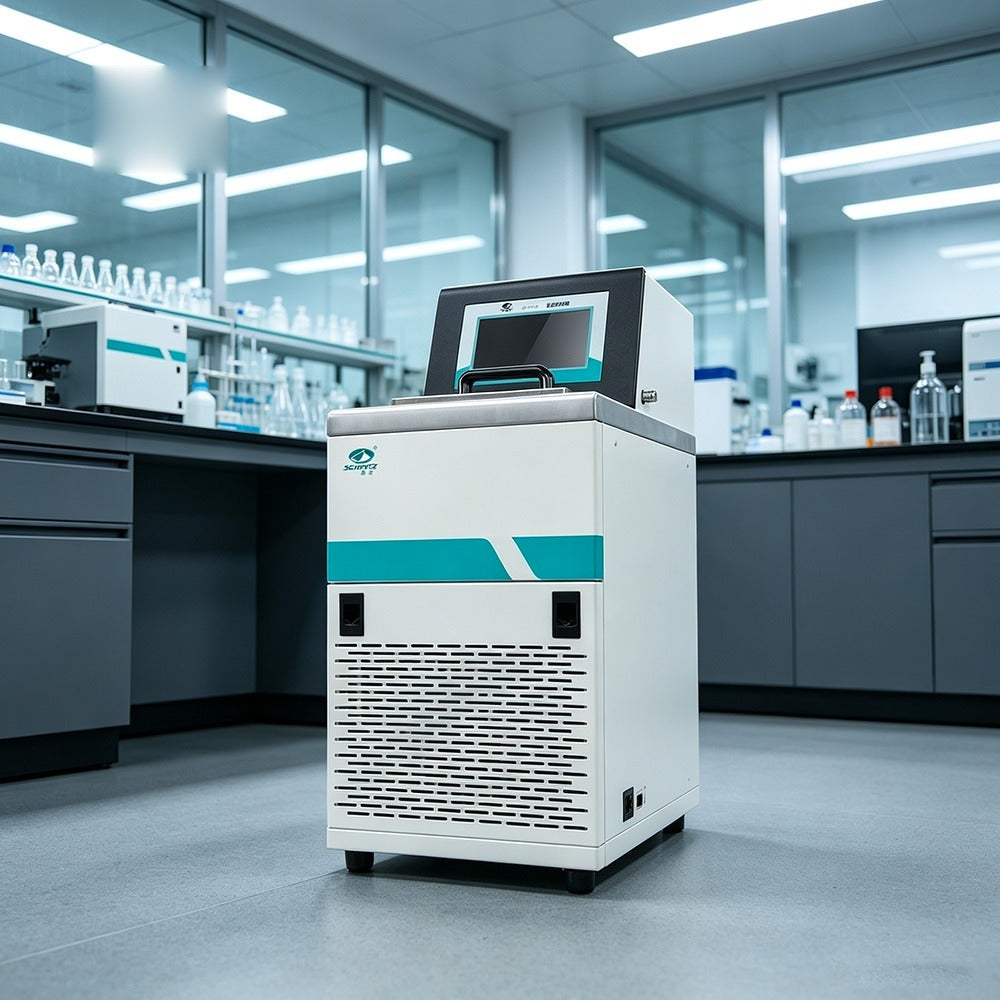

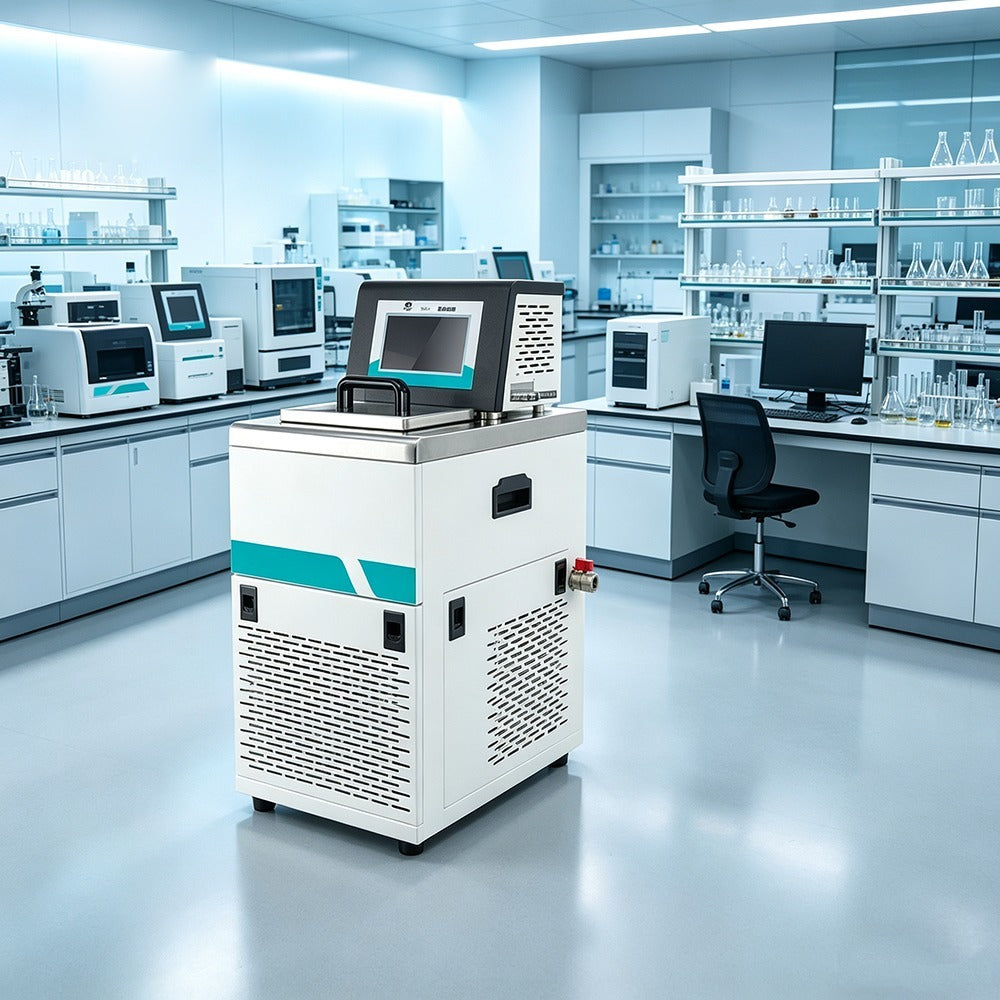

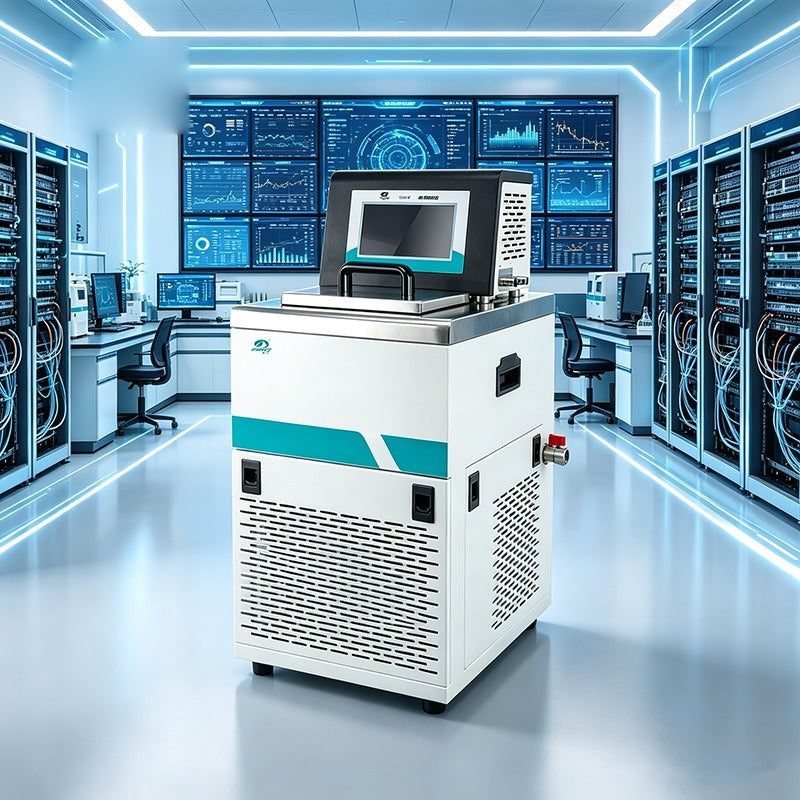

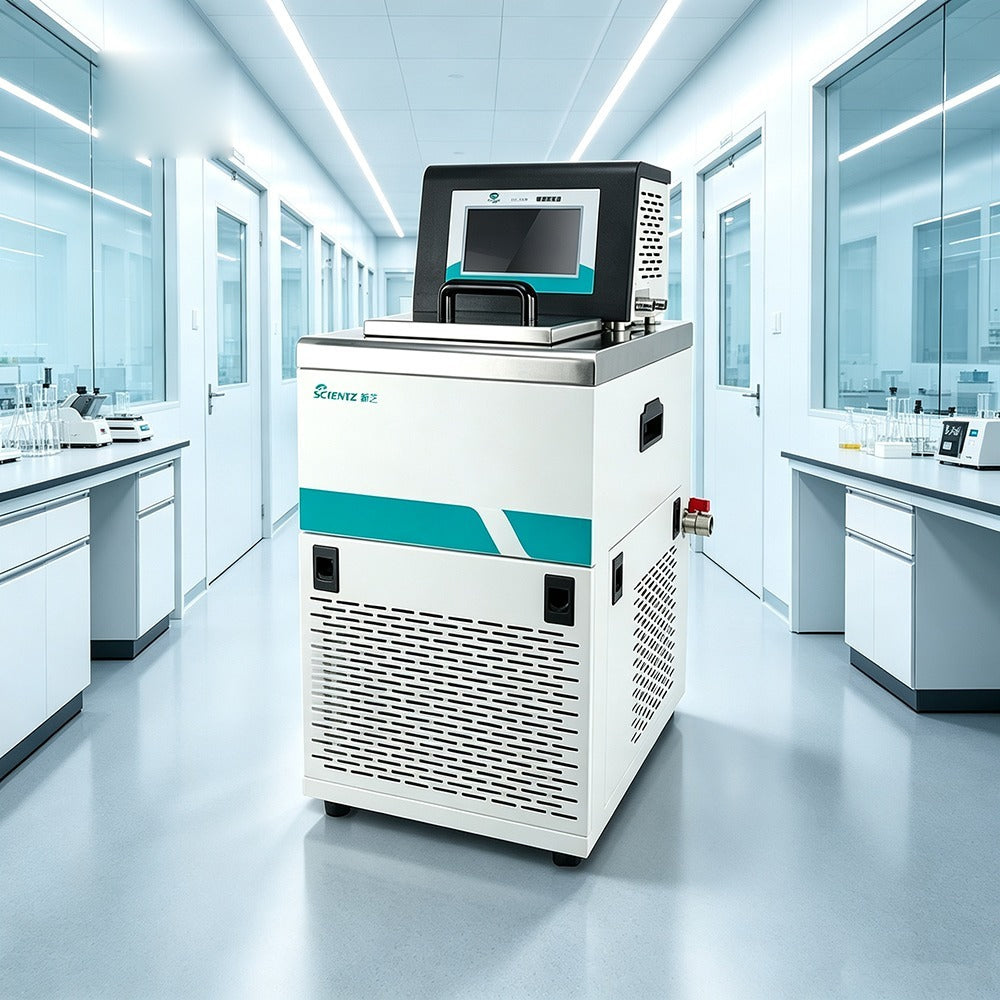

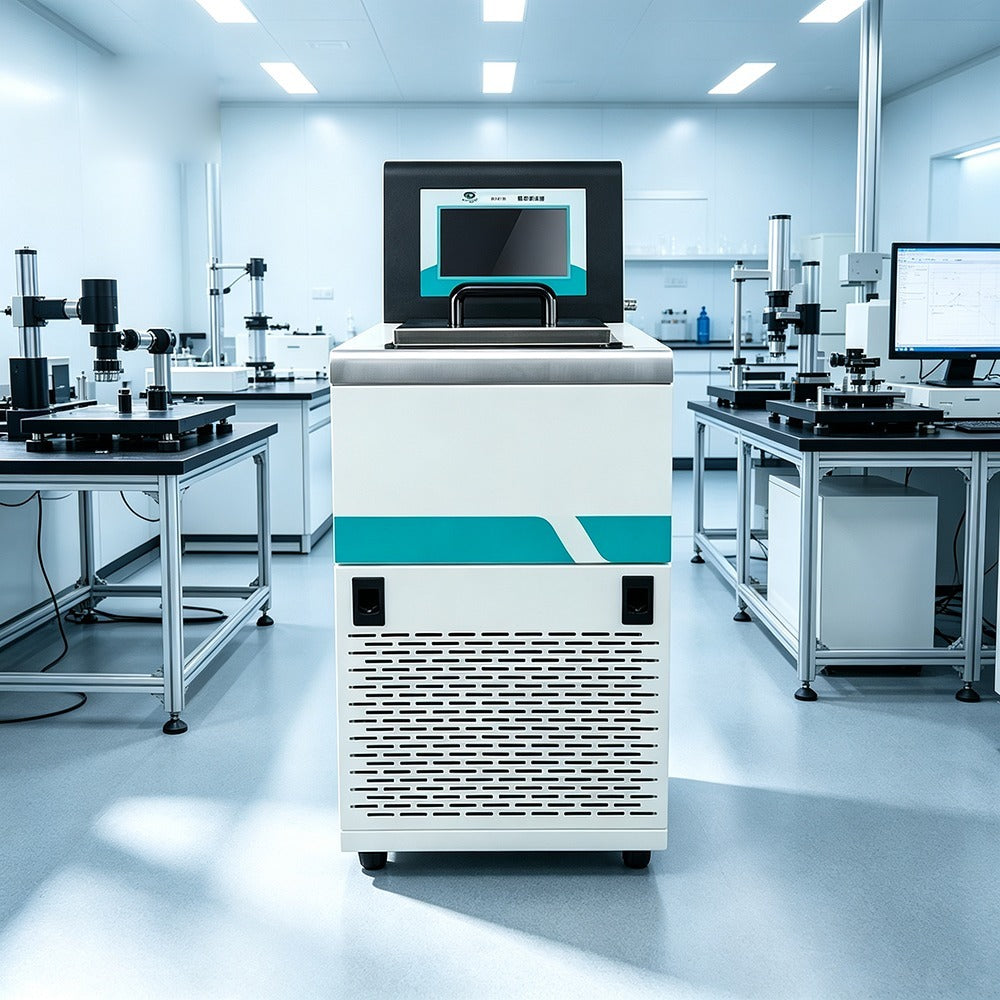

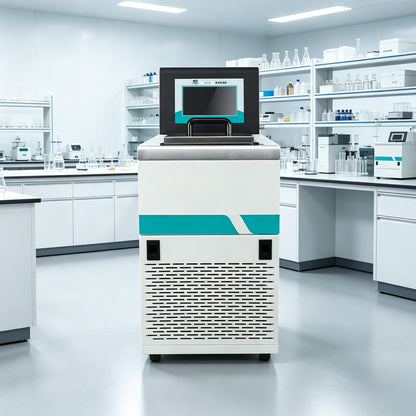

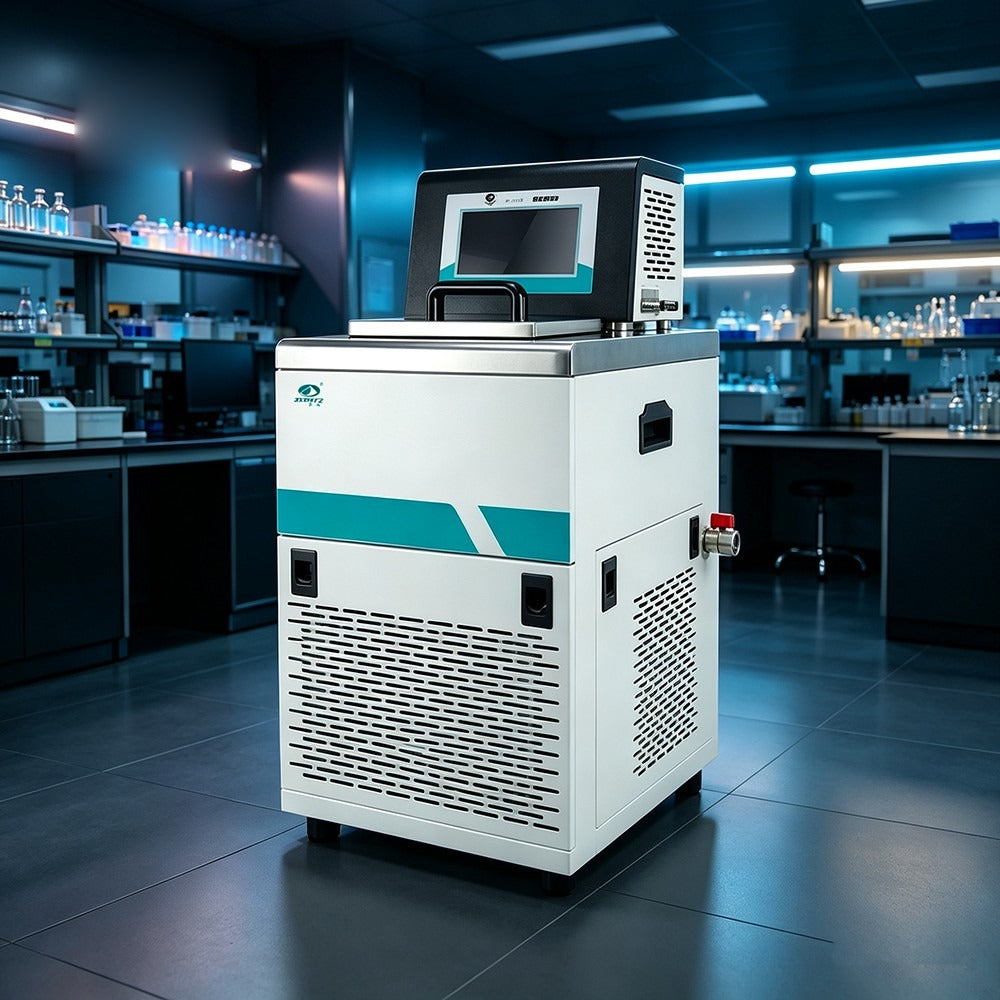

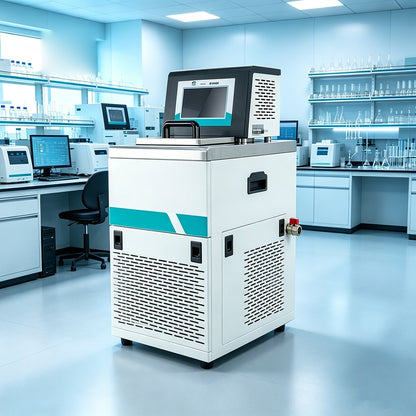

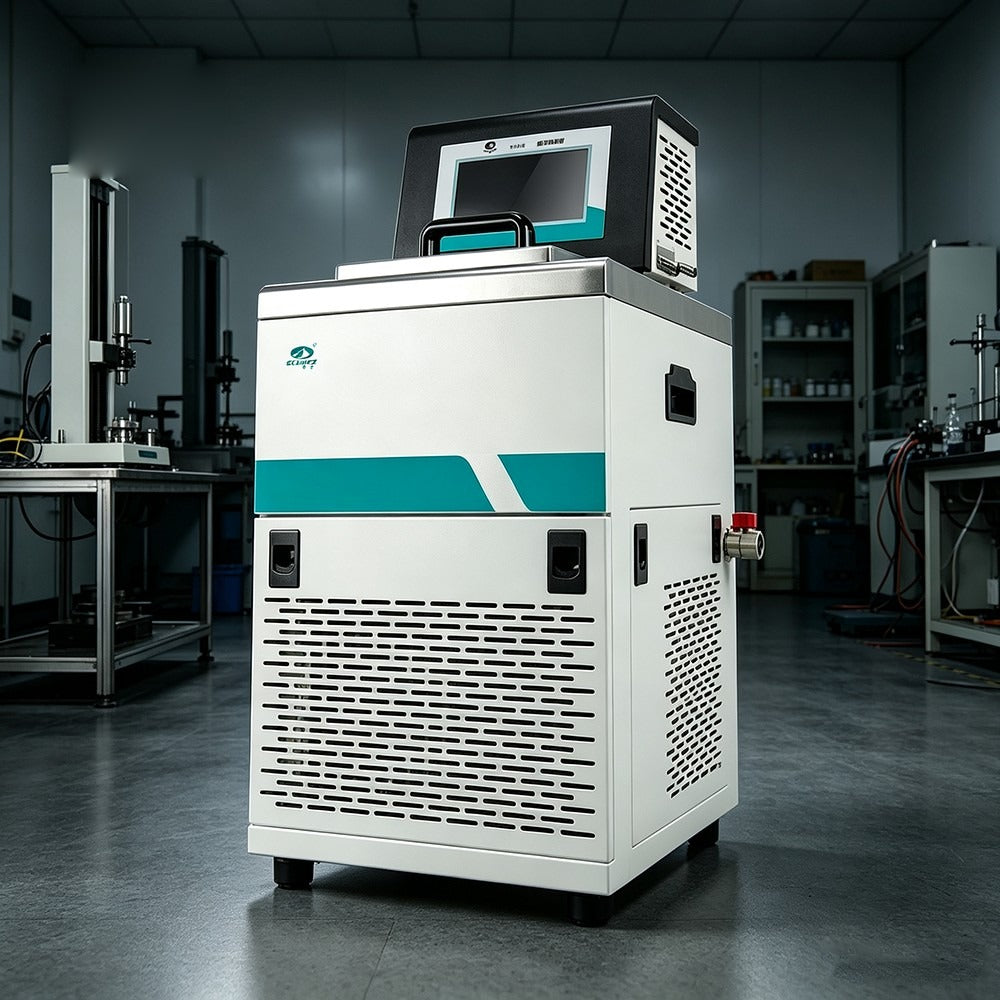

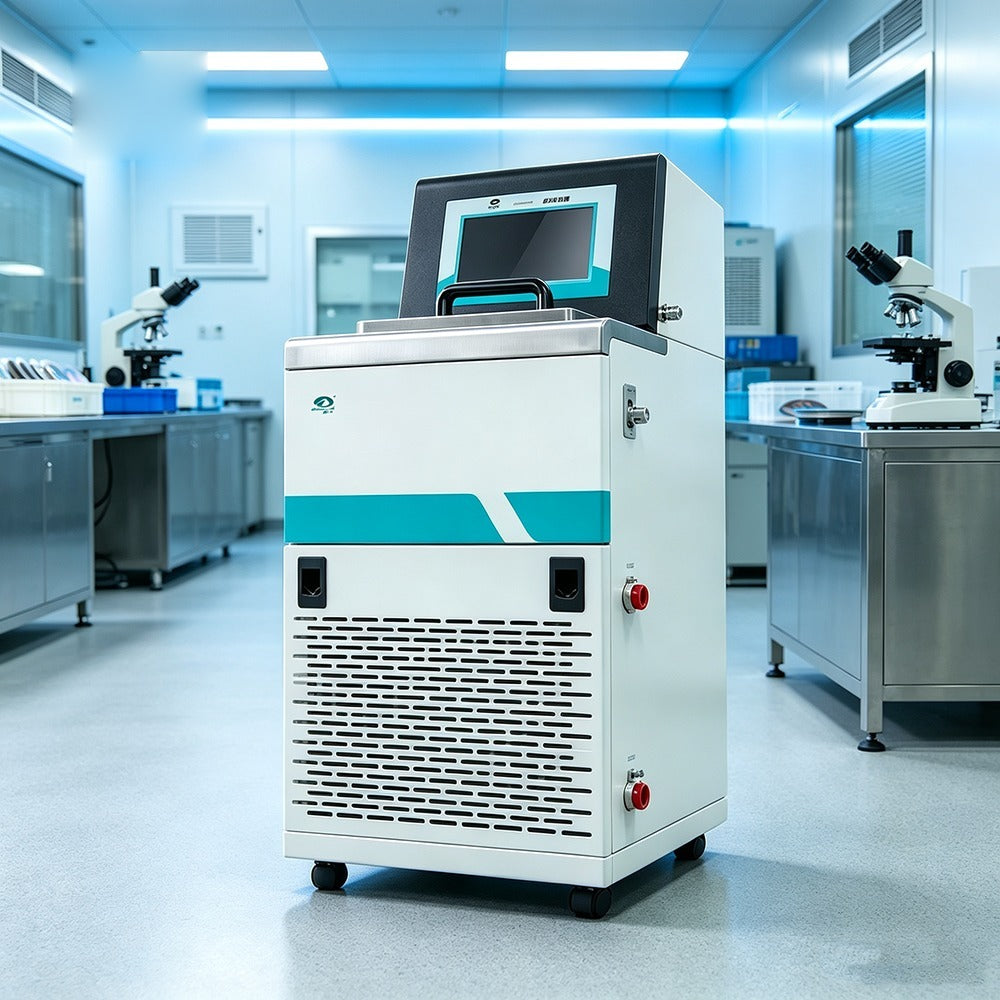

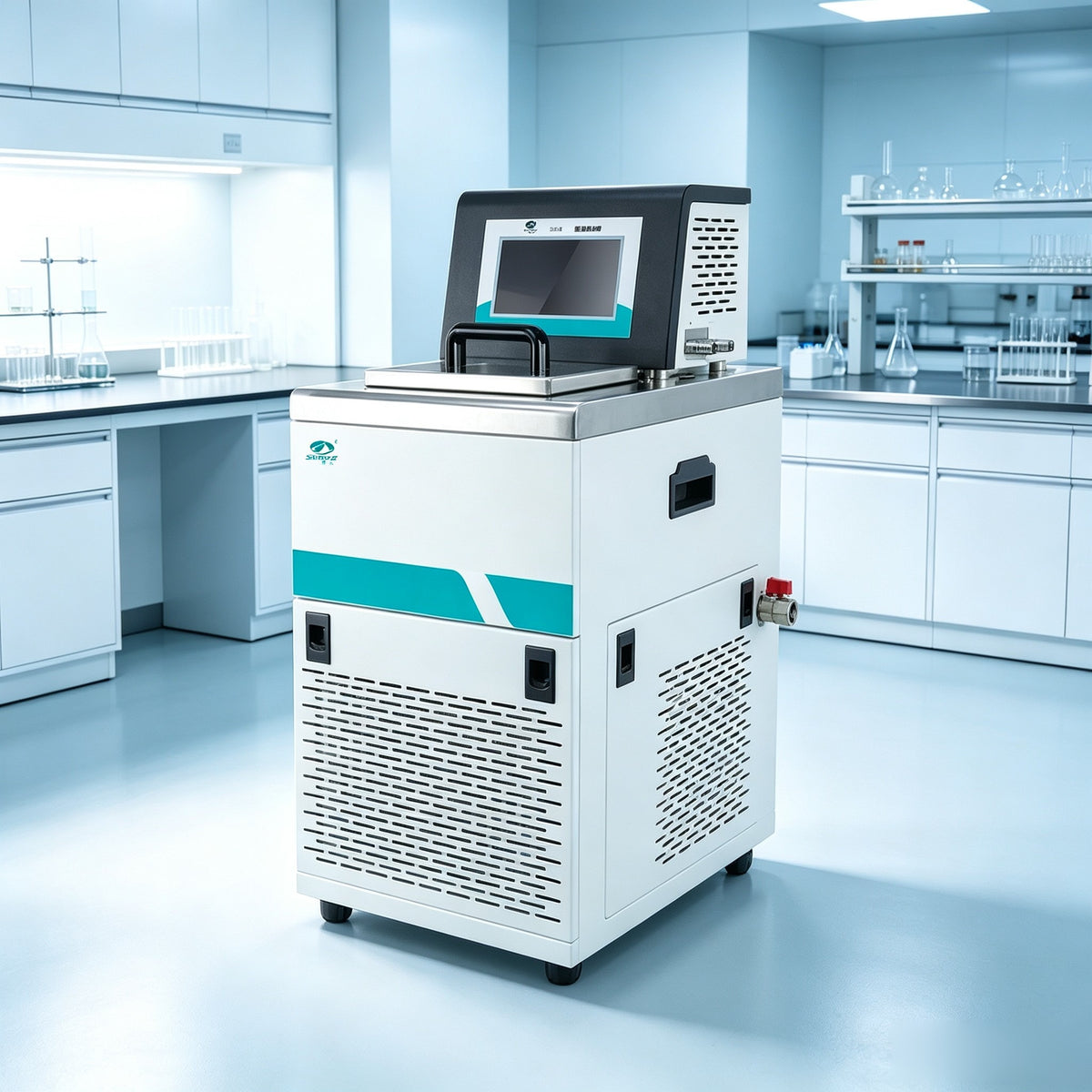

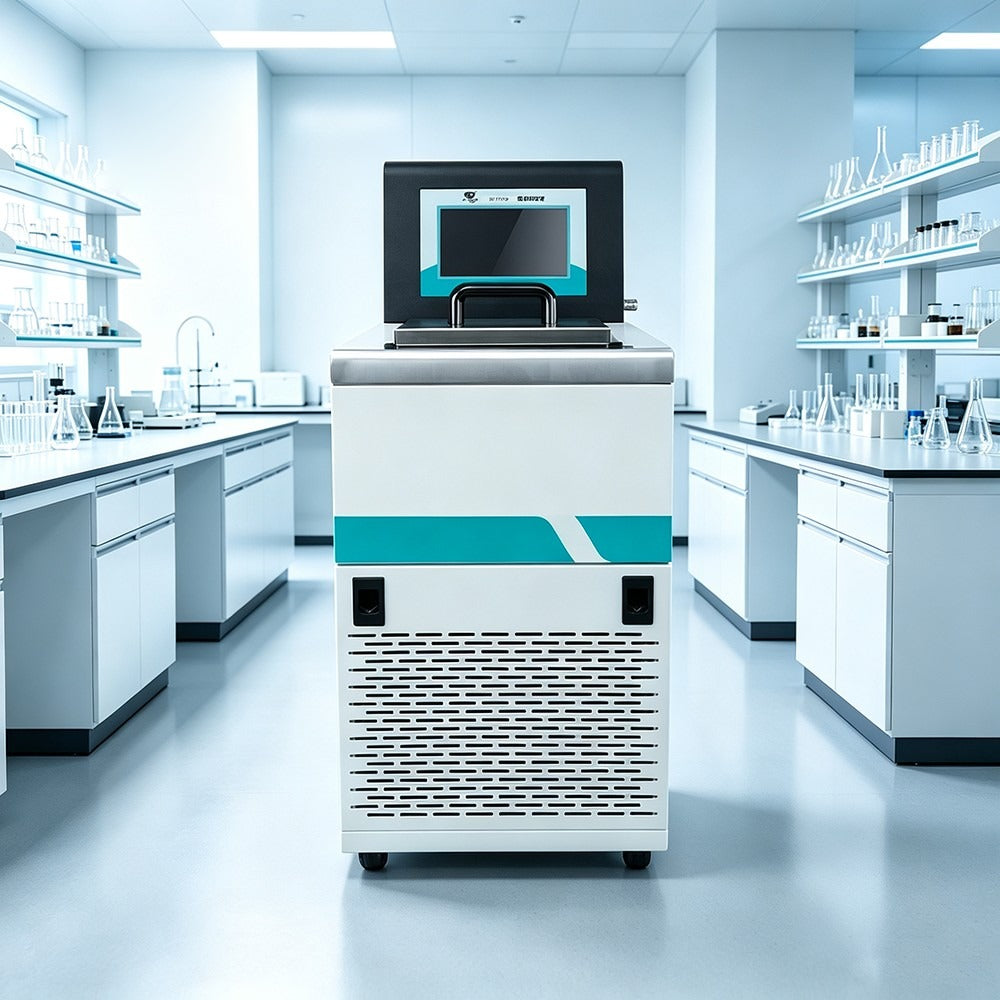

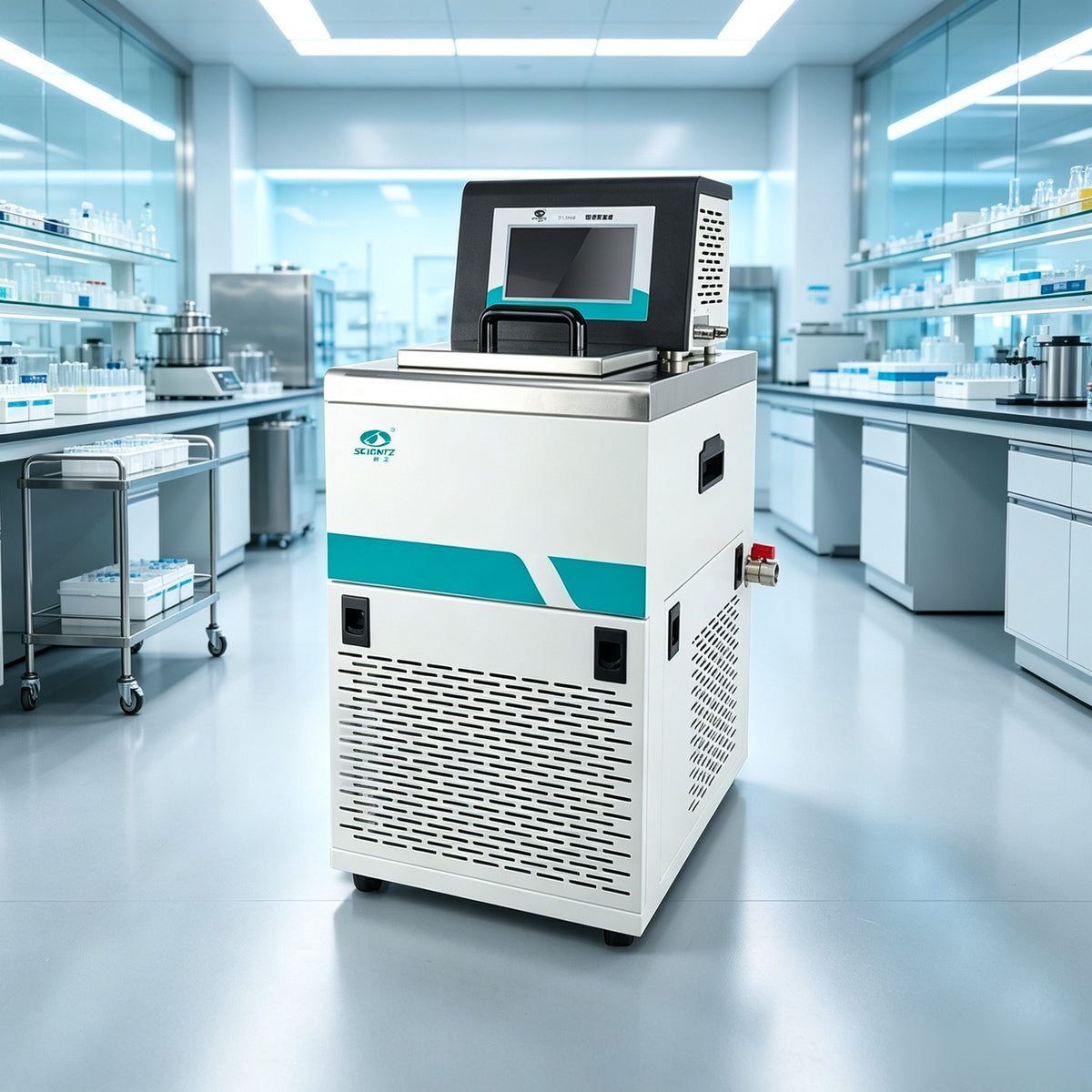

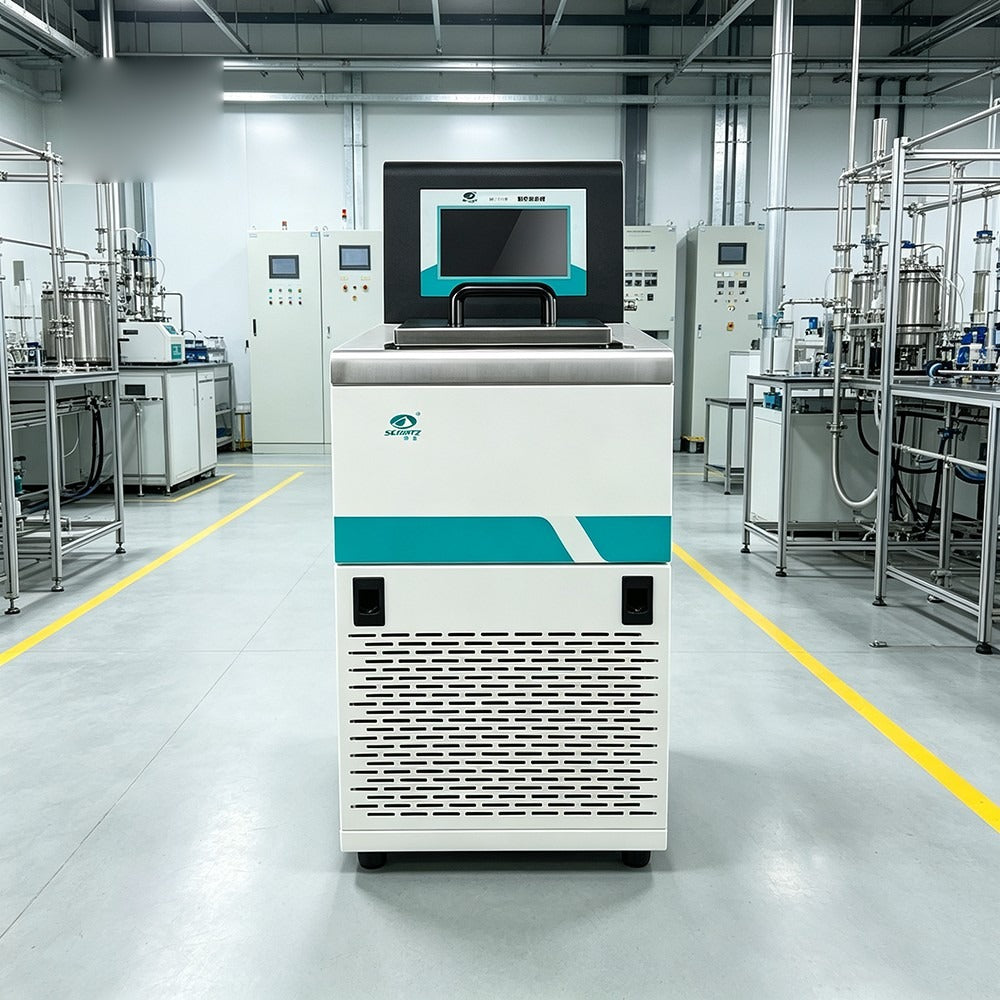

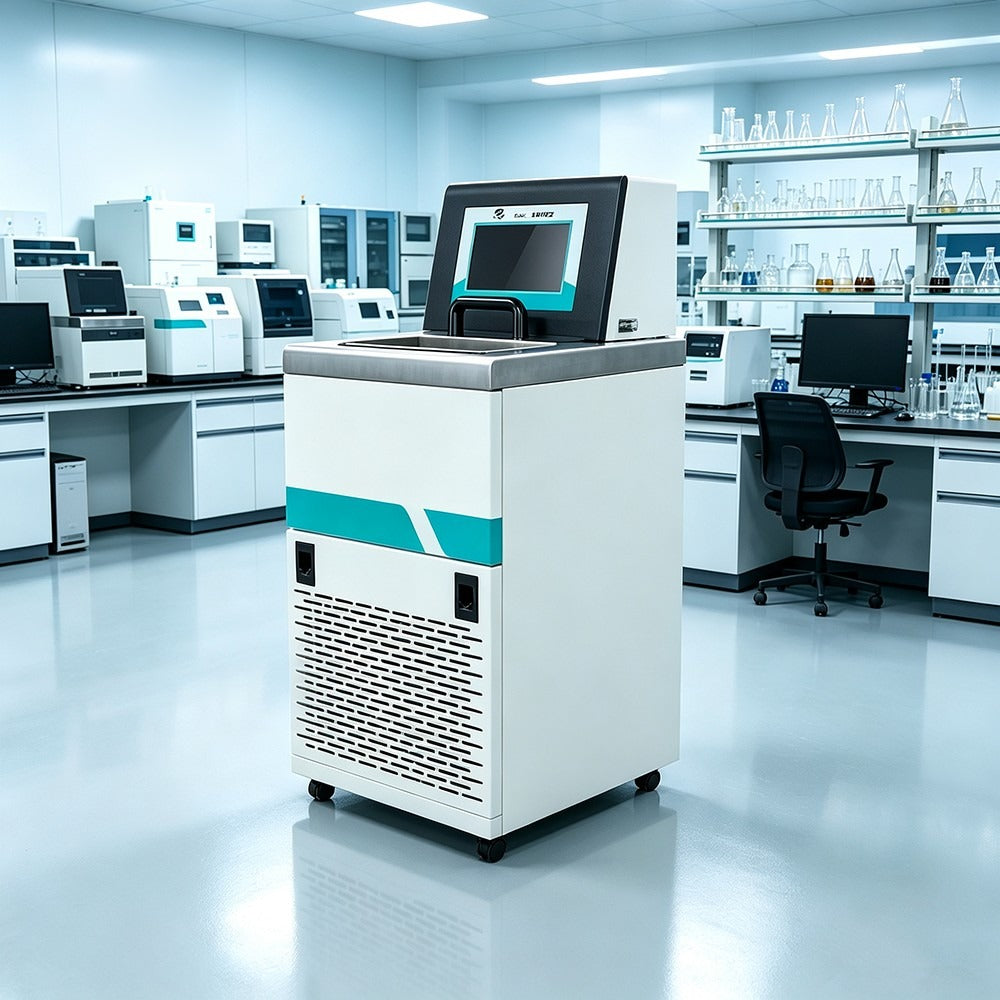

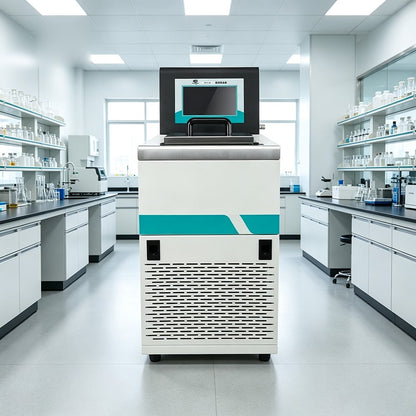

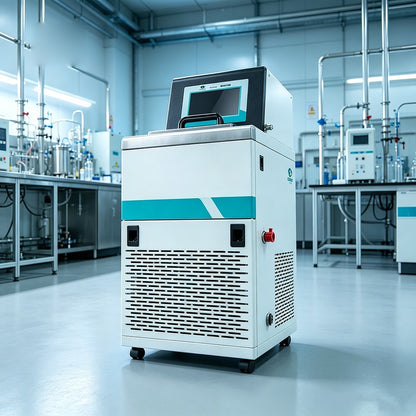

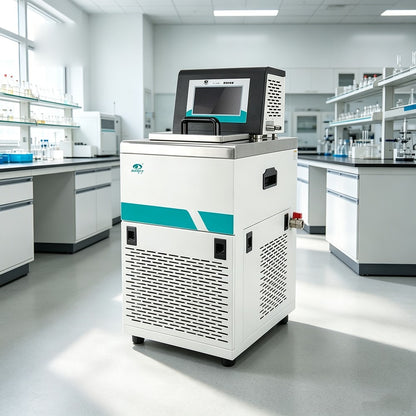

The ALAB-DC series CNC super constant temperature baths provide heating and cooling for laboratory temperature-control work, with a circulating pump flow of 0-15 L/min and 0.45 bar pump pressure. Twelve models are available, with temperature ranges from -40 to 100 °C and working slots from 260 × 200 × 140 mm to 440 × 325 × 200 mm depending on the model — see the comparison table below for the full specifications of each model.
Specification
ALAB-DC-2006
ALAB-DC-2010
ALAB-DC-2015
ALAB-DC-2020
ALAB-DC-2030
ALAB-DC-3006
ALAB-DC-3010
ALAB-DC-3015
ALAB-DC-3030
ALAB-DC-4006
ALAB-DC-4010
ALAB-DC-4015
Model
ALAB-DC-2006
ALAB-DC-2010
ALAB-DC-2015
ALAB-DC-2020
ALAB-DC-2030
ALAB-DC-3006
ALAB-DC-3010
ALAB-DC-3015
ALAB-DC-3030
ALAB-DC-4006
ALAB-DC-4010
ALAB-DC-4015
Temperature Range
-5~100 °C
-20~100 °C
-5~100 °C
-20~100 °C
-20~100 °C
-5~100 °C
-30~100 °C
-30~100 °C
-30~100 °C
-40~100 °C
-40~100 °C
-20~100 °C
Bath Volume / Working Slot
6L (working slot 260*200*140 mm)
10L (working slot 260*200*200 mm)
15L (working slot 300*250*200 mm)
20L (working slot 300*250*260 mm)
30L (working slot 440*325*200 mm)
6L (working slot 260*200*140 mm)
10L (working slot 260*200*200 mm)
15L (working slot 300*250*200 mm)
30L (working slot 440*325*200 mm)
6L (working slot 260*200*140 mm)
10L (working slot 260*200*200 mm)
15L (working slot 300*250*200 mm)
Heating Power
1.4 kW
1.5 kW
2.4 kW
3.6 kW
2.4 kW
1.6 kW
1.5 kW
2.5 kW
4.3 kW
1.9 kW
1.9 kW
2.5 kW
Cooling Power
0.42 kW
0.62 kW
0.76 kW
1.55 kW
0.52 kW
0.42 kW
0.54 kW
0.73 kW
2.5 kW
0.48 kW
0.46 kW
1.24 kW
Pump Flow
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
Pump Pressure
0.45 bar
0.45 bar
0.45 bar
0.45 bar
0.45 bar
0.45 bar
0.45 bar
0.45 bar
0.45 bar
0.45 bar
0.45 bar
0.45 bar
Temperature Fluctuation
±0.1 °C, ±0.5 °C
±0.1 °C, ±0.5 °C
-
±0.1 °C, ±0.5 °C
±0.1 °C, ±0.5 °C
±0.1% ~ ±0.5% FS
±0.1 °C, ±0.5 °C
±0.1 °C, ±0.5 °C
-
±0.1 °C, ±0.5 °C
±0.1 °C, ±0.5 °C
±0.1 °C, ±0.5 °C
Display Resolution
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
Dimensions
390*340*652 mm
395*336*715 mm
455*388*845 mm
455*430*935 mm
625*500*990 mm
455*388*845 mm
455*388*845 mm
455*430*865 mm
625*500*990 mm
455*388*845 mm
455*430*865 mm
455*430*865 mm
Material
Stainless Steel
Stainless Steel
SUS304
Stainless Steel
Stainless Steel
SUS304
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Voltage
220-240V AC
220-240V AC
220 V
220-240V AC
220 V
220-240V AC
220-240V AC
220-240V AC
220-240V AC
220-240V AC
220-240V AC
220-240V AC
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
