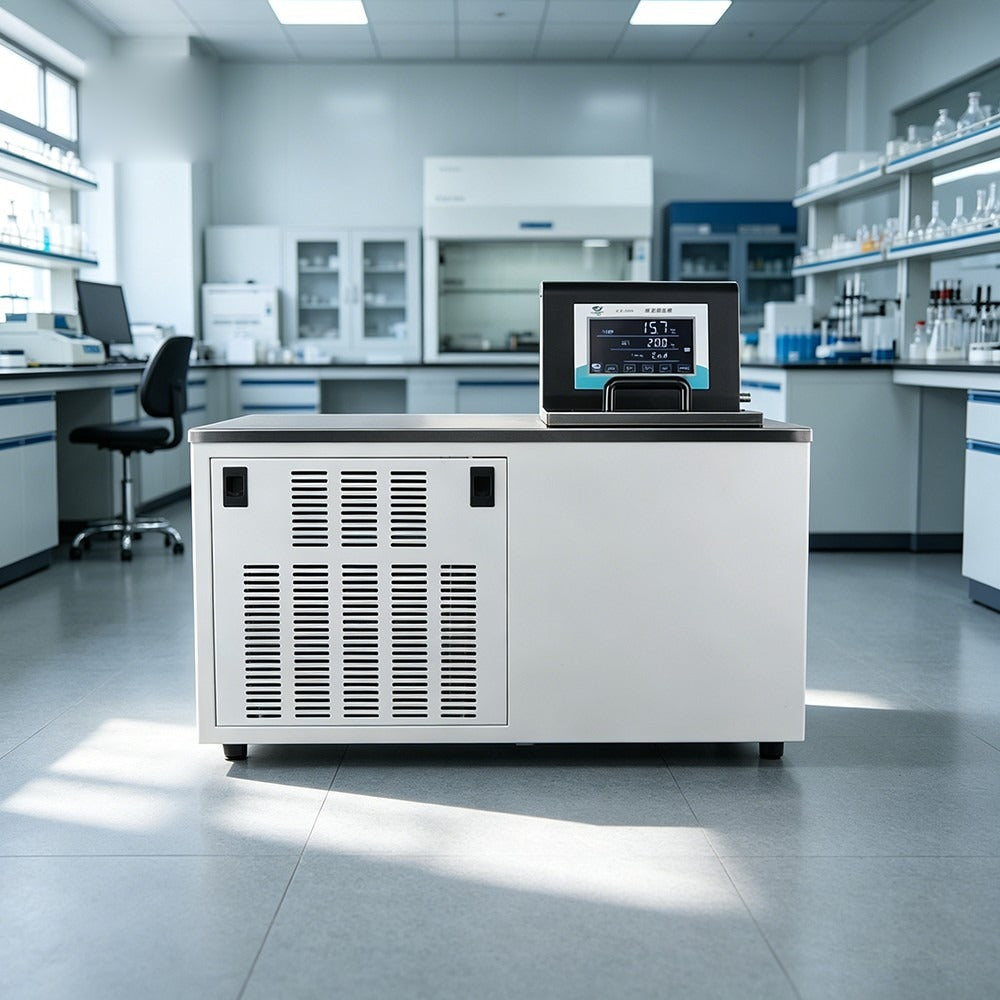

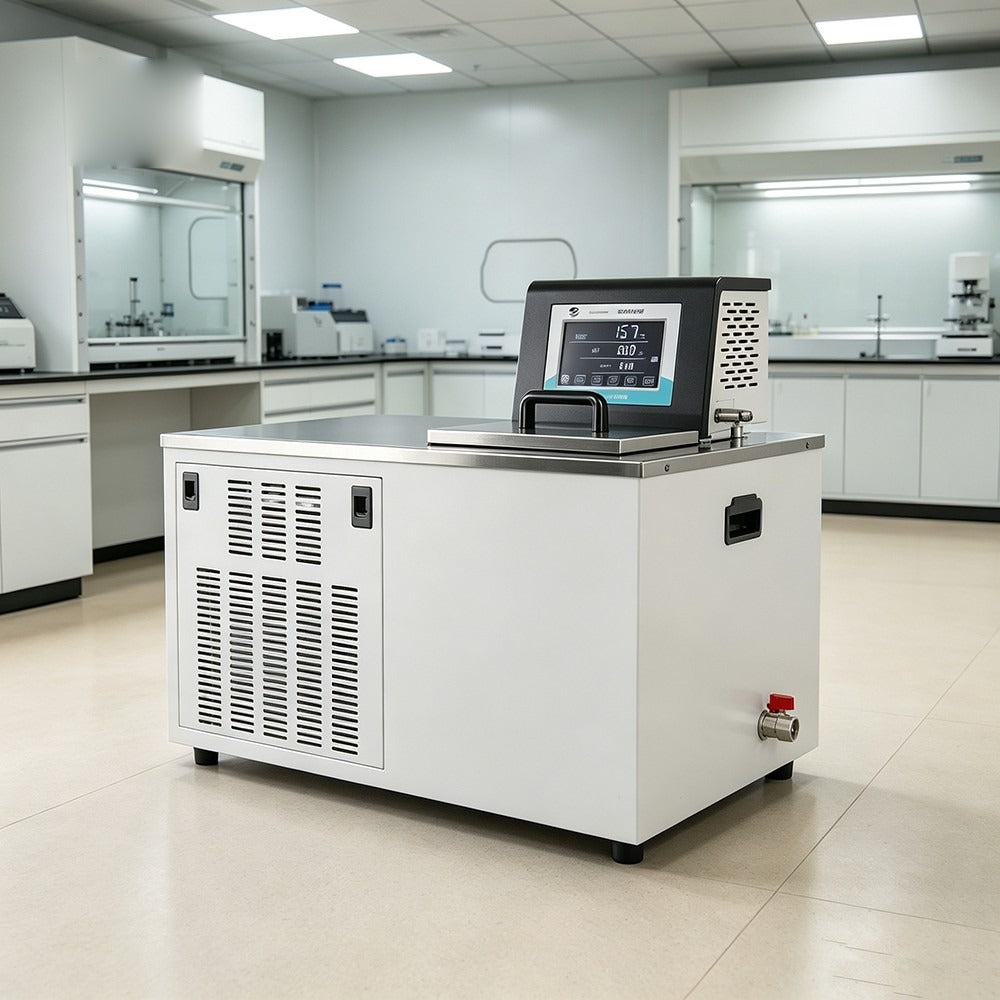

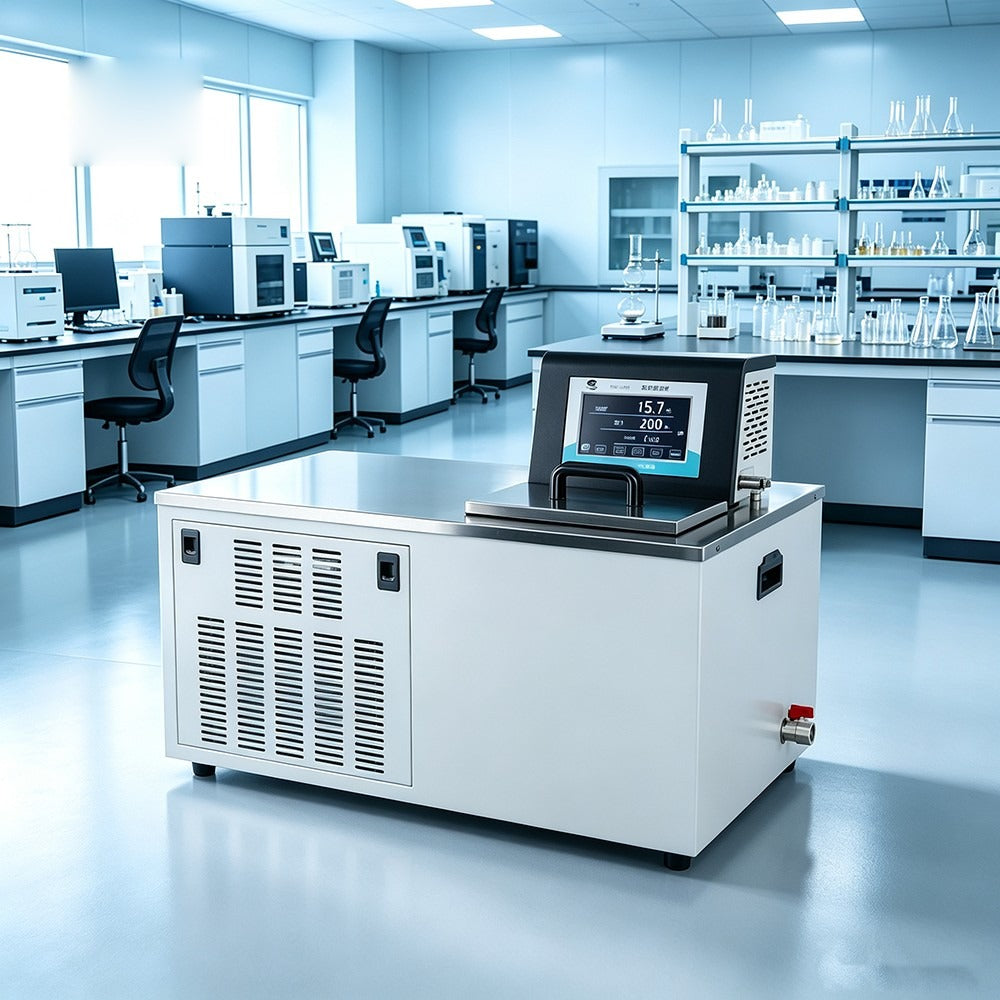

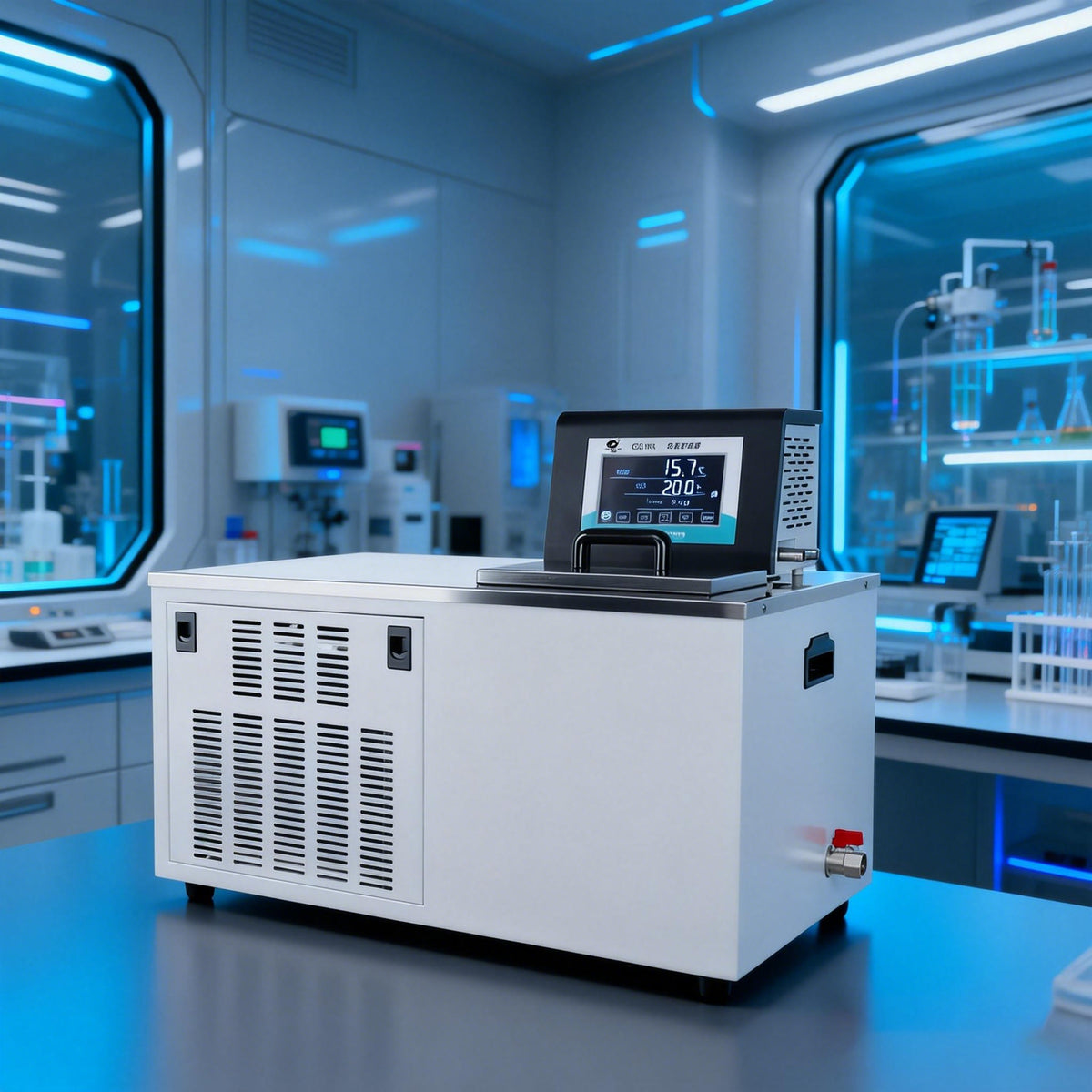

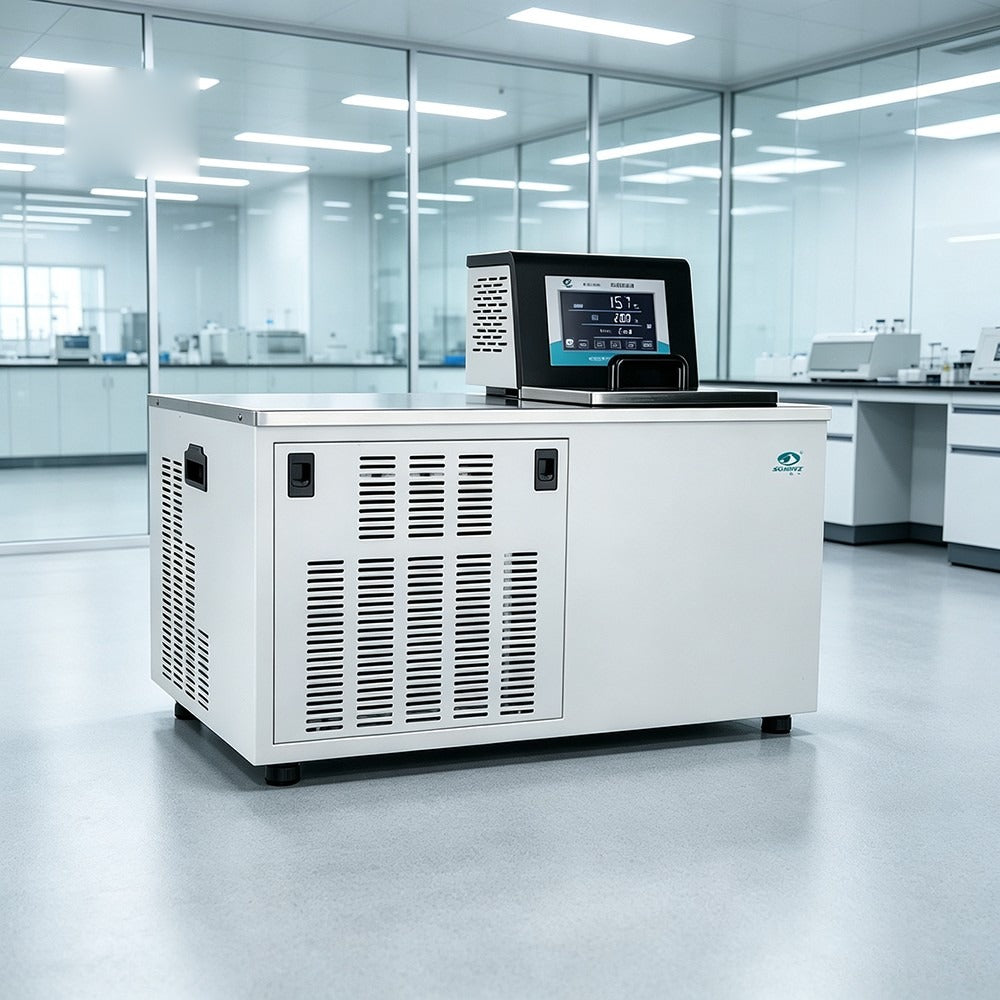

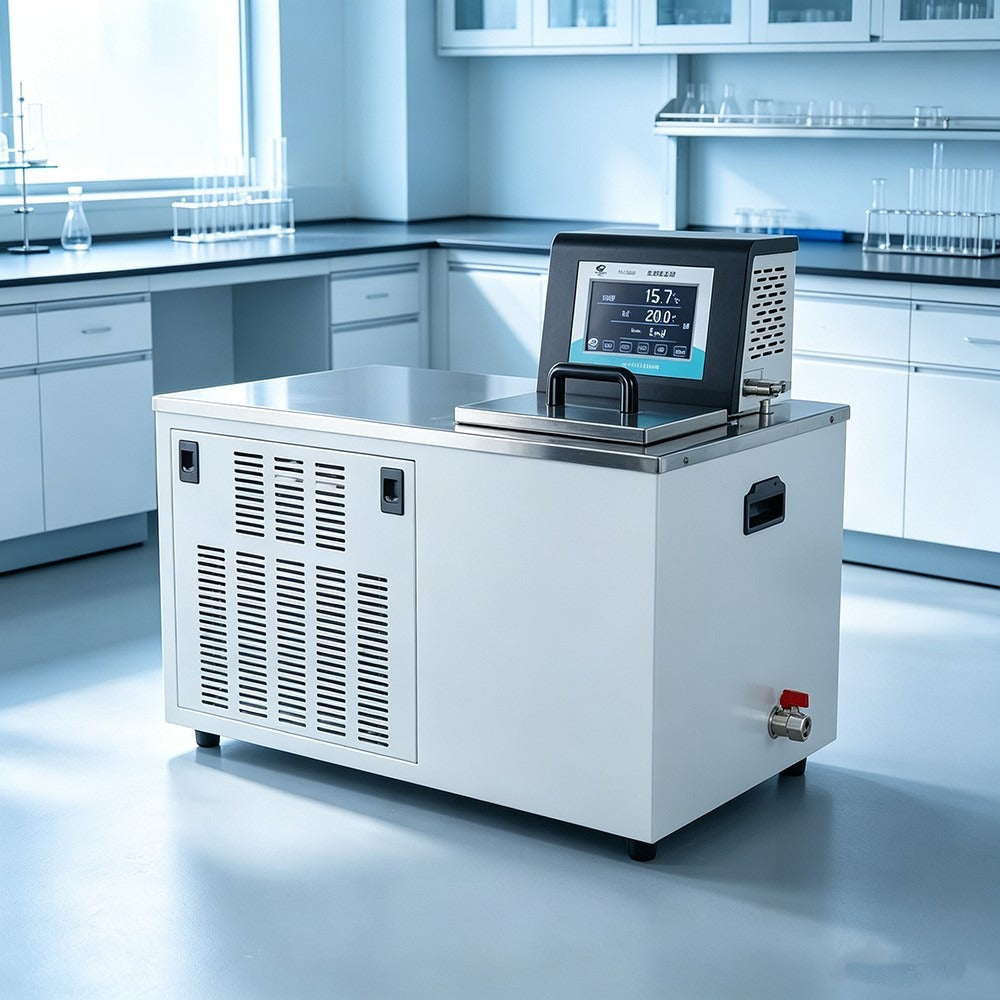

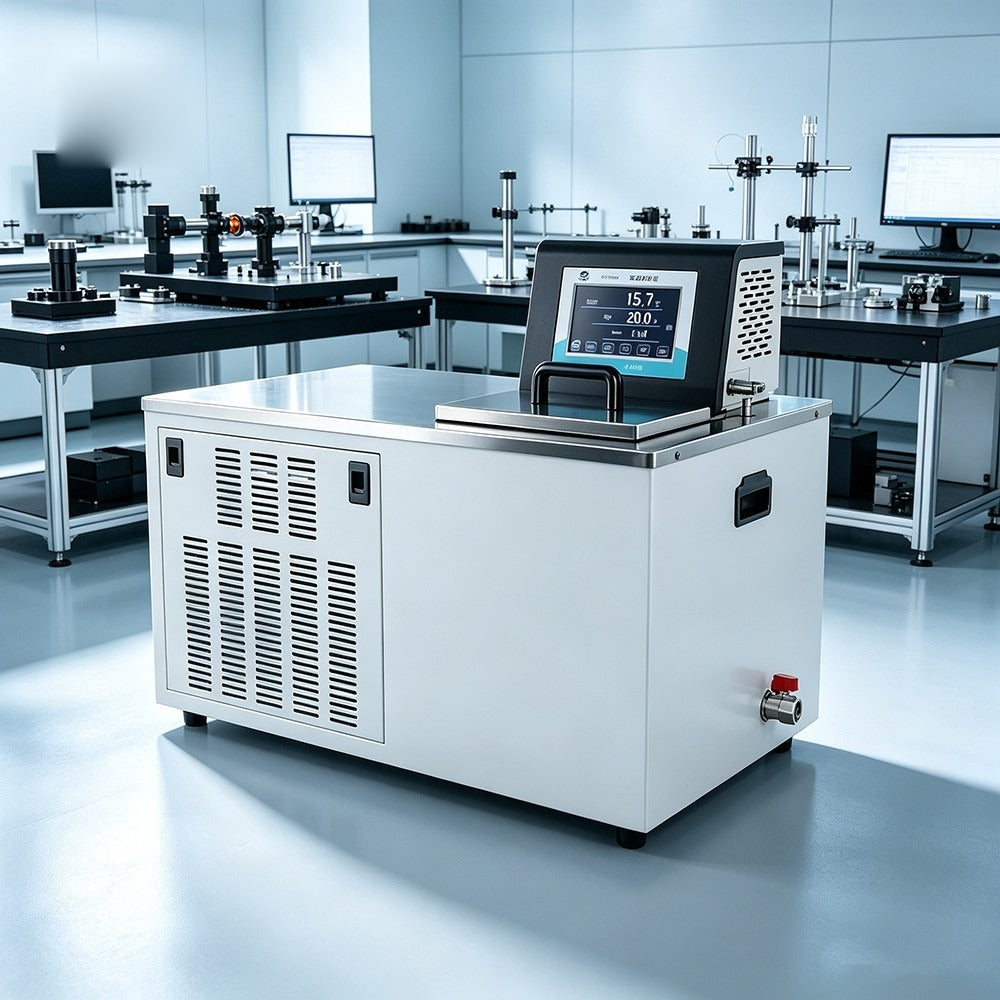

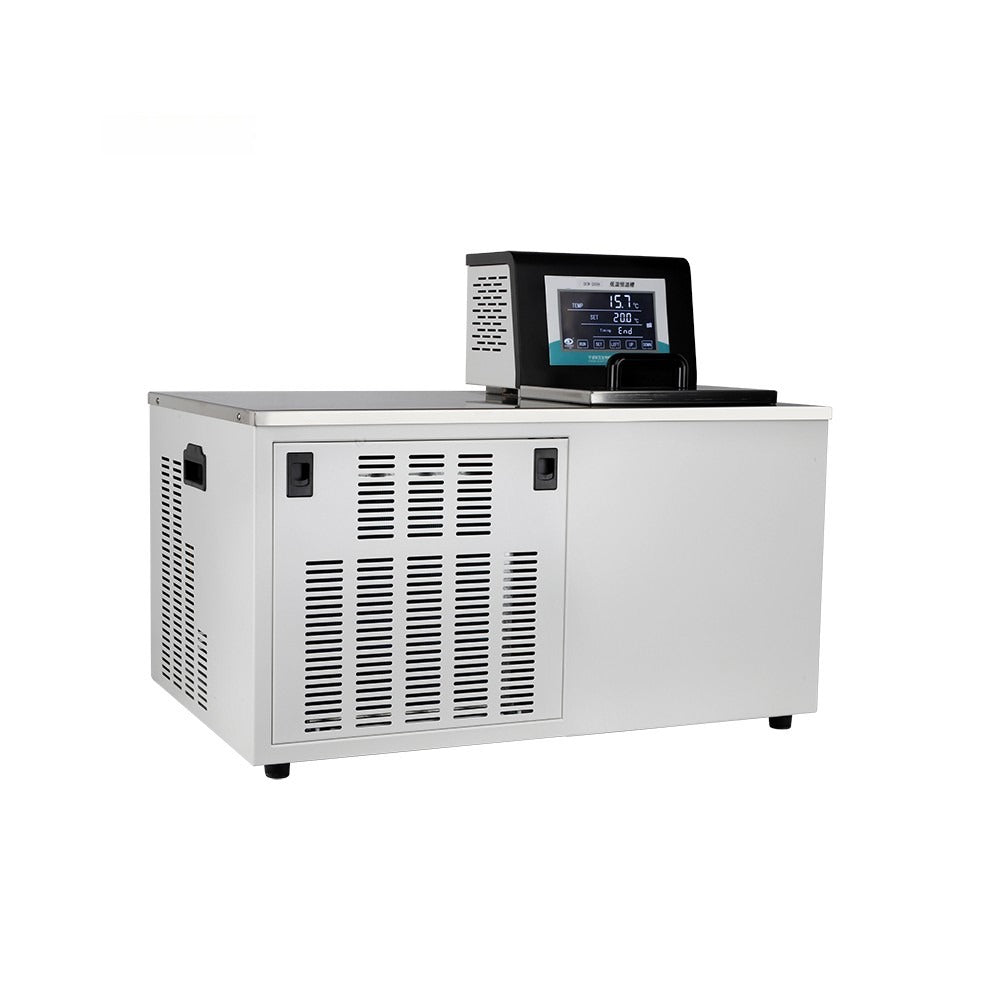

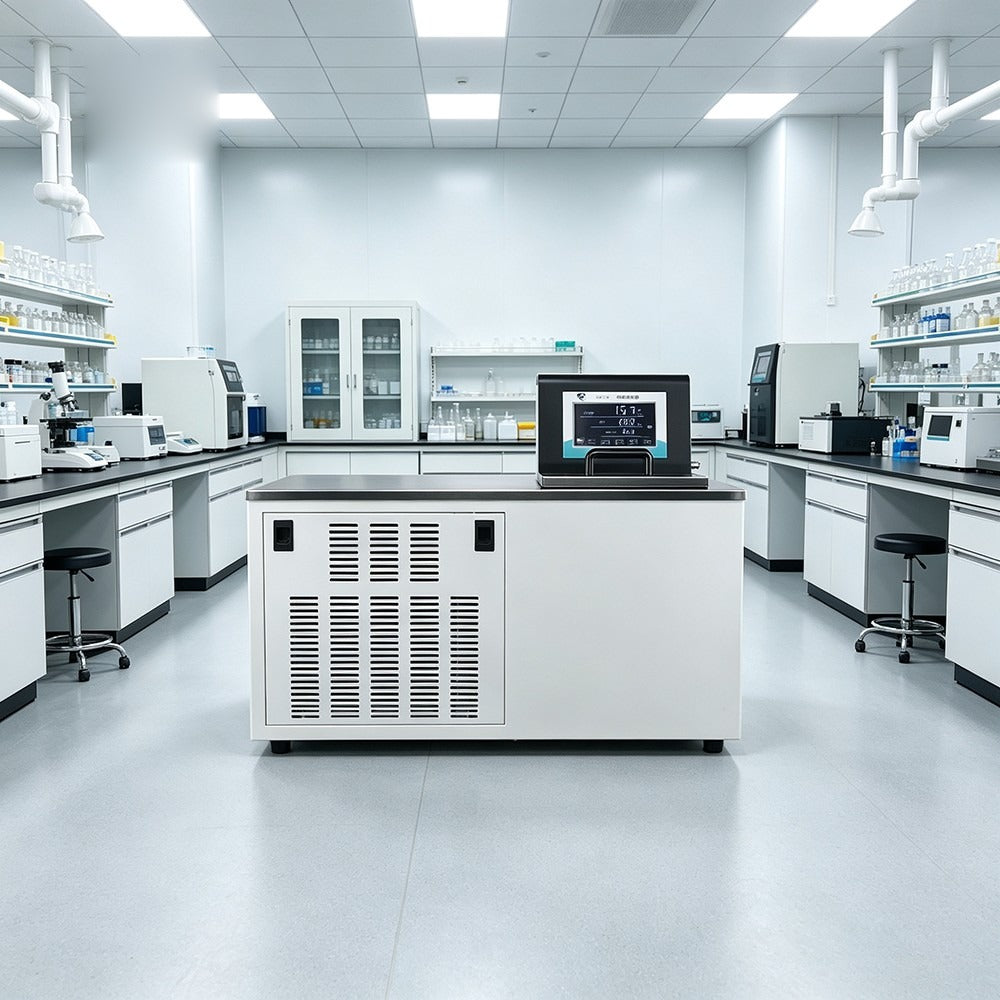

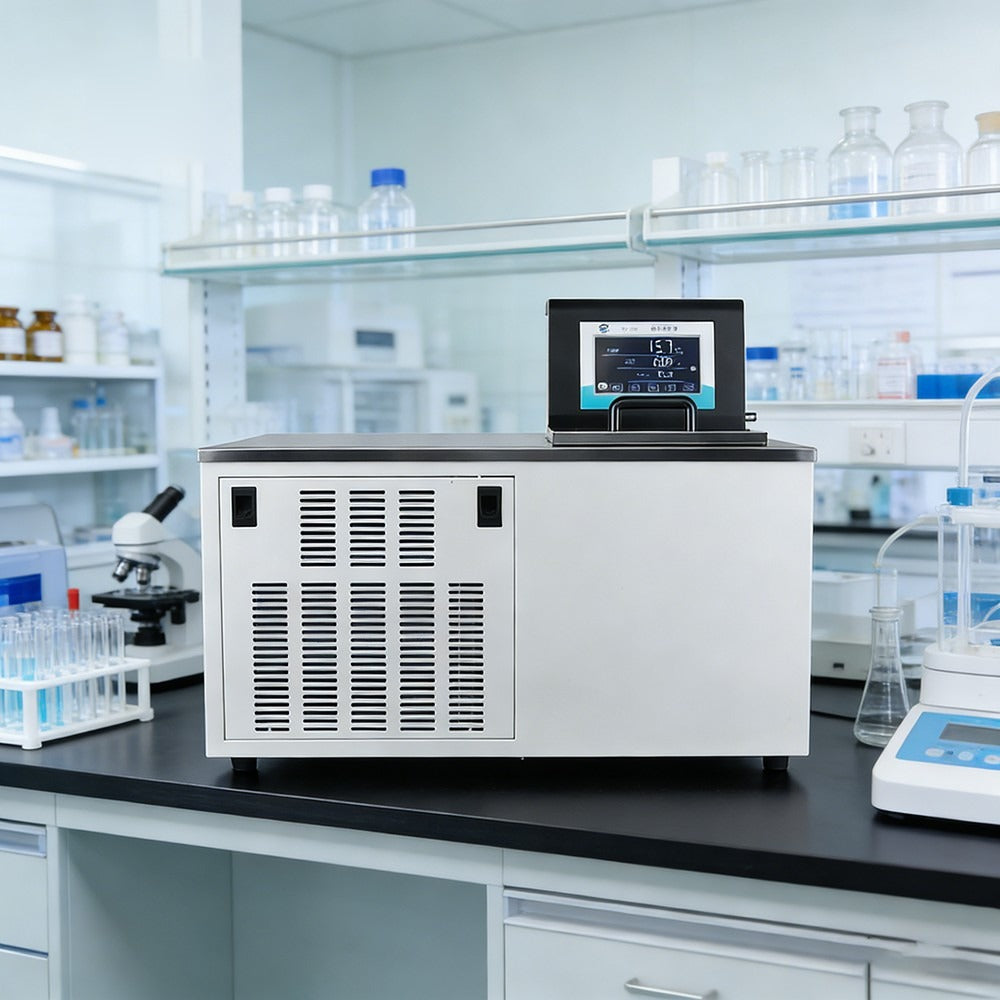

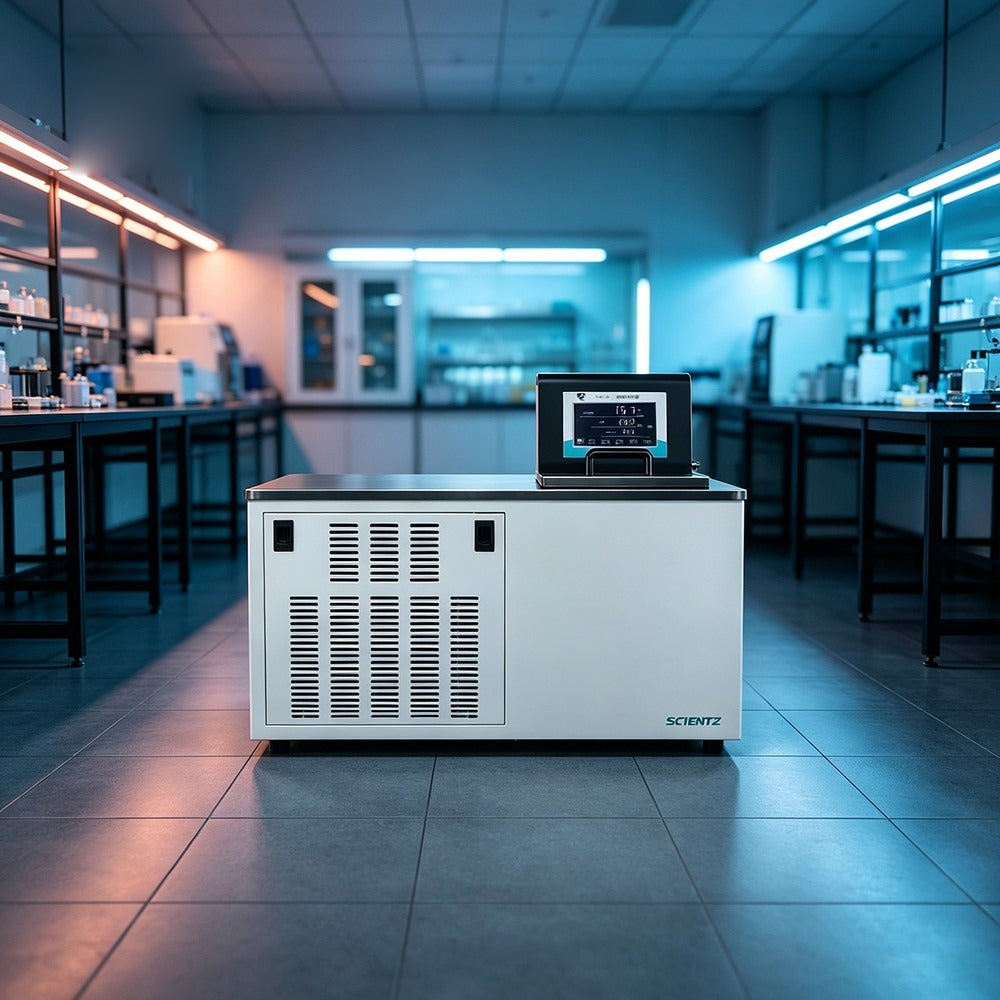

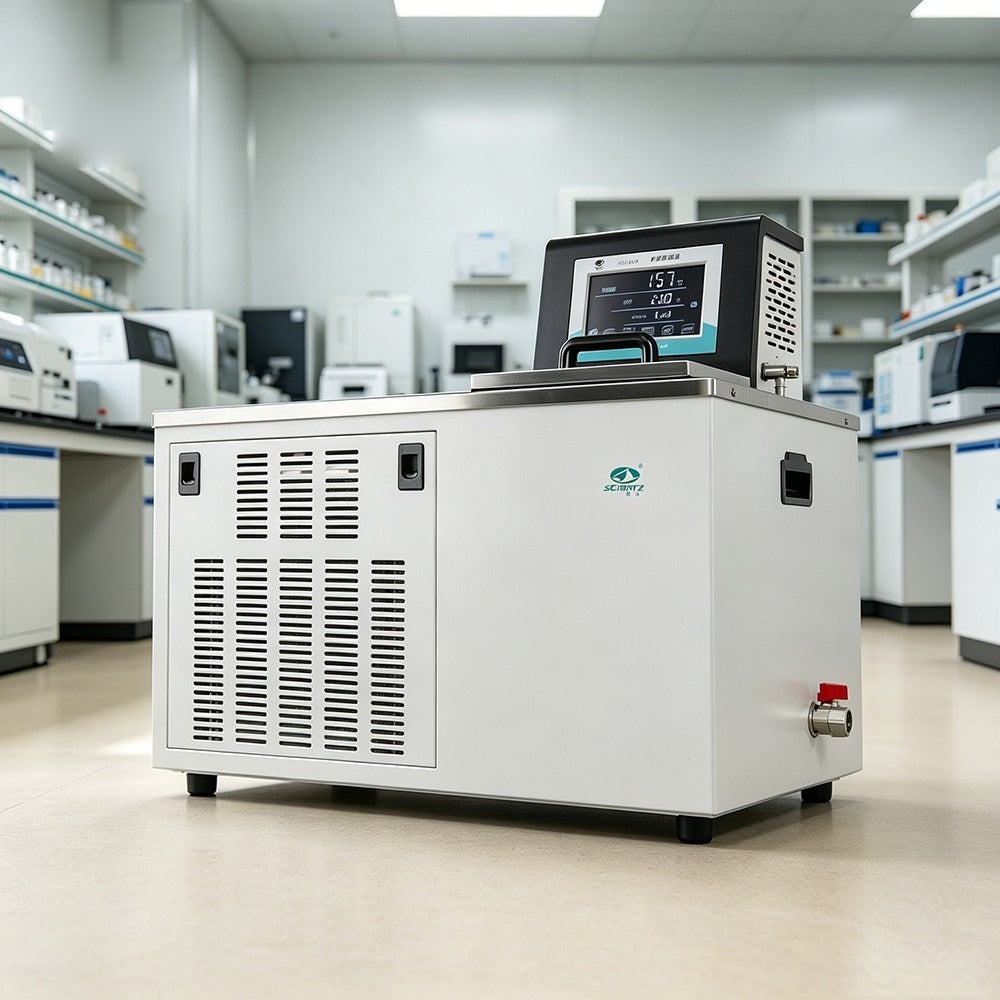

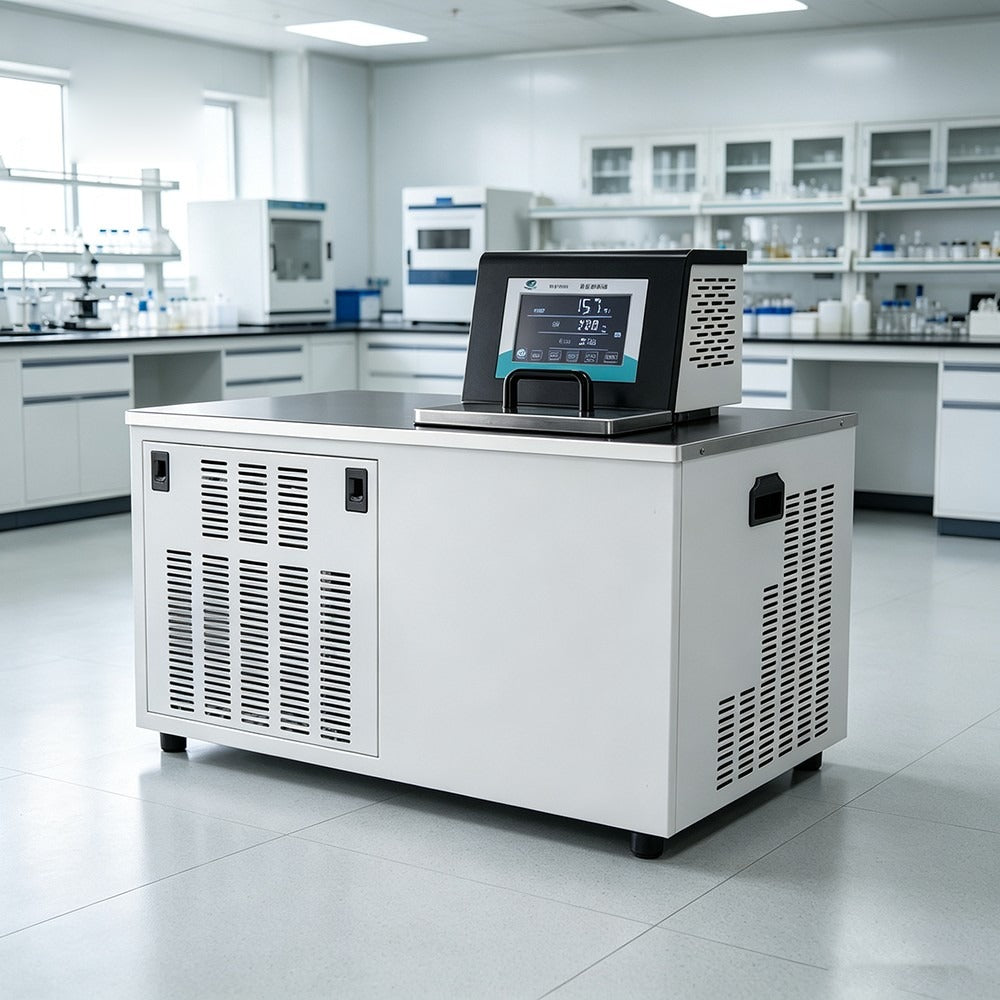

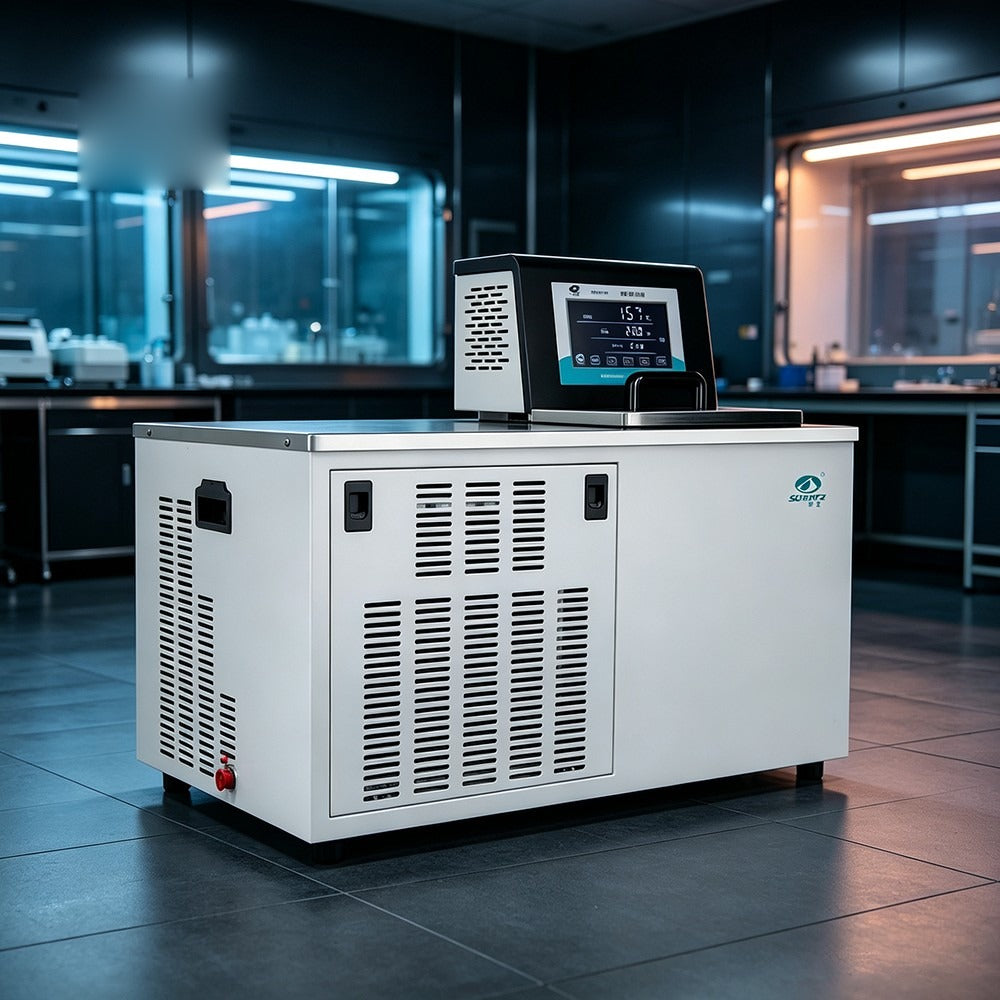

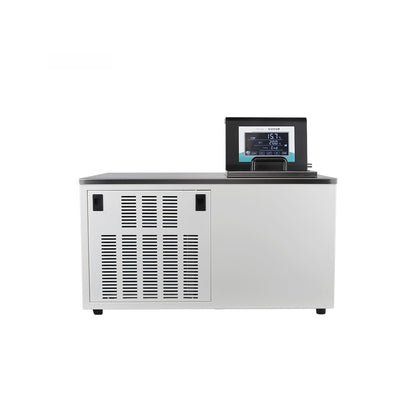

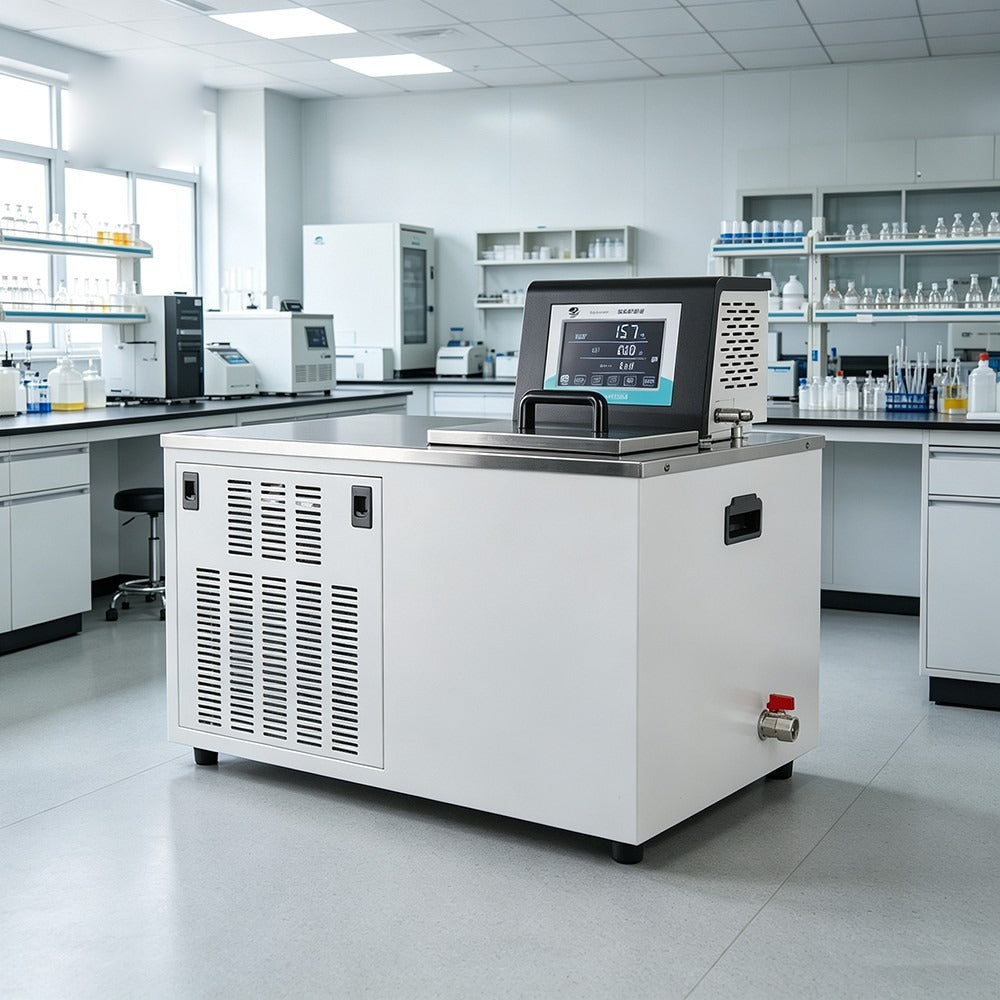

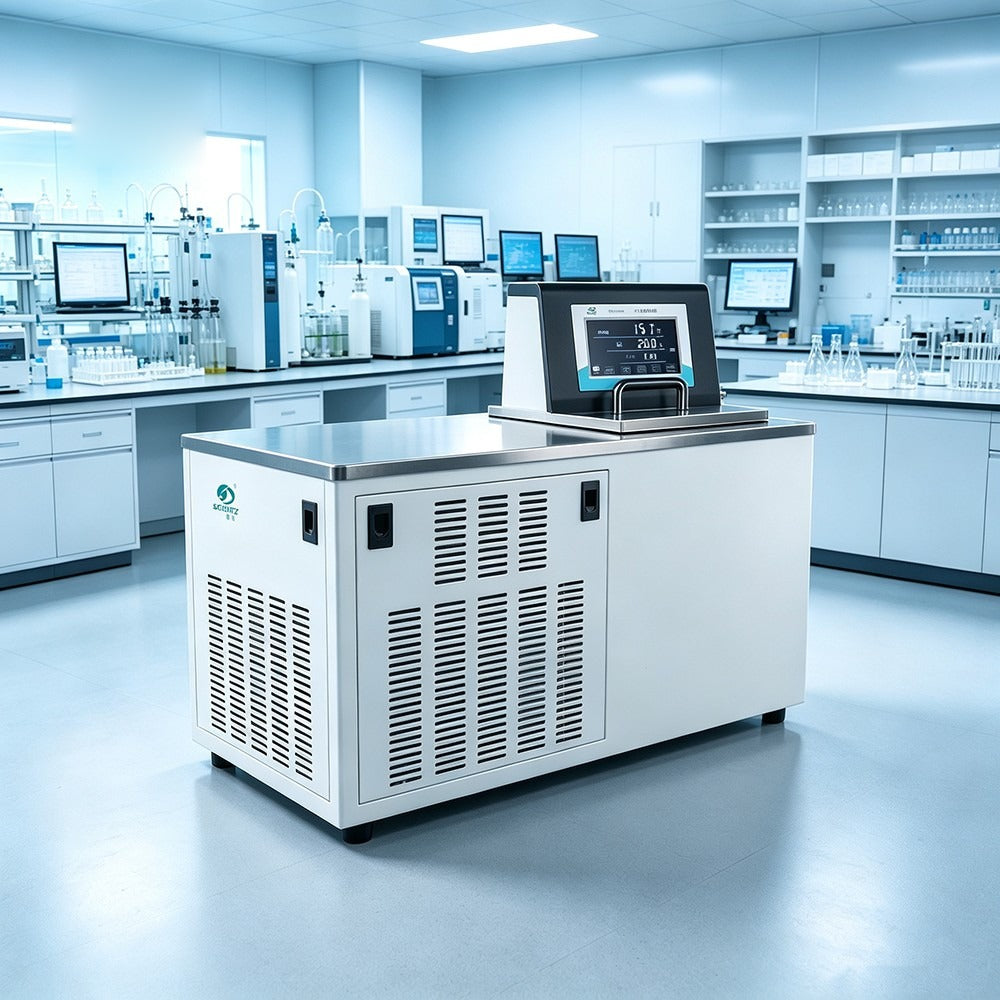

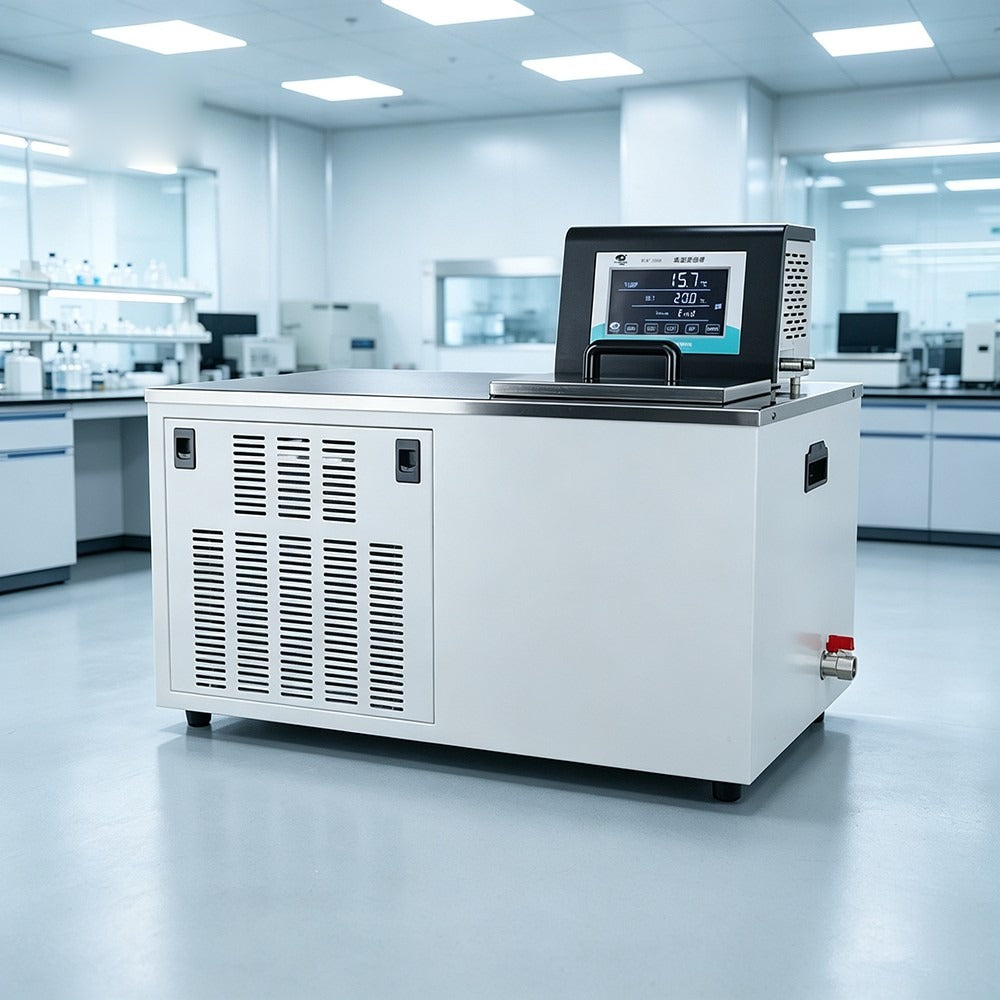

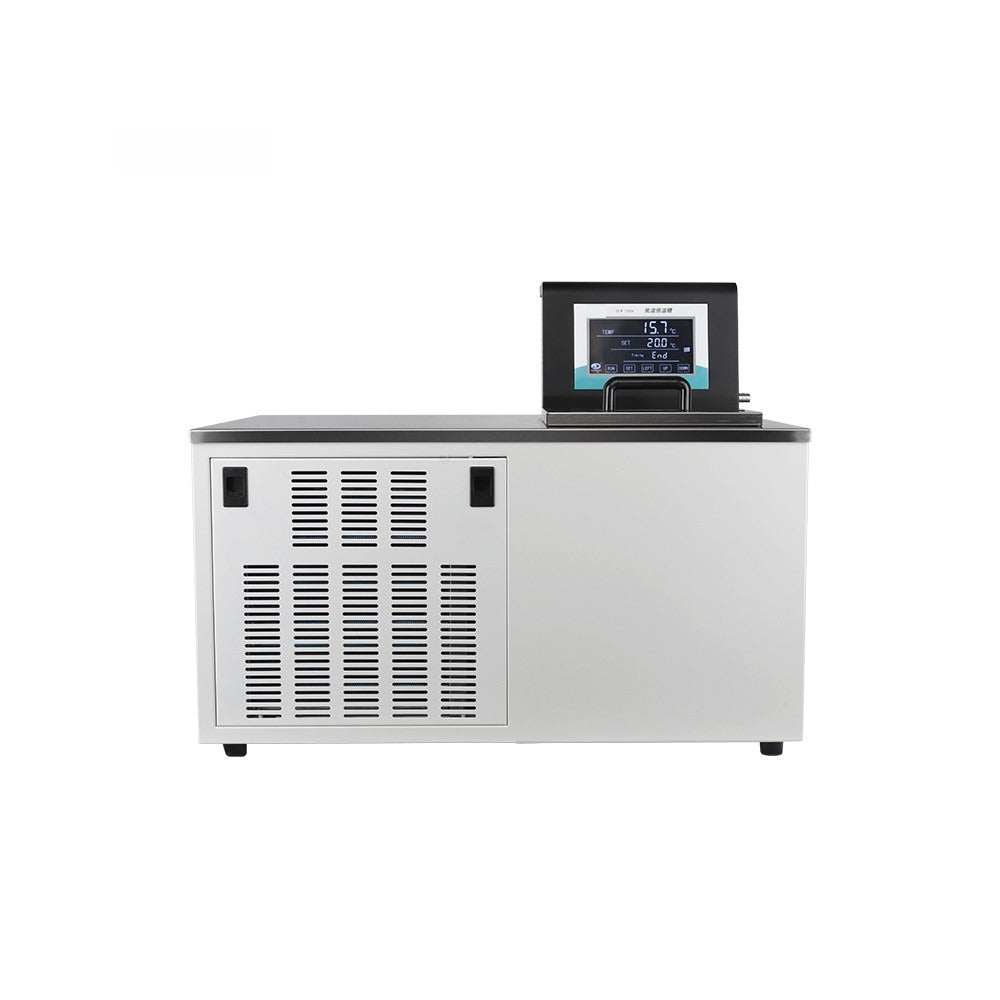

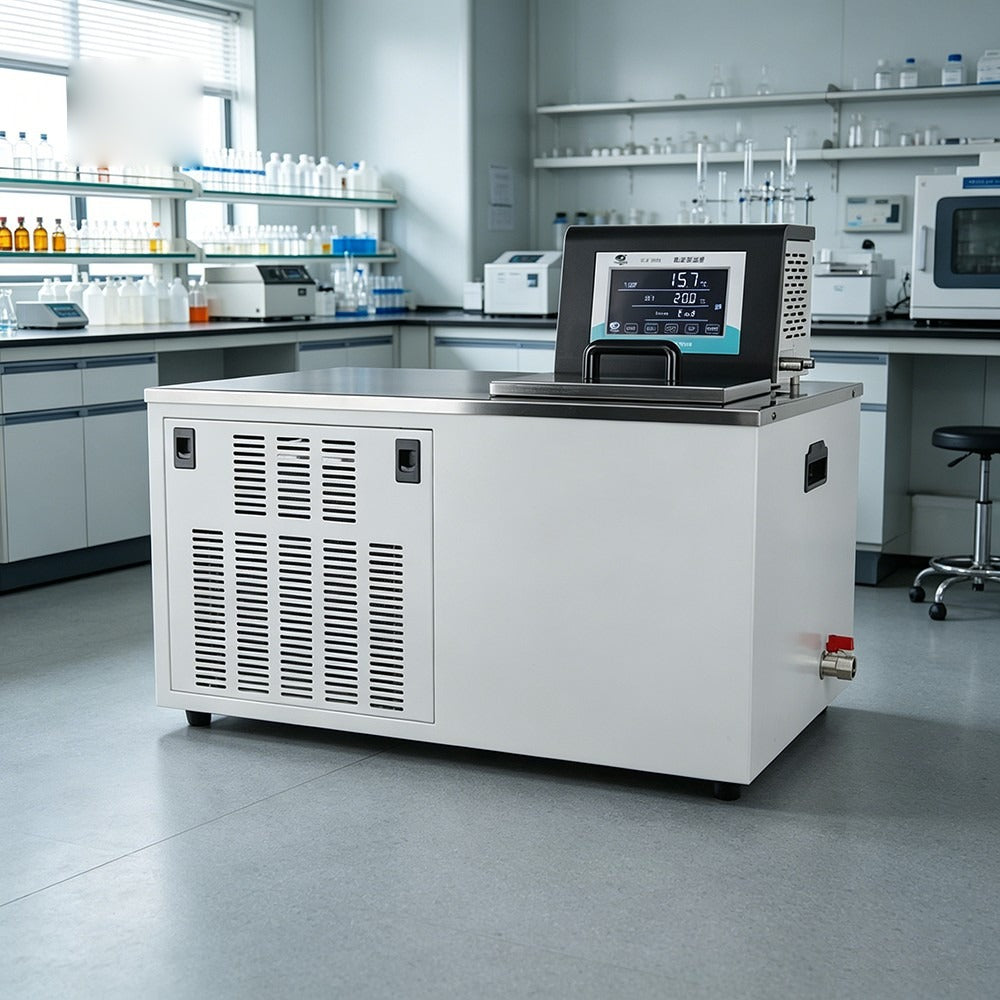

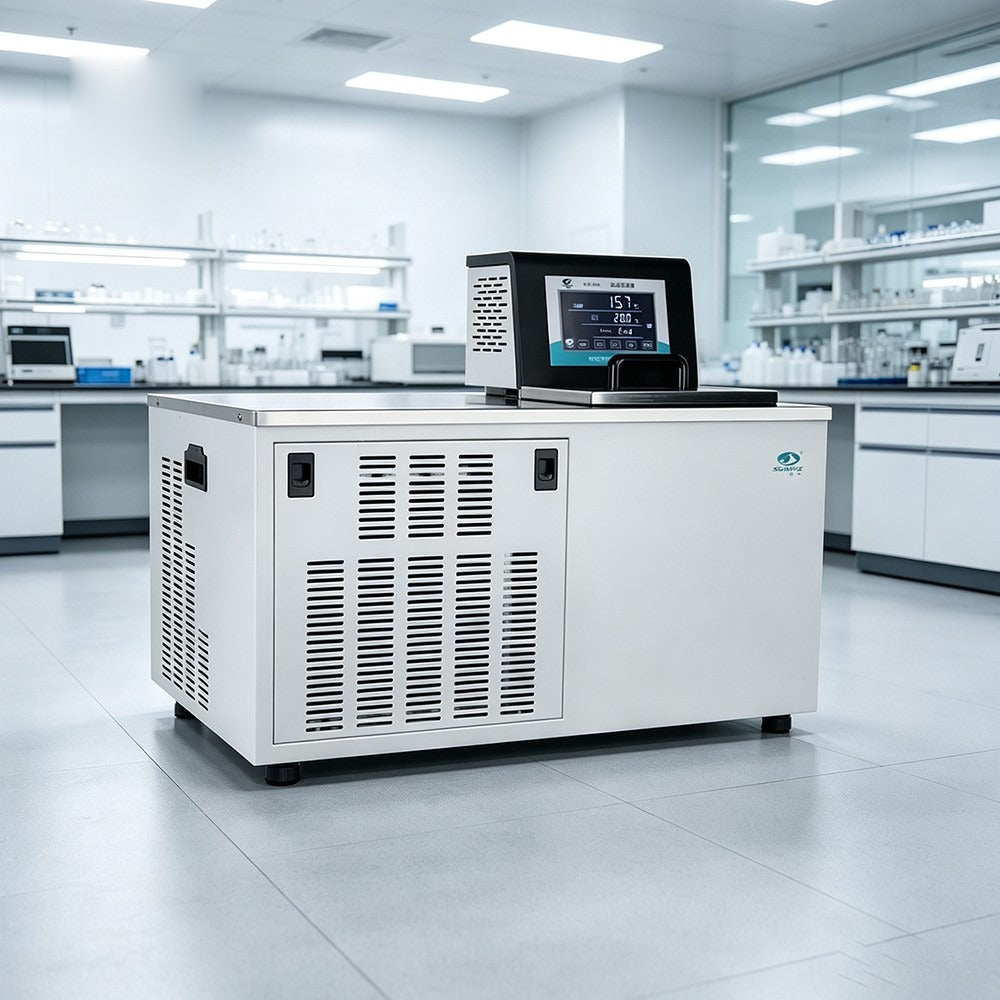

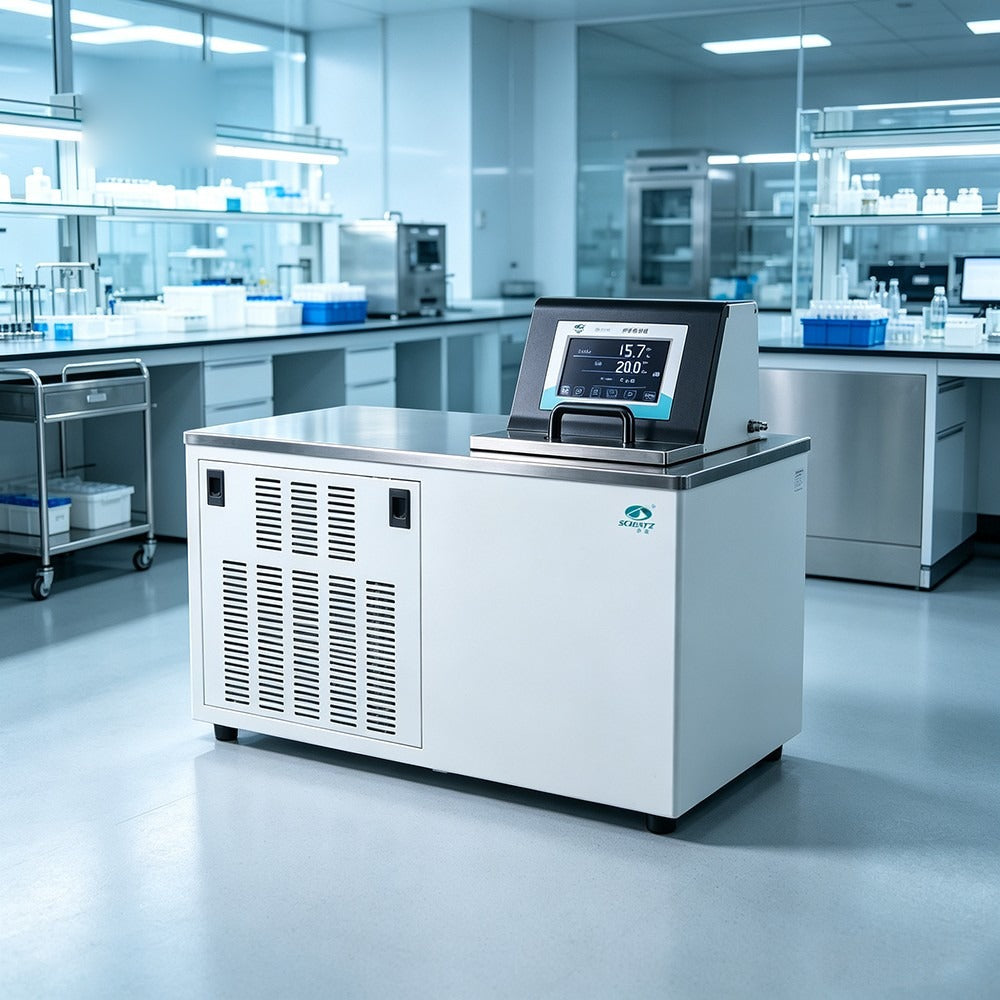

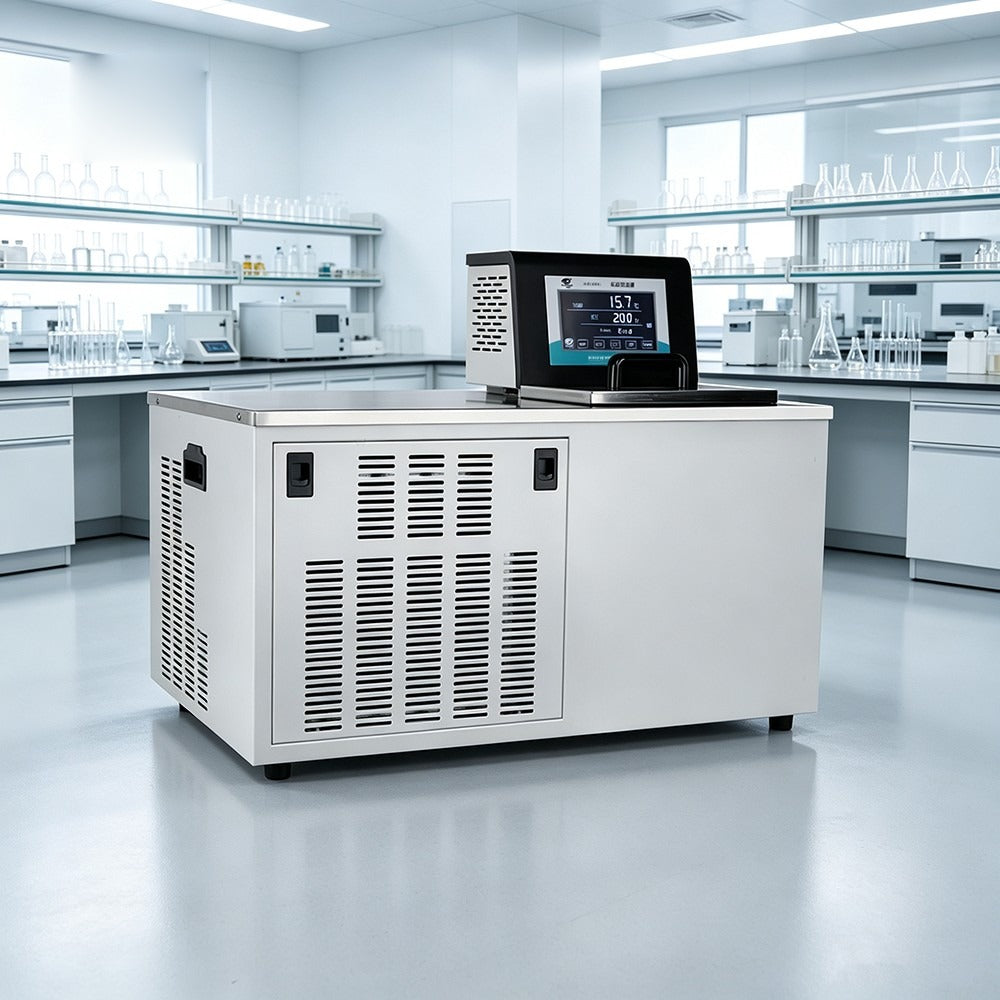

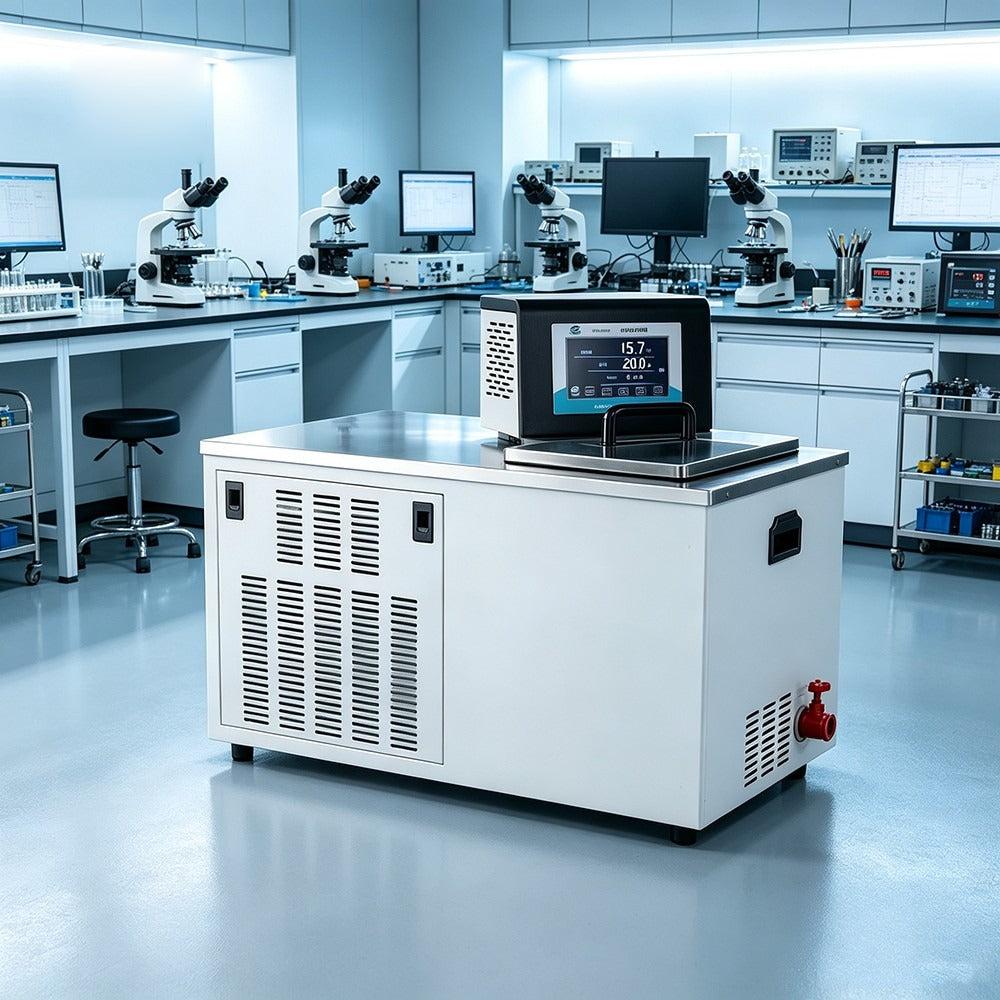

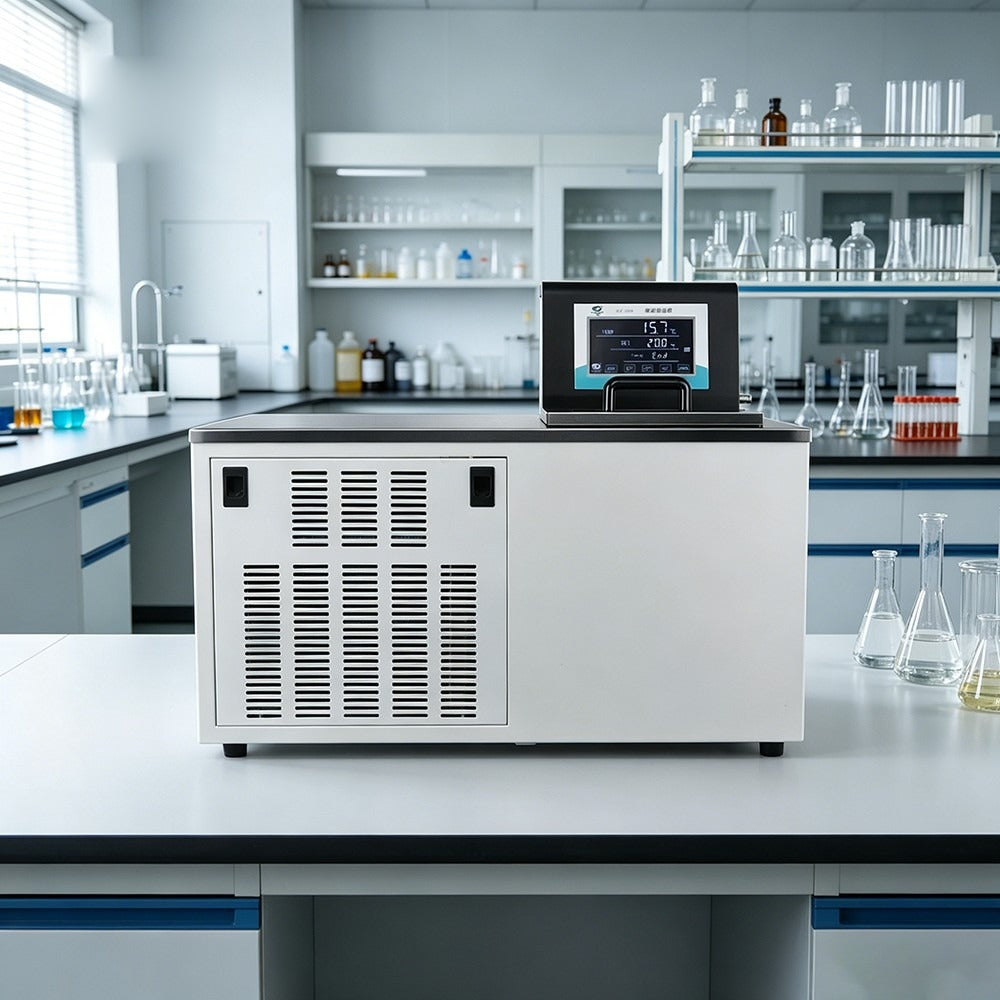

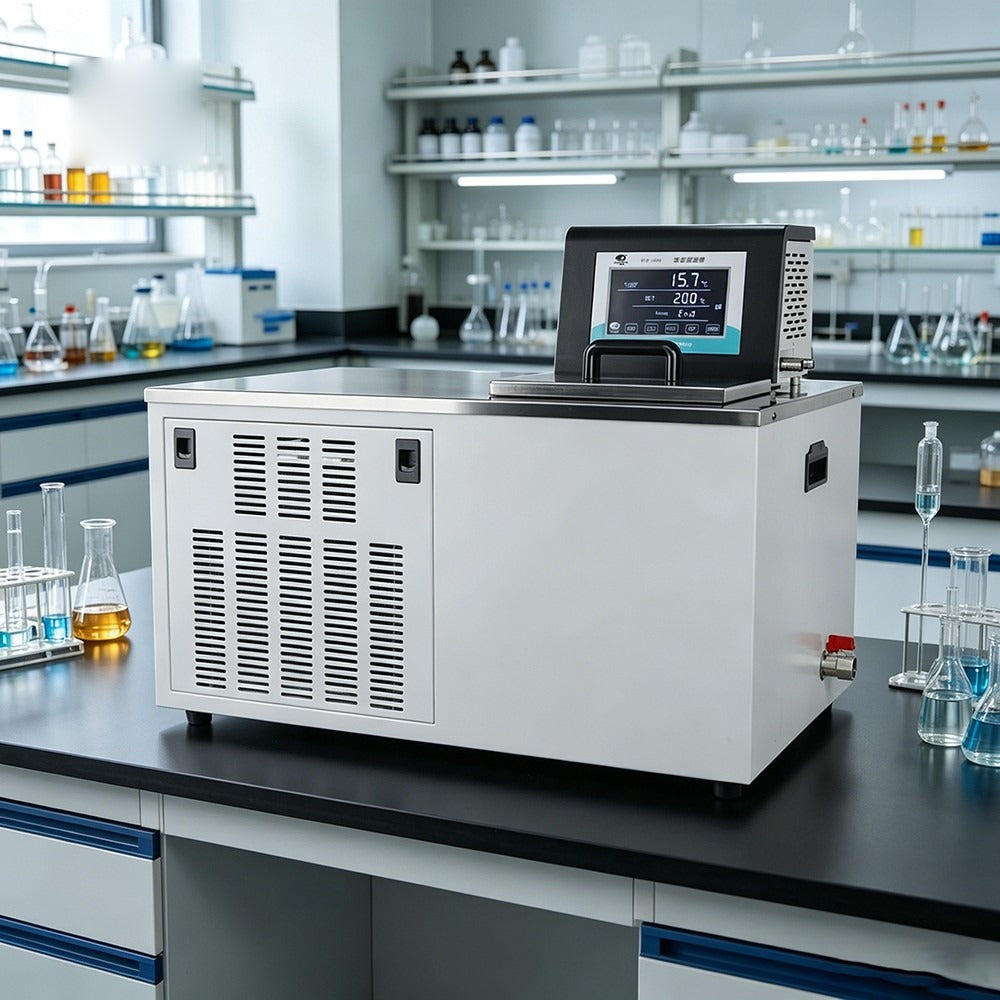

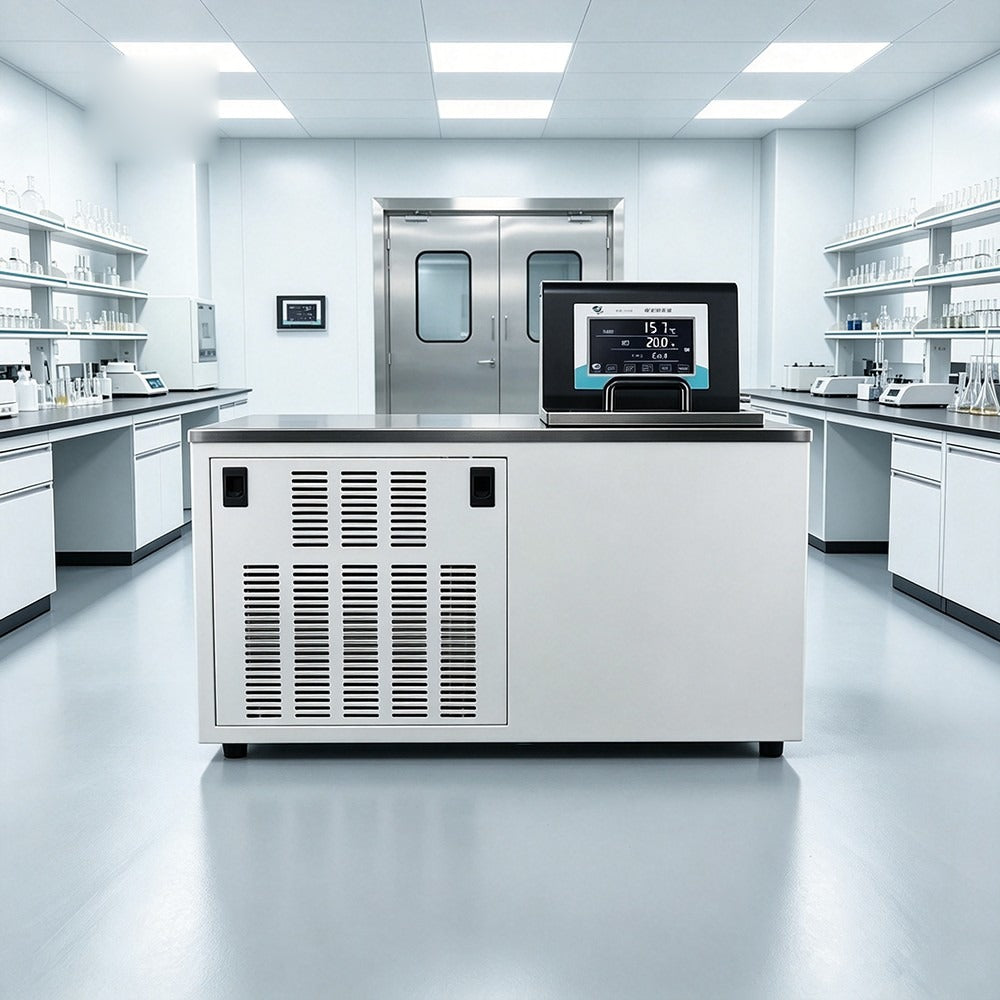

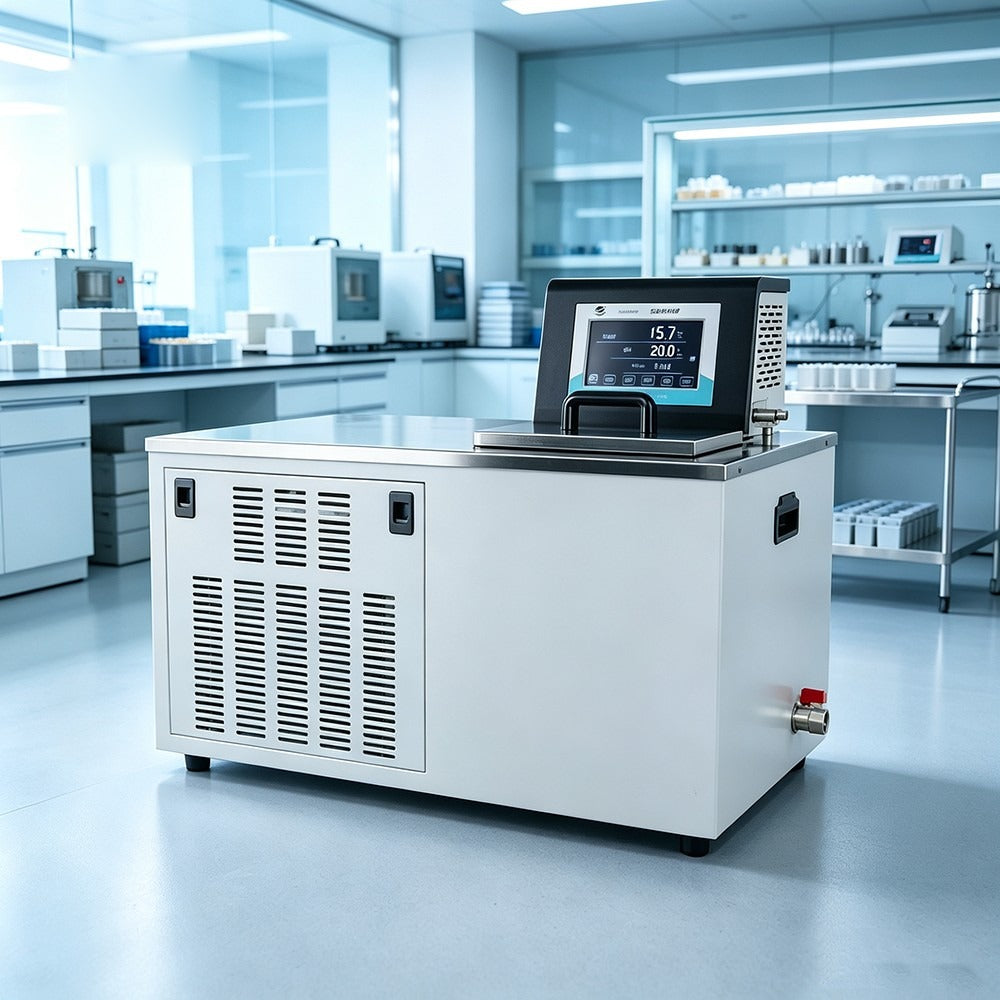

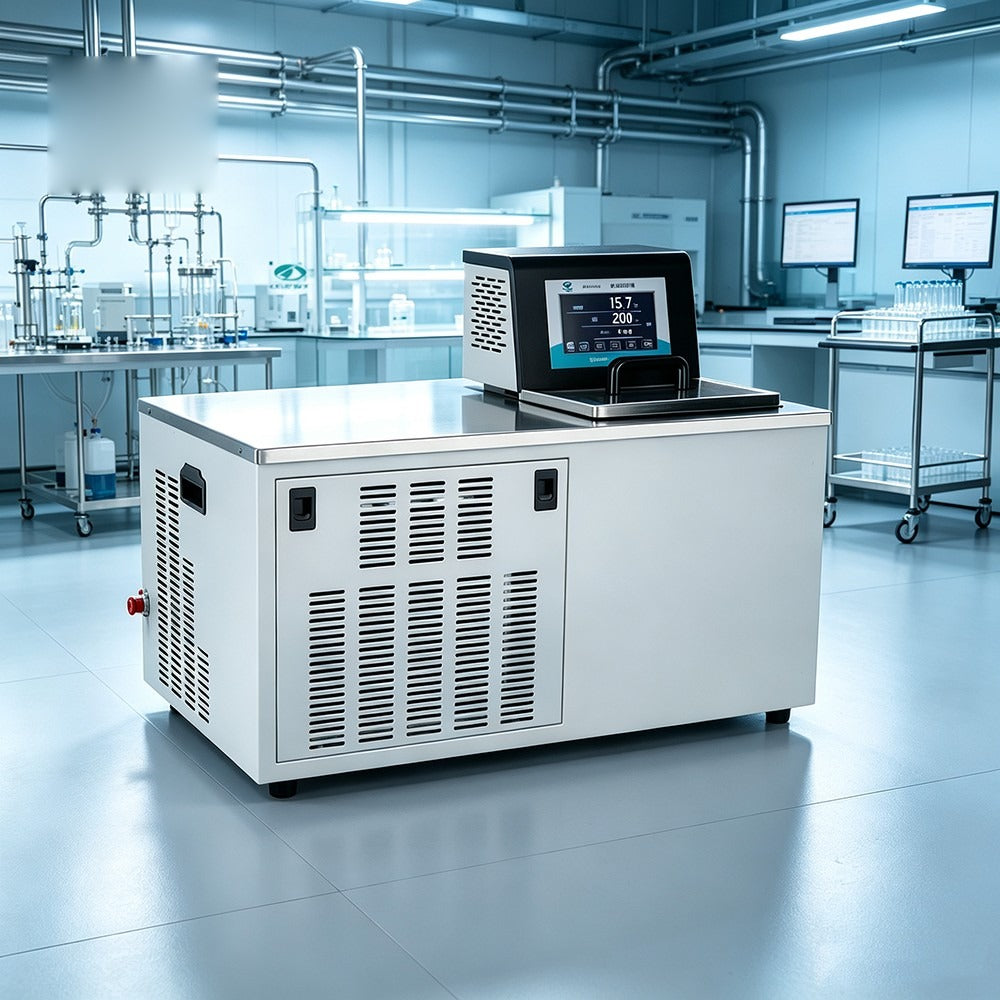

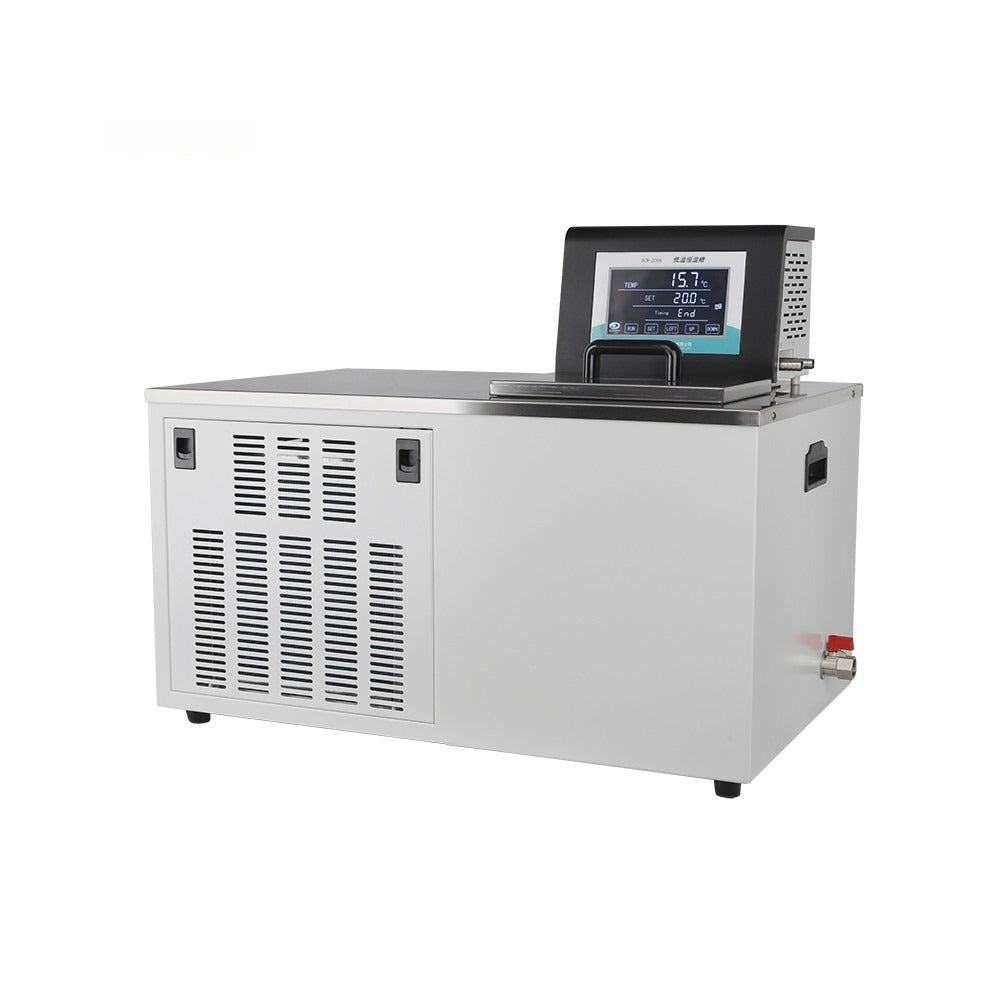

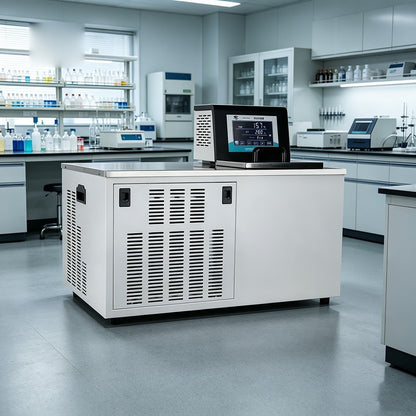

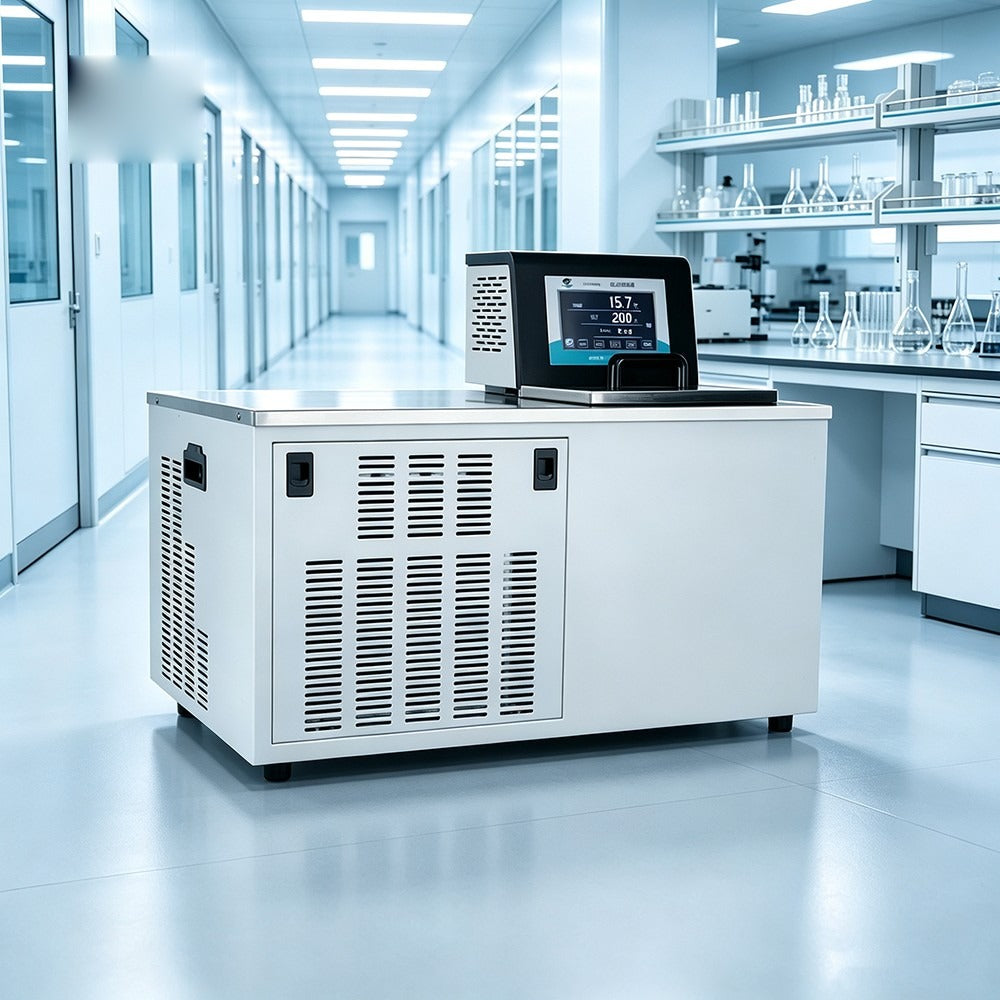

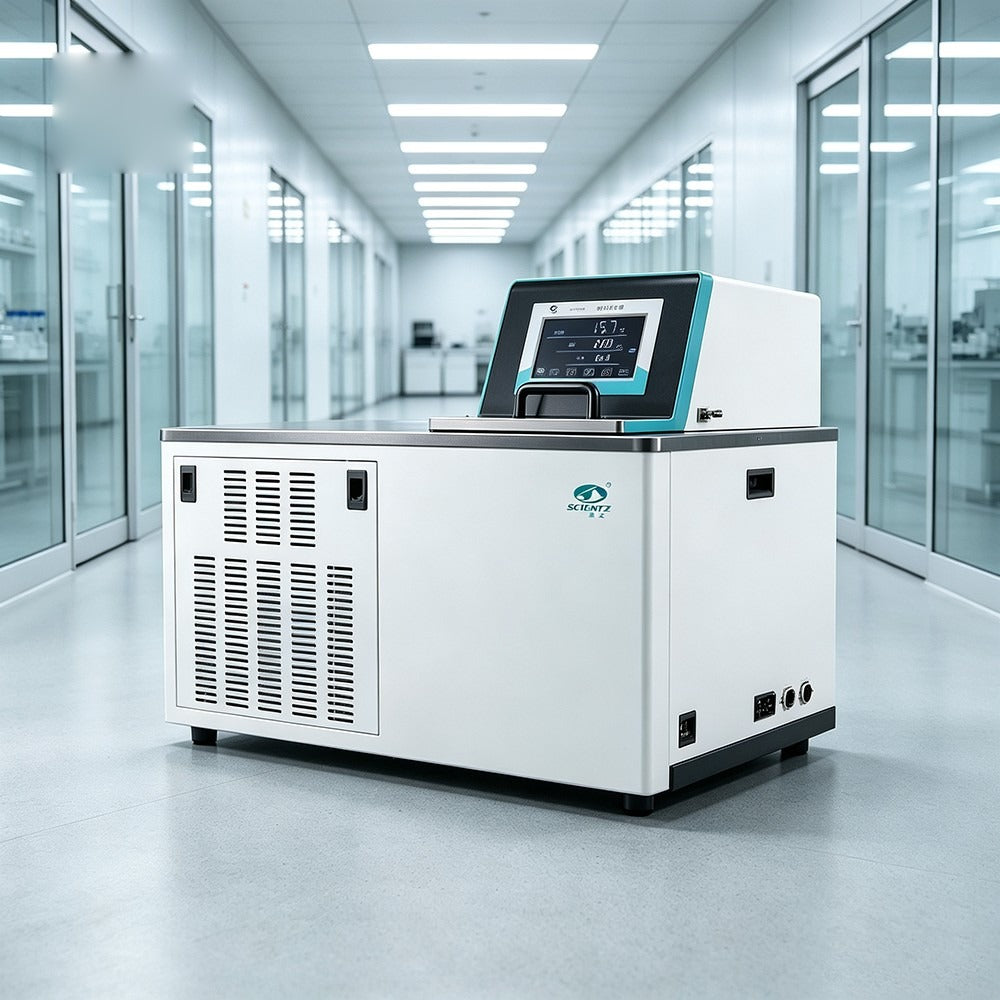

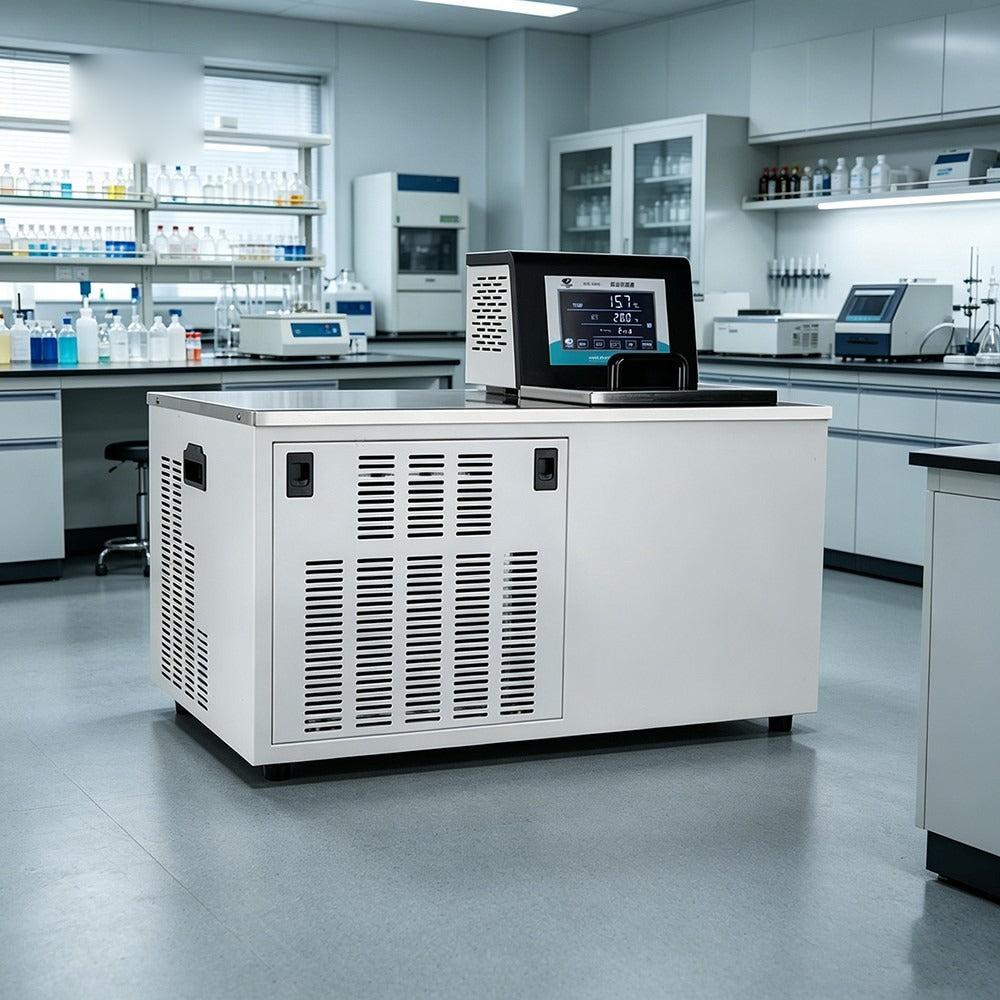

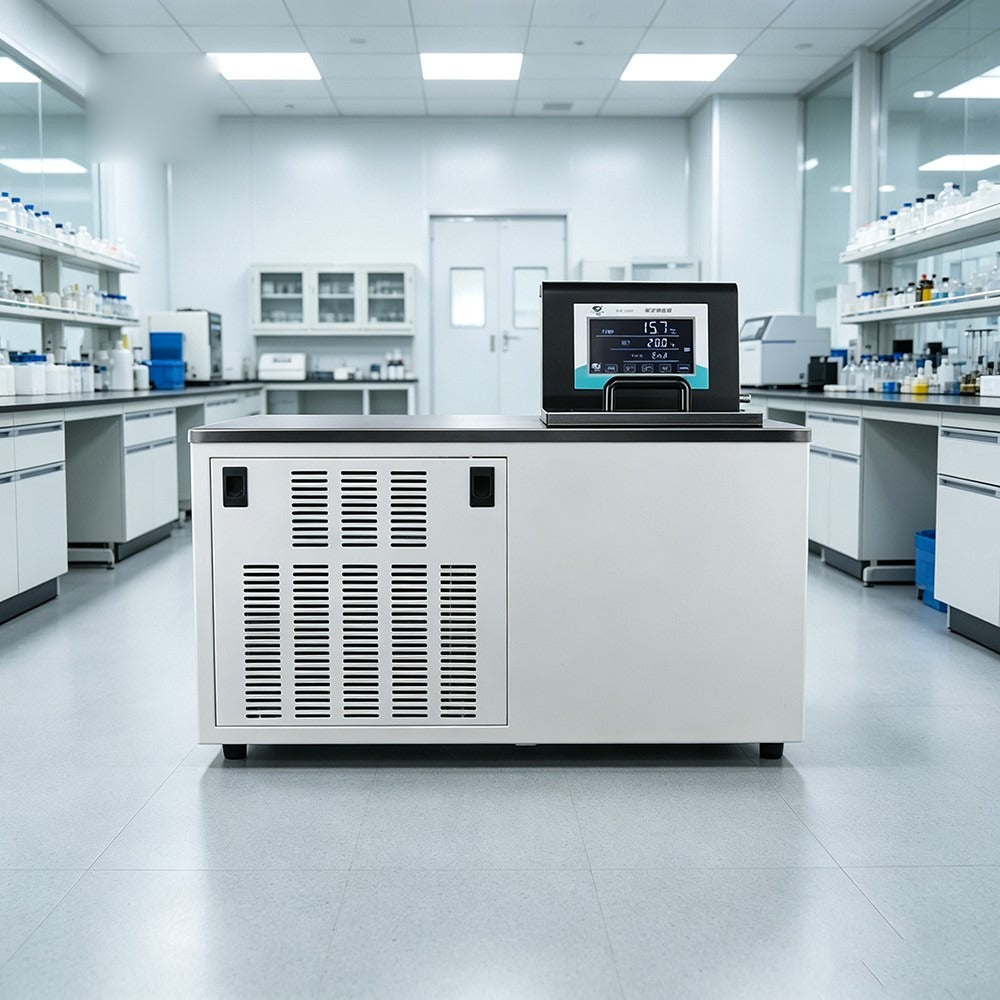

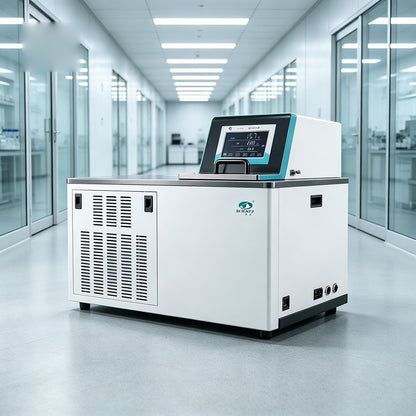

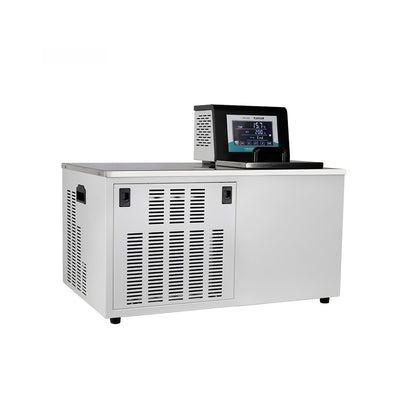

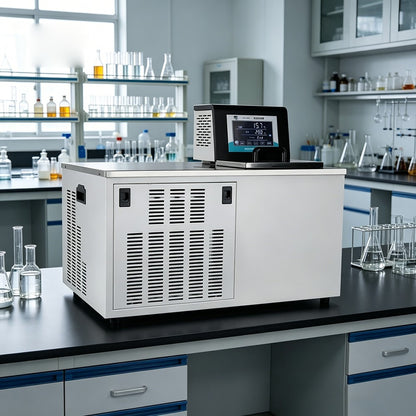

The ALAB-DCW series CNC super constant temperature baths provide heating and cooling for laboratory temperature-control work, with a circulating pump flow of 0-15 L/min and 0.45 bar pump pressure. Six models are available, with temperature ranges from -40 to 100 °C and working slots from 260 × 200 × 140 mm to 280 × 250 × 220 mm depending on the model — see the comparison table below for the full specifications of each model.
Specification
ALAB-DCW-0506
ALAB-DCW-1015
ALAB-DCW-2008
ALAB-DCW-3506
ALAB-DCW-3510
ALAB-DCW-4006
Model
ALAB-DCW-0506
ALAB-DCW-1015
ALAB-DCW-2008
ALAB-DCW-3506
ALAB-DCW-3510
ALAB-DCW-4006
Temperature Range
-5~100 °C
-10~100 °C
-20~100 °C
-35~100 °C
-35~100 °C
-40~100 °C
Bath Volume / Working Slot
7L (working slot 260*200*140 mm)
15L (working slot 280*250*220 mm)
10L (working slot 280*250*140 mm)
7L (working slot 260*200*140 mm)
10L (working slot 250*200*200 mm)
7L (working slot 260*200*140 mm)
Heating Power
1.4 kW
1.5 kW
1 kW
1.8 kW
1.8 kW
1.6 kW
Cooling Power
0.52 kW
0.76 kW
0.62 kW
0.75 kW
0.75 kW
0.75 kW
Pump Flow
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
0-15 L/min
Pump Pressure
0.45 bar
0.45 bar
0.45 bar
0.45 bar
0.45 bar
0.45 bar
Temperature Fluctuation
±0.1% ~ ±0.5% FS
±0.1% ~ ±0.5% FS
±0.1% ~ ±0.5% FS
±0.1% ~ ±0.5% FS
±0.1% ~ ±0.5% FS
±0.1 °C
Display Resolution
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
0.1 °C
Dimensions
725*440*555 mm
725*440*555 mm
725*440*555 mm
725*440*555 mm
725*440*555 mm
725*440*555 mm
Material
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Stainless Steel
Voltage
220 V
220 V
220 V
220 V
220 V
220 V
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
