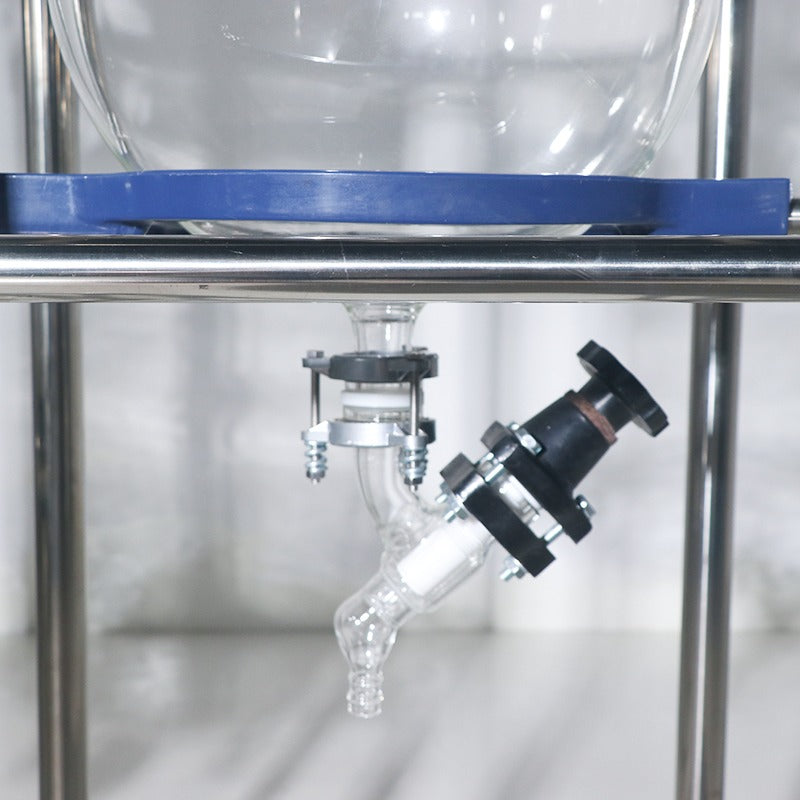

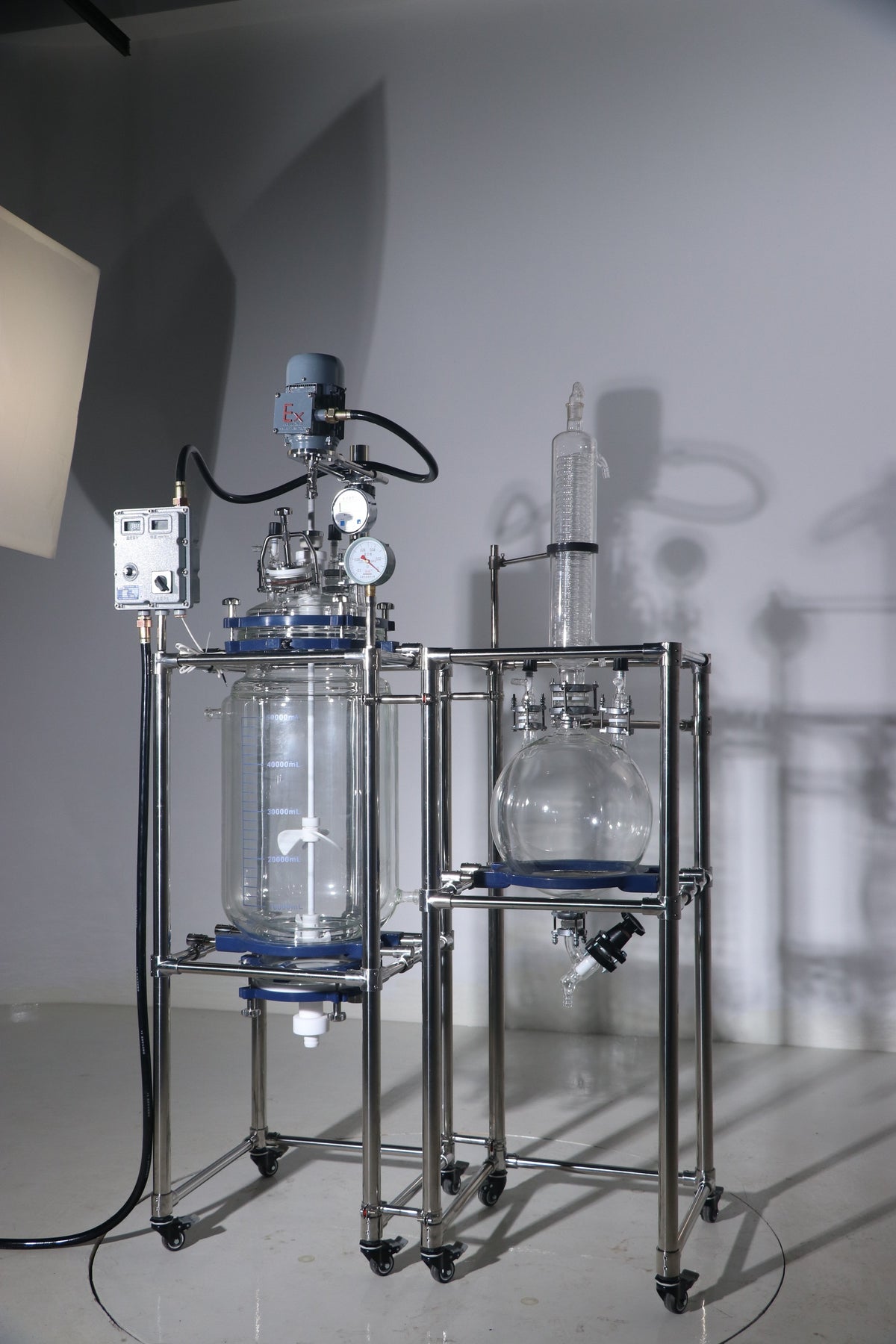

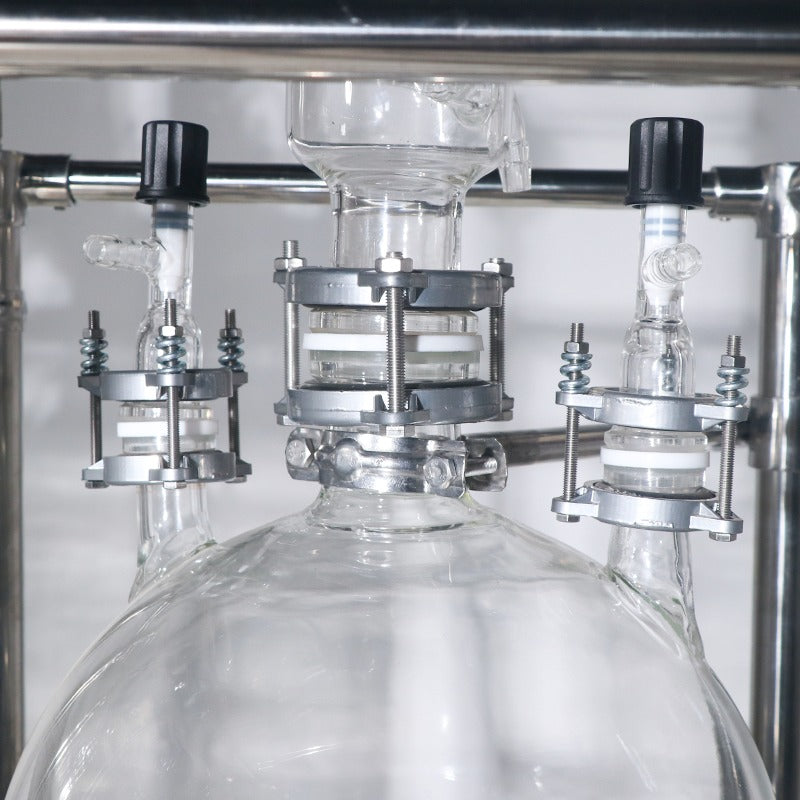

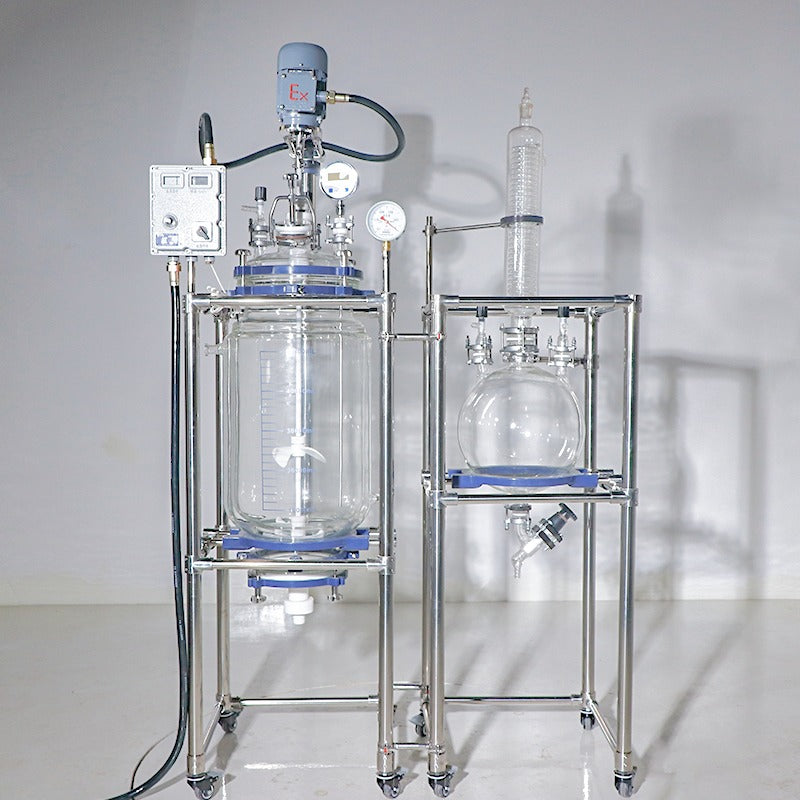

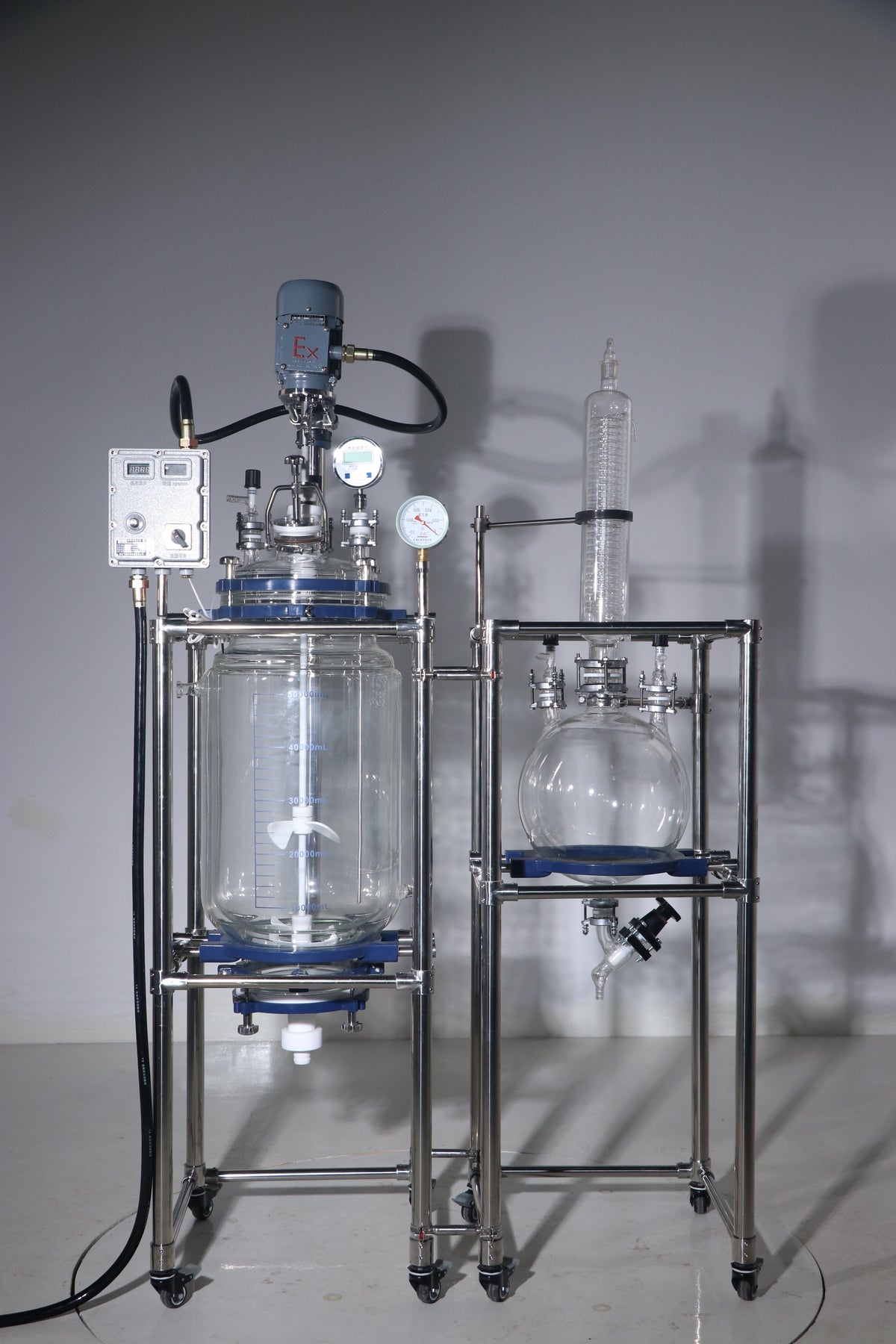

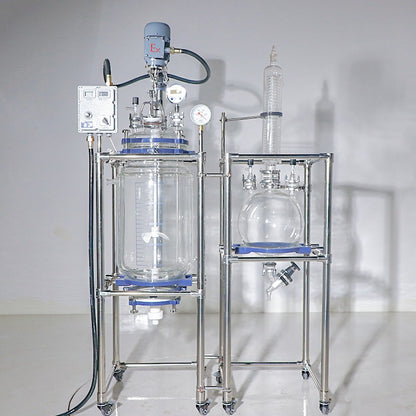

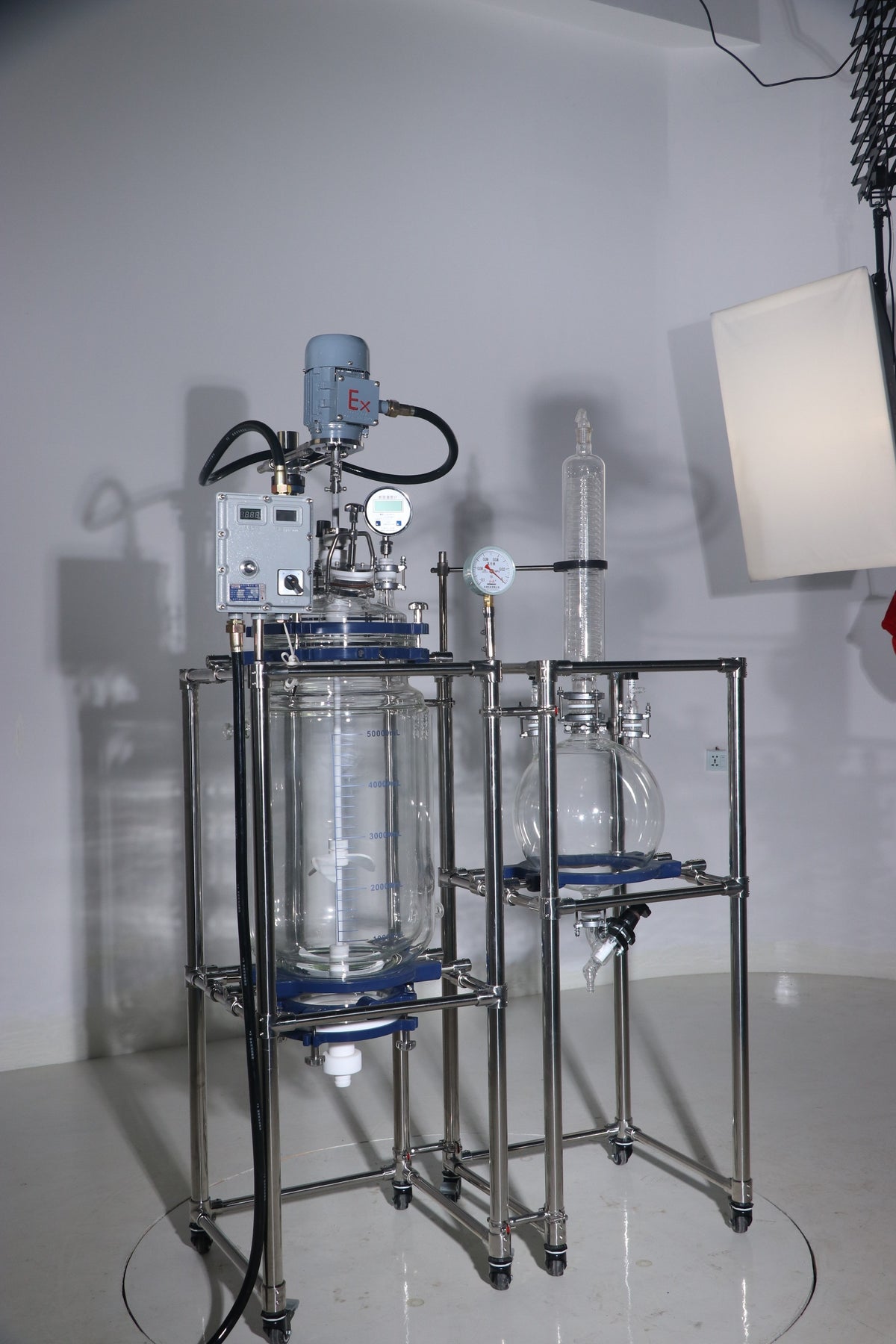

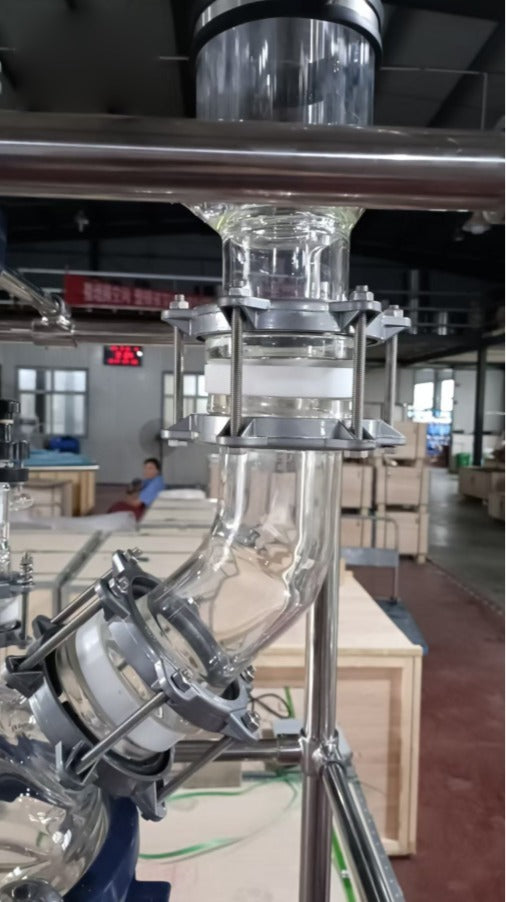

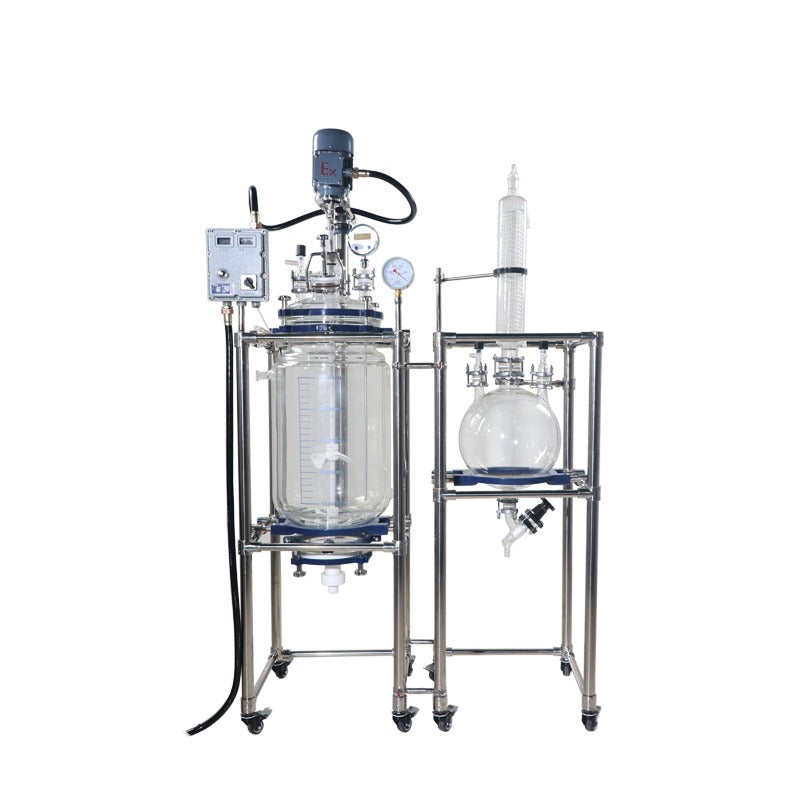

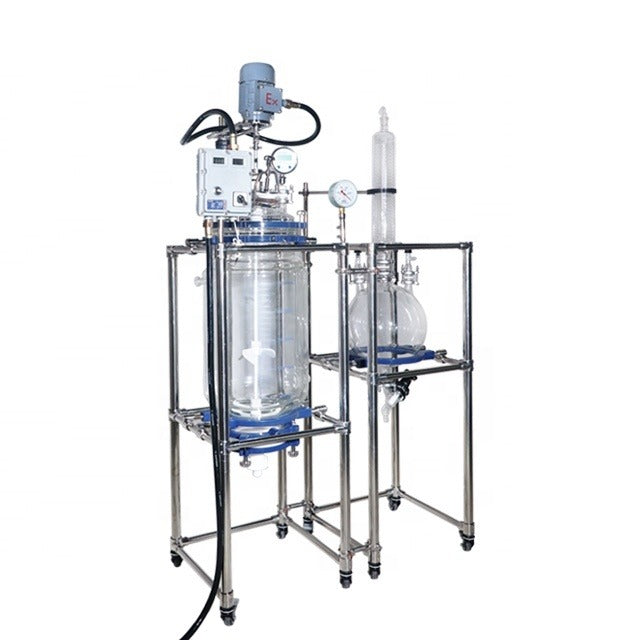

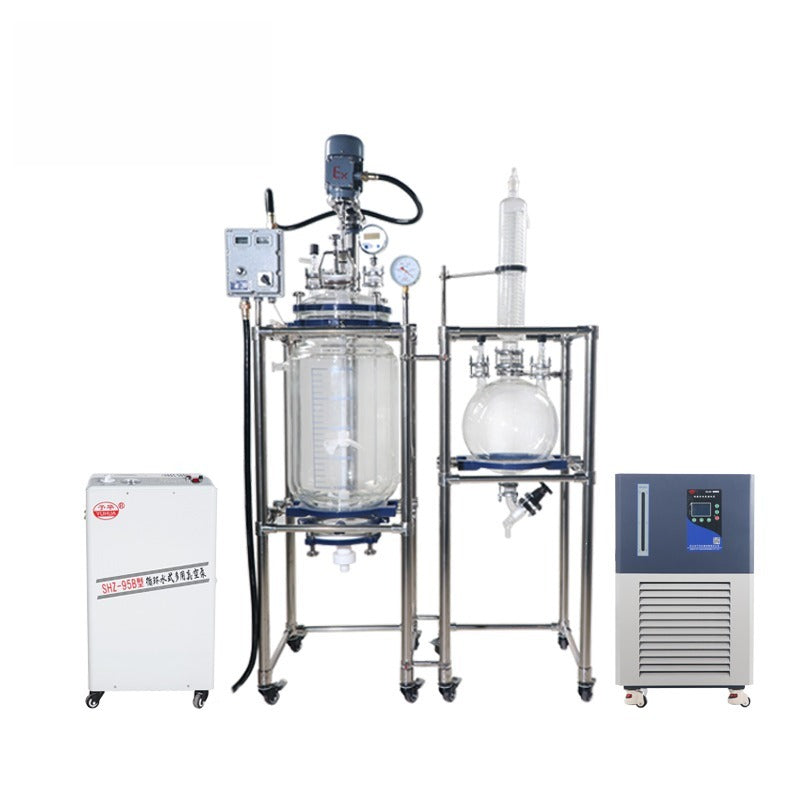

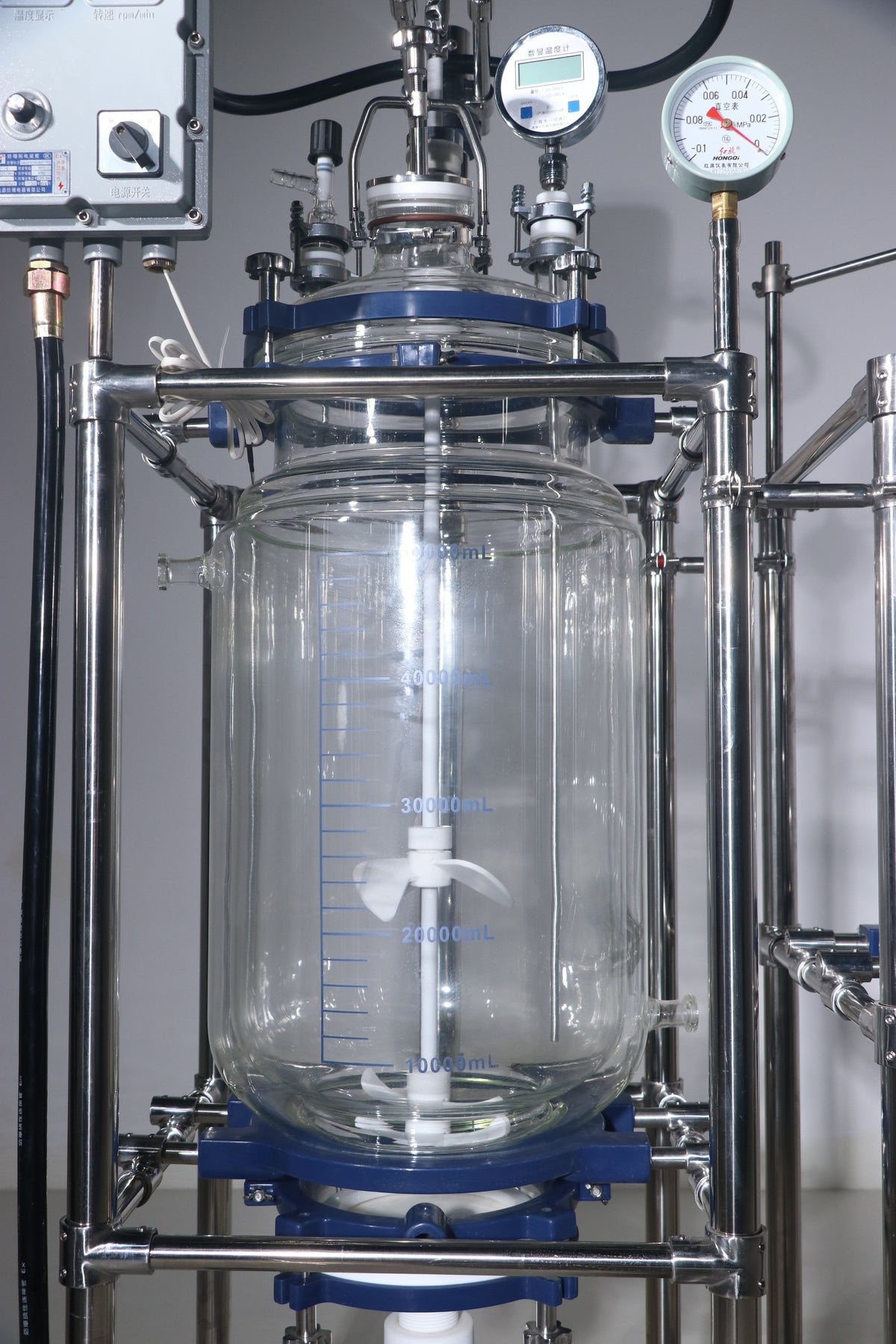

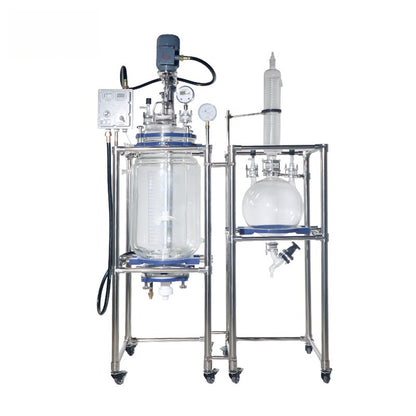

The YFR series is a jacketed crystallization and filter glass reactor (reaction kettle): a borosilicate glass 3.3 (GG-17) vessel on an SS304 frame with thermal-oil bath heating, a PTFE discharge valve, a PTFE sand-core filter at the vessel bottom, a five-port lid, and an anchor agitator in SUS304 with PTFE coating. Verified family specifications: working temperature −60°C to 200°C, vacuum degree −0.098 MPa (vessel pressure range from full vacuum to atmosphere), and stirring speed 0–600 rpm. Sizes run from 10L to 150L.
Model Comparison
Model
Vessel Volume
Jacket Volume
Working Temperature
Vacuum Degree
Stirring Speed
ALAB-YFR-10L
10L
4L
−60°C to 200°C
−0.098 MPa
0–600 rpm
ALAB-YFR-20L
20L
7L
−60°C to 200°C
−0.098 MPa
0–600 rpm
ALAB-YFR-30L
30L
—
−60°C to 200°C
−0.098 MPa
0–600 rpm
ALAB-YFR-50L
50L
15L
−60°C to 200°C
−0.098 MPa
0–600 rpm
ALAB-YFR-100L
100L
27L
−60°C to 200°C
−0.098 MPa
0–600 rpm
ALAB-YFR-150L
150L
—
−60°C to 200°C
−0.098 MPa
0–600 rpm
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
