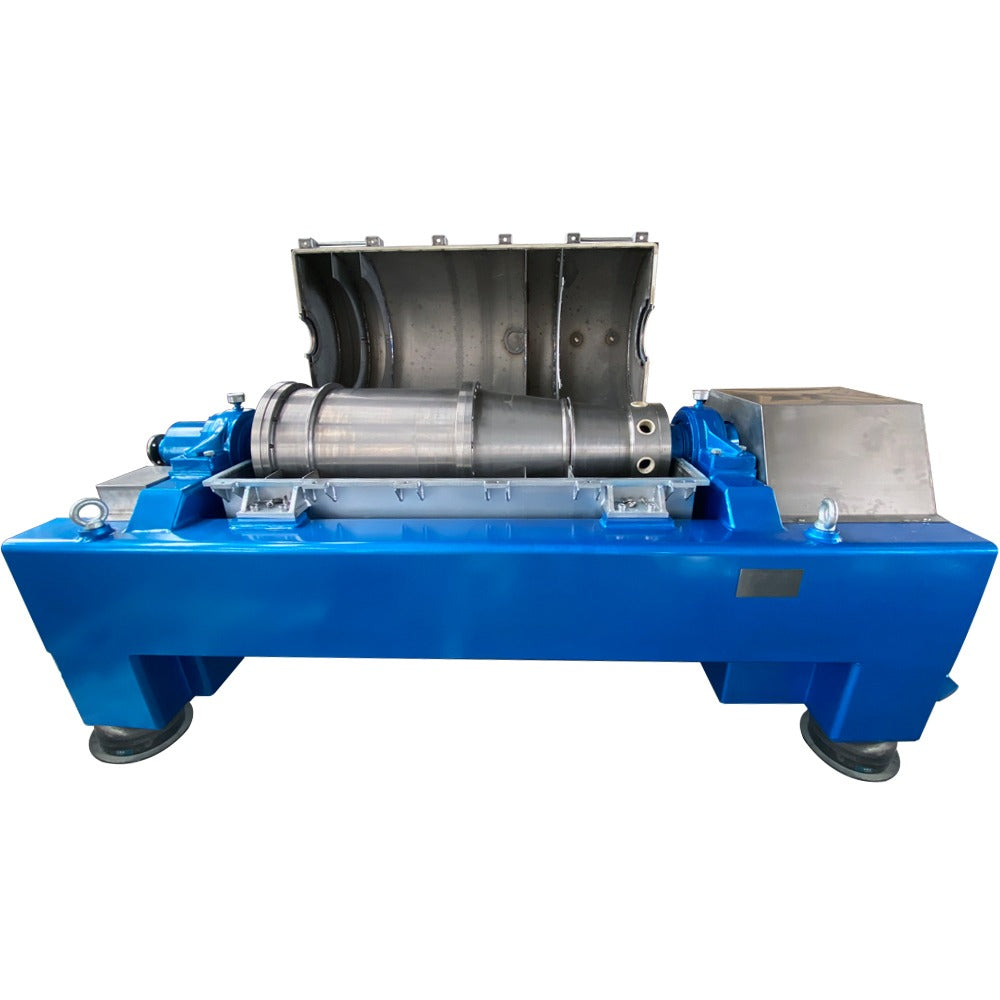

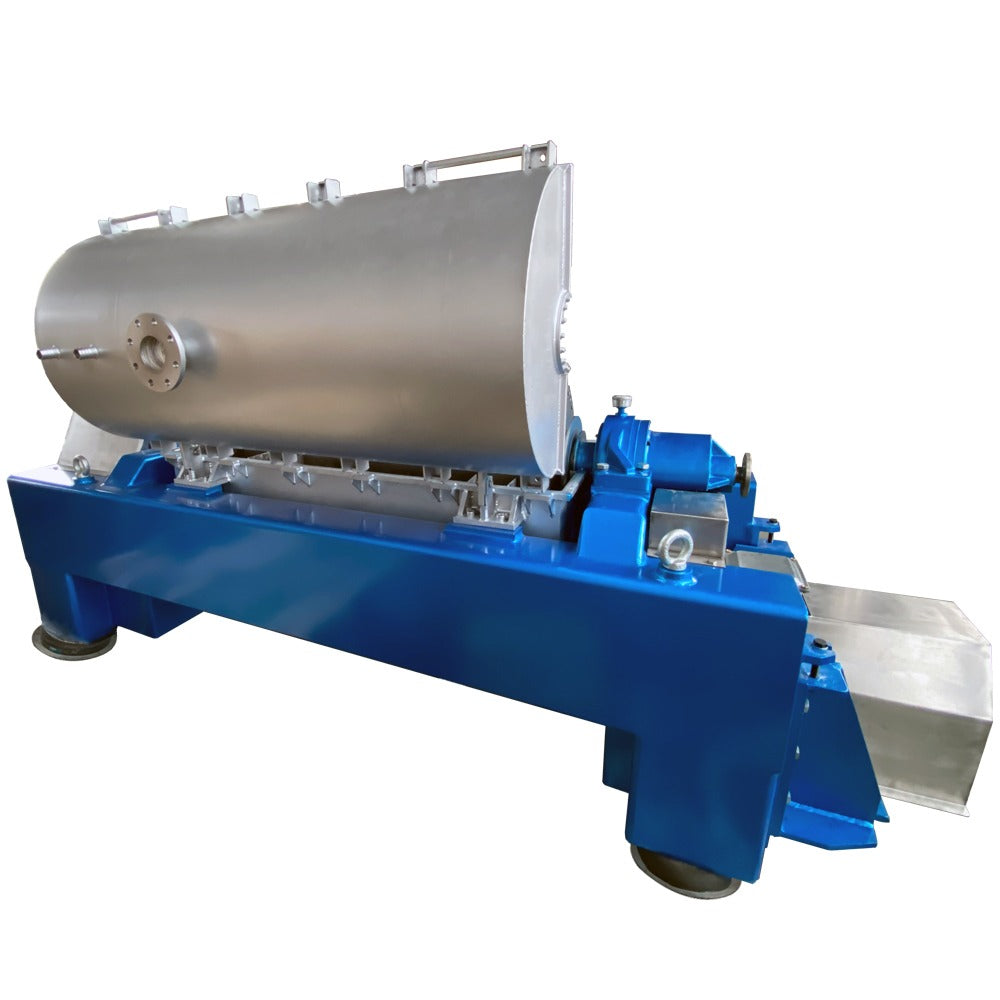

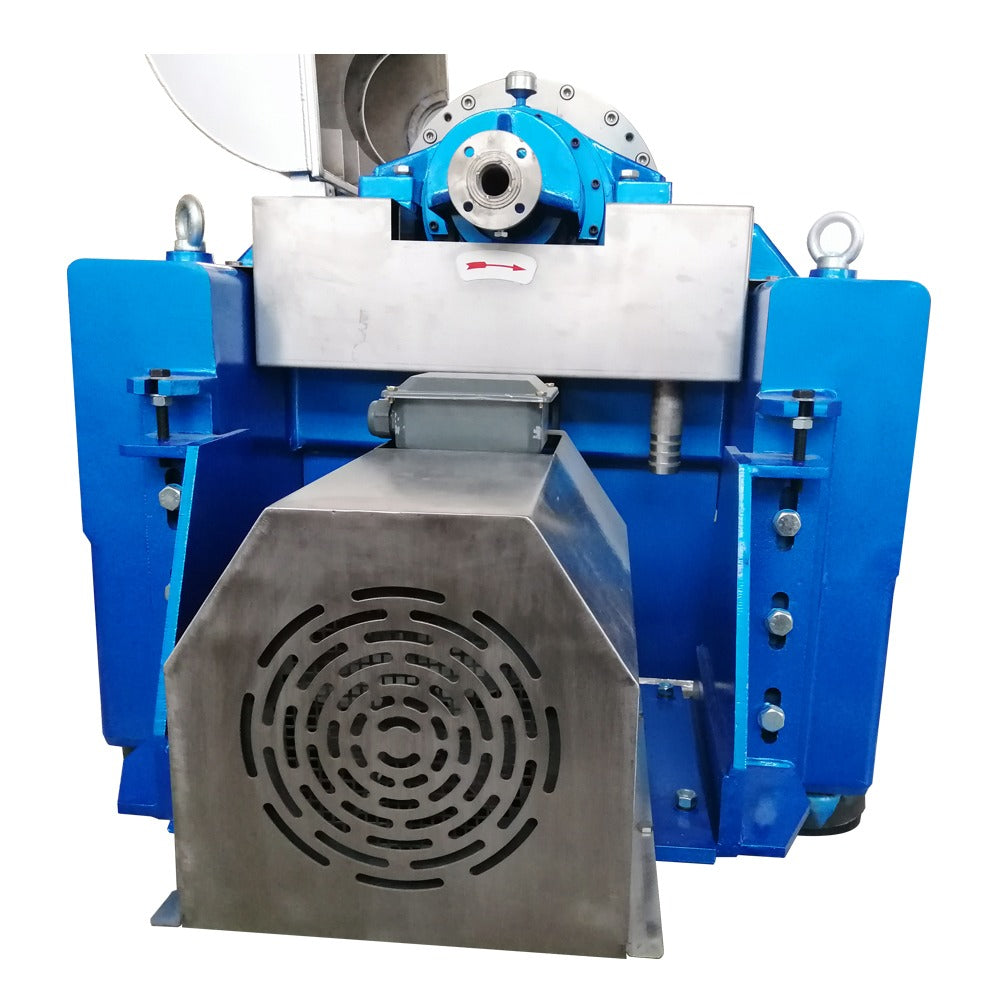

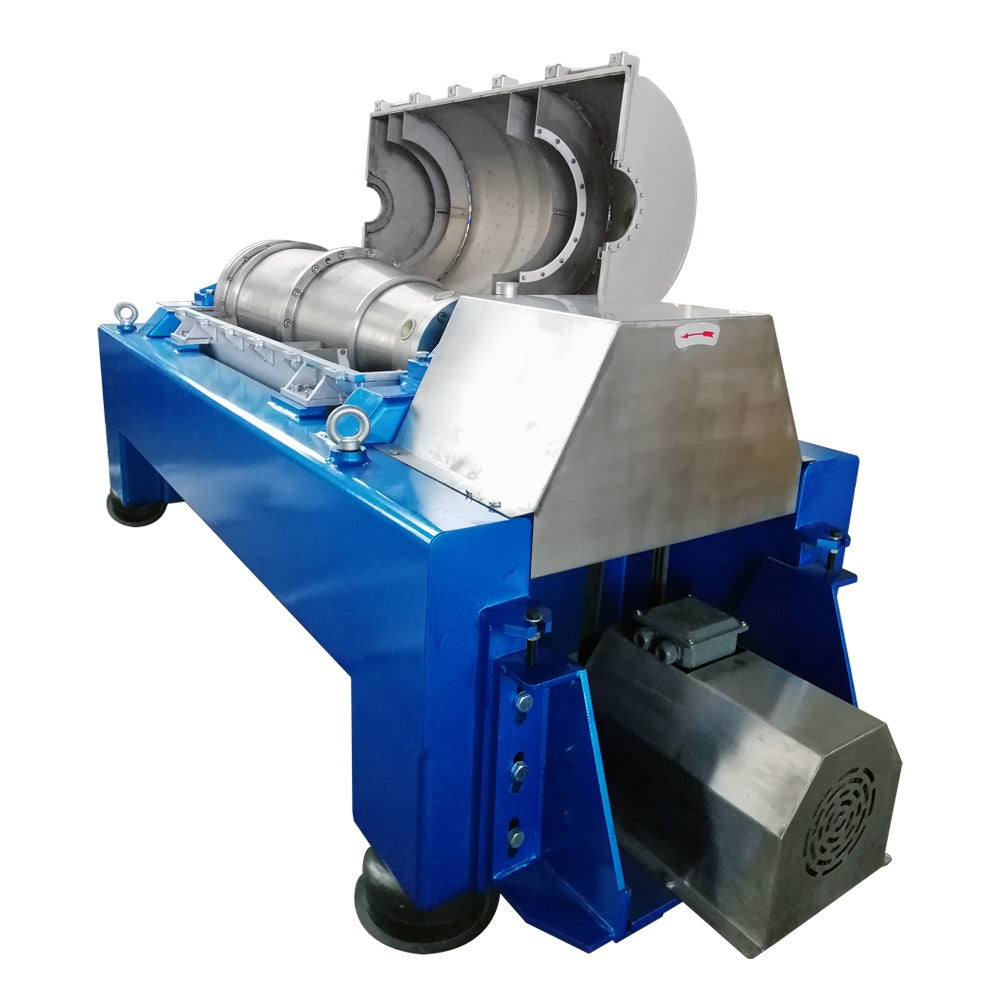

Decanter Centrifuge ALAB-LW Series

Decanter Centrifuge ALAB-LW Series

Regular price $28,380.00 USD
Regular price Sale price $28,380.00 USD
Sale Sold out

Product Description: Tricanter centrifuge is a horizontal centrifuge with continuous feeding and continuous discharging. The settling speed is determined by particle size, particle shape, difference in density between solids and liquids as well as their viscosity. Decanter centrifuge is suitable for solid-phase dewatering, liquid-phase clarification and separation, liquid-liquid-solid three phase separation and size-grading of various suspensions with solid-phase particle sizes of 0.005-15mm, consistency of 1-40% and temperature of ≤ 100°C it is used for oil-water-solid separation, Have good performance in olive oil, coconut oil, palm oil avocado oil production line. [wording as shown]

Specification table — columns Model | Max speed(r/min) | Processing capability(m³/h) | Main motor power(kw): LW-250*1000: 4000 | 0.5-3 | 11; LW-350*1460: 4000 | 3-12 | 22; LW-450*1800: 3600 | 6-20 | 30-45; LW-520*2130: 2800 | 12-30 | 45-75; LW-650*2275: 2500 | 25-35 | 75-110; LW-720*2665: 2000 | 45-100 | 110-160; LW-900*2700: 1500 | 50-110 | 160-220; LW-1000*2500: 1500 | 50-120 | 280.

Quality assurance: - JB/T502-2015 Chinese national standard of decanter centrifuge; - 2006/42/EC Machinery Directive; - 2014/35/EU Low voltage Directive; - 2014/30/EU Electromagnetic compatibility Directive; - Quality management system of ISO9001-2000.

The description iframe embeds a separate 00:21 video; the gallery video is 00:17.

Model Comparison

Model Max Speed (r/min) Processing Capability (m3/h) Main Motor Power (kw)
ALAB-LW-250*1000 4000 r/min 0.5-3 m3/h 11 kw
ALAB-LW-350*1460 4000 r/min 3-12 m3/h 22 kw
ALAB-LW-450*1800 3600 r/min 6-20 m3/h 30-45 kw
ALAB-LW-520*2130 2800 r/min 12-30 m3/h 45-75 kw
ALAB-LW-650*2275 2500 r/min 25-35 m3/h 75-110 kw
ALAB-LW-720*2665 2000 r/min 45-100 m3/h 110-160 kw
ALAB-LW-900*2700 1500 r/min 50-110 m3/h 160-220 kw
ALAB-LW-1000*2500 1500 r/min 50-120 m3/h 280 kw

Specifications

  • product type: Industrial machine
  • voltage: 380 440 440 220 110V...(customized)
  • core components: PLC, Engine, Bearing, Motor, Pump
  • power(w): 22 / 7.5 kw
  • machinery test report: Provided
  • warranty: 1 Year
  • video outgoing-inspection: Provided
  • place of origin: Jiangsu, China
  • MOC: SS321/316L
  • Sanitary degree: GMP
  • Advantage: Long Service Life
