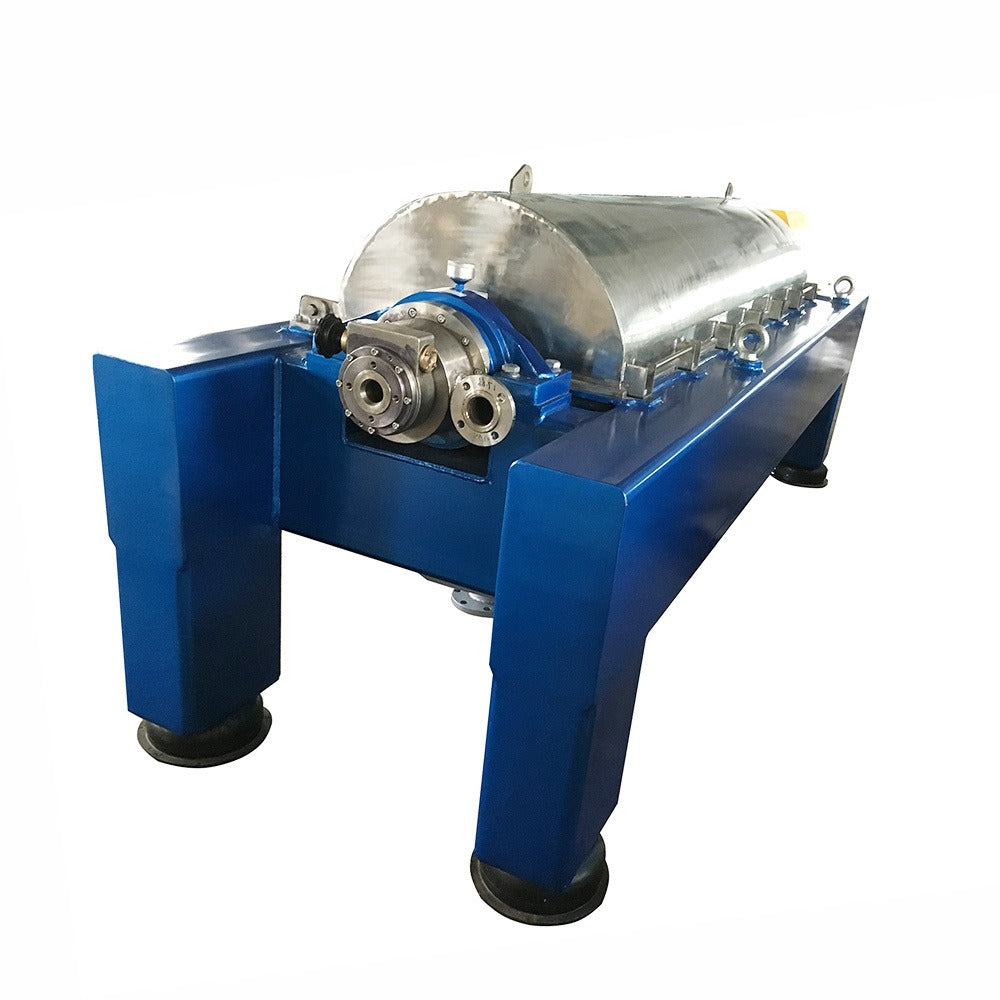

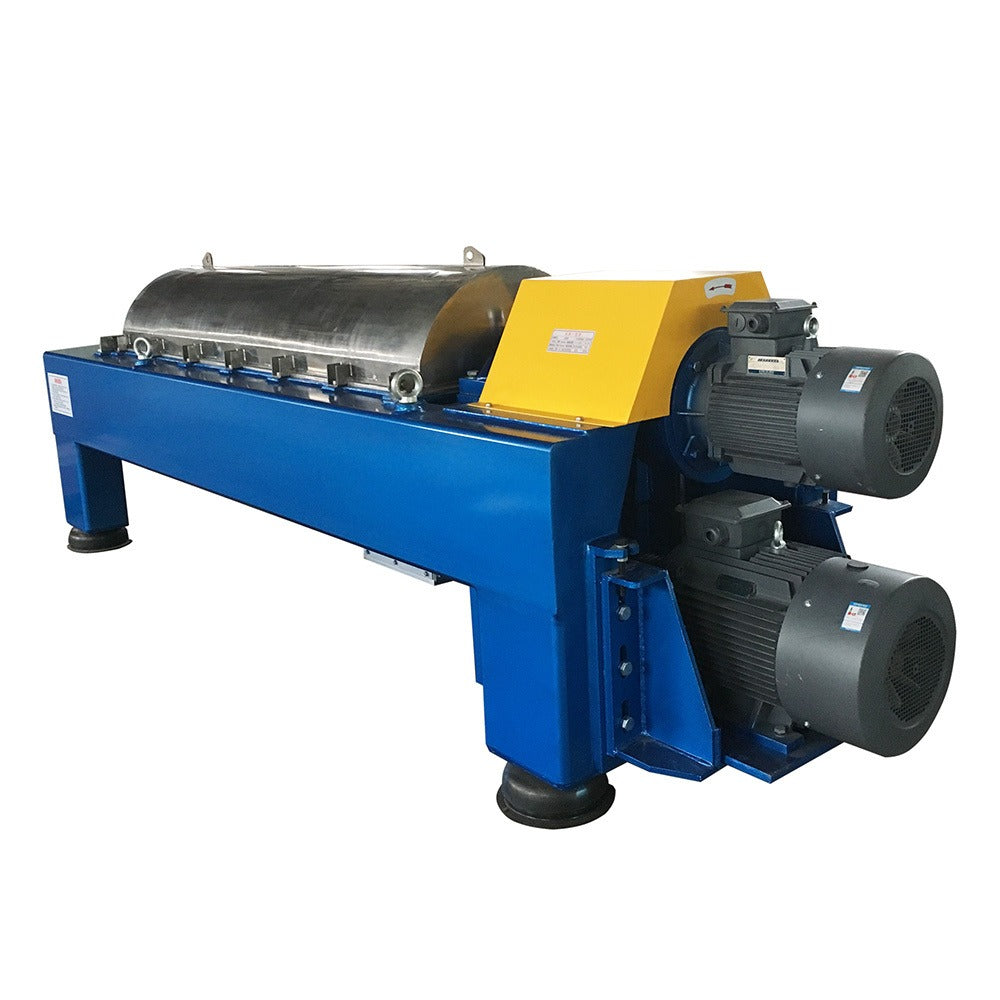

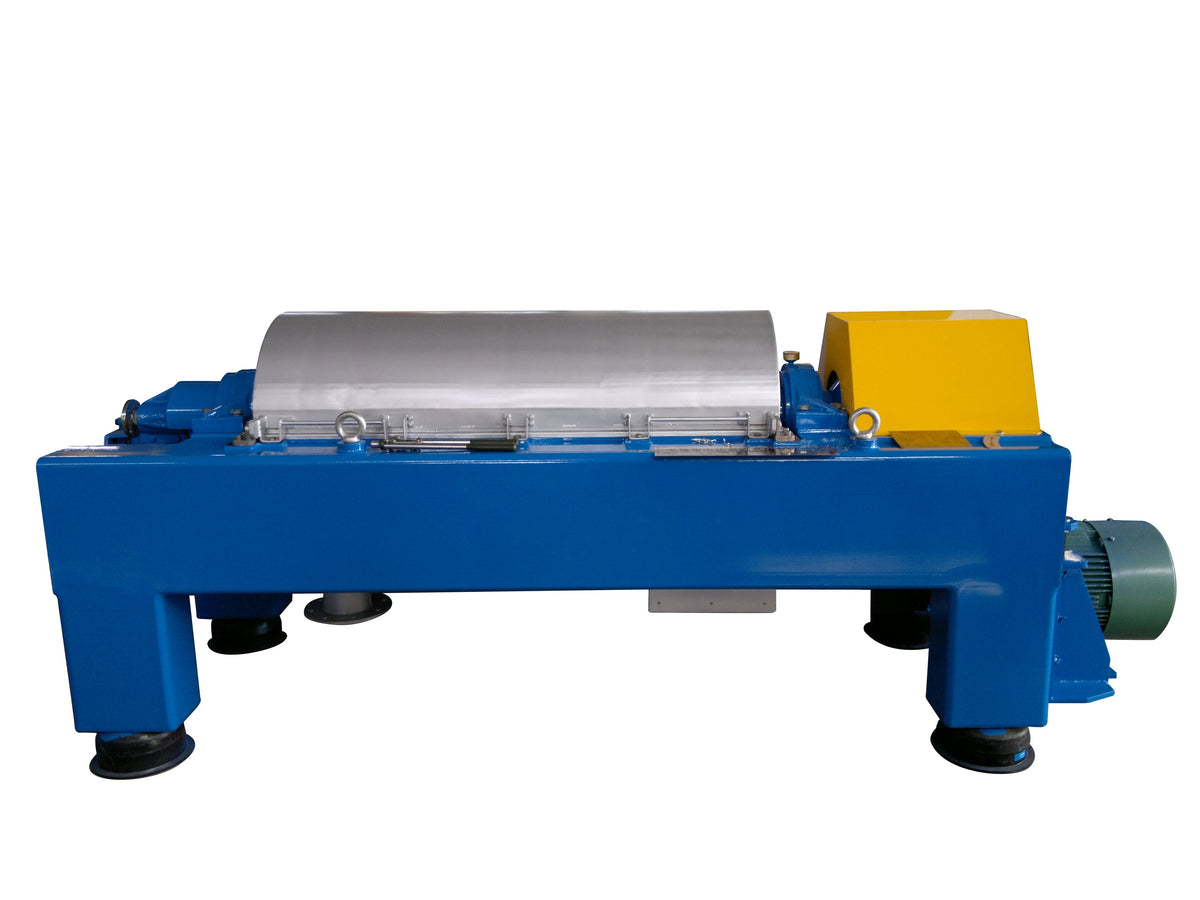

Header block: Decanter Centrifuge, with the same intro as i=220 (An efficient wet classification equipment which uses the principle of centrifugal sedimentation to continuously treat the material, remove the coarse particles in the material, and preserve the finer particles. It is used for the separation of all kinds of solid and liquid suspensions in various industries, the defecation of the liquid phase of graded particles, and the dehydration of sludge).
Applications: Polyoxyethylene resin, ammonium sulfite, barium carbonate, strontium sulfate, Lide powder, titanium dioxide, ore, China clay, kaolin, diatomite, starch, soybean protein, peanutprotein, juice, beverage, vegetable oil, citric acid, waste oil purification, washing water purification lees, animal fat, blood powder, power plant sludge, printing and dyeing sludge, paper sludge, natural gas desulfurization sludge, activated sludge, ammonia Sludge, car wash sludge, alum sludge, drilling mud, coal flotation waste, cryolite flotation liquid. (Unlike i=220, this list has no Palm oil, no Calcium hypochlorite, and no Municipal wastewater; there is no Municipal Sewage Treatment Process section - the description goes from the Applications powder photos straight to Working principle.)
Working principle: same centrifugal-classifier composition text and slurry text as i=220.
Features: same four items as i=220, with the fourth reading in full here: The machine is equipped with mechanical, vibration and electrical overload protection device, once the overload or screw and drum blockage, it will automatically alarm and cut off the power supply to ensure the safe and reliable operation of the machine.
Parameter table: identical values to i=220 (LW355FX860 / LW450FX1100 columns; Drum diameter 355/450; Length 860/1100; Drum type cylindrical-Conetype ×2; Turn the drum up speed 3500r/min / 3200r/min; Separation factor 2430/2578; Maximum processing capacity 1~5m³/h / 3~10m³/h; Diffrerntial speed 5~30turn/minutes ×2; Main motor Y160M2-2-B3-15kW / Y180M-2-22kW; Vice motor Y132SL-4-B3-5.5kW / Y160M-4-B3-7.5kW; Machine weight 1500kg/2200kg; Overall dimensions 2580×930×1265 / 3657×1010×1448).

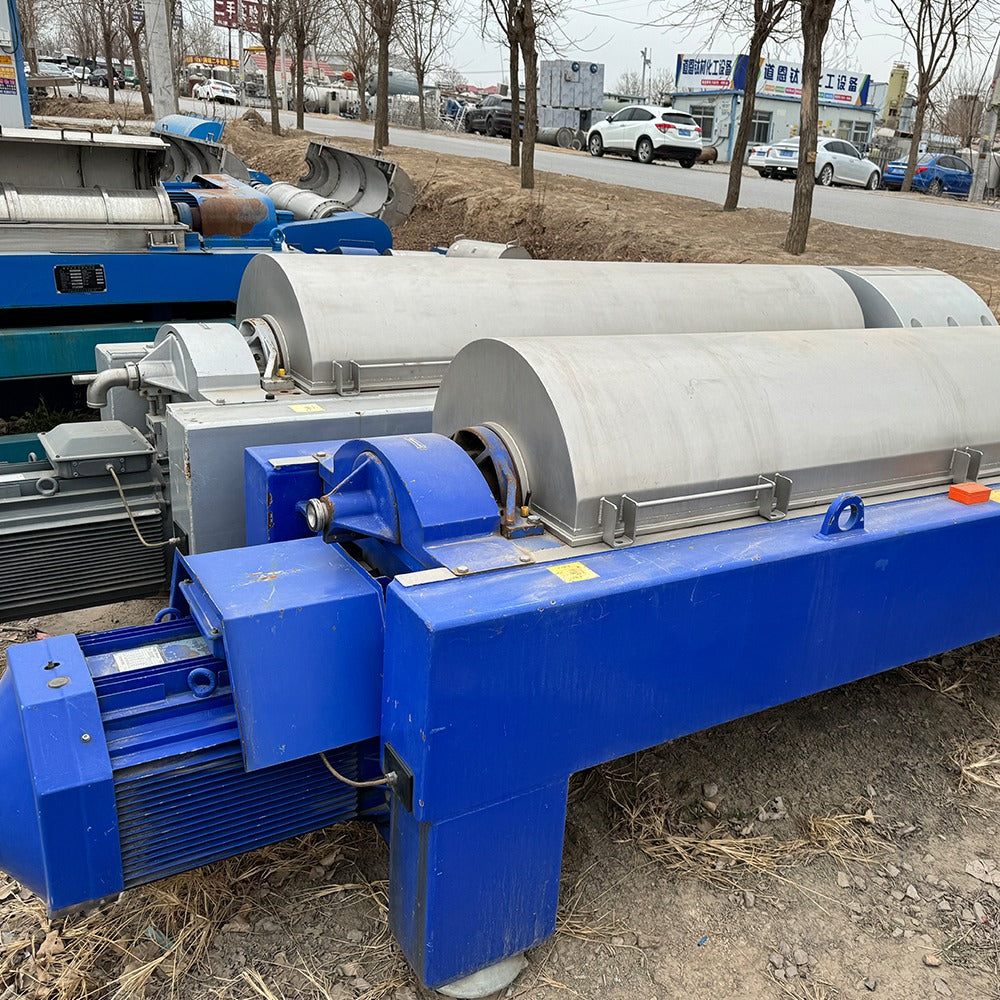

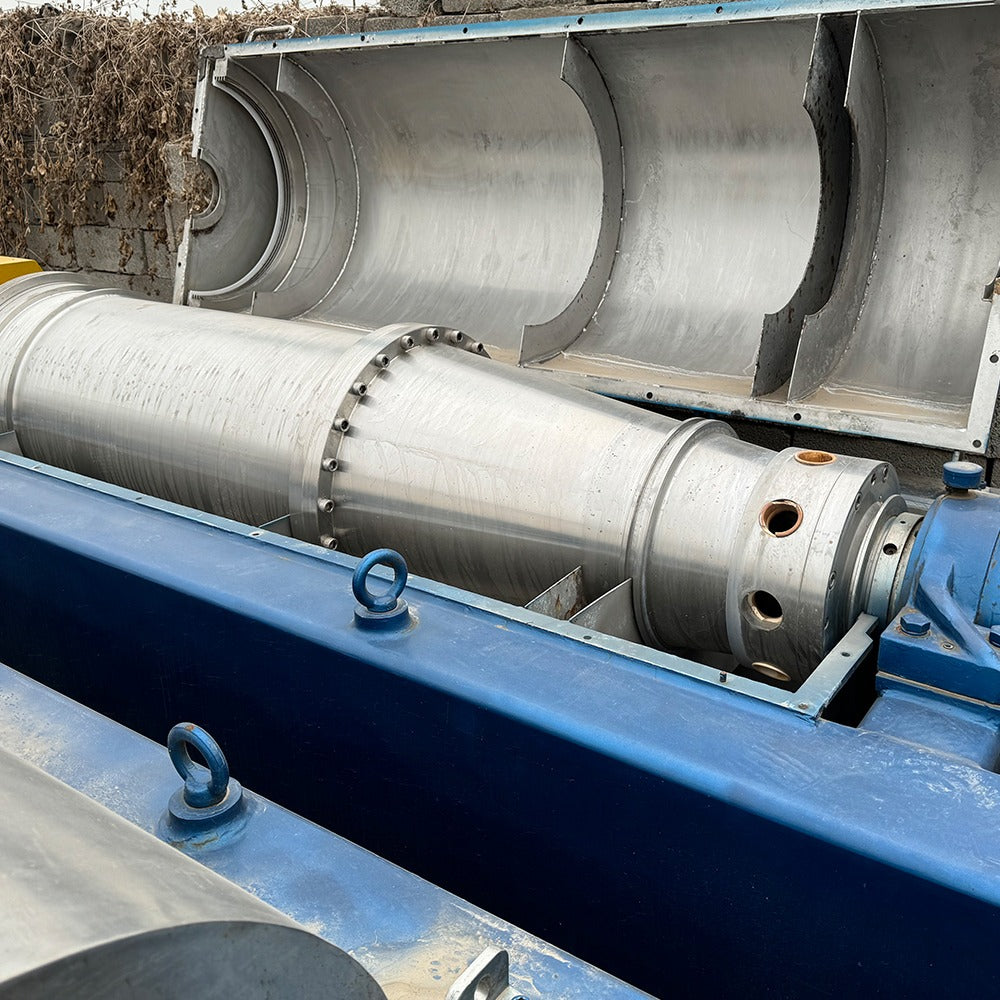

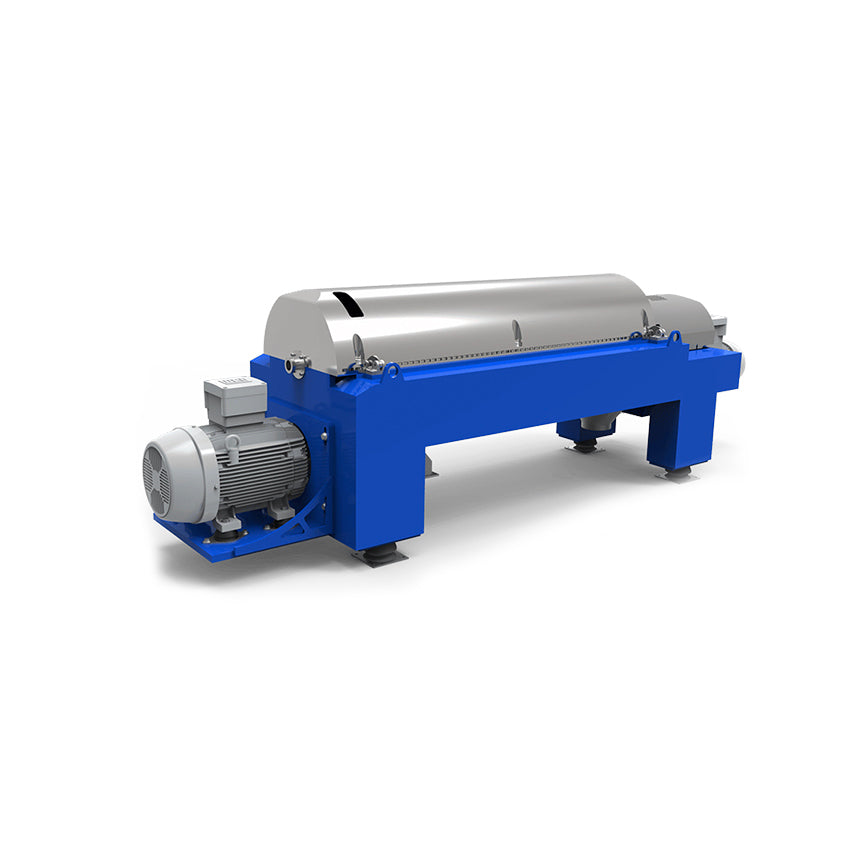

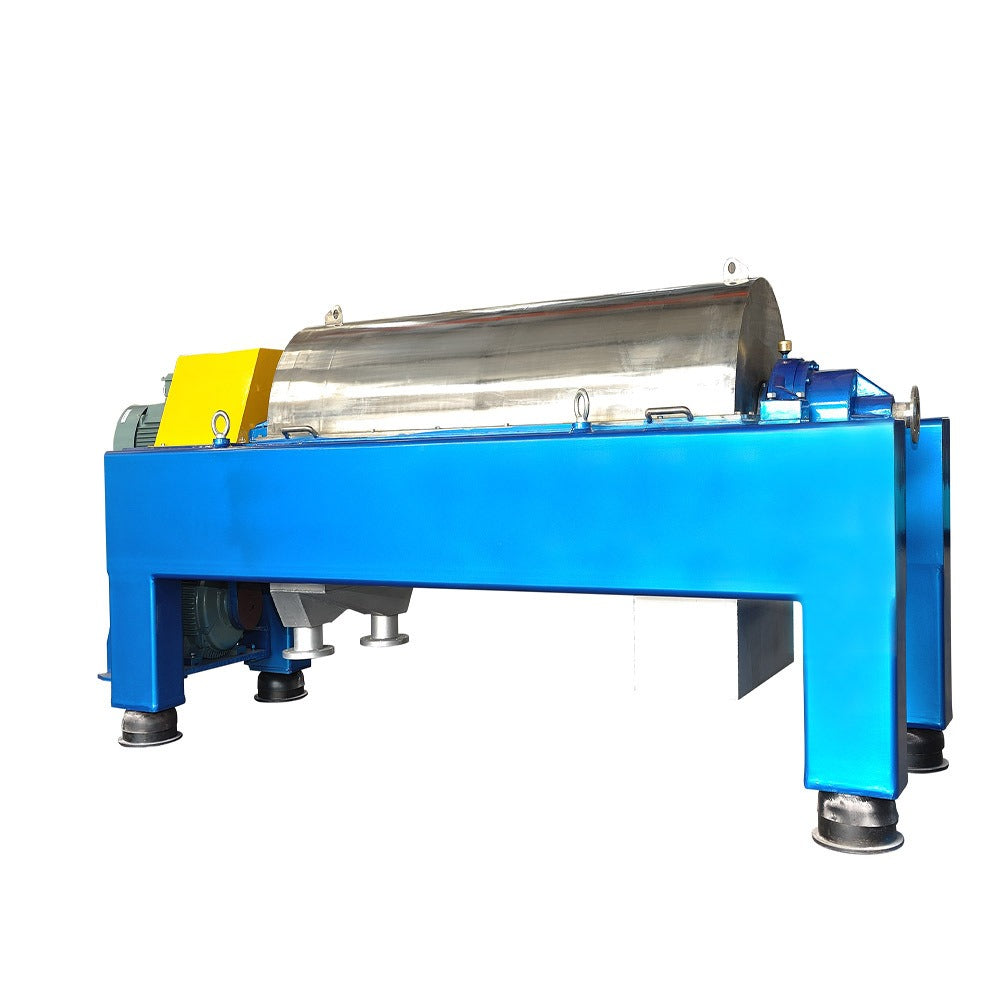

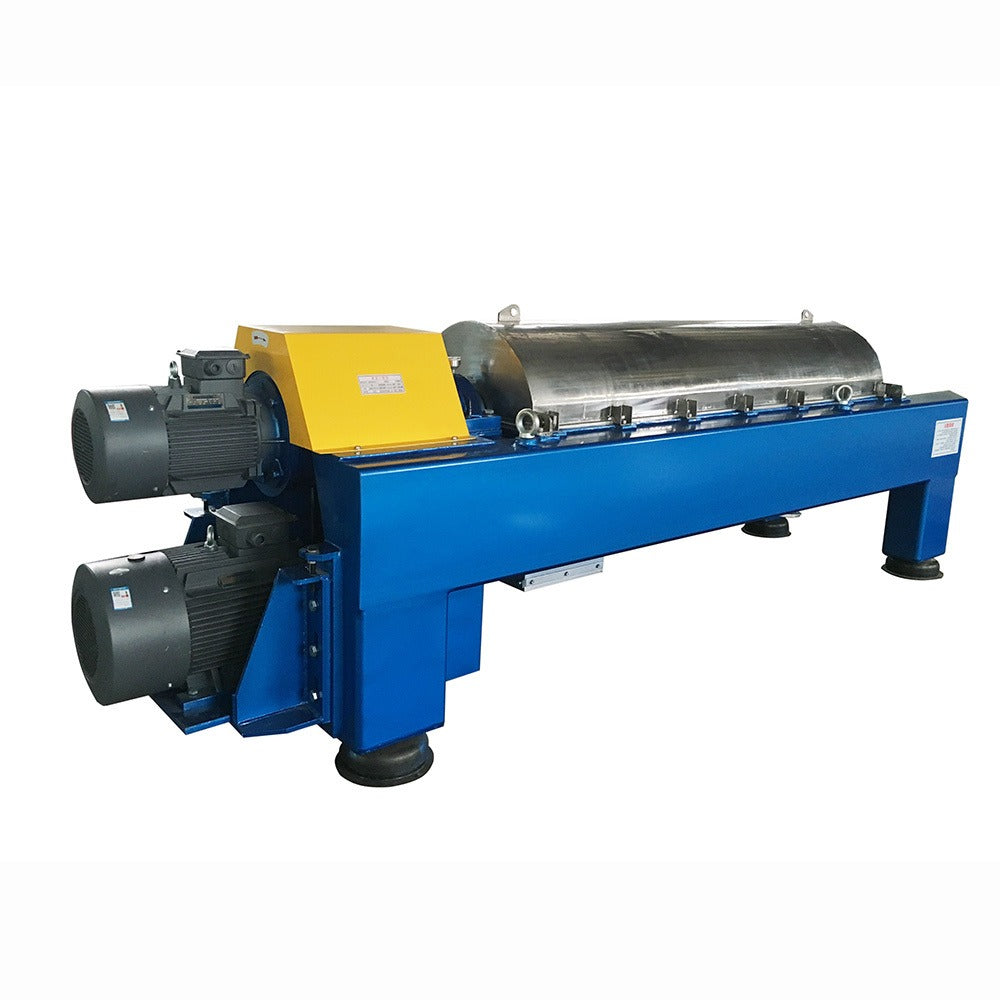

Detail Images section.
Model Comparison
| Model |
Drum Diameter (mm) |
Drum Length (mm) |
Drum Type |
Drum Speed (r/min) |
Separation Factor |
Max Processing Capacity (m3/h) |
Differential Speed (turn/min) |
Main Motor |
Vice Motor |
Machine Weight (kg) |
Overall Dimensions (mm) |
| ALAB-LW355FX860 |
355 |
860 |
Cylindrical-Cone |
3500 |
2430 |
1~5 |
5~30 |
Y160M2-2-B3-15kW |
Y132SL-4-B3-5.5kW |
1500 |
2580x930x1265 |
| ALAB-LW450FX1100 |
450 |
1100 |
Cylindrical-Cone |
3200 |
2578 |
3~10 |
5~30 |
Y180M-2-22kW |
Y160M-4-B3-7.5kW |
2200 |
3657x1010x1448 |
