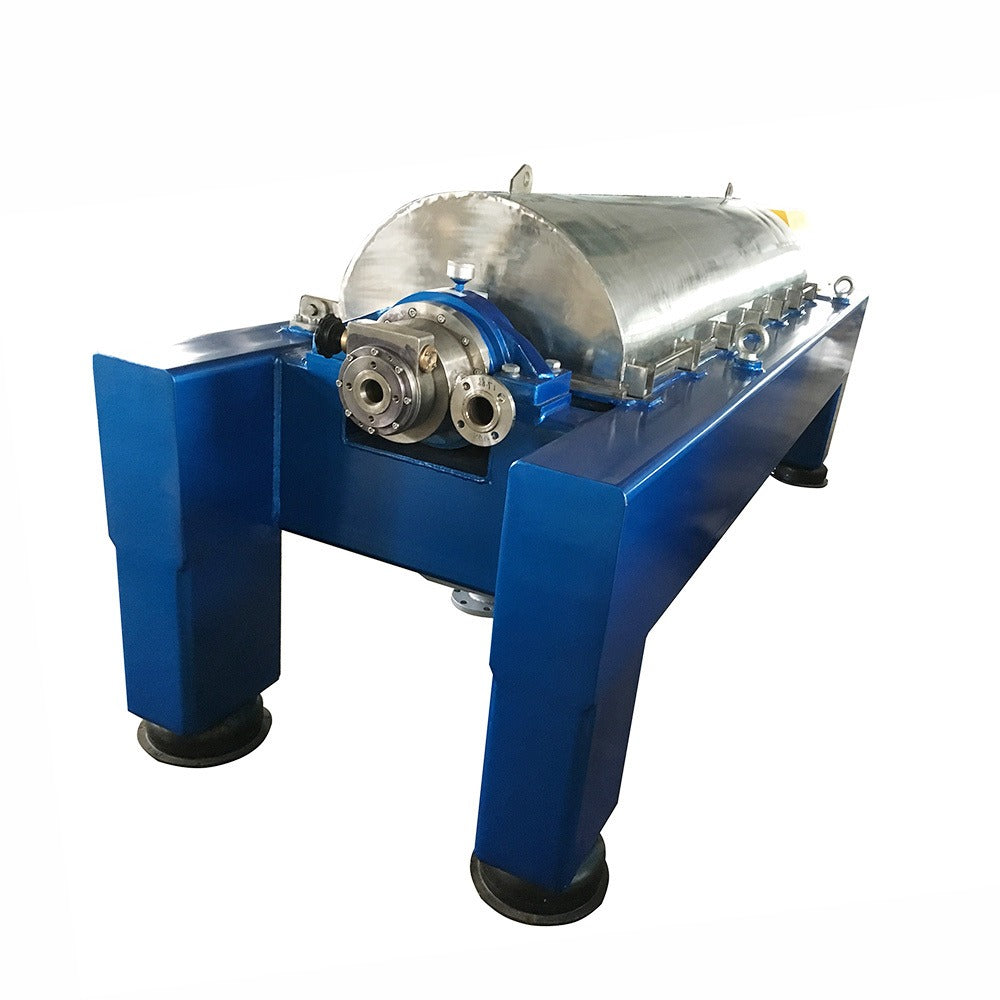

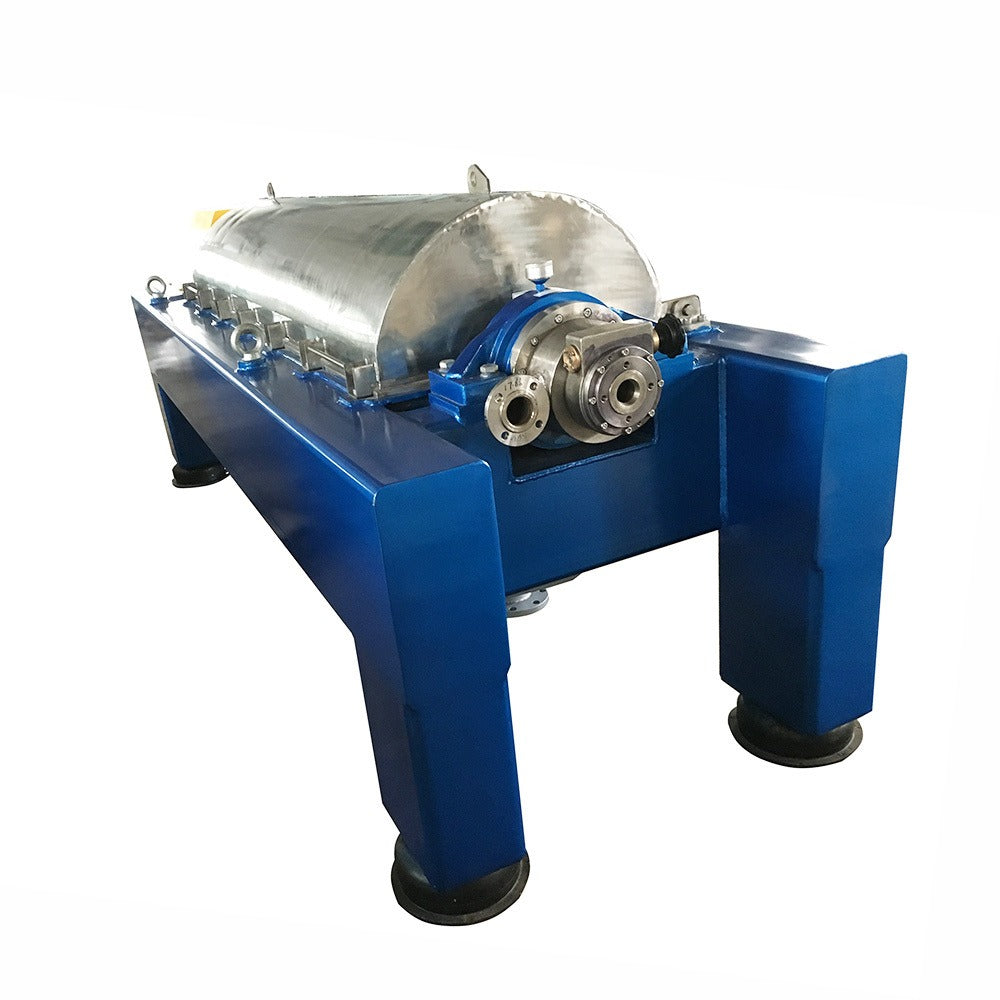

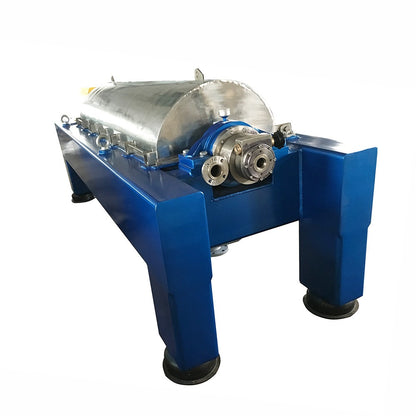

Decanter Centrifuge ALAB-PNX / ALAB-PDC Series

Basic Principles: The solid drum is internally installed with a concentric discharge screw…

Specification: PNX-409 / 250 mm / 5500 rpm / 3493 G / 0.2~2 m3/h / 15/4 kw / 1020 kg / 2500 × 650 × 760 mm; PNX-414 / 355 mm / 4000 rpm / 3175 G / 1~10 m3/h / 18.5/7.5 kw / 2035 kg / 2765 × 920 × 1060 mm; PNX-416 / 355 mm / 4000 rpm / 3175 G / 1~15 m3/h / 18.5/7.5 kw / 2122 kg / 3065 × 920 × 1060 mm; PNX-418 / 355 mm / 4000 rpm / 3175 G / 1~25 m3/h / 22/7.5 kw / 2222 kg / 3365 × 920 × 1060 mm; PDC-16.5 / 420 mm / 3000 rpm / 2113 G / 10~30 m3/h / 55/15 kw / 4600 kg / 4080 × 1100 × 1420 mm; PDC-17-4 / 420 mm / 3600 rpm / 3042 G / 3~15 m3/h / 30/7.5 kw / 5165 kg / 3331 × 990 × 1066 mm; PDC-18-4.4 / 450 mm / 3300 rpm / 2739 G / 10~20 m3/h / 37/11 kw / 2739 kg / 4000 × 1120 × 1239 mm; PDC-20 / 500 mm / 3200 rpm / 2860 G / 5~45 m3/h / 55/11 kw / 4400 kg / 4489 × 1160 × 1350 mm; PDC-21 / 540 mm / 2800 rpm / 2366 G / 15~50 m3/h / 45/15 kw / 5290 kg / 4587 × 1285 × 1368 mm; PDC-24 / 620 mm / 3200 rpm / 3555 G / 15~60 m3/h / Hydraulic station 90 kw / 8000 kg / 4650 × 2010 × 1200 mm; PDC-28HH / 720 mm / 2200 rpm / 1975 G / 15-80 m3/h / 110/37 kw / 9393 kg / 4800 × 1350 × 1500 mm (Model / Diameter (mm) / Bowl Speed (rpm) / G-force / Capacity (m3/h) / Main Power (kw) / Weight (kg) / Overall Size (L × W × H) (mm))

Model Comparison

Specifications

• Automatic degree: Automatic continuous
• Color: Customized
• Feeding nozzle: replaceable T/C sleeve
• MOC: SS304, SS316, DSS2205
• Machine type: Soybean Protein Separator Machine
• Product Type: Separation equipment
• Screw: T/C tiled
• Separation: Solid-liquid separation
• core components: PLC, Engine, Bearing, Gearbox, Motor
• machinery test report: Provided
• place of origin: Jiangsu, China
• product type: Soybean Protein Separator Machine
• video outgoing-inspection: Provided
• voltage: 220, 380, 440, 460V
• warranty: 12 months
