Digital Rotary Viscometer for Fluid Testing, Viscometer Water Circulation Bath
Digital Rotary Viscometer for Fluid Testing, Viscometer Water Circulation Bath

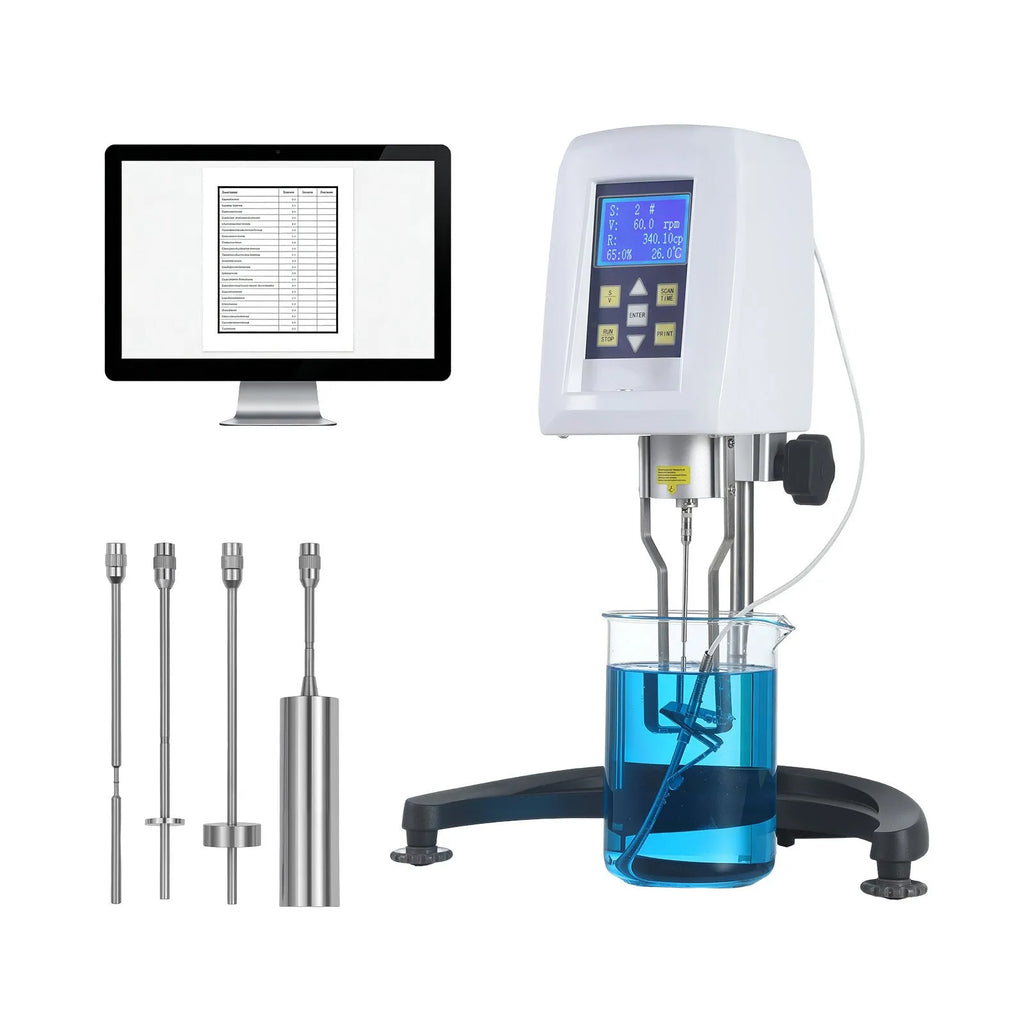

NDJ-5S

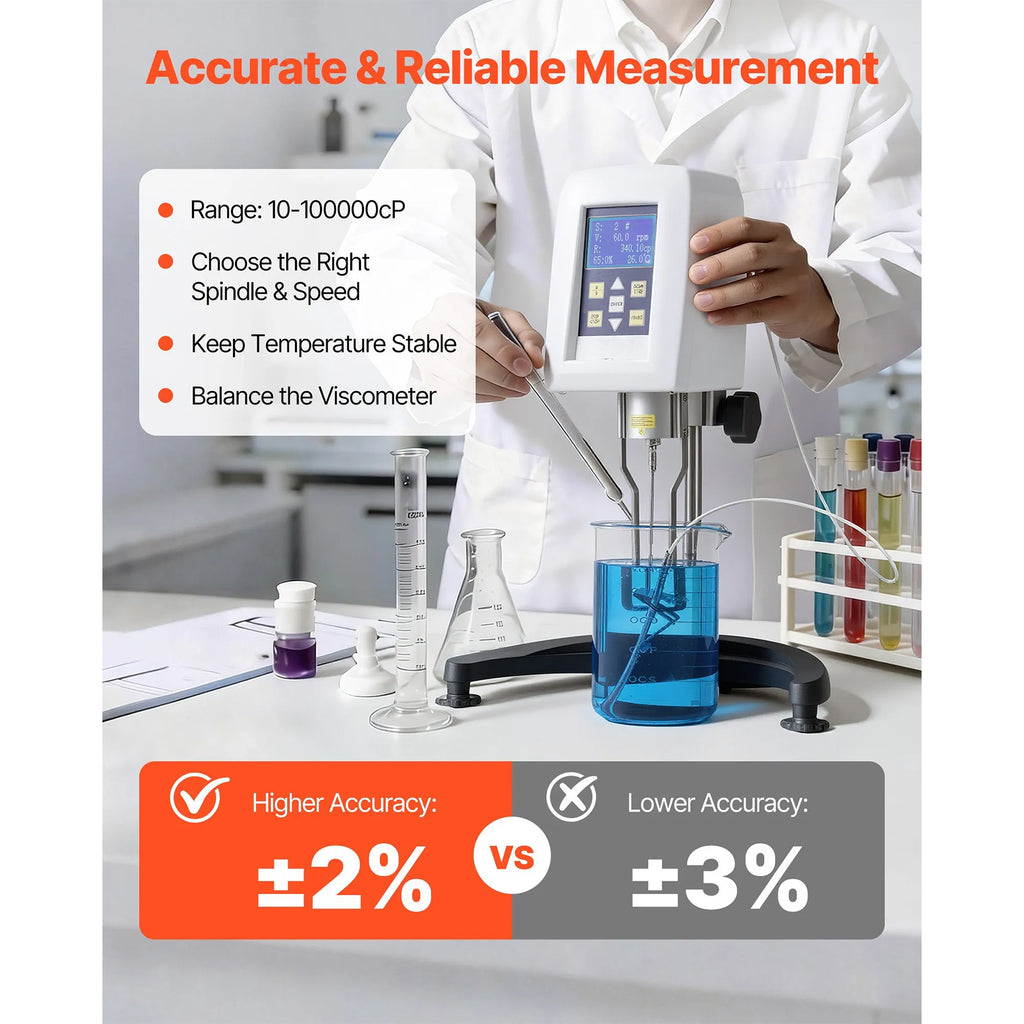

· Accurate and Reliable Measurement: This viscometer covers a measuring range of 10–100,000 cP and comes with four spindles (#1–#4). It provides ±2% measurement accuracy to deliver stable viscosity readings.
· Easy Balance Calibration: Improved front-mounted balance adjustment lets users view the bubble level and fine-tune leveling while seated. It minimizes repeated standing during setup and simplifies operation.
· Easy-to-Read LCD Display: The rotary viscometer’s LCD panel shows spindle number, rotation speed, viscosity value, torque percentage and temperature for convenient real-time viewing.
· Data Transfer & Output Support: Built-in RS232 interface enables connection to computers for data storage and transfer. It also supports printer output to reduce manual data entry work.
· Wide Applications: This digital viscometer tests viscosity for liquids including cooking oil, honey, paint and cosmetics for use in multiple working environments.
NDJ-8S
· Accurate and Reliable Measurement: This viscometer has a measurement range of 10–2,000,000 cP and includes four spindles (#1–#4). It delivers ±2% measurement accuracy for consistent viscosity test results.
· Easy Balance Calibration: Improved front-mounted balance adjustment allows users to check the bubble level and fine-tune leveling while seated. It cuts down repeated standing during setup and boosts operation convenience.
· Easy-to-Read LCD Display: The rotary viscometer’s LCD screen displays spindle number, rotation speed, viscosity value, torque percentage and temperature for easy monitoring during testing.
· Data Transfer & Output Support: Equipped with RS232 interface, this digital rotational viscosity meter connects to PCs for data transfer and storage, and supports printer output to avoid manual recording.
· Wide Applications: This digital viscometer measures viscosity of fluids such as cooking oil, honey, paint and cosmetics, fitting various working scenarios.

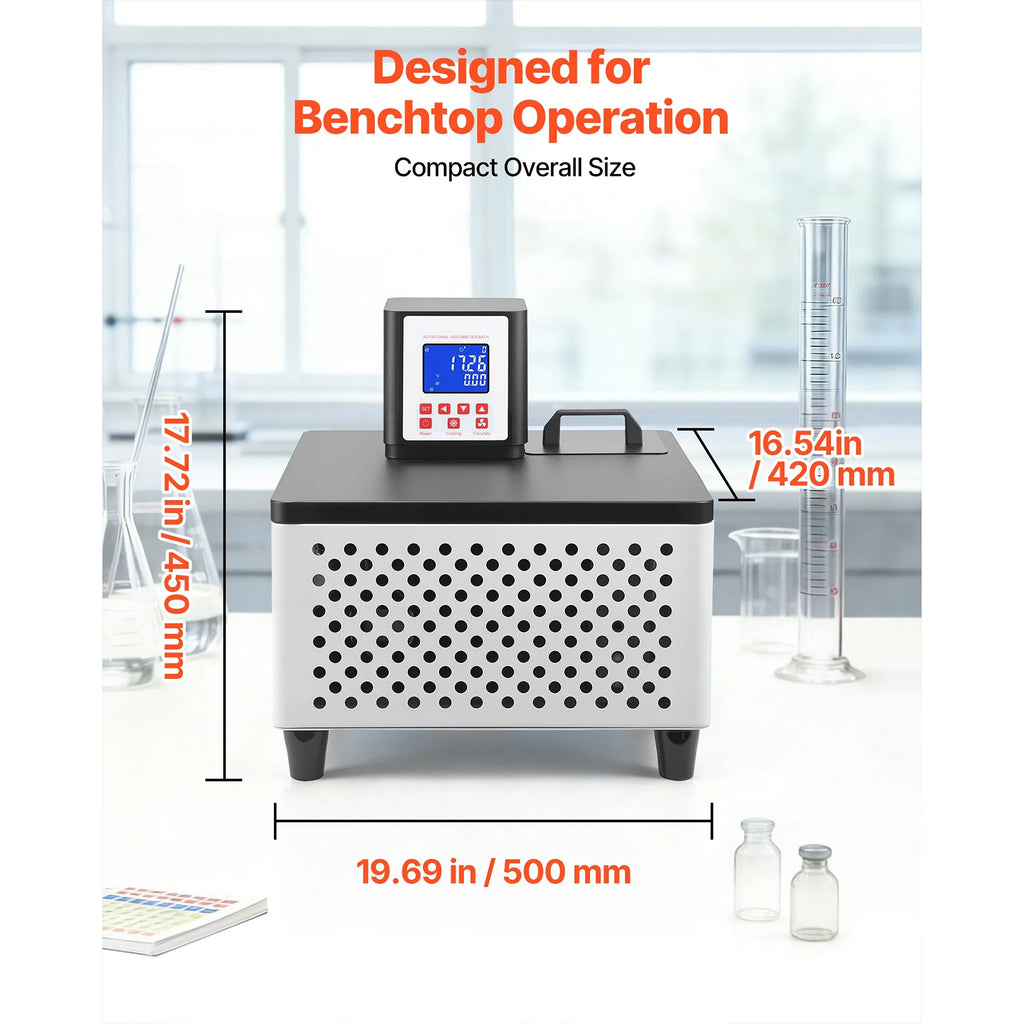

NDJ-0506W

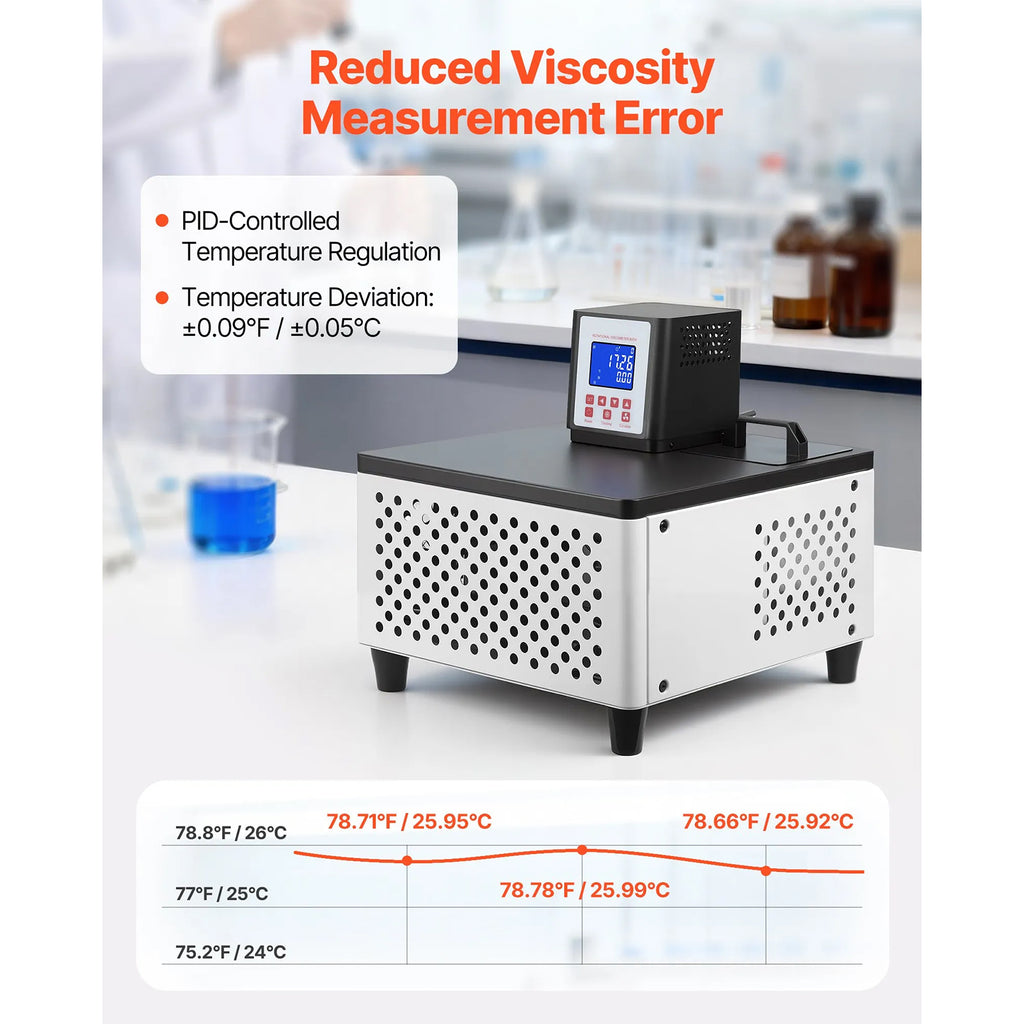

· Stable Temperature Control: This viscometer water bath adopts PID automatic temperature control system with ±0.09°F precision. It maintains uniform fluid temperature without thermal stratification to support reliable viscosity testing.
· Wide Temperature Range for Multiple Fluids: Adjustable temperature range from 23℉ to 212℉ meets viscosity testing needs for different liquids under varied working conditions.
· Compatibility With Various Rotational Viscometers: The bath base offers 2.17 in bottom clearance to fit many rotary viscometer models and can be placed on workbenches during testing.
· Broad Compatibility & Built to Last: The square tank dimension is 5.51 x 5.51 x 5.12 in. Adjustable clamping slots work with different sample containers. Constructed with 304 stainless steel, the tank supports long service life and simple cleaning.
· Dual Modes: This viscometer water bath supports internal and external circulation. Internal mode controls temperature for samples placed inside the tank. External mode connects to jacketed glass vessels or other containers for external temperature regulation.
Model Comparison
| Specification | NDJ-5S | NDJ-8S | NDJ-0506W |
|---|---|---|---|
| Measurement Range | 10-100000 cP | 10-2000000 cP | - |
| Measurement Accuracy | ±2% | ±2% | - |

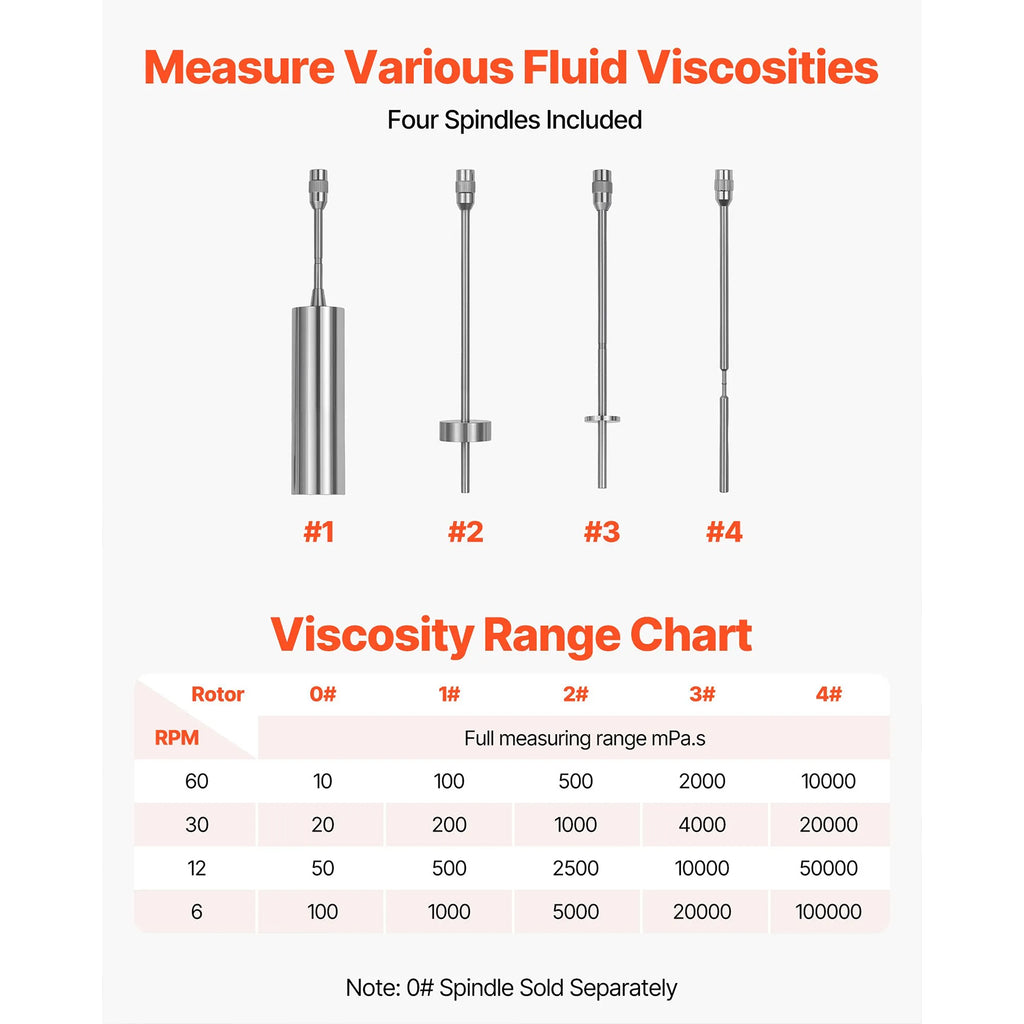

| Spindle Type | #1 #2 #3 #4 | #1 #2 #3 #4 | - |
| Spindle Speed | 6/12/30/60 rpm | 0.3/0.6/1.5/3/6/12/30/60 rpm | - |
| Spindle Material | 304 Stainless Steel | 304 Stainless Steel | - |
| RS232 Interface | Yes | Yes | - |
| Power Supply | AC100-240 V 50/60 Hz | AC100-240 V 50/60 Hz | - |
| Power | 10 W | 10 W | - |
| Display | LCD Display (Non-Touchscreen) | LCD Display (Non-Touchscreen) | - |
| Main Materials | Steel, Stainless Steel & ABS | Steel, Stainless Steel & ABS | - |
| Net Weight | 15.65 lbs / 7.10 kg | 15.43 lbs / 7.0 kg | - |
| Product Dimensions | 13.78 x 14.17 x 21.65 in / 350 x 360 x 550 mm | 13.78 x 14.17 x 21.65 in / 350 x 360 x 550 mm | - |
