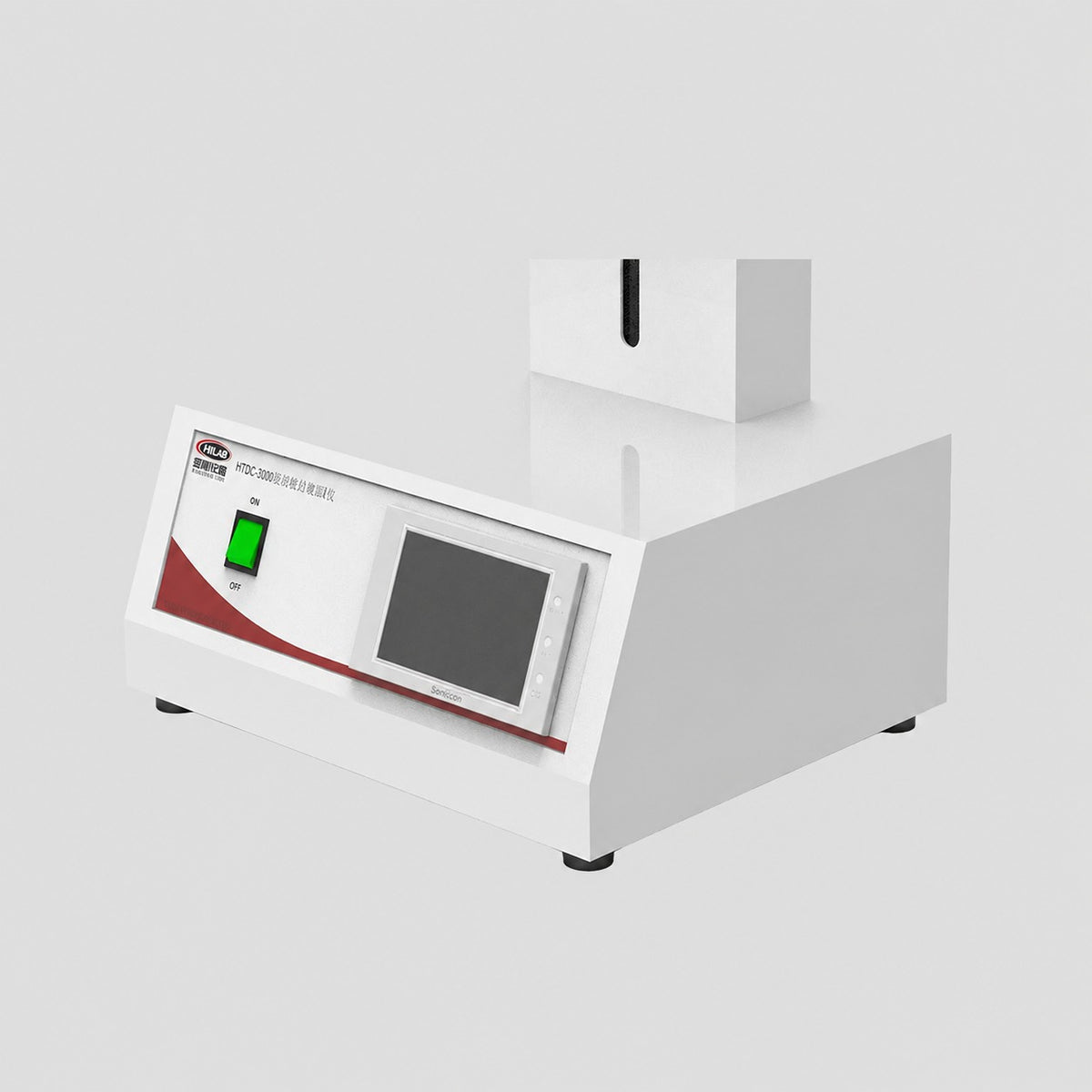

The Dip Coater ALAB-HTDC-300/300M is a laboratory dip coater.
Model Comparison
Specification
ALAB-HTDC-300
ALAB-HTDC-300M
Type
dip coater
dip coater
Voltage
220 V
220 V
Power
50
70
Core Components
PLC, Clamp, Sliding
PLC, Sliding, clamp
Dimensions
350*290*620
350mm*290mm*620mm
Weight
13 kg
13 kg
Substrate
metal
metal
Coating
dip coating
dip coating
Lift Height
0-300mm
0-300mm
Traction Speed Range
1-9999 μm/s, with a minimum resolution of 1 μm/s
1-9999 μm/s, with a minimum resolution of 1 μm/s
Position Accuracy
<0.01mm
<0.01mm
Speed Accuracy
±0.01%
±0.01%
Impregnation Time
1~3600s
1~3600s
Number Of Coating Times
1~1000 times
1~1000 times
Rotating Table Speed
1-1degree /s
1-1degree /s
Solution Type
1 type
Up to 6 types
Descent Speed Range
1-9999 μm/s, with a minimum resolution of 1 μm/s
1-9999 μm/s, with a minimum resolution of 1 μm/s
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
