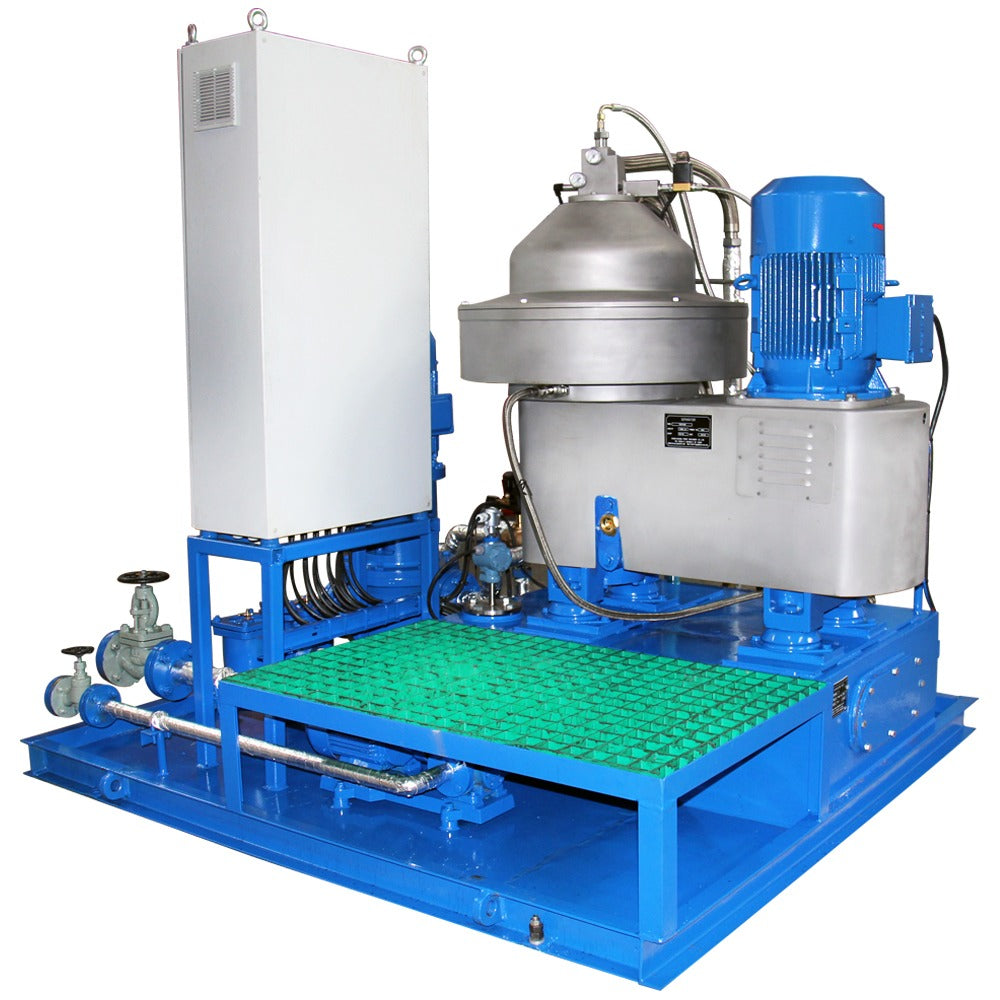

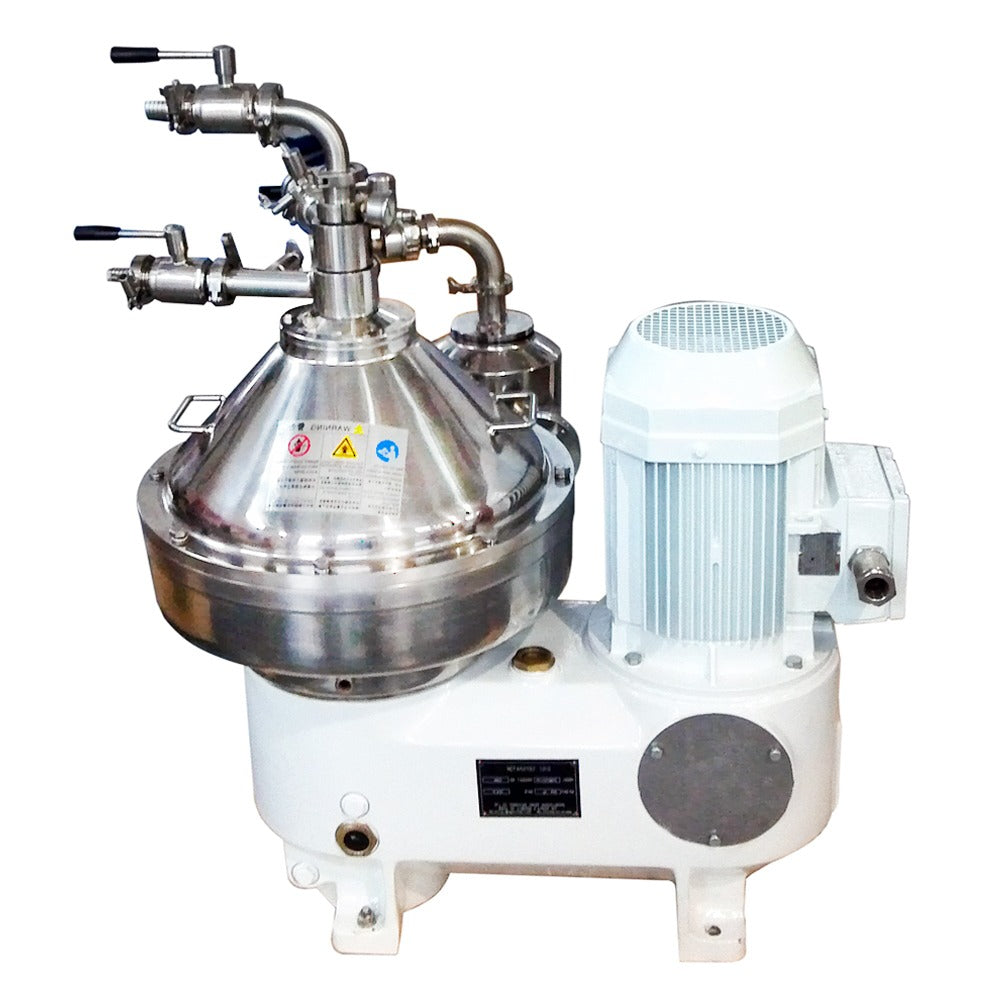

Disc Separator ALAB-PDSD14000

Heading: 3-phase Water Oil Treatment Separator.

Product Overviews: Model PDSD14000 separator is mainly used to remove water and mechanical impurities from diesel oil, lubricating oil and other mineral oil in marine diesel engine unit and land-used diesel generator unit of power stations so as to reduce wear of the engine and prolong its service life. The model is also used to separate two unsolvable liquids with different specific gravity or remove small amount of solid particle from liquid. The machine adopts automatic control, and has the advantages of high efficiency, low oil consumption, convenient operation and economic maintenance cost. The clear oil and dirty water are pumped out by centripetal pump, the sludge is discharged automatically and fully. The machine is one kind of rotary machine with high speed. After accurate dynamic balancing, it can run for long time with low vibration, safety and security. The design, product and acceptance are conformed to the standard of GB/T5745 'Marine Disc Separator'. (Some line-wraps were truncated in the page view.)

Principle&Structure: heading only; no body text shown.

Advantages: 1. Moisture sensor (No-gravity ring) technology is adopted to ensure the quality of the oil after separation. 2. Bowl with full hydraulic structure brings more thorough slag discharge, more stable and reliable performance. 3. The new type seamless belt drive (No second tensioning required) brings more reliable structure and more simplified m… (text truncated in page view) 4. High rotating speed ensure the best separation effect. 5. Our separator is with low power consumption and lightweight, which is in accordance with the requirements of the nati… (text truncated in page view)

Value analyisi (sic): 1. According to the requirements of each classification society, all modules are equipped with oil leak alarm and high temperature alarm. 2. Oil hydraulic, pneumatic control part adopts the Brand BURKERT (Germany). 3. Heater adopts brand SWEP (Germany). 4. Pressure control adopts Korean products or WIKA products. 5. Screw pump is used instead of gear pump. 6. All equipped with automatic temperature control device (Made by the RTK production in Germany or made in China). 7. The main electrical components of standard electrical control box are produced by Schneider company while PLC is produced by Siemens or Mitsubishi. 8. The complete sets referred above are all Peony's production of automatic Standard Controls and we certainly can modify the configuration list according to customers' specified requirements.

Sections also present: Photos on site; Packing & Delivery; Our Services.

Packaging: Film wrapping+Wooden case fumigated for Water Oil Treatment Separator; Port: Nanjing,Shanghai,Ningbo; Selling Units: Single item; Supply Ability: 100 sets per Month.

Specifications

• Adventage: Long time with low vibration
• Application: DO,FO,LO,Waste oil treatment
• Capacity: 14000LPH based on 0# diesel oil
• Certification: CCS ISO CE
• Equiped: Electrical control box
• Operation: Continuous
• Shape: module
• Sludge discharge: Automatically and fully
• Speed: High
• Type: Vertical
• core components: PLC, Bearing, Motor, Pressure Vessel, Pump
• dimension(l*w*h): 1200mm*810mm*1225mm
• machinery test report: Provided
• place of origin: Jiangsu, China
• power(w): 11kw-15kw
• product type: Water Oil Treatment Separator
• video outgoing-inspection: Provided
• voltage: 220,380,440,460V
• warranty: 12months
