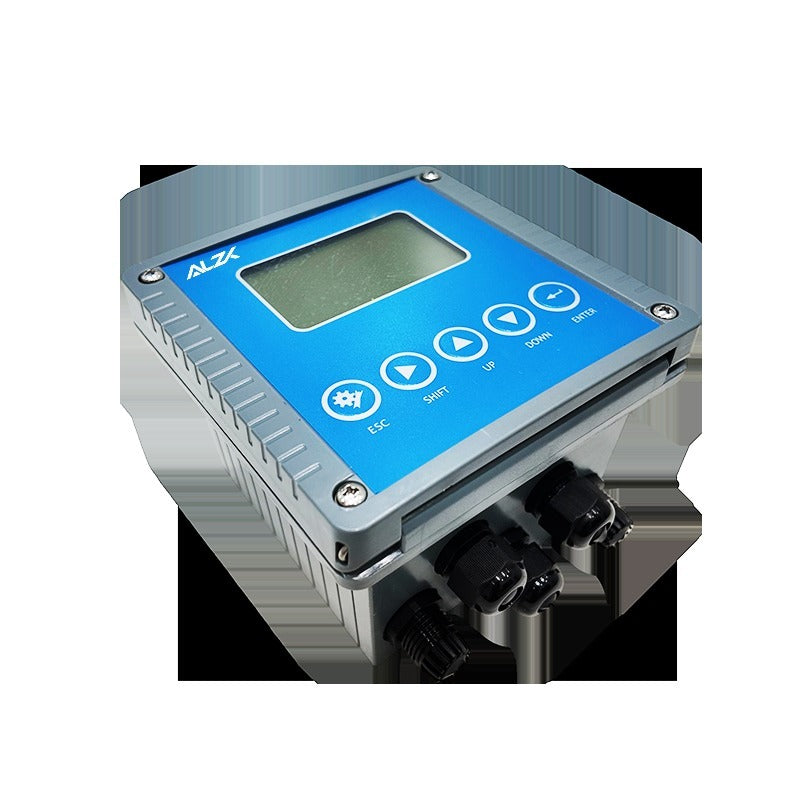

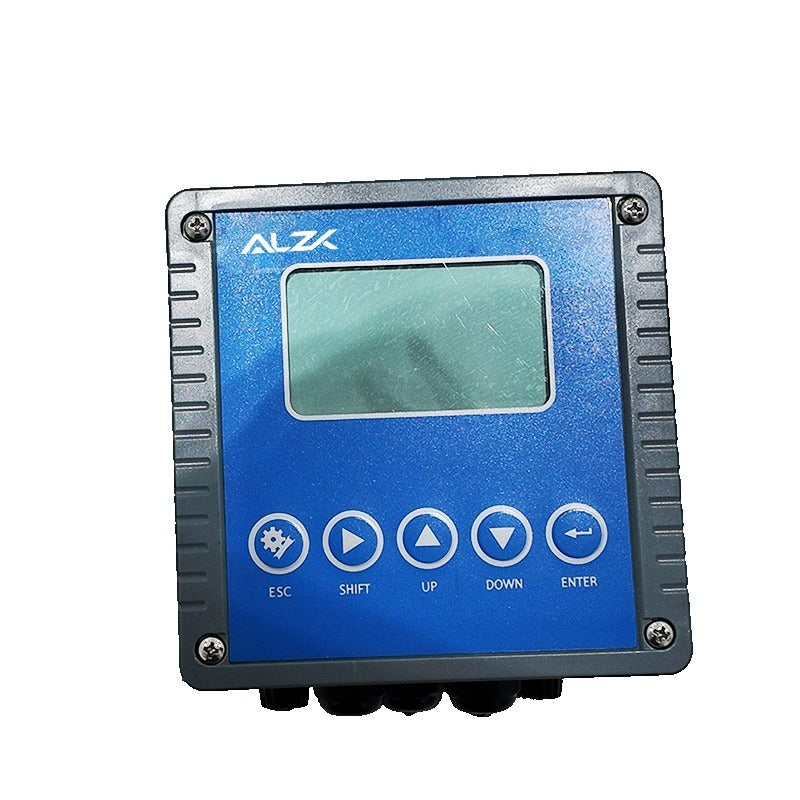

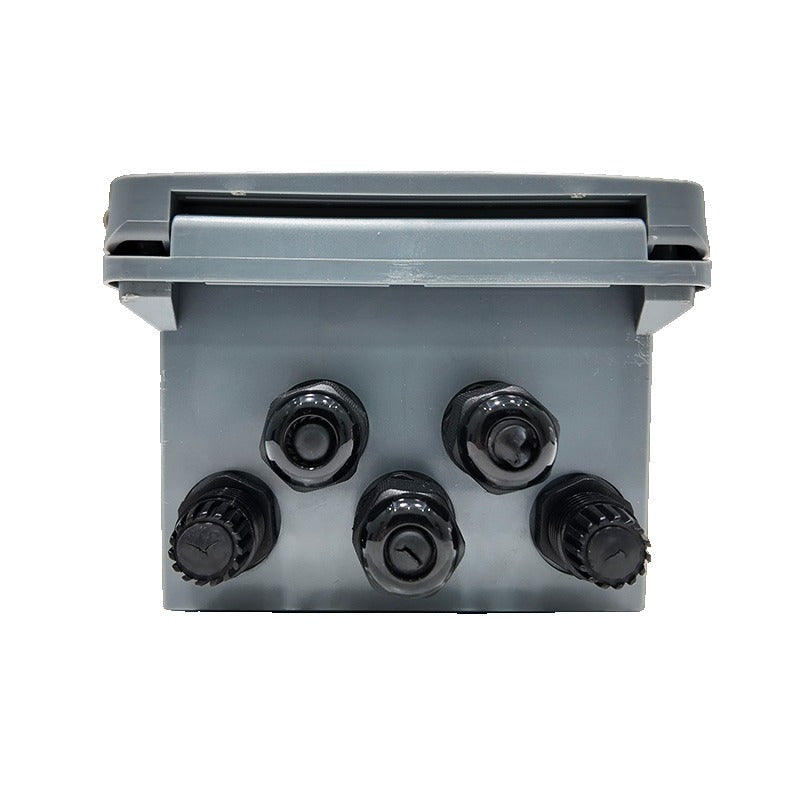

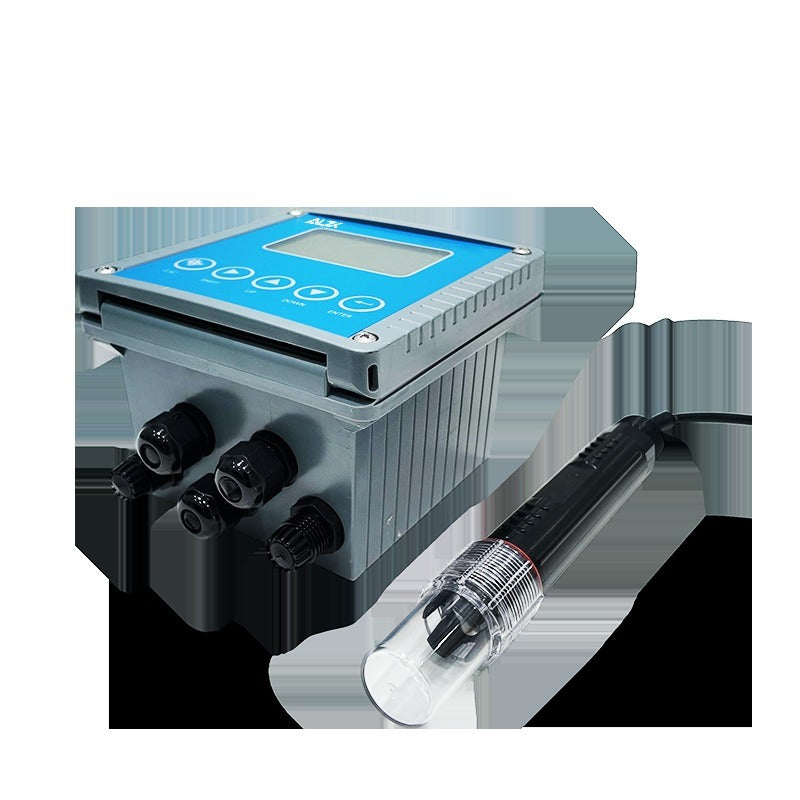

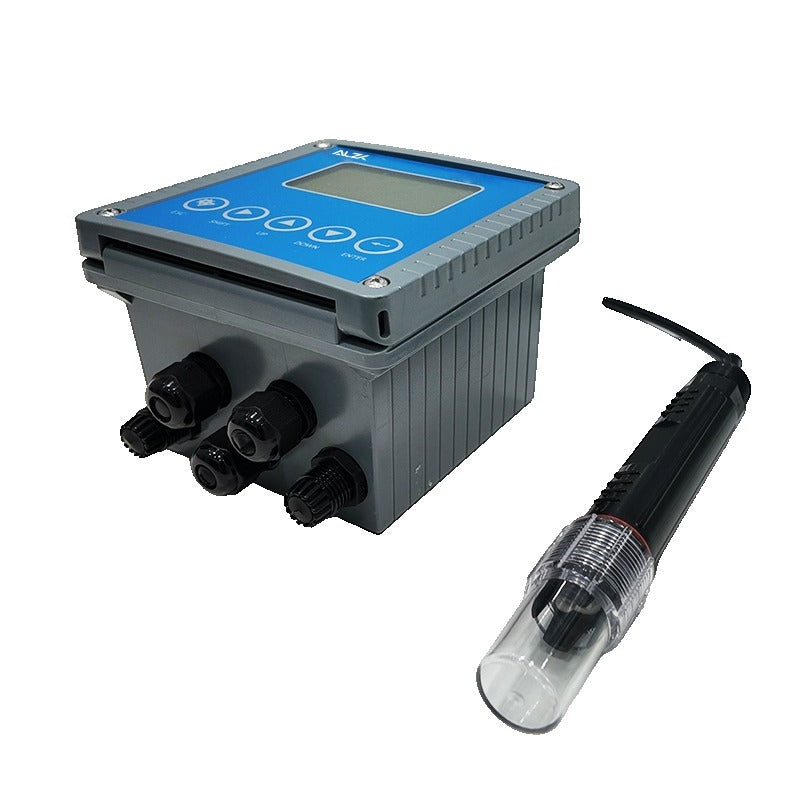

Dissolved Oxygen Controller ALAB-DOG-2082YS-AL

The Dissolved Oxygen Controller ALAB-DOG-2082YS-AL is a laboratory dissolved oxygen controller.

Specifications

• Temperature Range: 0~99C
• Weight: 0.9kg
• Conductivity Range: NO
• Detectable Items: Dissolved Oxygen
• Ph Range: NO
• Tds Range: NO
• Model Number: DOG-2082YS-AL
• Logo/Graphic Design: UV Printing
• Housing Material: ABS Plastic
• Power Supply: 90 to 260V AC, 50/60Hz
• Output Mode: Two 4 to 20mA outputs (Dissolved Oxygen, Temperature)
• Relay: 5A/250V AC, 5A/30V DC
• Communication Mode: Modbus RTU
• Measuring Range: 0~20.00 mg/L / 0~200.00% / -10.0~100.0C
• Measurement Accuracy: +/-1%FS+/-0.5C
• Ingress Protection Rating: IP65
• Packaging: single item, 14.4X14.4X10.4 cm, 1.0 kg.
