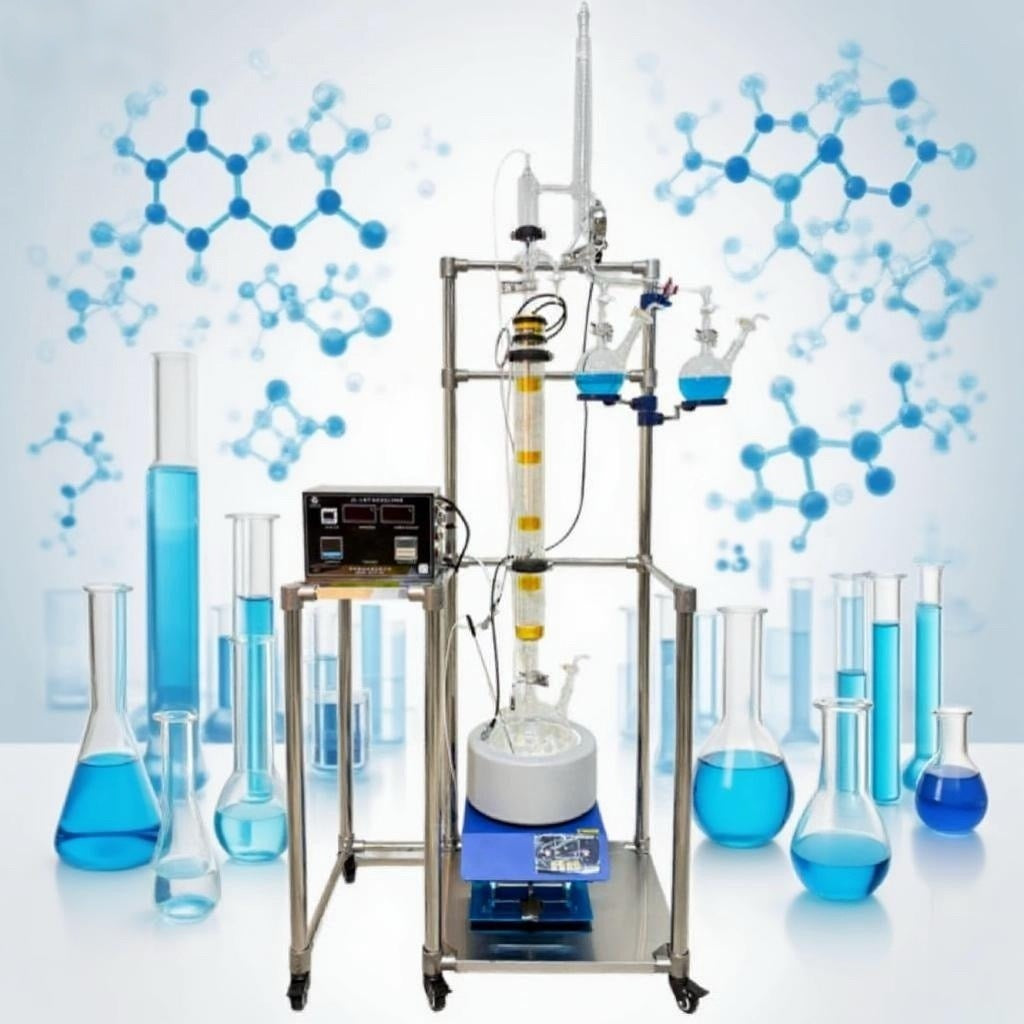

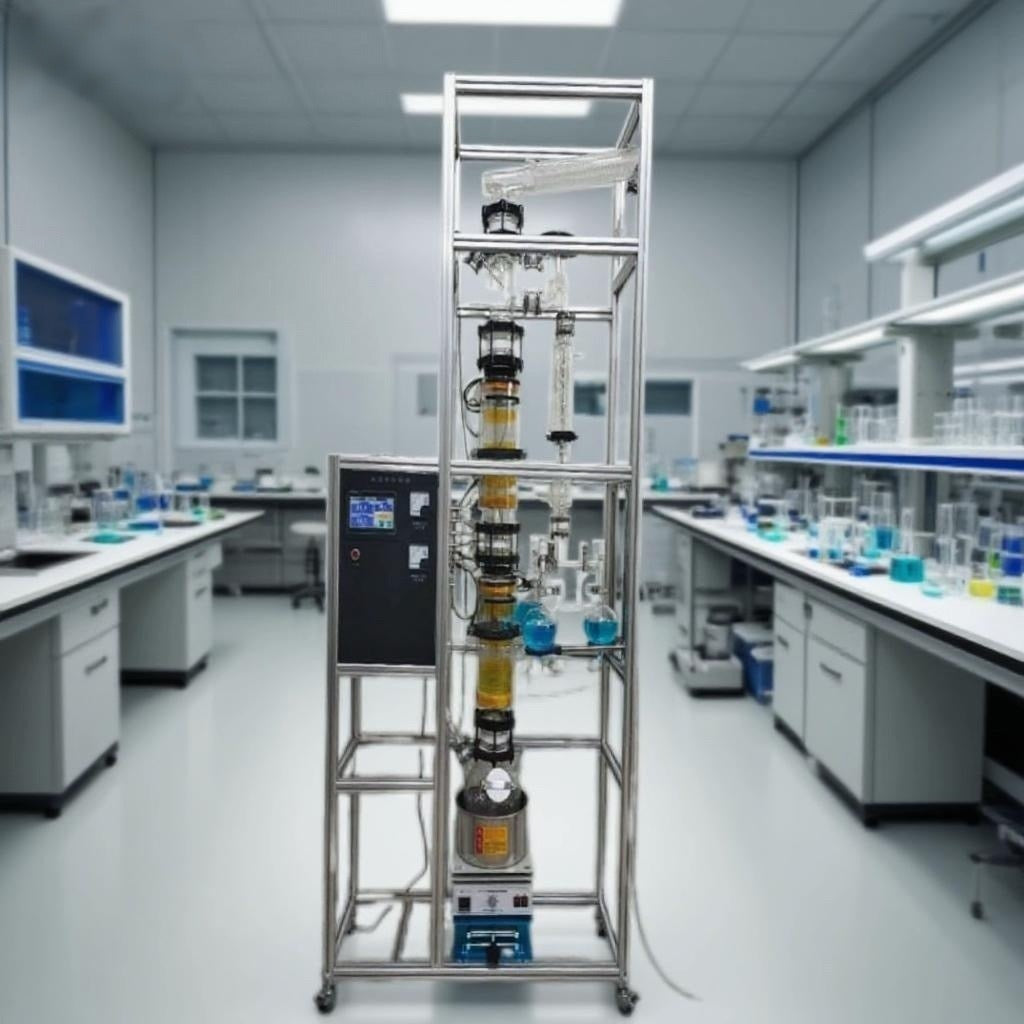

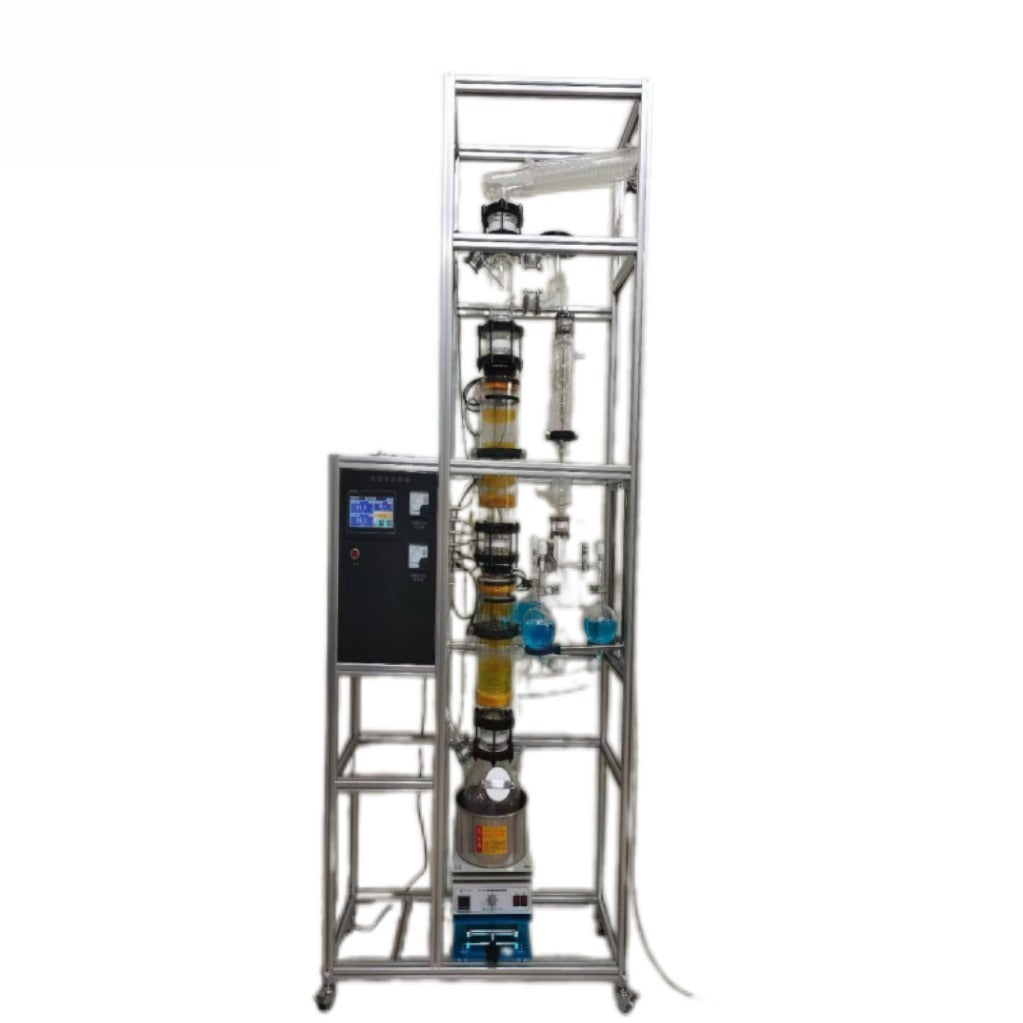

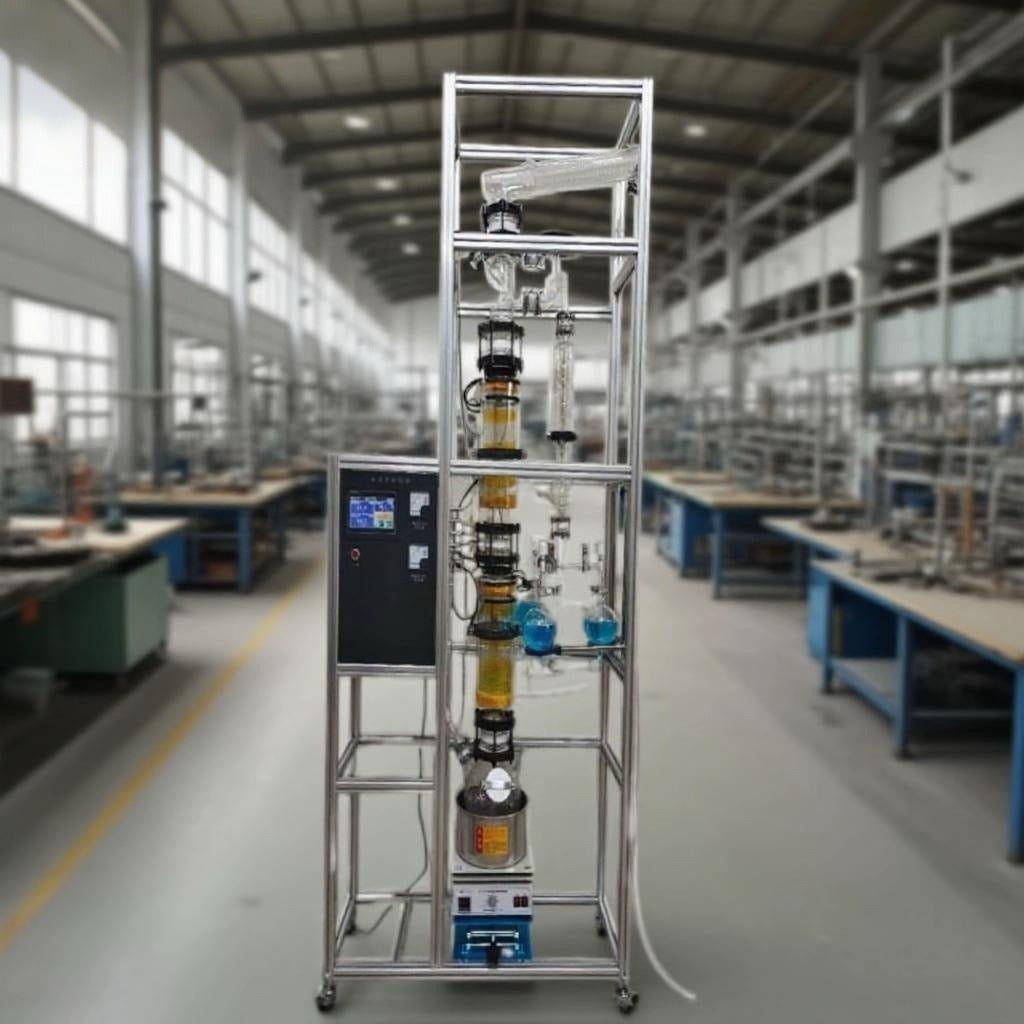

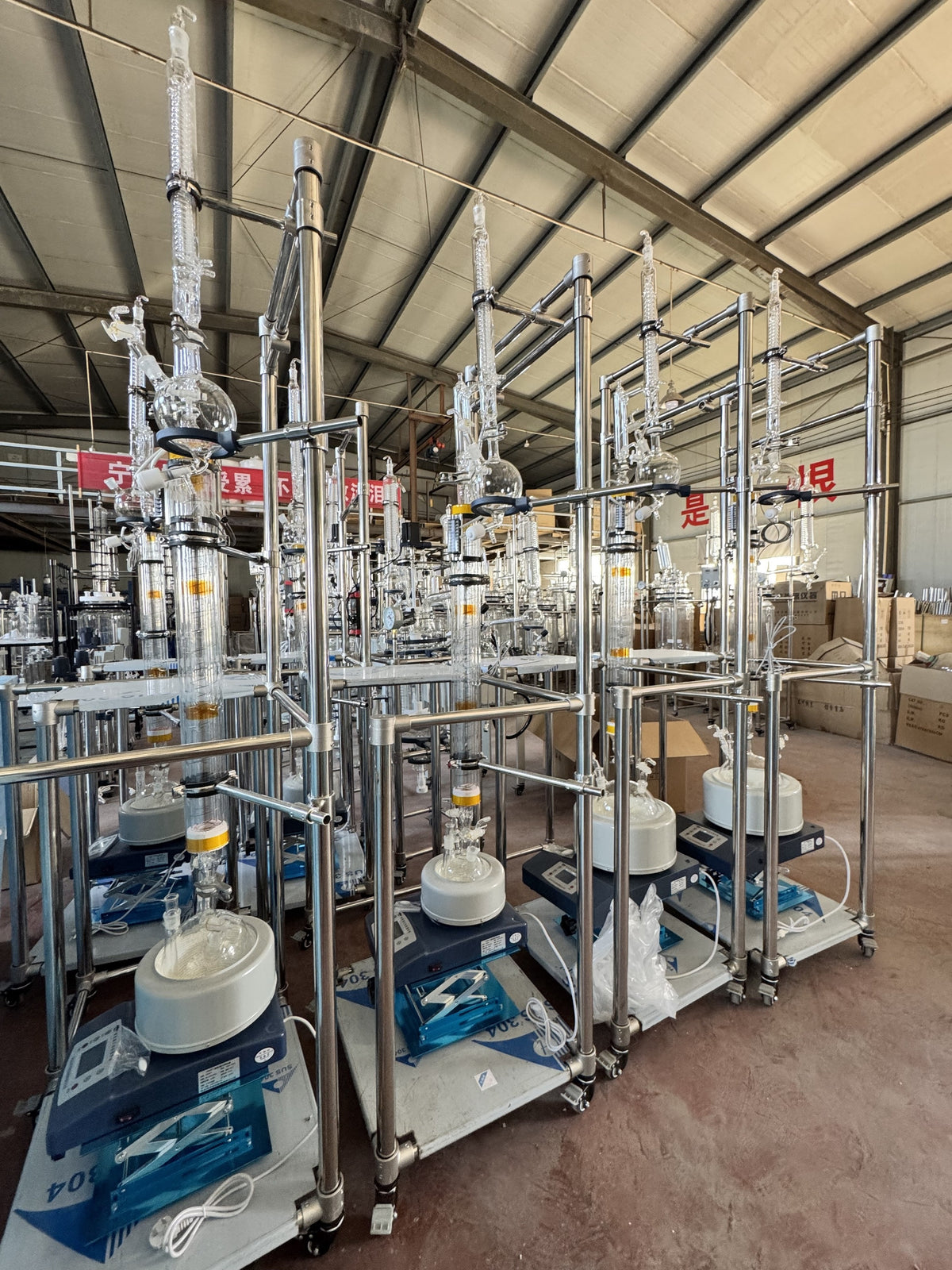

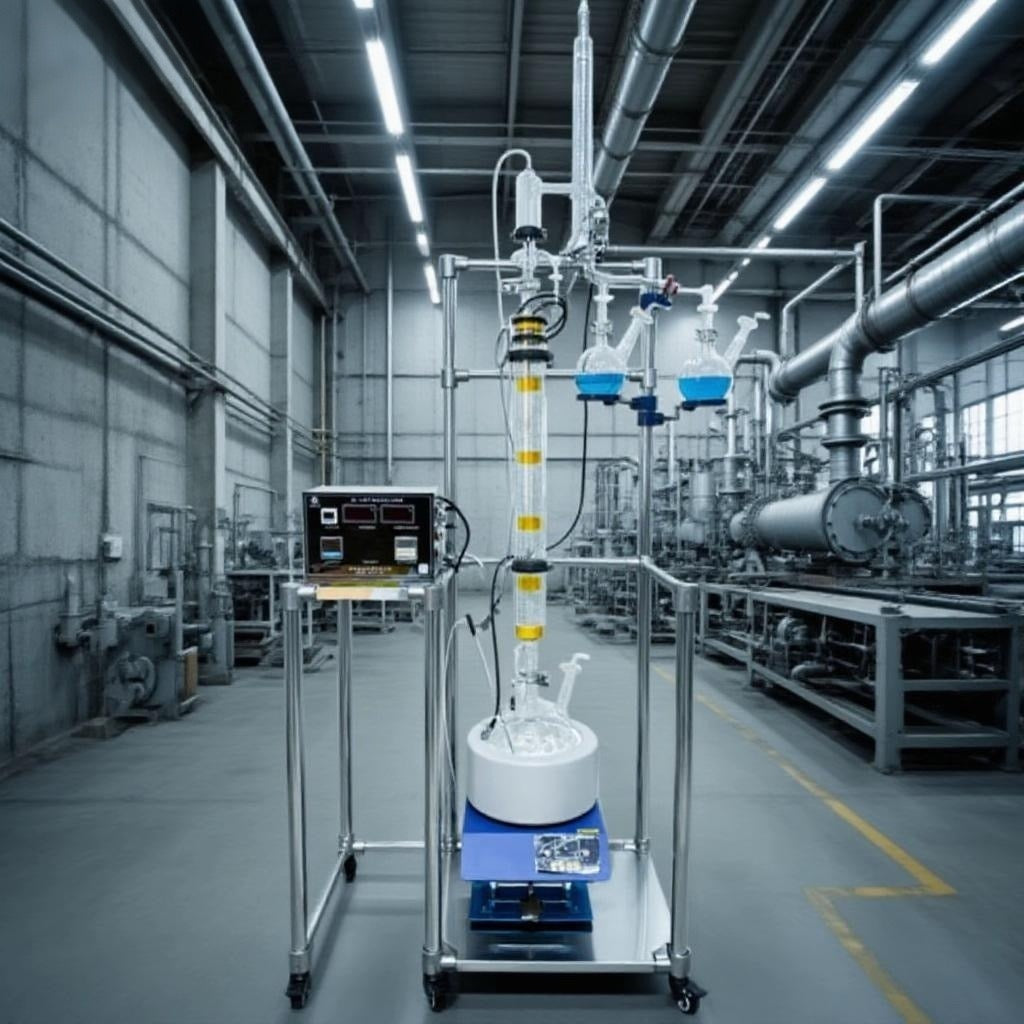

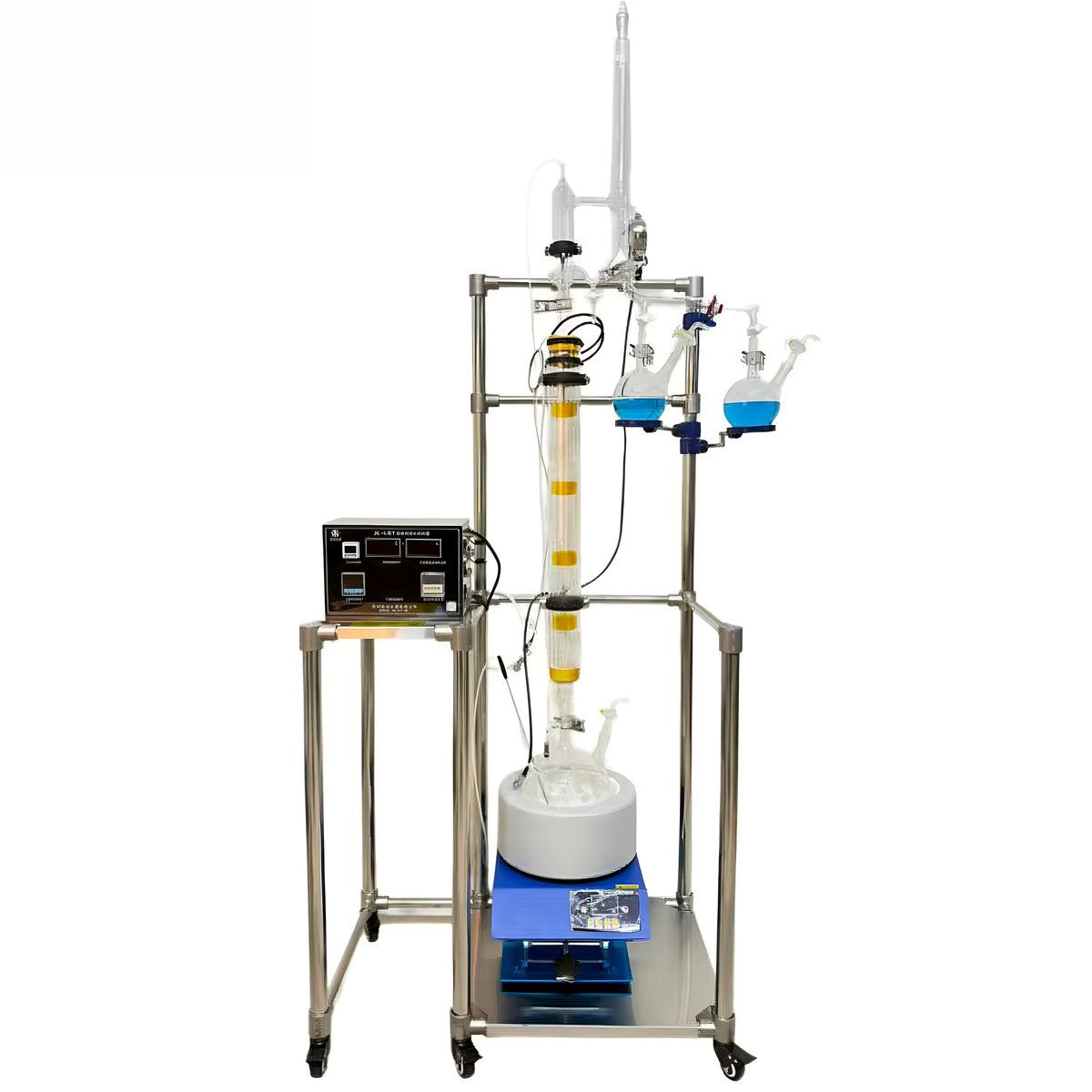

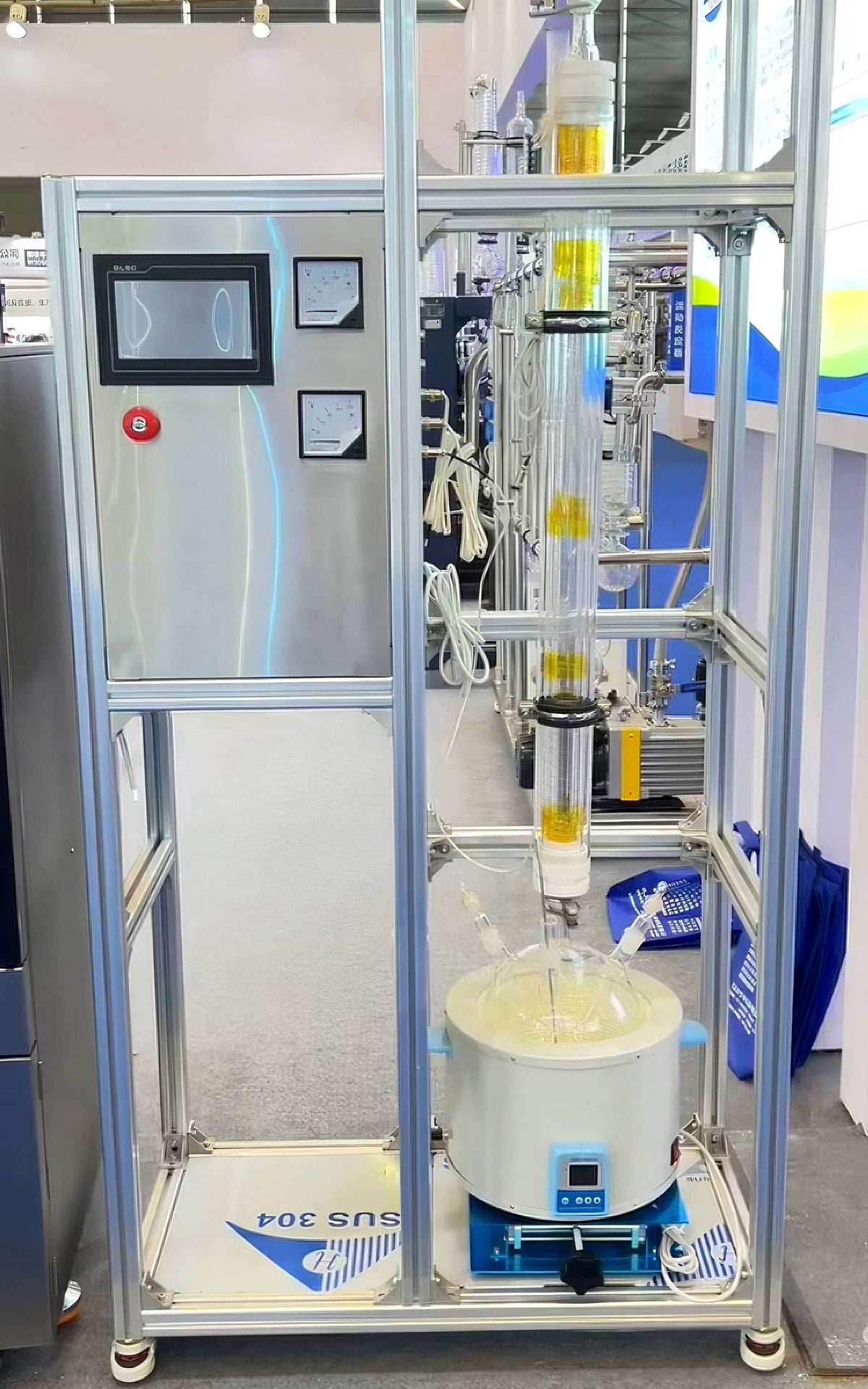

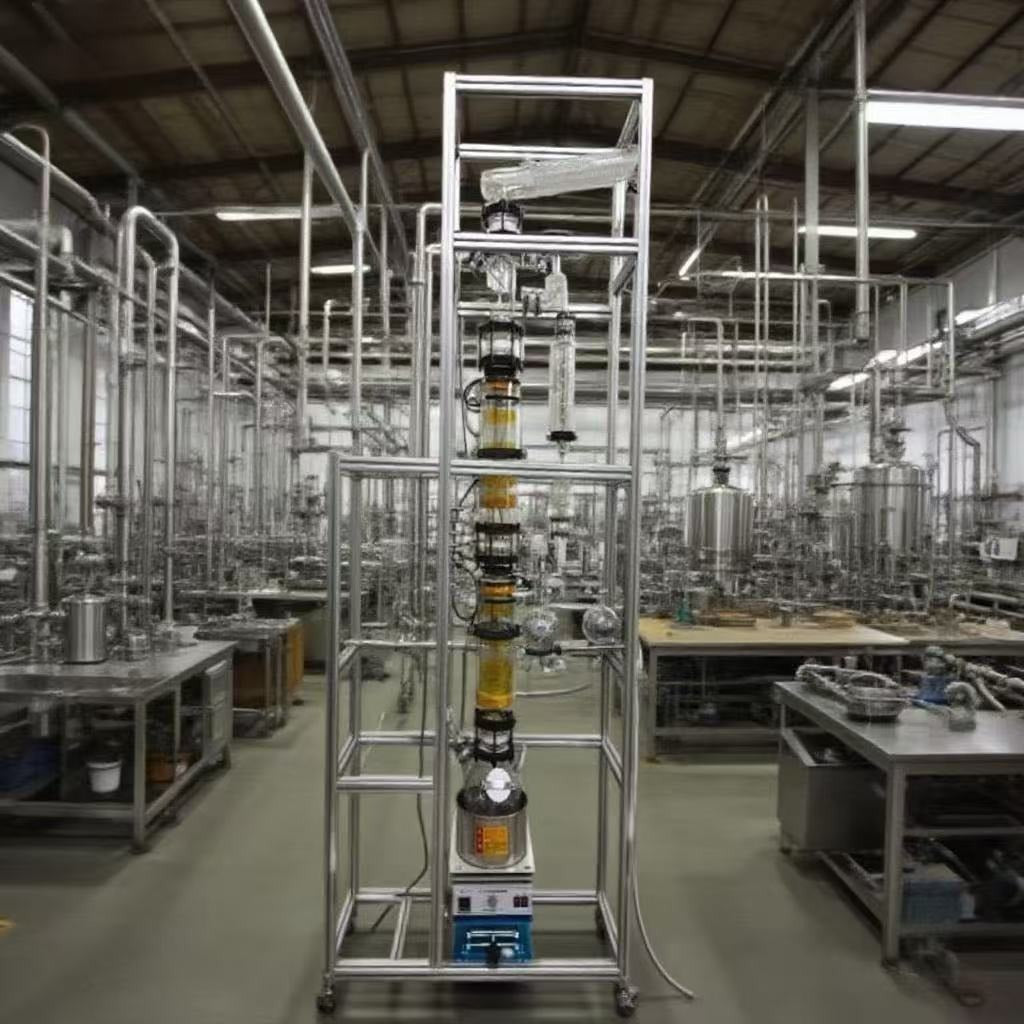

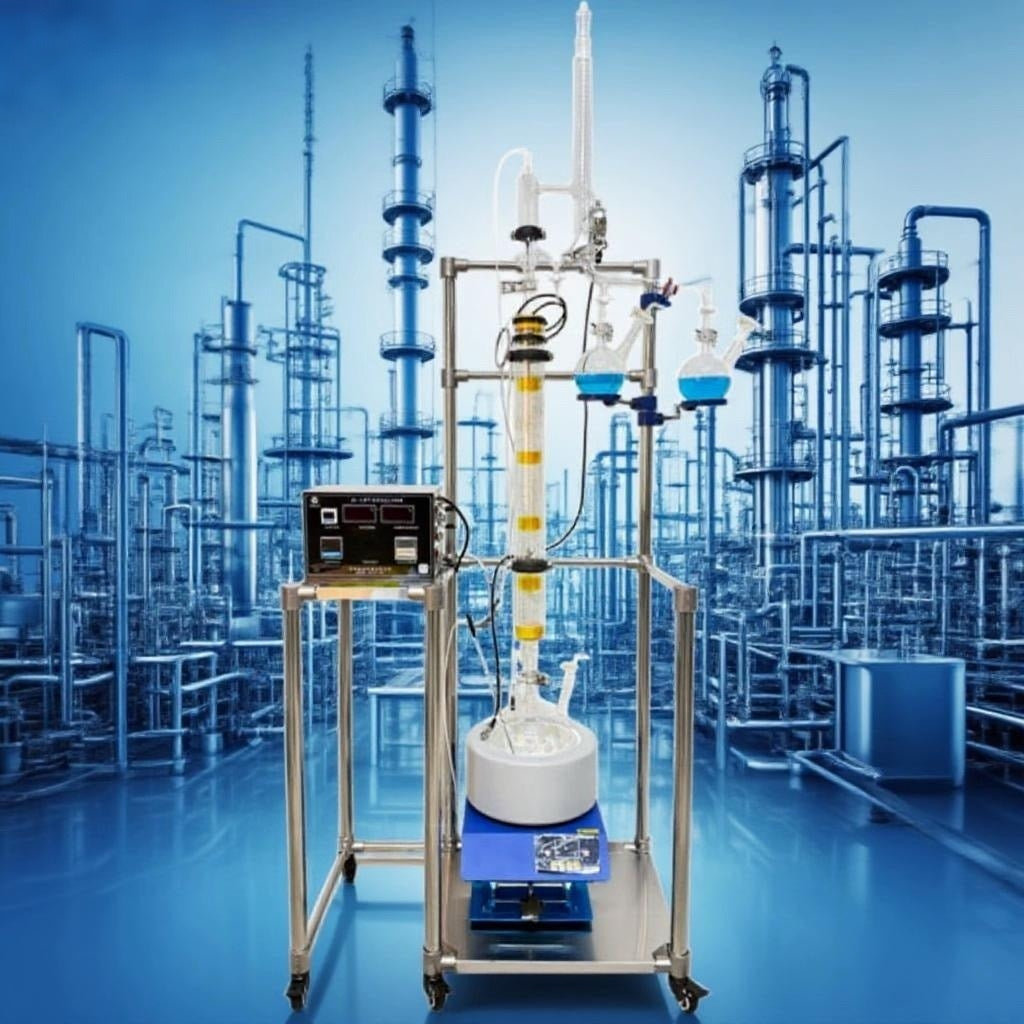

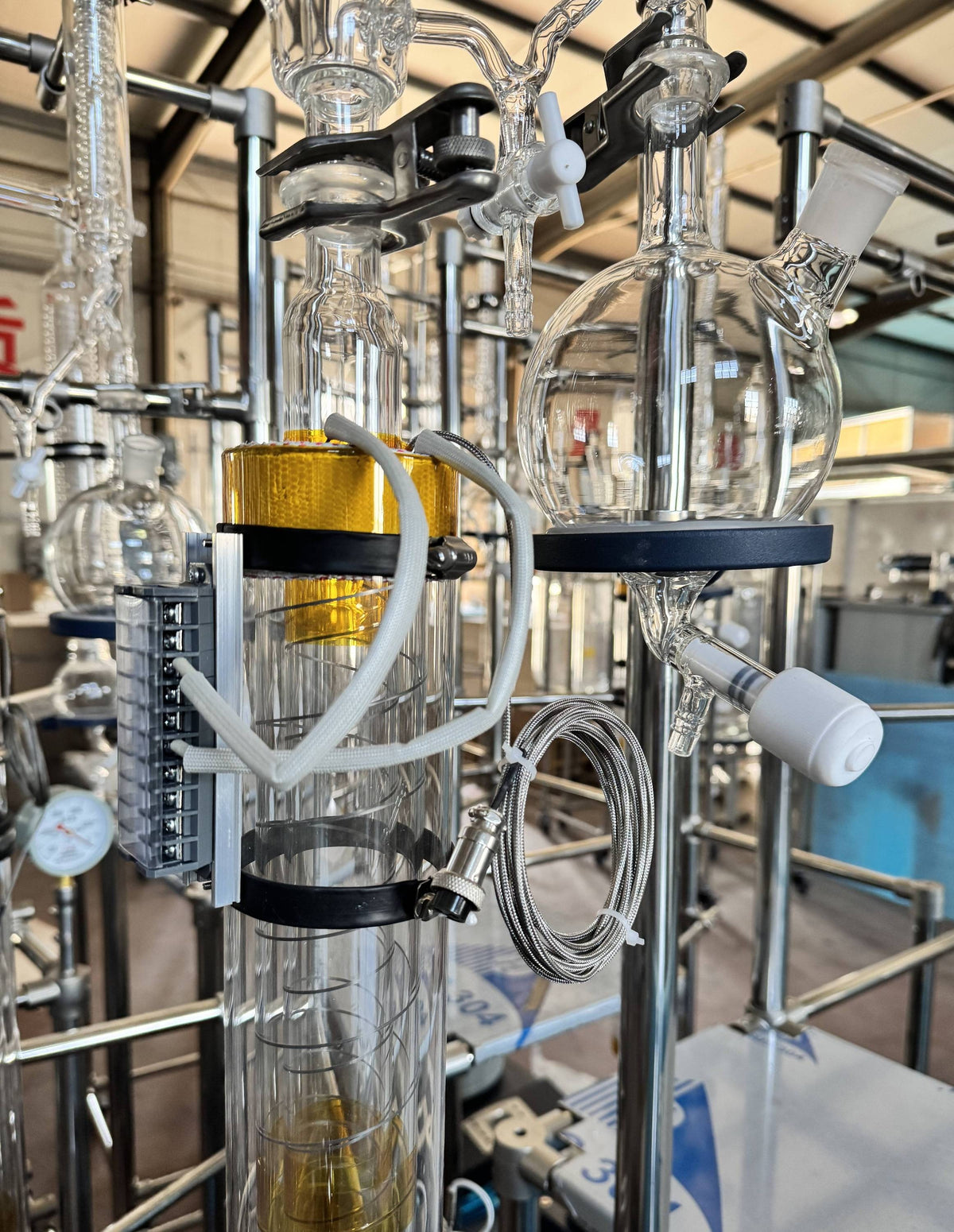

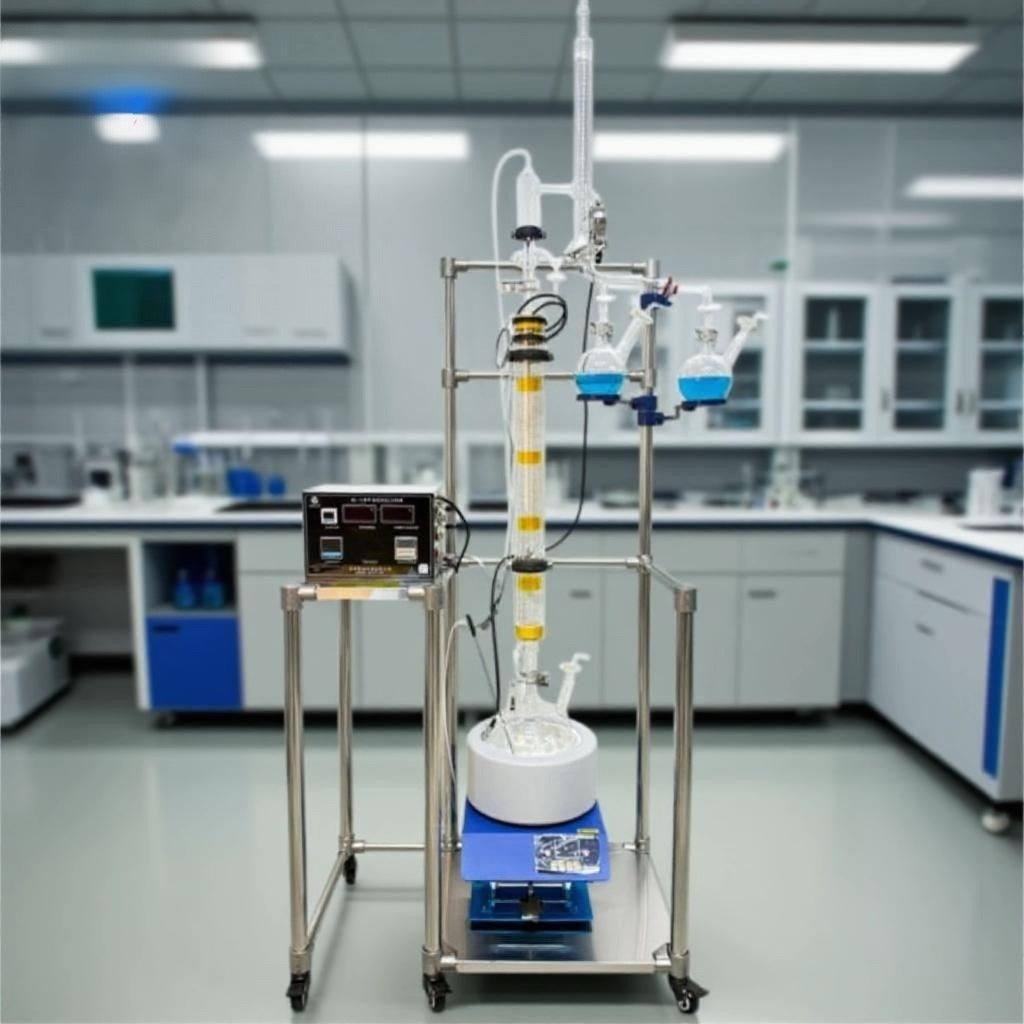

The YJF series are vacuum distillation kettles (short-range molecular distillation systems) in high borosilicate glass GG-17 with a stainless steel 304/316L frame, for solvent purification and essential oil extraction. Verified specifications from the model line description table: fraction receiving bottles from 500 ml to 2L, distillation column heating power of 3000–5000W, magnetic stirring at 20–1200 rpm and an operating temperature from room temperature to 250°C.
Model Comparison
Model
Fraction Receiving Bottle
Distillation Column Section
Column Heating Power
Reactor Heating Mantle
Stirring Power
Stirring Speed
Operating Temperature
Glass Material
ALAB-YJF-1L
500 ml
φ25 × 700 mm
3000W
550W
40W brushless DC motor
20–1200 rpm
Room temperature to 250°C
High Borosilicate GG-17
ALAB-YJF-2L
1L
φ25 × 700 mm
3000W
650W
40W brushless DC motor
20–1200 rpm
Room temperature to 250°C
High Borosilicate GG-17
ALAB-YJF-3L
2L
φ30 × 800 mm
5000W
750W
40W brushless DC motor
20–1200 rpm
Room temperature to 250°C
High Borosilicate GG-17
ALAB-YJF-5L
2L
φ30 × 800 mm
5000W
1100W
40W brushless DC motor
20–1200 rpm
Room temperature to 250°C
High Borosilicate GG-17
ALAB-YJF-10L
-
-
-
-
40W brushless DC motor
20–1200 rpm
Room temperature to 250°C
High Borosilicate GG-17
ALAB-YJF-20L
-
-
-
-
40W brushless DC motor
20–1200 rpm
Room temperature to 250°C
High Borosilicate GG-17
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
