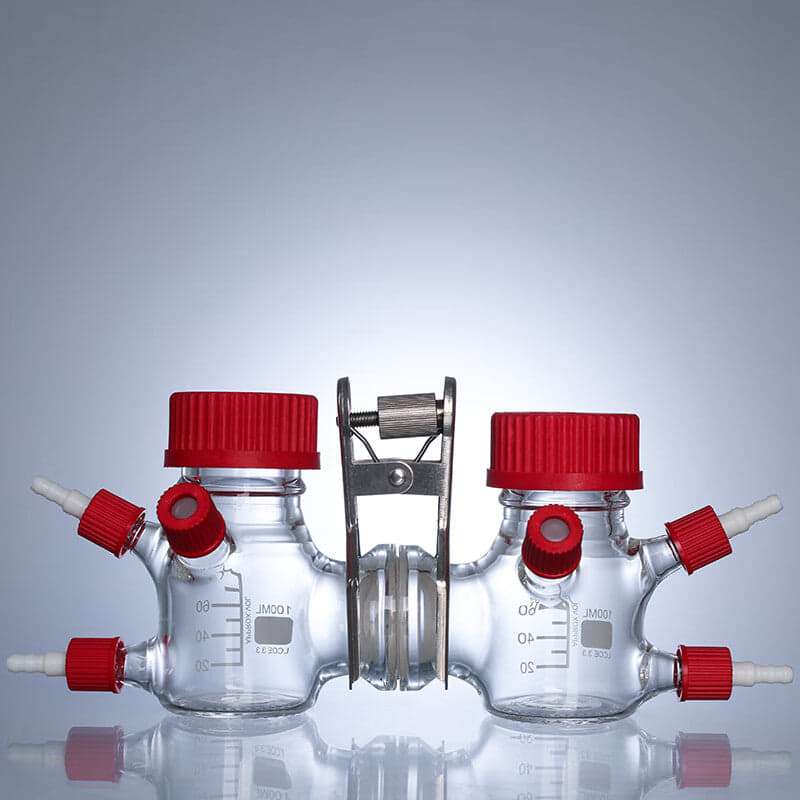

Dual chamber H-cell membrane reactor with 6 in/outlets for microbial fuel cell (MFC), capacity 100 to 1.000 ml

Dual chamber H-cell membrane reactor with 6 in/outlets for microbial fuel cell (MFC), capacity 100 to 1.000 ml

100 ml - 100 ml
$237.57
$237.57
Skip to product information
Dual chamber H-cell membrane reactor with 6 in/outlets for microbial fuel cell (MFC), capacity 100 to 1.000 ml
  • Dual chamber H-cell membrane reactor with 6 in/outlets for microbial fuel cell (MFC), capacity 100 to 1.000 ml
  • Dual chamber H-cell membrane reactor with 6 in/outlets for microbial fuel cell (MFC), capacity 100 to 1.000 ml
Dual chamber H-cell membrane reactor with 6 in/outlets for microbial fuel cell (MFC), capacity 100 to 1.000 ml

Dual chamber H-cell membrane reactor with 6 in/outlets for microbial fuel cell (MFC), capacity 100 to 1.000 ml

$237.57
$237.57
Capacity
  1. Made of Borosilicate glass 3.3.
  2. with 2 chambers
  3. with flange
  4. with graduation
  5. with 6 removable hose connectors
  6. with 2 O-rings
  7. with 2 caps
  8. with 1 metal flange clamp
Volumes of a chamber in ml Chamber Size (Diameter x Height in mm) Size of removable hose connectors Size of? screw cap inner Diameter of Membrane channel in mm
100ml-100ml 56x103 mm 6x 8mm GL45 34mm
250ml–250ml 70x140 mm 6x 8mm GL45 34mm
500ml-500ml 88x182 mm 6x 8mm GL45 34mm
1000 ml – 1000 ml 98x227 mm 6x8mm GL45 34mm
