The Dual Chamber H-Cell Membrane Sealed Electrochemical Reactor, with a capacity range of 30 to 500 ml, is designed for advanced electrochemical experiments and research. This comprehensive set includes all necessary components for a secure and efficient setup, making it ideal for precise electrochemical studies. Please note that electrodes are sold separately.

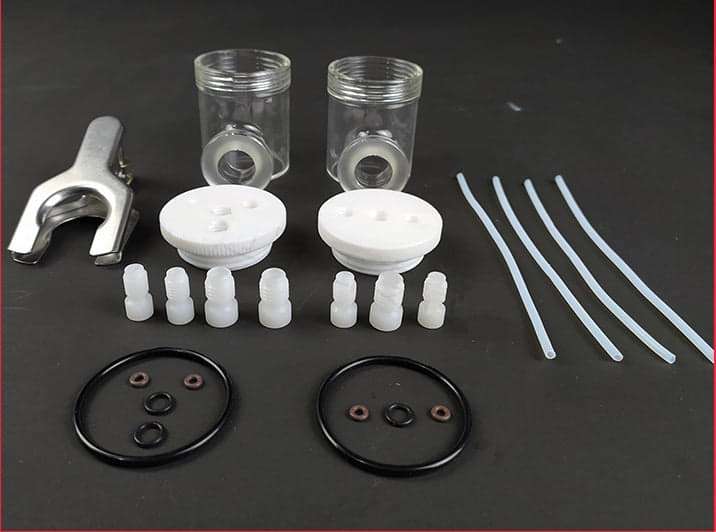

Key Features:

  • Material:
    • Reactor: Made of Borosilicate Glass 3.3
    • Lids: PTFE
  • Capacity: Available in volumes from 30 ml to 500 ml
  • Design:
    • Dual chambers for separate reactions
    • Membrane-sealed for enhanced accuracy and reliability
    • Includes 7 sealing screws (3 for electrode holes, 4 for gas holes)
    • 9 O-Ring sealings (2 for chambers, 3 for electrode holes, 4 for gas holes)
    • Stainless steel clamp for secure fastening
    • 4 gas inlet tubes for controlled gas flow

Usage:

  • Ideal for various electrochemical experiments and research
  • Suitable for both academic and industrial laboratory settings

Attention:

  • Handle with care to avoid damage to glass components.
  • Ensure all seals and screws are properly secured before use.
  • Regularly inspect for wear and replace any damaged parts.
  • Electrodes need to be purchased separately.
Volumes of a chamber in ml Chamber Size (Diameter x Height in mm) Electrodes Holes (Quantity x Diameter in mm) Gas Holes (Quantity x Diameter in mm) Diameter of Membrane channel in mm
30ml – 30ml   40×35 mm 3×6.2 mm 4 x3.1 mm 15 mm
50ml-50ml   40×45 mm 3×6.2 mm 4 x3.1 mm 15 mm
100ml-100ml  50x60mm 3×6.2 mm 4 x3.1 mm 15 mm
150ml-150ml  60×62 mm 3×6.2 mm 4 x3.1 mm 15 mm
200ml-200ml 60x80mm 3×6.2 mm 4 x3.1 mm 15 mm
250ml-250ml 70×74 mm 3×6.2 mm 4 x3.1 mm 15 mm
300ml-300ml 70x88mm 3×6.2 mm 4 x3.1 mm 15 mm
500ml-500ml  90×90 mm 3×6.2 mm 4 x3.1 mm 15 mm
