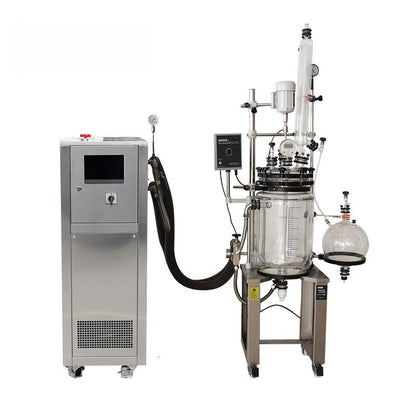

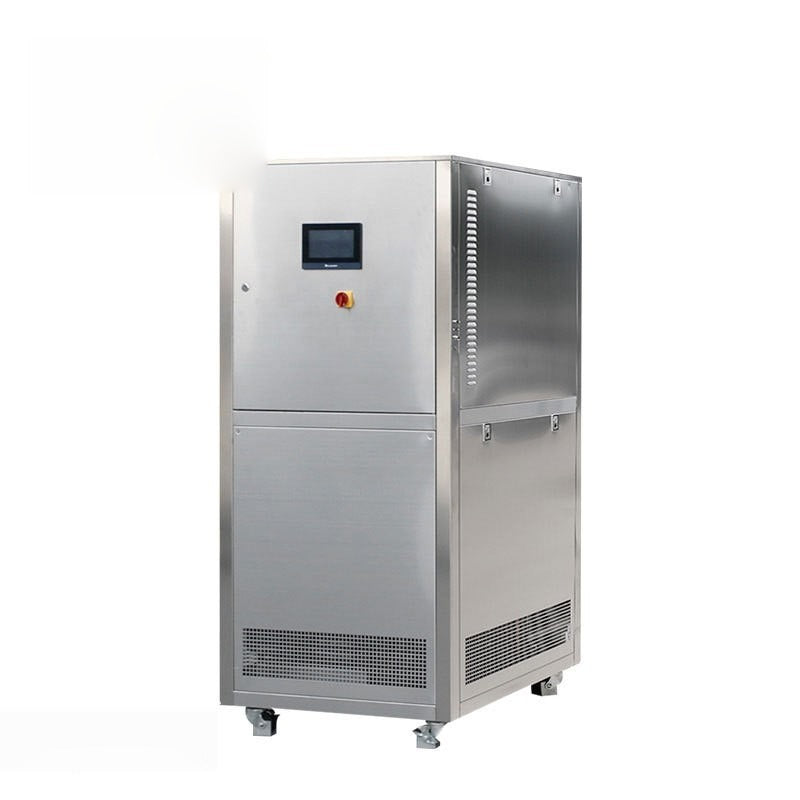

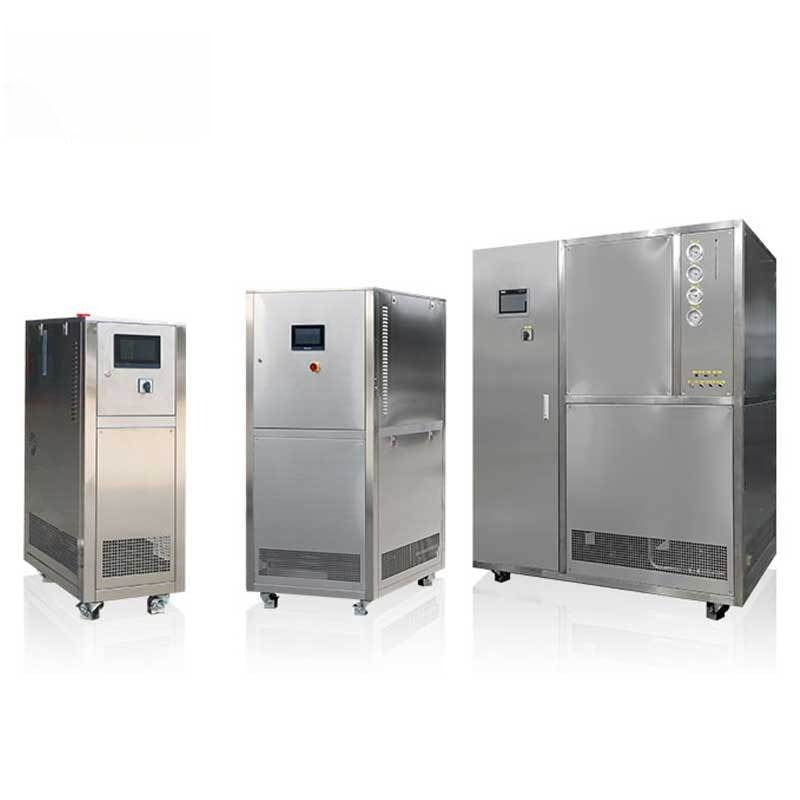

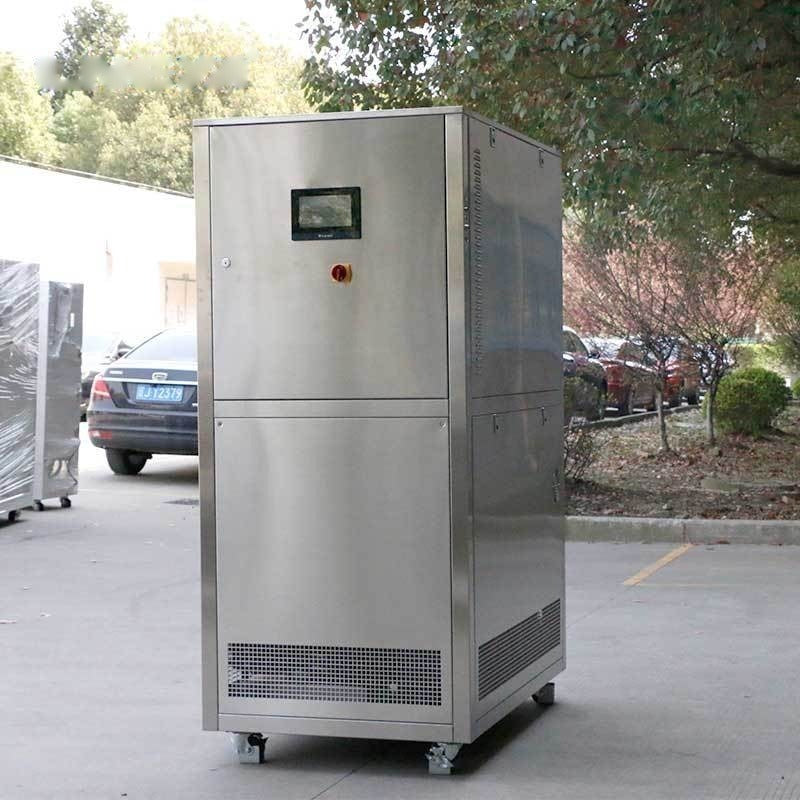

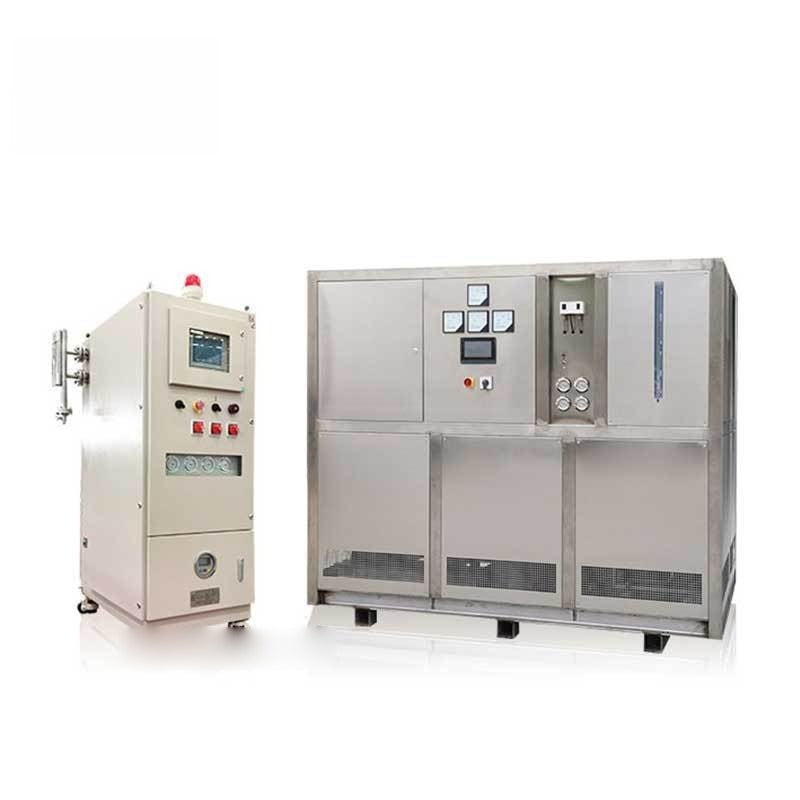

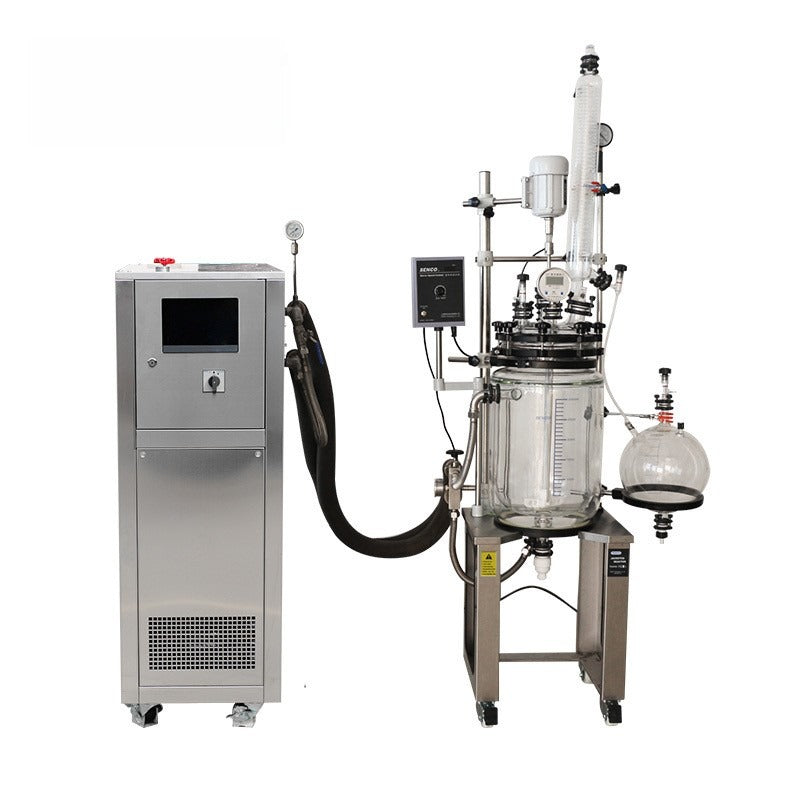

A dynamic temperature control system series combining refrigeration and heating circulation for reactors and process equipment over a -60~250 °C range (optional range -120~350 °C). Nine models share one family specification set; select the model by its capacity designation.
Temperature Range: -60~250 °C (optional: -120~350 °C)
Heating Power: 2.5~60 kW
Cooling Capacity: 0.25~11 kW at -55 °C (model-dependent)
Circulation Pump: 20~250 L/min, 2~2.5 bar
Temperature Accuracy: ±0.5 °C / ±1 °C
Control System: SIEMENS S7 PLC
Operation Panel: 7-inch color touch screen, temperature curve + Excel data output
Compressor: Tecumseh closed / Dorin semi-closed
Evaporator: DANFOSS/KAORI plate heat exchanger
Expansion Valve: Emerson/Danfoss
Refrigerant: R-404A/R23/R125 mixture (optional)
Power: 5~95 kW at 380V 50Hz
Dimensions: 45x65x120 ~ 205x145x205 cm
Weight: 205~1580 kg
Model Comparison
| Model |
SKU |
Temperature Range |
| ALAB-SUNDI-625 |
ALAB-SUNDI-625 |
-60~250 °C |
| ALAB-SUNDI-635 |
ALAB-SUNDI-635 |
-60~250 °C |
| ALAB-SUNDI-655 |
ALAB-SUNDI-655 |
-60~250 °C |
| ALAB-SUNDI-675 |
ALAB-SUNDI-675 |
-60~250 °C |
| ALAB-SUNDI-6A10 |
ALAB-SUNDI-6A10 |
-60~250 °C |
| ALAB-SUNDI-6A15 |
ALAB-SUNDI-6A15 |
-60~250 °C |
| ALAB-SUNDI-6A25 |
ALAB-SUNDI-6A25 |
-60~250 °C |
| ALAB-SUNDI-6A38 |
ALAB-SUNDI-6A38 |
-60~250 °C |
| ALAB-SUNDI-6A60 |
ALAB-SUNDI-6A60 |
-60~250 °C |
