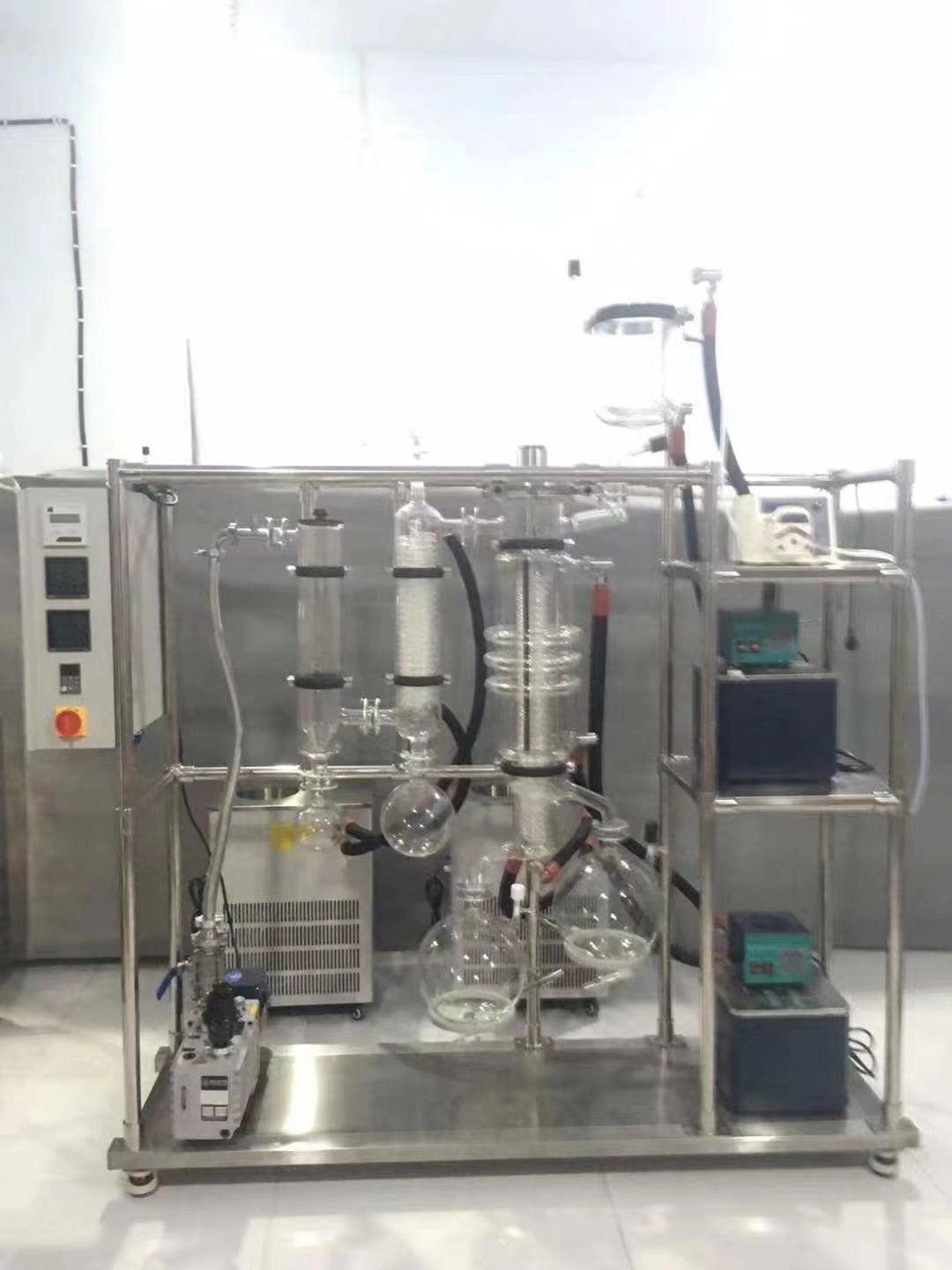

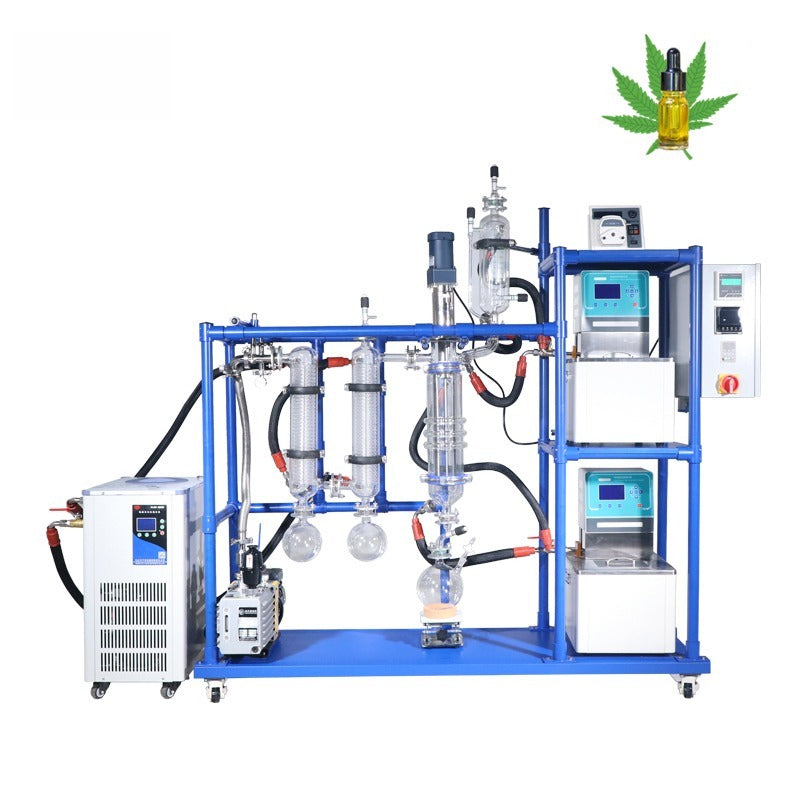

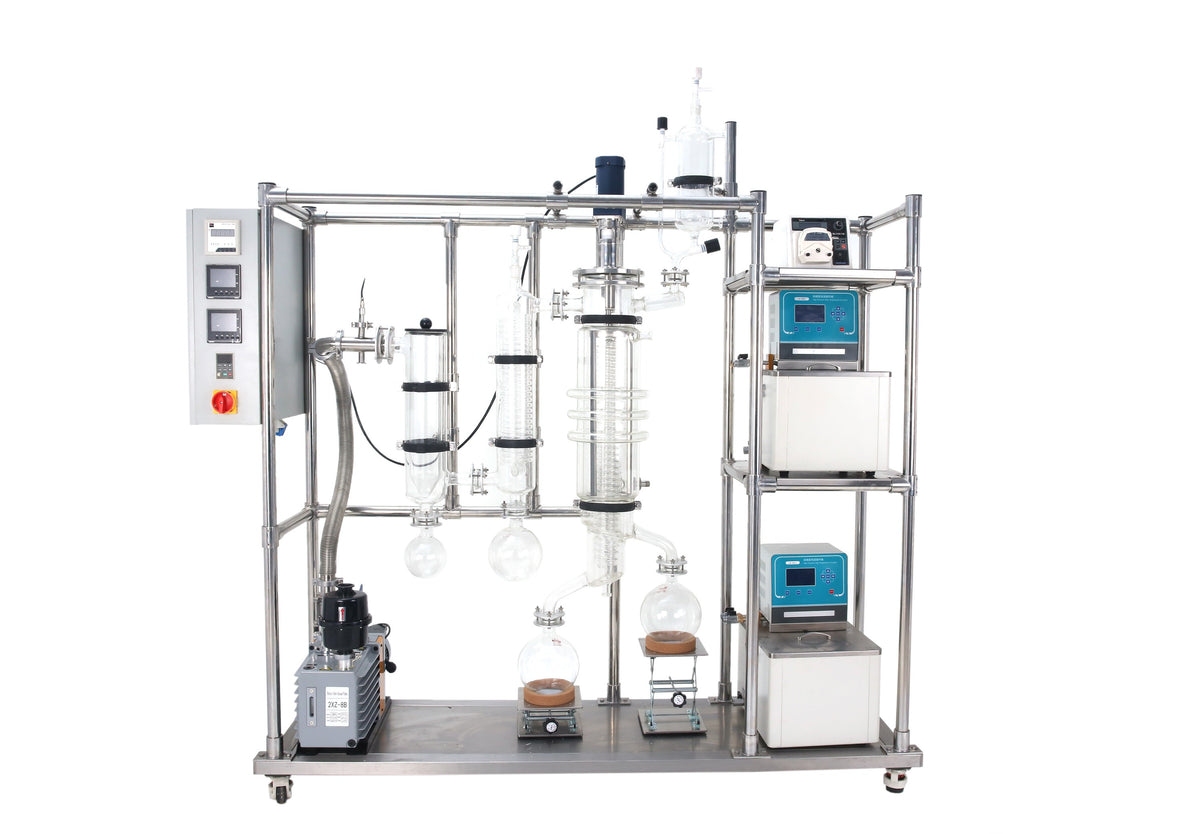

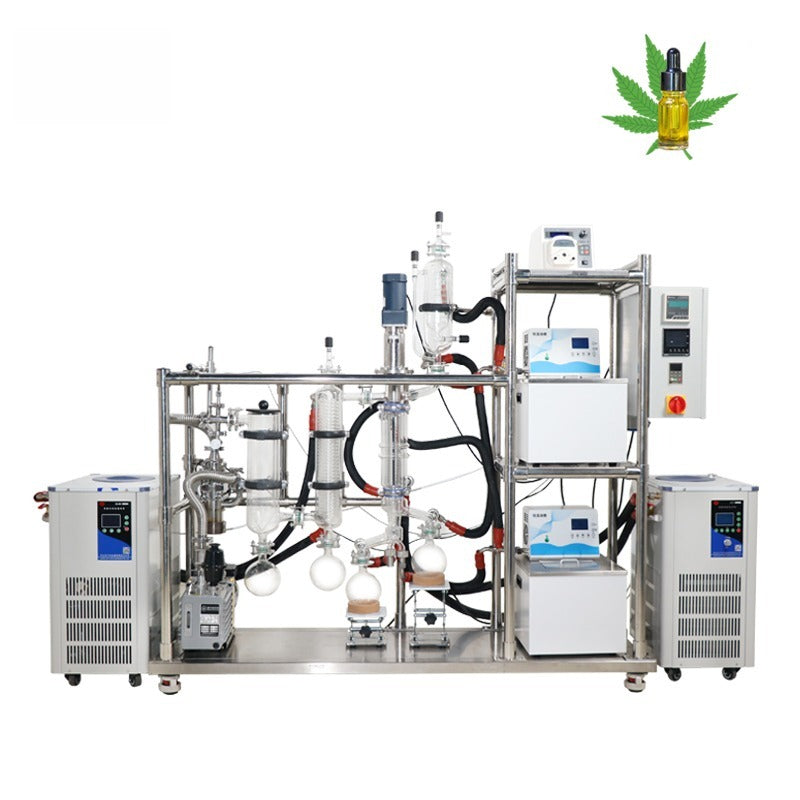

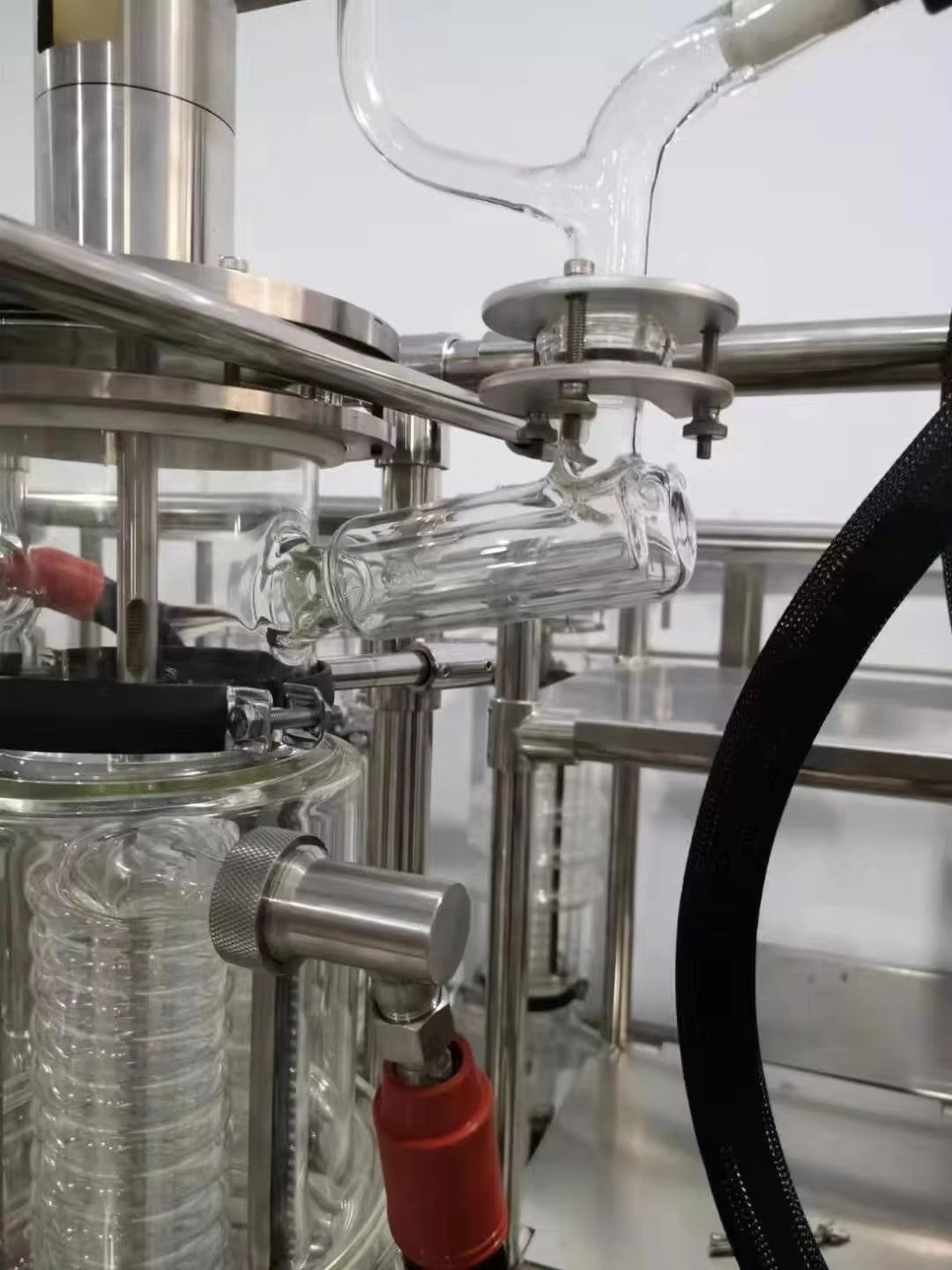

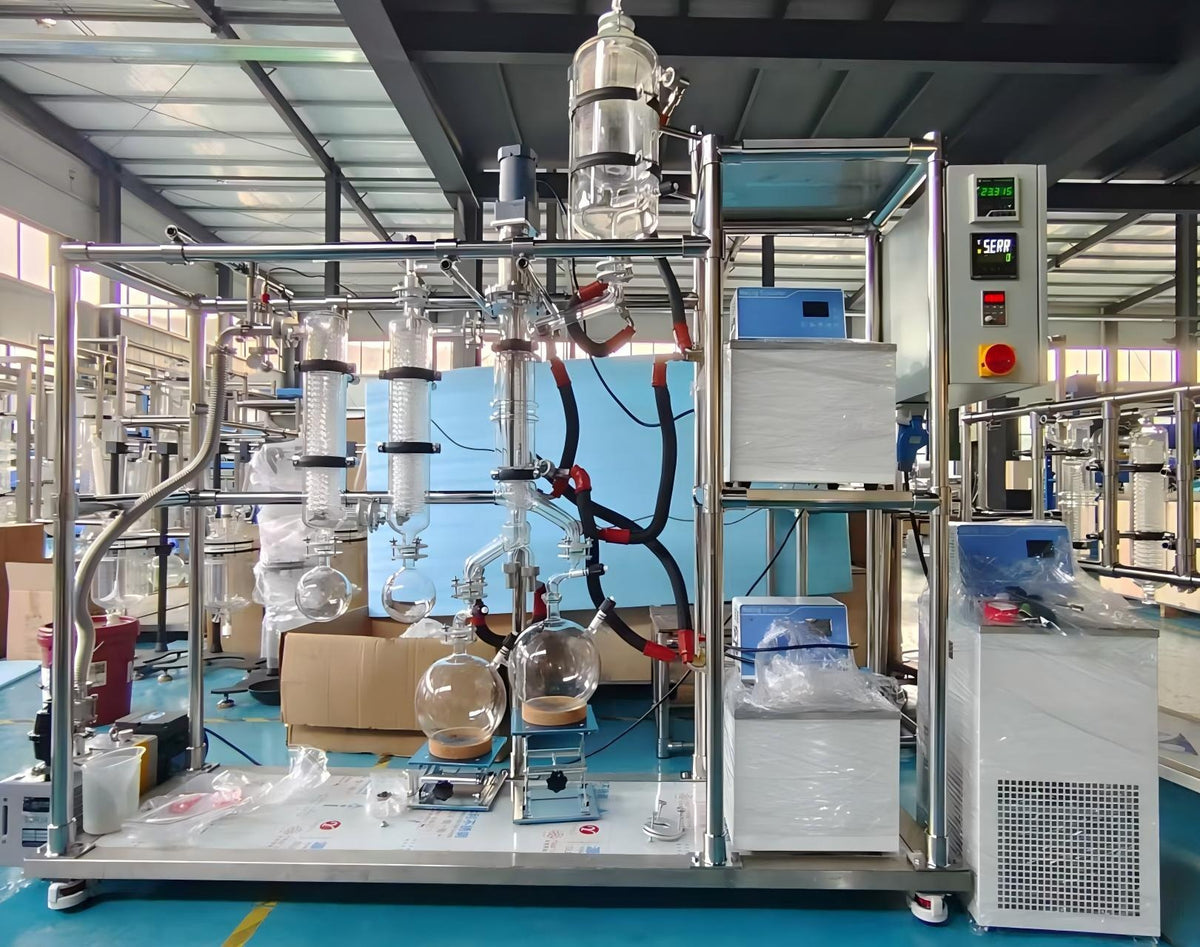

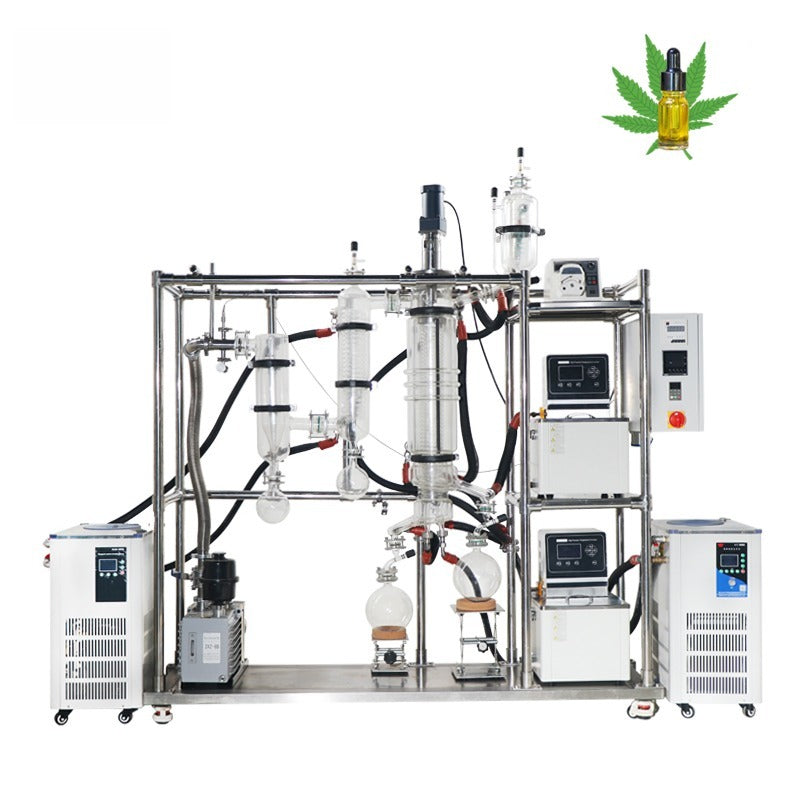

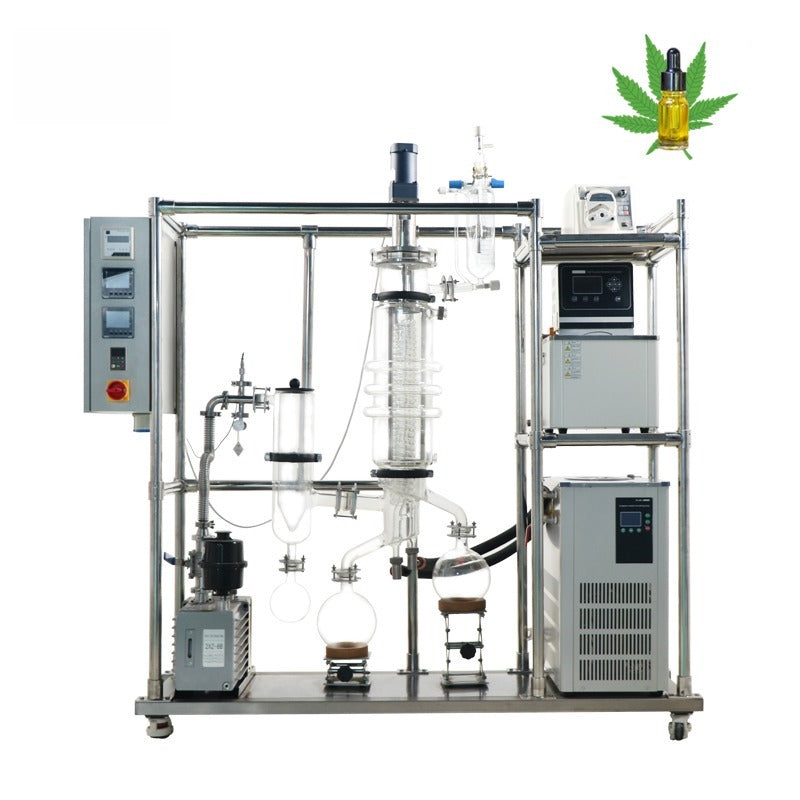

The YHMD series are glass wiped-film molecular distillation systems (short-path) in high borosilicate glass, for solvent recovery and essential oil distillation in research and pilot-scale work. Verified specifications from the series specification table: evaporation surface areas from 0.15 to 0.5 m², feed rates up to 15 L/h, an operation pressure of less than 10 Pa and heater ranges from room temperature to +300°C.
Model Comparison
Model
Evaporation Surface Area
Evaporator Diameter
Feeding Flask Volume
Feed Rate
Max Stirring Speed
Operation Pressure
ALAB-YHMD-60
-
-
-
-
-
Less than 10 Pa
ALAB-YHMD-80
-
-
-
-
-
Less than 10 Pa
ALAB-YHMD-100
0.15 m²
100 mm (4 in)
5L
0.6–6 L/h
450 rpm
Less than 10 Pa
ALAB-YHMD-150
0.25 m²
150 mm (6 in)
10L
1.5–9 L/h
450 rpm
Less than 10 Pa
ALAB-YHMD-200
-
-
-
-
-
Less than 10 Pa
ALAB-YHMD-230
0.5 m²
230 mm (9 in)
10L
3–15 L/h
300 rpm
Less than 10 Pa
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
