Regular price
$4,074.07 USD
Regular price
Sale price
$4,074.07 USD
Sale
Sold out

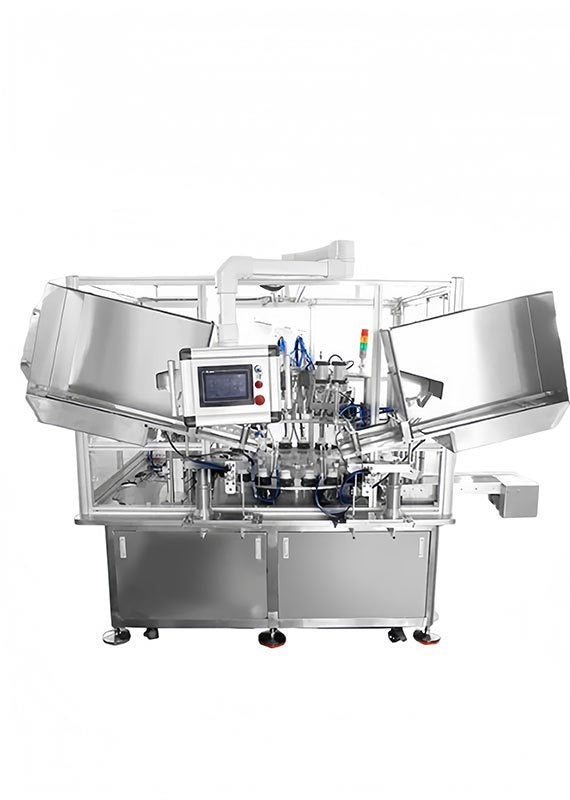

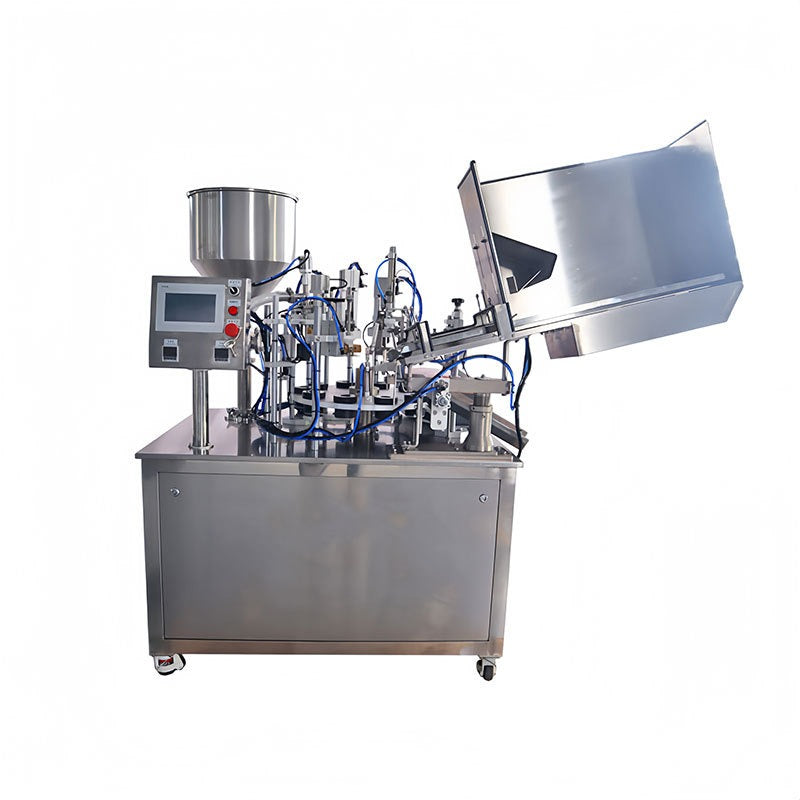

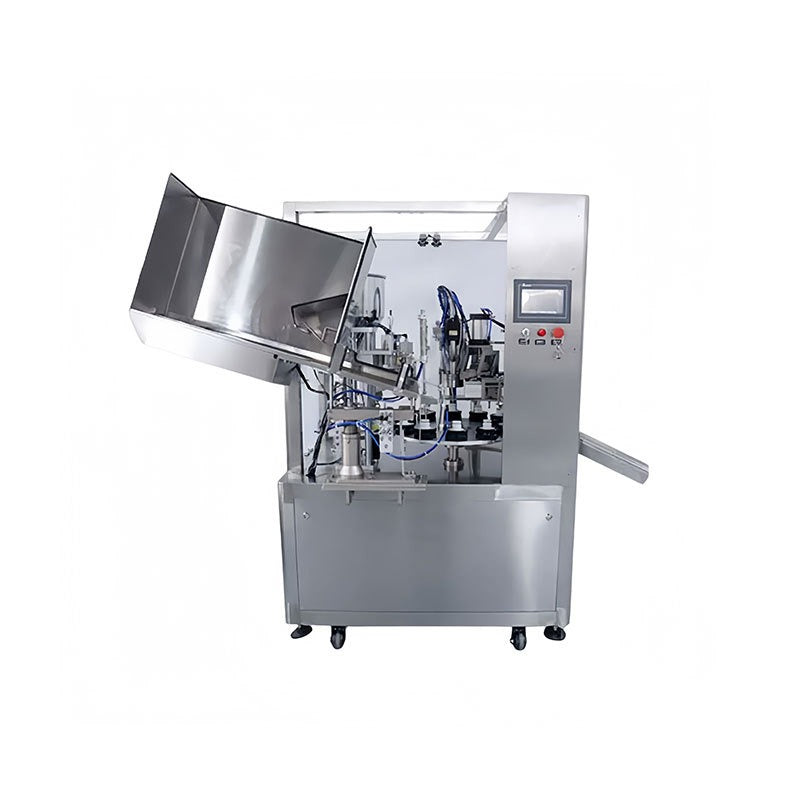

Tube filling and sealing machine for cream, gel and paste, with a 3-300 mL filling range, 13-50 mm tube diameter, 80-200 mm tube height and 30-50 pcs/min output, in seven configurations from desktop sealing to dual-station filling and sealing, running on 220V 50/60Hz.
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
Model Comparison
Specification
GZJR-F02C Desktop Sealing
GZJR-F02C Desktop Filling Sealing
GZJR-F02C Basic
GZJR-F02C Semi-Auto
GZJR-F02C Fully Auto
GZJR-F02C Safety Door
GZJR-F02C Dual Station
Configuration
Desktop Sealing
Desktop Filling Sealing
Basic
Semi-Auto
Fully Auto
Safety Door
Dual Station
Voltage
220V 50/60Hz
220V 50/60Hz
220V 50/60Hz
220V 50/60Hz
220V 50/60Hz
220V 50/60Hz
220V 50/60Hz
Power
4.5 kW (+ chiller 1.5 kW)
4.5 kW (+ chiller 1.5 kW)
4.5 kW (+ chiller 1.5 kW)
4.5 kW (+ chiller 1.5 kW)
4.5 kW (+ chiller 1.5 kW)
4.5 kW (+ chiller 1.5 kW)
4.5 kW (+ chiller 1.5 kW)
Speed
30-50 pcs/min
30-50 pcs/min
30-50 pcs/min
30-50 pcs/min
30-50 pcs/min
30-50 pcs/min
30-50 pcs/min
Material processed
Cream / Gel / Paste
Cream / Gel / Paste
Cream / Gel / Paste
Cream / Gel / Paste
Cream / Gel / Paste
Cream / Gel / Paste
Cream / Gel / Paste
Filling range
3-300 mL
3-300 mL
3-300 mL
3-300 mL
3-300 mL
3-300 mL
3-300 mL
Tube diameter / height
13-50 mm / 80-200 mm
13-50 mm / 80-200 mm
13-50 mm / 80-200 mm
13-50 mm / 80-200 mm
13-50 mm / 80-200 mm
13-50 mm / 80-200 mm
13-50 mm / 80-200 mm
Air pressure
0.4-0.6 MPa
0.4-0.6 MPa
0.4-0.6 MPa
0.4-0.6 MPa
0.4-0.6 MPa
0.4-0.6 MPa
0.4-0.6 MPa
Dimensions / weight (family)
1940 x 1280 x 1780 mm / 750 kg
1940 x 1280 x 1780 mm / 750 kg
1940 x 1280 x 1780 mm / 750 kg
1940 x 1280 x 1780 mm / 750 kg
1940 x 1280 x 1780 mm / 750 kg
1940 x 1280 x 1780 mm / 750 kg
1940 x 1280 x 1780 mm / 750 kg
