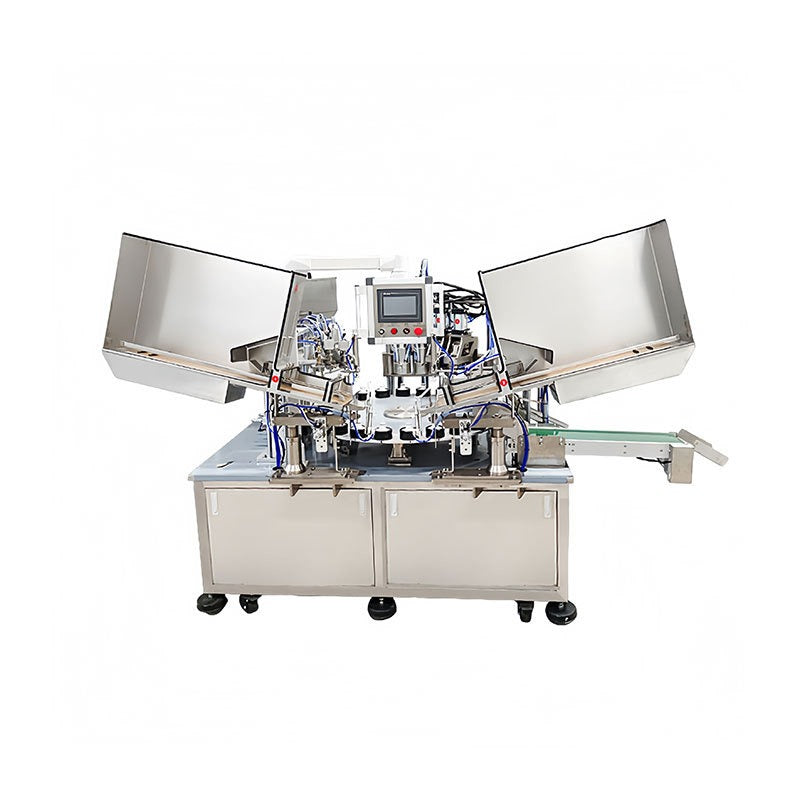

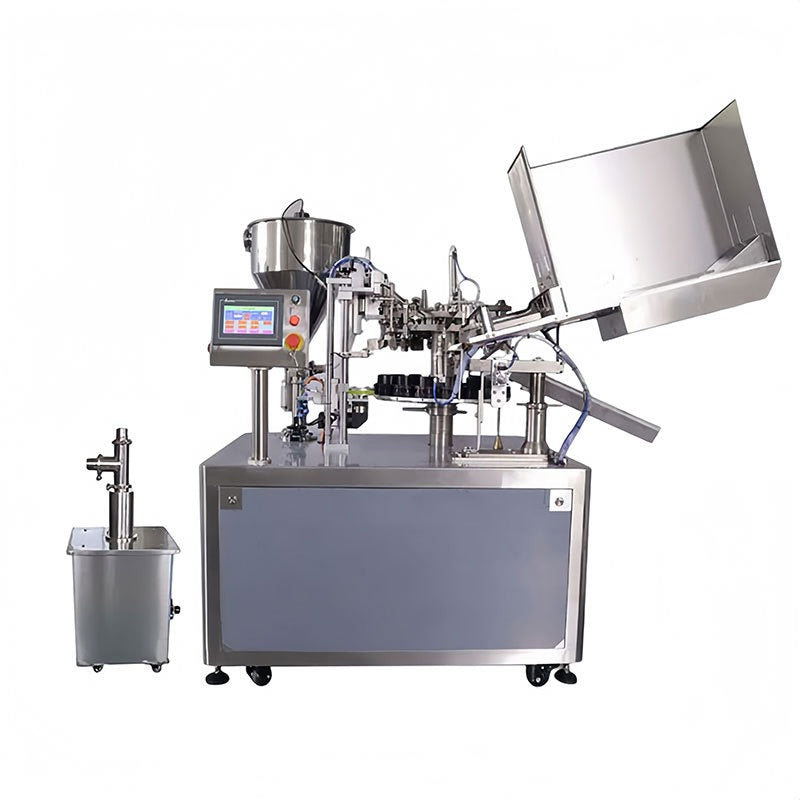

GZJR-FH03B Tube Filling and Sealing Machine

GZJR-FH03B Tube Filling and Sealing Machine

$42,499.34 USD
$42,499.34 USD
Sale Sold out

Tube filling and sealing machine for cream, gel and paste tubes, with a 3-300 mL filling range, 13-50 mm tube diameter and 60-110 pcs/min output. Available in dual-head automatic, automatic and semi-automatic versions with internal or external heating.

Voltage note for US customers: This unit operates on 380V three-phase power. Standard US outlets supply 110–120V single-phase, so a suitable industrial power supply is required.

Model Comparison

Specification Dual-Head Automatic Internal Heating Automatic Internal Heating Semi-Automatic Internal Heating Semi-Automatic External Heating
Filling range 3-300 mL (3-30 / 5-50 / 10-100 / 15-150 / 20-200 / 30-300 mL) 3-300 mL (3-30 / 5-50 / 10-100 / 15-150 / 20-200 / 30-300 mL) 3-300 mL (3-30 / 5-50 / 10-100 / 15-150 / 20-200 / 30-300 mL) 3-300 mL (3-30 / 5-50 / 10-100 / 15-150 / 20-200 / 30-300 mL)
Tube diameter 13-50mm 13-50mm 13-50mm 13-50mm
Tube height 80-200mm 80-200mm 80-200mm 80-200mm
Speed 60-110 pcs/min 60-110 pcs/min 60-110 pcs/min 60-110 pcs/min
Voltage 380V 50/60Hz 380V 50/60Hz 380V 50/60Hz 380V 50/60Hz
Power 8.5kW 8.5kW 8.5kW 8.5kW
Air pressure 0.4-0.6 MPa 0.4-0.6 MPa 0.4-0.6 MPa 0.4-0.6 MPa
Dimensions 2700x1480x1880mm 2700x1480x1880mm 2700x1480x1880mm 2700x1480x1880mm
Weight 1500 kg 1500 kg 1500 kg 1500 kg
View full details
Variant Variant total Quantity Price Variant total
GZJR-FH03B Dual-Head Automatic Internal HeatingALAB-GZJR-FH03B-DUAL-AUTO-INT
GZJR-FH03B Dual-Head Automatic Internal HeatingALAB-GZJR-FH03B-DUAL-AUTO-INT
$42,499.34/ea		 $0.00
$42,499.34/ea $0.00
GZJR-FH03B Automatic Internal HeatingALAB-GZJR-FH03B-AUTO-INT
GZJR-FH03B Automatic Internal HeatingALAB-GZJR-FH03B-AUTO-INT
$23,447.91/ea		 $0.00
$23,447.91/ea $0.00
GZJR-FH03B Semi-Automatic Internal HeatingALAB-GZJR-FH03B-SEMI-INT
GZJR-FH03B Semi-Automatic Internal HeatingALAB-GZJR-FH03B-SEMI-INT
$20,516.93/ea		 $0.00
$20,516.93/ea $0.00
GZJR-FH03B Semi-Automatic External HeatingALAB-GZJR-FH03B-SEMI-EXT
GZJR-FH03B Semi-Automatic External HeatingALAB-GZJR-FH03B-SEMI-EXT
$10,258.46/ea		 $0.00
$10,258.46/ea $0.00
