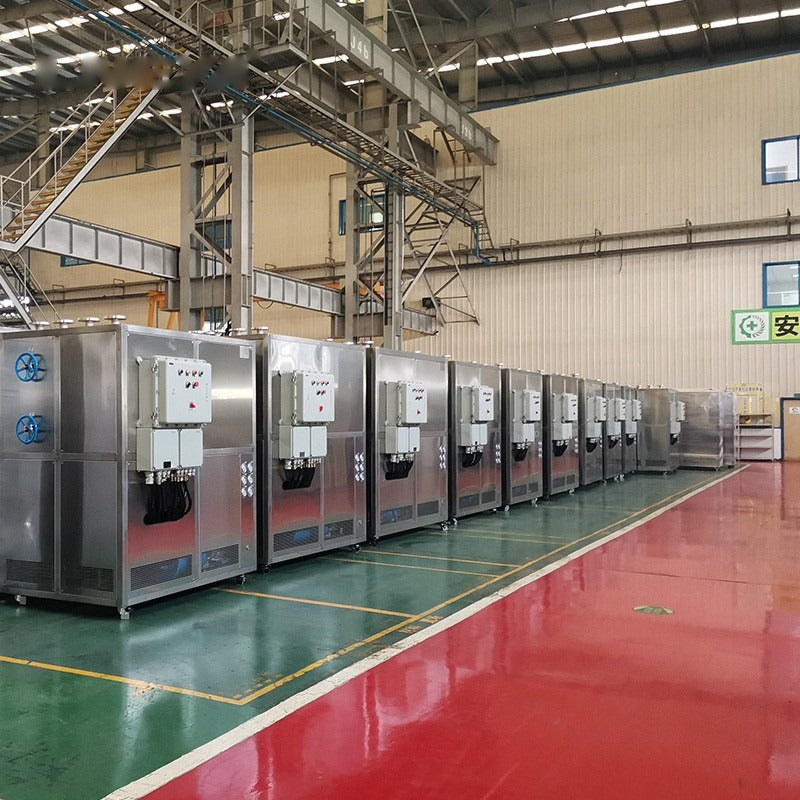

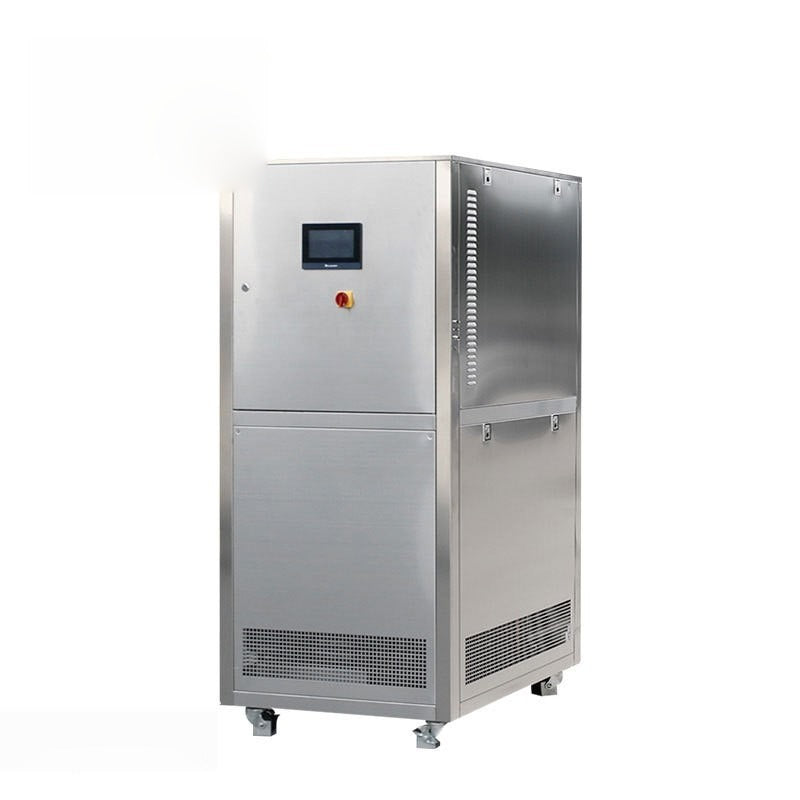

A heater-chiller combo series combining refrigeration and heating circulation over a -25~200 °C range (optional range -120~350 °C). Nine models share one family specification set; select the model by its capacity designation.
Temperature Range: -25~200 °C (optional: -120~350 °C)
Heating Power: 2.5~200 kW
Cooling Capability: 4~260 kW (option)
Circulation Pump: Max 20 L/min, 2 bar ~ Max 600 L/min, 2.5 bar
Compressor: Copeland / Danfoss / Emerson
Expansion Valve: Danfoss / Emerson
Oil Separator: Emerson
Operation Panel: 7-inch Siemens color touch screen
