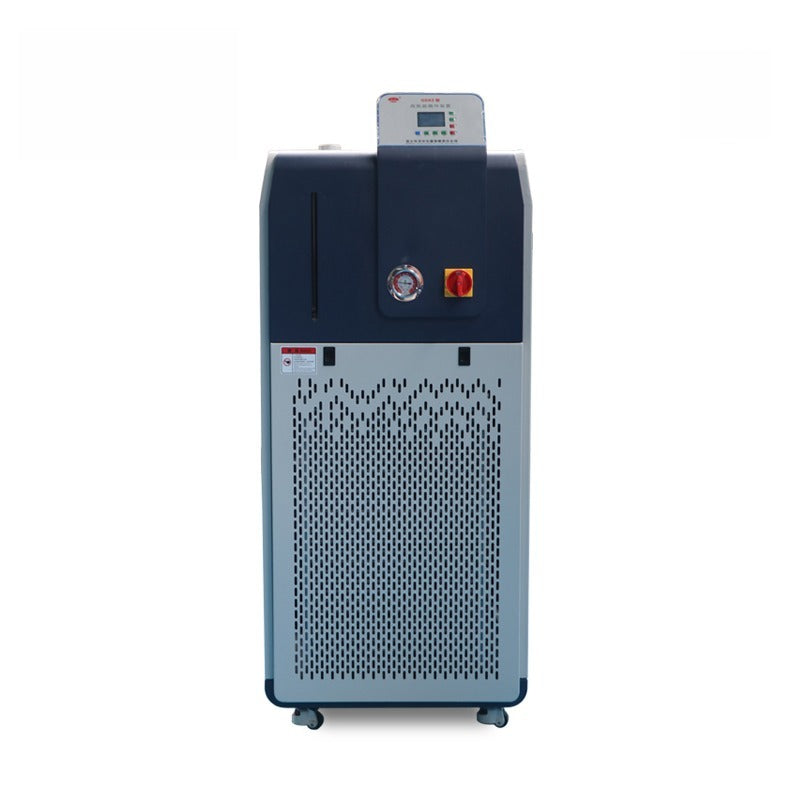

This refrigeration and heating integrated circulation device (water bath) provides heating, refrigerating and circulating temperature control for laboratory equipment such as evaporators and extraction setups. Six tank capacities are available (5L, 10L, 20L, 30L, 50L and 100L) at per-capacity prices verified on the source page - see the comparison table below for the specifications shared by all capacities.
Model Comparison
Specification
5L
10L
20L
30L
50L
100L
Type
Water Bath
Water Bath
Water Bath
Water Bath
Water Bath
Water Bath
Function
Heating, Refrigerating & Circulating
Heating, Refrigerating & Circulating
Heating, Refrigerating & Circulating
Heating, Refrigerating & Circulating
Heating, Refrigerating & Circulating
Heating, Refrigerating & Circulating
Temperature Range
-20°C ~ +200°C
-20°C ~ +200°C
-20°C ~ +200°C
-20°C ~ +200°C
-20°C ~ +200°C
-20°C ~ +200°C
Temperature Fluctuation
±0.1°C
±0.1°C
±0.1°C
±0.1°C
±0.1°C
±0.1°C
Refrigerant Type
R22 / R404A / R407C / R134A
R22 / R404A / R407C / R134A
R22 / R404A / R407C / R134A
R22 / R404A / R407C / R134A
R22 / R404A / R407C / R134A
R22 / R404A / R407C / R134A
Compressor Type
Fully Enclosed Rotary Compressor
Fully Enclosed Rotary Compressor
Fully Enclosed Rotary Compressor
Fully Enclosed Rotary Compressor
Fully Enclosed Rotary Compressor
Fully Enclosed Rotary Compressor
Compressor HP
1.5-5 HP
1.5-5 HP
1.5-5 HP
1.5-5 HP
1.5-5 HP
1.5-5 HP
Heat Dissipation Method
Air-cooled and hermetically sealed
Air-cooled and hermetically sealed
Air-cooled and hermetically sealed
Air-cooled and hermetically sealed
Air-cooled and hermetically sealed
Air-cooled and hermetically sealed
Power Supply
220-240V AC
220-240V AC
220-240V AC
220-240V AC
220-240V AC
220-240V AC
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
