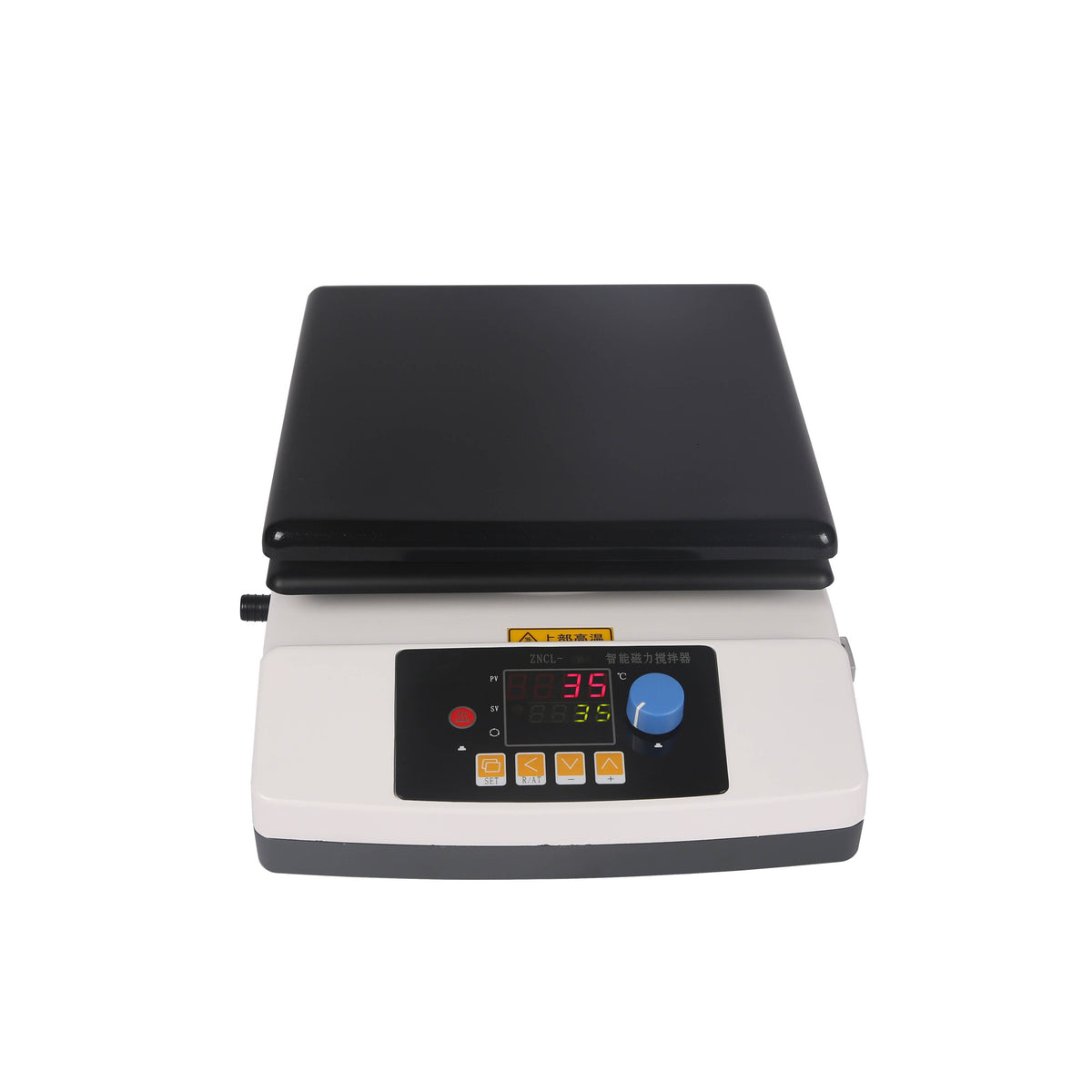

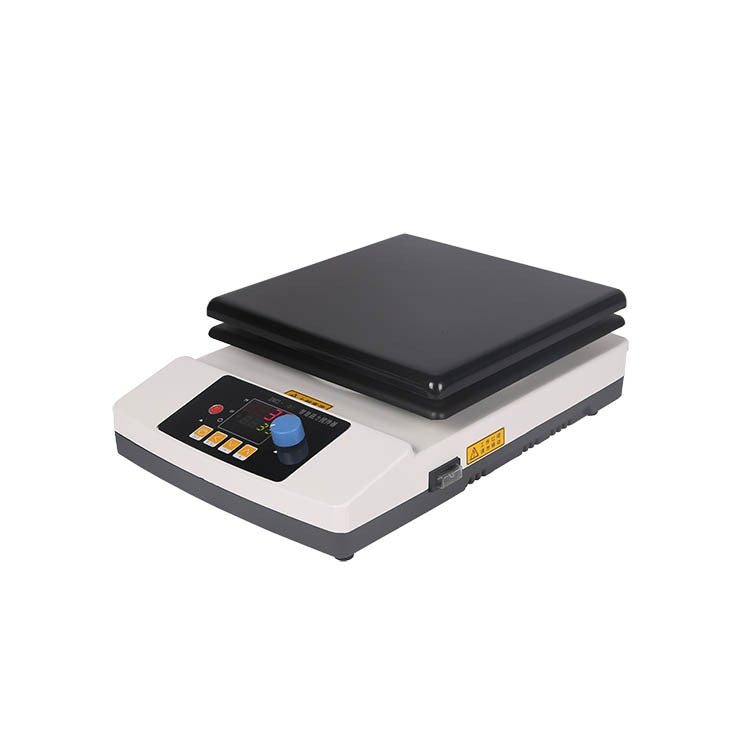

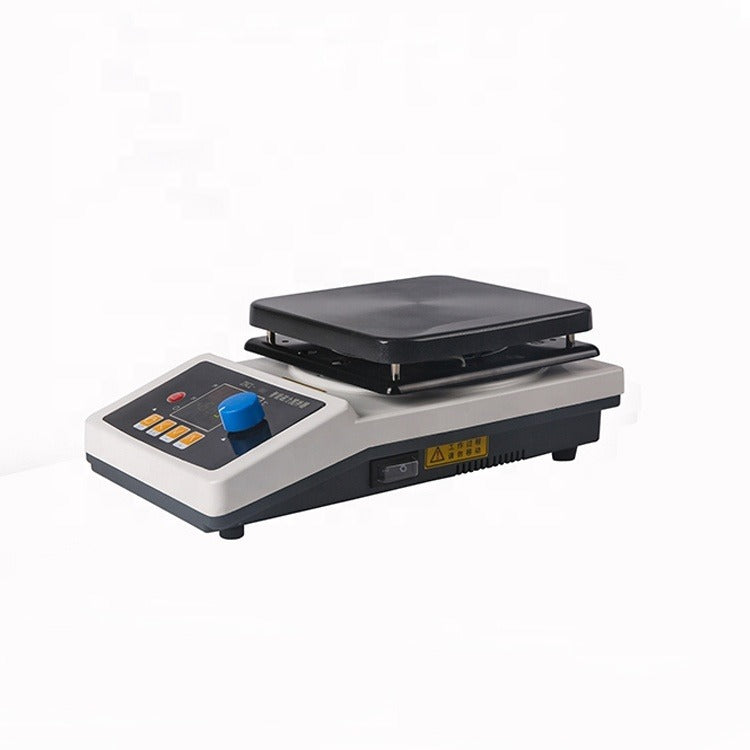

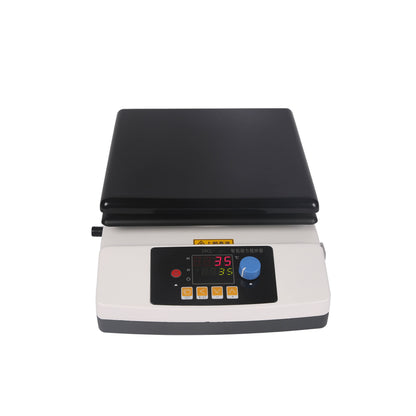

The ZNCL-B series are flat heating plates with magnetic stirring and PID temperature control for laboratory heating and mixing. Four models are available, differing in heating plate size - see the comparison table below for their specifications.
Model Comparison
Specification
ALAB-ZNCL-B140
ALAB-ZNCL-B180
ALAB-ZNCL-B230
ALAB-ZNCL-B280
Temperature Range
RT–330 °C
RT–330 °C
RT–330 °C
RT–330 °C
Temperature Accuracy
±1 °C
±1 °C
±1 °C
±1 °C
Temperature Control
PID Auto Control
PID Auto Control
PID Auto Control
PID Auto Control
Stirring Speed
0–2000 rpm
0–2000 rpm
0–2000 rpm
0–2000 rpm
Stirring Capacity
2 L
2 L
2 L
2 L
Heating Power
40–3000 W
40–3000 W
40–3000 W
40–3000 W
Heating Plate Size
-
-
230 × 230 mm
-
Voltage
220V 50Hz / 110V 60Hz
220V 50Hz / 110V 60Hz
220V 50Hz / 110V 60Hz
220V 50Hz / 110V 60Hz
Material
Aluminum
Aluminum
Aluminum
Aluminum
Power Source
Electric
Electric
Electric
Electric
Safety Protection
Over Temp. Protection
Over Temp. Protection
Over Temp. Protection
Over Temp. Protection
Voltage note for US customers: This unit accepts a wide input voltage range that includes 110–120V, so it can be plugged directly into a standard US outlet.
