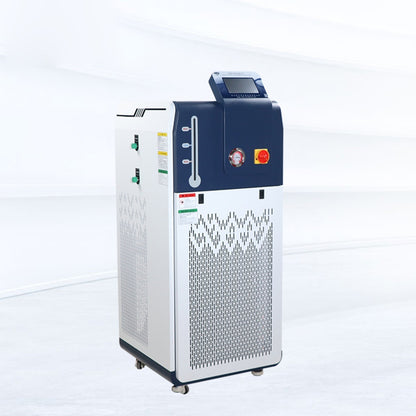

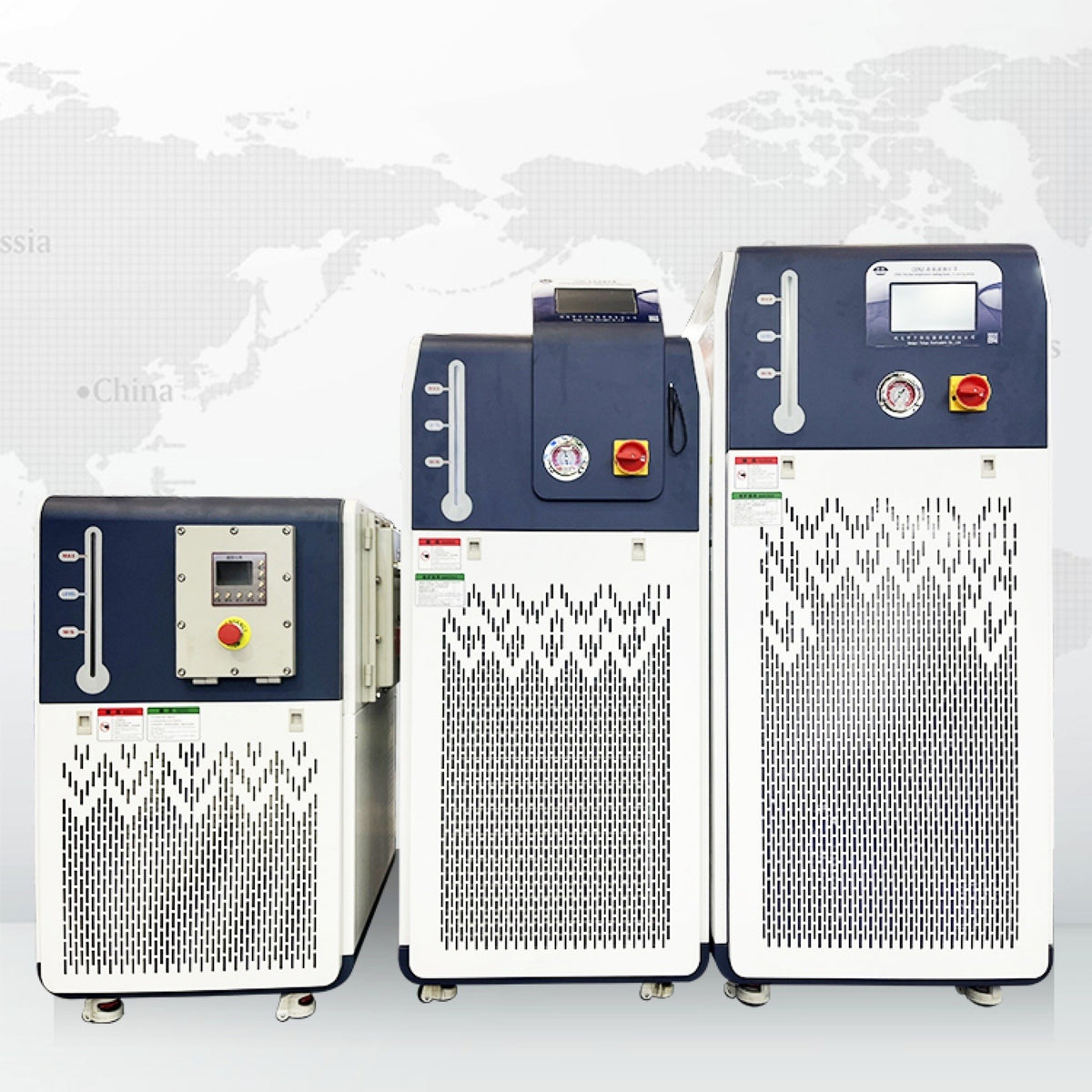

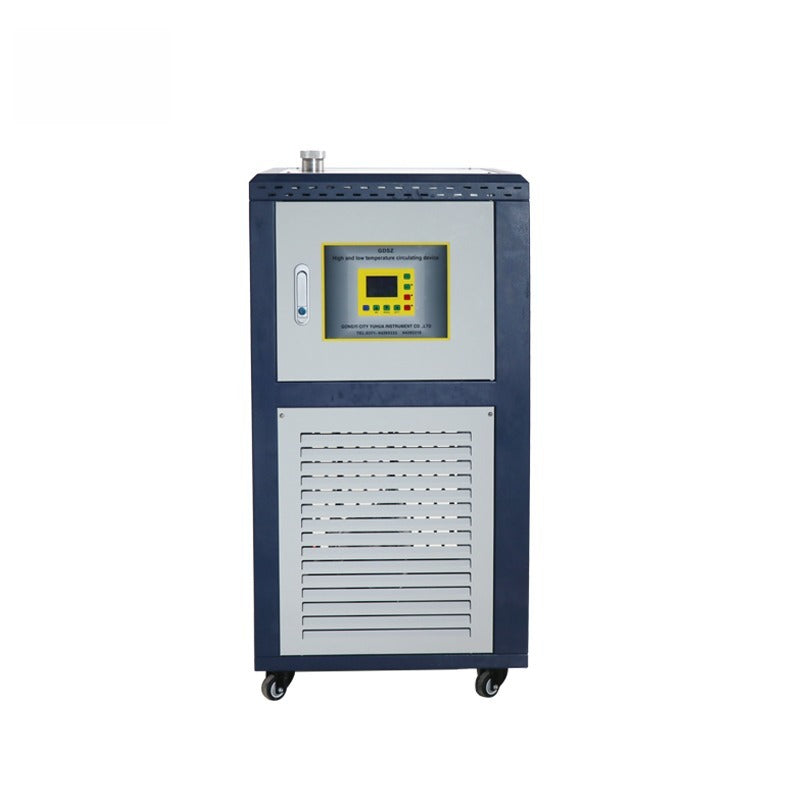

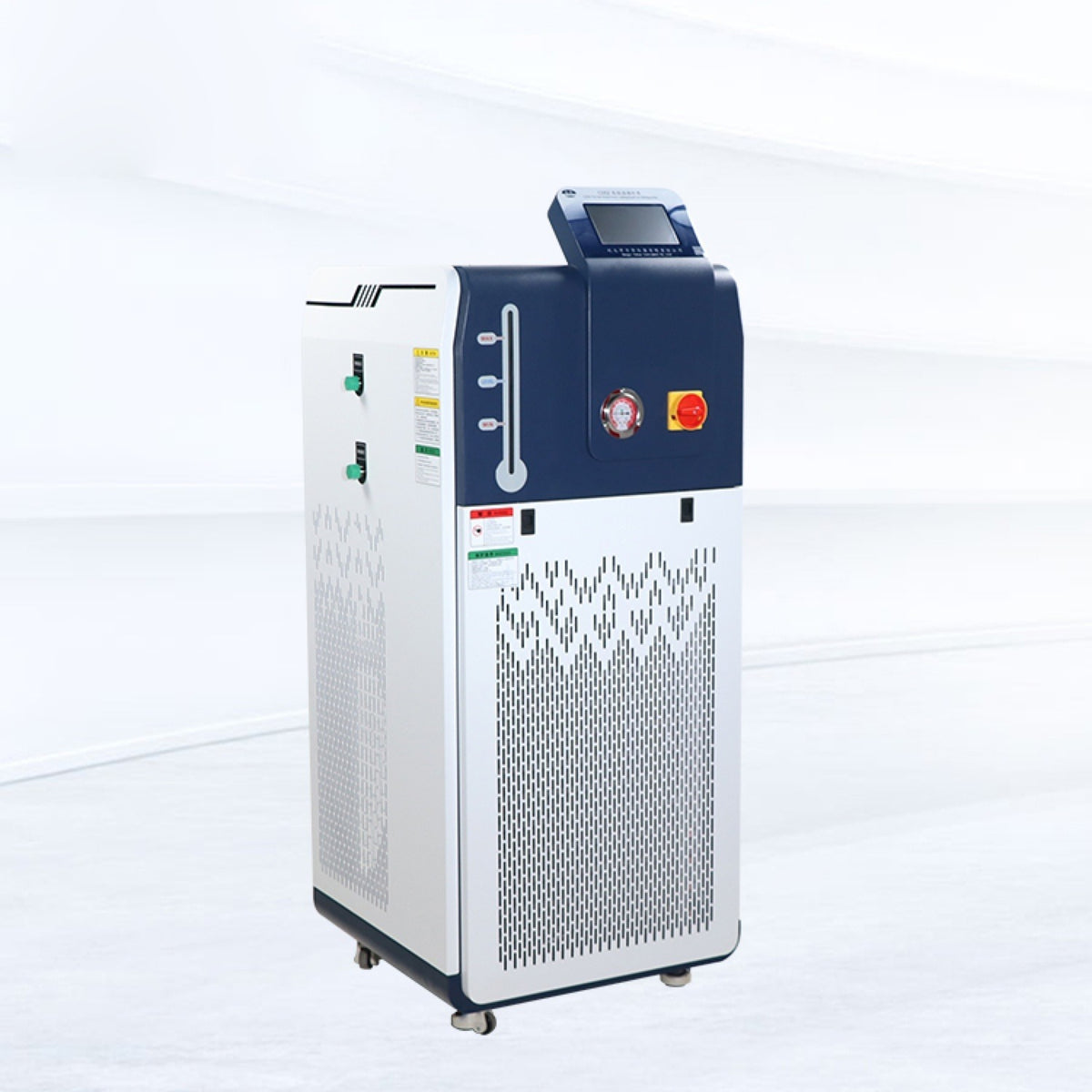

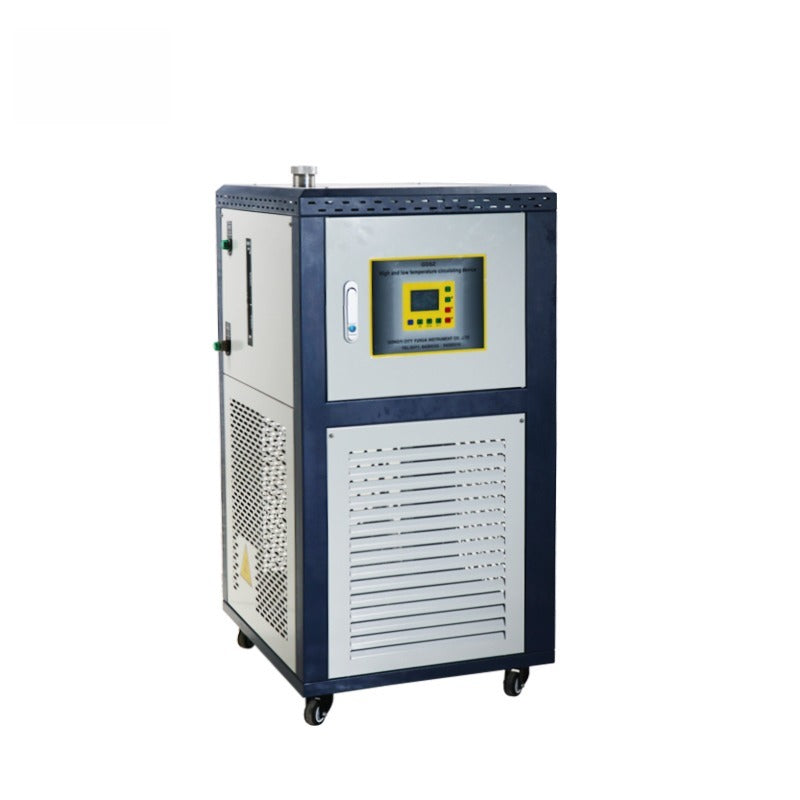

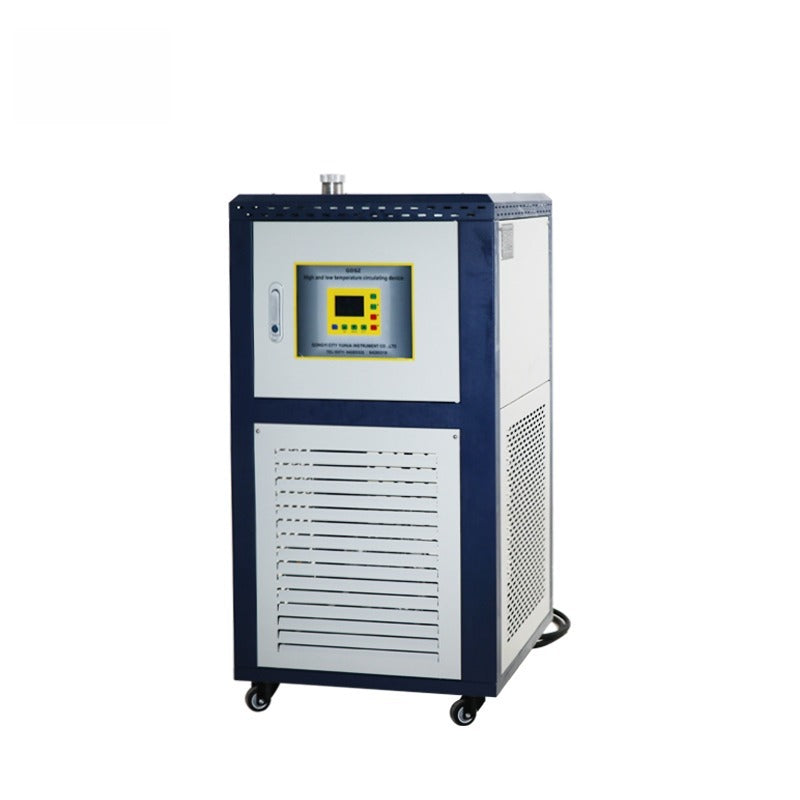

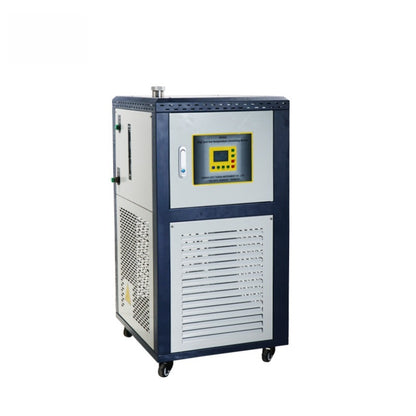

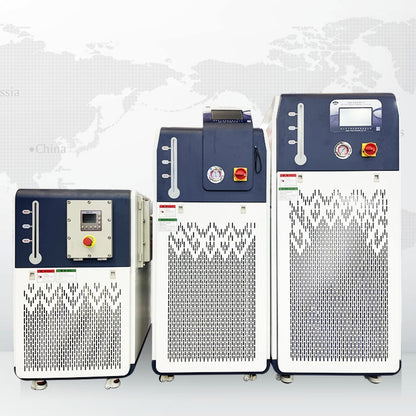

The GDSZ series are high and low temperature circulators (heating and cooling circulation devices) for temperature control of reactors, rotary evaporators and other laboratory equipment. Twenty configurations are available, combining tank capacities from 5L to 100L with temperature control ranges starting at -20°C, -40°C, -80°C or -120°C and reaching +200°C - see the comparison table below for the specifications of each configuration. Verified shared specifications: a circulating pump flow of 42 L/min and a lift of 28 m.
Model Comparison
Model
Capacity
Temperature Control Range
Circulating Pump Flow
Circulating Pump Lift
Core Components
ALAB-GDSZ 5L -20+200
5L
-20°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 10L -20+200
10L
-20°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 20L -20+200
20L
-20°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 30L -20+200
30L
-20°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 50L -20+200
50L
-20°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 100L -20+200
100L
-20°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 5L -40+200
5L
-40°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 10L -40+200
10L
-40°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 20L -40+200
20L
-40°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 30L -40+200
30L
-40°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 50L -40+200
50L
-40°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 5L -80+200
5L
-80°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 10L -80+200
10L
-80°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 20L -80+200
20L
-80°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 5L -120+200
5L
-120°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 10L -120+200
10L
-120°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 20L -120+200
20L
-120°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 30L -120+200
30L
-120°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 50L -120+200
50L
-120°C ~ +200°C
42 L/min
28 m
Motor, Pump
ALAB-GDSZ 100L -120+200
100L
-120°C ~ +200°C
42 L/min
28 m
Motor, Pump
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
