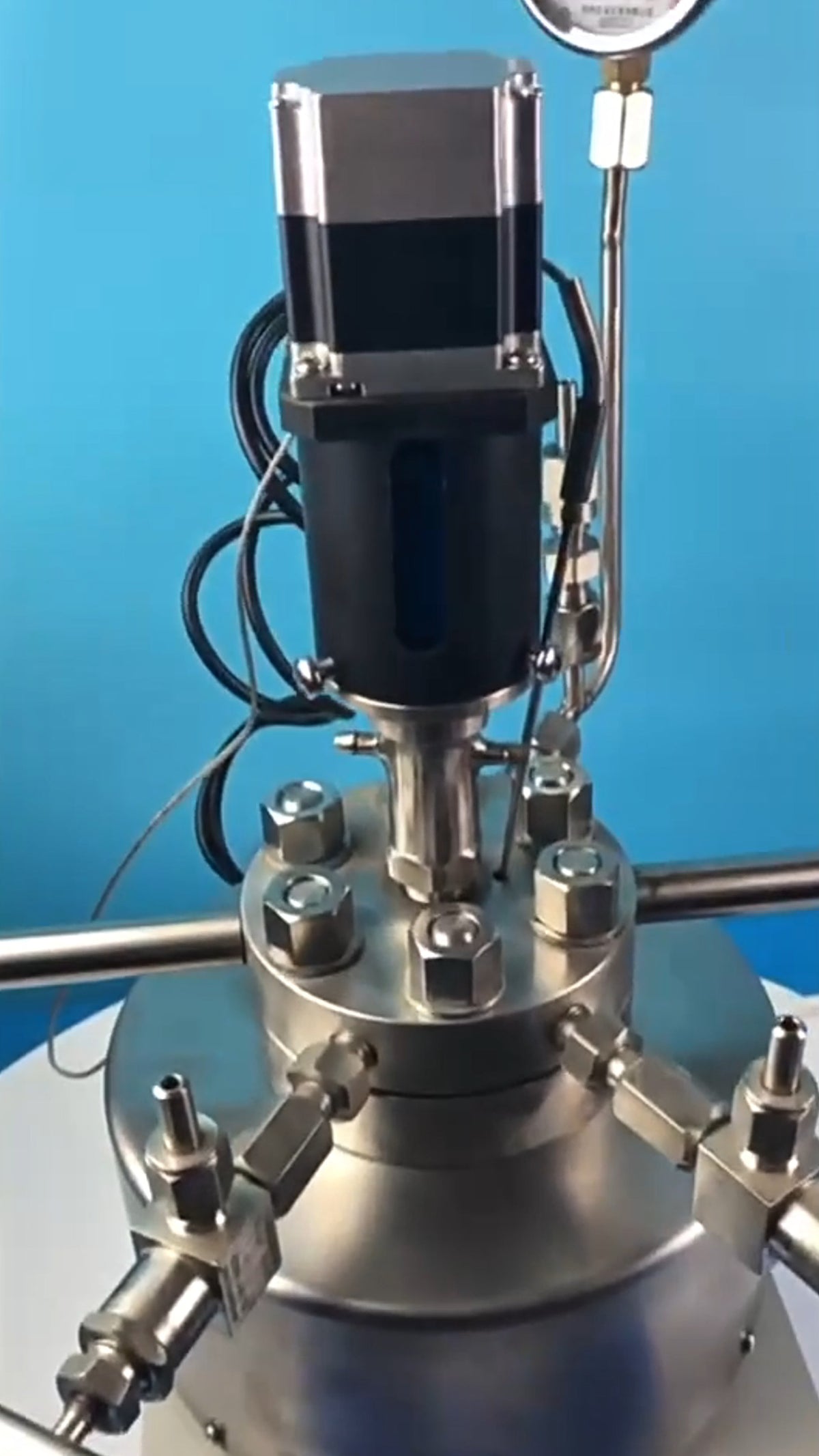

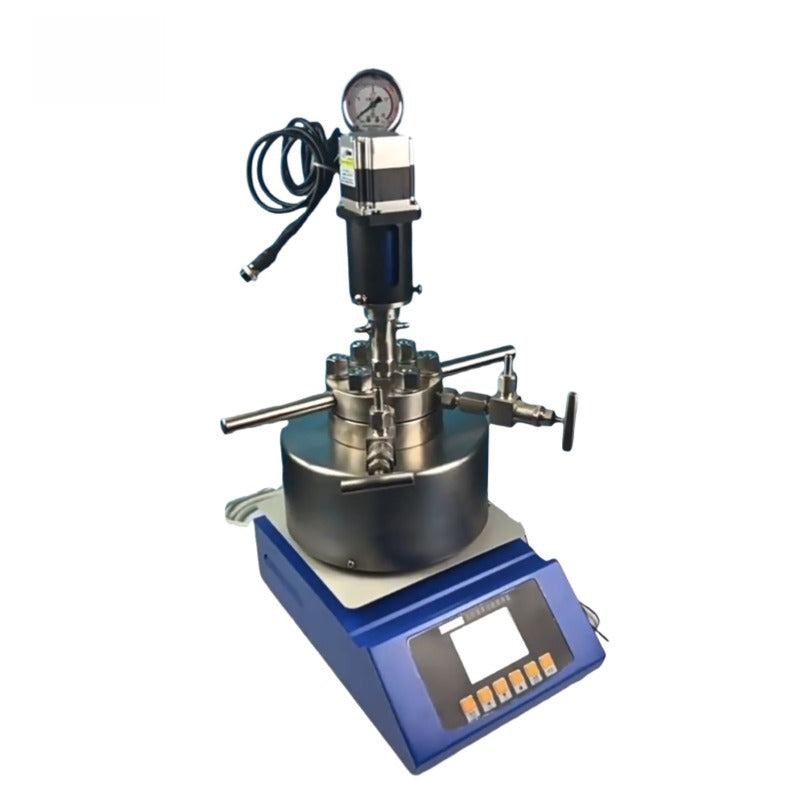

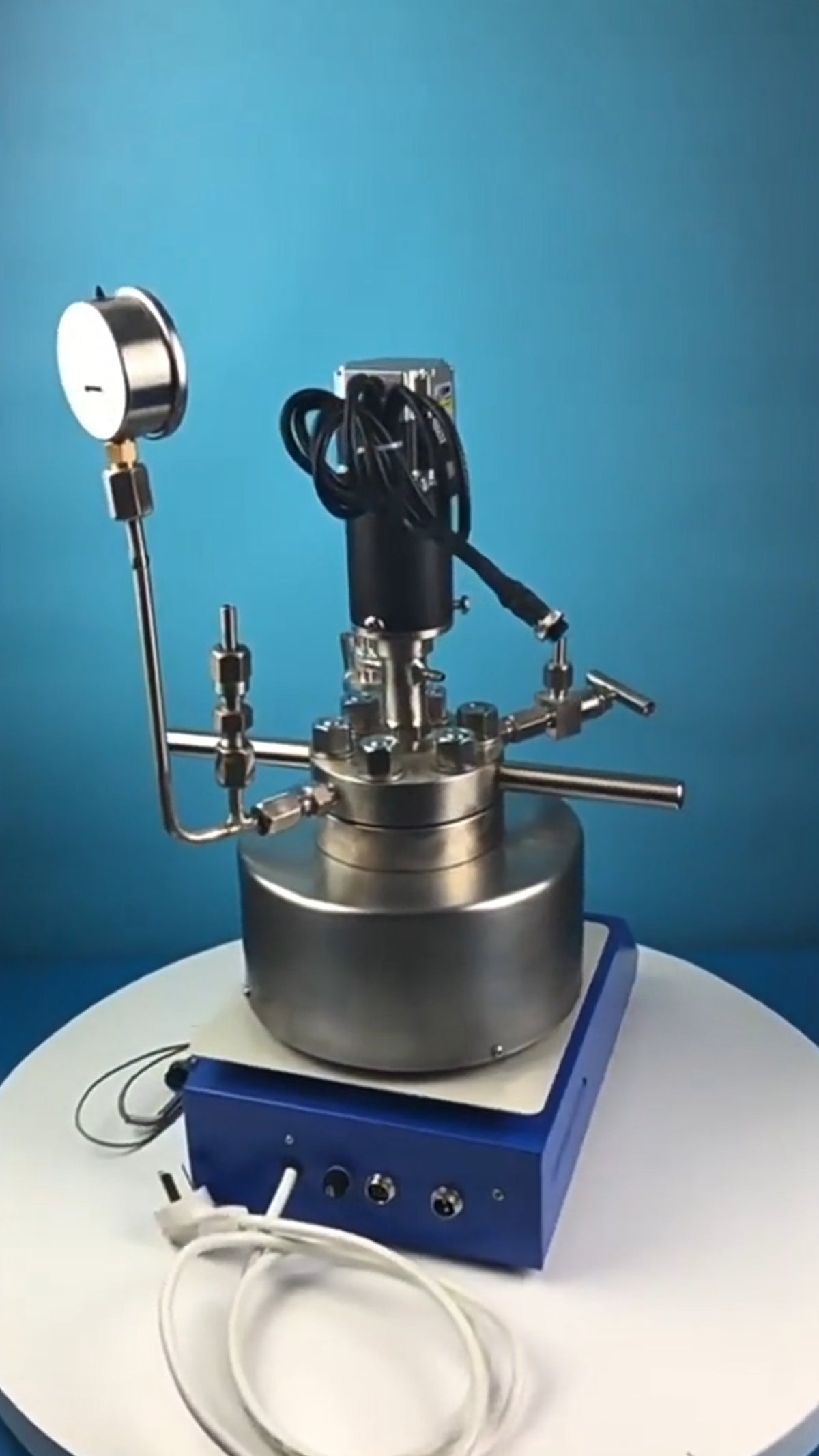

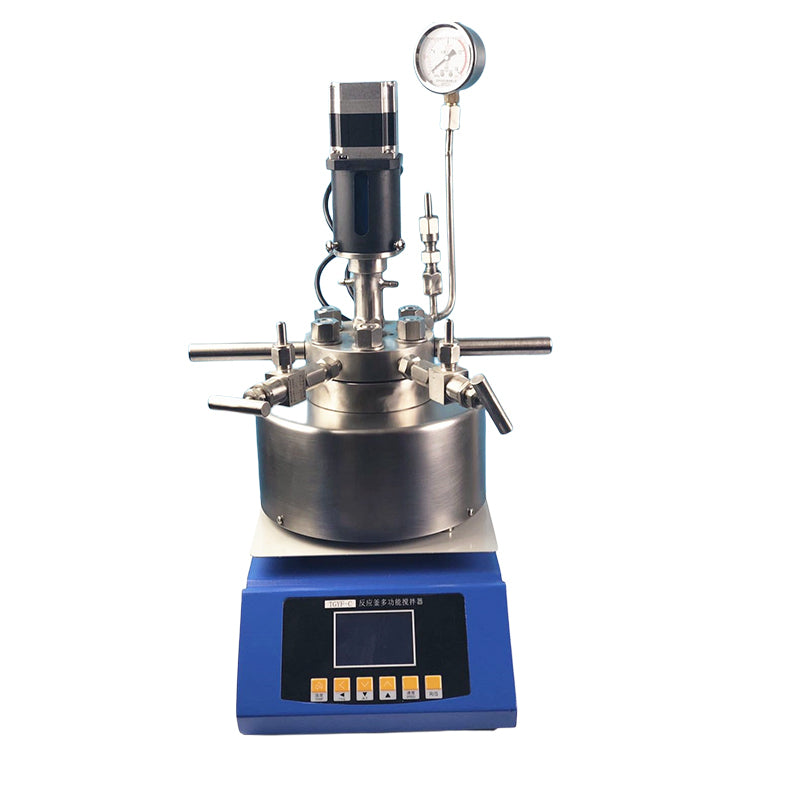

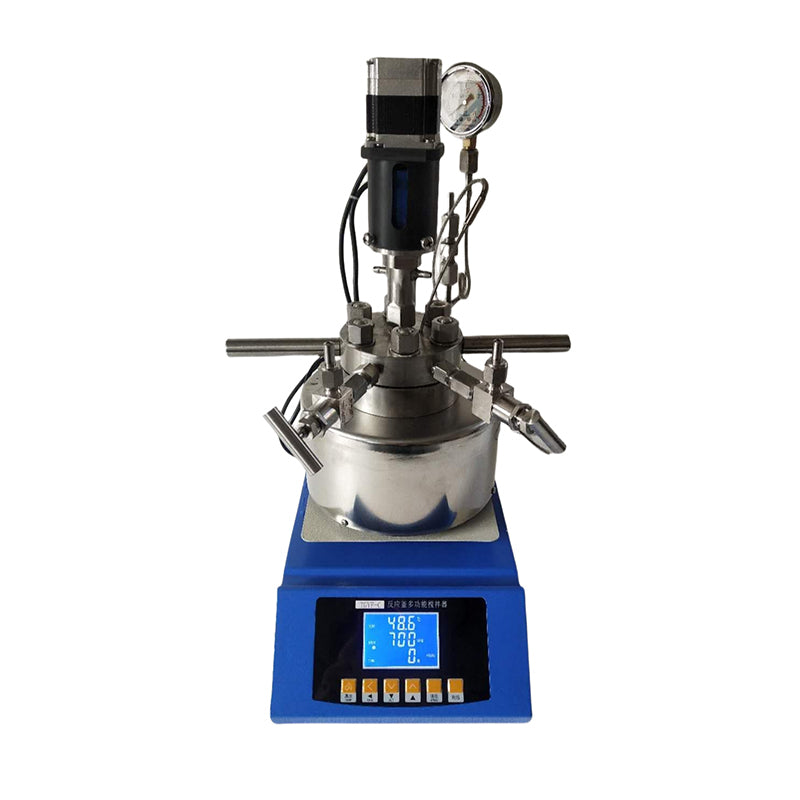

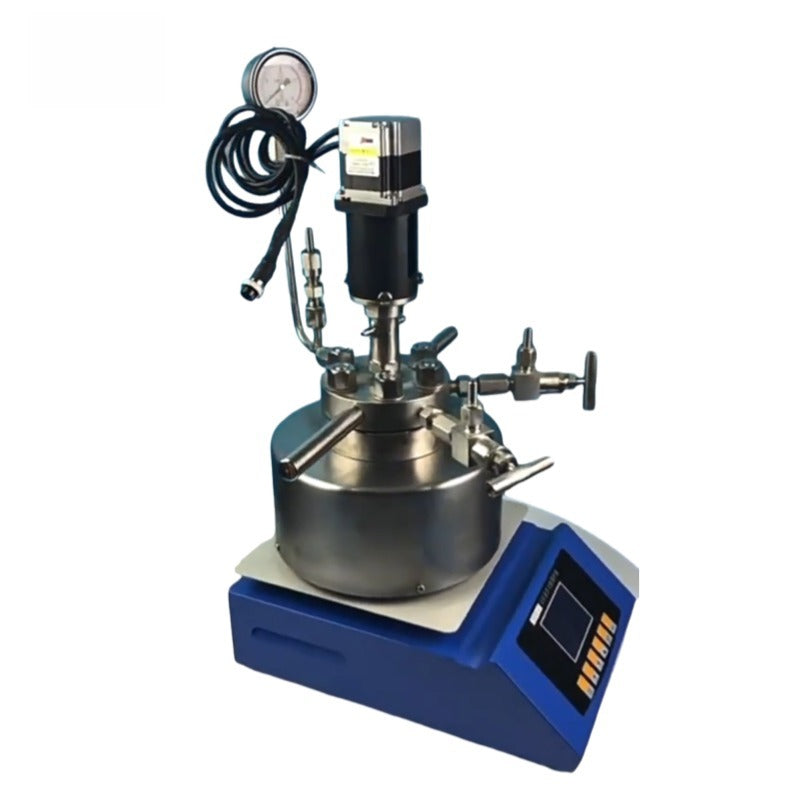

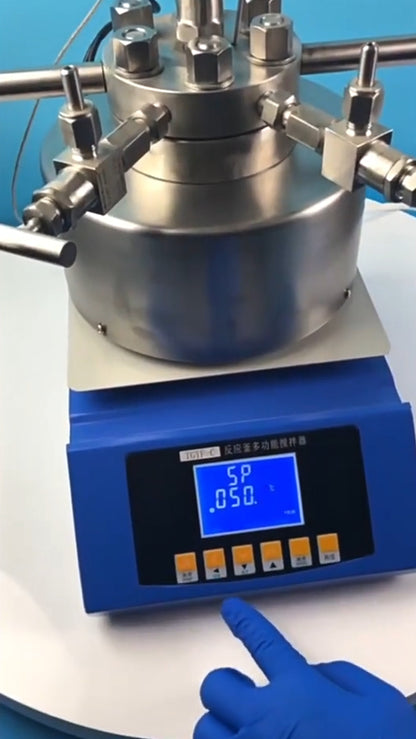

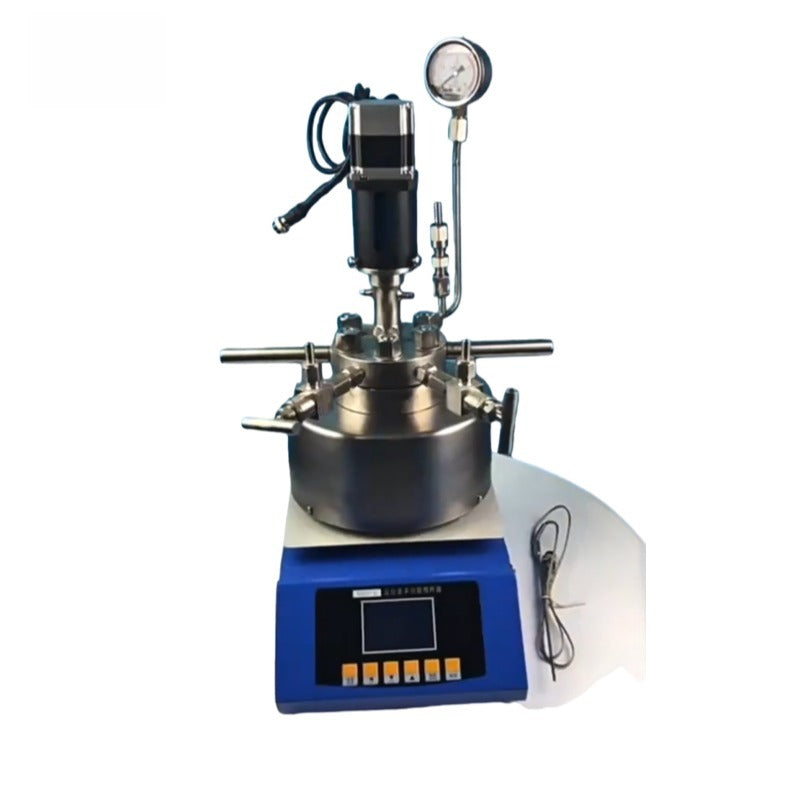

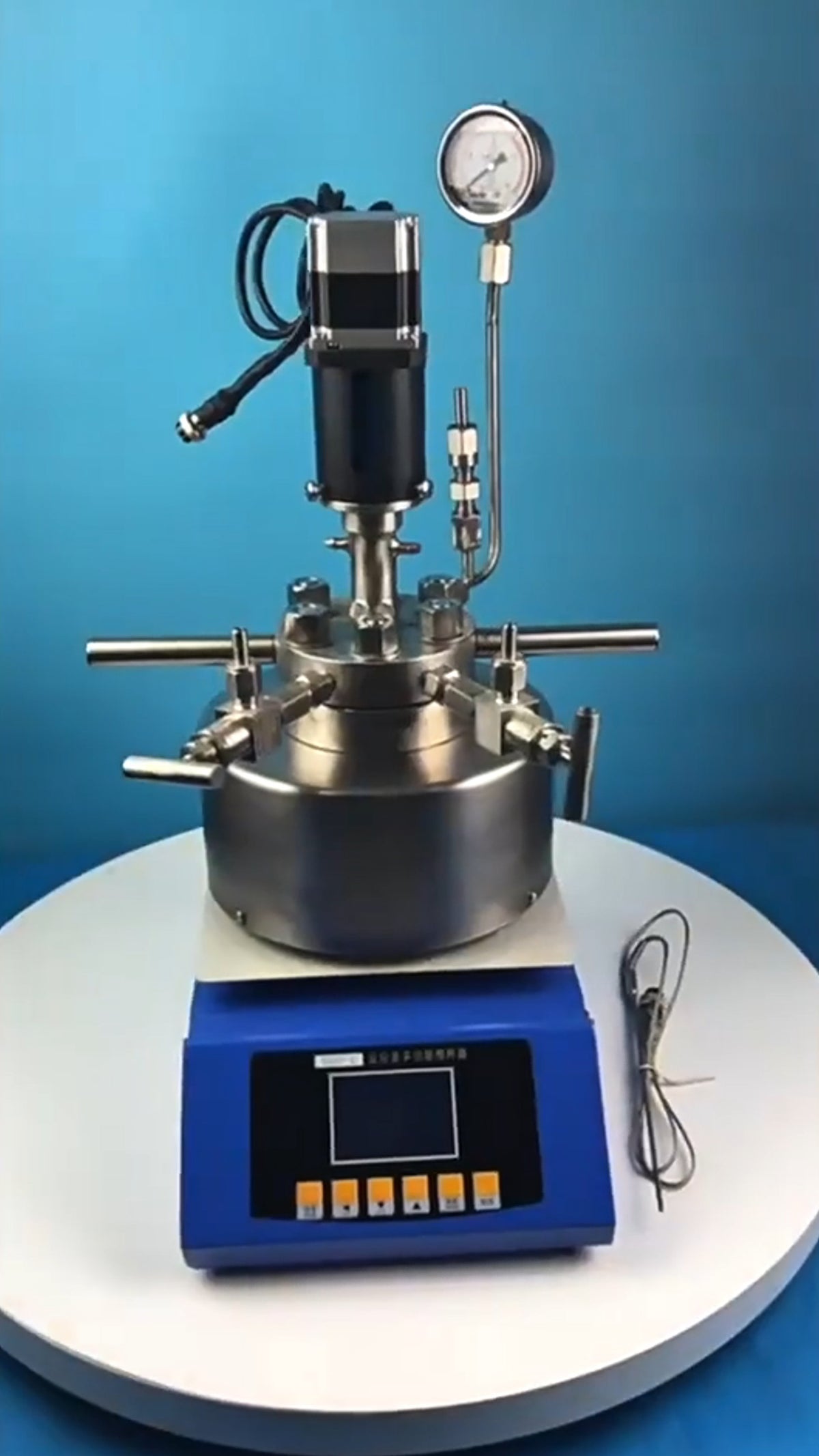

The TGYF-B series is a benchtop high-pressure autoclave reactor (tank reactor) in stainless steel with magnetic stirring, for high-pressure reaction work. Verified specifications: design pressure 22 MPa (maximum pressure 22 MPa / 3190 psi, safe operating pressure 20 MPa), design temperature 350°C, rotating speed 0–1800 rpm. Sizes run from 0.05L to 0.5L.
Model Comparison
Model
Volume
Design Pressure
Design Temperature
Rotating Speed
Heating Power
ALAB-TGYF-B-0.05L
0.05L
22 MPa
350°C
0–1800 rpm
0.6 kW
ALAB-TGYF-B-0.1L
0.1L
22 MPa
350°C
0–1800 rpm
0.6 kW
ALAB-TGYF-B-0.25L
0.25L
22 MPa
350°C
0–1800 rpm
0.8 kW
ALAB-TGYF-B-0.5L
0.5L
22 MPa
350°C
0–1800 rpm
1.5 kW
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
