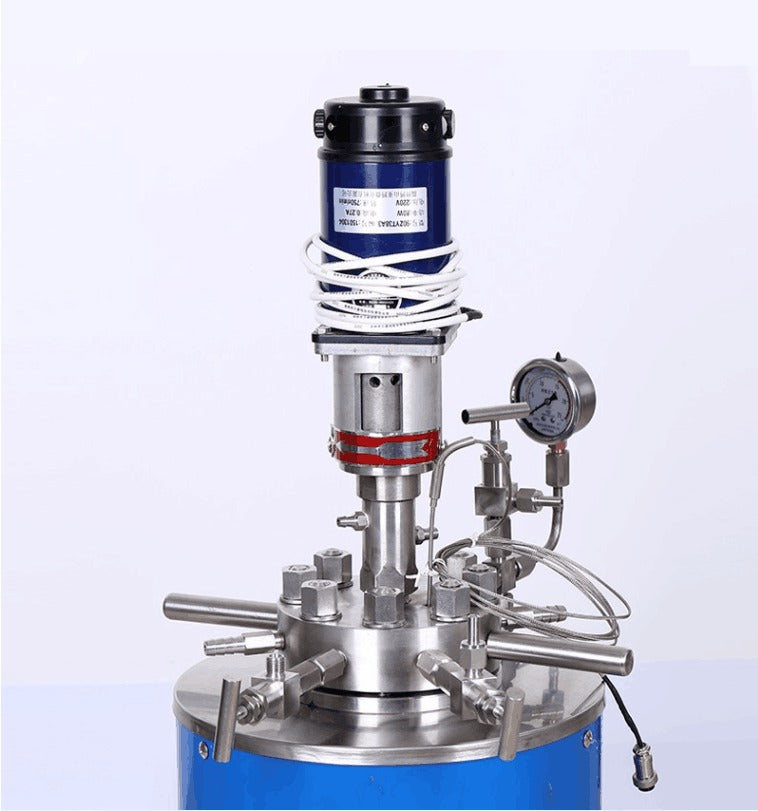

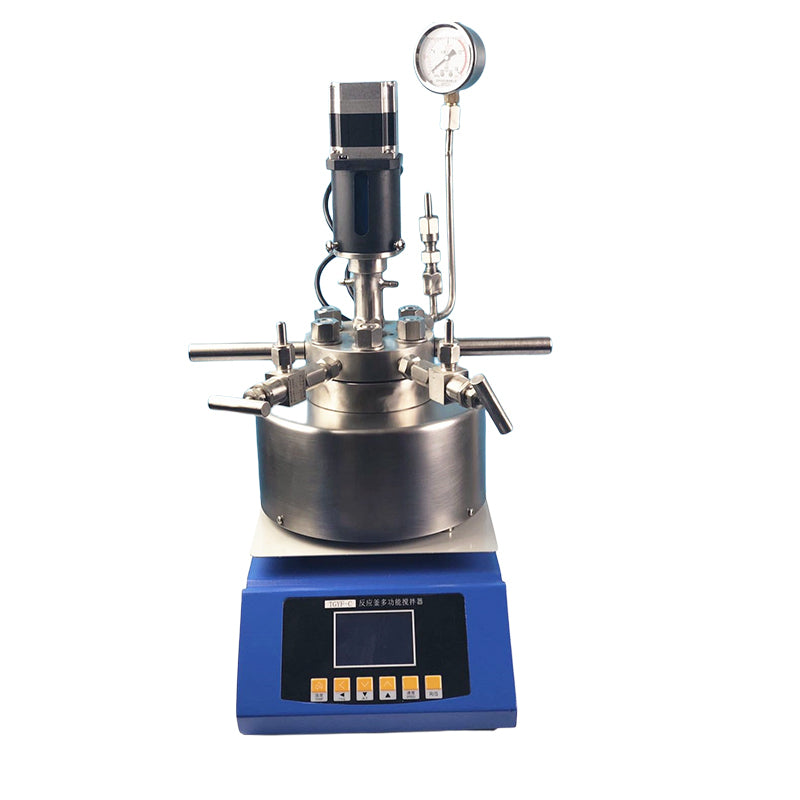

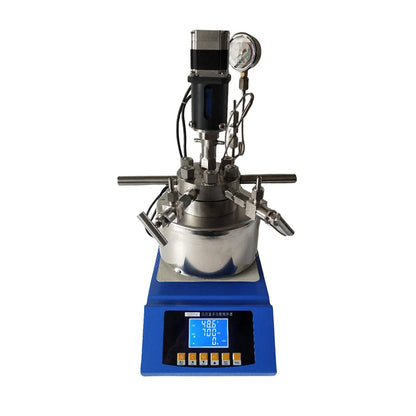

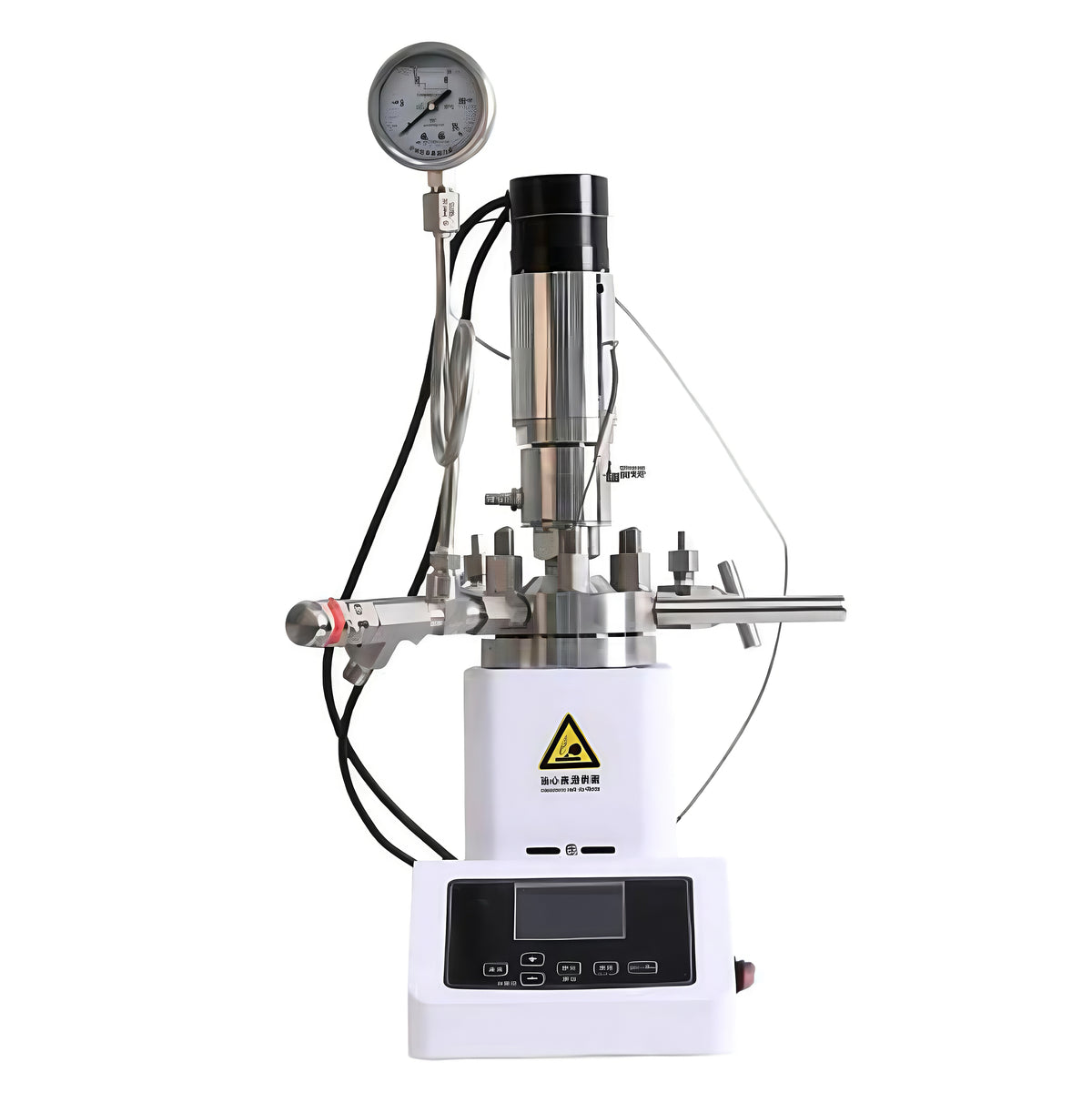

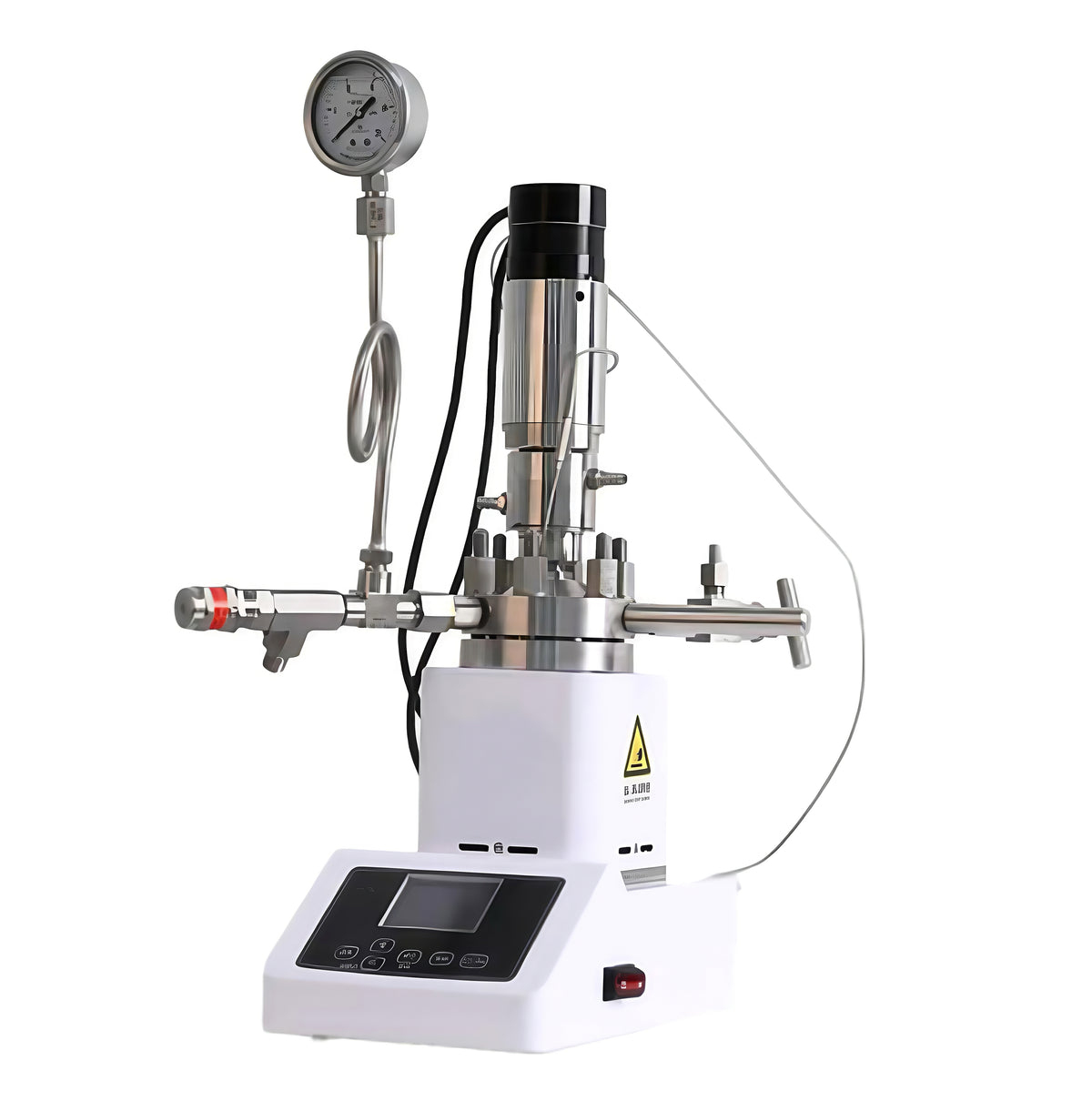

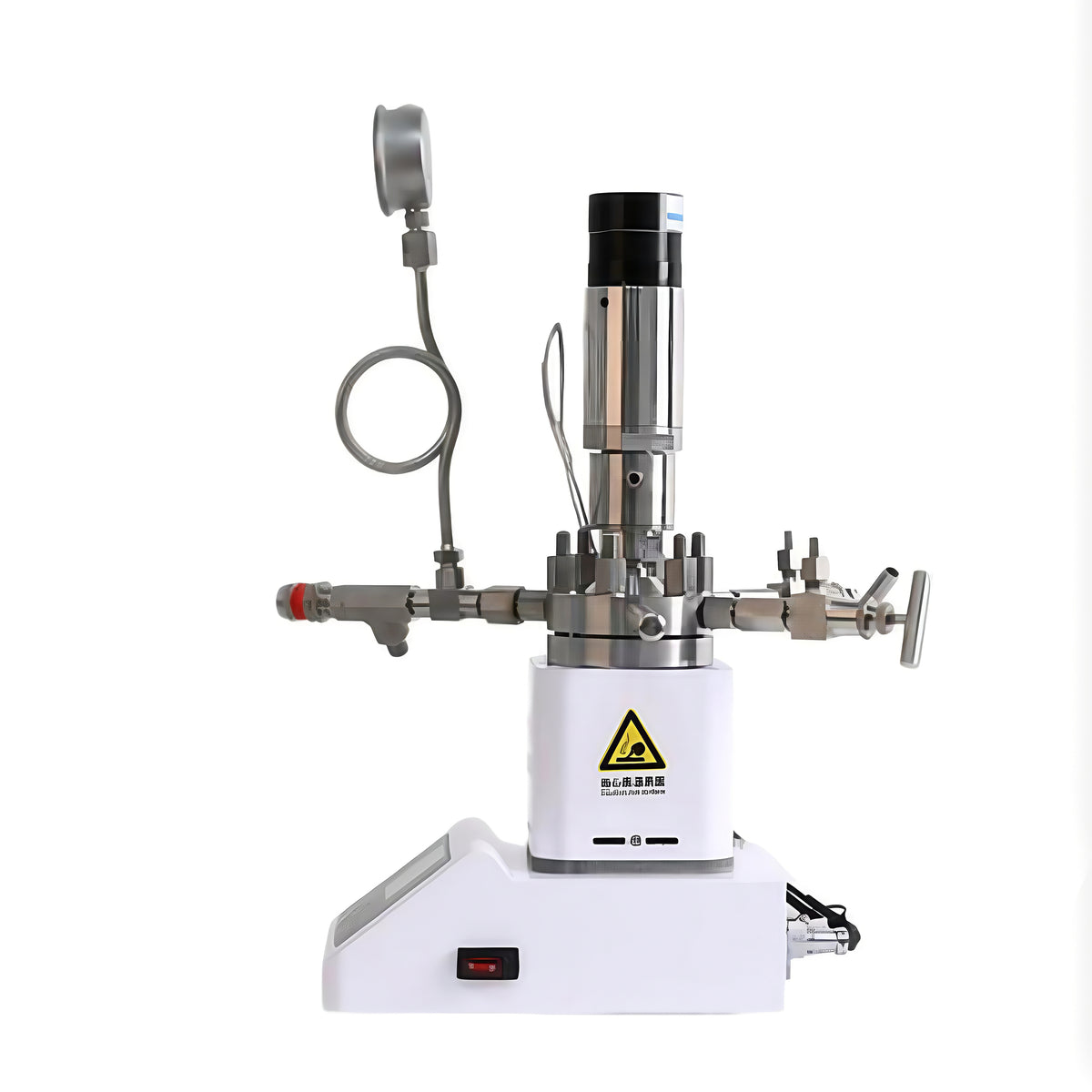

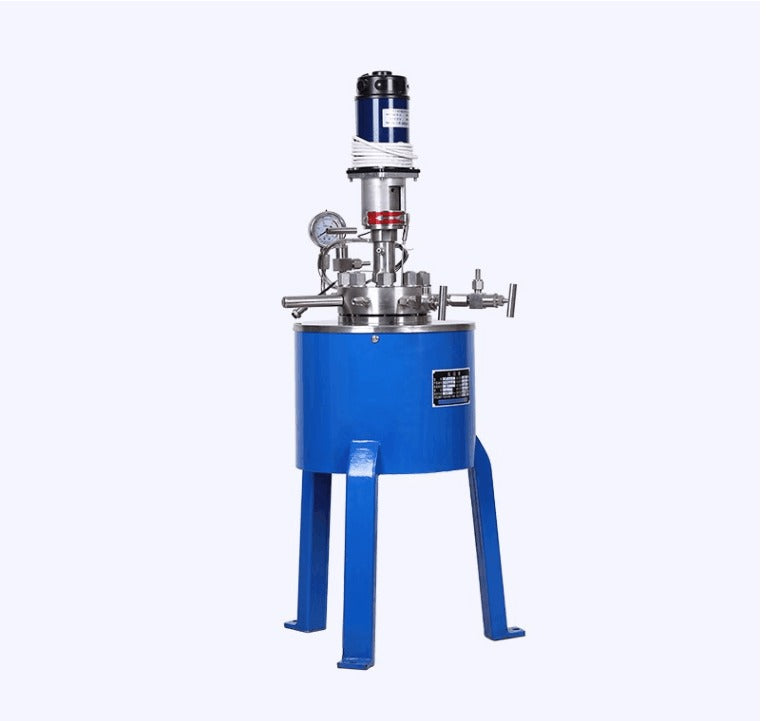

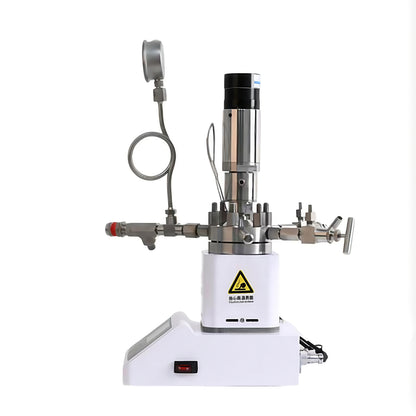

The TGYF-C series is a high-pressure autoclave reactor (reaction kettle) in stainless steel 304/316 with magnetic stirring, for catalytic hydrogenation R&D and other high-pressure reaction work. Verified specifications from the series table: design pressure 10 MPa, design temperature 350°C, temperature control accuracy ±1°C, stirring speed 1800 r/min, heating by electric, oil or steam. Sizes run from 0.05L to 0.5L.
Model Comparison
Model
Volume
Design Pressure
Design Temperature
Stirring Speed
Heating Power
ALAB-TGYF-C-0.05L
0.05L
10 MPa
350°C
1800 r/min
0.7 kW
ALAB-TGYF-C-0.1L
0.1L
10 MPa
350°C
1800 r/min
0.7 kW
ALAB-TGYF-C-0.25L
0.25L
10 MPa
350°C
1800 r/min
0.7 kW
ALAB-TGYF-C-0.5L
0.5L
10 MPa
350°C
1800 r/min
1.5 kW
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
