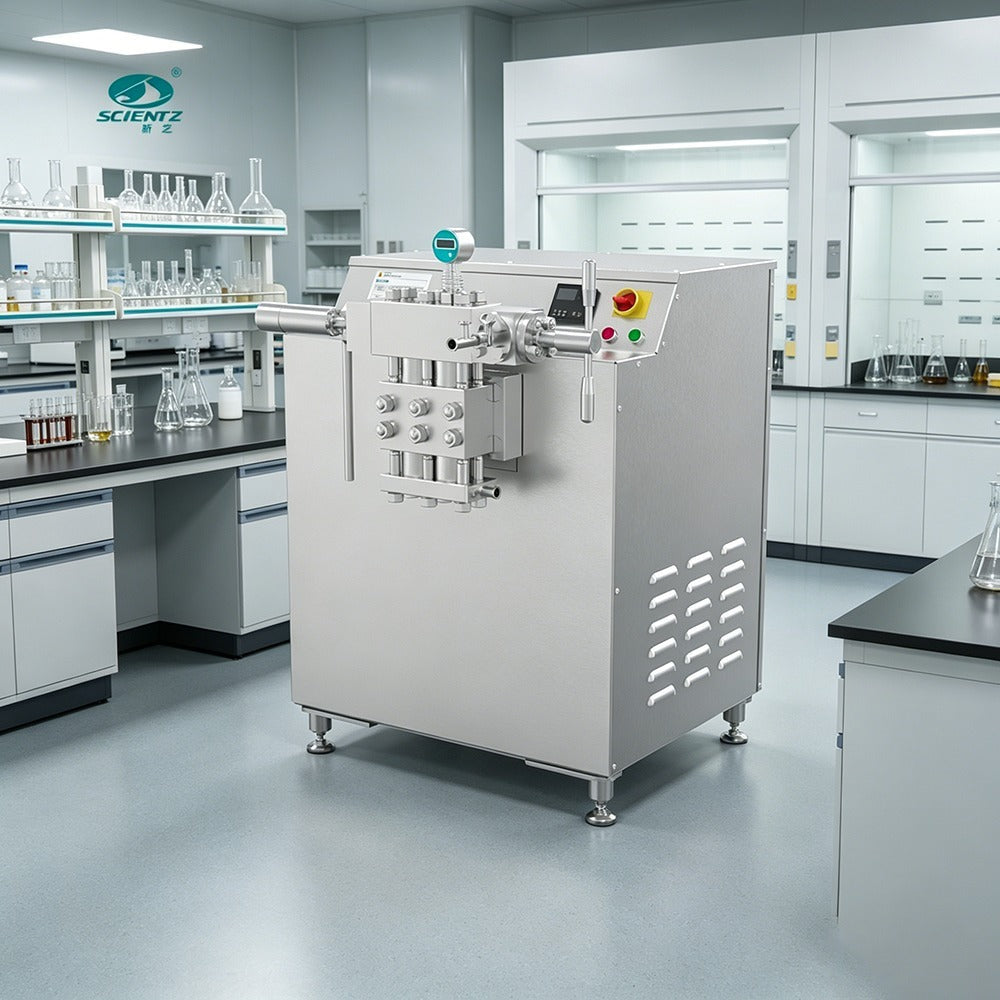

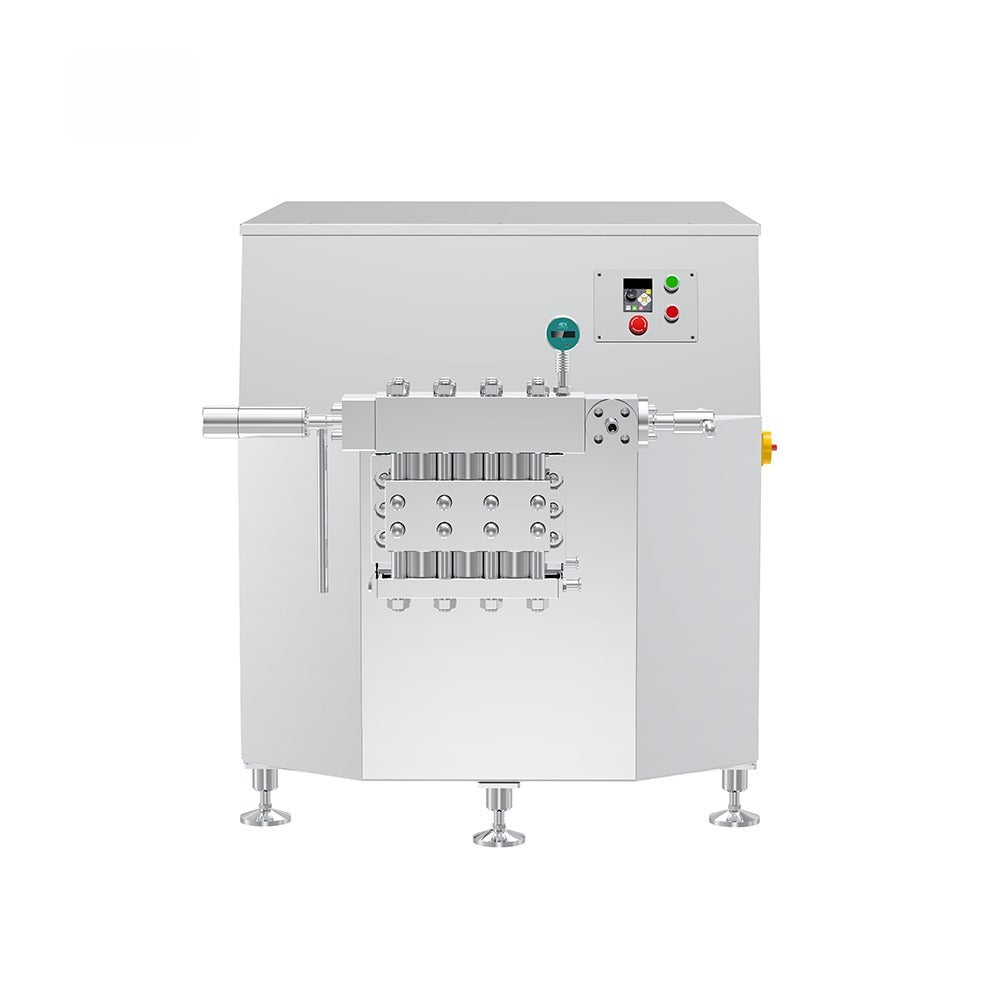

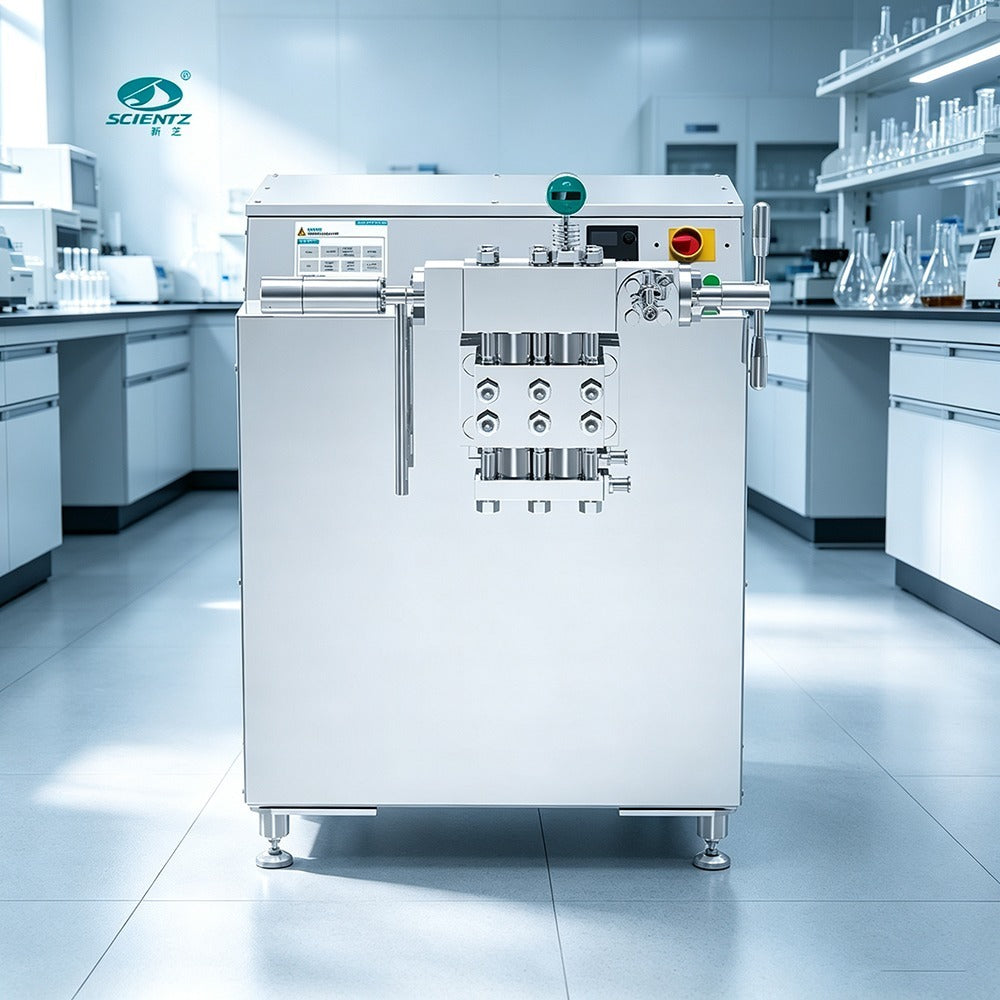

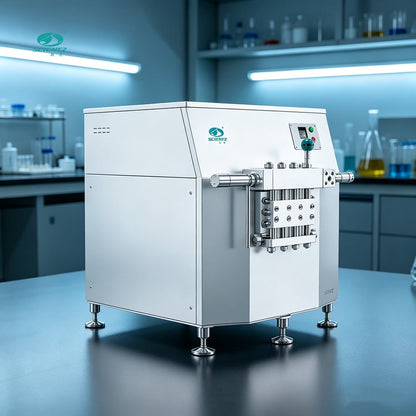

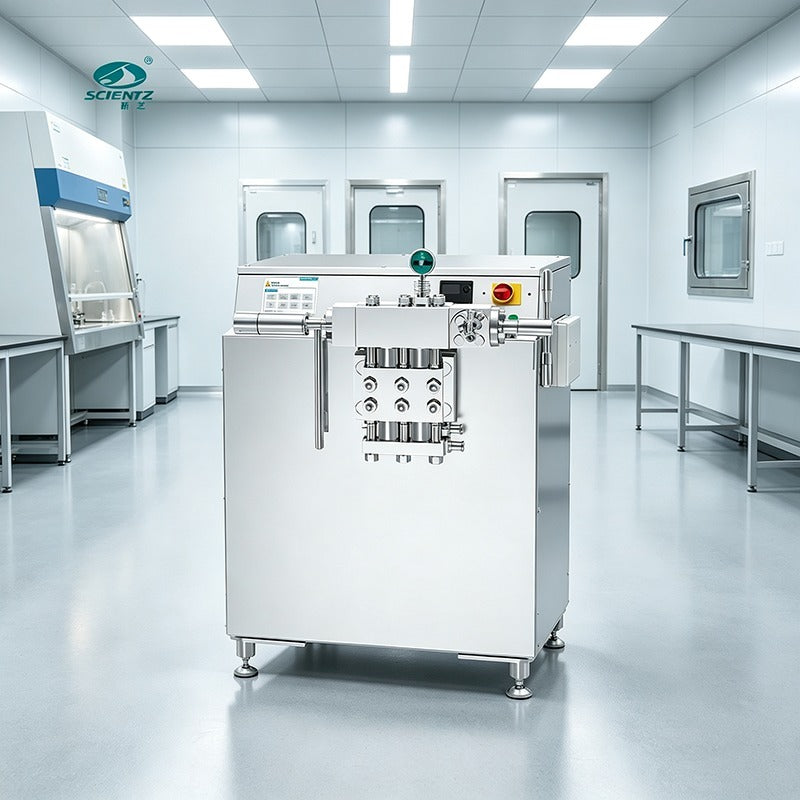

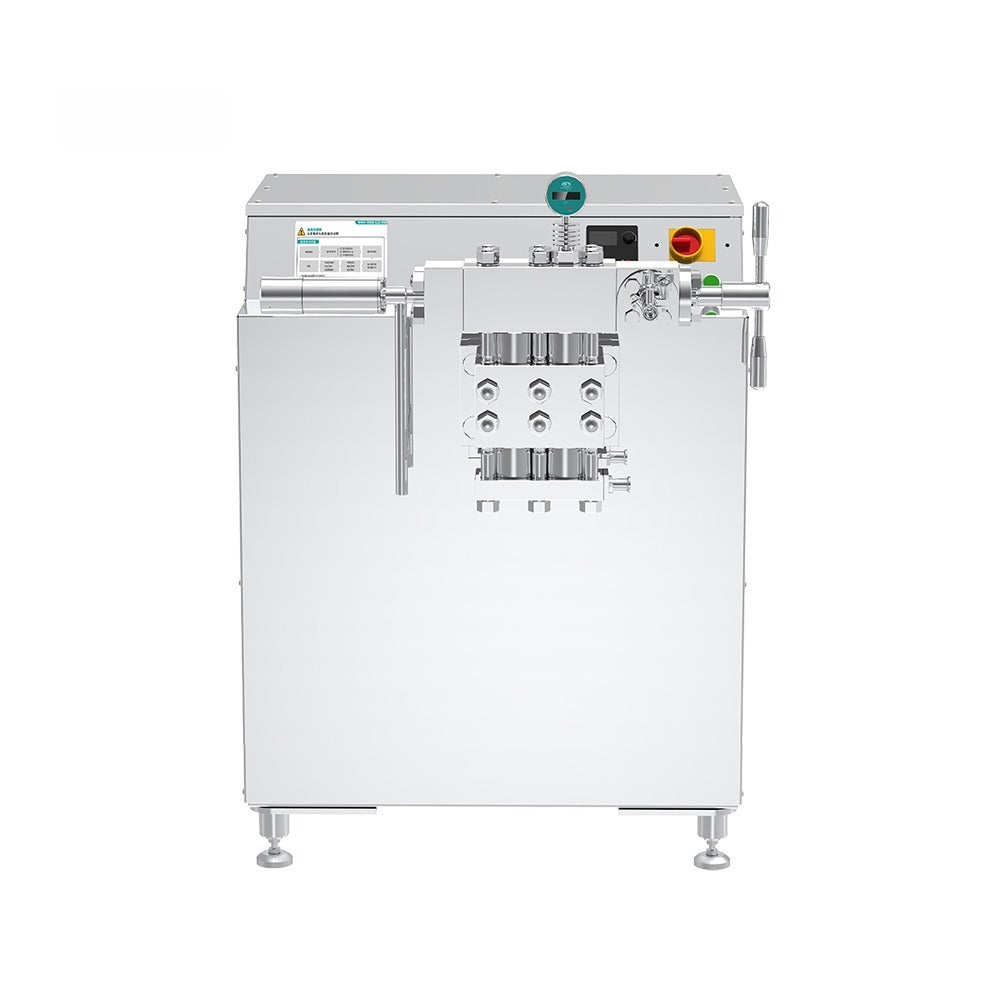

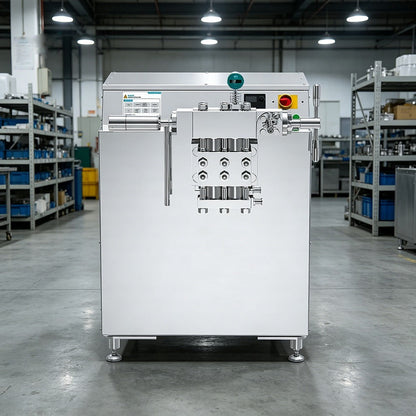

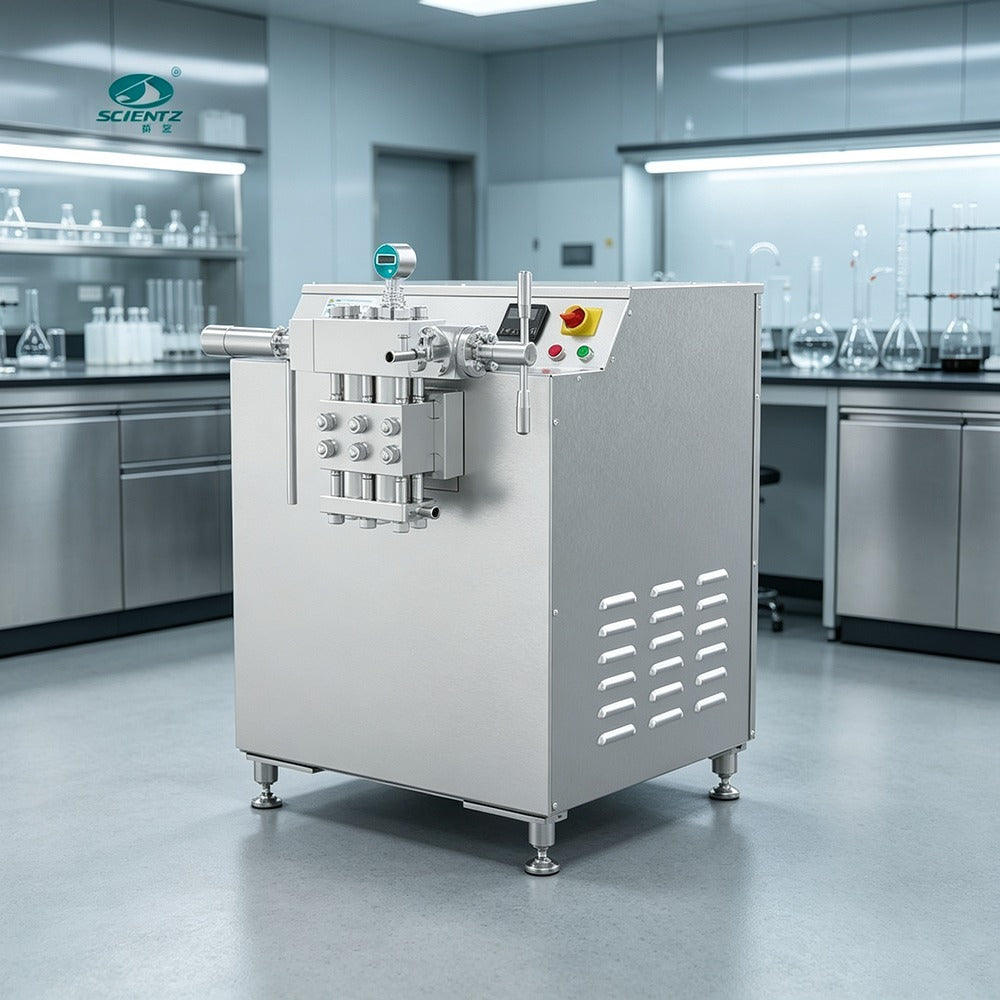

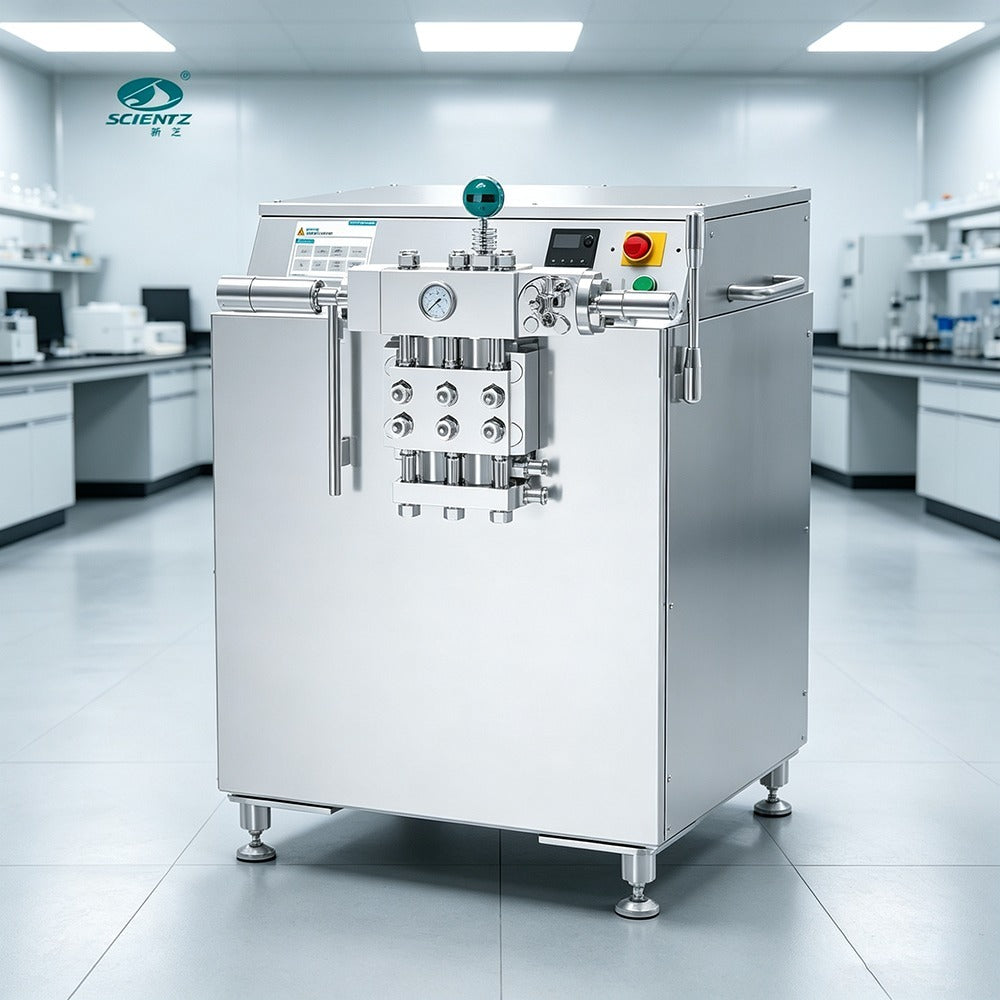

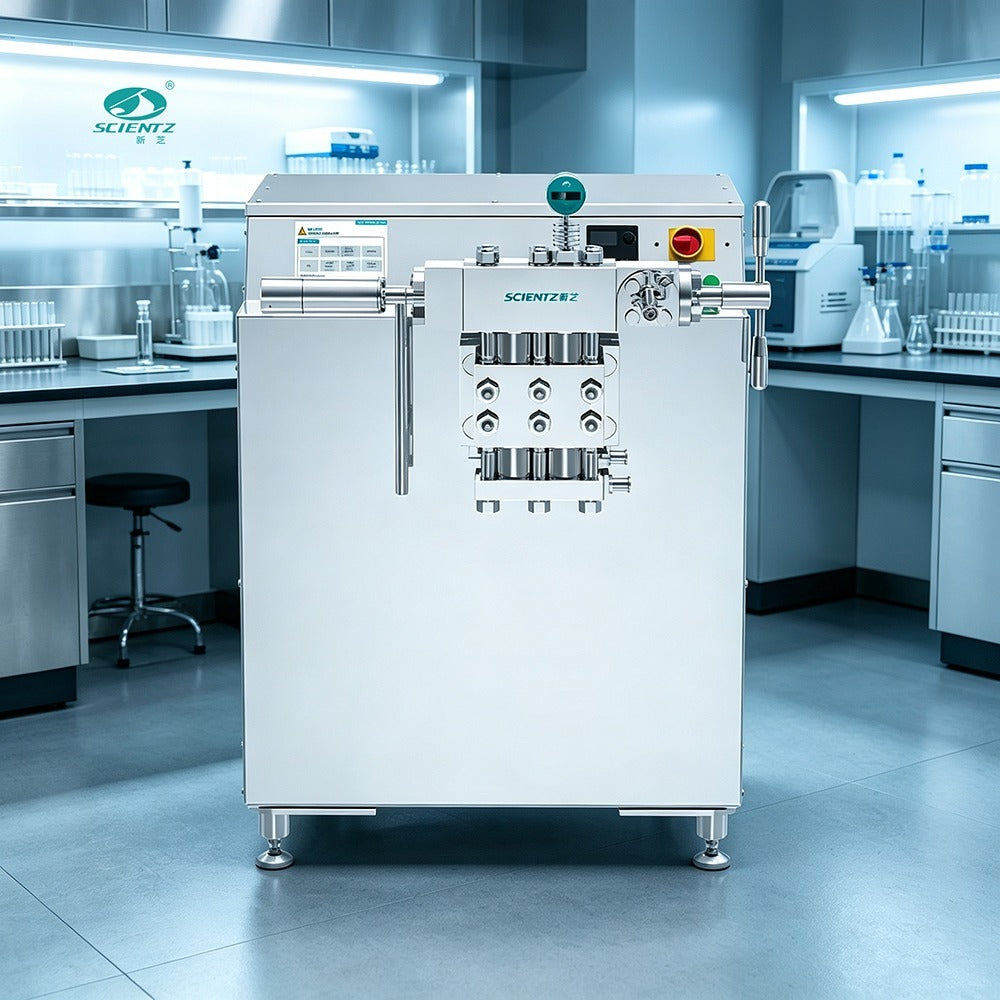

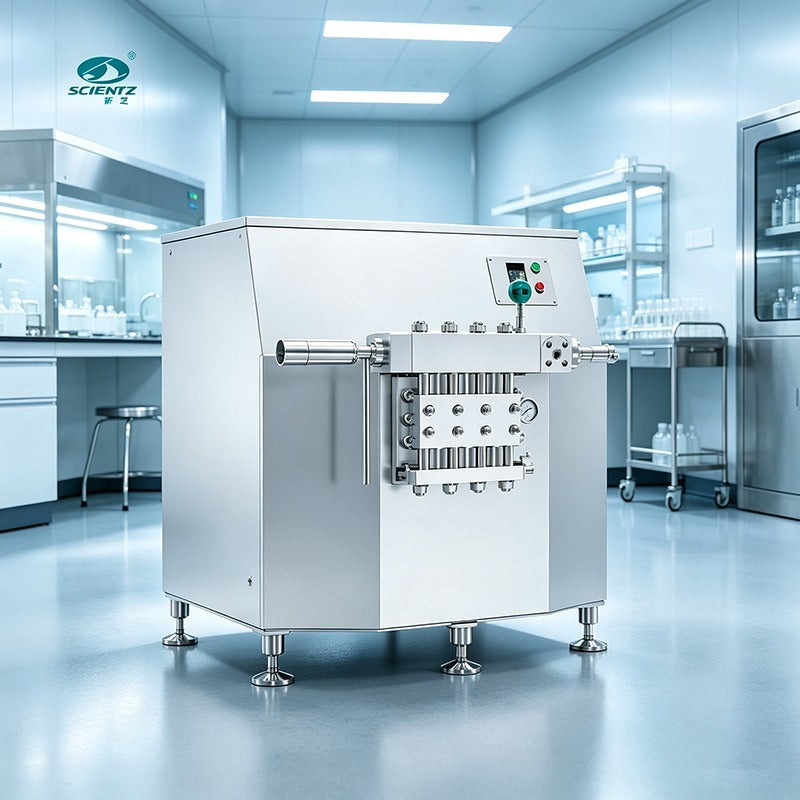

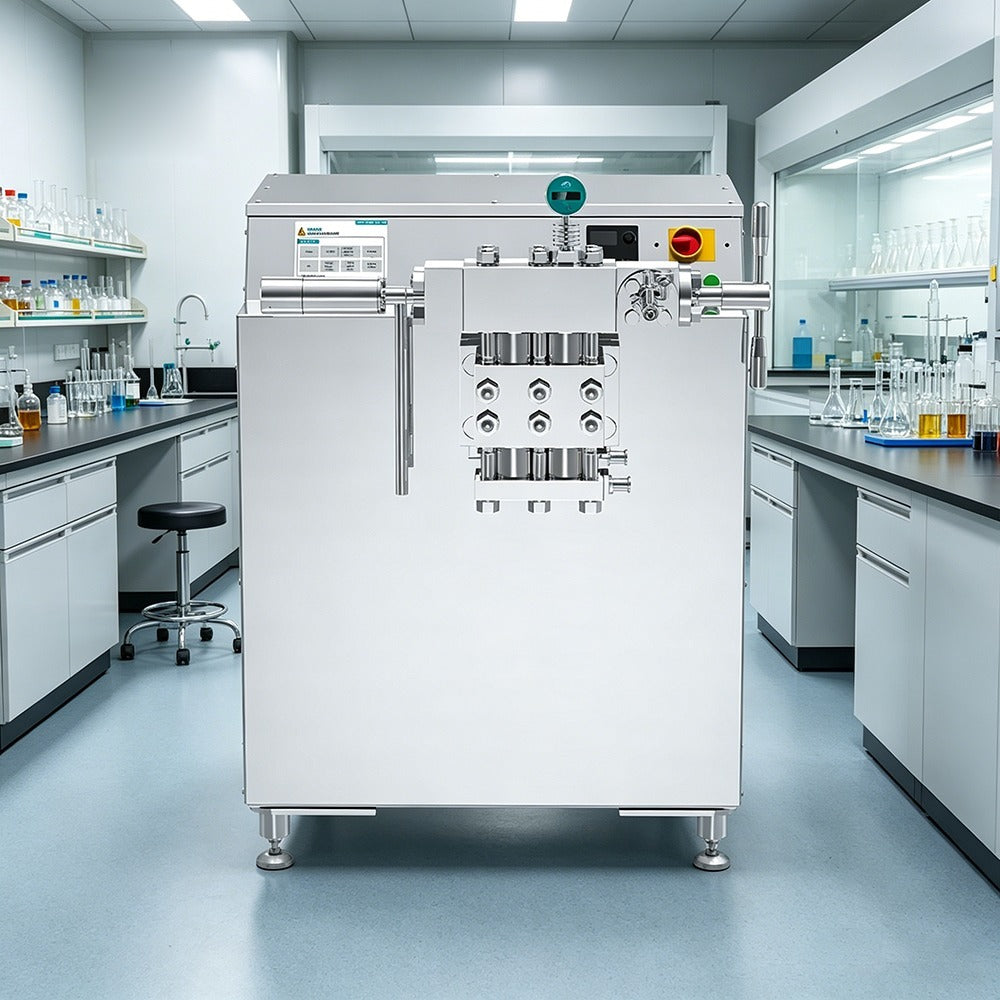

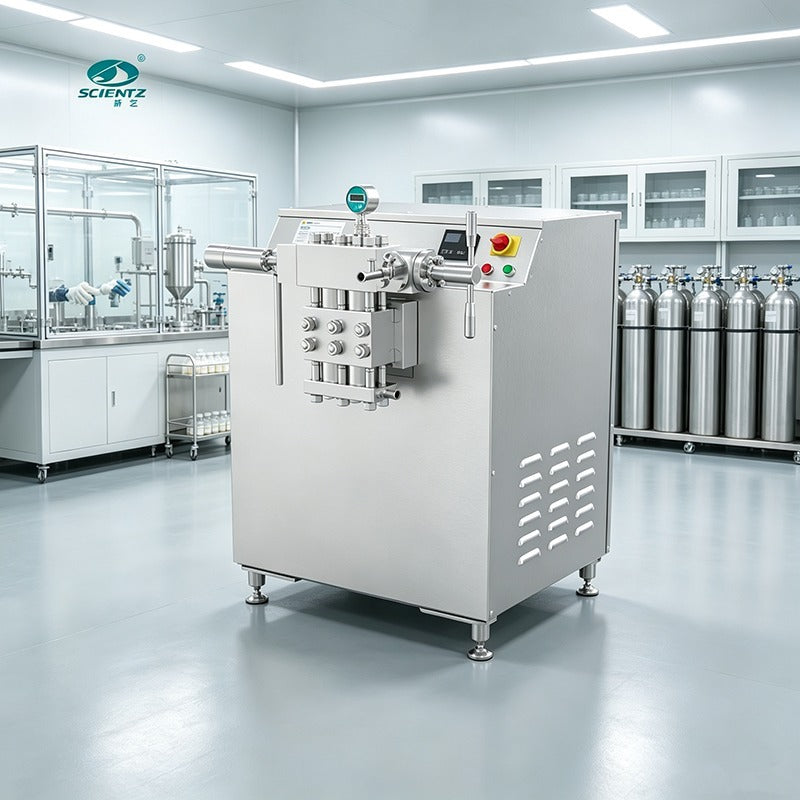

The ALAB-PH-A series industrial high pressure homogenizers provide production-scale homogenizing at a maximum working pressure of 1500 bar. Six models are available, with processing capacities from 60 L/h to 500 L/h — see the comparison table below for the full specifications of each model.
Model Comparison
Specification
ALAB-PH-A060I
ALAB-PH-A100
ALAB-PH-A200
ALAB-PH-A300
ALAB-PH-A400
ALAB-PH-A500
Model
ALAB-PH-A060I
ALAB-PH-A100
ALAB-PH-A200
ALAB-PH-A300
ALAB-PH-A400
ALAB-PH-A500
Processing Capacity
60 L/H
100 L/H
200 L/H
300 L/H
400 L/H
500 L/H
Maximum Working Pressure
1500 bar
1500 bar
1500 bar
1500 bar
1500 bar
1500 bar
Number of Plungers
2
3
3
3
3
3
Motor Power
7.5 kW Level 8
15 kW Level 8
15 kW Level 8
15 kW Level 8
37 kW Level 6
37 kW Level 6
Transmission Method
Wheeled
Wheeled
Wheeled
Wheeled
Gearbox
Gearbox
Homogeneous Series
Level 1/Level 2
Level 1/Level 2
Level 1/Level 2
Level 1/Level 2
Level 1/Level 2
Level 1/Level 2
Pressure Regulation
Manual/pneumatic
Manual/pneumatic
Manual/pneumatic
Manual/pneumatic
Manual/pneumatic
Manual/pneumatic
Feeding Method
Self-suction one-way valve
Self-suction one-way valve
Self-suction one-way valve
Self-suction one-way valve
Self-suction one-way valve
Self-suction one-way valve
Material
Stainless Steel
Stainless Steel (SUS304)
Stainless Steel
-
Stainless Steel (SUS304)
Stainless Steel (SUS304)
Voltage
380V 50Hz
380V 50Hz
380V 50Hz
380V 50Hz
380V 50Hz
380V 50Hz
Voltage note for US customers: This unit operates on 380V three-phase power. Standard US outlets supply 110–120V single-phase, so a suitable industrial power supply is required.
