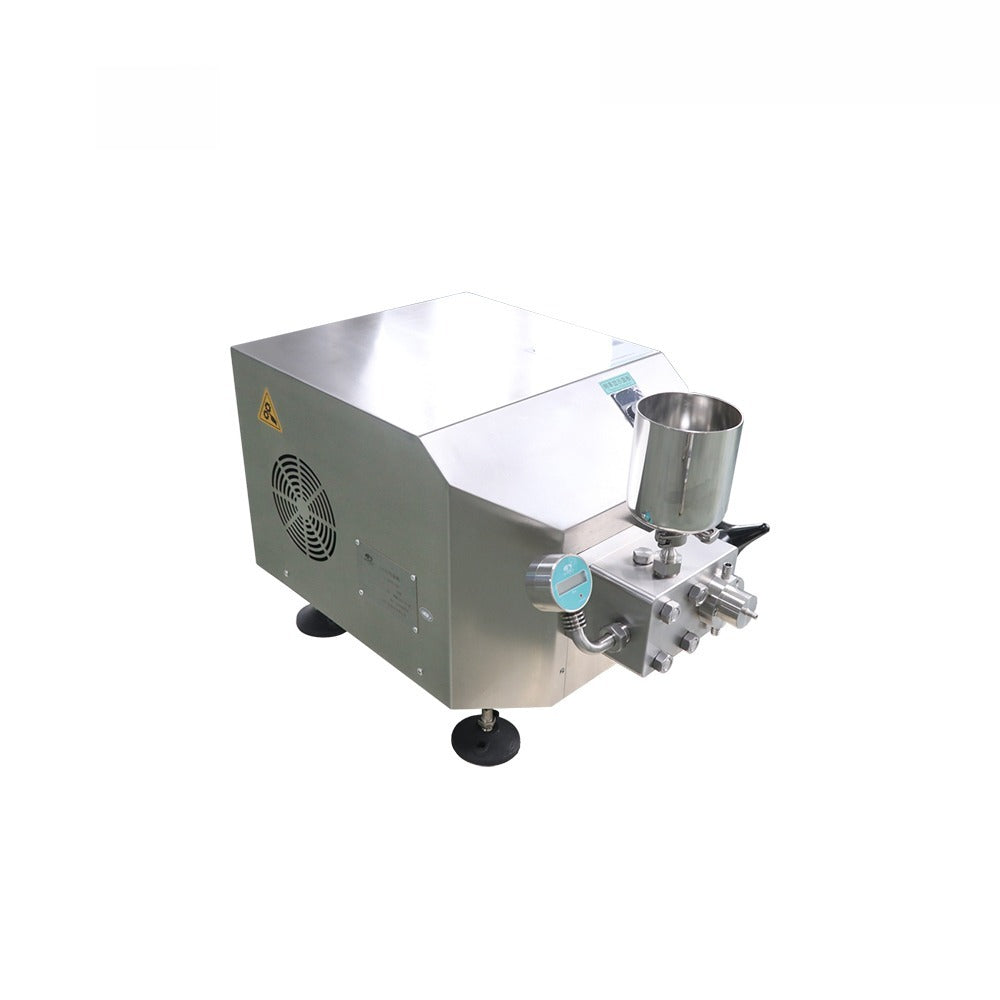

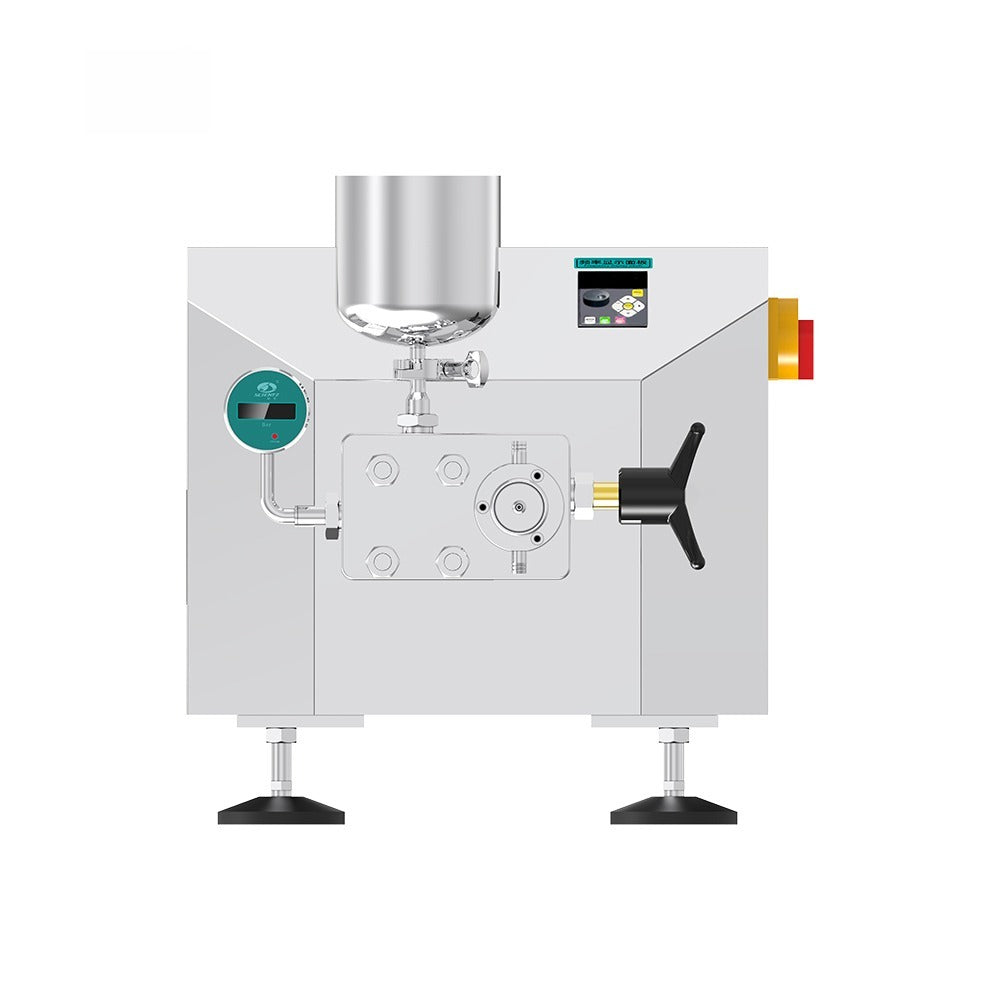

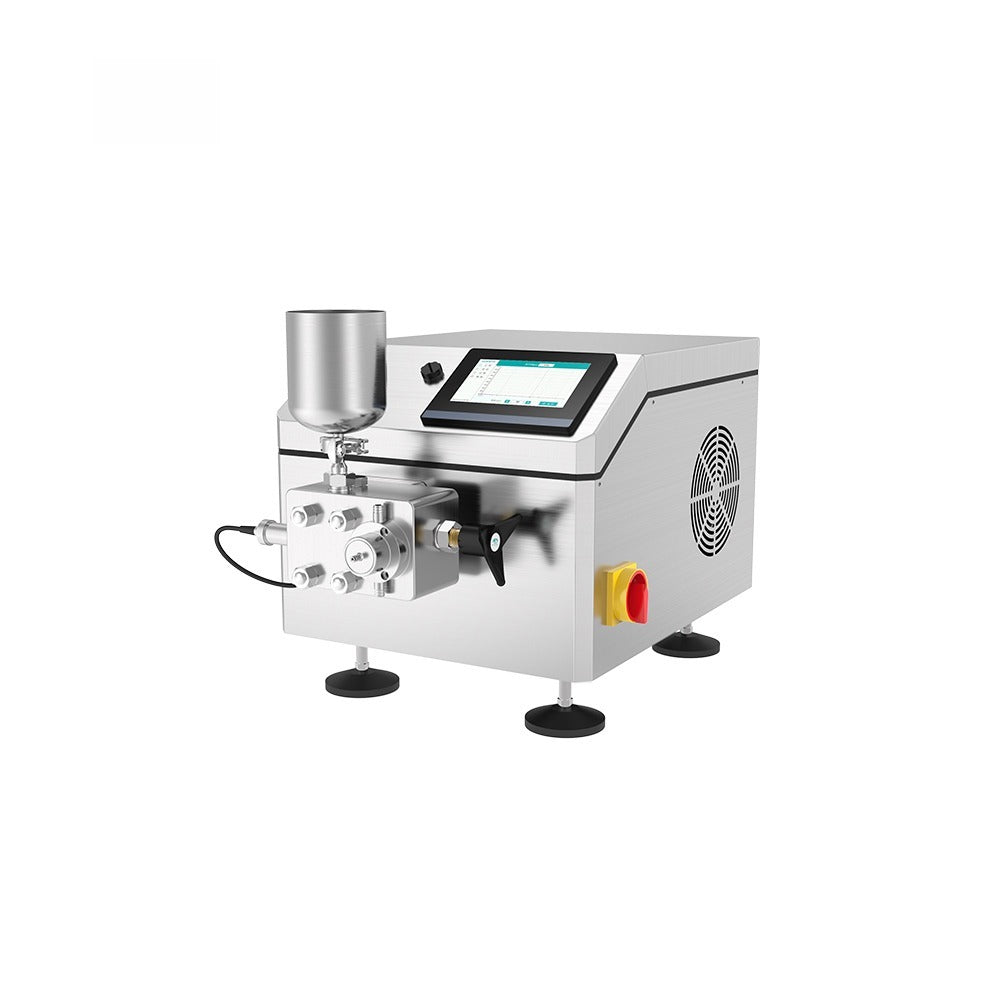

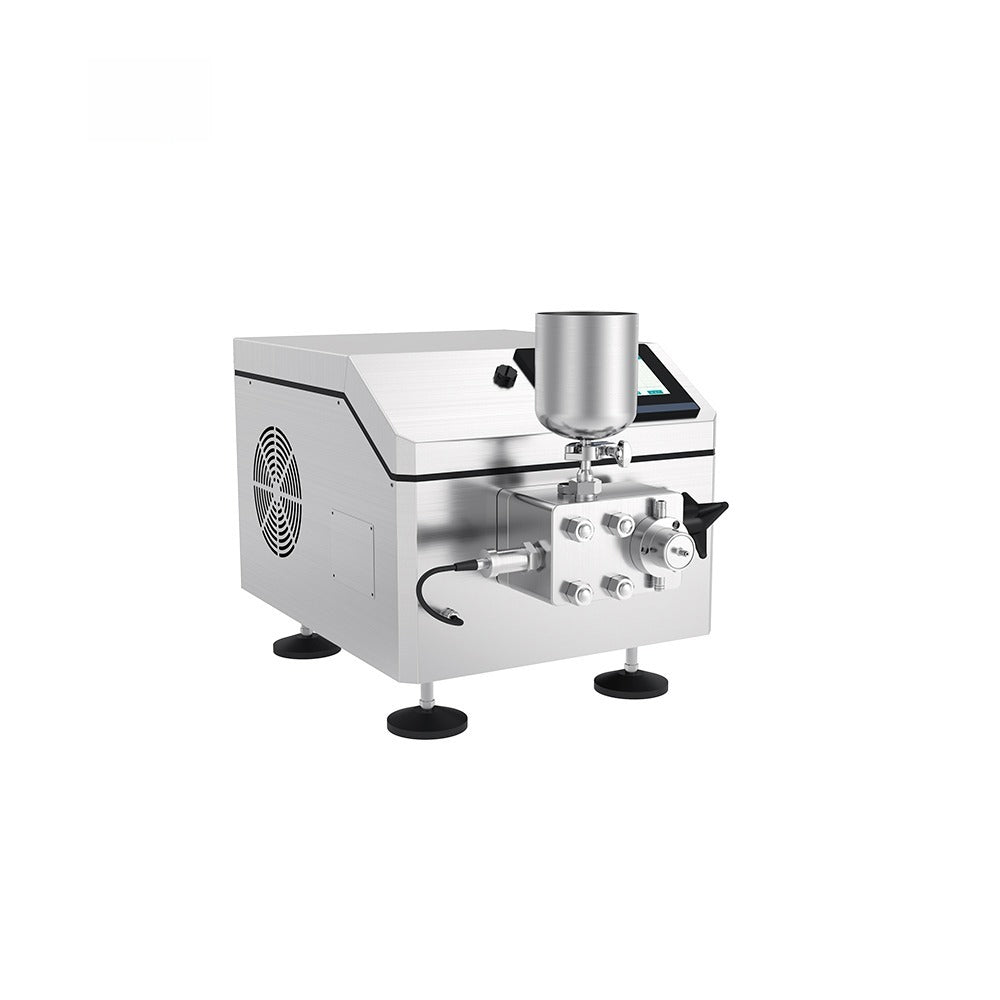

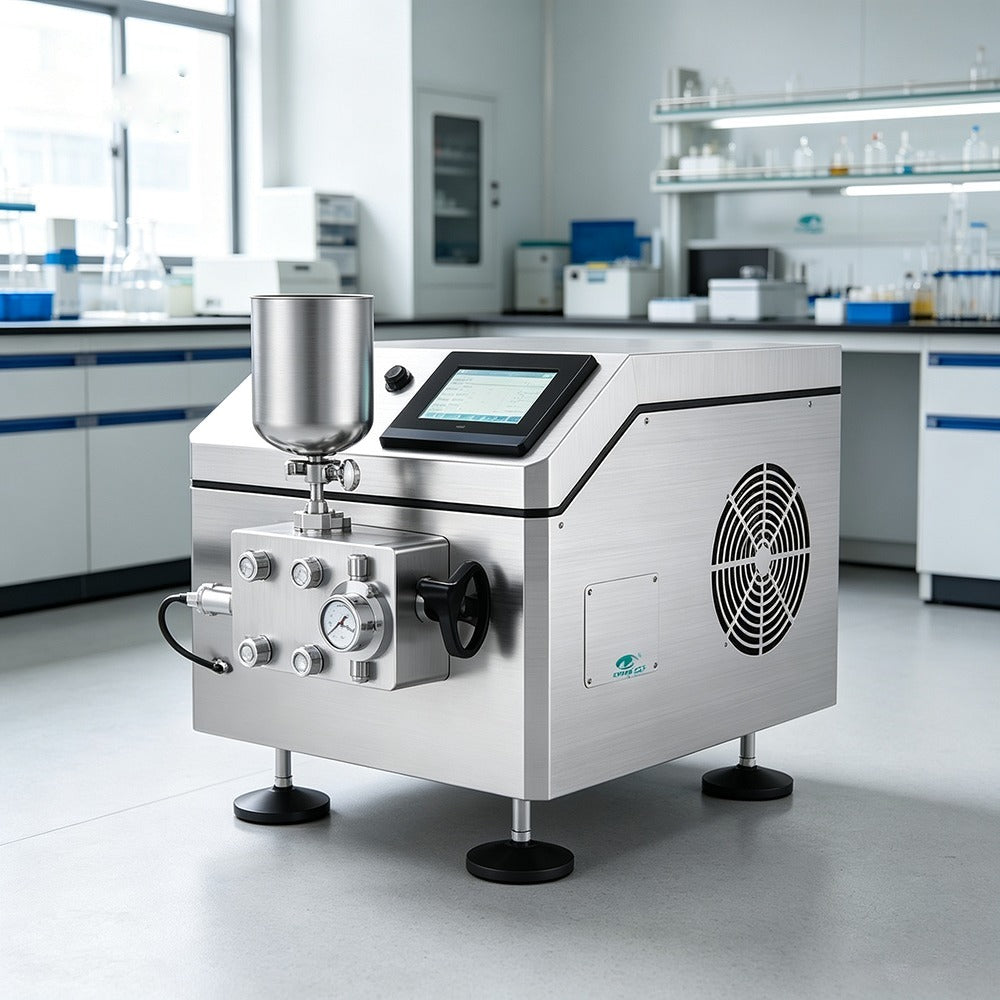

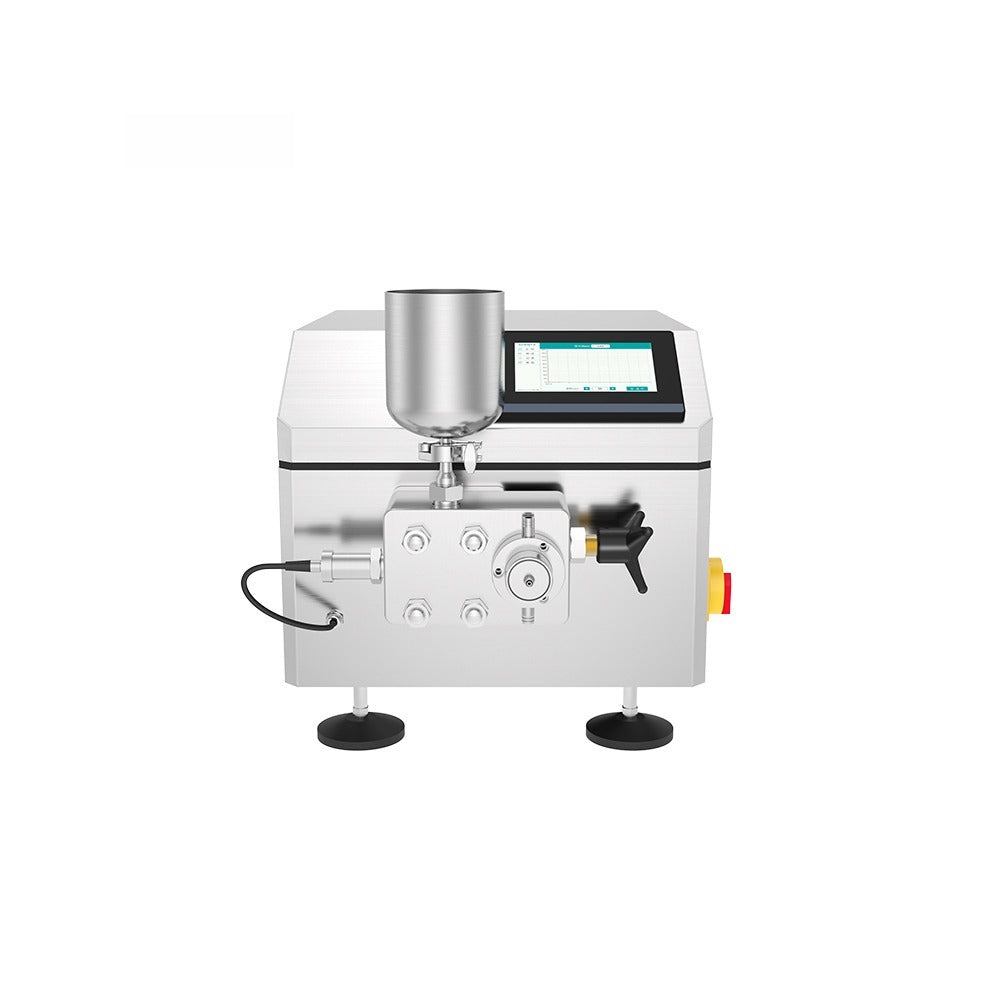

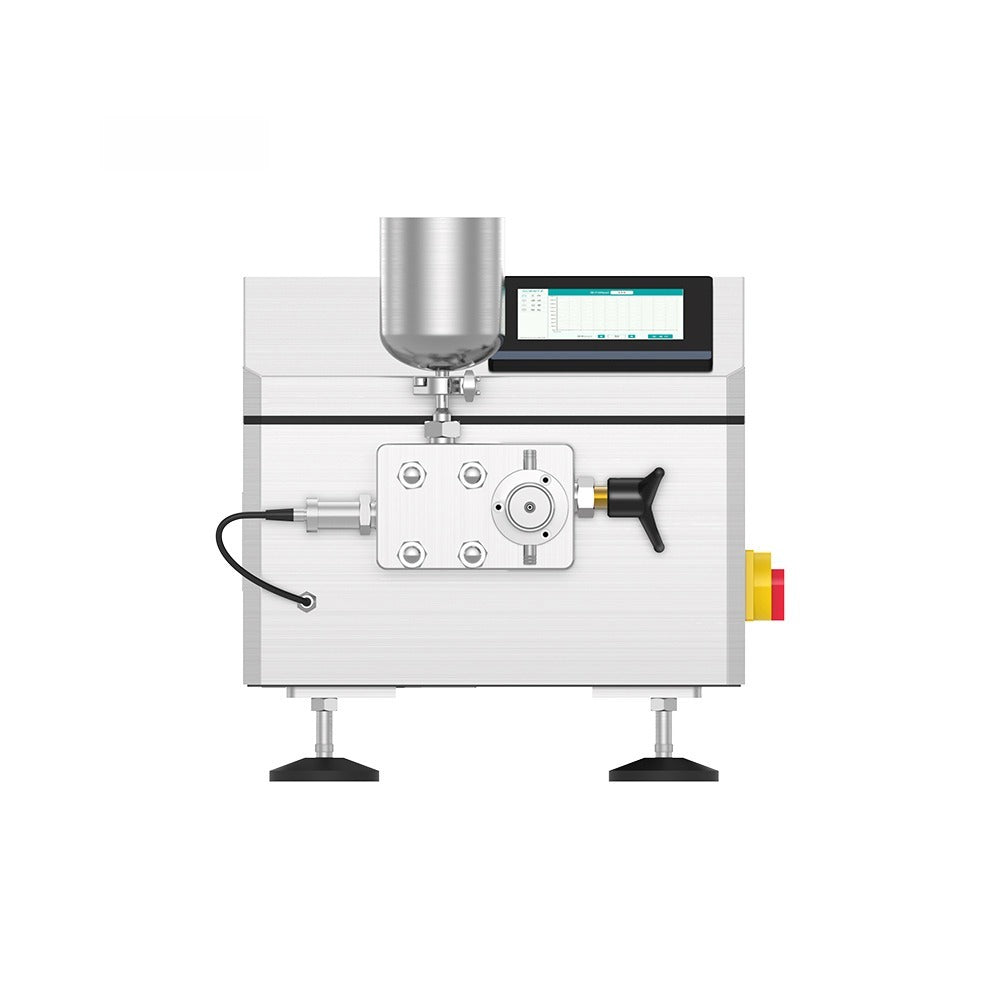

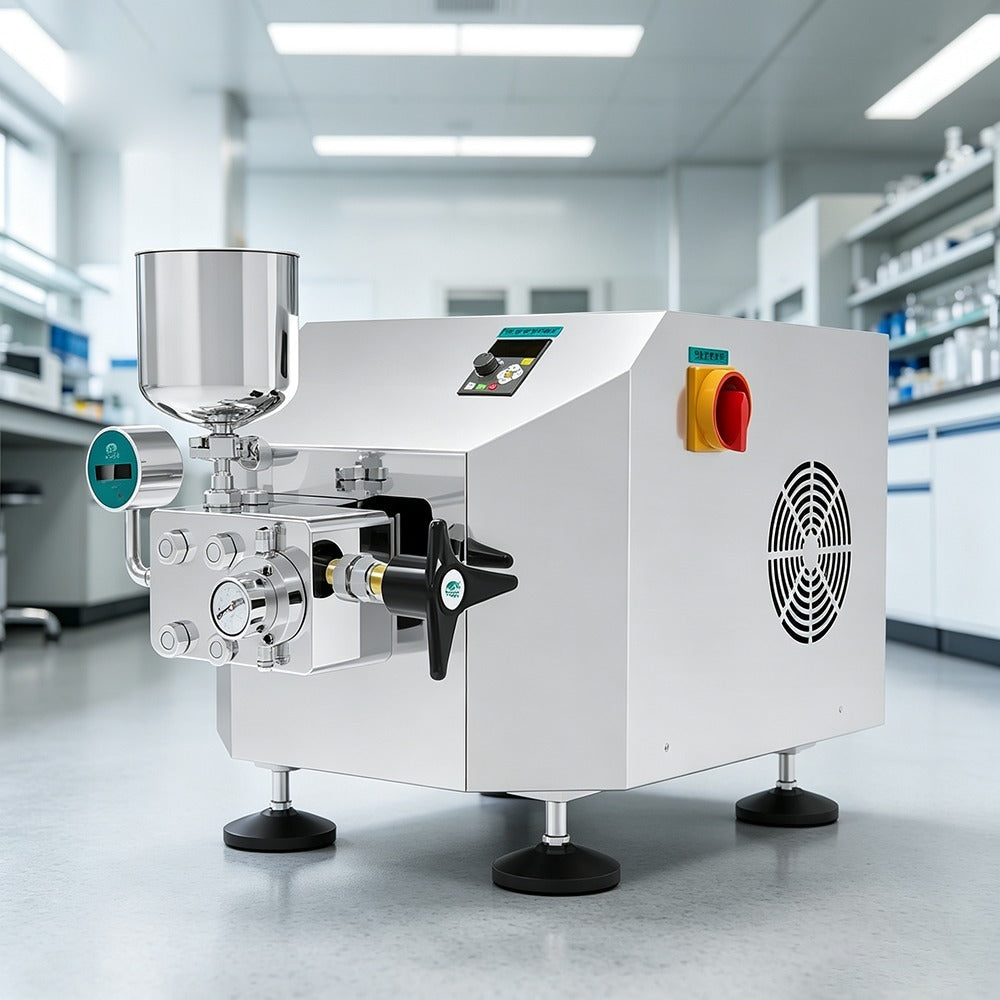

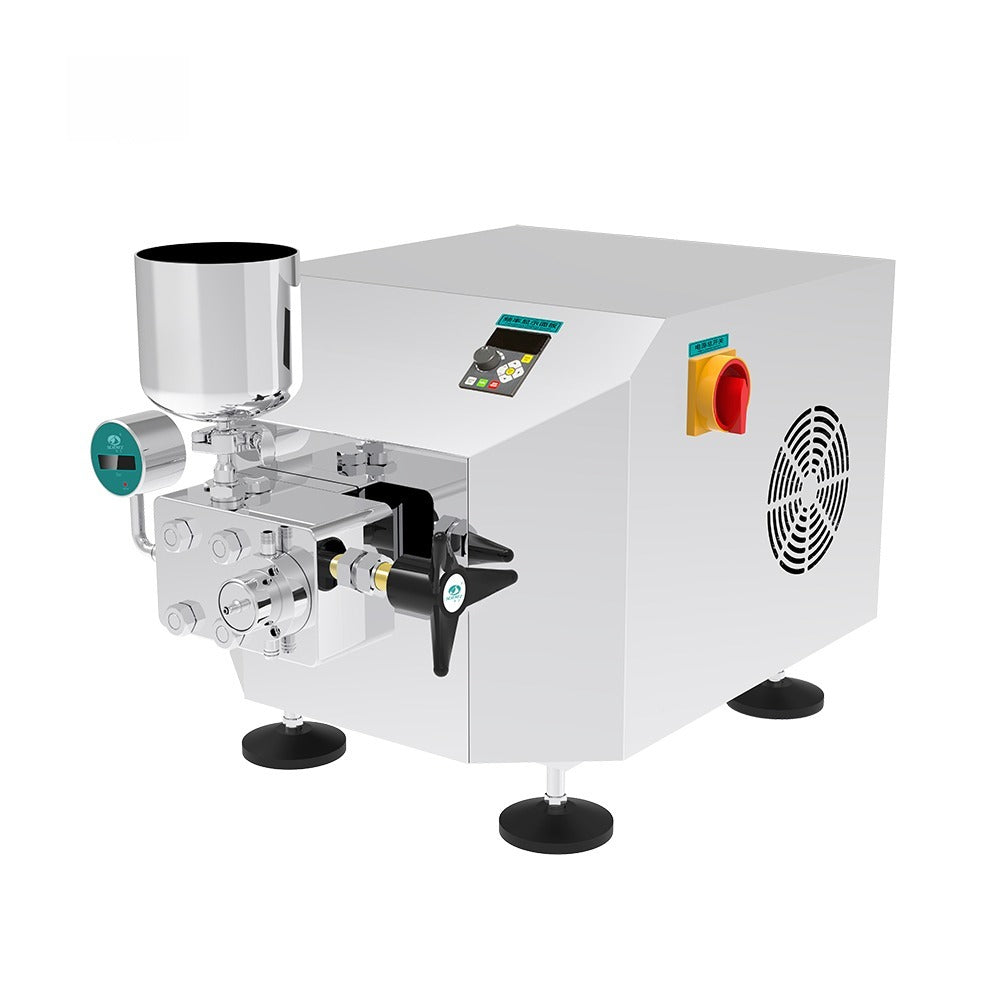

The ALAB-SCIENTZ-150A and ALAB-SCIENTZ-Nano are benchtop high pressure homogenizers with a maximum working pressure of 1500 bar, for laboratory and pilot-scale homogenizing. The ALAB-SCIENTZ-150A has a throughput of 12–25 L/h; the ALAB-SCIENTZ-Nano has a throughput of 6–10 L/h — see the comparison table below for the full specifications of each model.
Model Comparison
Specification
ALAB-SCIENTZ-150A
ALAB-SCIENTZ-Nano
Model
ALAB-SCIENTZ-150A
ALAB-SCIENTZ-Nano
Processing Capacity
12-25 L/H
6-10 L/H
Maximum Working Pressure
1500 bar
1500 bar
Motor Power
3.0 kW Level 8
1.5 kW
Maximum Feed Particle Size
<500 microns
<500 microns
Maximum Product Viscosity
2000 cP
2000 cP
Maximum Product Temperature
90 °C
90 °C
Maximum Steam Temperature
121 °C
121 °C
Dimensions
84*62*54 cm
80*46*45 cm
Voltage
380V three-phase, 50Hz
220V, 50Hz
Voltage note for US customers: The ALAB-SCIENTZ-150A operates on 380V three-phase power. Standard US outlets supply 110–120V single-phase, so a suitable industrial power supply is required for that model. The ALAB-SCIENTZ-Nano operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required for that model.
