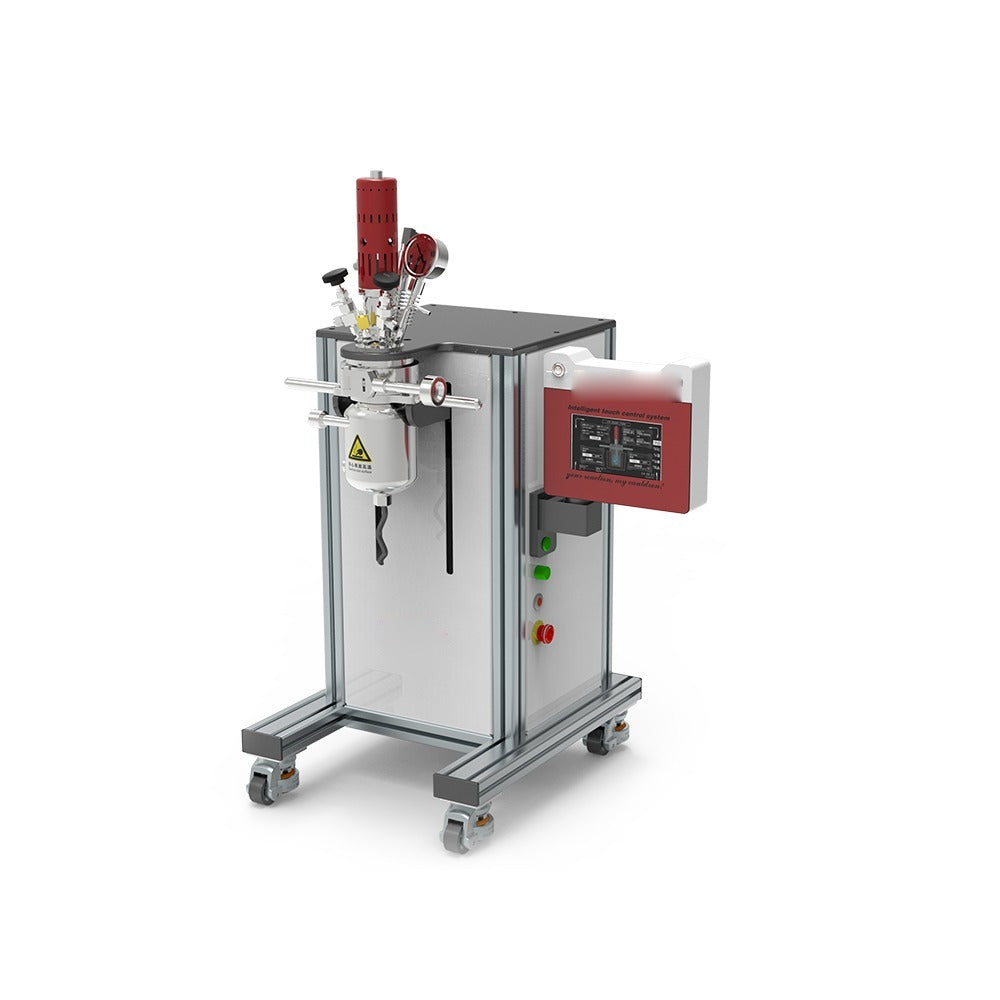

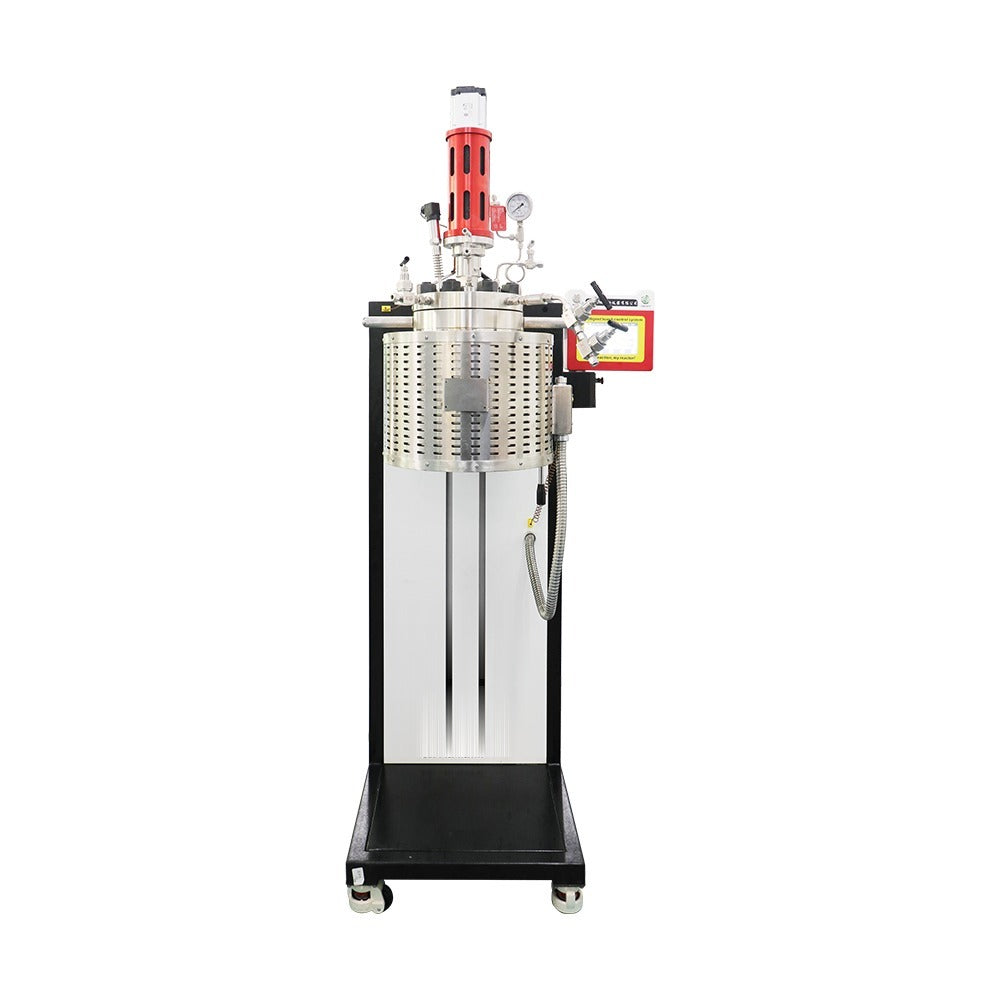

High Pressure Reactor ALAB-HT-10LFJ-1P3T3S6F-QZD

The High Pressure Reactor ALAB-HT-10LFJ-1P3T3S6F-QZD is a laboratory high pressure reactor.

Specifications

• Design Pressure: 12.5 MPa
• Temperature Range: 20 - 300 ℃
• Type: F-series flange reactor, K-series quick-opening reactor, Y-series one-touch quick-opening reactor, Magnetic stirring and mechanical stirring
• Material: Standard Material: 316L (inner and outer); customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy
• Inner Material: Standard Material: 316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy
• Outer Material: Standard Material: 316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy
• Core Components: Magnetic Coupling Mechanical Stirrer, Stainless steel pressure sensor, Inlet valve, Pressure gauge, Overpressure relief device, Exhaust valve, Foldable Touch Screen Controller, PLC Control cabinet, Electric Heating and insulation module, Temperature sensor connector, Reserve port (optional for sampling or sample injection), Three-blade down-flow propeller paddle, Lifting Module
• Design Standard: Pressure vessels GB/T 150.1-150.4-2024
• Dimensions: 870mm*1200mm*2210mm
• Weight: 398 kg
• Volume (M³): 2.31 m³
