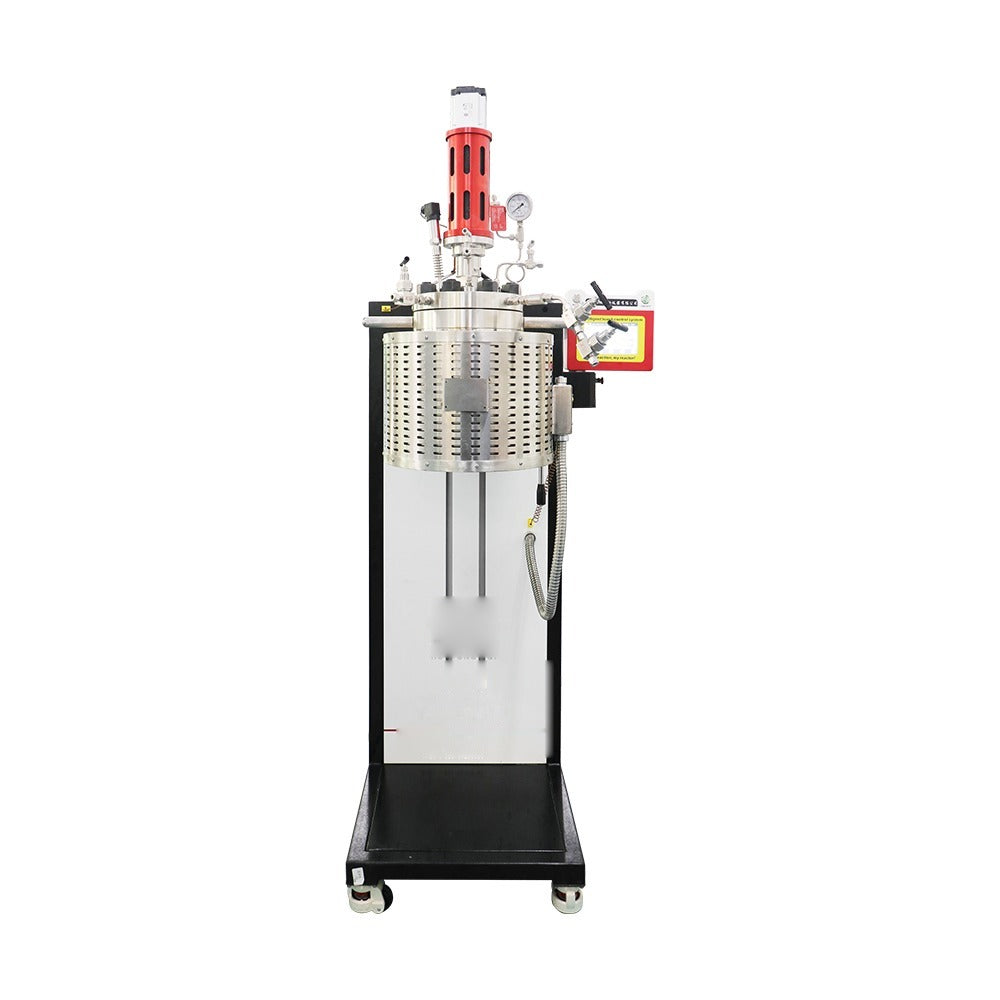

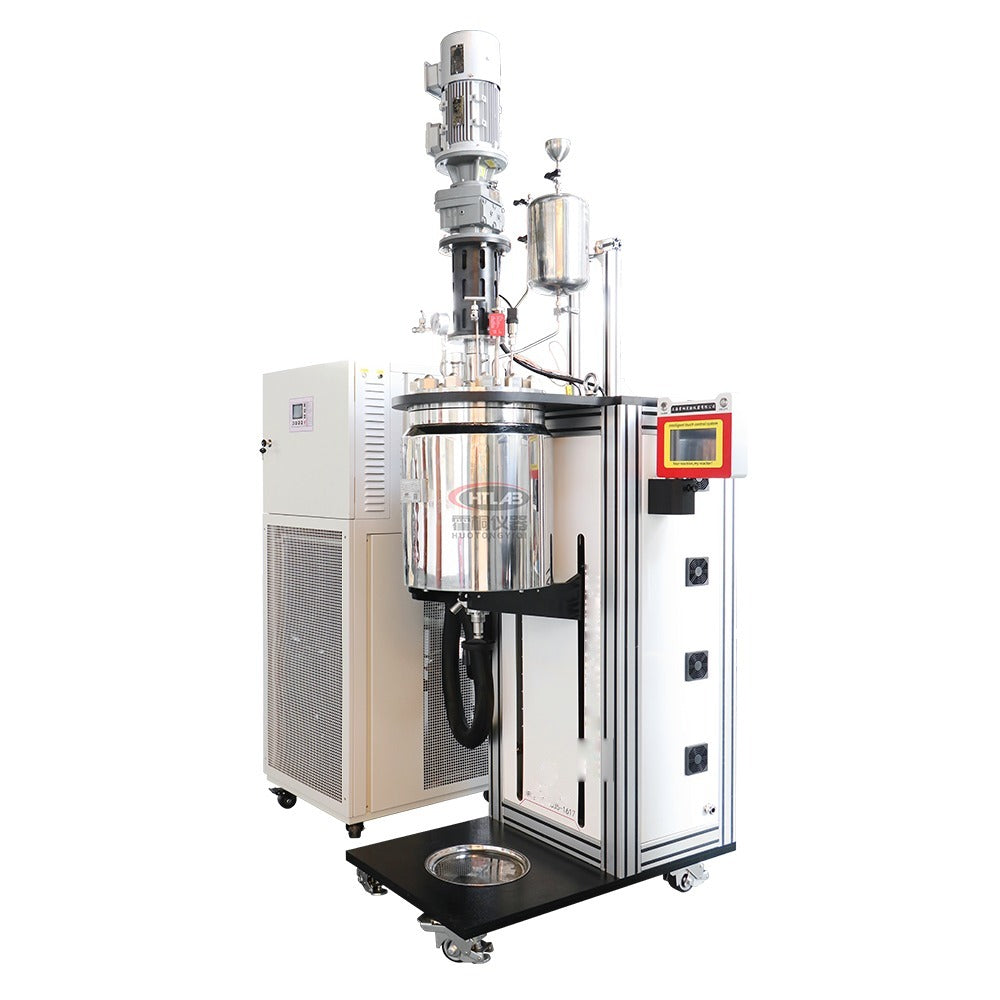

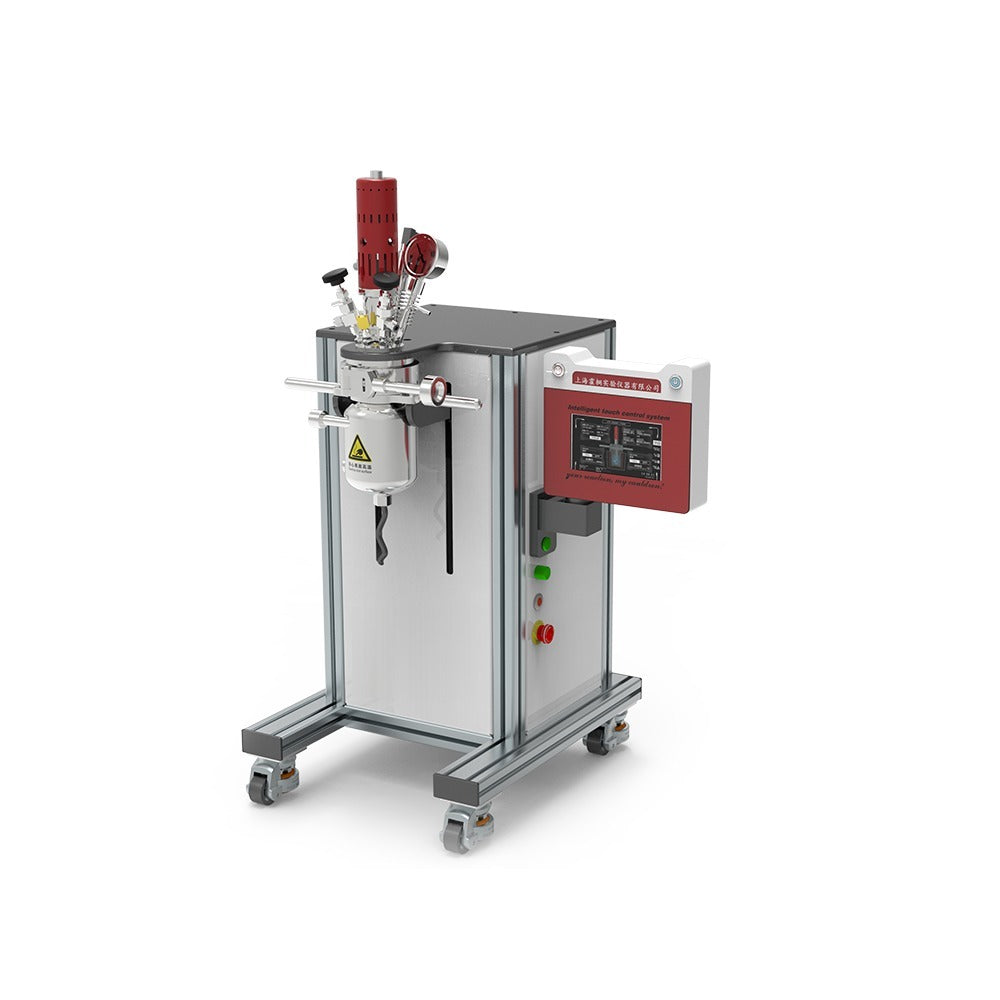

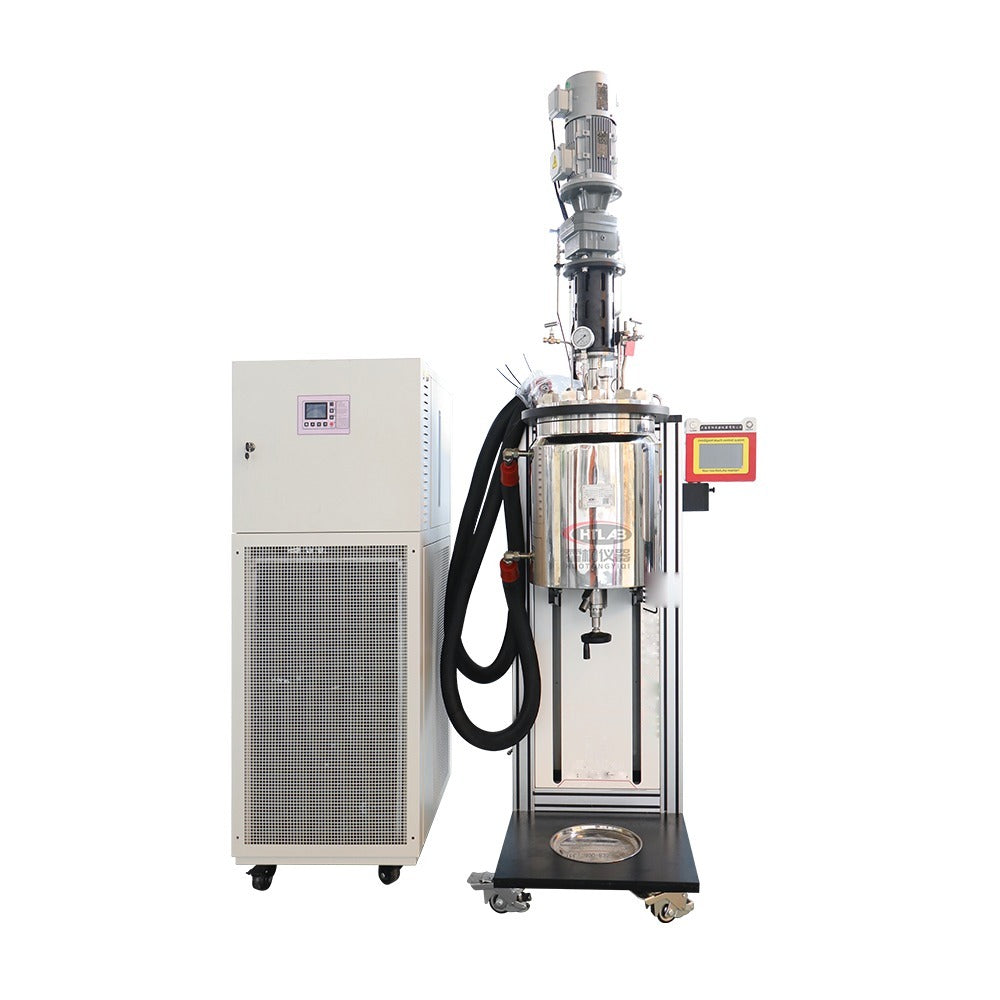

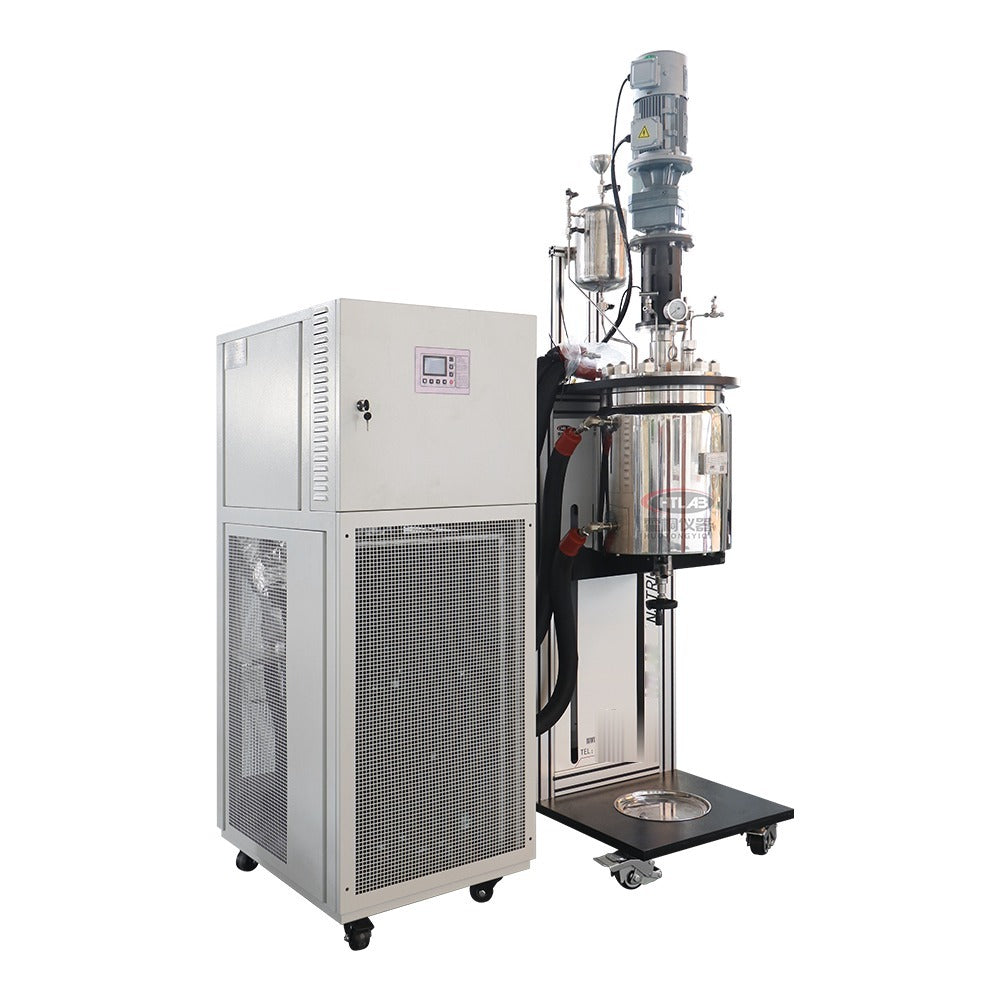

The High Pressure Reactor ALAB-HT-20LFJ-1P3T3S6F-QZD is a laboratory high pressure reactor.
Specifications
Design Pressure: 12.5 MPa
Temperature Range: 20 - 300 ℃
Type: F-series flange reactor, K-series quick-opening reactor, Y-series one-touch quick-opening reactor, Magnetic stirring and mechanical stirring
Material: Inner: Standard Material: 316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy; Outer: Standard Material: 316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy
Inner Material: Standard Material: 316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy
Outer Material: Standard Material: 316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy
Core Components: Magnetic Coupling Mechanical Stirrer, Stainless steel pressure sensor, Inlet valve, Pressure gauge, Overpressure relief device, Exhaust valve, Foldable Touch Screen Controller, PLC Control cabinet, Electric Heating and insulation module, Temperature sensor connector, Reserve port (optional for sampling or sample injection), Three-blade down-flow propeller paddle, Lifting Module
