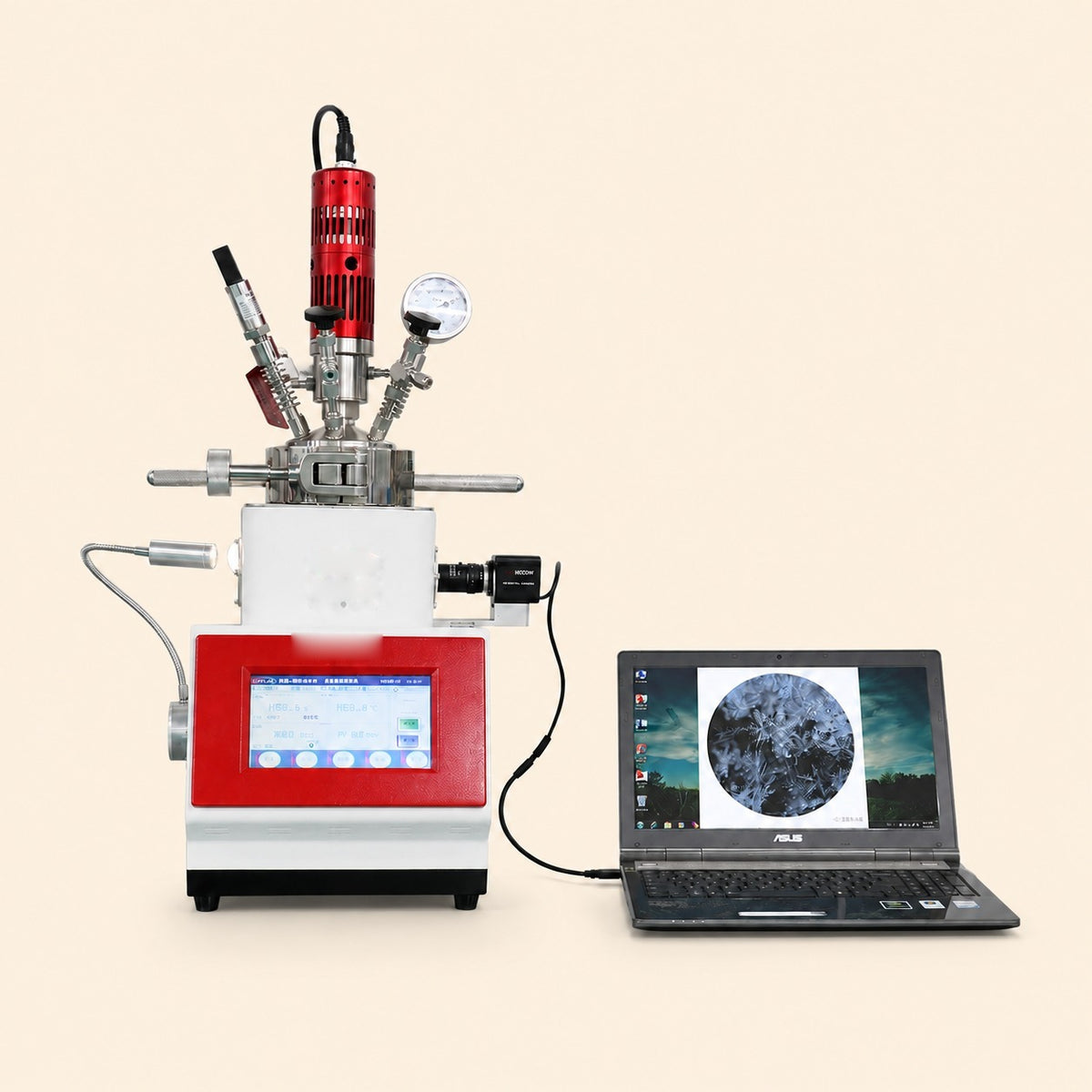

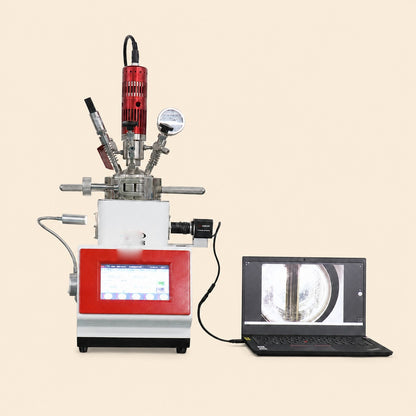

High Pressure Reactor ALAB-HT-500FJ-1P3T3S6F-CSC

The High Pressure Reactor ALAB-HT-500FJ-1P3T3S6F-CSC is a laboratory high pressure reactor.

Specifications

• Capacity: 0.06 m³
• Design Pressure: 7.5mpa
• Temperature Range: 20 - 300 ℃
• Type: Reactor with Special Features, Special Type Reactor
• Material: 316L (inner and outer); customizable: Hastelloy, Monel alloy, Inco nickel alloy
• Inner Material: 316L, customizable materials include Hastelloy, Monel alloy, Inco nickel alloy
• Outer Material: 316L, customizable materials include Hastelloy, Monel alloy, Inco nickel alloy
• Core Components: Magnetic coupling mechanical stirrer, One-click Quick Opening, Electric Heating, LCD Screen, Various Agitator Paddles, Sapphire Sight Glass, Pressure Gauge, Thermocouple, Inlet Valve, Exhaust Valve
• Design Standard: Pressure vessels GB/T 150.1-150.4-2024
• Dimensions: 360mm*280mm*610mm
• Weight: 28 kg
• Volume (M³): 0.06(360mm*280mm*610mm)
• Working Temperature(℃): 20 - 300

Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
