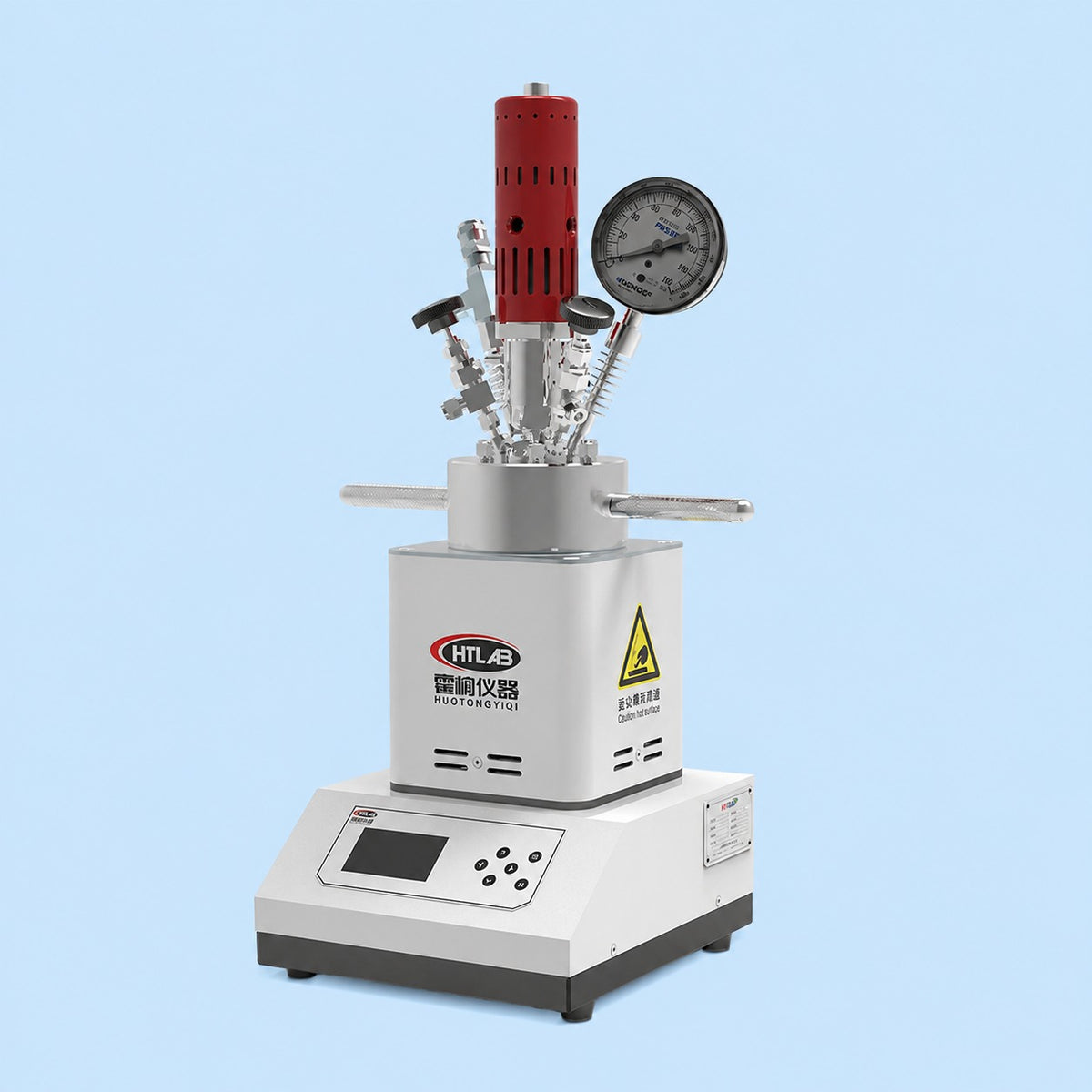

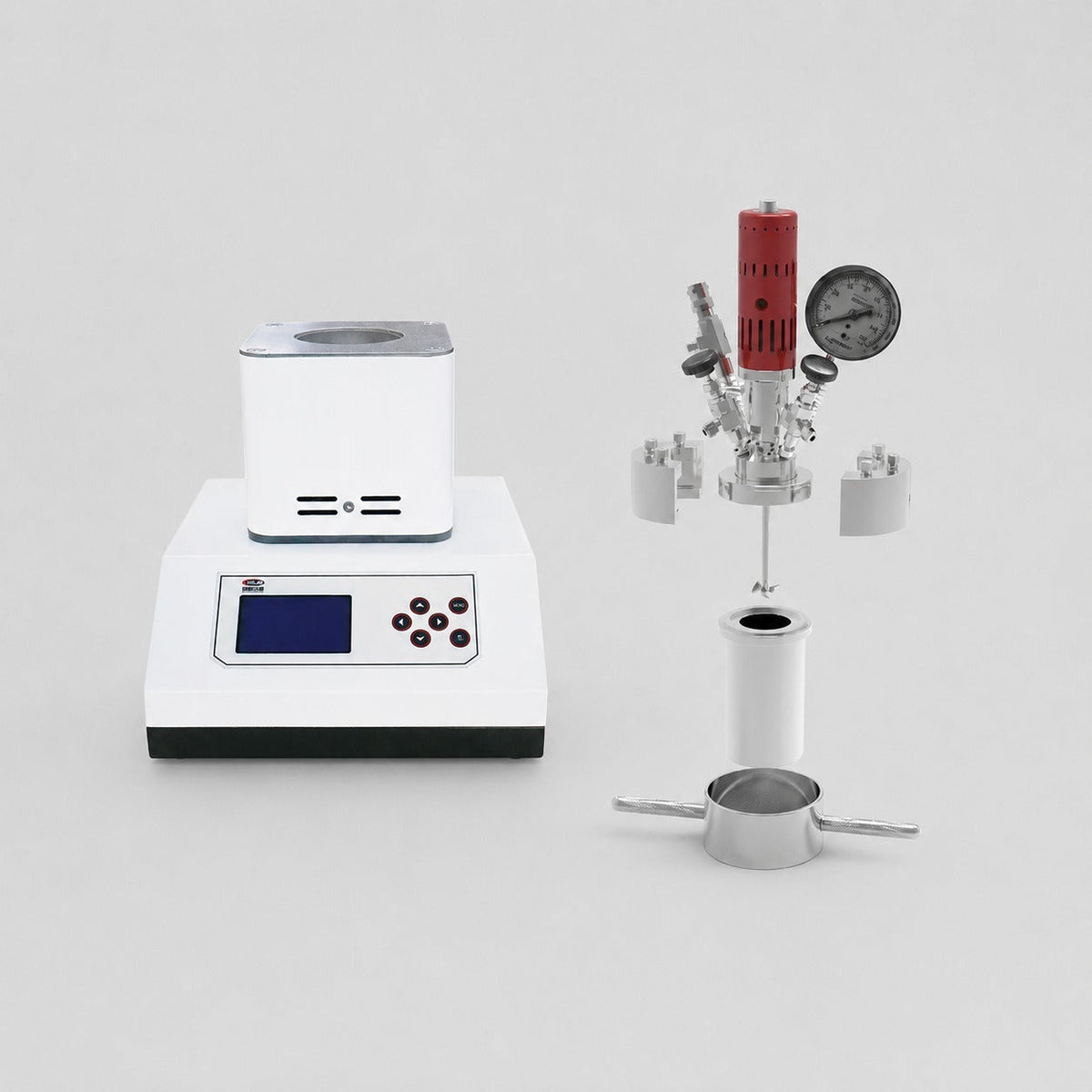

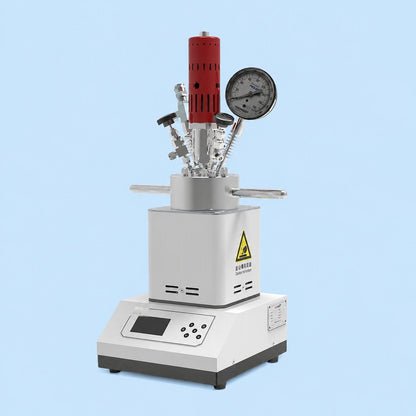

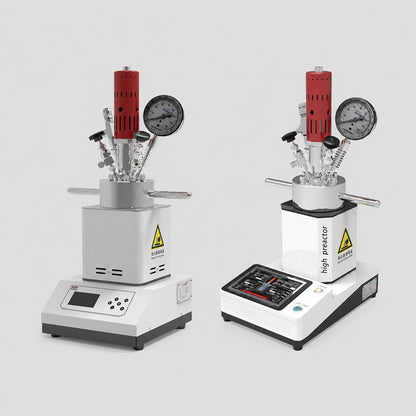

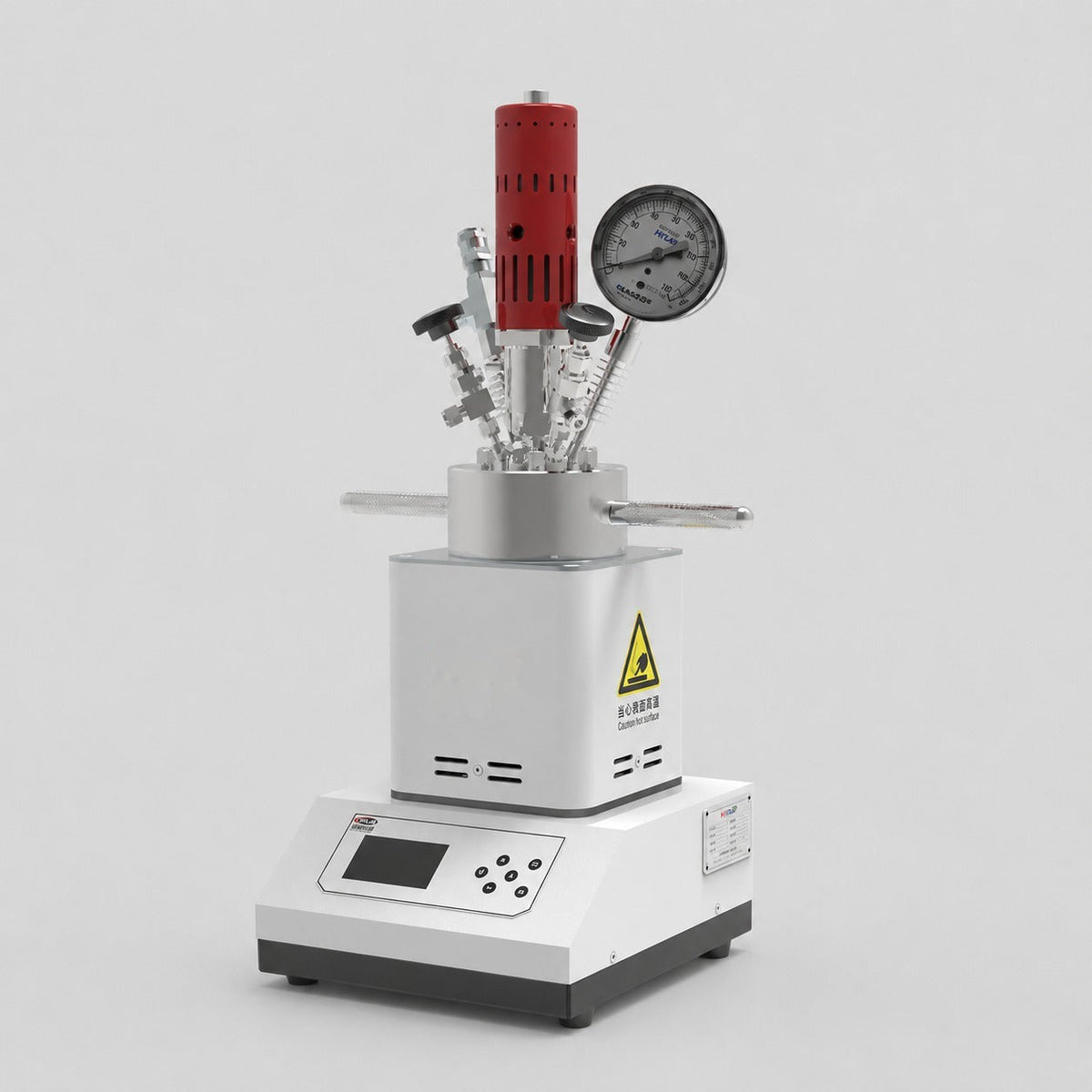

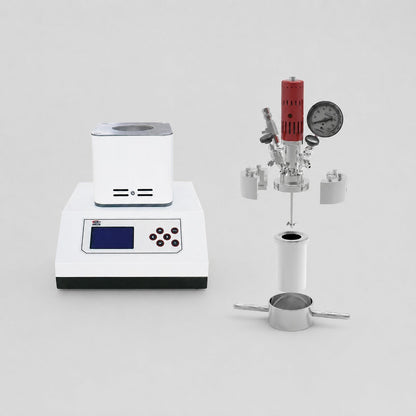

The High Pressure Reactor ALAB-HT-KJ is a laboratory high pressure reactor.
Model Comparison
Specification
ALAB-HT-500KJ-1P3T3S6B
ALAB-HT-50KJ-1P3T3S6B
ALAB-HT-100KJ-1P3T3S6B
ALAB-HT-250KJ-1P3T3S6B
ALAB-HT-1LKJ-1P3T3S6B
Capacity
500ml
50ML
100ml
250ml
1L
Type
Reaction Kettle
Reaction Kettle
Reaction Kettle
Reaction Kettle
Reaction Kettle
Voltage
220 V
220 V
220V
220 V
220 V
Power
1000W
1000W
1000W
1000W
1000W
Automatic Grade
Semi-Automatic
Semi-Automatic
Semi-Automatic
Semi-Automatic
—
Core Components
Motor, Pressure Vessel, PLC, Engine
PLC, Engine, Motor, Pressure Vessel
PLC, Engine, Motor, Pressure Vessel
PLC, Engine, Motor, Pressure Vessel
—
Dimensions
370*280*680(mm)
330*280*615(mm)
345*280*600mm
355*280*660(mm)
385*280*715(mm)
Weight
34.5 kg
no value shown
25
30 kg
42 kg
Temperature Range
—
—
—
20-300℃ (stated in title)
—
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
