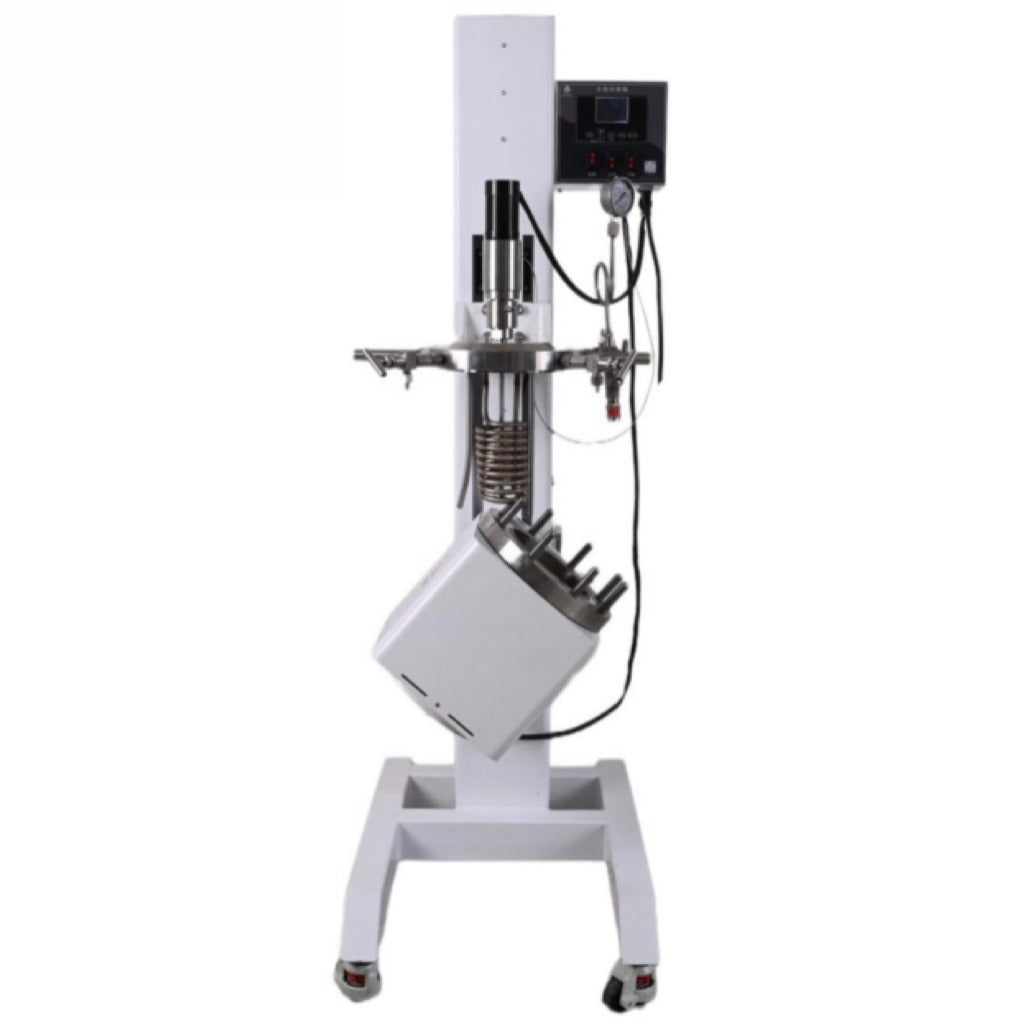

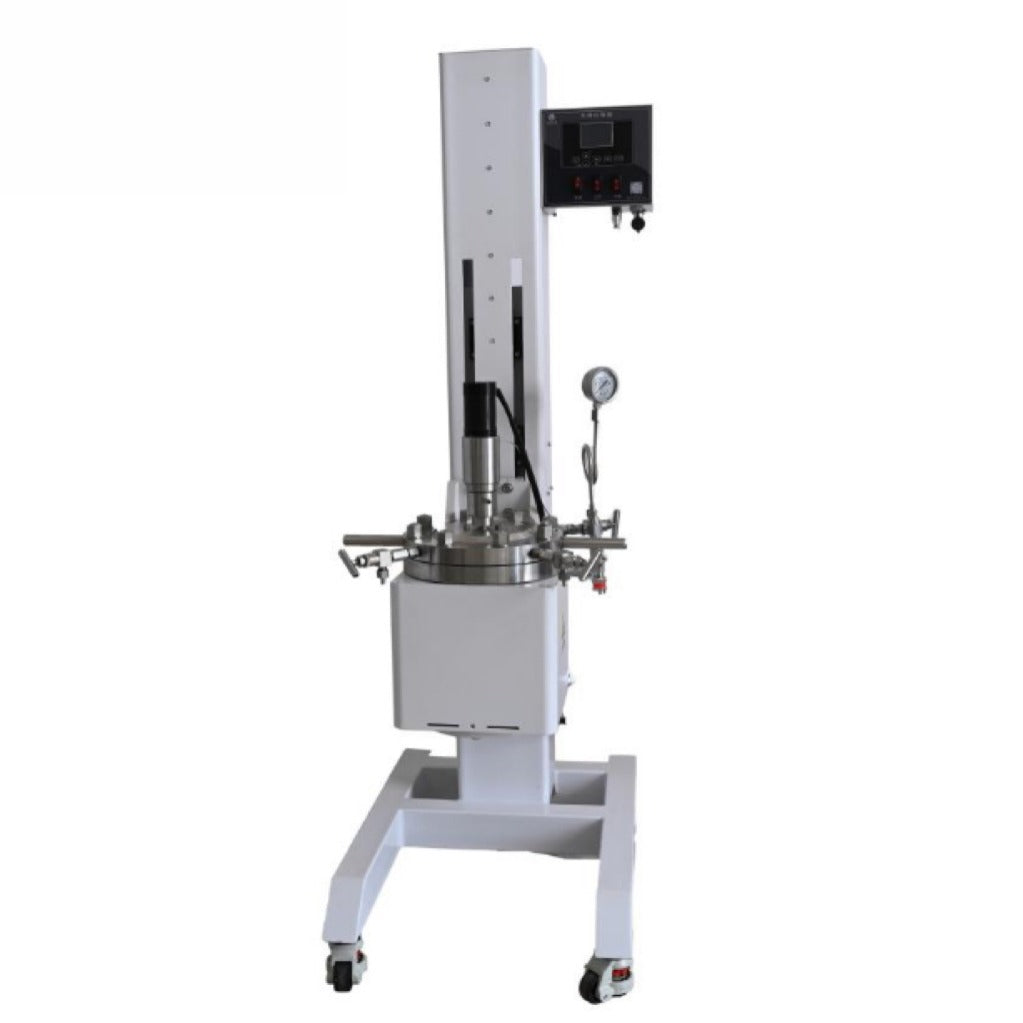

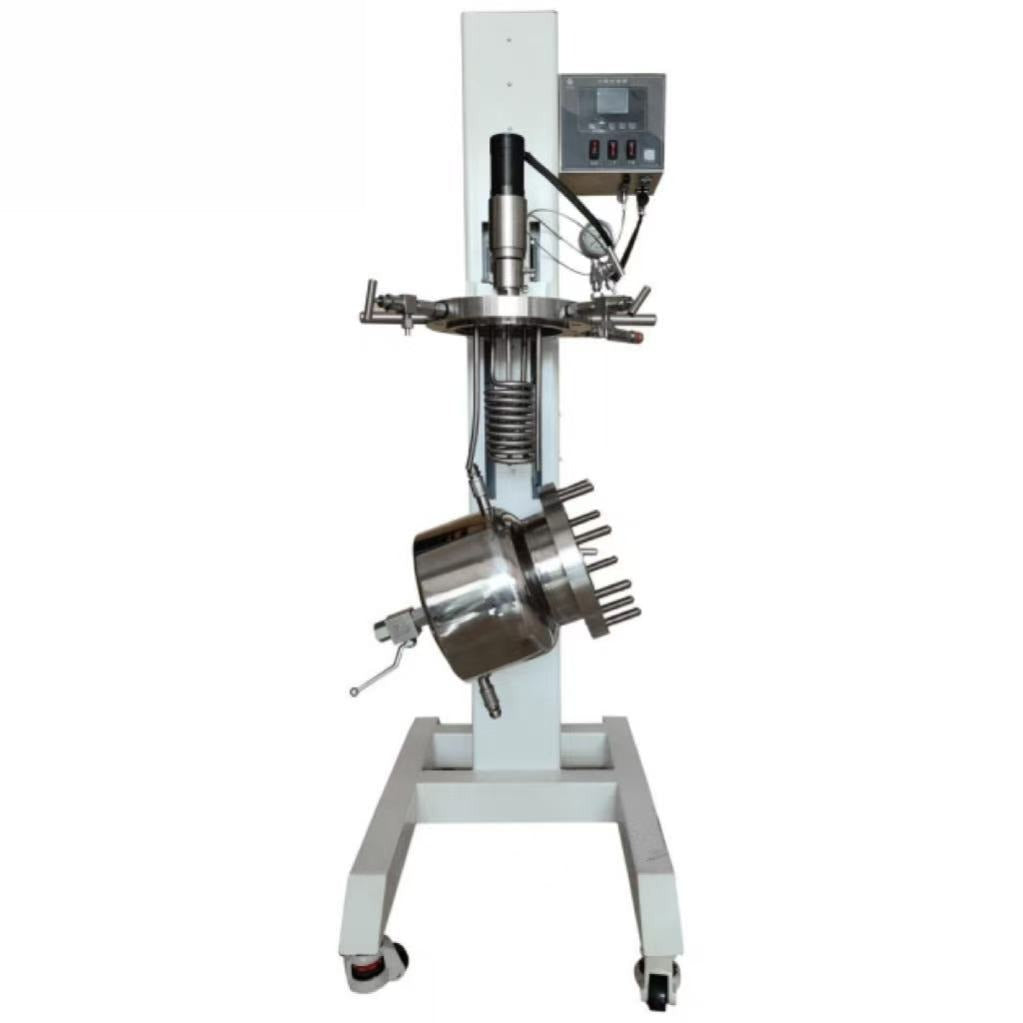

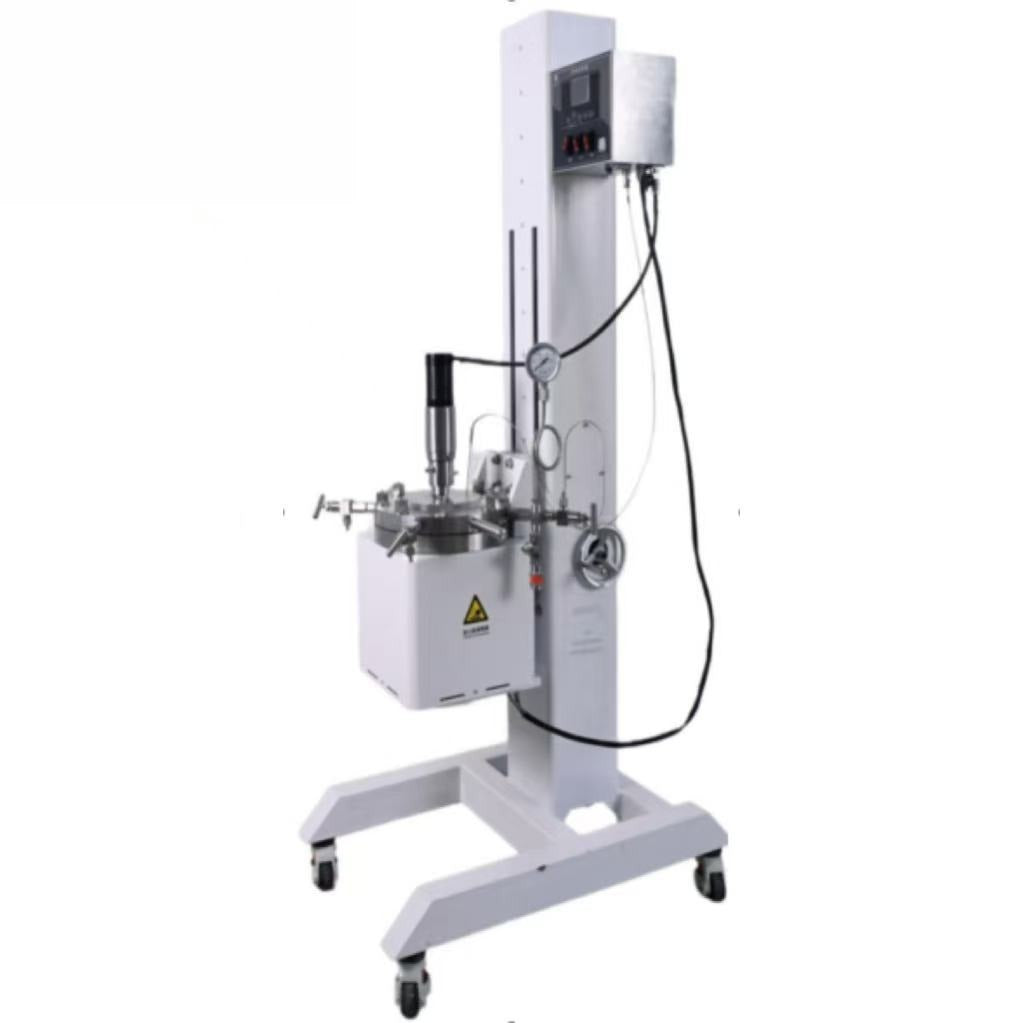

The SFJ series are lift-and-tilting high-pressure reaction kettles in SUS304 stainless steel, with per-size design pressures from 22 MPa (0.5-10L) down to 6 MPa (100L). Nine sizes are available at the source page's verified per-model prices - see the comparison table below for the per-model technical parameters.
Model Comparison
Specification
ALAB-SFJ-0.5L
ALAB-SFJ-1L
ALAB-SFJ-2L
ALAB-SFJ-3L
ALAB-SFJ-5L
ALAB-SFJ-10L
ALAB-SFJ-30L
ALAB-SFJ-50L
ALAB-SFJ-100L
Volume
0.5L
1L
2L
3L
5L
10L
30L
50L
100L
Design Pressure
22 MPa
22 MPa
22 MPa
22 MPa
22 MPa
22 MPa
16 MPa
10 MPa
6 MPa
Maximum Temperature
350°C
350°C
350°C
350°C
350°C
350°C
350°C
300°C
300°C
Agitator Speed
50–1000 rpm
50–1000 rpm
50–1000 rpm
50–1000 rpm
50–600 rpm
50–600 rpm
50–600 rpm
50–600 rpm
50–600 rpm
Heating Power
0.7 kW
1.5 kW
2 kW
3 kW
4 kW
8 kW
12 kW
15 kW
18 kW
Material
SUS304
SUS304
SUS304
SUS304
SUS304
SUS304
SUS304
SUS304
SUS304
Structure
Lateral Rotation
Lateral Rotation
Lateral Rotation
Lateral Rotation
Lateral Rotation
Lateral Rotation
Lateral Rotation
Lateral Rotation
Lateral Rotation
Agitator
Impeller
Impeller
Impeller
Impeller
Impeller
Impeller
Impeller
Impeller
Impeller
Automatic Grade
Automatic
Automatic
Automatic
Automatic
Automatic
Automatic
Automatic
Automatic
Automatic
Motor Power
125W
125W
125W
125W
125W
125W
125W
125W
125W
Power Supply
220V
220V
220V
220V
220V
220V
220V
220V
220V
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
