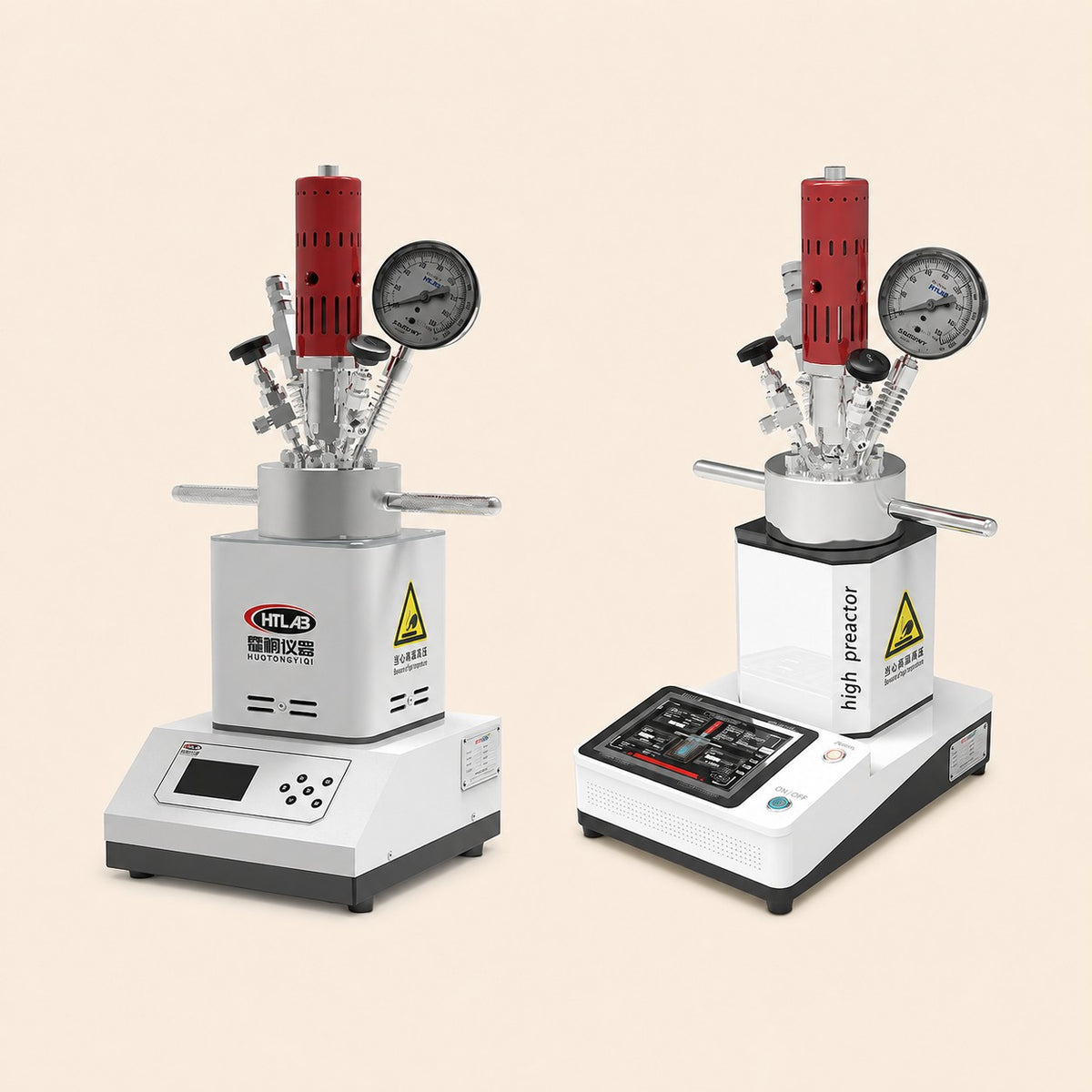

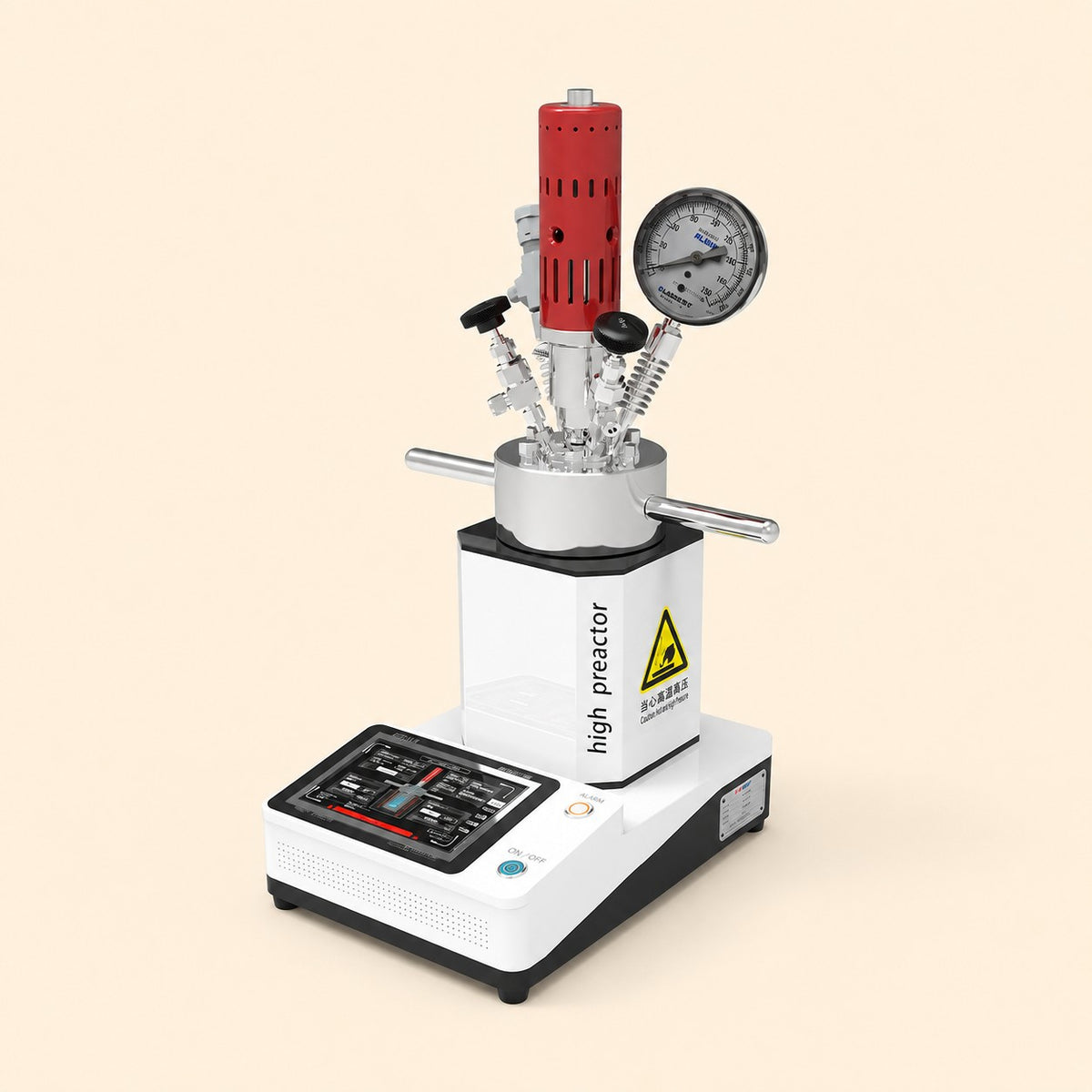

High Pressure Reactor ALAB-ZN-1LKJ-1P3T3S6B

The High Pressure Reactor ALAB-ZN-1LKJ-1P3T3S6B is a laboratory high pressure reactor.

Specifications

• Capacity: 0.11 m³ (385mm*400mm*685mm)
• Design Pressure: 12.5 MPa
• Type: F-series flange reactor, K-series quick-opening reactor, Y-series one-touch quick-opening reactor
• Inner Material: Standard Material: 316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy
• Outer Material: Standard Material: 316, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy

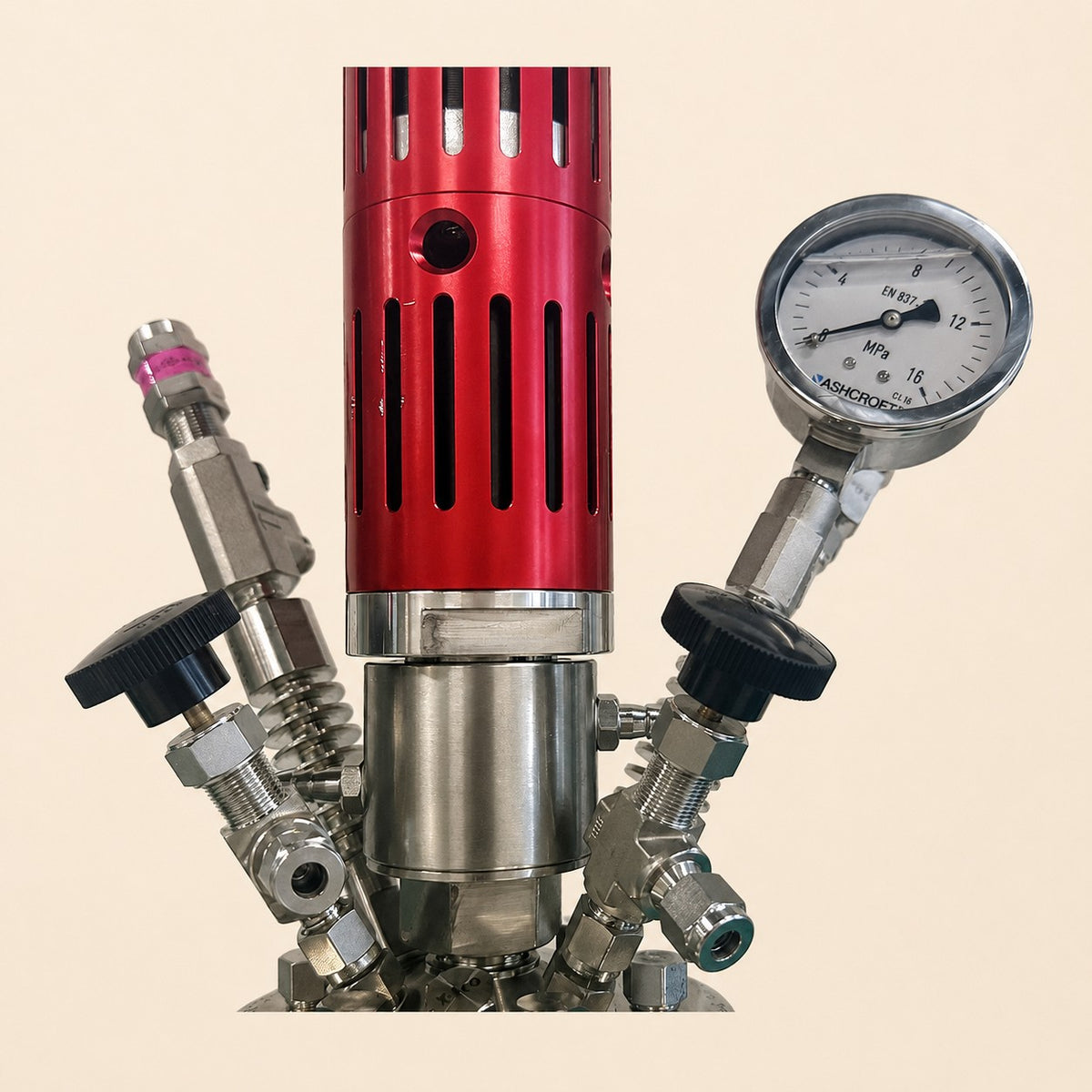

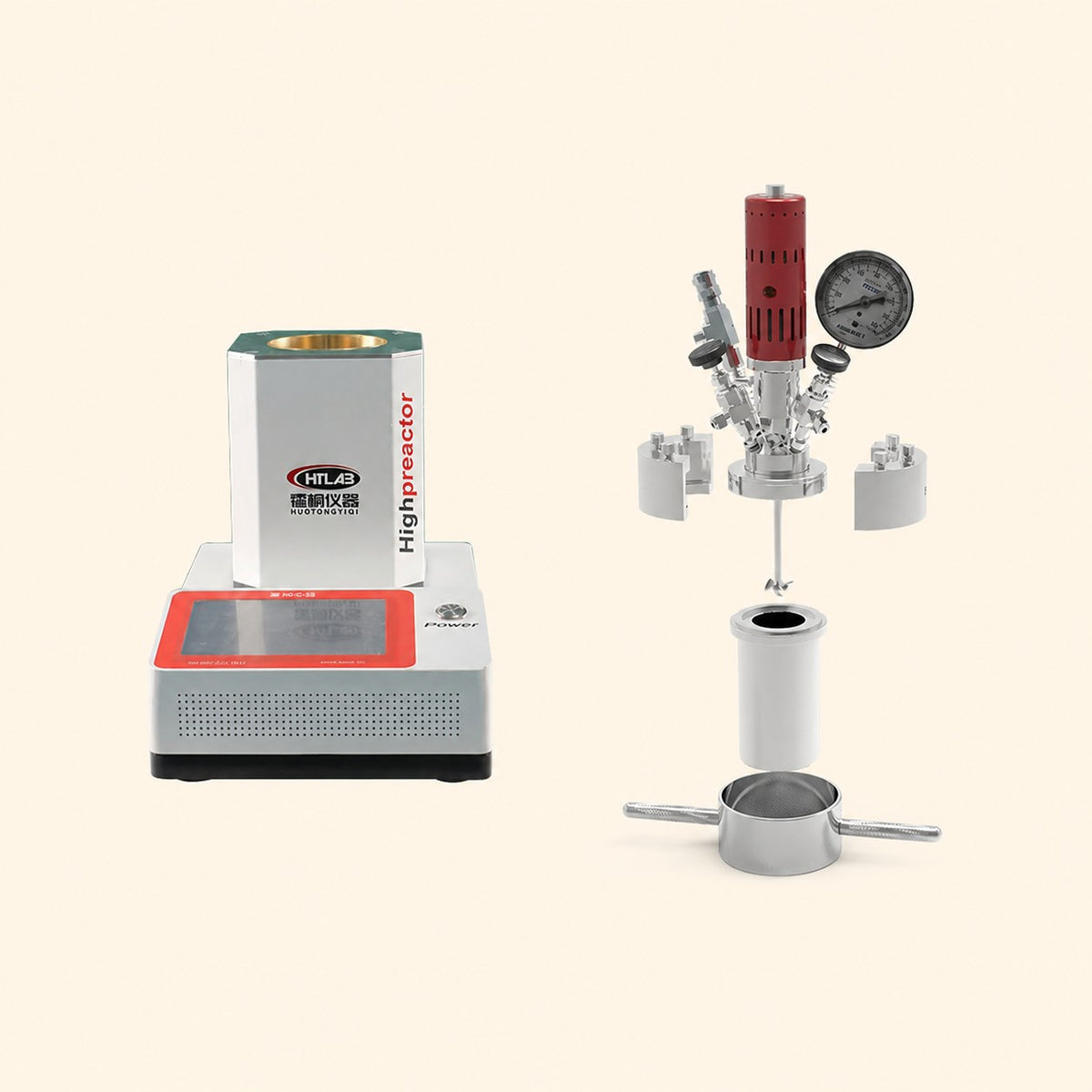

• Core Components: Magnetic Coupling Mechanical Stirrer, Pressure Gauge, Stainless steel pressure sensor, Proportional Unloading Valve, Temperature sensor connector, Inlet valve, Exhaust valve, Electric Heating and insulation module, touch screen, PLC Control cabinet, Reserve port (optional for sampling or sample injection), Three-blade down-flow propeller paddle
• Design Standard: Pressure vessels GB/T 150.1~150.4-2024
• Dimensions: 385*400*685
• Weight: 45 kg
• Volume (M³): 0.11(385mm*400mm*685mm)
• Working Temperature(℃): 20-300
