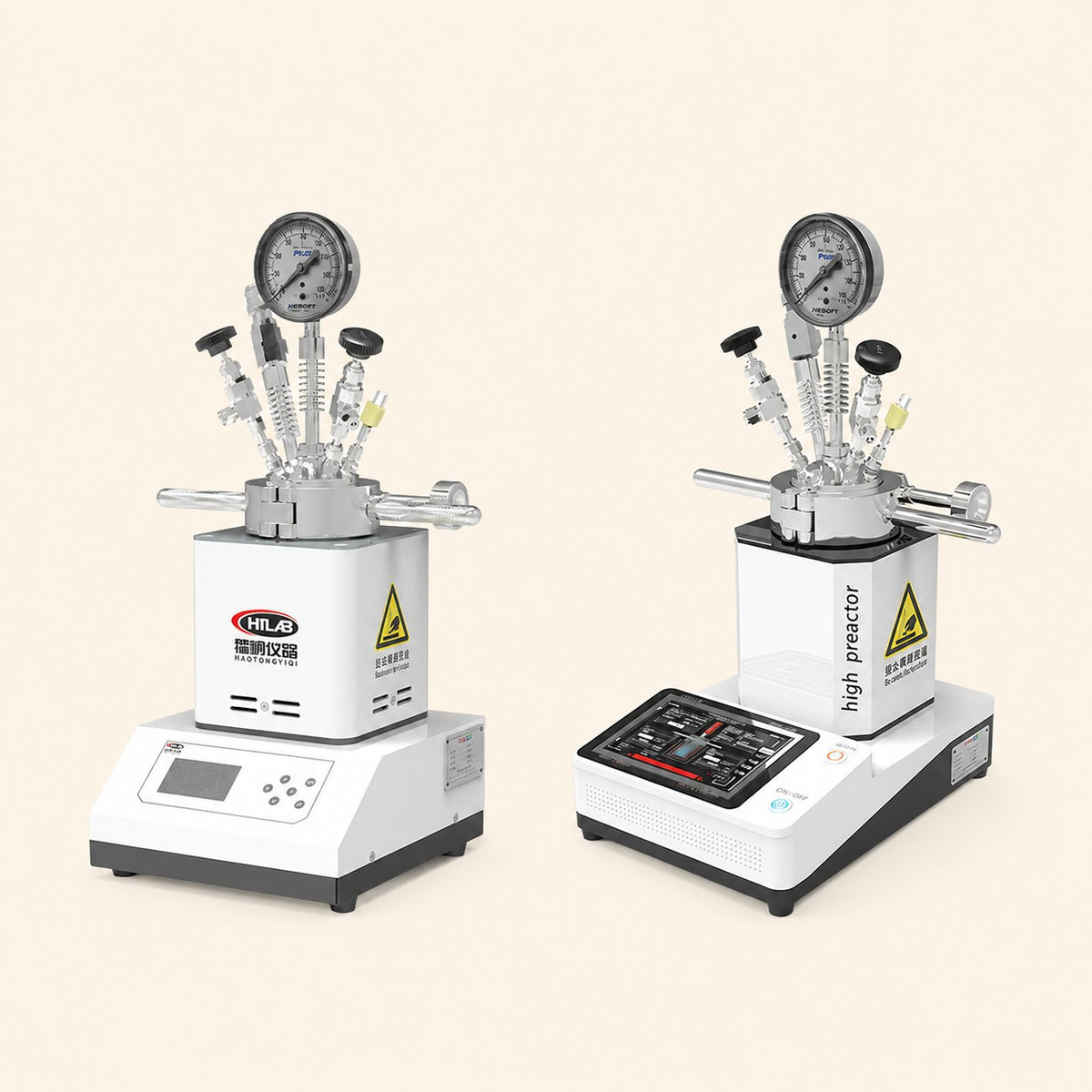

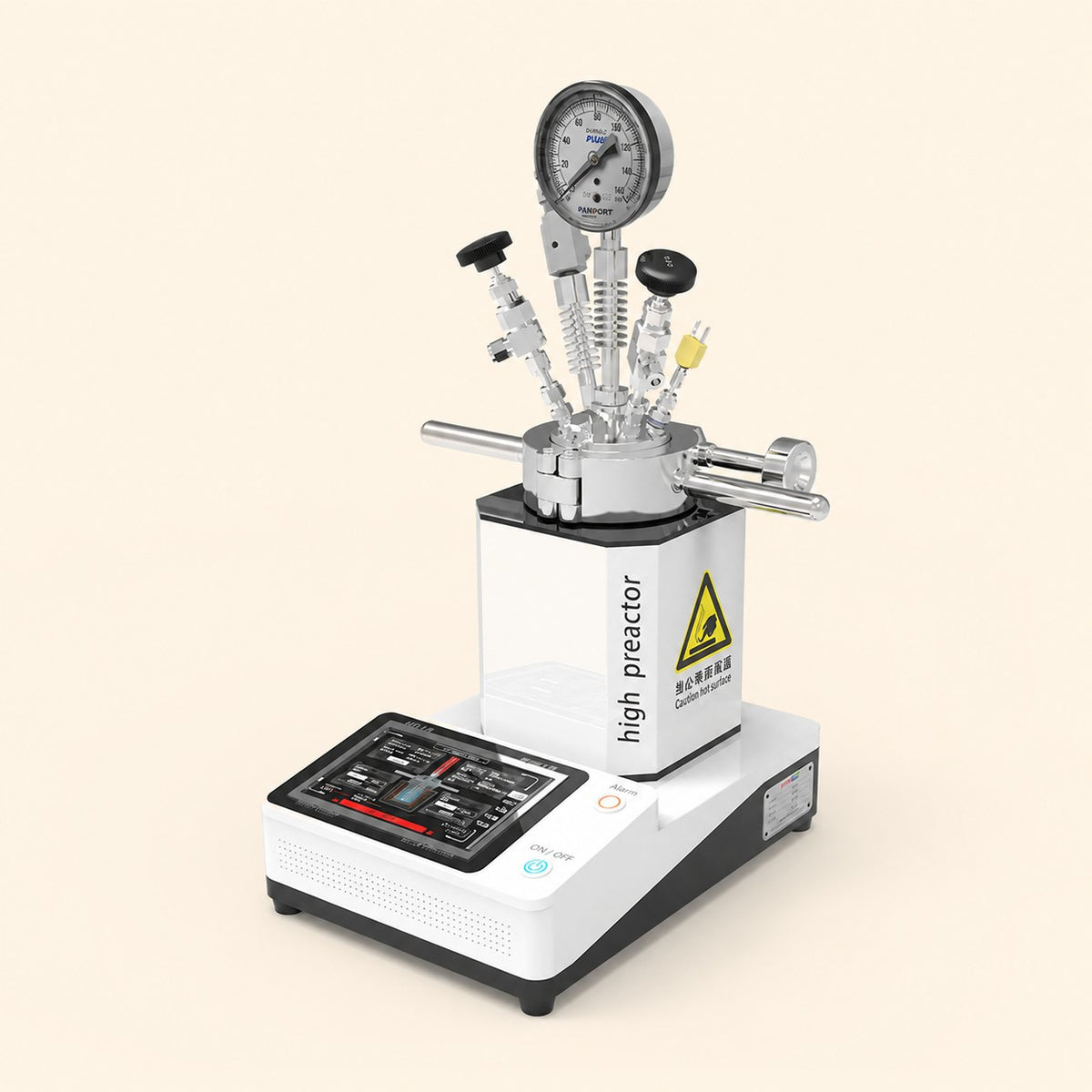

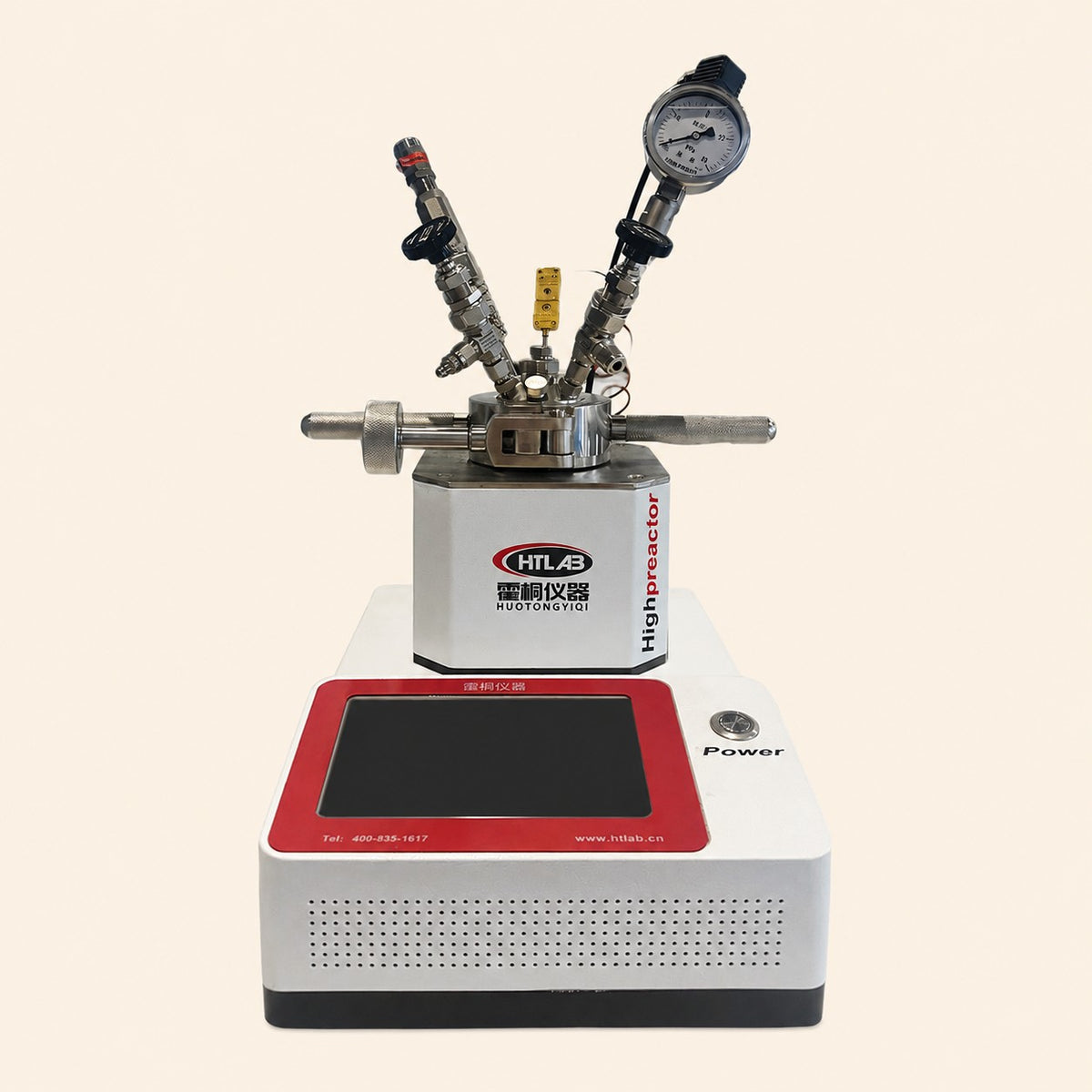

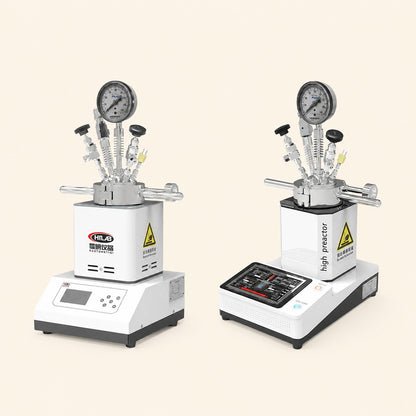

High Pressure Reactor ALAB-ZN-1LYC-1P3T3S6B

The High Pressure Reactor ALAB-ZN-1LYC-1P3T3S6B is a laboratory high pressure reactor.

Specifications

• Capacity: 0.09 m3 (375*405*625mm)
• Volume: 0.09(375*405*625mm)
• Design Pressure: 12.5 MPa
• Temperature Range: 20 - 250 C
• Type: F-series flange reactor, K-series quick-opening reactor, Y-series one-touch quick-opening reactor
• Material: inner/outer: Standard 316L; customizable: Hastelloy, Monel alloy, Inco nickel alloy, titanium, zirconium
• Inner Material: Standard Material:316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy
• Outer Material: Standard Material:316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy

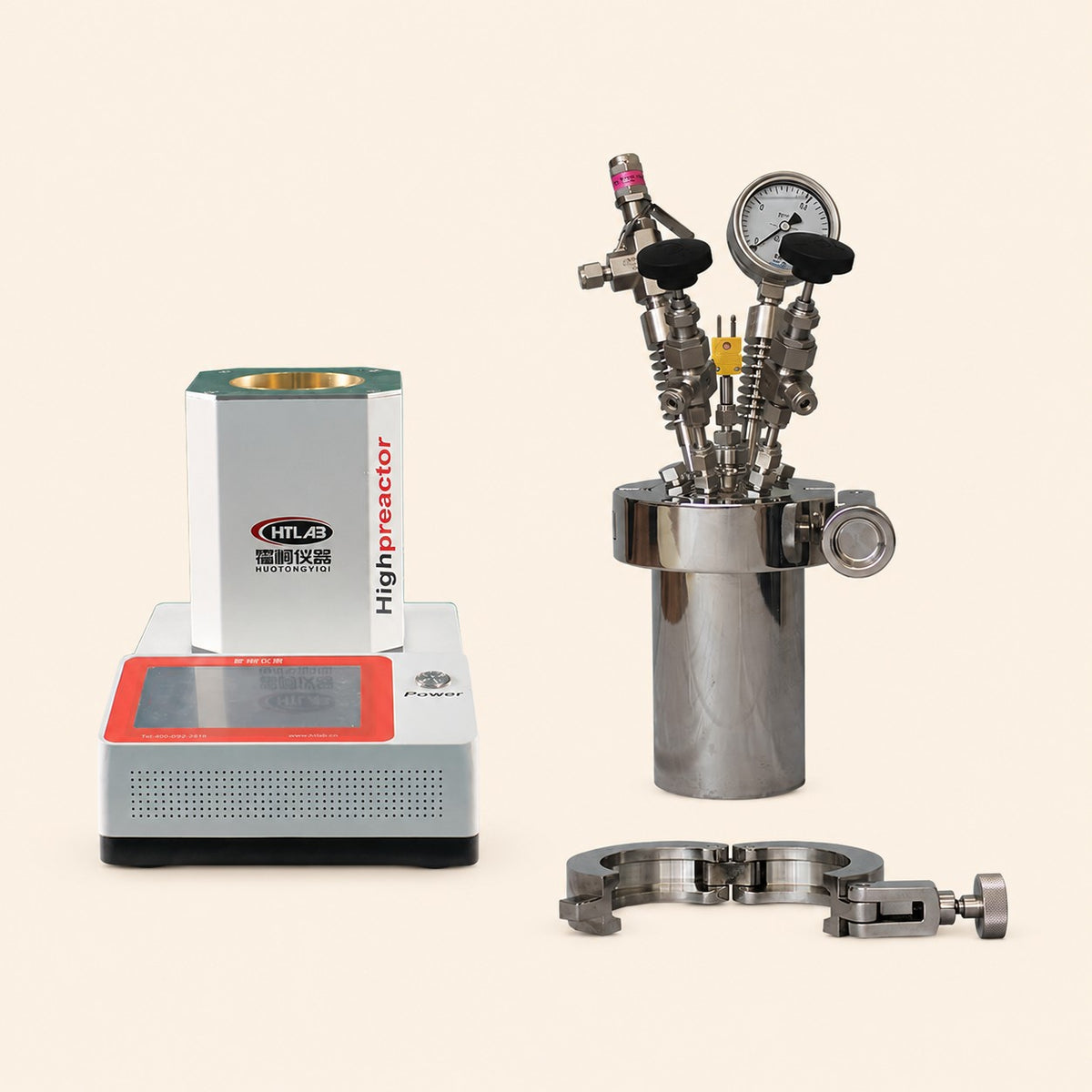

• Core Components: Pressure Gauge, Proportional Relief Valve, inlet port Inlet, exhaust port, Temperature Sensor, Condenser Tower, One-key Quick Release Clamp, Reactor Handle, Heating and insulation module, Touchscreen, Intelligent Control Cabinet
• Design Standard: Pressure vessels GB/T 150.1-150.4-2024
• Dimensions: 375*405*625
• Weight: 41 kg
