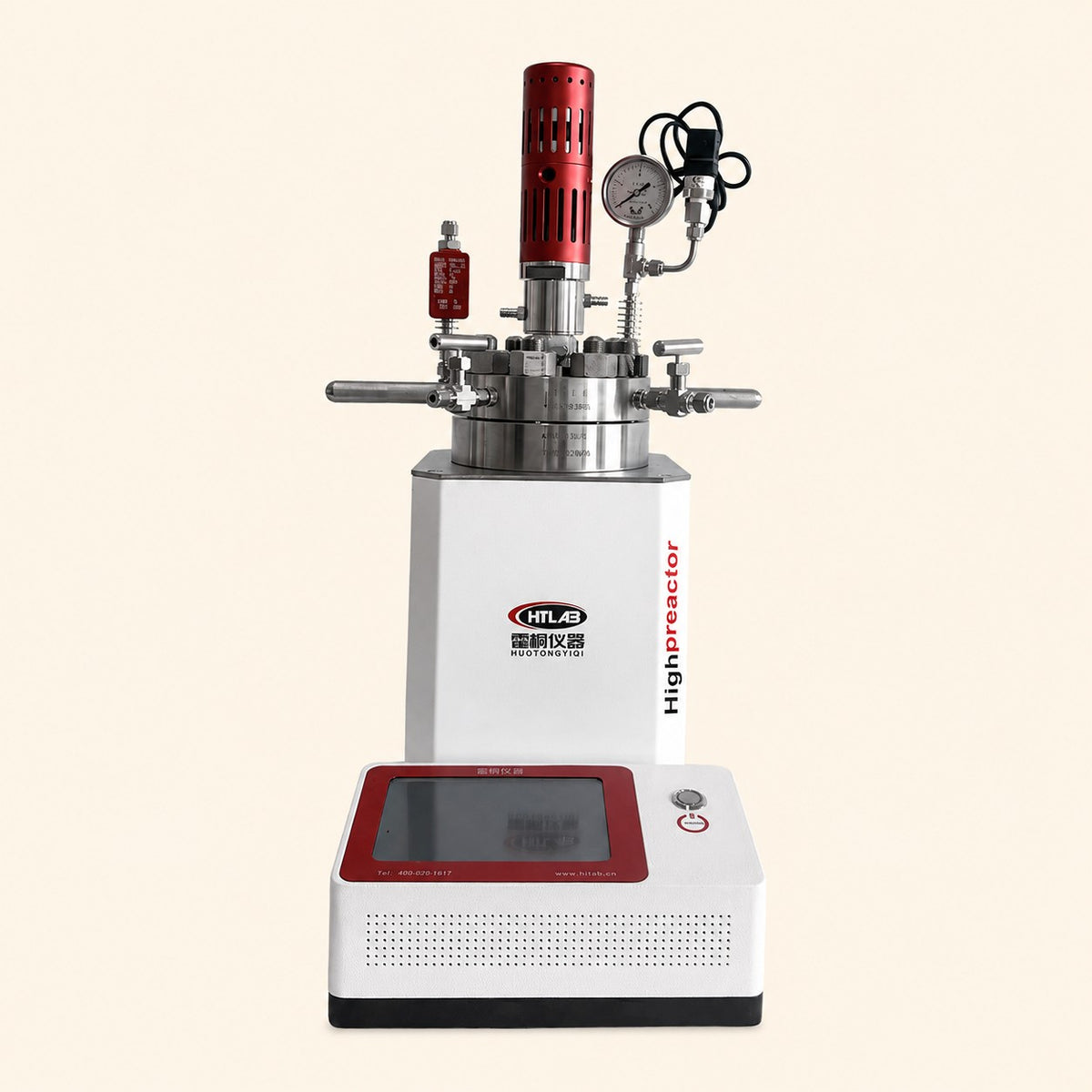

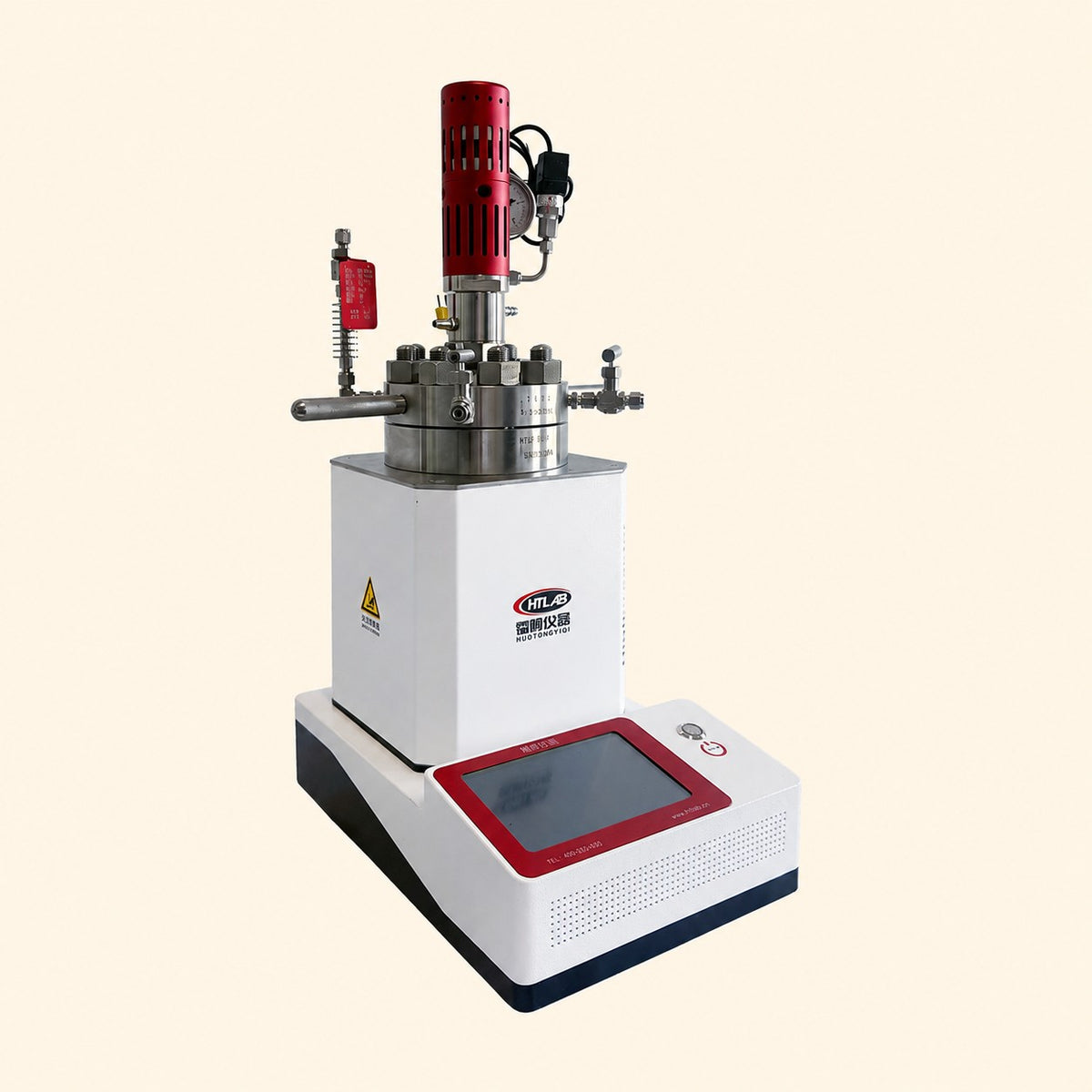

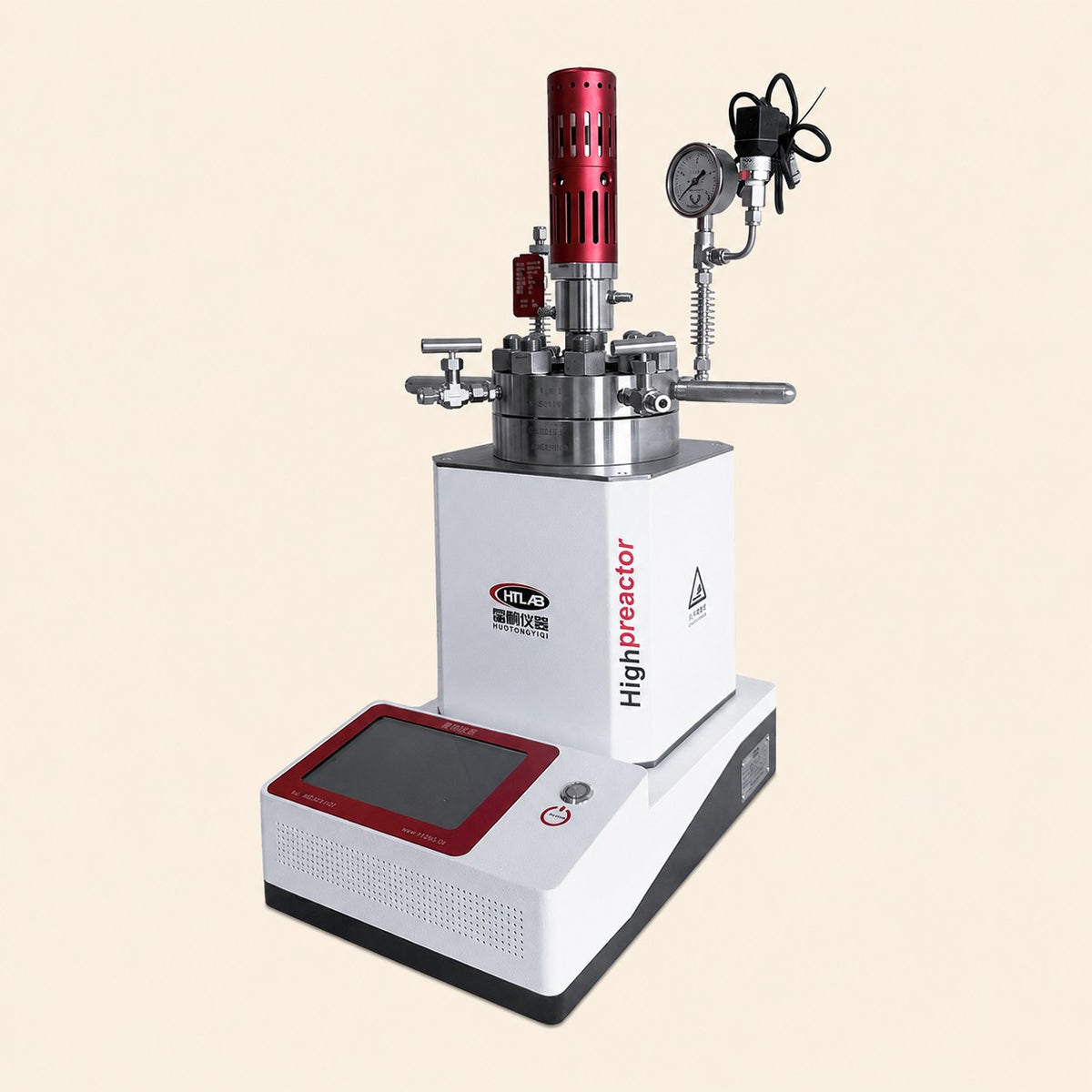

High Pressure Reactor ALAB-ZN-2LFJ-1P3T3S6B

The High Pressure Reactor ALAB-ZN-2LFJ-1P3T3S6B is a laboratory high pressure reactor.

Specifications

• Design Pressure: 12.5 MPa
• Temperature Range: RT-500℃
• Type: F-series flange reactor, K-series quick-opening reactor, Y-series one-touch quick-opening reactor
• Inner Material: Standard Material: 316L (customizable Hastelloy, Monel alloy, Inco nickel alloy)
• Outer Material: Standard Material: 316L (customizable Hastelloy, Monel alloy, Inco nickel alloy)
• Heating Method: Jacketed oil bath heating
• Core Components: Magnetic Coupling Mechanical Stirrer, Pressure Gauge, rupture disc, Stainless steel pressure sensor, Pressure gauge buffer tube, Temperature sensor connector, Inlet valve, Exhaust valve, Reserve port (optional for sampling or sample injection), Electric Heating and insulation module, touch screen, PLC Control cabinet, Three-blade down-flow propeller paddle
• Design Standard: Pressure vessels GB/T 150.1-150.4-2024
• Dimensions: 420mm*405mm*710mm
• Weight: 70 kg
• Volume (M³): 0.12(420mm*405mm*710mm)
• Stirring Motor Power: Brushless Motor 40W (Torque: 0.53N/m), Servo Motor 400W (Torque: 1.27 N/m)
