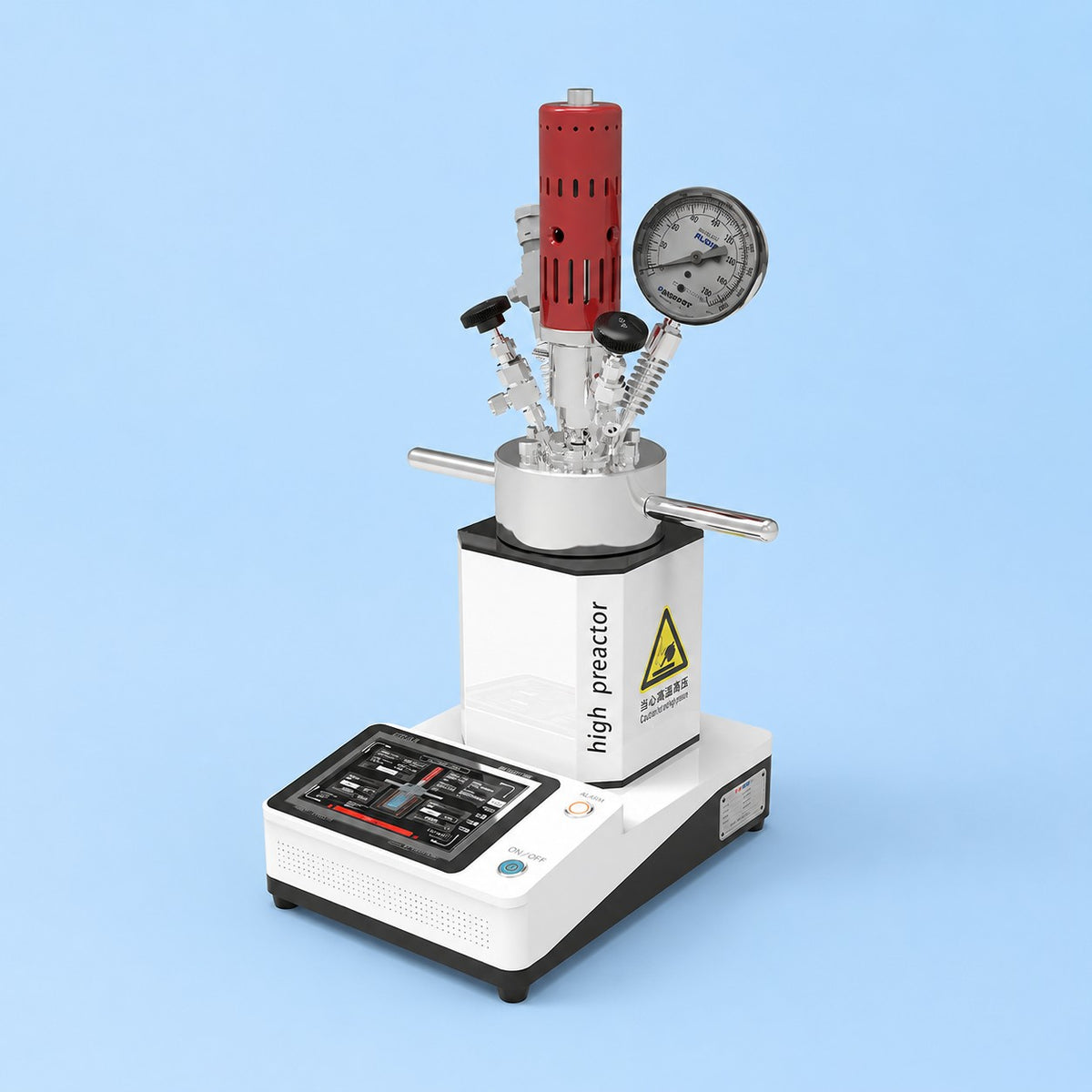

High Pressure Reactor ALAB-ZN-50KJ-1P3T3S6B

The High Pressure Reactor ALAB-ZN-50KJ-1P3T3S6B is a laboratory high pressure reactor.

Specifications

• Capacity: 0.07 m³ (330mm*370mm*585mm)
• Design Pressure: 12.5 MPa
• Type: F-series flange reactor, K-series quick-opening reactor, Y-series one-touch quick-opening reactor
• Inner Material: Standard 316L, customizable Hastelloy/Monel/Inco nickel alloy
• Outer Material: Standard 316
• Core Components: Magnetic Coupling Mechanical Stirrer, Pressure Gauge, Stainless steel pressure sensor, Proportional Unloading Valve, Temperature sensor connector, Inlet valve, Exhaust valve, Electric Heating and insulation module, touch screen, PLC Control cabinet, Reserve port, Three-blade down-flow propeller paddle
• Design Standard: GB/T 150.1~150.4-2024
• Dimensions: 330*370*585
• Weight: 25 kg
• Volume (M³): 0.07(330mm*370mm*585mm)
• Working Temperature(℃): 20-300
