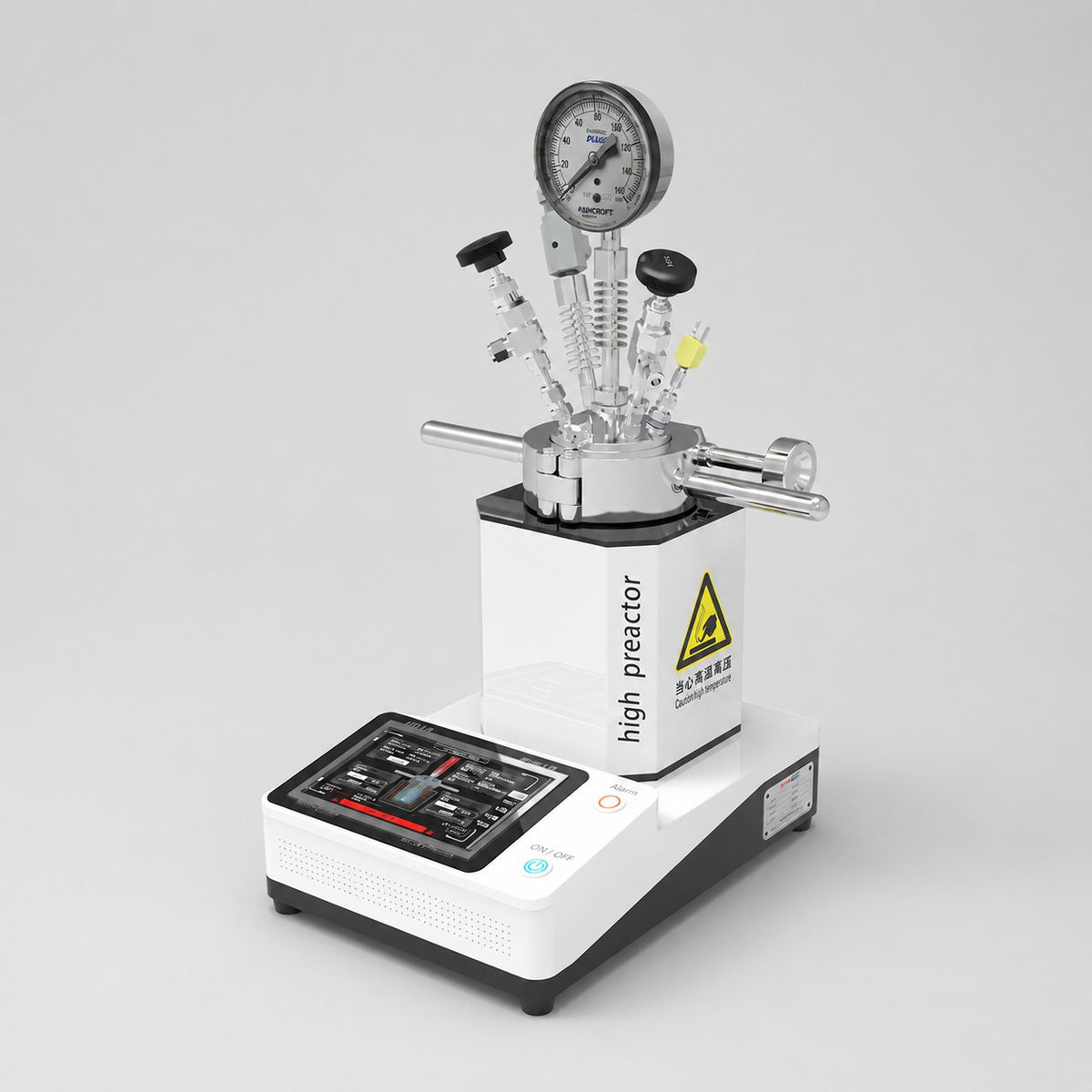

High Pressure Reactor ALAB-ZN-50YC-1P3T3S6B

The High Pressure Reactor ALAB-ZN-50YC-1P3T3S6B is a laboratory high pressure reactor.

Specifications

• Capacity: 0.06 m³ (315*370*485mm)
• Design Pressure: 12.5 MPa
• Type: Magnetic stirring and mechanical stirring
• Inner Material: Standard Material: 316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy
• Outer Material: Standard Material: 316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy
• Heating Method: Jacketed oil bath heating
• Core Components: Pressure Gauge, Proportional Relief Valve, inlet port Inlet, exhaust port, Temperature Sensor, Condenser Tower, One-key Quick Release Clamp, Reactor Handle, Heating and insulation module, Touchscreen, Intelligent Control Cabinet
• Design Standard: Pressure vessels GB/T 150.1-150.4-2024
• Dimensions: 315*370*485
• Weight: 18 kg
• Optional Liner: Quartz liner/PTFE liner
• Volume (M³): 0.06(315*370*485mm)
• Working Temperature(℃): 20-250
