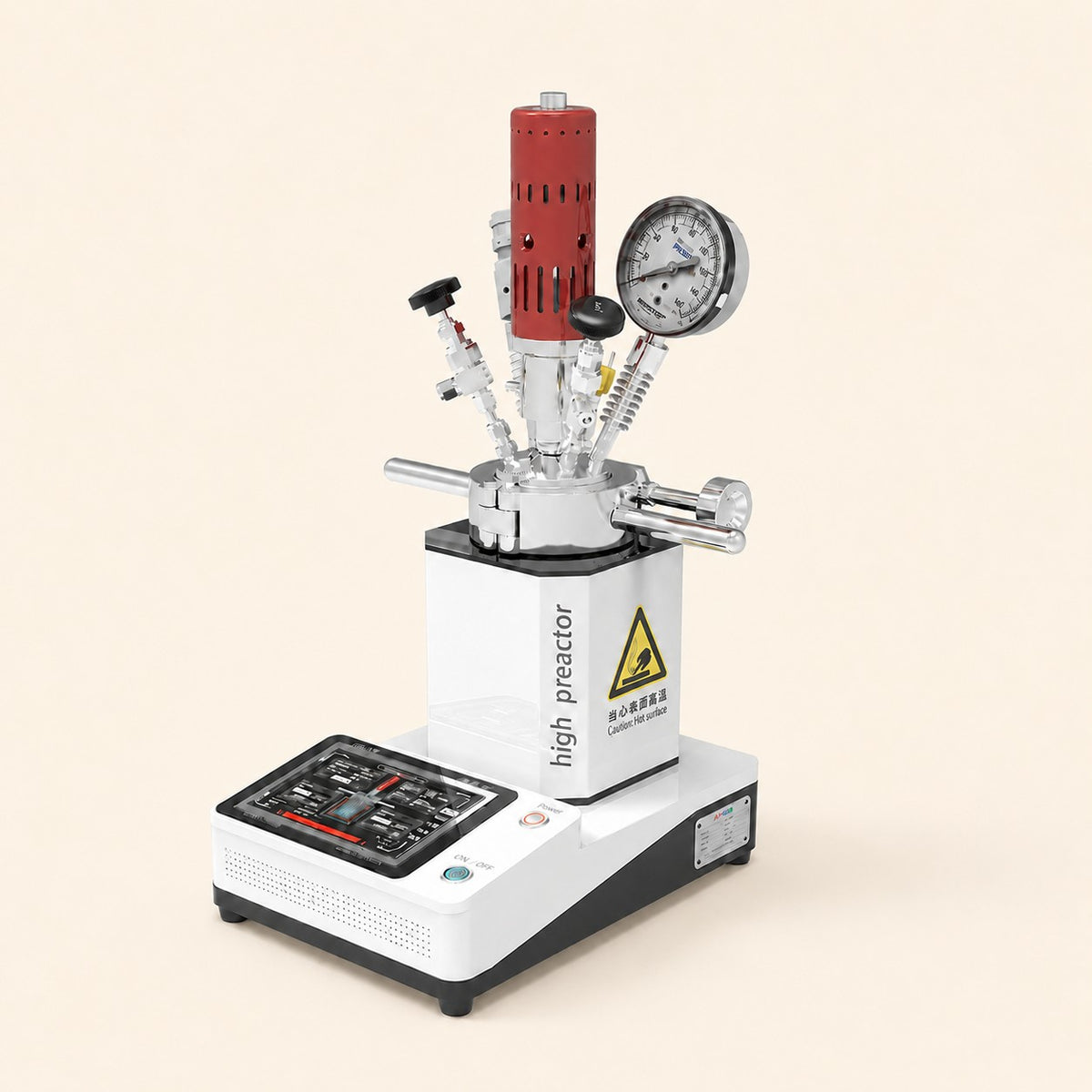

High Pressure Reactor ALAB-ZN-50YJ-1P3T3S6B

The High Pressure Reactor ALAB-ZN-50YJ-1P3T3S6B is a laboratory high pressure reactor.

Specifications

• Capacity: 50ml
• Type: Reaction Kettle
• Material: customizable materials include Hastelloy, Monel alloy, Inco nickel alloy, titanium
• Voltage: 220 V
• Power: 1000W
• Automatic Grade: Semi-Automatic
• Heating Method: Jacketed oil bath heating
• Core Components: PLC, Engine, Motor, Pressure Vessel
• Dimensions: 315*370*570
• Weight: 23.5 kg
• Optional Liner: Quartz liner/PTFE liner
• Stirring Motor Power: Brushless Motor 40W (Torque: 0.53N m), Servo Motor 400W (Torque: 1.27 N m)

Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
