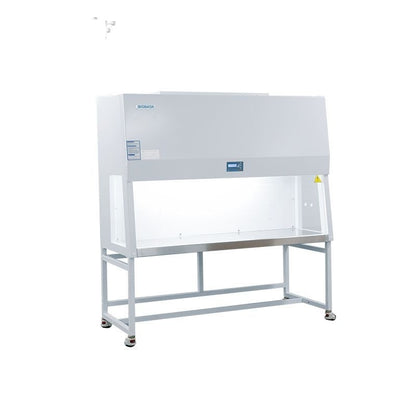

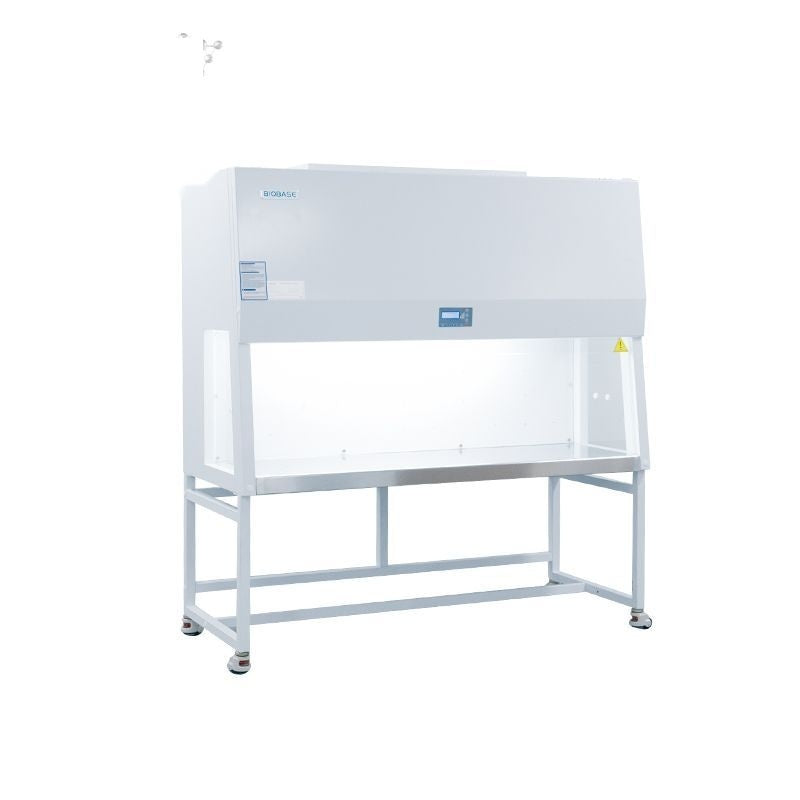

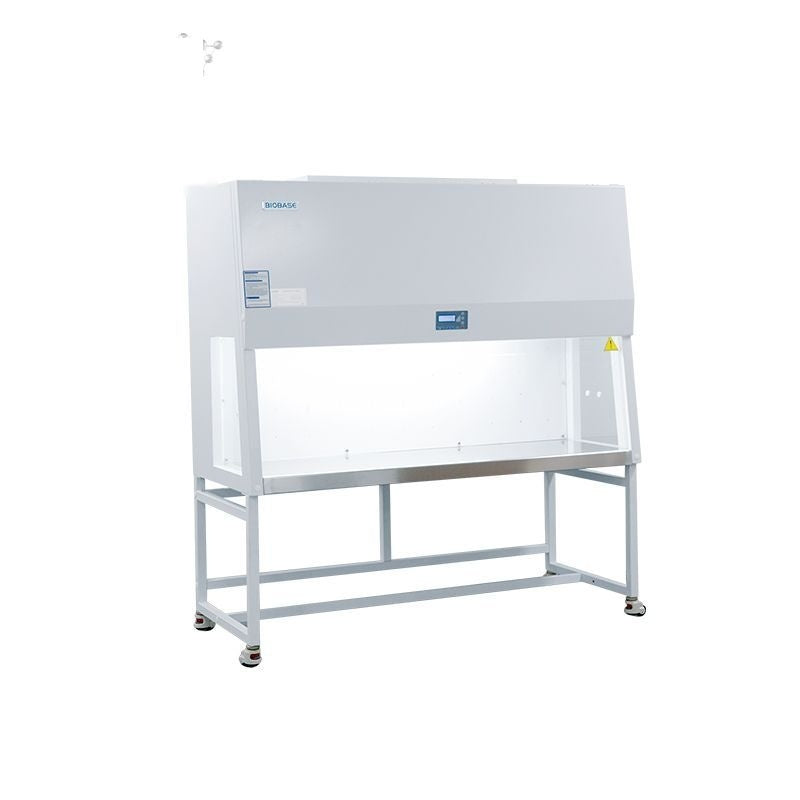

Horizontal laminar flow cabinet with LCD display, 0.3-0.5 m/s airflow velocity. Provides ISO Class 5 clean work area for laboratory tasks requiring product protection.
Key Features
LCD display with real-time monitoring
Airflow velocity: 0.30-0.5 m/s adjustable
HEPA filter: 99.995% efficiency at 0.3 um
Motorized front window, 5mm toughened glass
Maximum opening: 430 mm
Work surface height: 750 mm
Low noise: 65 dB(A) or less
304 stainless steel work zone
Model Comparison
Specification
H1300-I
H1800-I
External Dimensions (mm)
1300x820x1940
1800x820x1940
Internal Dimensions (mm)
1200x520x570
1700x520x570
Airflow Velocity
0.30-0.5 m/s
0.30-0.5 m/s
Max Opening
430 mm
430 mm
Work Surface Height
750 mm
750 mm
Display
LCD
LCD
HEPA Filter
99.995% at 0.3 um
99.995% at 0.3 um
Noise
65 dB(A) or less
65 dB(A) or less
Power Consumption
400W
500W
LED Lamp
12Wx1
16Wx2
UV Lamp
30Wx1
30Wx1
Package Size (mm)
1450x1140x1540
1950x1140x1460
Gross Weight
255 kg
325 kg
For research and laboratory use. Not for medical, clinical, or diagnostic use.
