Hydrothermal Synthesis Reactor ALAB-ZN-100FC

$6,142.00 USD

Sale Sold out

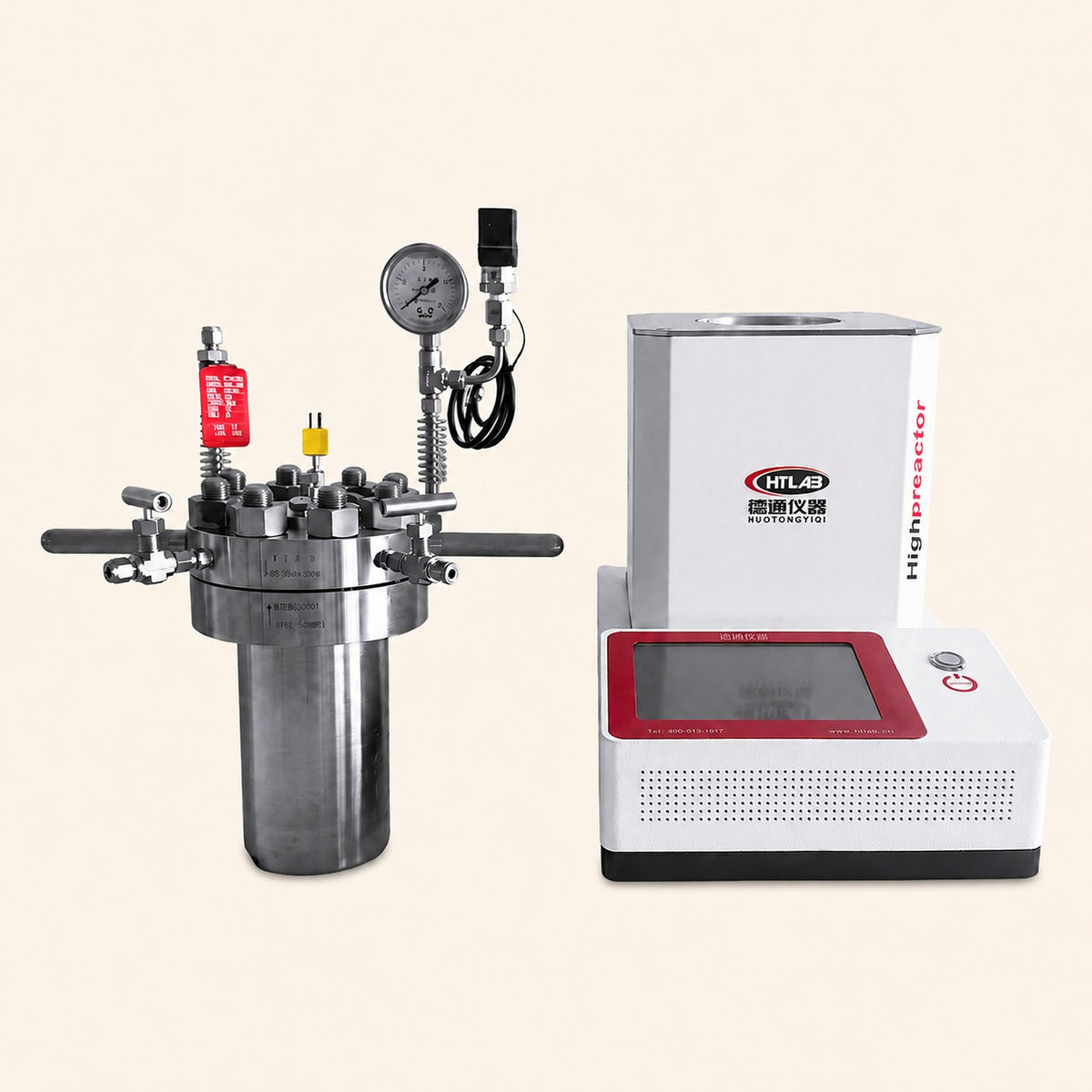

The Hydrothermal Synthesis Reactor ALAB-ZN-100FC is a laboratory hydrothermal synthesis reactor.

Model Comparison

Specification	ALAB-ZN-100FC-1P3T3S6B	ALAB-ZN-100FC-1P3T3S6F-DHX
Capacity	100ml	0.05 m³
Type	Reaction Kettle	F-series flange reactor, K-series quick-opening reactor, Y-series one-touch quick-opening reactor
Voltage	220 V	—
Power	1000W	—
Automatic Grade	Semi-Automatic	—
Core Components	PLC, Motor, Pressure Vessel	Pressure Gauge, Pressure Sensor, safety Valve, Temperature gauge mouth, Working electrode, Reference electrode, electrode, inlet port, exhaust port, Touch sreen display
Dimensions	330370500mm	330370500mm
Weight	19kg	19 kg
Design Pressure	—	12.5 MPa
Temperature Range	—	20 - 300 ℃
Material	—	316L (inner and outer); customizable: Hastelloy, Monel alloy, Inco nickel alloy
Inner Material	—	316L, customizable materials include Hastelloy, Monel alloy, Inco nickel alloy
Outer Material	—	316L, customizable materials include Hastelloy, Monel alloy, Inco nickel alloy
Design Standard	—	Pressure vessels GB/T 150.1-150.4-2024
Volume (M³)	—	0.05(330370500mm)

Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110–120V, so a 220V circuit or a suitable step-up transformer is required.
