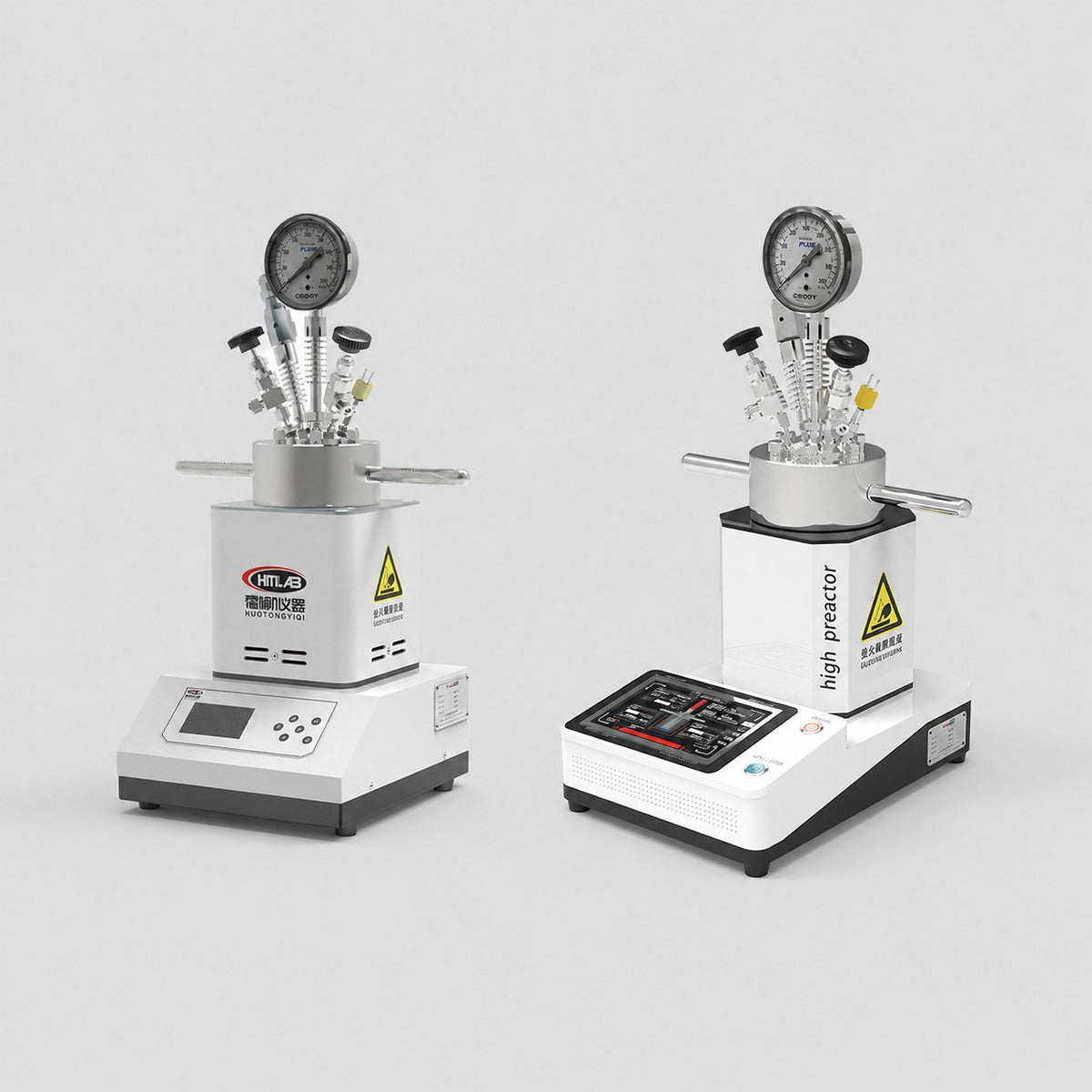

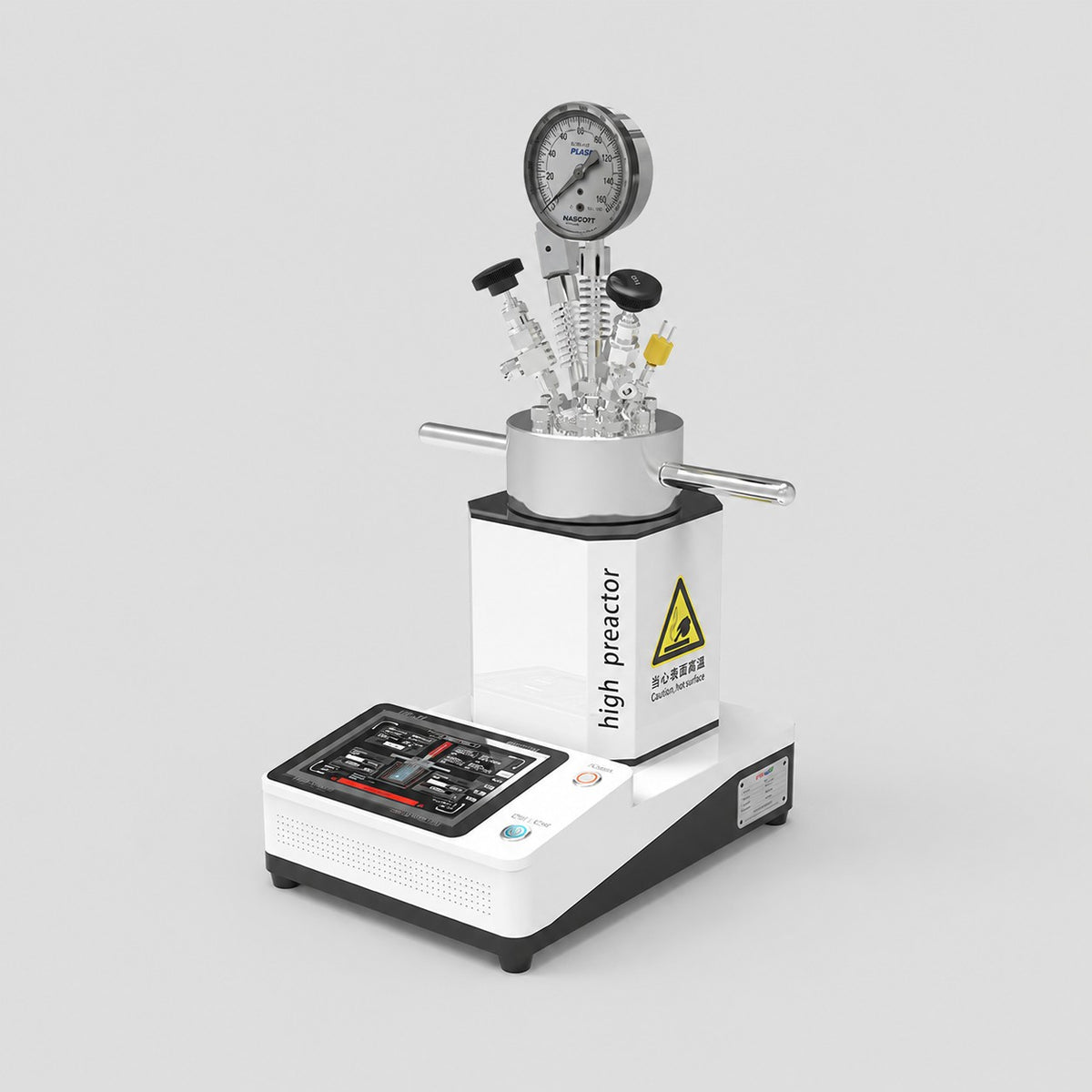

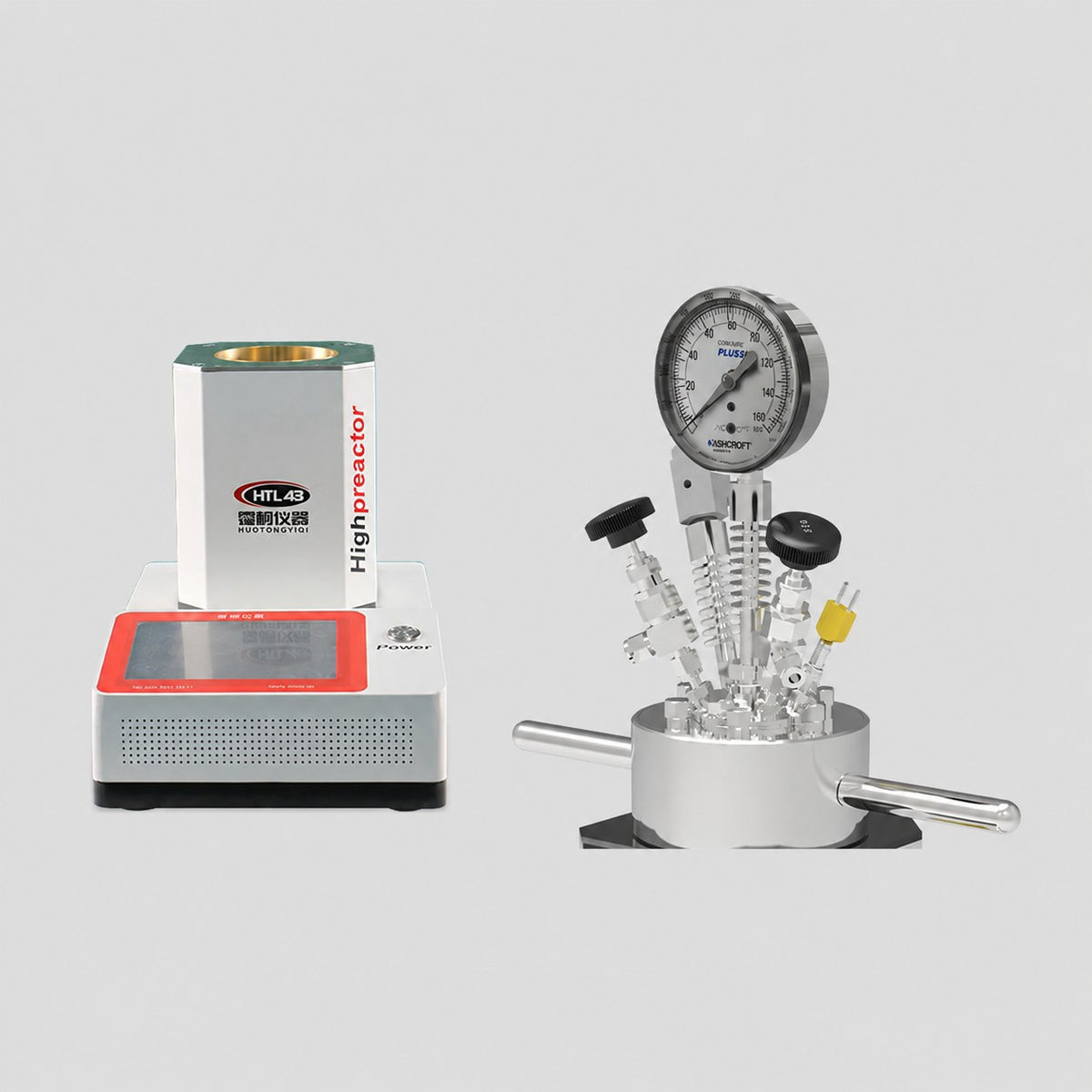

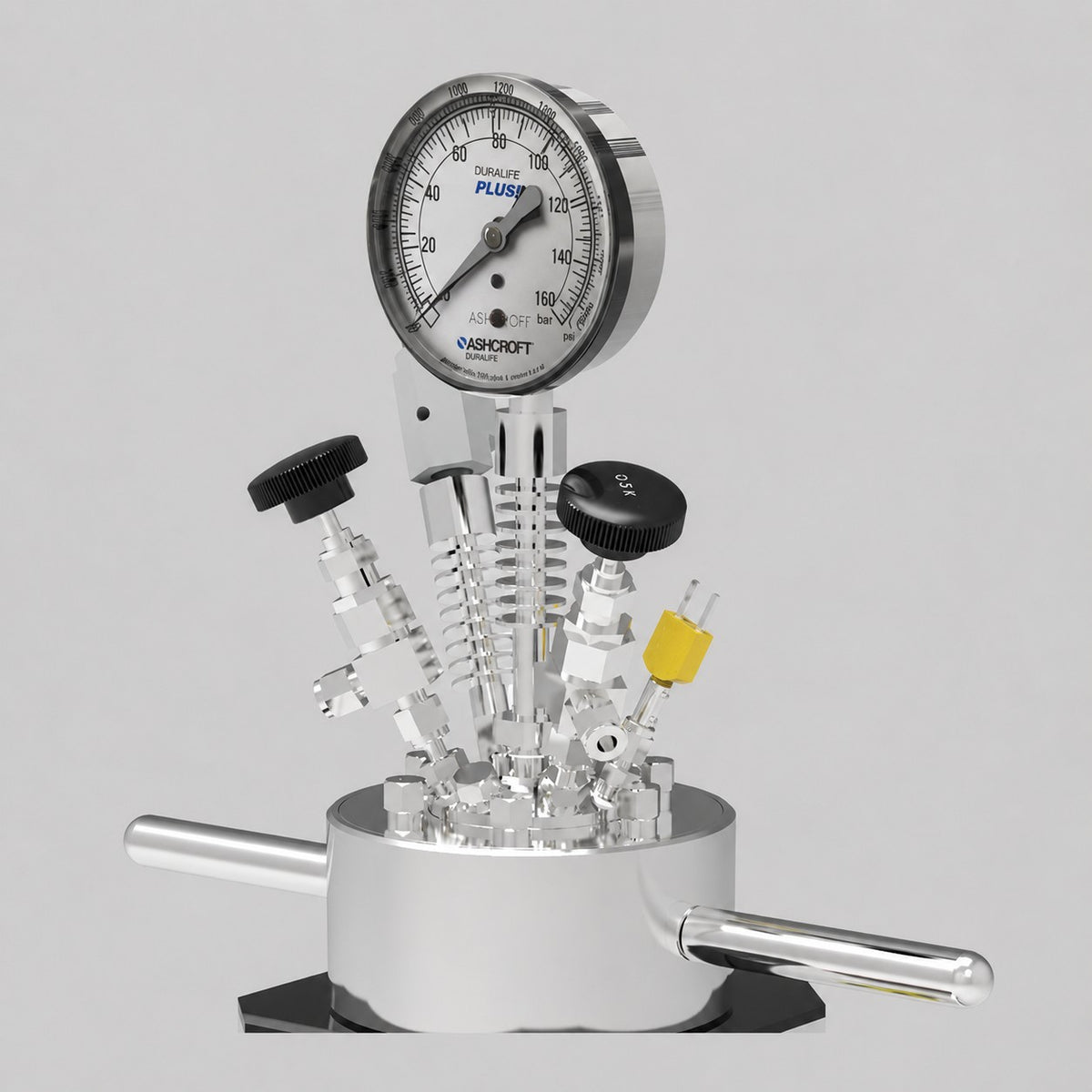

Hydrothermal Synthesis Reactor ALAB-ZN-100KC-1P3T3S6B

The Hydrothermal Synthesis Reactor ALAB-ZN-100KC-1P3T3S6B is a laboratory hydrothermal synthesis reactor.

Specifications

• Capacity: 0.07 m³ (345mm*370mm*520mm)
• Design Pressure: -0.1~10 MPa
• Type: F-series flange reactor, K-series quick-opening reactor, Y-series one-touch quick-opening reactor
• Inner Material: Standard Material: 316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy
• Outer Material: Standard Material: 316L, customizable materials include Hastelloy, Monel alloy, and Inco nickel alloy
• Core Components: Stainless steel pressure sensor, Pressure gauge, Proportional Unloading Valve, Temperature sensor connector, Inlet valve, Exhaust valve, Electric Heating and insulation module, touch screen, PLC Control cabinet, Reserve port (optional for sampling or sample injection)
• Design Standard: Pressure vessels GB/T 150.1-150.4-2024
• Dimensions: 345*370*520
• Weight: 23 kg
• Volume (M³): 0.07(345mm*370mm*520mm)
• Working Temperature(℃): 20-300
