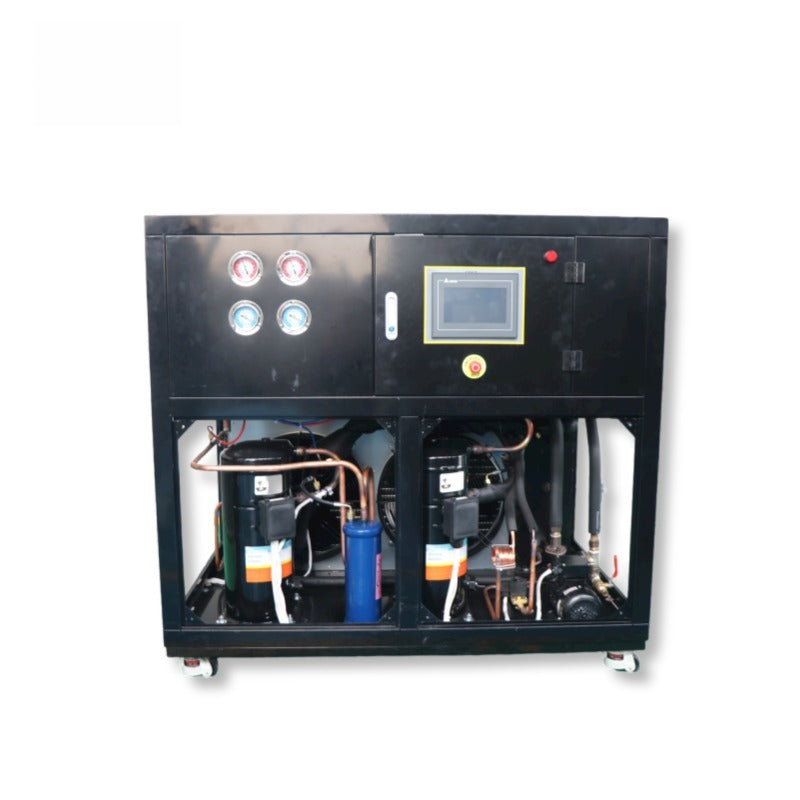

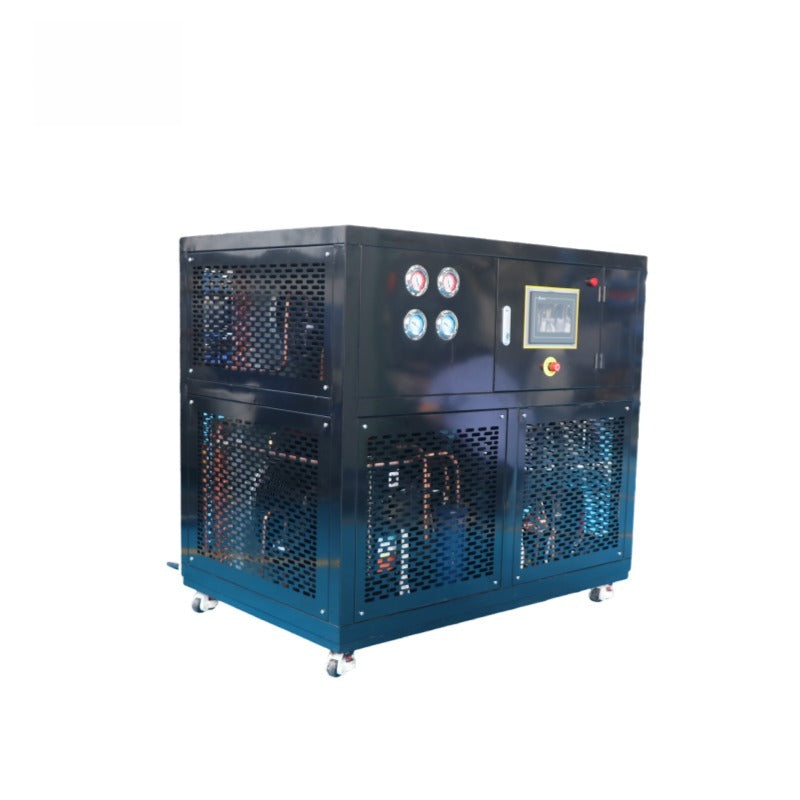

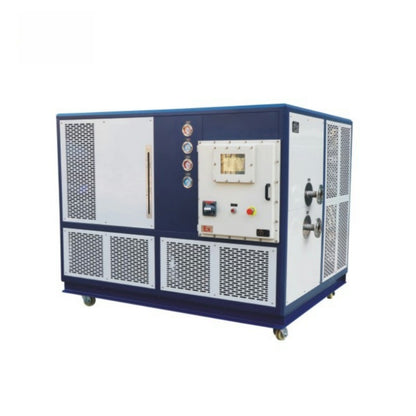

The DLSB-500 is an industrial circulating chiller with a plate heat exchanger, for cooling-water circulation in industrial and laboratory processes. Three models are available (ALAB-DLSB-500/30, ALAB-DLSB-500/80 and ALAB-DLSB-500/120), differing in their no-load minimum temperature class - see the comparison table below for the specifications of each model. Verified shared specifications: SUS304 construction, R22 / R404A / R407C / R134A refrigerant and a refrigerating & circulating function.
Model Comparison
Specification
ALAB-DLSB-500/30
ALAB-DLSB-500/80
ALAB-DLSB-500/120
Tank Capacity
500L
500L
500L
No-Load Minimum Temperature
-30°C
-80°C
-120°C
Material
SUS304
SUS304
SUS304
Refrigerant Type
R22 / R404A / R407C / R134A
R22 / R404A / R407C / R134A
R22 / R404A / R407C / R134A
Function
Refrigerating & Circulating
Refrigerating & Circulating
Refrigerating & Circulating
Voltage
220V/380V
220V/380V
220V/380V
Voltage note for US customers: This unit operates on 380V three-phase power. Standard US outlets supply 110–120V single-phase, so a suitable industrial power supply is required.
