Jacketed Glass Reactor

Jacketed Glass Reactor

$1,098.90 USD
$1,098.90 USD
Sale Sold out

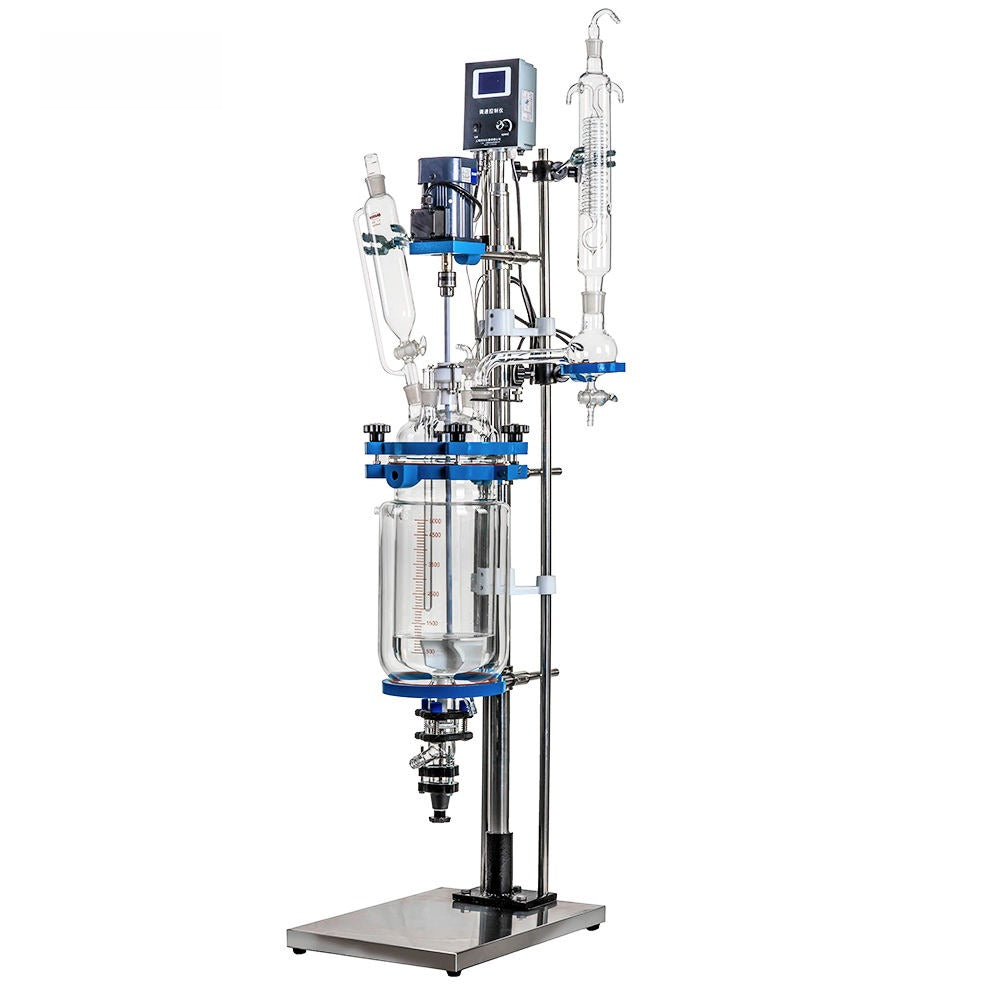

Double-wall jacketed glass reactor with condenser, feeding and recovery tanks on a SUS304 frame with lockable casters, for synthesis and pilot production from 1L to 200L.

Model Comparison

Model Volume Jacket volume Condensation area Feeding tank Recovery tank Working temperature Pressure in kettle Stirring speed Glass Frame
1L 1L 1L — — — -120 to 300C -0.1 to 0.1MPa 50-680rpm High borosilicate 3.3 SUS304
5L 5L 2L 0.3 m2 0.5L 3L -120 to 300C -0.1 to 0.1MPa 0-600rpm High borosilicate 3.3 SUS304
10L 10L 3L 0.6 m2 1L 5L -120 to 300C -0.1 to 0.1MPa 0-600rpm High borosilicate 3.3 SUS304
20L 20L 6L 0.7 m2 1L 5L -120 to 300C -0.1 to 0.1MPa 0-600rpm High borosilicate 3.3 SUS304
50L 50L 16L 0.429 m2 2L — -120 to 300C -0.1 to 0.1MPa 0-600rpm High borosilicate 3.3 SUS304
100L 100L 30L 1.1 m2 2L 20L -120 to 300C -0.1 to 0.1MPa 0-600rpm High borosilicate 3.3 SUS304
200L 200L 60L 1.6 m2 2L 20L -120 to 300C -0.1 to 0.1MPa 0-600rpm High borosilicate 3.3 SUS304
