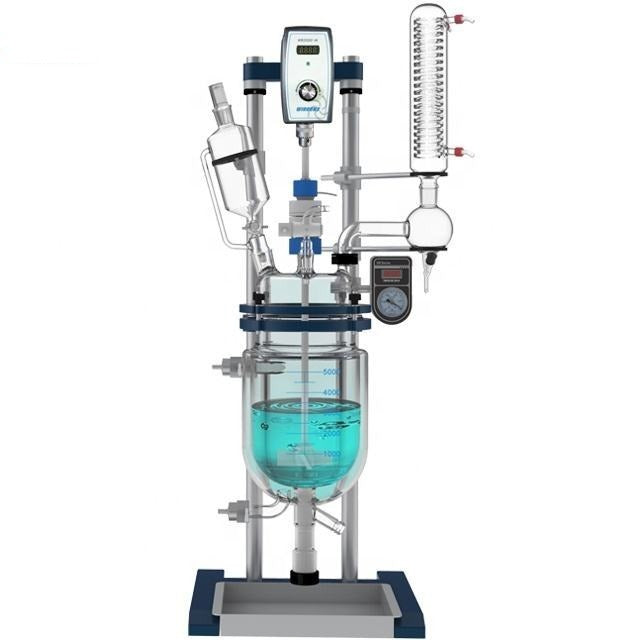

The GR-3L is a 3L jacketed glass reactor with a SUS304 frame and high borosilicate glass 3.3 wetted parts, rated for vacuum or normal-pressure operation from -80 to 200 C.
Specifications
Model: GR-3L
Capacity: 3L
Working Temperature: -80 to 200 C
Operating Pressure: Vacuum or normal pressure
Glass Material: High borosilicate glass 3.3
Frame Material: SUS304

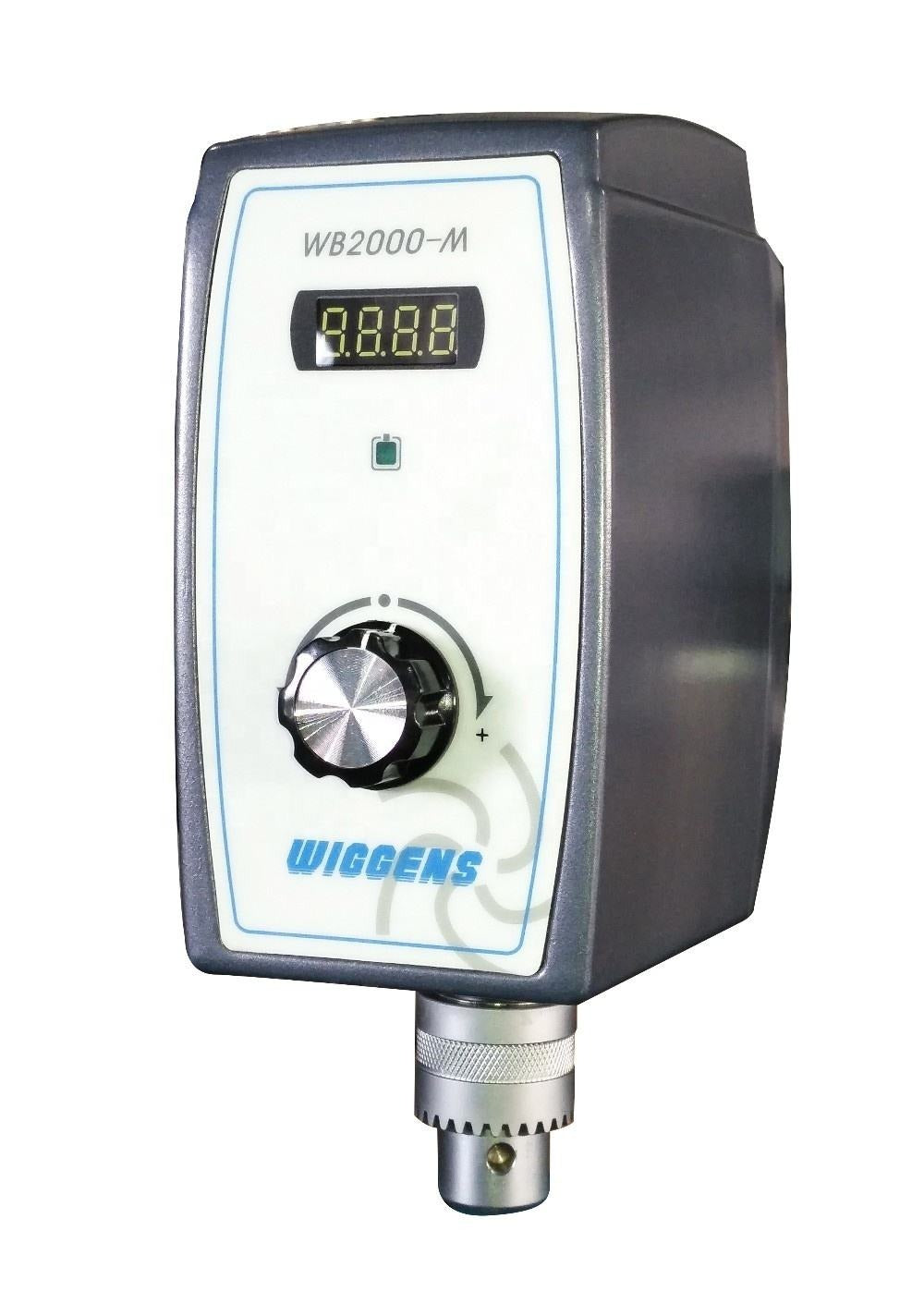

Stirring: Propeller agitator

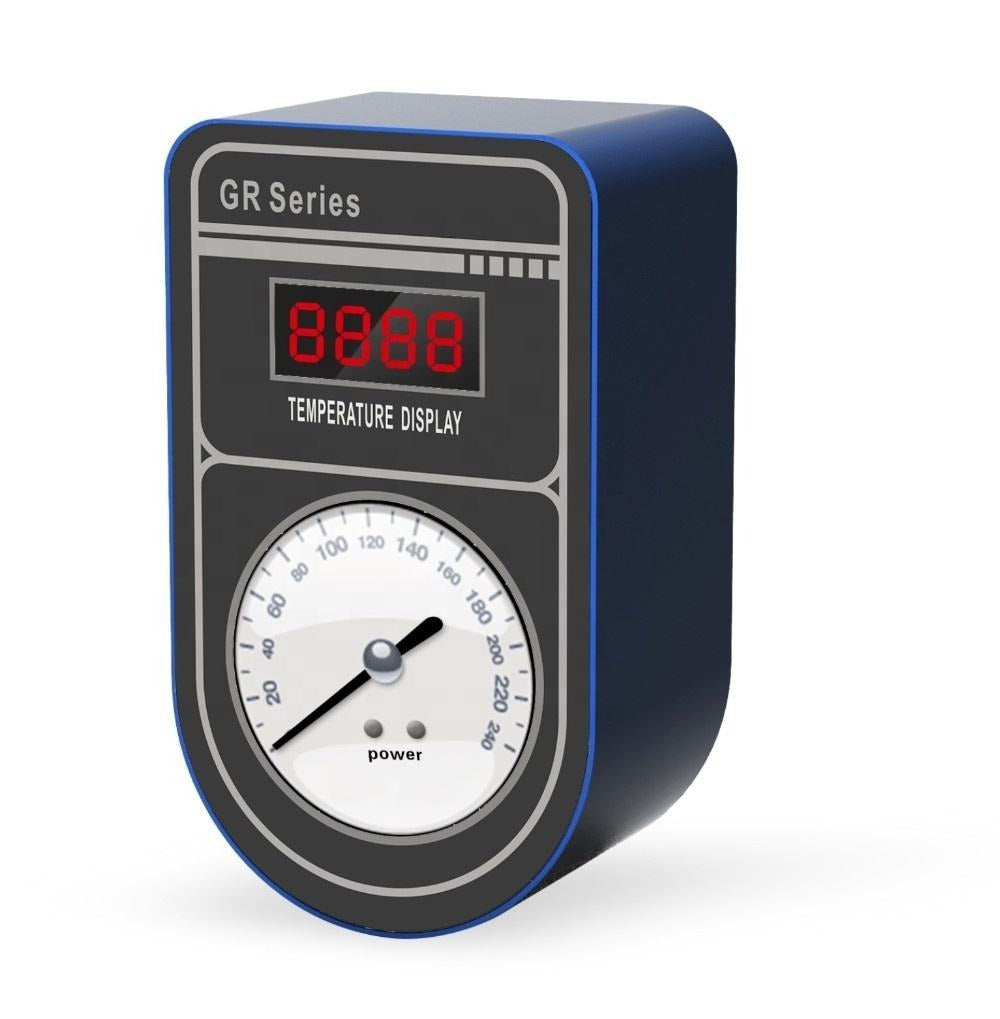

Temperature Sensor: Stainless steel with PTFE coating, double anti-corrosion
Liquid Inlet/Outlet: DN15 flange opening
Power: 70W
Power Supply: 220-240V~, 50/60Hz
Dimensions: 405 x 420 x 1020 mm
Weight: 11 kg
Warranty: 1 Year
Voltage note for US customers: This unit operates on 220V. Standard US outlets supply 110-120V, so a 220V circuit or a suitable step-up transformer is required.
